Principal LED Street Wrap Gen 2 User manual
INSTALLATION GUIDE
P-LED.com
(325) 227.4577
GETTING STARTED
Inspect the boxes for damage and check the parts
against the supplied parts list.
Note: Report damaged parts or shortages immediately to
prevent job slowdown/stoppage to place of purchase.
Refer to the Build-A-Border document provided on our
webiste at P-LED.com/street-wrap-gen-2 and conrm
job measurements.
Lay out your job on paper, making note of Power
Supply placement. Power Supplies can be placed at the
end of runs or side by side to power allowable linear
footage in each direction.
COMPONENT IDENTIFICATION & REQUIRED TOOLS
MATERIALS
Aluminum Extrusion
Lens (Acrylic)
Mounting Clip
Prole Dimensions w/ Mounting Clips
Acrylic, UV and impact resistant
Aluminum
Street Wrap 1.25”W x 96”L x 2.1875”H
REQUIRED TOOLS
• 25' Measuring Tape
• 100' Measuring Tape Framing Square
• Square -1’
• Phillips Screwdriver
• Portable Rechargable Drill
-5/16" hexbit and unibit
-Masonry bits (If brick wall)
• Extension Cord
• Phillips Screwdriver
24VDC LIGHT TAPE SPECS ELECTRICAL
CONTENTS
Input 100-277VAC
Output 24VDC
Maximum Load 96W
Current at Max. Load 4A
1.
2.
3.
Note: If job measurements do not correspond to provided drawing, call
Principal LED immediately at (325) 227-4577. Remember: No more than
four (4) 96” units per 96W Power Supply.
Following these few simple steps will ensure a successful
installation each time.
Read all instructions before starting installation.
Color W/Ft. W/Unit
Pure White 2.75 22
Red 2.75 22
Blue 2.75 22
Green 2.75 22
*RGB 2.75 22
• Sawzall or Compound Saw
• Carpenter Pencil
• Caulk Gun
• Box Knife
• Wire Strippers
• Wire Snips
• Laser Tool or Chalk Line Substitute
Fasteners for the Application if Applicable
W
warranty
5P5L
Page 2 Mounting Bracket Layout
Page 3 Installing Street Wrap into Mounting Brackets
Page 4 How to Wire RGB
Page 5 Custom Cut to Fit End of Runs & Corners
Page 6 Corner Mounting Options
Page 7 Mounting on Incline or Vertically
Page 8 Connecting Transformers
24V Light Tape comes pre-installed.
LED TUBE X-C-SR2-ULXX
LED TRACK X-C-SR2-BASE
MOUNTING BRACKET A-SR2-BKTS
END CAP A-SR2C-ECYY ANGLE BRACKET
QWIK BOX™
96W Power Supplies
PL-96-24-U (P-OH096-24-PL) INSIDE CORNER PIECE A-SR2C-CIYY
OUTSIDE CORNER PIECE A-SR2C-COYY
PLTC CABLE PL-LE3-PLTC-18-2
MIDDLE CONNECTOR A-SR2C-MXYY
YY = Blue (BL), Green (GR), Red (RD), White (WH)
STREET WRAP GEN 2™ MOUNTING BRACKET LAYOUT
1. Use a chalk line, gauge, laser level, or other means to be certain the run is straight, marking locations for brackets.
Install three (3), evenly spaced, mounting brackets per section. Ensure there are at least two inches between the end
of the track and the mounting bracket as shown in the picture above.
Use a 0.125” drill bit to add a drain hole in lens in the center of the run. Never drill drain hole when installed on the
LED base.
2.
3.
Note: There must be a 0.1875” space left between each section when using middle or corner connectors.
NOTE: MAXIMUM 4 UNITS PER 96W POWER SUPPLY
120 or 277 VAC 96W Power Supply
384”
96”
2
4.375”
INSTALLING STREET WRAP GEN 2™ INTO MOUNTING BRACKETS
Connect wires from one section to another using red butt splice wire connectors, silicone lled wire
nuts or TE connectors. No more than two (2) 96”units in a series.
Lay the section being added on the mounting brackets. After making wire connections, tuck the wires
and connectors BEHIND the base track. Caulk notch.
Place track with LEDs, but no lens, over mounting brackets and press rmly, until securely snapped in
place.
Bring Street Wrap™ sections close together by pushing sections together, leave a 0.1875”approximate
expansion gap between track sections.
Install Lens on LED base.
Install an End Cap at the beginning and end of runs with silicone.
Finish by clipping a middle connector over both sections. Use a small amount of silicone.
1.
2.
3.
4.
5.
6.
Push LED base onto mounting bracket.
Base Mount
Installed properly.
7.
3
HOW TO WIRE RGB STREET WRAP GEN 2™
POWER AMPLIFIER FIGURE
Also see RGB Controller spec sheet for more information on wiring.
4

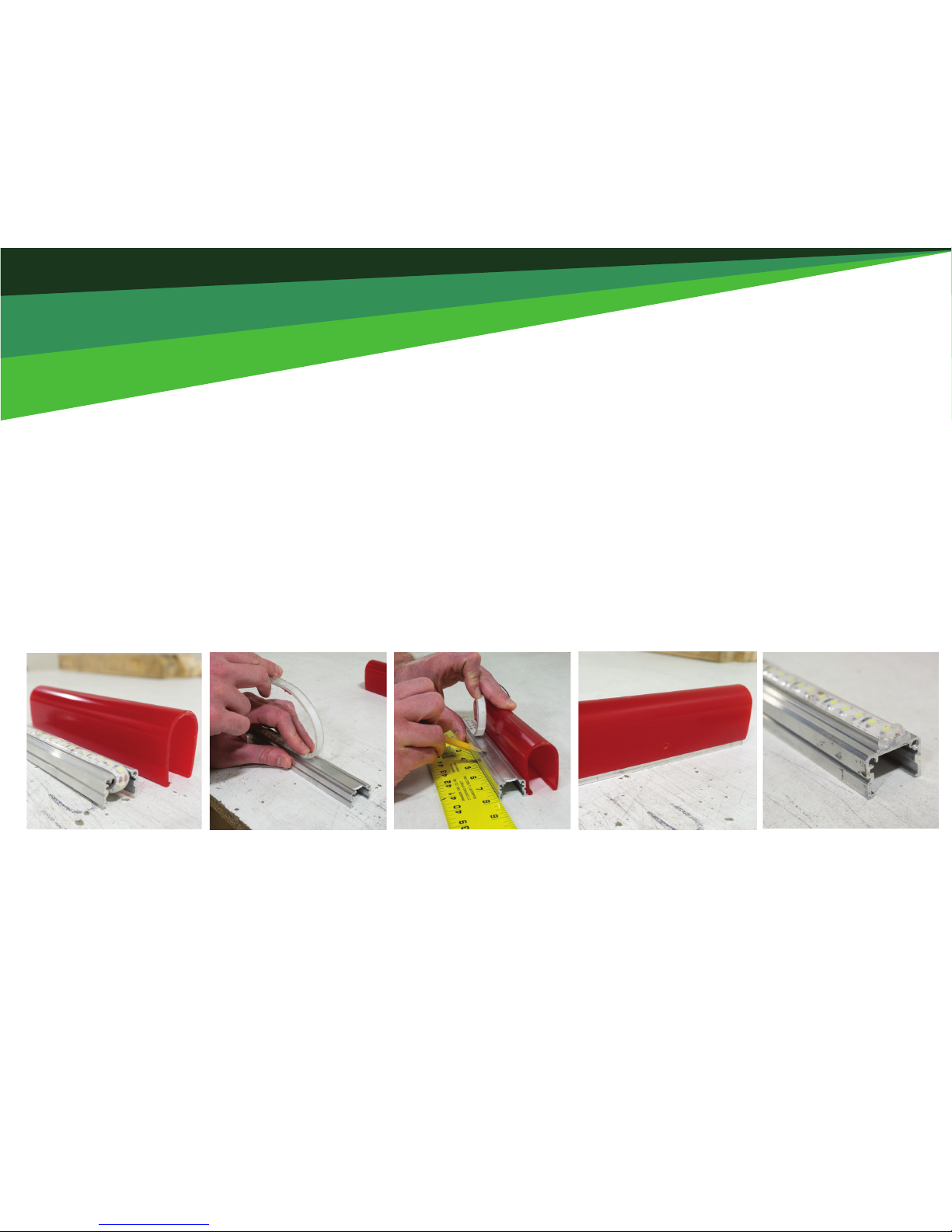

CUSTOM CUT TO FIT END OF RUNS & CORNERS
Peel back light tape before cutting track.
Measure, mark and cut lens and track to required length. Use a ne blade.
Add drain holes in the center of the cut piece of lens before reinstalling the lens to the base.
Reinstall light tape to desired length ensuring to silicone down the tape and using silicone to seal cuts made to light tape.
1.
2.
3.
4.
Insulate or remove unused wires at the end of run to prevent shorting. Do not connect wires together or to next circuit.
VERY IMPORTANT
END OF A RUN
1234
NOTE: Always test-light the Street Wrap Gen 2™ after making eld cuts. Never connect AC voltage lines to LEDs on the Street Wrap Gen 2™.
5
CORNER MOUNTING OPTIONS
INSIDE BUTT JOINT OUTSIDE BUTT JOINT CORNER
INSIDE BUTT JOINT CORNER OUTSIDE BUTT JOINT
INSIDE MITER CUT CORNER
OUTSIDE MITER CUT CORNERS
6
OPTION 1 OPTION 2
0.6875
MOUNTING STREET WRAP GEN 2™ ON INCLINE OR VERTICALLY
When mounting Street Wrap Gen 2™ on an incline or vertically, two things must be prevented. First the Street Wrap Gen 2™ must be kept from sliding down, while still allowing
for expansion/contraction with temperature changes. Second, water must be sealed out with silicone since it will run down the top of the Street Wrap Gen 2™. Seal the middle
connectors to the upper Street Wrap Gen 2™ to keep water from penetrating.
Drill one (1) hole in the end cap on the bottom end of the run to allow water to escape.
Vertical Mount
0.625
Measure from center of the hole.
7
Angle Bracket

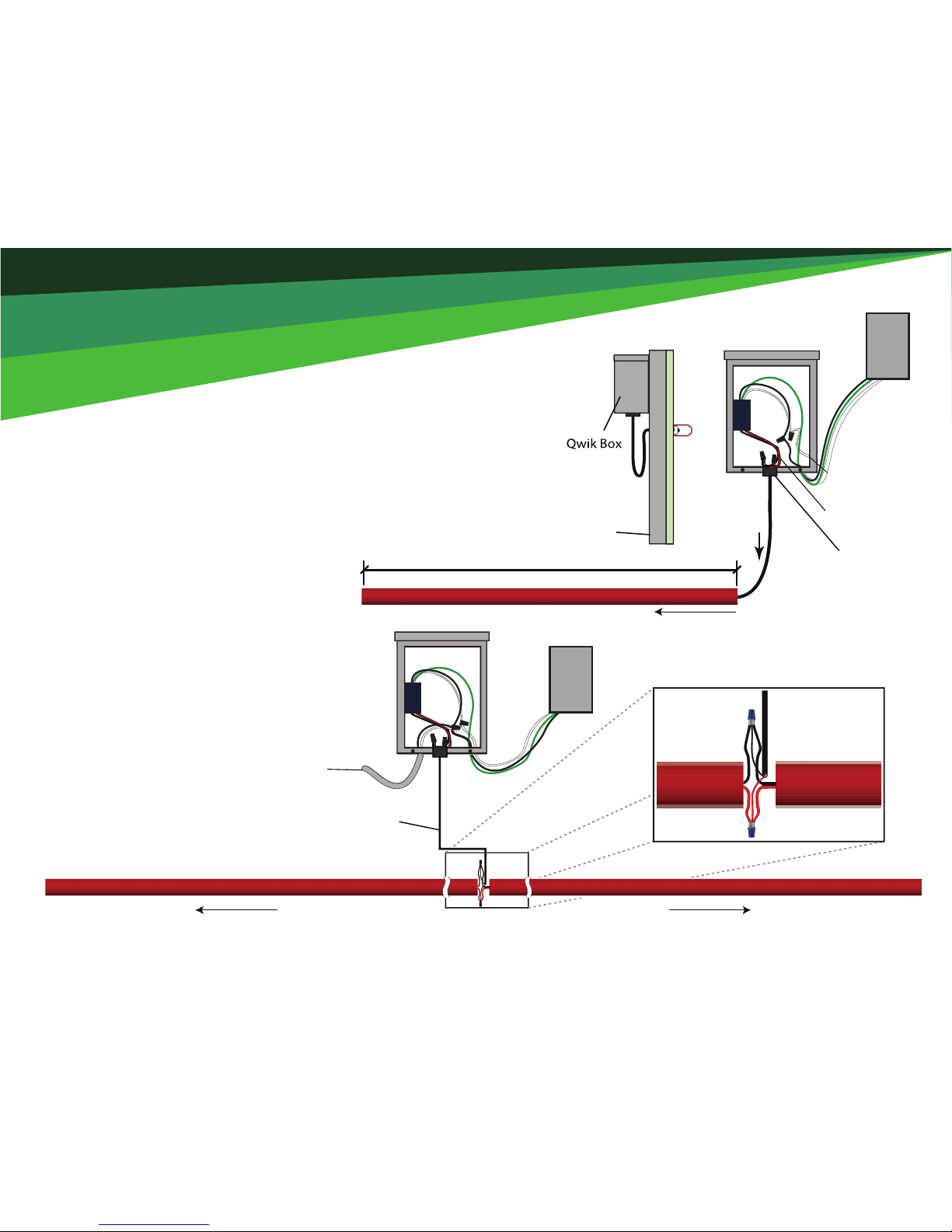

CONNECTING TRANSFORMERS
Attach Qwik Boxes to available support member. See
Qwik Box install guide.
Connect power supplies to primary wiring.
Install strain relief for low voltage wire.
Drill 1/2” hole through the fascia. A conduit tting can be
installed so that conduit can be used.
Insert low voltage wire into the hole and connect to LED.
Fill hole with silicone sealant.
Note: Stop and make sure the supplied power supply is
277VAC rated with any primary voltage greater than 120.
1.
2.
3.
4.
5.
Note: Four 96” Street Wrap™ Border per 96W Power Supply.
Side by side mounting location shown below can reduce
primary and secondary wiring labor time.
VERY IMPORTANT: KEEP LOW VOLTAGE CIRCUITS ELECTRICALLY SEPARATE, DO NOT CONNECT TRANSFORMERS OR LEDs FROM DIFFERENT 96” STREET WRAP
GEN 2™ TOGETHER OR CONNECT MORE THAN FOUR 96” STREET WRAP GEN 2™ TO A 96W POWER SUPPLY!
Primary 100-277VAC (IN)
Secondary 24VDC
Low Voltage (OUT)
TO LEDS
Fascia
DO NOT
CONNECT
HIGH VOLTAGE
TO LEDs. LEDs
ARE 24VDC
ONLY!
24 VDC
Low
Voltage
96” 96”
8
Main
Breaker
Main
Breaker
Connect Black and White
wires from Power Supplies
to 100-277 VAC
Connect Red and Black Low
Voltage Wires from
Transformers to LEDs
Power Cable Strain
Relief Fitting
