This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey
all safety messages that follow this symbol to avoid possible injury or property damage
!
Model W-1804

2
SAFETY AND GENERAL INFORMATION
Save these instructions for future use. Study, understand
and follow all instructions before operating this device. The
owner and operator of this device shall have an under-
standing of the product and safe operating procedures
before attempting to use. If any doubt exists as to the safe
and proper use of this product, remove from service imme-
diately. Instructions and safety materials shall be conveyed
in the operator’s native language before use of this product
is authorized.
• Study, understand and follow all instructions before operating this device.
• When using this air compressor, basic safety precautions should always be followed to reduce risk of re or electrical
shock.
• Do not exceed rated pressure of the item being inated.
• Do not leave device operating and unattended.
• If DC plug fuse is blown, only replace with fuse of identical rating.
• This device contains a DC motor and components which may arc during normal operation. This arcing may ignite
ammable gases. Do not operate in a ammable environment.
• Keep out of reach of children.
• The power cord on this product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm. Wash hands after handling (California law requires this warning to be given to customers
in the State of California).
• Do not alter this product.
• Failure to heed these markings may result in personal injury and/or property damage.
!WARNING
Inspect before each use. Do not use if bent, broken, melt-
ed, burned or otherwise damaged components are noted.
A compressor that is damaged in any way or operates
abnormally shall be removed from service immediately.
This unit is designed for intermittent use only. Operation
beyond it’s designed duty cycle may result in compressor
and/or vehicle damage. NEVER exceed rated pressure of
the item being inated. If rated pressure is exceeded, the
item being inated may burst.
PRODUCT DESCRIPTION
The Pro-Lift Air Compressor is designed to inate automo-
tive and light truck tires to manufacturer’s recommended
pressure. It can also be used to inate inatables such as
rafts, cushions and sports balls. It has a built-in LED work
light and ashing red LED warning light . Refer to the ve-
hicle’s owners manual or inatable product owner’s manual
before using the compressor.
OPERATION
Work Light/
Warning Light
Fused 12V DC Plug
(underneath not shown)
Air Hose with
Screw Connect
Pressure
Gauge
Compressor
ON/OFF Switch

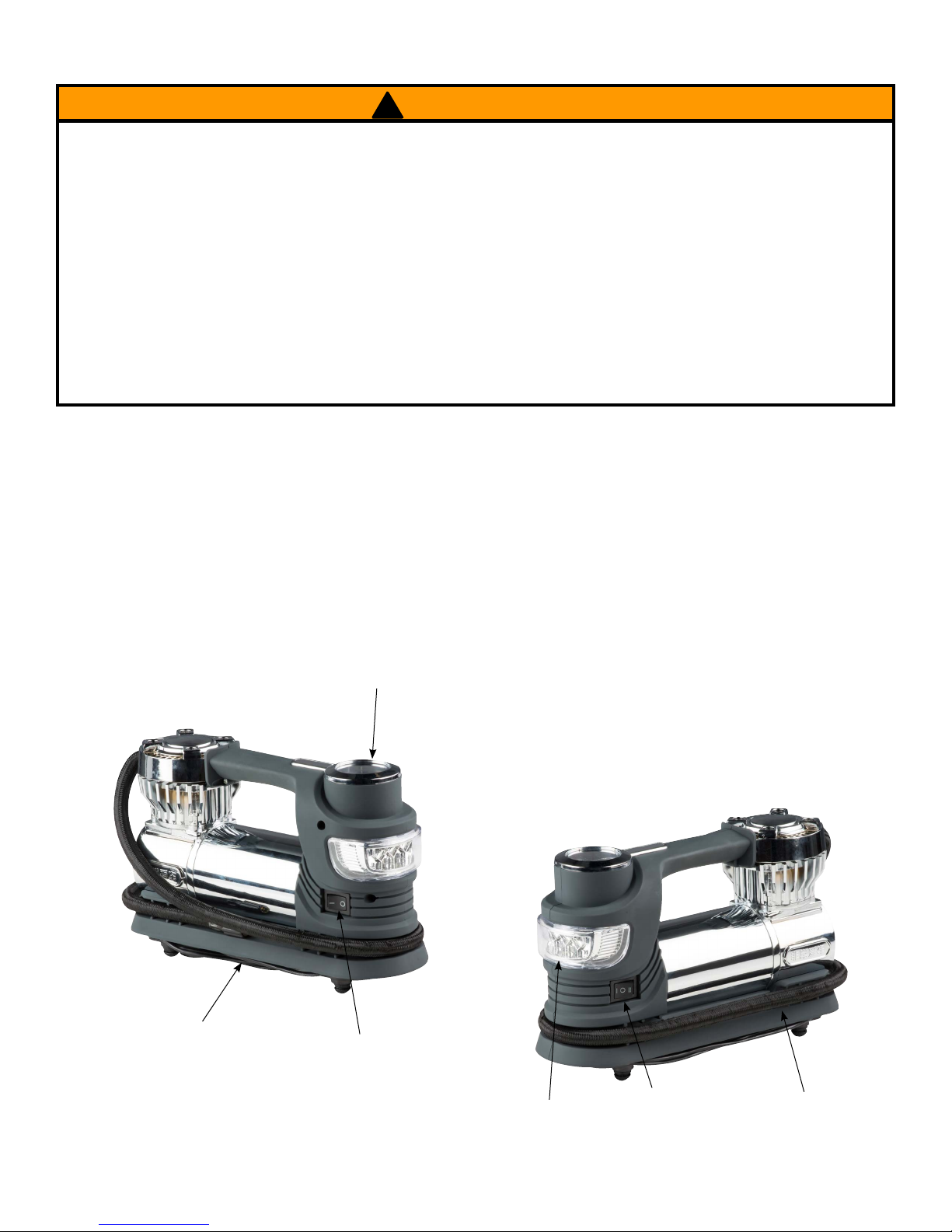

Figures 1 & 2 - W-1804 Nomenclature
Work Light
Switch

3
A. High Pressure Inatables (Tires)
1. Remove air hose and screw inator nozzle onto tire
stem.
2. Remove Power Cord from storage compartment and
insert into a suitable outlet or 12V DC source. Toggle
compress ON/OFF switch to ON position. Unit will begin
inating.
3. Inate until object reaches its original shape, use pres-
sure gauge as a reference for desired pressure (deter-
mined from vehicle or tire manufacturer’s specication).
4. When near correct operating pressure, toggle compres-
sor ON/OFF switch to OFF and unplug the inator power
cord.
5. Use a tire gauge to check ination and adjust to desired
pressure as recommended by the vehicle and/or tire
manufacturer.
NOTICE: Always double check air pressure using a reli-
able pressure gauge.
B. Low Pressure Inatables
1. To inate air mattresses, beach balls, life jackets, etc.,
select the suitable adapter (Fig. 3), then insert and se-
cure into the end of the air hose (Fig. 2).
2. Insert the connector adapter into the appropriate receiver
on the inatable.
3. Plug the inator into a DC 12V outlet. Toggle compres-
sor ON/OFF switch to ON position. Unit should com-
mence ination.
4. Inate to a pressure or level of rmness recommended
by the manufacturer. Toggle compressor ON/OFF
switch to OFF then unplug the power cord from the DC
12V outlet.
C. Operating the Work Light
1. Plug the Compressor into a suitable 12V DC power
source.
2. Toggle Light switch to II position for steady, high-intensi-
ty, work light. Toggle switch to I position for emergency
red ashing light. Centered switch position extinguishes
light.
E. REPLACING THE FUSE
(15A 6mm dia. x 30mm glass tube current fuse)
1. Unscrew the plastic 12V DC plug cap.
2. Gently remove 15A fuse and replace with fuse of same
rating and size.
3. Place fuse properly in position to allow installation of
plastic cap.
4. Reinstall plastic 12V DC plug cap.
TIPS FOR OPERATION
1. Ensure vehicle battery is sufciently charged to operate
compressor.
2. If Compressor does not operate when plugged into a
DC 12V outlet, check connections at back of DC 12V
plug as well the fuse receptacle. Replace as needed
with a fuse of identical rating. Never replace with fuse
of higher rating. No user replaceable parts exist for this
item, refer any repairs to qualied personnel only.
3. Do not overheat the Compressor, monitor cycle times
(Compressor on and off periods). Never exceed 15 min-
utes continuous running. Let unit cool for 15 minutes,
then reattempt use.
4. Operate and store in a clean, dry environment. Do not
obstruct the unit’s cooling vents.
Performance Tip: Keep your tires inated per the vehicle’s
owner’s manual. This will increase gas mileage and re-
duce tire wear.
SPECIFICATIONS
Model: W-1804
Power Requirement: 12V DC
Maximum PSI: 80 psi
Duty Cycle: 15 min. on/15 min. off
Power: 120W @ 12V DC
Fuse: 15A (6mm x 30mm)
Maximum Air Flow: 1.05 CFM (high pressure)
Air Hose Length: 23”
Power Cord Length: 10 ft.
Figure 3
Sports Adapter
Large Diameter
Air Hose
Adapters for Inatables

4
