Promeba PB-4405 User manual

Ctra C-16 Km 59.5
08650 Sallent (BCN)
T.93 837 12 00 FAX [phone]
[email protected]
AUTOMATIC LOAD TRAY PB-4405
AUTOMATIC LOAD TRAY PB-4405
Ctra C-16 Km 59.5 · 08650 Sallent (BCN) · T. 93 837 12 00 · Fax [phone] · www.promeba.com · [email protected]
Product Warranty
Warranty of the products have passed successfully a
all quality controls, functional and materials.
The duration of the warranty is one year from the date
of departure of its stores.
Excludes damage caused by improper use or lack of
maintenance of the product, as well as damage caused
by transportation or improper storage.
The manufacturer or distributor will discuss the
defects found in their products and will be ultimately
responsible to say the shipment of parts for repair, or
replacement of the product. (In no case Promeba sent
to operators of such repair or replacement). Promeba
S.L. retains the right to refund the product if it thinks
fit.

Ctra C-16 Km 59.5
08650 Sallent (BCN)
T.93 837 12 00 FAX.[phone]
[email protected]
1.1 Use of manual
1.2 Sheet
2.1 Unpacking and installation
2.1.1 Regulating of he height of load
2.1.2 Regulating of the load position
2.1.3 Regulating the stopping distance
2.1.4 Regulating of the travel hooks
2.2 Switching elements
2.3 Command
2.4 Detectors
2.5 Loading and unloading
2.6 Movements
2.7 Performance indicators
2.8 Manual Override
2.9 Tensors
1. Introduction
2. Operation
Index
11
3. Product warranty
2

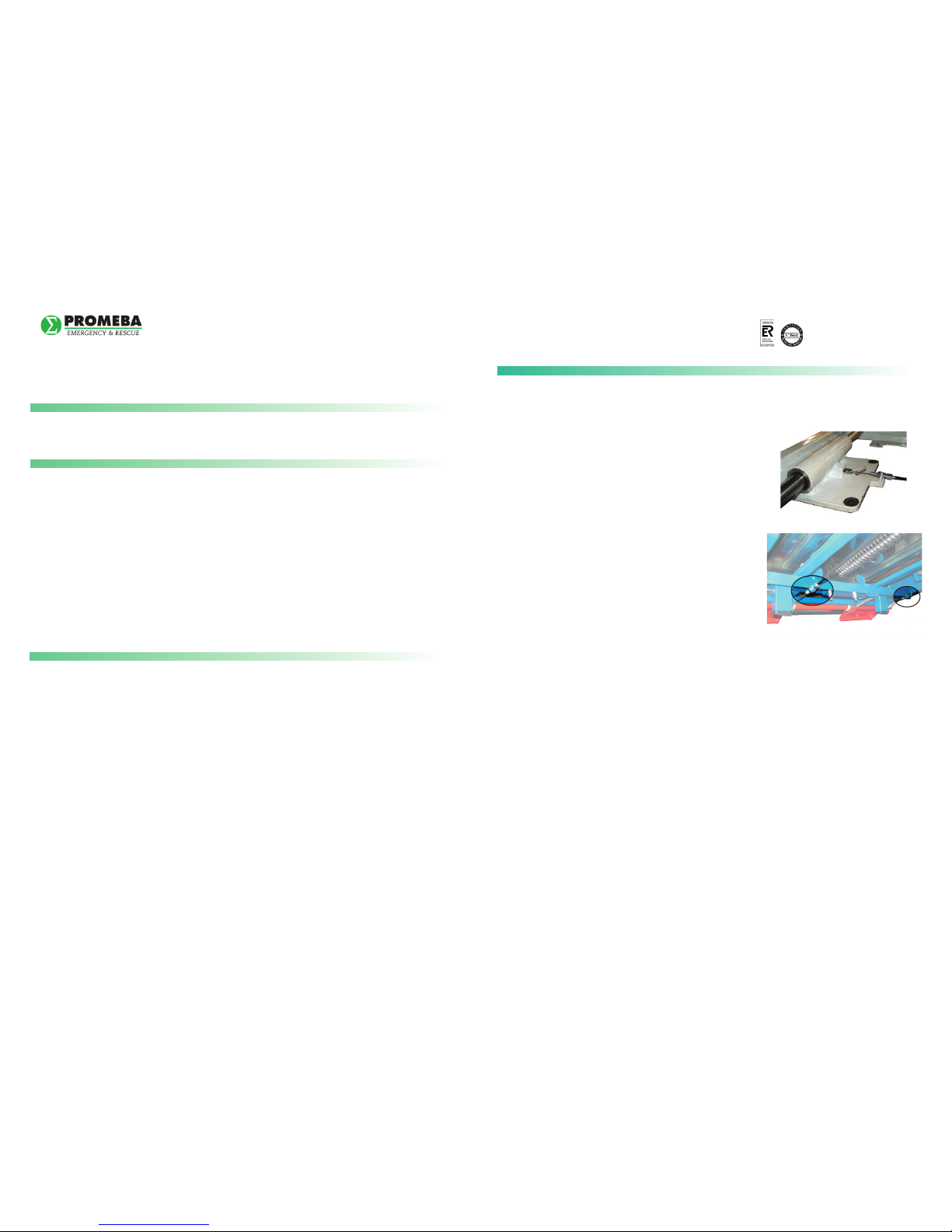

2.9 Tensors
To adjust the tension of the cable drive the au-
tomatic load tray has 2 sets for control tensors.
A- Trembler lever side
. Double set of tensors located at each floor
fixing plates.
B- Trembler front side
. Double set of tensors located in the rear side
of the platform.

Ctra C-16 Km 59.5
08650 Sallent (BCN)
T.93 837 12 00 FAX.[phone]
[email protected]
3
The contents of the manual includes instructions
for use and maintenance of the machine, as
well as how to solve small breakdowns that may
arise.
Is recommended before operating the automatic
load tray will carefully read the manual to can
avoid damage to the automatic load tray because
of misuse.
This manual must go always with the automatic
load tray.
Every automatic load tray have a label with
the identification number and the reference.
Keep these numbers so that they can tell the
manufacturer / distributor if necessary.
1.1 Use of manual
Introduction
10
2.8 Manual override
In the event of damage to some electrical
components the automatic load tray must operate
in manual mode as follows:
System for setting the table
Unlock hooks fixing the stretcher bar unblocking
pushing back.
NOTE: the stretcher is fully released so that must
be restrained in some way in the case of
not being in horizontal position.
Drive system
Raise the stretcher attached by tow hooks
provided by the handle. The operation it from
the top of the engine.
NOTE: don’t toggle the handle without emergency
stop activated.
Tilt system
Remove one of the axes of rotation of actuator
and let loose. Once released, press the lever
for manual located in the rear of the bed to tilt
manually.
NOTE: to return the actuator shaft to press the
lever in the hand to avoid damaging the
automatic.

Ctra C-16 Km 59.5
08650 Sallent (BCN)
T.93 837 12 00 FAX.[phone]
[email protected]
4
1.2 Sheet
Lenght 2.214 mm. Power supply 12 Vdc (±2V)
Width 625 mm. Consumed power 100 A
Height 320 mm. Trendelemburg -
+ 10º
Weigh 136 Kg Load capacity 210Kg
Lateral movement 300mm
9
426
2214
625
2.6 Movements
Lateral movement
. Press the foot pedal moving laterally across the
bed (including pedal)
Lateral displacement is 300mm and has 5 locking
positions.
Trendelemburg
. Press the button on the front of the platform (the
motion will occur while the switch is tight)
Declive position in the actuator reaches the end
of tour and heard a noise that does not involve
any risk of damage to the machine.
The automatic load tray incorporates one LED in
the cover of the engine that indicates the ope-
rating status and have the following codes:
A pulse every 2 seconds: is ok.
. Sequence of 1 pulse: trolling motor error.
. Sequence of 2 pulses: tilt actuator error.
. Sequence of 3 pulses: feed error (<10V)
. Sequence of 4 pulses: encoder error.
. Sequence of 5 pulses: blocked leg detection
. Seq. of 6 pulses: Emergency Stop Activated
Also incorporates an acoustic signal to advise of
the immediately movement of the machine.
2.7 Performance Indicators

Ctra C-16 Km 59.5
08650 Sallent (BCN)
T.93 837 12 00 FAX.[phone]
[email protected]
5
Operation
2.1 Unpacking ang installation
Is recommended check the automatic load tray
before its installation. In case found any problem
please contact immediately to the distributor.
In every automatic load tray will receive a fuse
to be installed in the ambulance to protect
equipment as well as a battery master switch.
Make sure that the bed will arrive at full load
and 12V with an inferior voltage the system can
be blocked.
Set the automatic load tray on the floor of the
ambulance by 8 screws with a hardness less
than 10.9. Make sure that the fastening stress is
evenly distributed, recommended install a steel
plate on the underside of the floor area of at
least of 300*200*8.
For adjusting the height of the load set by the
two stops located at the bottom of the platform.
Ensure that the guide wheels of the stretcher are
placed at the end of the steel tray. Once they
graduate mechanical stops adjust the detector
in one of them for the proper functioning of the
system.
NOTE: not grade the bank at less than it could
cause serious damage to the stretcher.
8
Removal of the stretcher of the ambulance
. Toggle extraction and removing the platform
longitudinally
. Press the button to download (the first pla-
tform tilts to the default position and then
draw the table).
Enter the stretcher in the ambulance
. Push the stretcher until the hooks hold it up
(the table begin to move into the platform and
placed in horizontal position).
. Toggle extraction and enter the platform longi-
tudinally.
or
. Toggle the load switch.
NOTE: while the table is rising push the relea-
se lever of the rear leg of the stretcher
because otherwise they can cause serious
damage.
2.5 Loading and unloading
2.1.1 Regulating of he height of load

Ctra C-16 Km 59.5
08650 Sallent (BCN)
T.93 837 12 00 FAX.[phone]
[email protected]
6

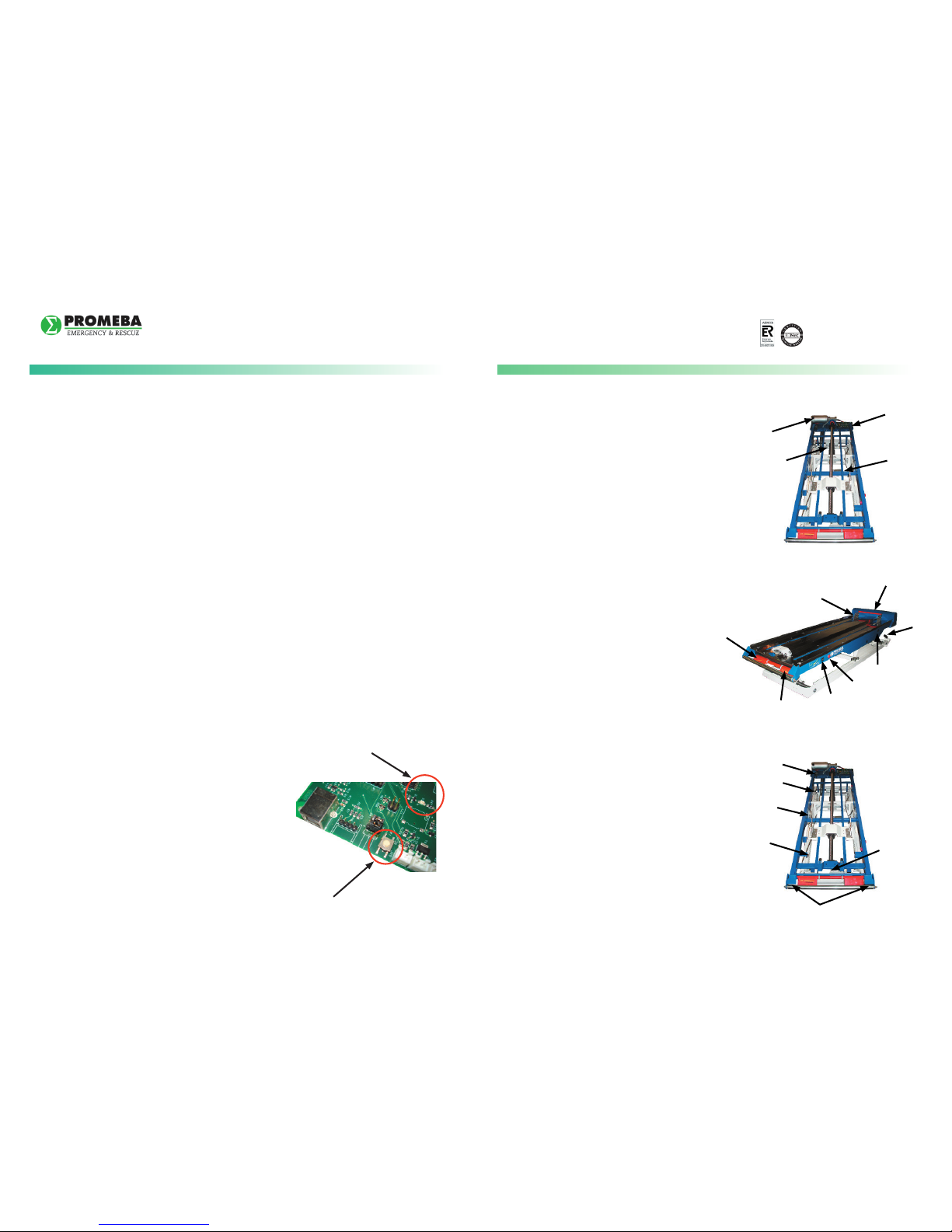

2.2 Switching elements
1. Trolling motor
2. Electronic board
3. Electromagnet lock
4. Tilt actuator
1. Use manual actuation plate
2. Release lever
3. Button loading / unloading
4. Emergency Stop
5. Trendelemburg button
6. Motion at lateral lever
7. Worm drive manual
8. Stretcher hooks
1. Open hook detector
2. Encoder
3. Charge detector
4. Horizontal position detector
5. Upload limit
6. Leg stretcher locked detection
2.3 Command
2.4 Detectors
7
1
23
4
8
7
6
5
1
2
43
12
3
4
5
6
2.1.2 Regulating of the load position
To graduate the load position it must remove the
caps located in the posterior of the automatic
load tray. To determinate this position you have
to put the automatic load tray in loading position
(point 2.5.) and submit the stretcher to the front
legs touch the automatic load tray . Hooks in
place the load must be ahead of the tie bar of
the stretcher to prevent damage.
To determinate the stopping distance of the hooks
you must fit the stretcher with the hooks since
the stretcher be completely in the automatic
load tray. Once determinate the position you
must graduate the limit switcher located in the
front of the automatic load tray and remove the
3rd posterior anchorage point.
If you alter any of the above two parameters have
to graduate the course of the hooks. To do it you
must have the hooks in the stopping position (with
the limit switched down), press the emergency
button and press the regulation button located in
the electronic card for 5 seconds since the state
led of the card flash with rapid pulse. Then use
the manual crank to reverse the auger until the
hooks are fully open. Once in its position, rearm
the emergency button and press the loading
button (point 2.3)
2.1.3 Regulating the stopping distance
2.1.4 Regulating of the travel hooks
Regulation button
Led
