prophecy gofanco PRO-KVMaud4P-RM User manual

PRO-KVMaud4P-RM
4 Port 1080p KVM with mouse roaming and USB3.0 Hub
®
Made in Taiwan
User‘s Guide

®
PRO-KVMaud4P-RM
Congratulaons for owning a gofanco product. Our products aim to meet all your
connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit www.gofanco.com.
For technical support, please email us at [e-mail].
For drivers/manuals download, please go to hp://www.gofanco.com/download.

®
PRO-KVMaud4P-RM
Please read all of these instructions carefully before you use the device. Save this
manual for future reference.
The PRO-KVMaud4P-RM 4 Port 1080p KVM with mouse roaming and USB3.0 Hub
has been tested for conformance to safety regulations and requirements, and has
been certied for international use. However, like all electronic equipments, the
PRO-KVMaud4P-RM should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this
manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of
this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed
for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the po-
wer to the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice ..................................................................3
2. Introduction .......................................................................4
3. Features...........................................................................4
4. Package Contents ..................................................................4
5. Specication ......................................................................5
6. Connection Diagram ...............................................................6
7. Panel Description ..................................................................7
8. Hotkey ............................................................................9
9. Notic .............................................................................10
10. Limited Warranty .................................................................13
3

®
PRO-KVMaud4P-RM
3. Features
The PRO-KVMaud4P-RM 4 Port 1080p KVM with mouse roaming and USB3.0 Hub
provides the most exible and cost eective solution in the market for multiple
computer management at home & oce. The KVM switch can control 4 HDMI USB
computers by one set of console peripherals (keyboard, mouse & monitor). With
built-in USB 3.1 Gen 1 hub, users can share USB peripheral devices between connec-
ted computers. Besides, this KVM switch supports a variety of video layout (5 de-
fault modes), seamless switching on one view mode and mouse roaming function.
2. Introduction
4
• Input resolution supports 480i/480p/576i/576p/720p/1080i/1080p
• Output resolution supports 1080p@60
• Video bandwidth: 6.75Gbps
• Supports 3 Display Modes: One View, Quad View, Quad View Cycled
• Supports audio extraction via stereo audio from selected HDMI input
• Supports mouse roaming
• Supports built-in 4-port USB3.1 Gen 1 HUB to share USB devices
• Supports hotkeys
• Plug and Play without any driver needed
• Firmware upgradable for support of new features and technology enhancements
• 1x PRO-KVMaud4P-RM
• 1x DC 12V 2A power supply
• 4x 3-in-1 USB host and mic/stereo cable
• 4x HDMI cable
• 1x User Manual
4. Package Contents

®
PRO-KVMaud4P-RM
5.Specications
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 282 x 112 x 44mm [11"' x 4.4" x 1.7"]
Package 331 x 162 x 204mm [1' x 6.4" x 8"]
Carton 500 x 432 x 340mm [1'6" x 1'4" x 1'1"]
Weight
Model 1005g [2.2 lbs]
Package 2605g [5.7 lbs]
Power supply 12V DC
Power consumption 12 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
5
Item Description
Technical
Role of usage 4-Port HDMI Quad-Viewer & Seamless KVM Switch
HDCP compliance HDCP 1.4
Video bandwidth HDMI [6.75Gbps]
Output Video Support 1080p60
Input Video Support 480i/480p/576i/576p/720p/1080i/1080p
Audio support Bypass
ESD protection Human body model — ±15kV [air-gap discharge] &
±8kV [contact discharge]
Input 4x HDMI/ 4x USB 3.1 Gen 1(type B)/ 5x 3.5mm phone jack
Output 1x HDMI/ 4x USB 3.1 Gen 1(type A)/
2x USB 1.1(type A)/ 6x 3.5mm phone jack
HDMI connector Type A [19-pin female]
USB connector USB3.1 Gen 1 type A / type B

®
PRO-KVMaud4P-RM
6. Connection Diagram
6

®
PRO-KVMaud4P-RM
7. Panel Description
1. Quad View mode 1: Averaged Quad View
2. Quad View mode 2: 1 Main and 3 sub Quad View
3. One View mode: Switch source in one view (full screen) mode
4. KVM Audio lock: Lock the selected PC stereo audio in/out to console
5. USB 3.1 Gen 1 Hub: Connect to USB devices
6. Console USB Ports: Connect to keyboard & mouse
7
51 2 3 4
Front Panel

®
PRO-KVMaud4P-RM
8
Position
Description
2-Pin
PIN#1 PIN#2
ON[]OFF[]KVM Firmware Update mode
ON[] ON[]KVM Firmware Update mode
OFF[]OFF[]Working mode
OFF[] ON[]Reserved
10. +12V DC: +12V DC power jack
11. Power Status: Power indicator LED
12. Micro USB: For F/W update
13. USB 3.1 Gen 1 Hub: Connect to USB devices
14. Console Stereo Audio OUT: Connect to analog stereo audio speaker
15. Console Stereo Audio IN: Connect to analog stereo audio source
16. KVM USB 3.0(Type B): Connect the USB cable to PC
17. KVM Stereo Audio IN 1-4: Connect the stereo cable to PC
18. KVM Stereo Audio OUT 1-4: Connect the stereo cable to PC
19. 2-Pin Dip Switch: For F/W update
11 14 151310 12 19
6 8 97
16 17 18
Rear Panel
7. KVM Video IN 1-4 (HDMI IN 1-4): Connect the HDMI cable to PC
8. Console Video OUT (HDMI OUT): Connect the HDMI cable to a display
9. Stereo output: Audio extraction from selected HDMI input (use hotkey to switch)

®
PRO-KVMaud4P-RM
8. Hotkey
Default setting, all of the following commands begin by pressing the [Scroll Lock] key
twice. Please follow the hotkey command listed below for selected operating functions:
9
Hot key Denition
[Scroll Lock] + [Scroll Lock] + [NUMBER1~4] Switch input 1~4 source to output
[Scroll Lock] + [Scroll Lock] + [F1] Quad view mode
[Scroll Lock] + [Scroll Lock] + [F2] Quad view cycled mode
[Scroll Lock] + [Scroll Lock] + [A] + [Number 1~4] Switch HDMI Audio extract 1~4
[Scroll Lock] + [Scroll Lock] + [L] + [A] Audio Lock/ Audio Unlock
[Scroll Lock] + [Scroll Lock] + [L] + [U] USB Lock/ USB Unlock

®
PRO-KVMaud4P-RM
9. Notic
Firmware update is proceeded through Micro-USB
KVM F/W update
1. Connect the Micro-USB to USB cable between PC and device
2. Set dip switch [PIN#1,PIN#2] to [ON[], OFF []]and then power on device

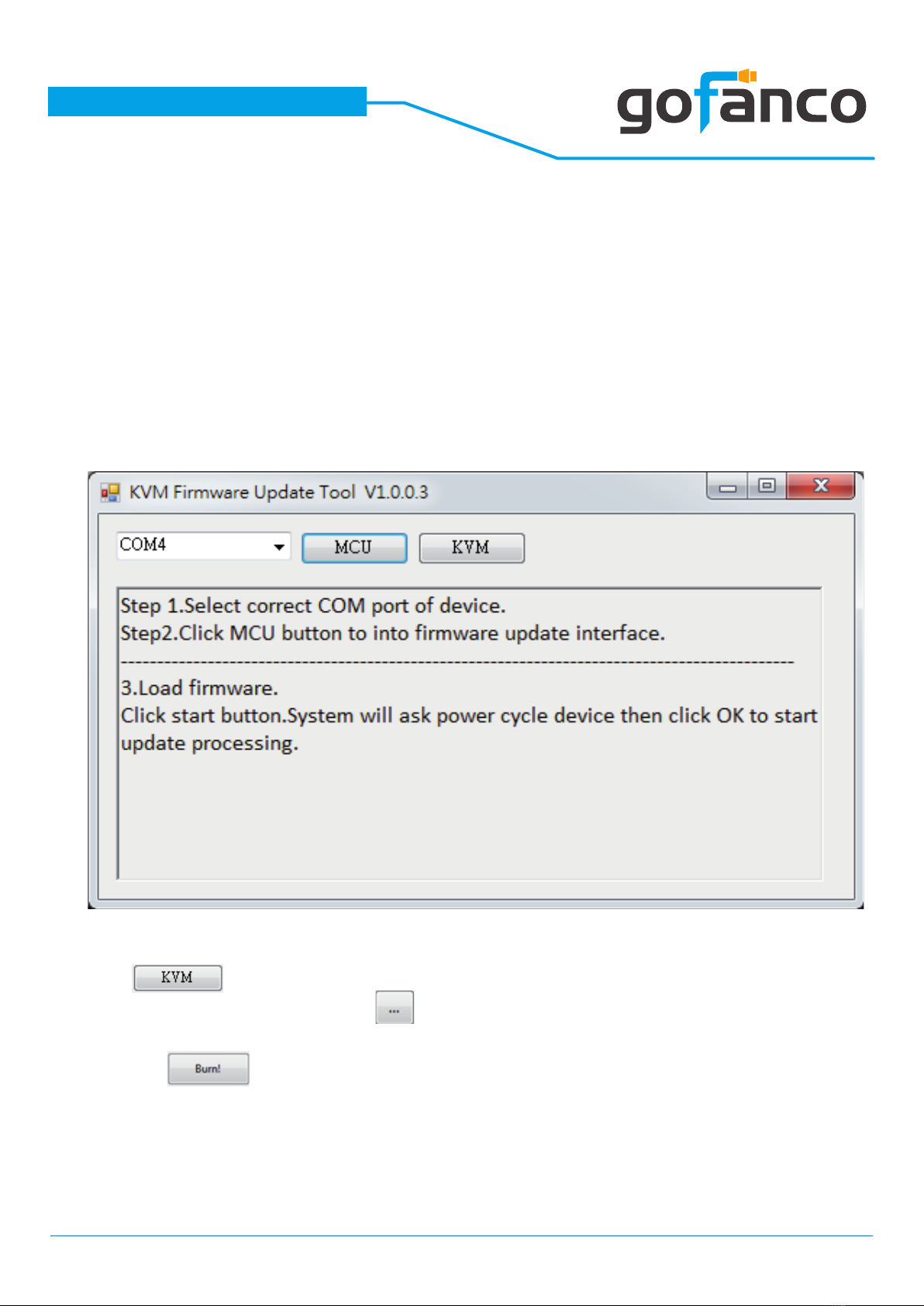

3. Open rmware update software and then select COM Port
4. Click button to open “KVM Firmware Update” windows.
Check all items and click each button to select the le which you want to
write into device.
Click the button to start rmware update
10

®
PRO-KVMaud4P-RM
11
11
5. After updating, please set the dip switch [PIN#1,PIN#2] to [OFF [],OFF []]and
power cycle the device

®
PRO-KVMaud4P-RM
4. Click button to load rmware le.
5. Click button to start rmware update process.
6. After updating, please set the dip switch [PIN#1,PIN#2] to [OFF [],OFF []]
and power cycle the device
12
MCU F/W update
1. Connect the Micro-USB to USB cable between PC and device
2. Set dip switch [PIN#1,PIN#2] to [ON[], ON[]]and then power on device
3. Open rmware update software and then select COM Port

®
PRO-KVMaud4P-RM
13
10. Limited Warranty
The SELLER warrants the PRO-KVMaud4P-RM 4 Port 1080p KVM with mouse roaming and
USB3.0 Hub free from defects in the material and workmanship for 1 year from the date of
purchase from the SELLER or an authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The SELLER, at its option, repair or replace
the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modications including static discharge and power surge. This warranty is
oered by the SELLER for its BUYER with direct transaction only. This warranty is void if the
warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current
price of parts and labor in eect at the time of repair. Such repairs are warranted for 90
days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers
agree to insure the unit or assume the risk of loss or damage in transit. Under no circum-
stances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limit-
ations, any other implied warranty or tness or merchantability for any particular purpose,
all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are res-
ponsible for shipping charges to and from the SELLER. Cables and power adapters are limi-
ted to a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. Ho-
wever, The SELLER assumes no responsibility for any inaccuracies that may be contained in
this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or conse-
quential damages resulting from any defect or omission in this manual, even if advised of
the possibility of such damages. Also, the technical information contained herein regarding
the PRO-KVMaud4P-RM features and specications is subject to change without further
notice.

®
PRO-KVMaud4P-RM
14
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer

®
PRO-KVMaud4P-RM
15

www.gofanco.com
Thank you for choosing gofanco
®
Oct, 2020 Ver. A Copyright © by gofanco, LLC. All rights reserved.
