Inwall LCR Speakers can be used in any position of a home theater
speaker system. A single Inwall LCR Speaker can be used for the
front center channel, or a pair can be used for left and right in the
front or rear of the system.
Using as a Center Channel Speaker
Inwall LCR Speakers have been designed to blend seamlessly
with all Proficient inwall and ceiling speakers. For center channel
applications, install the Inwall LCR Speaker horizontally into the
wall as close to the screen as possible. This most often means
it will need to be installed just above or below the television.
Vertically lining it up with the left and right speakers while not
necessary, will improve the performance. (See Diagram 1)
Using as Front Left and Right Speakers
When using Inwall LCR Speakers for front left and right speakers,
position them vertically with the tweeter towards the screen. Align
them with the center of the screen for optimal results. (See Diagram 1)
The speakers should be placed so that they form an equilateral
triangle. (See Diagram 2) If the speakers are positioned far away from
the primary listening area, adjust the pivoting tweeters so they are
pointed toward the primary listening area.
Note: To avoid possible damage to the pivoting tweeters, read the
section entitled “SPEAKER ADJUSTMENTS” in this manual prior to
performing the tweeter adjustment.
SPEAKER PLACEMENT

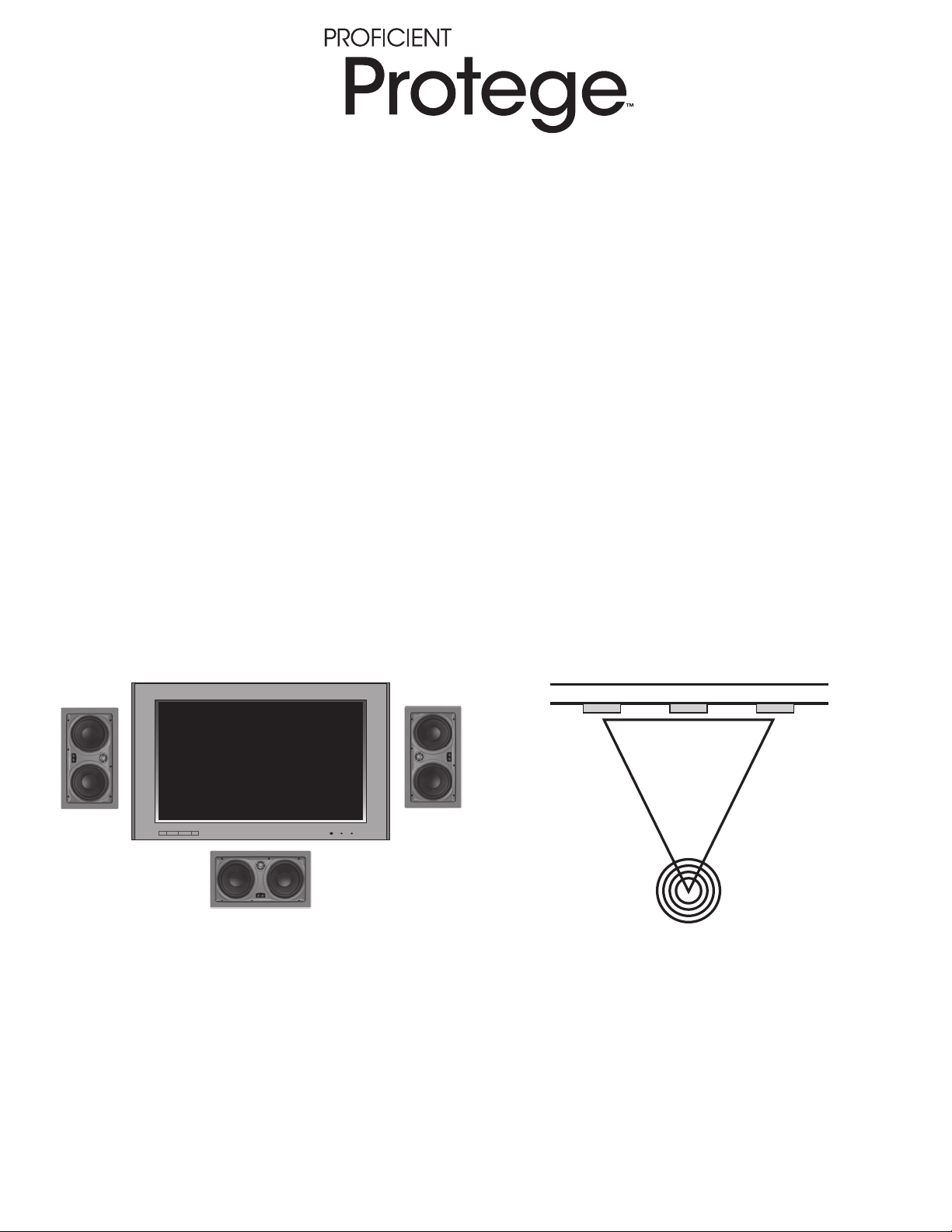

Diagram 2:
Ideal Placement
A=B=C
Ideal
Listening
Zone
BC
A
Left Speaker Center Speaker Right Speaker
TOP VIEW
Diagram 1:
Speaker Positioning
Before installing your speakers into the wall, you should consider
the placement carefully, taking into account the location of
electrical, plumbing and other fixtures.
Contact your Dealer for assistance if you are unsure of the best
location for your particular listening environment.
INSTALLATION CONSIDERATIONS
Inwall LCR Speakers
IW655 • IW630 • IW555 • IW530
OWNER’S MANUAL

New Construction - Unfinished Walls
A Pre-Construction Bracket, available from your Proficient dealer,
may be installed prior to drywall application across studs (up to
16" on-center) where a speaker will be located. After the hole is cut
and the drywall is installed, the speakers are then easily installed
following the instructions for mounting in “Finished Walls” below.
Finished Walls
Prior to the actual installation of the speakers, it will be neces-
sary to run cables to the speaker locations. See your Dealer for
ore information about cable installation. After the cable has been
properly installed, you are ready to mount the speakers. Following
the simple steps listed below will result in a professional looking
installation:
1. Determine the best area to mount your speakers. This area of
the wall should be free of obstructions such as electrical con-
duit, HVAC ducts, or water lines. This can best be determined
by noting the placement of fixtures and gaining access to an
attic or crawl space for further analysis of the location of such
obstacles.
2. Find the studs nearest the desired speaker mounting location.
We highly recommend using a good stud-finder tool for this
procedure. If you are lining up the speakers to some other
object or molding in the room, make sure you consider the size
of the baffle, which extends beyond the mounting hole.
3. Mark the hole. A template for setting the hole is provided in the
box. Position the template in the desired position and pencil an
outline on the wall.
4. Cutting the hole. CAUTION: This is the most important part
of the entire installation. If you are not certain whether any
obstructions exist behind the desired mounting area, you
should start by cutting a small hole in the center of your pen-
ciled mounting hole with a drywall saw. Cut at a 45˚ angle
towards the inside of the hole (See Diagram 3). Cutting the small
hole at this angle will make drywall repair much easier, using
the piece cut out. Once you have determined there aren’t any
obstructions in your desired mounting location, start cutting
the finished hole at a 90˚ angle to the wall surface.
5. Add insulation. If the area in the wall is not already insulated, add
an adequate amount of insulation material to loosely cover the
back of the speaker. If the insulation material used is faced with
foil or paper, position the foil or paper away from the speaker.
CAUTION: Speaker components can get hot while playing music
at moderate to high volume levels. There should be nothing at
all touching the speaker. Material in proximity to the back of
the speaker must have at a minimum 1" or 26mm clearance for
non-flammable materials and more for flammable materials like
plastic vapor barriers.
MOUNTING SURFACE PREPARATION
TOP VIEW OF WALL
First Cut
Second Cut
45˚
90˚
Diagram 3:
Wall Cut Out
The unique integrated six foot mounting system incorporated
into each Inwall LCR Speaker allows for a quick installation by
following these easy steps:
1. Remove the grille from the speaker baffle.
2. Attach the speaker cable (observing the proper polarity with
your amplifier, + to + and – to –). Make sure the left channel
of the amplifier is connected to the left speaker, and the right
channel is connected to the right speaker, etc.
3. Make sure the mounting feet are turned inward to clear the
opening, and insert the speaker into the wall. Note: The speaker
is designed to flex and conform to any small imperfections in the
wall’s surface. Tighten the six screws on the front of the baffle
only enough to make the speaker become snug against the
wall. As you tighten the screws, the feet will automatically flip
into an outward position (See Diagram 4), thereby clamping the
drywall between the feet and the speaker.
CAUTION: Over tightening may warp the baffle, crack the wall
or cause difficulty in aligning the grille.
4. Reattach the grille onto the speaker baffle.
SPEAKER INSTALLATION
Mounting Feet Speaker
Diagram 4:
Mounting Feet
2

3
We recommend painting your grille prior to installation. If you
decide to paint it in the future, it's best to remove the grille by
simply detaching it from the speaker. Do not paint the grille while
it's installed on the speaker.
Before painting, be sure to remove the cloth material from
beneath the grille. Once painted, place the cloth back to its
position beneath the grille.
When painting, be careful not to clog the holes of the grille.
The sound of the speaker will be dramatically reduced if the perfo-
rations in the grille are covered in paint.
Proficient recommends only light spray painting using five parts
thinning agent to one part paint.
PAINTING THE GRILLE
Your Inwall LCR Speaker comes with the tweeter facing straight
out from the baffle. This will result in the overall smoothest
response. However, depending on your particular primary area,
room acoustics, ceiling height, or personal preference, you may
find the sound more pleasing by pointing the tweeters in a
particular direction. If additional treble is desired in the primary
listening area, point the tweeter towards that area. Push gently
at the edge of the tweeter to point it in the desired direction. (See
Diagram 5)
CAUTION: Avoid touching the metal dome tweeter, as damage
may occcur.
For home theater use, we recommend the following tips:
• If the Inwall LCR Speaker is being used as a main front channel,
the tweeter should be angled towards the listener.
• If the Inwall LCR Speaker is being used for a rear surround
channel, you may wish to pivot the tweeter away from the
listener to achieve a more diffused sound.
Tweeter Adjustment:
The switch labeled TREBLE allows for ±3dB of treble adjustment.
Your speakers were shipped with the treble switch in the middle
position, providing the most linear frequency response. If you
desire more treble, move the switch to the “+” position, and the
tweeter will play 3dB higher. If you desire less treble, move the
switch to the “–” position, and the tweeter will play 3dB lower. To
return to the neutral setting, push the switch back to the middle
position. (See Diagram 6)
Woofer Adjustment:
The switch labeled BASS allows for ±3dB of bass adjustment. Your
speakers were shipped with the bass set to the middle position.
This setting provides the flattest bass frequency response. If you
desire more bass, push the switch to the “+” position and the bass
will play 3dB higher. If you desire less bass, push the switch to
the “–” position and the bass will play 3dB lower. To return to the
neutral setting, push the switch back to the middle position. (See
Diagram 6)
SPEAKER ADJUSTMENTS
Diagram 5:
Tweeter
Diagram 6:
Adjustment Switches
Push Tweeter Here
Bass Adjustment Switch Treble Adjustment Switch

SPEAKER SPECIFICATIONS
Woofers:
Tweeter:
Contour Switches:
Power Handling:
Frequency Response:
Impedance:
Sensitivity:
Grille:
Dimensions (H x W x D):
Wall Cut Out (H x W):
IW655
Two 6½" Kevlar®Cones
1" Pivoting Aluminum Dome
±3dB Bass & Treble
150 Watts
50Hz - 20kHz
8
90dB 1W/1m
Thin-Bezel held by
Neo Magnets
9" x 16⁄" x 3"
7½" x 14½"
IW555
Two 5¼" Kevlar®Cones
1" Pivoting Aluminum Dome
±3dB Bass & Treble
125 Watts
60Hz - 20kHz
8
88dB 1W/1m
Thin-Bezel held by
Neo Magnets
8" x 15⁄" x 3⁄"
6⁄" x 14½"
IW530
Two 5¼" Graphite Cones
1" Pivoting Aluminum Dome
±3dB Bass & Treble
100 Watts
65Hz - 20kHz
8
88dB 1W/1m
Thin-Bezel held by
Neo Magnets
8" x 15⁄" x 3⁄"
6⁄" x 14½"
IW630
Two 6½" Graphite Cones
1" Pivoting Soft Dome
±3dB Bass & Treble
125 Watts
55Hz - 20kHz
8
90dB 1W/1m
Thin-Bezel held by
Neo Magnets
9" x 16⁄" x 3"
7½" x 14½"
Features and specifications are subject to change without notice.
1800 South McDowell Blvd • Petaluma, CA 94954
800.472.5555 • Fax [phone] • proficientaudio.com
©2013 Core Brands, LLC. All Rights Reserved.
Proficient® is a registered trademark of Core Brands, LLC, a subsidiary of Nortek, Inc.
Proficient Audio Systems (“Proficient”) warrants to the original retail pur-
chaser only (“you”) that this product will be free from defects in materials and
workmanship for a period of ten years (the “Warranty Period”), subject to the
limitations and exclusions set out in this Limited Warranty. This warranty is not
transferable to subsequent owners of the product. If you discover a defect in
material or workmanship within the Warranty Period, you can obtain warranty
service by contacting Proficient during the Warranty Period at 800.472.5555 or
[email protected] or by sending the product to Core Brands
at 12471 E. Riverside Drive, Eastvale, CA 91752 or to the dealer from whom
you purchased the product. Defective products must be shipped, prepaid
and insured, together with proof of purchase. Warranty service requests made
without proof of date of purchase will be denied. Freight collect shipments
will be refused. It is preferable to ship this product in the original shipping
container to lessen the chance of transit damage. In any case, the risk of loss or
damage in transit is to be borne by the purchaser.
If, upon examination by Proficient or its authorized dealer, it is determined that
the unit is in fact defective, Proficient will, at its option:
• Repair or replace the product at no additional charge; or
• If the model is no longer available and can not be repaired effectively, replace
the unit with a current model of equal or greater value. In some cases where
a new model is substituted, a modification to the mounting surface may be
required. If mounting surface modification is required, Proficient assumes no
responsibility or liability for such modification.
Proficient will bear the cost of returning the repaired or replaced product to
you, freight prepaid. All replaced parts and product become the property of
Proficient Audio Systems. The foregoing is your sole and exclusive remedy for
breach of warranty. If the product is not found to be defective, Proficient will
contact you to arrange for return of the product to you, at your expense.
EXCLUSIONS:
• This Warranty does not include service or parts to repair damage caused by
accident, disaster, misuse, abuse, negligence, inadequate packing or shipping
procedures, commercial use, voltage inputs in excess of the rated maximum
of the unit, or service, repair or modification of the product by unauthorized
dealers. This Warranty also excludes normal cosmetic deterioration caused by
environmental conditions.
• This Warranty will be void if:
• the Serial Number on the product has been removed, tampered with or defaced.
• the product was not purchased from an authorized dealer.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
EXPRESSED AND IMPLIED WARRANTIES. PROFICIENT EXPRESSLY DISCLAIMS
ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT. In no event will Proficient be liable for any incidental
or consequential damages arising out of the use or inability to use the product,
even if Proficient has been advised of the possibility of such damages, or for any
claim by any other party. Notwithstanding the above, if you qualify as a“con-
sumer” under the Magnuson-Moss Warranty Act, then you may be entitled to any
implied warranties allowed by law for the Warranty Period. Further, some states
do not allow limitations on how long an implied Limited Warranty lasts or allow
the exclusion or limitation of consequential damages, so such limitations may not
apply to you.
ATTENTION TO OUR VALUED CONSUMERS:
To insure that consumers obtain quality pre-sale and after-sale support and
service, Proficient products are sold exclusively through authorized dealers.
Proficient products are not sold online by Proficient or its authorized dealers,
and this warranty is VOID if the products have been purchased from any internet
reseller. To determine if your Proficient reseller is authorized, please call Proficient
at 800.472.5555 or go to proficientaudio.com.
LIMITED TEN-YEAR WARRANTY
For technical inquires, please call 800.472.5555 or e-mail us at [e-mail]. We are available to assist you
every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.
9901320 (Rev A)
