PureLink VIP-CAM-30-20 Series User manual

Purelink VIP-CAM-30-20x User Manual V1.0
1
VIP-CAM-30-20x
Pro PTZ Camera with HDMI, USB 2.0, & LAN Output

Purelink VIP-CAM-30-20x User Manual V1.0
2
Contents
What’s in the Box .......................................................................................................................................... 3
Product Description .......................................................................................................................................3
Specifications .................................................................................................................................................3
HDMI Video Output Formats.....................................................................................................................3
Network .........................................................................................................................................................4
Features .....................................................................................................................................................4
Protocols....................................................................................................................................................4
Panels ............................................................................................................................................................ 4
Front .......................................................................................................................................................... 4
Rear ............................................................................................................................................................5
Bottom .......................................................................................................................................................5
Remote .......................................................................................................................................................... 6
Installation .....................................................................................................................................................7
Device Management ..................................................................................................................................... 7
Device Connection .....................................................................................................................................7
LAN Connection ..................................................................................................................................... 7
WAN Connection ................................................................................................................................... 8
Search and List the Camera ...........................................................................................................................9
Configuration ...............................................................................................................................................10
Stream Parameters ..................................................................................................................................10
Network ...................................................................................................................................................12
RTMP Stream ...........................................................................................................................................12
Transparent Transmission ....................................................................................................................... 13

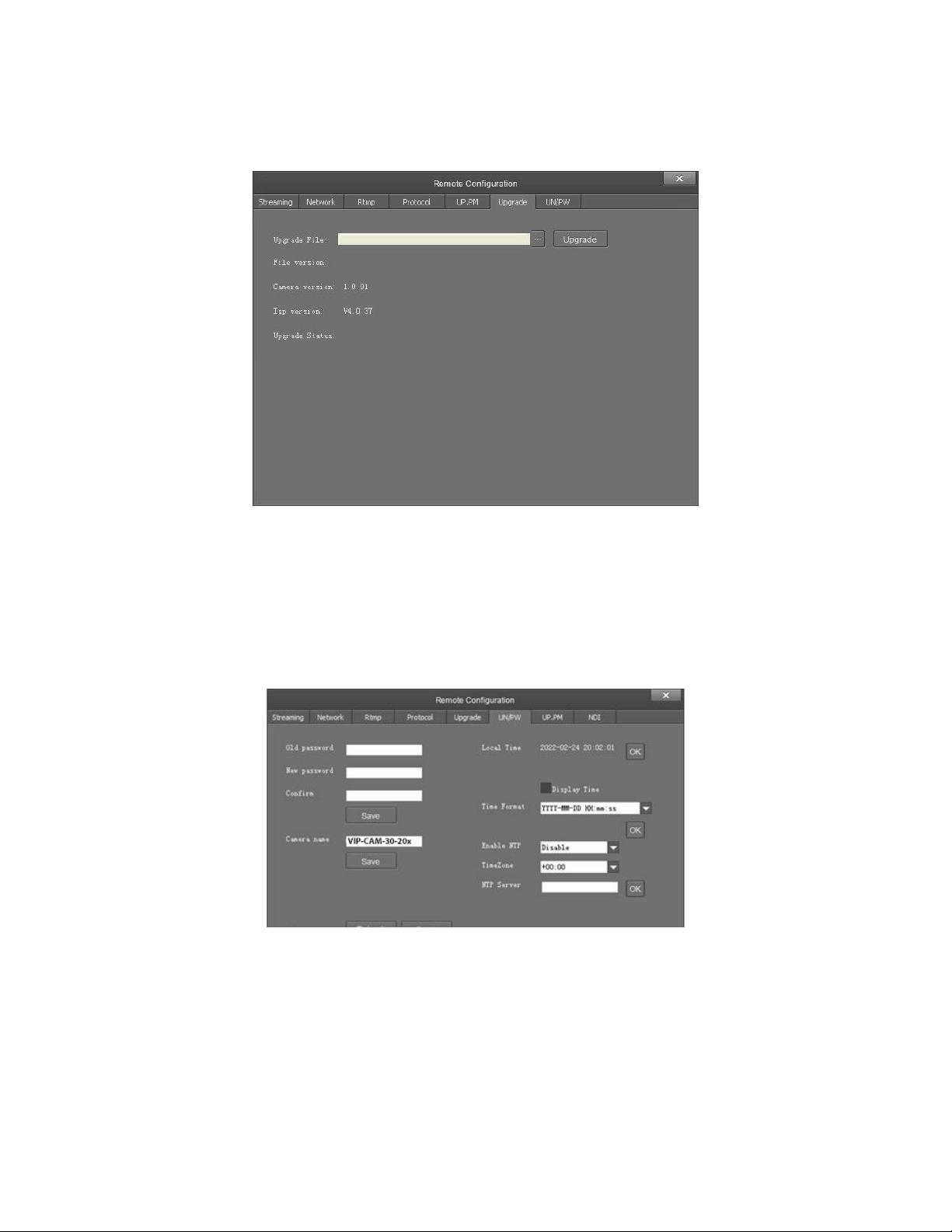

Upgrade ................................................................................................................................................... 14
System Settings ....................................................................................................................................... 14
Preview ........................................................................................................................................................15
Introduction to Video Preview ................................................................................................................ 15
Menu ........................................................................................................................................................... 17
Warranty ......................................................................................................................................................19

Purelink VIP-CAM-30-20x User Manual V1.0
3
What’s in the Box
1x VIP-CAM-30-20x
1x RS-232 Cable
1x Remote Control
Product Description
The VIP-CAM-30-20x is a 1080p camera with 20x optical zoom & and 8x digital zoom for capturing HD images from
long distances. With support for HDMI, USB 2.0, and IP Streaming, this camera is ideal for broadcasting high-
definition video signals in conferencing, live broadcast, and security/surveillance applications. The VIP-CAM-30-20x
can be powered with the supplied 100-240 50/60Hz UL listed AC adapter, or PoE 802.3af.
Specifications
Image Sensor: 1/2.8” CMOS, 2.14 megapixel
Zoom: 20x Optical, 8x Digital
Focal Length: 3.9mm ~ 46.8mm
Iris: F1.6 ~ 2.8
Horizontal Viewing Angle: 72.5°~ 6.3°
Focus System: Auto, Manual, PTZ Trigger, One Push Trigger
Minimum Illumination: 0.5 Lux
Shutter Speed: 1/50s ~ 1/10,000s
White Balancing: Auto/One Push/Manual/Static
Exposure Control: Auto/Manual/Shutter Priority/Iris/Bright
S/N: ≥50dB
Digital Noise Reduction (DNR): 2D & 3D
Back Light Compensation: Yes
Wide Dynamic: Yes
Pan Angle: -170° ~ +170°
Tilt Angle: -30° ~ +90°
Pan Speed: 0.1°/s ~ 120°/s
Title Speed: 0.1°/s ~ 80°/s
HDMI Video Output Formats
720P 50/60
1080i 50/60
1080P 25/30/50/60

Purelink VIP-CAM-30-20x User Manual V1.0
4
Network
Features
Max Support 1920x1080@30
Image Compression H.265, H.264
Audio Compression support AAC
Support Dual Stream
Protocols
TCP, UDP, RTSP, ONVIF
Panels
Front
1. 20x Optical, 8x Digital
2. Power LED Indicator
3. IR Receiver

Purelink VIP-CAM-30-20x User Manual V1.0
5
Rear
1. HDMI Out
2. USB 2.0
3. Audio In
4. Ethernet
5. RS232 In
6. RS232 Out
7. 12VDC power inlet
Bottom
1. Dip Switch
2. Mounting Holes

Purelink VIP-CAM-30-20x User Manual V1.0
6
Remote
1. Home: returns camera to default position
2. Camera select: Sets remote for control of cameras addressed to 1,2,3 or 4.
3. Functions: Reserved for future
4. Auto/Manual Focus: Sets camera to auto or manual focus mode
5. Focus
a. Trigger Focus: Performs auto focus when pressed.
b. Focus Near/Far: Performs near focus or far focus
6. Menu: Enter/exit OSD settings menu
7. Joystick: Non-menu: controls pan and tilt. Menu: navigation
8. Data: Toggles PTZ data on screen
9. Preset functions: Call, set, or clear presets
10. Numeric: Numeric entry, C = clear, Return = Enter
11. Power: Off/On toggle. On performs PTZ calibration
12. Pattern Loop: Continuous Pan.
13. Back Light: Open/close backlight compensation
14. Zoom: Performs zoom in or zoom out
15. Iris:
a. Reset iris to default
b. Iris open or close
16. Back: go back to previous menu
Remote requires 2x AAA batteries.

Purelink VIP-CAM-30-20x User Manual V1.0
7
Installation
The VIP-CAM-30-20x can be oriented the following ways:
Wall Mount
Ceiling Mount (Optional)
Device Management
Device Connection
Connect the camera to the network via an Ethernet cable, then power on the camera

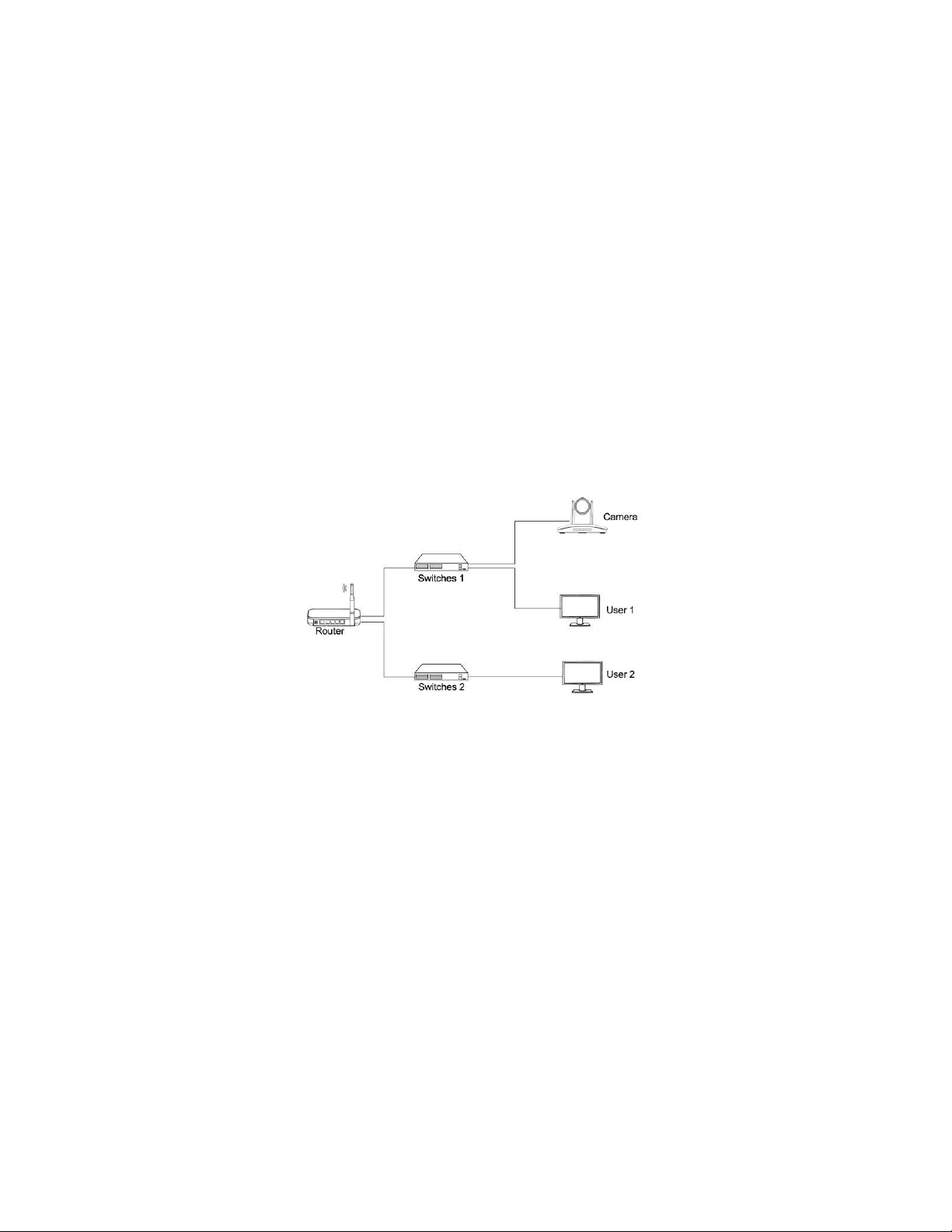

LAN Connection
To connect the camera to the same LAN, plug the camera into the same router as the PC is connected to, and
referring to CameraCMS software instructions seen below, then all the cameras can be found and connected by
searching for the online device list.

Purelink VIP-CAM-30-20x User Manual V1.0
8

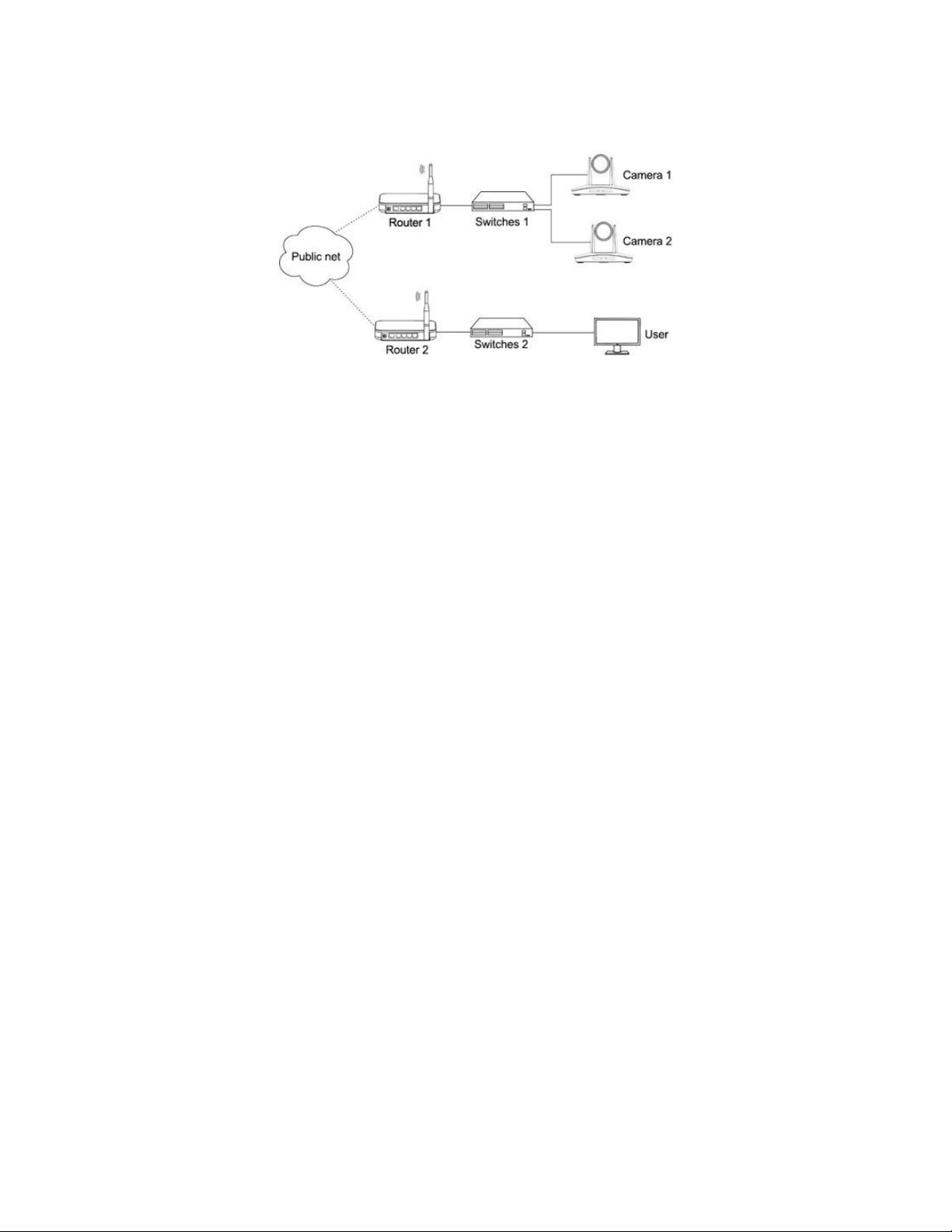

WAN Connection
When using WAN the CameraCMS software cannot automatically search for the camera(s) compared to LAN. This is
a 3 Step process to search for the cameras using WAN
Step One:
- Set the camera’s IP address in LAN: connect the user PC to the LAN (Router 1) where the camera is
connected according to the LAN connection instructions, using the Camera Control Software locate and
find the camera, then add it to manage; then set camera’s IP address in the same network segment as the
router 1. Camera’s gateway is usually set at Router 1’s LAN IP address, for example, 192.168.1.1, then
camera’s IP address can be set as for example 192.168.1.179 or 192.168.1.180 as long as they are in the
same network segment.
Step Two:
- The computer accesses the LAN of router 1 where the camera is and enters the router configuration
interface (administrator rights of router 1 should be required); enter the page of “port mapping”, refer to
below picture, Do not tick “Do not apply this rule”, in the first frame of “External port”, fill in any number
from 1~65535, such as 10200 (try to select port greater than 10000 to avoid port conflict); Fill in the IP of
camera 1 in the internal IP, such as 192.168.1.179, and fill in the internal port 3478 of the camera in the
first box of the internal port (all cameras are fixed to this value). "Protocol" and "image line" can be
selected by default. Descriptions such as "port mapping of camera 1" can be filled in the description.
Step Three:
- Access from external network: For example, if the external IP address of router 1 is 115.200.31.100, the
WAN user under router 2 can access camera 1 through IP address 115.200.31.100 and port 10200 through
steps 1 and 2 above. That is to say , in WAN, camera 1 is mapped to (IP 115.200.31.100 + port 10200).
Camera 2 can use another external port such as 10320, so camera 2 is mapped to (IP 115.200.31.100 + port
10320) . In the "Managed Device" of the client Camera Control software, click the button "+Add", enter the
IP address 115.200.31.100 and port 10200 and other information, then the camera 1 can be accessed and
controlled.

Purelink VIP-CAM-30-20x User Manual V1.0
9
Search and List the Camera
CameraCMS Software:
Install and open the CameraCMS software on the PC, open “Device Management”

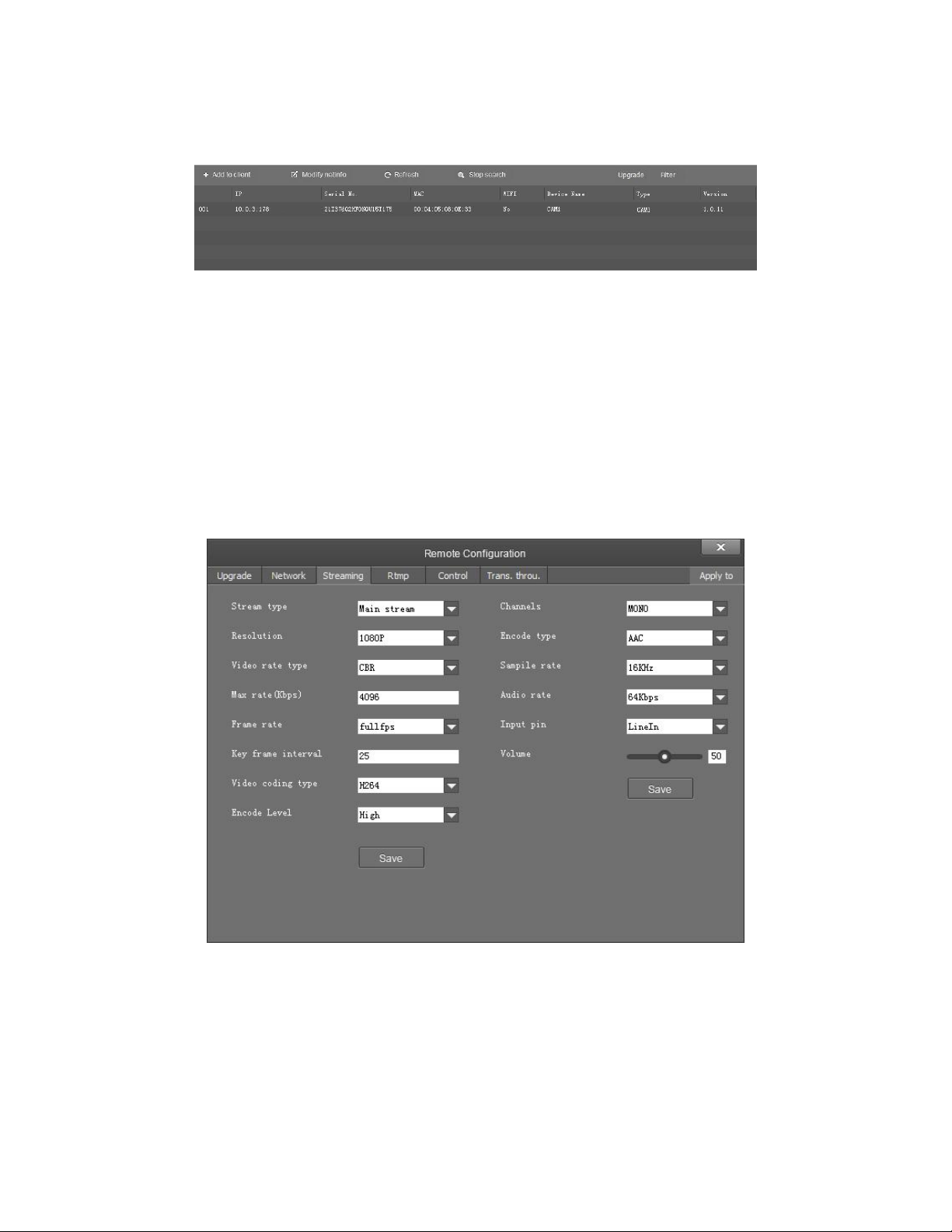

If the camera is in the LAN of PC, click “Start Search”, then searching starts and all online devices will be listed, as the
picture shown below:
To upgrade multiple cameras in batch, first select multiple devices in the list and Select the upgrade file in the
camera program file path, click “upgrade”.
To modify the device IP address, choose the device first, then input the IP address, mask, gateway in the “Modify
Network” page. Click “modify”, the network parameters take effect.

Purelink VIP-CAM-30-20x User Manual V1.0
10
To control and preview a camera, choose the device first, modify its IP address to the IP address of the same LAN,
then click “Add to Client” as the picture shown below.
If it is a camera in the WAN, click “WAN access” directly to add the camera.
Configuration
Choose the camera in the device list, open “Remote Configuration” in the column to upgrade the camera or
configure parameters.
Stream Parameters
Stream Type:
-Set up the parameters of the mainstream, sub stream. Different devices support different streams.
Resolution:
-1080P 25/30/50/60, 1080i 50/60, 720P 50/60
