Range Master Deluxe RSXS19 Manual
Fridge/Freezer
RSXS19 Deluxe
User Guide
&
Installation & Service Instructions
Due to our policy of continual improvement, we reserve the right to change specications without prior notice.
RSXS19IV/C - RSXS19BL/C - RSXS19SS/C - RSXS19DI/C
U111003-04
1. Before You Start 1
Safety 1
Electrical Safety 2
CE Declaration of conformity 3
Disposal of your old appliance 3
Packaging and the Environment 3
2. About Your Refrigerator 4
About the Fresh Food Compartment 5
General Features of Your Appliance 5
Even-circ™ 6
Using the appliance 6
Shelves 6
Ionizer™ / Range Fresh™ 7
Accessories 8
About the Freezer Compartment 9
3. Using the Control Panel 10
Touch Display Prevention (Safe Mode) 11
Operating Your Fridge Freezer 11
CircFresh 17
Using the Vseal™ 18
Cancel the Vseal™ 18
Vseal™ Tips 19
Food Storage Recommendations 19
4. Food Storage Tips 20
Food storage 20
Tips on Storing Fresh Food 21
Tips on Freezing Food 22
5. Food Storage Table 23
6. Food Storage Table -
vacuum food bags 25
7. Cleaning and Maintenance 28
Defrosting 28
Cleaning 28
Shutting O the Refrigerator 28
When not in use 28
Cleaning the Vseal™ 28
8. Troubleshooting 29
Tips for saving energy 30
9. Installation 31
Installation warnings 31
Door removal and access 32
Positioning Your Appliance 38
Electrical Supply Connection 39
10. Kick plate 40
Removing the kick plate 40
Assembly of the kick plate 41
11. Circuit Diagram 42
12. Technical Data 43
13. Warranty/After Sales Service 45
Contents
1
• Make sure that the electrical supply to your plug socket
is correct for this appliance – the required information is
on the data badge of the appliance.
• Once the appliance is installed, cleaned and dry, it is
ready to be plugged in and switched on.
Safety
The data badge is located inside the appliance
(refrigeration compartment).
WARNING: Use potable (drinking) water with this
appliance.
WARNING: Keep this appliance clear of any
obstruction.
DO NOT damage the refrigerant circuit. If it does
become damaged, do not use the appliance.
WARNING: DO NOT use mechanical devices (such as
hairdryers) to defrost this appliance.
If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the
cooler) you should take care during transportation
and installation to prevent the cooler elements
from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler
elements, move your appliance away from open
ames or heat sources and ventilate the room where
the appliance is located for a few minutes.
• When replacing old appliances, make sure that you
have disabled any locking mechanisms before disposal
– it may even be best to remove the appliance door
completely to prevent children from becoming trapped
inside the appliance.
• The appliance must be connected to the power supply
safely. Loose connections, broken plugs and bare wires
are a safety hazard. Make sure that all connections are
sound.
• Before undertaking any routine maintenance or minor
repairs, disconnect the appliance from the electrical
supply.
• DO NOT touch cold surfaces of the appliance while it is
in use as this will cause hands to stick to them leading
to freezer burns.
• When moving the appliance take care not to damage
the leads, pipes or condenser unit. Should these parts
become damaged, contact a qualified service engineer.
• Effervescent liquids (fizzy drinks) should never be
frozen. These liquids expand during freezing and
this may lead to the bottles/containers shattering or
exploding.
Icon Type Meaning
WARNING Serious injury or death risk
Dangerous voltage risk
FIRE Fire risk
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
RISK OF ELECTRIC
SHOCK
1. Before You Start
Thank you for buying this appliance. We hope that it provides
a stylish yet practical solution to your cooling needs. We hope
that this handbook supplies you with all the information you
require. If there is anything you are unsure of please contact
us (see ‘Warranty’ section for Customer Care’s details).
WARNING: This appliance must be earthed.
Please leave the appliance to stand for at least six
hours. This will allow the cooling system to settle
following transportation.
Always make sure a qualied person installs this
appliance.
This appliance is designed for domestic use only.
Using it for any other purpose could invalidate any
warranty or liability claim.
Children aged from 3 to 8 years are allowed
to load and unload refrigerating appliances.
Children are not expected to perform cleaning or
user maintenance of the appliance, very young
children (0-3 years old) are not expected to use
appliances, young children (3-8 years old) are not
expected to use appliances safely unless continuous
supervision is given, older children (8-14 years old)
and vulnerable people can use appliances safely
after they have been given appropriate supervision
or instruction concerning use of the appliance.
Very vulnerable people are not expected to use
appliances safely unless continuous supervision is
given.
• Before you plug the appliance into the mains, clean
the inside of the appliance using warm water and
bicarbonate of soda, then dry thoroughly.
• Check that no parts of the appliance are damaged,
especially parts of the cooling system, pipes or leads.
If damage has occurred, DO NOT install the appliance;
you should contact a qualified service engineer or
return the appliance to its place of purchase.
• If the accessories inside the appliance have been
disturbed during transit, reposition them in accordance
with the instructions.
2
• Foods that are intended to be defrosted or cooked first,
such as breads or meats, must not be eaten in their
frozen state.
• If food looks or smells strange, do not attempt to eat it.
If in doubt throw it away. Spoiled food can be harmful to
your health.
• Never use sharp, metal implements to scrape ice off the
surface of this appliance. Only use implements, which
are fit for this purpose (such as plastic scrapers) and use
carefully to avoid damaging the lining of the appliance.
• The cooling system contains refrigerant and oils, all of
which are harmful to health if leaked. Should leakage
occur, disconnect the appliance and ventilate the room
it is installed in. Take care to ensure that you do not get
any coolant near to, or in, your eyes. Contact a service
engineer or arrange to have the appliance removed.
DO NOT use the appliance under any circumstances.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: DO NOT use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: DO NOT use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
WARNING: DO NOT damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be
xed in accordance with the following instructions:
If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the
cooler) you should take care during transportation
and installation to prevent the cooler elements
from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler
elements, move your appliance away from open
ames or heat sources and ventilate the room where
the appliance is located for a few minutes.
While carrying and positioning the appliance, do not damage
the cooler gas circuit.
DO NOT store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
This appliance is intended to be used in household and
domestic applications only.
If the socket does not match the appliance plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
A specially grounded plug has been connected to the power
cable of your appliance. This plug should be used with
a specially grounded socket of 13 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
This appliance is not intended for use at altitudes exceeding
2000 m.
Electrical Safety
WARNING: When positioning the appliance, ensure
the supply cord is not trapped or damaged.
WARNING: DO NOT locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
DO NOT use plug adapter.
ArtNo.000-0001
Warning triangle WARNING; Risk of re / ammable materials
• The plug must be accessible after installation.
• The operating voltage for your appliance is 220-240 V at
50Hz.
• Connections to the mains supply should be in
accordance with local regulations.
• Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
• The appliance must be connected with a properly
installed fused socket. The power supply (AC) and
voltage at the operating point must match with the
details on the name plate of the appliance (the name
plate is located on the inside left of the appliance).
• The appliance must be plugged into an earthed socket.
• The plug MUST be accessible after the appliance has
been positioned.
• The appliance is supplied with a standard three-pin
plug, of which the one for grounding should never be
removed.
• Hold the plug, not the electrical cable, when
unplugging the appliance.
• Make sure that the appliance does not trap the electric
cable.
• DO NOT step on the cable.
3
• Avoid damage to the electric cable when moving the
appliance.
CE Declaration of conformity
• We declare that our products meet the applicable
European Directives, Decisions and Regulations and the
requirements listed in the standards referenced.
Disposal of your old appliance
ArtNo.000-0019
Do not bin logo
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the recycling
of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product,
please contact your local city oce, your household waste
disposal service or the shop where you purchased the
product.
Packaging and the Environment
ArtNo.000-0019
Do not bin logo
Packaging materials protect your machine from
damage that may occur during transportation.
The packaging materials are environmentally
friendly as they are recyclable. The use of recycled
material reduces raw material consumption and
therefore decreases waste production.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not
responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for the losses to be occurred.
• This appliance is produced to be used in houses and
it is only suitable for cooling / storing foods. It is not
suitable for commercial or common use and/or for
storing substances except for food. Our company is not
responsible for the losses to be occurred in the contrary
case.
To avoid contamination of food, please
respect the following instructions:
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
• Clean regularly surfaces that can come in contact with
food and accessible drainage systems
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
• Two-star frozen-food compartments are suitable for
storing pre-frozen food, storing or making ice cream
and making ice cubes.
• One-, two- and three-star compartments are not
suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long
periods, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the
appliance.
4
1. Cheese, butter shelf
2. Even-Circ™
3. Egg trays
4. Cooler / fridge
compartment
5. Fridge compartment
shelves
6. Door shelves
7. Chiller compartment
8. Crispers
9. Door bottle shelves
10. Ice trays
11. Freezer / cooler top
baskets
12. Freezer / cooler bottom
baskets
13. Adjustable feet
14. Fridge / freezer
compartment Zone-1
Zone-2
15. Ionizer™
16. Odour seal box™
17. COOLPAC™
Features include:
• Touch Screen Electronic
Display
• Superior Internal
Illumination (soft glow)
• Super Quick Freeze &
Cool
• Economy Mode for
Energy Saving
• Levelling Feet
• Ionizer™
• Range Fresh™
• q drink
• Child lock
• Holiday mode
• Night sensor
• Screensaver
• Conversion of Zone 1
and Zone 2 to a chiller
zone.
• Vseal™
13
4
5
6
6
3
16
17
6
7
11
12
14
8
99
10
11
15
Zone 1Zone 2
2
12
11
2. About Your Refrigerator
Fig. 2.1
Zone 1 Zone 2
5
L
2
4
3
5
E
E
6
J
KK
M
J
7
8H
I
1A
About the Fresh Food
Compartment
It is recommended to leave storage space between the
foods for good cold air circulation. The temperatures in the
refrigerator are slightly warmer near the top and colder near
the base. Suggestions for storage (Fig. 2.2):
1. Eggs, butter, cheese, etc.
2. Cooked meats, sausage, etc.
3. Drinks and all kinds of bottled foods.
4. Meat, poultry, sh and raw foods.
5. Pickled foods, drinks or cans.
6. Flour foods, cans, dairy, etc.
7. Fruits, vegetables or salads.
8. Tins, cans, condiments, etc.
General Features of Your Appliance
1. Our patented mullion bar design eliminates the fracture
risk which can occur due to misuse. This risk is common
for opponent manufacturers.
2. The cooler and freezer compartments have separate
air circulation systems due to our new No-Frost
technology. This ensures that no odours pass between
compartments, and vegetables remain fresh for longer
periods.
3. The energy ecient fan maintains air circulation by
running independently of the compressor. Thus, a
uniform and balanced air circulation is created between
cooler shelves.
4. Through specic air conduit design, the fans distribute
cold air from multiple vents on all shelves in the cooler.
5. By special patented application, display edges and
corners form a smooth surface against the door and
ensure a perfect aesthetic appearance. The touch-
operated electronic panel allows easy access of
temperature controls and provides an aesthetically even
view.
6. The appliance contains LEDs which gradually illuminate,
rather than sudden bright lights. The LEDs reach 100%
brightness within a few seconds after the door is
opened.
7. A telescopic rail is used in the chiller compartment to
ensure that the chiller operates easily and quietly.
8. The chiller door includes a self-closing function to avoid
slamming or being left open.
Fig. 2.2
6
warm air warm air
warm air
warm air warm air
cold air
cold air
cold air cold air cold air
cold air cold air
cold air
cold air
cold air
Even-circ™
Even-circ, prevents fresh food losing moisture. This
technology ensures that air circulates evenly throughout the
fridge compartment, this helps prevent food from drying out.
Fresh food then maintains its texture and taste of food by
preventing any humidity loss.
Using the appliance
Information on No-Frost Technology (Fig. 2.3)
No-frost refrigerators have a dierent operating system to
static refrigerators. In normal (static) fridges, the humidity
entering the fridge due to opening the door and the
humidity inherent in the food causes ice to form in the freezer
compartment.
To remove the frost and ice from the freezer compartment,
it is required to periodically switch the fridge o and place
frozen food in a separate cooled container.
The situation is completely dierent in Nofrost fridges. A
built-in fan blows dry and cold air evenly into the cooler
and freezer compartments. The cold air disperses uniformly
between the shelves, ensuring all your food is cooled evenly,
thus preventing humidity and icing to occur.
Therefore, your No-frost fridge allows ease of use, in addition
to its huge capacity and stylish appearance.
Shelves
The height of the cantilever shelves can be adjusted to t
your storage needs.
When opening or closing the dairy bin, please take
care not to trap your ngers (Fig. 2.4).
Fig. 2.3
ArtNo.600-0001 - Dairy bin
Fig. 2.4
warm air
cold air
cold air cold air
cold air
warm air
warm air
warm air warm air
cold aircold air
cold aircold air cold aircold air
7
Ionizer™/ Range Fresh™
Ethylene gas is emitted by some fruits and vegetables and
causes the fresh groceries to start ripening. When this gas is
produced in an enclosed environment, it is re-absorbed by
the fruit and vegetables and further accelerates the aging
process.
This fridge freezer provides two dierent solutions to this
naturally occurring problem:
Ionizer™(Fig. 2.5)
Ionizer spreads negative ions which neutralize particles of
unpleasant smell and dust in the air.
By removing these particles from the air in the refrigerator,
Ionizer improves air quality and eliminates odours.
Range Fresh™(Fig. 2.6)
Range Fresh Preserver helps to remove ethylene gas
(a bioproduct released naturally from fresh foods) and
unpleasant odors from the crisper.
It must be regenerated once a year under a full day sunlight
for 24 hours, for example on a window sill.
To regenerate the lter, remove the casing of the lter box by
pulling it in the direction of the arrow (Fig. 2.6).
The lter should not be washed with water or in any
detergent.
Ionizer
Fig. 2.5
Fig. 2.6
Ionizer
Range Fresh Preserver
8

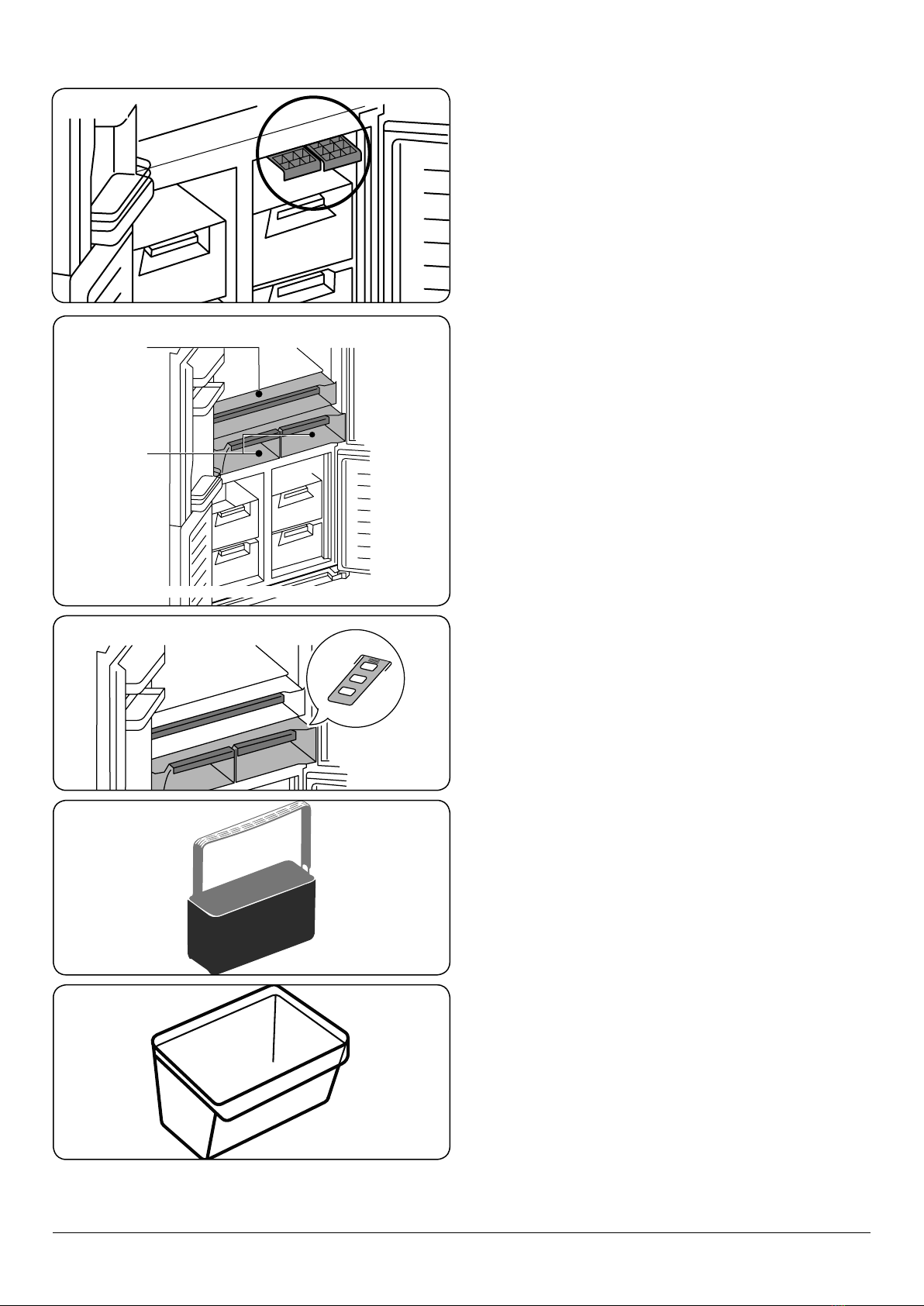

Accessories
Ice tray (Fig. 2.7)
Hold the icebox from the front and pull it toward you to
remove it.
Fill the icebox with water and replace it. Ice will be ready after
approximately 2 hours. Extract the icebox to serve the ice.
When replacing the icebox after lling it with water, make
sure it is positioned horizontally. If it is tilted, water inside the
icebox may spill onto the basket.
Vegetable Bowl and Chiller (Fig. 2.8)
This compartment can be used as a chiller compartment,
where food can be kept at 0°C. Frozen food can be kept in this
compartment to defrost. Meat and/or clean sh (in plastic
bags or packets), which will be consumed within 1 to 2 days,
can also be stored here.
Water freezes at 0°C, but food containing salt or sugar freezes
at colder temperatures.
Do not put food to be frozen or iceboxes in this
compartment.
Crisper Air Setting button (Fig. 2.9)
Turn the air adjustment knob between the crisper and chiller
to the open position when the crisper is full. Food in the
crisper will remain fresh for a longer period of time.
COOLPAC™(Fig. 2.10)
Box with removable ice packs is primarily used to store wine
bottles and cans:
• Holds upto three x 330ml cans
• holds upto three wine bottles
• can be used as ice packs
Odour Seal Box™(Fig. 2.11)
Small sealed box that is designed to sit inside the door.
The aroma box is designed to reduce the odour transfer
within the fridge, e.g. cheese.
B
A
Fig. 2.7
Fig. 2.8
A. Chiller Breakfast B. Crispers
Fig. 2.9
Fig. 2.10
Fig. 2.11
9
About the Freezer Compartment
Note: Do not pull the freezer drawers with too much force as
food may fall out. Do not overpack the drawer otherwise food
will fall out when opening too fast.
Make sure that the two sides of the shelf are in level
positions otherwise food may drop o.
The shelves will not pull out accidentally when you remove
foodstu from the appliance.
The freezer compartment is used for freezing fresh food, for
storing frozen food, and for making ice cubes.
If the freezer door has been left open for a long time or not
closed properly, frost will form and can prevent ecient air
circulation. To resolve this, unplug the freezer and wait for it
to defrost. Clean the freezer once it has fully defrosted.
Remove baskets, covers, and so on, to increase the storage
volume of freezer.
The freezer volume stated on the label is the volume without
baskets, covers, and so on.
IMPORTANT
DO NOT refreeze thawed food. It may pose a danger to your
health and cause problems such as food poisoning.
DO NOT put warm food in the deep freeze compartment
until it has completely cooled. It will thaw already frozen food,
which may then rot.
When purchasing frozen food, make sure it has been stored
under appropriate conditions and the packaging is not
damaged.
DO NOT purchase frozen food if the packaging shows signs
of humidity or if it has a foul odour. The food may not have
been stored correctly and may have gone rotten.
The storage life of frozen food depends on the room
temperature, the thermostat setting, how often the door is
opened, the type of food, and the length of time required to
transport the product from the shop to your freezer. Always
follow the instructions printed on the packaging and never
exceed the maximum storage life indicated.
NOTE: Remove frozen food from the freezer the day before
consumption, and put in the bottom compartment of
the refrigerator. This helps reduce the temperature in the
refrigerator, which in turn saves energy. If the frozen food
defrosts in an open area, energy loss will occur.
NOTE: If you attempt to open the freezer door immediately
after closing it, you will nd that it will not open easily. This
is normal. Once equilibrium has been reached, the door will
open easily.
10
88
88
eco
mode q drink s.saver
°c -88°c
-88°c
sc sf
zone 1 zone 2
min
cooler

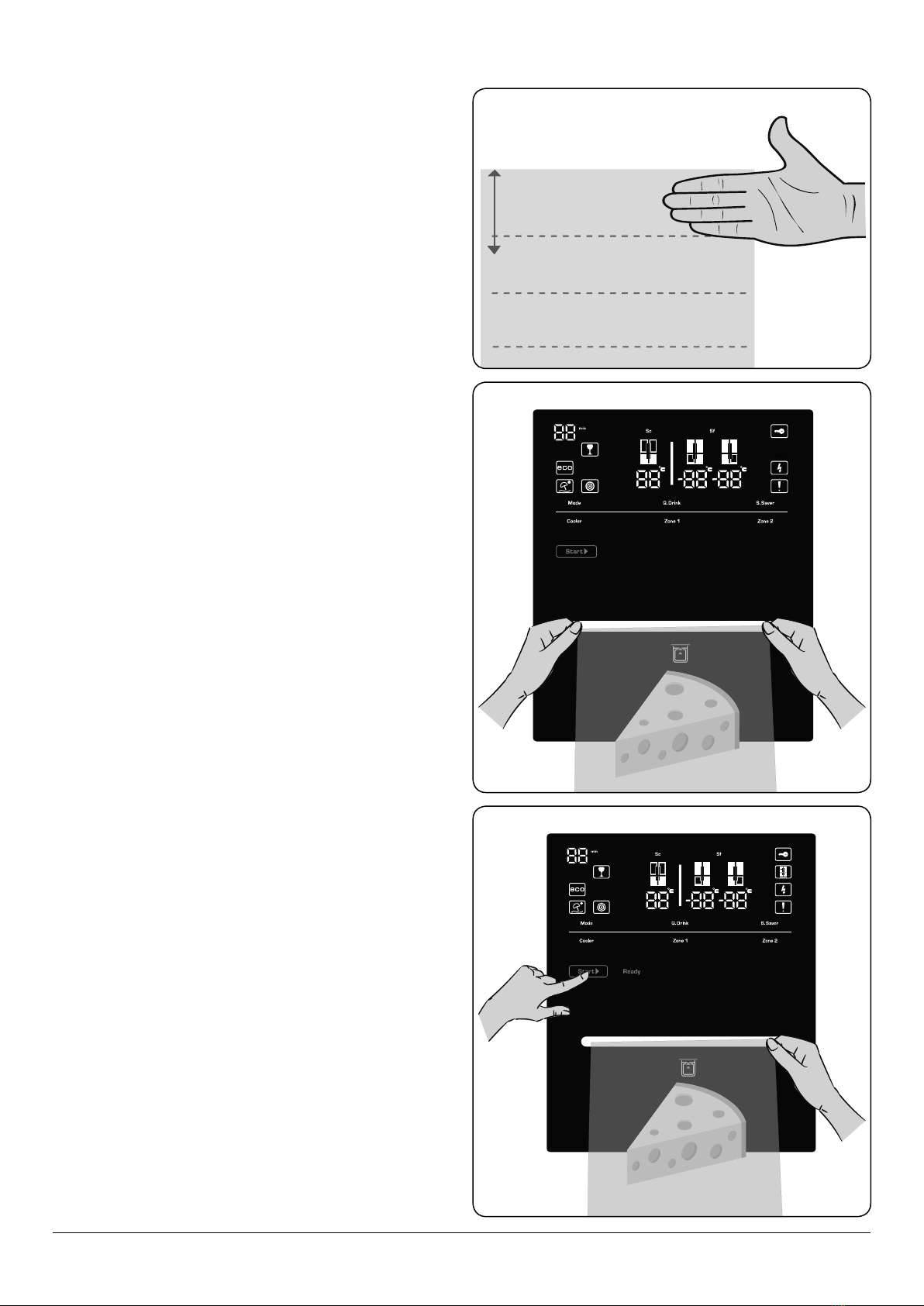

Start Ready Vacuum Sealing Done
!
6
4
5
3
2
1
10
11
12
13
7
19 1820 1416 15
98
17
LCD Display
24 25232221
26
Vseal
Fig. 3.1
Using the Control Panel
1. Cooler button
2. Mode button
3. Holiday Mode
4. Economy mode
5. CircFresh
6. q drink timer
7. q drink light
8. Super cooling light
9. Super freezing light
10. Child lock
11. Low voltage warning
12. Service alarm
13. Screensave button
14. Zone 2 (right freezer) button
15. Right freezer compartment temperature indicator
16. Left freezer compartment temperature indicator
17. Zone 1 (left freezer) button
18. q drink mode button
19. Fridge compartment temperature indicator
20. Night sensor
21. Vseal™ Start button
22. Vseal™ Ready indicator
23. Vseal™ Indicator
24. Vseal™ Sealing Indicator
25. Vseal™ Done Indicator
26. Vseal™ Symbol
3. Using the Control Panel
LCD Display
11
Touch Display Prevention (Safe Mode)
The touch display is protected from accidental touch. To
activate a feature, press any of the user controls for more than
2 seconds this will deactiviate the protection. If no button
is pressed within 20 seconds, the display will return to safe
mode.
The display will advise the user that screen safe mode has
been disabled by emitting a double beep.
Operating Your Fridge Freezer
q drink mode Beverage cooling
The q drink mode is used to cool drinks within an adjustable
time frame (05, 10, 15, 20, 25 or 30 minutes). While using the
q drink mode beverages can be stored in the freezer.
Important: “q drink” mode should not be confused
with cooling.
Adjust the time according to the temperature of the
bottles before you put them in the zone 1or zone 2 freezer
compartments. For example, the time may initially be set for
5 minutes. If your drinks have not cooled suciently after this
time, you may set a further 5 or 10 minutes cooling time.
While this mode is active, you MUST check the
temperature of the bottles regularly.
NOTE: This will not adjust the freezer temperature
Set the q drink mode Beverage cooling
NOTE: At times the q drink button will emit two beeps, if the
controls has not been previously activated
NOTE: q drink will not function if Zone 2 has been set to work
as a chiller.
NOTE: q drink will function if Zone 1 is set to work as a chiller.
03
mode q drink s.saver
°c -23 °c
-23°c
zone 1 zone 2
cooler
Flashes 4x
03
mode q drink s.saver
°c -23 °c
-23°c
zone 1 zone 2
05 min
cooler
03
mode q drink s.saver
°c -23 °c
-23°c
sc sf
zone 1 zone 2
25 min
cooler
NOTE: Disable screen safe mode.

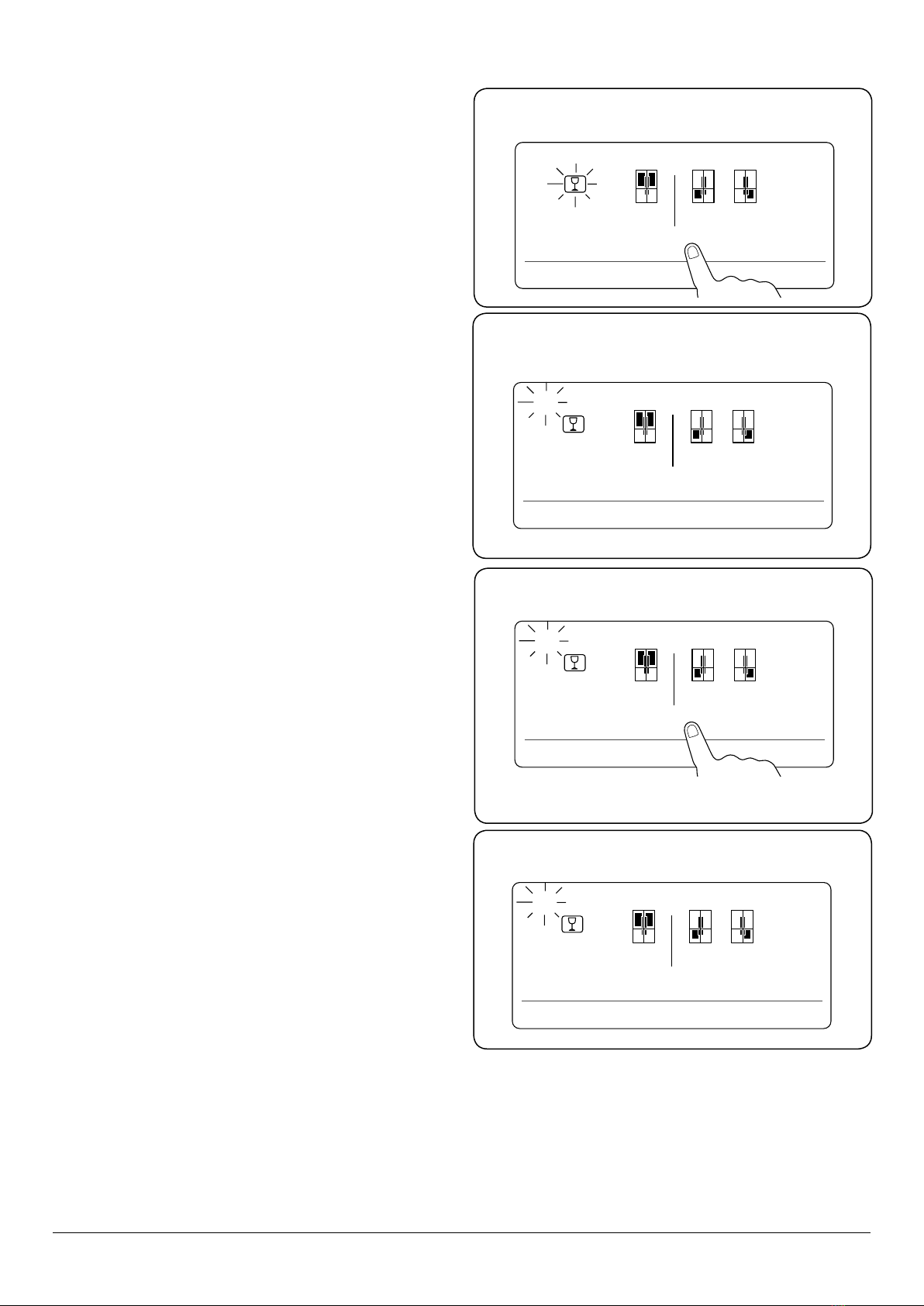

Step 1. Press the q drink to activate the mode.
Step 2. Whilst the wine glass symbol is ashing continue
to incrementally press the q drink button to change the
cooling time.
NOTE: q drink time can only be set when the wine glass symbol ashes.
Step 3. Once the desired time has been set, stop pressing
the q drink button.
NOTE: When the bottles are cool enough, they MUST be removed
from the freezer otherwise they may burst.
Flashes 4x
03
mode q drink s.saver
°c -23 °c
-23°c
zone 1 zone 2
23 min
cooler
Step 4. The timer digits will continue to ash. Once the
time has elapsed, q drink mode will emit an audible alert.
12
03
mode q drink s.saver
°c -23 °c
-23°c
sc sf
zone 1 zone 2
05 min
cooler
03
mode q drink s.saver
°c -23 °c
-23°c
zone 1 zone 2
05 min
cooler
Step 1. If you accidently pressed the q drink wait for the
wine glass symbol to ash 4x. Press the q drink whilst the
timer digits ashes.
Step 2. The timer digits and wine glass symbol will ash
and then disappear.
Cancel q drink mode
13
SF, SUPERFREEZE
Purpose
• To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.
• Large food shop, this mode ensure food is frozen quickly
and therefore retains nutrients and taste.
• High quality meat/fish, again by quickly freezing the
produce nutrients are retained and taste is preserved
To set the Super-Freeze for Zone 1 (left freezer) (Fig. 3.2)
Incrementally press the‘zone1’ button until ‘SF’shows on the
display. A beep will sound to conrm the mode is active.
To set the Super-Freeze for Zone 2 (right freezer) (Fig. 3.3)
Incrementally press the‘zone2’ button until ‘SF’shows on the
display. A beep will sound to conrm the mode is active.
Super-freezing mode will automatically deactivate after 24
hours or once the freezer compartment temperature sensor
reaches the correct temperature.
For super freezing, zone1 compartment should be
selected preferably.
SC, SUPER-COOL
Purpose
• To cool and store a large quantity of food in the fridge
compartment.
• To quickly cool drinks.
• Large food shop, this mode ensure food is cooled
quickly and therefore retains nutrients and taste.
To set the Super-Cool for cooler / fridge cabinet (Fig. 3.4)
Incrementally press the‘cooler’ button until‘SC’ shows on the
display. If no button is pressed while‘SC’ is displayed, a beep
will sound to conrm the mode is active.
Super-cooling mode will automatically deactivate after 4 to 6
hours, depending on the ambient temperature, or when the
cooler compartment reaches a suciently low temperature.
02
mode q drink s.saver
°c -SF°c
-22°c
sc sf
zone 1 zone 2
cooler
02
mode q drink s.saver
°c -22°c
-SF°c
sc sf
zone 1 zone 2
cooler
SC
mode q drink s.saver
°c -22°c
-22°c
sc sf
zone 1 zone 2
cooler
Cooler / Fridge Zone 1 Zone 2
SUPER-COOL SUPERFREEZE FREEZE
COOL SUPERFREEZE SUPERFREEZE
Table 3.1 Setting Super-cool and Superfreeze Table
Fig. 3.2
Fig. 3.3
Fig. 3.4
NOTE: Disable screen safe mode.
NOTE: Disable screen safe mode.
NOTE: Disable screen safe mode.
14
mode q drink s.saver
-23 °c
-23°c
zone 1 zone 2
cooler
mode q drink s.saver
-23 °c
zone 1 zone 2
cooler
03
mode q drink s.saver
°c -23°c
zone 1 zone 2
cooler
Fig. 3.5 Fridge compartment will switch o.
Fridge compartment and Zone 2 will switch o.
Zone 1 freezer will switch o.
Fig. 3.6
Fig. 3.7

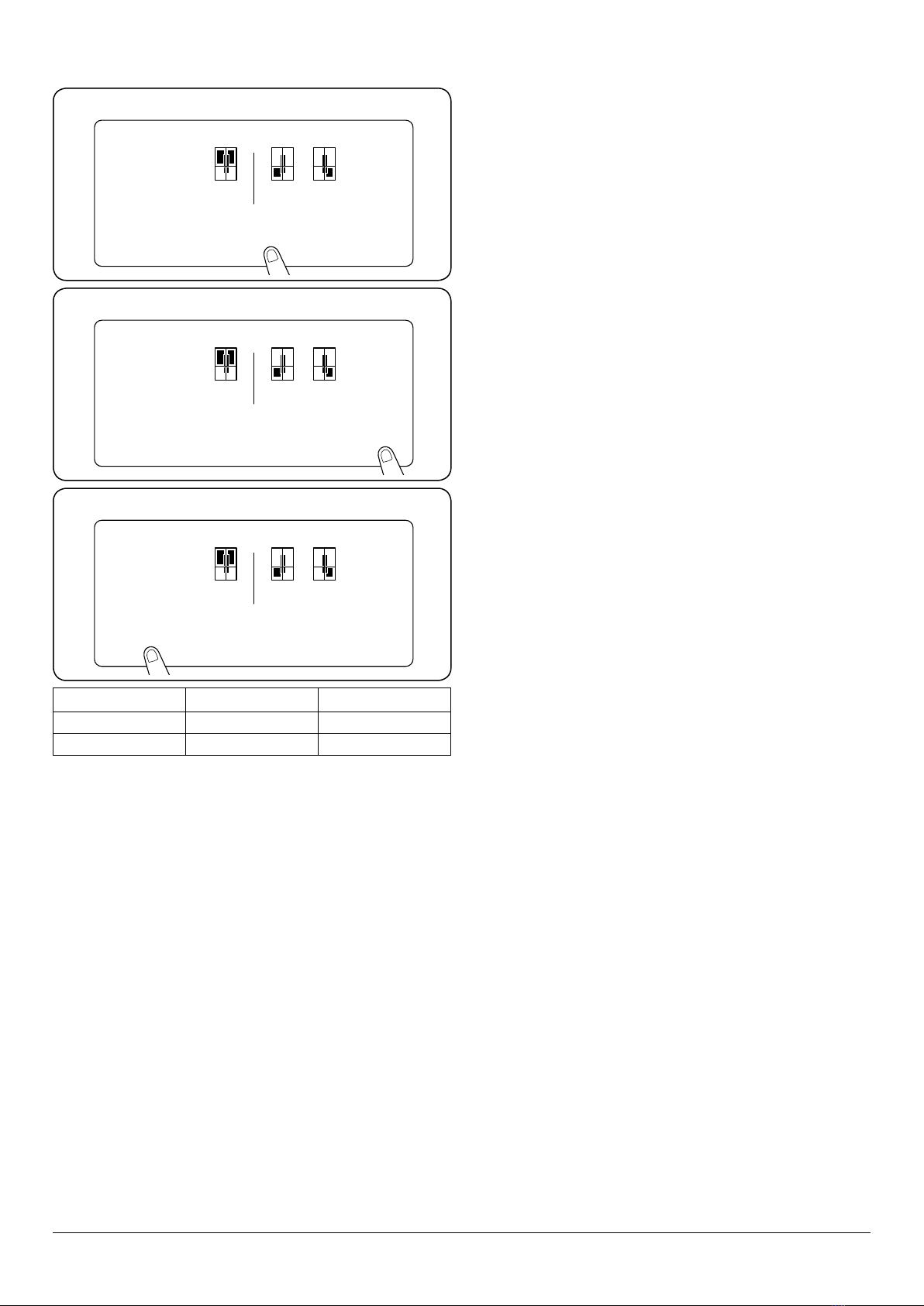

Switching zones off
A combination of cooling/freezing zones can be disabled
as required. The button combination should be applied for
greater than 5 seconds.
Switching zones on
Each disabled zones can be reinstated by repeating the
process as described above.
Turn of Night Sensor
Repeat operation as above.
SCREEN SAVER (s.saver)
This mode saves energy by switching o all control panel
lighting when the panel is left inactive. Once activiated the
screensaver mode will switch on after 10 seconds. When the
screensaver is active, only the s.saver icon is illuminated.
To activate (Fig. 3.8) the screensaver, press and hold the
‘s.saver’ button for 3 seconds. A single beep will advise the
user that the function is set.
To deactivate (Fig. 3.8) the screensaver, press and hold the
‘s.saver’ button for 3 seconds. A single beep will advise the
user that the function is set.
NOTE: Screensaver function is cancelled if the power is cycled
o, on.
88
mode q drink s.saver
°c -88°c
-88°c
zone 1 zone 2
cooler
88
mode q drink s.saver
°c -88°c
-88°c
zone 1 zone 2
cooler
Step 1. Press and hold the mode and s.saver for 3 seconds.
Step 2. The night sensor indicator will appear.
Night sensor
This night sensor function saves energy by switching
the lights inside the refrigerator o if there is sucient
illumination in the room. To activate follow Step 1 and Step 2.
02
mode q drink s.saver
°c -22°c
-22°c
zone 1 zone 2
cooler
Hold for 3
seconds
Fig. 3.8
Hold for 3
seconds
NOTE: Disable screen safe mode. NOTE: Disable screen safe mode.
NOTE: Disable screen safe mode.
NOTE: Disable screen safe mode.
NOTE: Disable screen safe mode.
15
00
eco
mode q drink s.saver
°c e °c
00°c
zone 1 zone 2
cooler
00
mode q drink s.saver
°c h °c
00°c
zone 1 zone 2
cooler
Economy (eco) mode Fig. 3.9
eco
During periods of less frequent use (door opening)
or absence from home, such as a weekend holiday,
eco program can provide optimum temperature
whilst saving power.
In order to activate eco mode, press the [mode] button until
“eco” symbol and “E” illuminate.
Whilst in eco mode, the temperatures for both the fridge and
freezer compartment are 4°C for fridge and -18 °C for freezer.
Cancel Economy (eco) Mode
In order to deactivate eco mode, press the [mode] button
until “eco”symbol and “E” are no longer visible.
Holiday mode Fig. 3.10
Holiday mode is to be used if the device is to be
left for an extended period. During Holiday mode
only the freezer compartment remains active.
Benets: save on electricity bills when away from
home.
It is represented by an umbrella and sun. If the cooler
compartment is not to be used for some time, such as during
a holiday, activate holiday mode. To activate holiday mode,
press the mode button until the holiday mode symbol and ‘H’
are illuminated.
Holiday mode will be active for these congurations (Table
3.2).
WHILST IN HOLIDAY MODE, ALL FOOD SHOULD BE
REMOVED FROM THE FRIDGE COMPARTMENT AS THIS
WILL BE TURNED OFF.
Whilst in holiday mode, the freezer temperature will default
to -18°C for freezer.
Cancel Holiday Mode
To activate holiday mode, press the mode button until the
holiday mode symbol and ‘H’ are no longer visible.
Door open alarm function
If either the fridge or freezer door is left open for more than 2
minutes, the appliance will beep.
Active
mode
Cooler Zone
(Fridge)
Freezer Zone 1
(Left)
Freezer Zone
2 (Right)
Holiday Turns o Remains on Remains on
Holiday Turns o If switched to fridge
/ chiller mode zone
1 will remain on.
Remains on
Holiday Turns o Remains on If switched to
fridge / chiller
mode zone 2 will
remain on.
Table 3.2
Fig. 3.9
Fig. 3.10
NOTE: Disable screen safe mode.
NOTE: Disable screen safe mode.
16

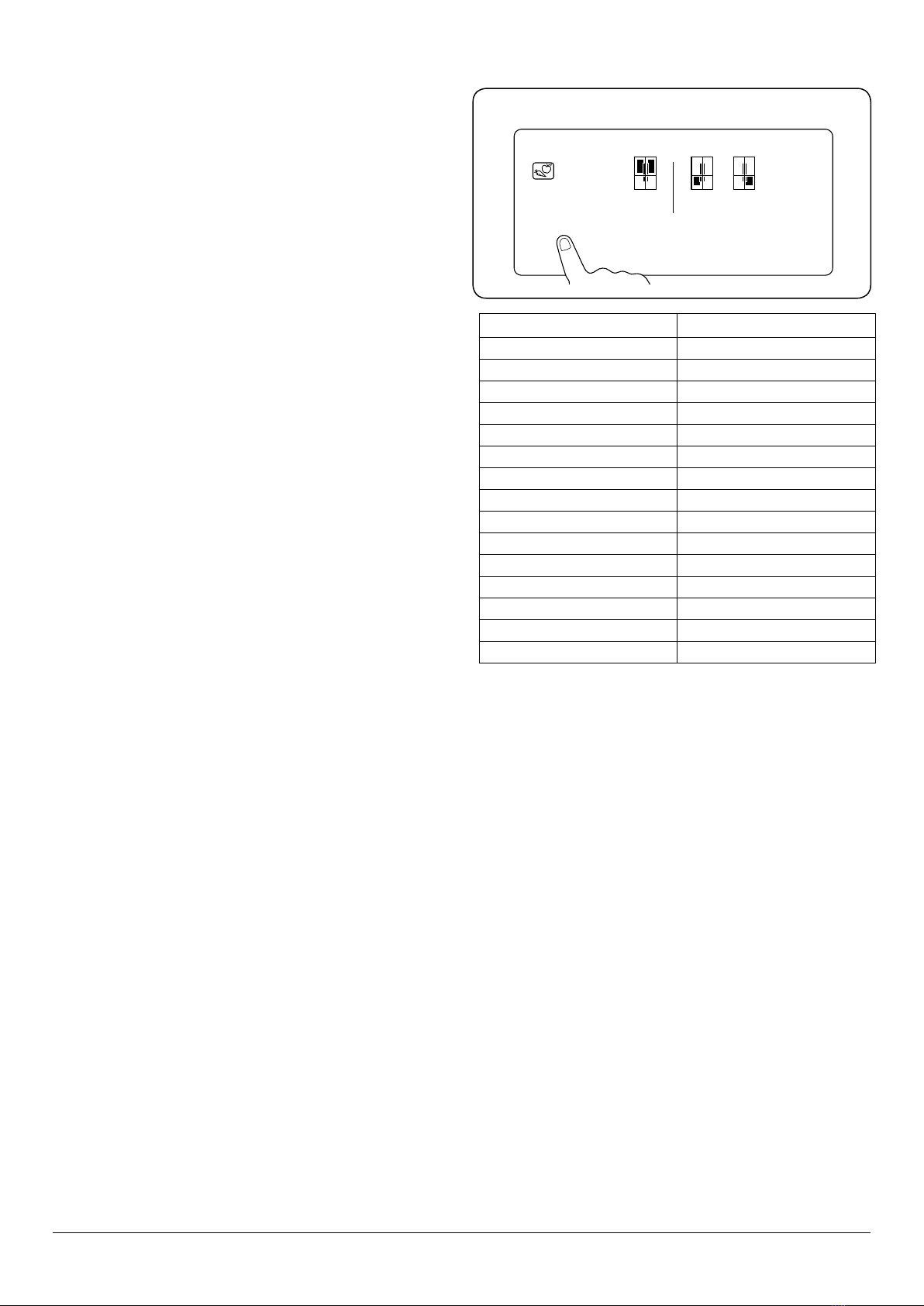

Setting Zone Temperatures
Cooler / fridge
The cooler / fridge temperature can be set by incrementally
pressing the cooler button. The adjustment range is 2, 3, 4, 5,
6, 7 or 8 °C or SC (Super-cool)
Zone 1 / freezer
The freezer temperature can be set by incrementally pressing
the Zone 1 button. The adjustment range is -16, -17, -18, -19,
-20, -21, -22, -23 or -24 °C or SF (Superfreeze).
Zone 2 / freezer
The freezer temperature can be set by incrementally pressing
the Zone 2 button. The adjustment range is -16, -17, -18, -19,
-20, -21, -22, -23 or -24 °C or SF (Supefreeze).
Refer to Table 3.3 Setting Super-cool and Superfreeze
Table
Setting Zone 1 / Zone 2 as a fridge
To set Zone 1 as a fridge (Fig. 3.11)
To use the bottom left freezer compartment as a cooler /
fridge, press and hold Zone 1 button for 3 seconds. Once
set as a fridge / cooler the temperature can be set by
incrementally pressing the zone 1 button. The adjustment
range is 2, 3, 4, 5, 6, 7 or 8.
To set Zone 2 as a fridge (Fig. 3.12)
To use the bottom right freezer compartment as a cooler
/ fridge, press and hold Zone 2 button for 3 seconds. Once
set as a fridge / cooler the temperature can be set by
incrementally pressing the zone 2 button. The adjustment
range is 2, 3, 4, 5, 6, 7 or 8.
Food should only be stored if the cabinet temperature is at
required storage temperature.
Setting Zone 1 / Zone 2 as a freezer
To reset Zone 1 / Zone 2 to function as a freezer. Press and
hold Zone 1 or Zone 2 for 3 seconds. Set the desired freezer
temperature as described in Setting Zone Temperatures.
Child lock
Child lock can be activated to prevent any
accidental or unintentional changes being made
to the appliance settings.
To activate (Fig. 3.13) the child lock, press and hold the
cooler and zone 2 buttons simultaneously for 3 seconds.
While child lock is active, no changes can be made to settings
as the buttons will be inactive. The lock symbol will be
displayed.
To deactivate (Fig. 3.13) the child lock, press and hold the
cooler and zone 2 buttons simultaneously for 3 seconds.
02
mode q drink s.saver
°c -02°c
-22°c
sc sf
zone 1 zone 2
cooler Hold for 3
seconds
Fig. 3.11
Hold for 3
seconds
Zone 1 freezer to chiller. NOTE: Disable screen
safe mode.
02
mode q drink s.saver
°c -22°c
08°c
sc sf
zone 1 zone 2
cooler Hold for 3
seconds
Fig. 3.12
Hold for 3
seconds
Zone 2 freezer to chiller. NOTE: Disable screen
safe mode.
02
mode q drink s.saver
°c -22°c
-22°c
sc sf
zone 1 zone 2
cooler
Setting the Child lock. NOTE: Disable screen
safe mode.
Fig. 3.13
Cooler / Fridge Zone 1 Zone 2
SUPER-COOL SUPERFREEZE FREEZE
COOL SUPERFREEZE SUPERFREEZE
Table 3.3 Setting Super-cool and Superfreeze Table
17
02
mode q drink s.saver
°c - -- °c
-22°c
sc sf
zone 1 zone 2
cooler
Hold for 3
seconds
Fig. 3.14
Hold for 3
seconds
NOTE: Disable screen safe mode.
CircFresh
CircFresh works to protect the avour and texture of
food, giving it a longer shelf life, by maintaining an ideal
temperature and humidity levels.
To select CircFresh mode, the zone1 compartment should
be set up as a cooler, not as a freezer. Please follow the
instructions described in “To set Zone 1 as a fridge (Fig.
3.11)” page 16
Do not select CircFresh mode if zone 1 is being used
as freezer.
If zone1 or zone2 compartments will be converted
from a freezer to a cooler: Empty the food from
the compartment and leave the door closed for 4
hours. Food can then be placed in the compartment.
Baskets and/or shelves removed from the
compartment should be re-tted.
Do not place food in front of the fan.
To switch the appliance to CircFresh mode, press and hold the
mode button until the CircFresh light illuminates. The zone1
button will be o and the zone1 compartment temperature
can not be changed (Fig. 3.14).
To deactiviate CircFresh Mode
To disable CircFresh mode press mode until CircFresh mode
has disappeared.
To switch zone 1 to a freezer, please follow the instructions
described in “Setting Zone 1 / Zone 2 as a freezer” page
16
CircFresh keeps fruit and vegetables fresh by maintaining the
ideal humidity and temperature conditions.
The storage times listed take into account the maximum
decay rate of the fruits and vegetables if they are properly
stored with CircFresh mode active.
All storage times are recommended times. The storage times
of fruit and vegetables depend on the quality of the food,
postharvest conditions and uninterrupted refrigeration from
harvest until storage in a CircFresh appliance. Individual cases
may vary.
Fruit and Vegetables Storage Time
Lettuce 10 days
Green leaves 10 days
Tomato 7 days
Cucumber 7 days
Lemon 15 days
Cherry 15 days
Orange 20 days
Strawberry 5 days
Carrot 20 days
Broccoli 10 days
Spinach 10 days
Squash 15 days
Apple 25 days
Grapes 20 days
Artichoke 15 days
Table 3.4Maximum Storage Time For Some Fruits and Vegetables
18
~ 7 cm
Fig. 3.15
Fig. 3.16
Fig. 3.17
Recommendations to consider during
use
1. The vacuum food sealer embossed bags should be one
sided EMBOSSED bag and a maximum of 18 cm wide.
2. It is not appropriate to put too much food in the
vacuum food sealer embossed bags. Any wrinkles on
the mouth of the bag may prevent vacuuming.
3. Sucient space should be left at the open end of the
bag, so it can be placed correctly into the compartment.
(About 7 cm / 4 nger) (Fig. 3.15).
4. IT MUST NOT BE REUSED FOR NEW FOOD, only
residue food can be used again.
5. Please ensure the EMBOSSED side of the bag faces
upwards during usage.
Using the Vseal™
The opening of the vacuum food sealer embossed bag should
be held tightly from either side (Fig. 3.16) and inserted into
the compartment, up to the red strip on the bag.
Press Start (Fig. 3.17). When complete, the vacuum food
sealer embossed bags can be removed when the “Done”
indicator appear.
Once the process is complete, the Vseal™ display will switch
o.
Cancel the Vseal™
If you accidentally press the start button, press the start
button again for two seconds. NOTE: Once Vseal™ is activated
the process cannot switch o.
This manual suits for next models
9
Table of contents
Other Range Master Freezer manuals
