Range Master RFSFZ60BL/C Manual
Freestanding Tall
Freezer
User Guide
&
Installation & Service Instructions
Due to our policy of continual improvement, we reserve the right to change specications without prior notice.
RFSFZ60BL/C - RFSFZ60DI/C - RFSFZ60IV/C - RFSFZ60SS/C
U111057-03
1. Before You Start 1
Safety 1
Electrical Safety 2
CE Declaration of conformity 3
Disposal of your old appliance 3
Packaging and the Environment 3

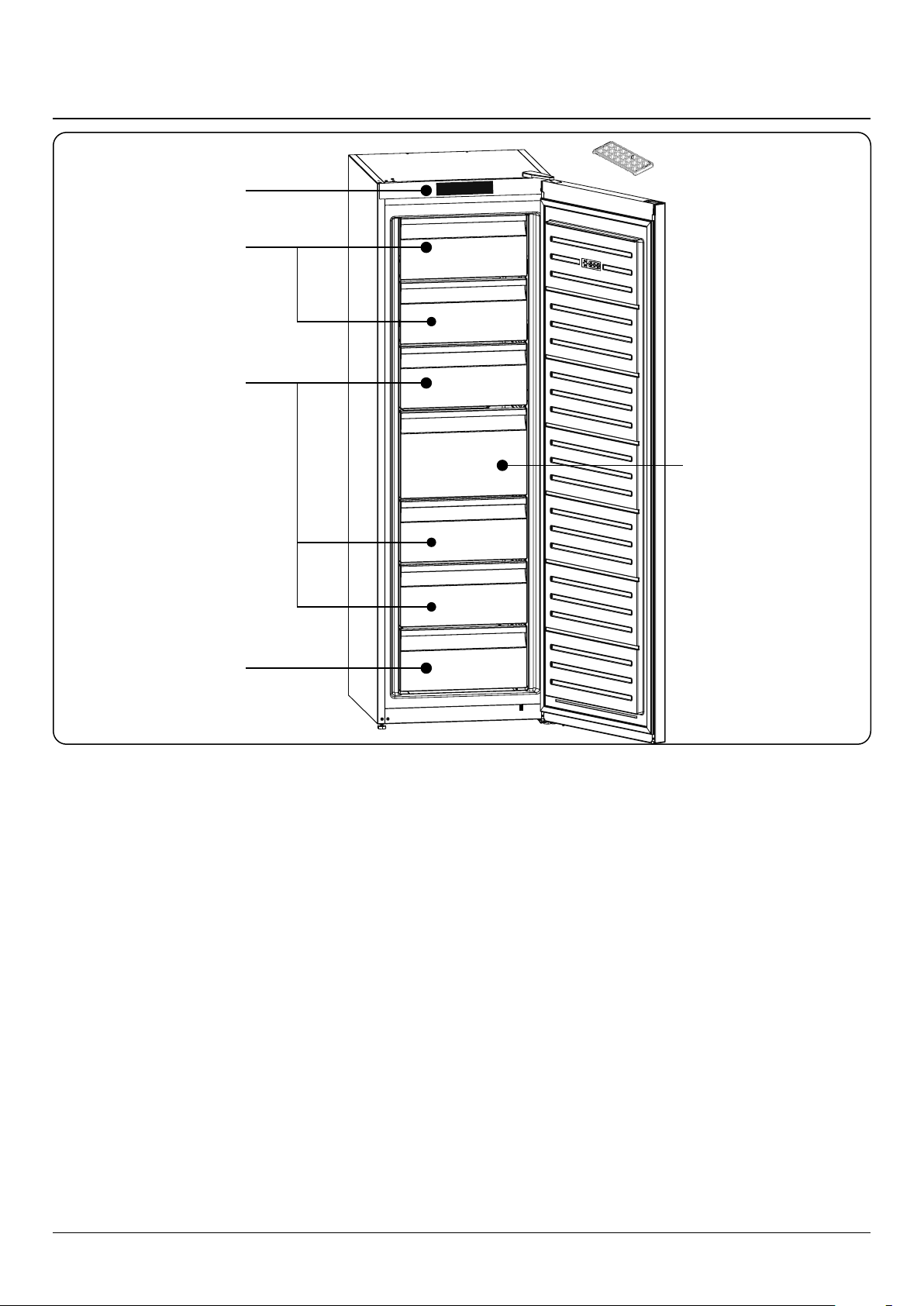

2. About Your Freezer 4
Using the appliance 5
Accessories 5
3. Using the Control Panel 6
Operating your Freezer 7
4. Food Storage Tips 10
Food storage 10
Tips on Freezing Food 11
5. Food Storage Table 12
6. Cleaning and Maintenance 14
7. Troubleshooting 16
Tips for saving energy 17
8. Installation 18
Installation warnings 18
Positioning Your Appliance 19
Electrical Supply Connection 20
Fitting the door handle 22
Door reversal 23
Integration of two appliances 25
9. Circuit diagram 29
10. Technical Data 30
11. Warranty/After Sales Service 32
Contents
1
• Make sure that the electrical supply to your plug socket
is correct for this appliance – the required information is
on the data badge of the appliance.
• Once the appliance is installed, cleaned and dry, it is
ready to be plugged in and switched on.
Safety
n The data badge is located inside the appliance
(refrigeration compartment).
n WARNING: Use potable (drinking) water with this
appliance.
n WARNING: Keep this appliance clear of any
obstruction.
n DO NOT damage the refrigerant circuit. If it does
become damaged, do not use the appliance.
n WARNING: DO NOT use mechanical devices (such as
hairdryers) to defrost this appliance.
n If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the
cooler) you should take care during transportation
and installation to prevent the cooler elements
from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler
elements, move your appliance away from open
ames or heat sources and ventilate the room where
the appliance is located for a few minutes.
• When replacing old appliances, make sure that you
have disabled any locking mechanisms before disposal
– it may even be best to remove the appliance door
completely to prevent children from becoming trapped
inside the appliance.
• The appliance must be connected to the power supply
safely. Loose connections, broken plugs and bare wires
are a safety hazard. Make sure that all connections are
sound.
• Before undertaking any routine maintenance or minor
repairs, disconnect the appliance from the electrical
supply.
• DO NOT touch cold surfaces of the appliance while it is
in use as this will cause hands to stick to them leading
to freezer burns.
• When moving the appliance take care not to damage
the leads, pipes or condenser unit. Should these parts
become damaged, contact a qualified service engineer.
• Effervescent liquids (fizzy drinks) should never be
frozen. These liquids expand during freezing and
this may lead to the bottles/containers shattering or
exploding.
Icon Type Meaning
WARNING Serious injury or death risk
Dangerous voltage risk
FIRE Fire risk
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
RISK OF ELECTRIC
SHOCK
1. Before You Start
Thank you for buying this appliance. We hope that it provides
a stylish yet practical solution to your cooling needs. We hope
that this handbook supplies you with all the information you
require. If there is anything you are unsure of please contact
us (see ‘Warranty’ section for Customer Care’s details).
n WARNING: This appliance must be earthed.
n Please leave the appliance to stand for at least six
hours. This will allow the cooling system to settle
following transportation.
n Always make sure a qualied person installs this
appliance.
n This appliance is designed for domestic use only.
Using it for any other purpose could invalidate any
warranty or liability claim.
n Children aged from 3 to 8 years are allowed
to load and unload refrigerating appliances.
Children are not expected to perform cleaning or
user maintenance of the appliance, very young
children (0-3 years old) are not expected to use
appliances, young children (3-8 years old) are not
expected to use appliances safely unless continuous
supervision is given, older children (8-14 years old)
and vulnerable people can use appliances safely
after they have been given appropriate supervision
or instruction concerning use of the appliance.
Very vulnerable people are not expected to use
appliances safely unless continuous supervision is
given.
• Before you plug the appliance into the mains, clean
the inside of the appliance using warm water and
bicarbonate of soda, then dry thoroughly.
• Check that no parts of the appliance are damaged,
especially parts of the cooling system, pipes or leads.
If damage has occurred, DO NOT install the appliance;
you should contact a qualified service engineer or
return the appliance to its place of purchase.
• If the accessories inside the appliance have been
disturbed during transit, reposition them in accordance
with the instructions.
2
• Foods that are intended to be defrosted or cooked first,
such as breads or meats, must not be eaten in their
frozen state.
• If food looks or smells strange, do not attempt to eat it.
If in doubt throw it away. Spoiled food can be harmful to
your health.
• Never use sharp, metal implements to scrape ice off the
surface of this appliance. Only use implements, which
are fit for this purpose (such as plastic scrapers) and use
carefully to avoid damaging the lining of the appliance.
• The cooling system contains refrigerant and oils, all of
which are harmful to health if leaked. Should leakage
occur, disconnect the appliance and ventilate the room
it is installed in. Take care to ensure that you do not get
any coolant near to, or in, your eyes. Contact a service
engineer or arrange to have the appliance removed.
DO NOT use the appliance under any circumstances.
n WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
n WARNING: DO NOT use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
n WARNING: DO NOT use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
n WARNING: DO NOT damage the refrigerant circuit.
n WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be
xed in accordance with the following instructions:
If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the
cooler) you should take care during transportation
and installation to prevent the cooler elements
from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler
elements, move your appliance away from open
ames or heat sources and ventilate the room where
the appliance is located for a few minutes.
While carrying and positioning the appliance, do not damage
the cooler gas circuit.
DO NOT store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
This appliance is intended to be used in household and
domestic applications only.
If the socket does not match the appliance plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
A specially grounded plug has been connected to the power
cable of your appliance. This plug should be used with
a specially grounded socket of 13 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
This appliance is not intended for use at altitudes exceeding
2000 m.
Electrical Safety
n WARNING: When positioning the appliance, ensure
the supply cord is not trapped or damaged.
n WARNING: DO NOT locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
n DO NOT use plug adapter.
ArtNo.000-0001
Warning triangle WARNING; Risk of re / ammable materials
• The plug must be accessible after installation.
• The operating voltage for your appliance is 220-240 V at
50Hz.
• Connections to the mains supply should be in
accordance with local regulations.
• Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
• The appliance must be connected with a properly
installed fused socket. The power supply (AC) and
voltage at the operating point must match with the
details on the name plate of the appliance (the name
plate is located on the inside left of the appliance).
• The appliance must be plugged into an earthed socket.
• The plug MUST be accessible after the appliance has
been positioned.
• The appliance is supplied with a standard three-pin
plug, of which the one for grounding should never be
removed.
• Hold the plug, not the electrical cable, when
unplugging the appliance.
• Make sure that the appliance does not trap the electric
cable.
• DO NOT step on the cable.
3
• Avoid damage to the electric cable when moving the
appliance.
CE Declaration of conformity
• We declare that our products meet the applicable
European Directives, Decisions and Regulations and the
requirements listed in the standards referenced.
Disposal of your old appliance
ArtNo.000-0019
Do not bin logo
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the recycling
of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product,
please contact your local city oce, your household waste
disposal service or the shop where you purchased the
product.
Packaging and the Environment
ArtNo.000-0019
Do not bin logo
Packaging materials protect your machine from
damage that may occur during transportation.
The packaging materials are environmentally
friendly as they are recyclable. The use of recycled
material reduces raw material consumption and
therefore decreases waste production.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not
responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for the losses to be occurred.
• This appliance is produced to be used in houses and
it is only suitable for cooling / storing foods. It is not
suitable for commercial or common use and/or for
storing substances except for food. Our company is not
responsible for the losses to be occurred in the contrary
case.
To avoid contamination of food, please
respect the following instructions:
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
• Clean regularly surfaces that can come in contact with
food and accessible drainage systems
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
• Two-star frozen-food compartments are suitable for
storing pre-frozen food, storing or making ice cream
and making ice cubes.
• One-, two- and three-star compartments are not
suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long
periods, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the
appliance.
4
The freezer is shown in Fig. 2.1 and has the following
features:
1. Control panel
2. Freezer aps
3. Freezer drawers
4. Freezer bottom drawer
5. Freezer big drawer
6. Ice tray
Important installation instructions
This appliance is designed to work in dicult climate
conditions (up to 43°C) and is powered with‘Freezer Shield’
technology which ensures that the frozen food in the
freezer will not defrost even if the ambient temperature
falls as low as -15 °C. So you may then install your appliance
in an unheated room without having to worry about
frozen food in the freezer being spoilt. When the ambient
temperaturereturns to normal, you may continue using the
appliance as usual.
1
4
5
6
2
3
2. About Your Freezer
Fig. 2.1
5
Using the appliance
Information on No-Frost Technology (Fig. 2.2)
No-Frost freezers have a dierent operating system to static
freezers. In normal (static) freezers, the humidity entering the
freezers due to opening the door and the humidity inherent
in the food causes ice to form in the freezer compartment. To
remove the frost and ice from the freezer compartment, it is
required to periodically switch the fridge o and place frozen
food in a separate cooled container.
The situation is completely dierent in No-Frost fridges. A
built-in fan blows dry and cold air evenly into the cooler
and freezer compartments. The cold air disperses uniformly
between the shelves, ensuring all your food is cooled evenly,
thus preventing humidity and icing to occur.
Therefore, your No-Frost fridge allows ease of use, in addition
to its huge capacity and stylish appearance.
In the refrigerator compartment, there will be nearly same
conguration with freezer compartment. Air, that is emitted
with the fan, located at the top of refrigerator compartment,
is cooled while passing through the gap behind the air duct.
At the same time, air is blown out through the holes on the
air duct so that cooling process is successfully completed in
the refrigerator compartment.
Holes in the air duct are designed such that the air
distribution becomes homogenous in this compartment.
As there is no air passage between freezer and refrigerator
compartment, there will be no odor mixing.
As a result of these, your fridge with new generation cooling
technology, gives you, ease of use beside the huge volume
and esthetic appearance.
Accessories
Ice Tray (Fig. 2.3)
Fill the ice tray with water and place in the freezer
compartment (Fig. 2.3).
After the water has completely frozen, you can twist the tray
to remove the ice cube (Fig. 2.3) s.
Do not bend the icetray to remove the ice (Fig. 2.4)
n Do not ll the icebox with water in order to make ice.
It will break.
Fig. 2.2
Fig. 2.3
Fig. 2.4
6
Fig. 3.1
Using the Control Panel
1. Freezer Set Button
2. Mode Button
3. Drink Cool Button
4. Mute Button
5. Freezer Set Value Screen
6. Super Freeze Symbol
7. Super Freeze Symbol
8. Economy Mode Symbol
9. Low Voltage Symbol
10. Child Lock Symbol
11. Alarm (SR) Symbol
12. Sound O Symbol
13. Drink Cool Value Screen
3. Using the Control Panel
196512 3
8
210 74
11 13
7
Operating your Freezer
Freezer Temperature Set Button
This button allows setting temperature of the freezer. In order
to set values for the freezer, press the button (Fig. 3.2).
• The initial temperature of the setting display is -18 °C.
• The value for the freezer compartment will change to
a lower temperature each time this button is pressed
while the indicator is flashing. ( -16 °C, -17 °C, -18 °C, -19
°C, -20 °C, -21 °C, -22 °C, -23 °C, -24 °C)
• After reaching the desired temperature, wait for 5
seconds without pressing any buttons. Your freezer will
now operate at that temperature.
• If you continue to press the button after the value for
the freezer compartment reaches -24 °C (maximum cold
position), the temperature values will start again from
-16 °C.
Recommended Temperature Values for Freezer (Table 3.1)
Super Freeze Mode
When would it be used?
• To freeze large quantities of food.
• To freeze fast food.
• To freeze food quickly.
• To store seasonal food for a long time.
To use the super freeze mode press the temperature set
button until super freeze light comes on (Fig. 3.3). To cancel
press the temperature set button the setting will be restored
to -18°C.
DO NOT exceed the maximum load for freezing – which is
given as 21 kg / 24 hours (see data badge for details).
For optimal appliance performance in maximum freezer
capacity, set the appliance to active super freeze mode 24
hours before you put the fresh food into the freezer.
NOTE: The super freezing mode will be cancelled
automatically after 24 hours or when the freezer sensor
temperature falls below -32 °C.
Temperature Settings Warnings
• It is not recommended that you operate your freezer in
environments colder than 10°C in terms of its efficiency.
• Do not start another adjustment before completing one
adjustment.
• Temperature adjustments should be made according
to the frequency of door openings, the quantity of food
kept inside the freezer and the ambient temperature in
the location of your freezer.
• In order to allow your appliance to reach the operating
temperature after being connected to mains, do not
open the door frequently or place large quantities of
Fig. 3.2
Fig. 3.3
When to adjust Inner Temperature
For minimum freezing
capacity
-16 °C, -17 °C
In normal usage -18 °C, -19 °C, -20 °C or -21 °C
For maximum freezing
capacity
-22 °C, -23 °C or -24 °C
Table 3.1
8
food in the freezer. Please note that, depending on the
ambient temperature, it may take 24 hours for your
freezer to reach the operating temperature.
• If the appliance is switched off or unplugged, wait at
least 5 minutes before plugging the appliance in or
restarting it this will prevent damage to the compressor.
• Your appliance is designed to operate in the ambient
temperature (T/SN = 10°C - 43°C) intervals stated in
the standards. We do not recommend operating your
appliance out of the stated temperature limits in terms
of cooling effectiveness.
Economy mode (Fig. 3.4)
The optimum condition for your freezer is at -18 °C as it will
consume minimum energy. To activate your freezer more
economically. Press the MODE button until a circle appears
around the Economy symbol.
If no button is pressed for 1 second, Economy mode will be
set. The circle will blink three times and an alarm will sound.
While Economy mode is active, ‘E’ will be displayed.
To deactivate Economy mode, press the mode button (Fig.
3.4).
Child Lock function (Fig. 3.5)
Child lock helps to prevent accidental or unintentional
changes being made to the refrigerator settings.
To activate child lock, press and hold the Drink Cool and
Mode buttons simultaneously for 5 seconds.
To deactivate child lock, press and hold the Drink Cool and
Mode buttons simultaneously for 5 seconds.
Note: The child lock will be deactivated if fridge is turned o
or there is a powercut.
Screen Saver Mode (Fig. 3.6)
Press and hold the mute button for 5 seconds to activate
screen saver mode.
If no other button is pressed for 5 seconds, the control panel
lights will switch o.
If any button is pressed while the control panel lights are o,
the current settings will appear on the screen, allowing any
adjustments to be made. If you do not cancel screen saver
mode or press any buttons for 5 seconds, the control panel
lights will switch o again.
To cancel screen saver mode, press and hold the mute button
for 5 seconds again. Child lock can also be activated while
screen saver mode is active. If no buttons are pressed for
ve seconds after activating the child lock, the control panel
lights will switch o. The settings and whether child lock
is active can be viewed when any button is pressed. Child
lock can be cancelled as described in the child lock mode
instructions.
Fig. 3.4
Fig. 3.5
Fig. 3.6
9

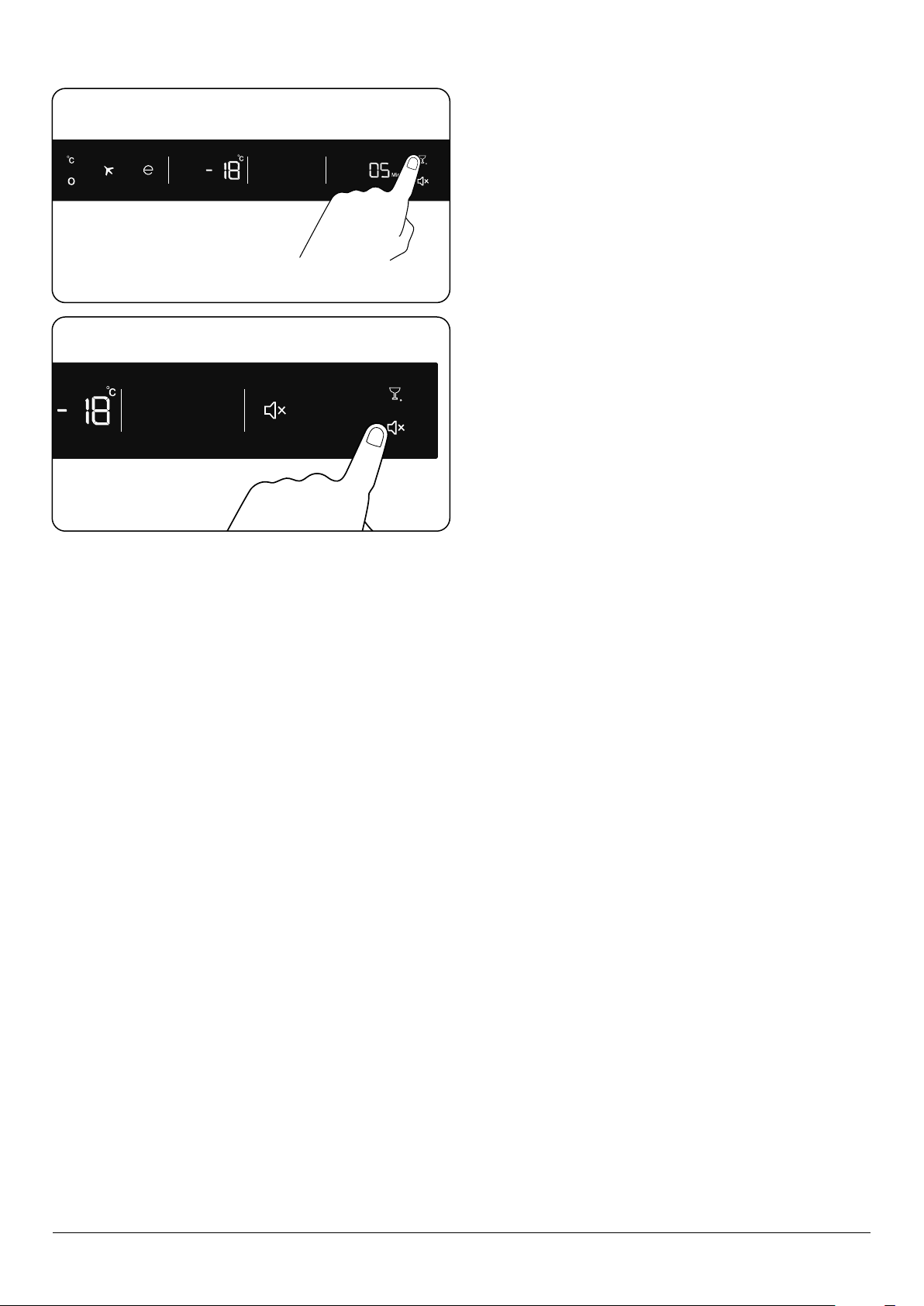

Drink Cool Mode (Fig. 3.7)
Press the drink cool button to activate drink cooling mode.
Each press will increment the time by 5 minutes up to 30
minutes. The set time can be viewed on the drink cool value
display. When the drink cooling time ends, an alarm will
sound.
n Important: This is a timer, not a cooling process.
n Adjust the time according to the temperature of the
bottles before they are placed in the freezer. For
example, you may initially set the time as 5 minutes
in the beginning, then, if the bottle is not cool
enough after this time, you might set a further 5 or
10 minutes.
n Regularly check the temperature of the bottles
while this mode is active. When the drinks are cool
enough, you must take them out of the appliance.
n If the bottles are left in the appliance for too long
while the Drink Cool mode is active, they can burst.
n This mode may also be used as a simple timer in
cooler models.
Mute Mode (Fig. 3.8)
Press the mute button to activate this mode. While this mode
is active, all button sounds and alarm sounds will switch o.
To cancel this mode, press the mute button again.
Door Open Alarm Function
If fridge door is opened for more than 2 minutes, the
appliance will sound an alarm.
Fig. 3.8
Fig. 3.7
10
Food storage
Freezer Compartment
• The freezer is used for storing frozen food, freezing fresh
food, and making ice cubes.
• To freeze fresh food, ensure that as much of the surface
of the food as possible is in contact with the cooling
surface.
• Do not store fresh food next to frozen food as it can
thaw the frozen food.
• Before freezing fresh food, divide it into portions that
can be consumed in one sitting.
• Consume thawed frozen food within a short period of
time after defrosting
• Never place warm food in the freezer compartment as it
will thaw the frozen food.
• Always follow the manufacturer’s instructions on food
packaging when storing frozen food. If no information
is provided food, should not be stored for more than 3
months from the date of purchase.
• When purchasing frozen food, make sure that it has
been stored under appropriate conditions and that the
packaging is not damaged.
• Frozen food should be transported in appropriate
containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows
signs of humidity and abnormal swelling. It is probable
that it has been stored at an unsuitable temperature
and that the contents have deteriorated.
• The storage life of frozen food depends on the room
temperature, the thermostat setting, how often the
door is opened, the type of food, and the length of time
required to transport the product from the shop to your
home. Always follow the instructions printed on the
packaging and never exceed the maximum storage life
indicated.
• The maximum amount of fresh food (in kg) that can be
frozen in 24 hours is indicated on the appliance label.
• To use the maximum capacity of the freezer
compartment, use the glass shelves for the upper and
middle section, and use the lower basket for the bottom
section.
• To use the maximum load capacity of your freezer, and
to store large quantities of food, remove all drawers
except the bottom one. Large items can be stored
directly on the shelves.
• To use the maximum freezing capacity of your freezer
move the frozen food in the upper basket to other
baskets and activate “Super freeze”mode.“Super freeze”
mode will be deactivated automatically after 24 hours.
Place the food you want to freeze to the upper basket
of the freezer without exceeding the freezing capacity
of your freezer. Then reactivate the “Super freeze” mode.
You can put your food next to other frozen food after
it is completely frozen (minimum 24 hours after “Super
freeze”mode is activated for the 2nd time).
• To freeze a small amount of food (up to 3 kg) in your
freezer, place your food without touching already frozen
food and activate“Super freeze” mode. You can put your
food next to other frozen food after it is completely
frozen (after minimum 24 hours).
n Attention. To save energy, when freezing small
amounts of food, reset the temperature to the
previous value as soon as the food is completely
frozen.
NOTE: If you attempt to open the freezer door immediately
after closing it, you will nd that it will not open easily. This
is normal. Once equilibrium has been reached, the door will
open easily.
4. Food Storage Tips
11
Tips on Freezing Food
• As with storing fresh foods, suitable packaging, correct
temperature and food hygiene will enhance the quality
of the food you are freezing.
• Avoid putting hot foods into the freezer. First let them
cool until they reach room temperature.
• Make sure that all foods for freezing are of a high
quality, and suitable for freezing.
• Use packaging material that is odourless and airproof
(such as plastic bags) to store food in so different foods
can be mixed without affecting the quality. Make sure
that it is airtight. Leaking packaging will dehydrate the
products and lead to loss of beneficial vitamins.
• Keep the surface of the packaging dry – this keeps the
packs from freezing together.
• Mark packages with the kind of food contained and the
date of storage.
• Food needs to be frozen quickly, so it is best to
freeze small portions whenever possible and ensure
that they are as cold as possible before storage. The
recommended maximum weight for each portion is
2.5 kg.
• Keep food which is fresh away from food which is
already frozen, if you need to freeze fresh food every
day, make sure that it is in small portions to prevent this.
• Do not exceed the maximum load for freezing – which is
given as 21 Kg / 24 Hours (see data badge for details).
• Write the expiry date and food names on the outside of
the packaging so you can be assured of the food type
and when it is safe to eat.
• Take food from the freezer to defrost when needed.
Defrosted food cannot be refrozen unless it is cooked.
• Do not put too much fresh food into the freezer at once.
This could go beyond the freezer’s cooling capacity (see
‘Technical Data’).
When storing commercially frozen foods, please follow these
guidelines:
• Always follow manufacturers’guidelines for the length
of time you should store food for. Do not exceed these
guidelines!
• Try to keep the length of time between purchase and
storage as short as possible to preserve food quality.
• Buy frozen foods, which have been stored at a
temperature of –18°C or below.
• Avoid buying food which has ice or frost on the
packaging – This indicates that the products might have
been partially defrosted and refrozen at some point –
temperature rises affect the quality of food.
• Should there be a power cut, or the freezer /
refrigeration appliance fail for any length of time you
may need to remove food from the freezer and store
in a cold, hygienic place (i.e. garage or out house area)
until the power is restored, or the appliance is repaired.
• To prevent undue temperature rises you should wrap
the foods in layers of insulating material, such as
newspaper, to help to maintain their temperature. It is
also important that any food affected by this situation
should be either consumed or cooked and refrozen
(where suitable) soon afterwards in order to prevent
health risks.
12
Meat and sh Preparation Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a
membrane
Chicken and turkey Wrap in foil 4 - 6
Goose and duck Wrap in foil 4 - 6
Deer, rabbit, wild boar In 2.5 kg portions or as llets 6 - 8
Freshwater sh (Salmon, Carp, Crane, Catsh) After cleaning the bowels and scales of the sh,
wash and dry it. If necessary, remove the tail and
head.
2
Lean sh (Bass, Turbot, Flounder) 4
Fatty shes (Tuna, Mackarel, Bluesh, Anchovy) 2 - 4
Shellsh Clean and in a bag 4 - 6
Caviar In its packaging, or in an aluminium or plastic
container 2 - 3
Snails In salty water, or in an aluminium or plastic
container 3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.
Vegetables and Fruits Preparation Maximum storage time (months)
String beans and beans Wash, cut into small pieces and boil in water 10 - 13
Beans Hull, wash and boil in water 12
Cabbage Clean and boil in water 6 - 8
Carrot Clean, cut into slices and boil in water 12
Pepper Cut the stem, cut into two pieces, remove the core and boil in water 8 - 10
Spinach Wash and boil in water 6 - 9
Cauliower Remove the leaves, cut the heart into pieces and leave it in water with
a little lemon juice for a while 10 - 12
Eggplant (Aubergine) Cut into pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry Wash and hull 8 - 12
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12
5. Food Storage Table
All storage times given in the table below are intended to be
used as a guide only. Storage times of fruits and vegetables
depend on the quality of the food. Individual cases may vary.
Packaged fruits and vegetables are consumed until
expiration.
n Important
The taste of some spices found in cooked dishes (anise,
basilica, watercress, vinegar, assorted spices, ginger, garlic,
onion, mustard, thyme, marjoram, black pepper, etc.) changes
and they assume a strong taste when they are stored for a
long period of time. Therefore, add small amounts of spices to
food to be frozen, or the desired spice should be added after
the food has thawed
The storage time of food is dependent on the type of oil
used. Suitable oils are margarine, calf fat, olive oil and butter.
Unsuitable oils are peanut oil and pig fat.
Food in liquid form should be frozen in plastic cups/
tupperware and other food should be frozen in plastic folios
or bags.
The table below is a quick guide to show you the most
ecient way to store the major food groups in your freezer
compartment.
DocNo.031-0004 - Cooking table - electric & fan single cavity
13
Maximum storage time
(months)
Thawing time at room
temperature (hours) Thawing time in oven (minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1.5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1.5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1.5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)
Dairy products Preparation Maximum storage time
(months) Storage conditions
Packet (Homogenized) Milk In its own packet 2 - 3 Pure Milk – in its own packet
Cheese - excluding white cheese In slices 6 - 8
Original packaging may be used for short-
term storage. Keep wrapped in foil for longer
periods.
Butter, margarine In its packaging
14
6. Cleaning and Maintenance
Cleaning
n Disconnect the appliance from the power supply
before cleaning.
n Do not wash your appliance by pouring water on it.
n DO NOT use harsh abrasives, or aggressive cleaners
as these can damage the interior of the appliance.
n The freezer is heavy. When moving the freezer be
careful to protect the oor. Keep the freezer vertical
and do not tilt the freezer – this prevents damage to
the oor.
n DO NOT spray or rinse the freezer with water or
other liquids. This could harm the electrical parts.
n Use a dry cloth when cleaning near the electrical
parts (such as the light bulb or switch).
n DO NOT clean the freezer with a sti or wire brush.
n DO NOT use an organic solvent such as detergent,
petrol, lacquer, thinners, acetone or acid.
n To prevent your skin sticking to cold steel parts,
make sure your hands are not wet when touching
the parts.
n DO NOT use HOT water to clean the glass shelves, as
they may break or crack.
Empty the appliance of food and remove the shelves.
Clean the interior using warm water and bicarbonate of soda
with a soft cloth. Make sure that the interior is then dried
carefully with a suitable cloth.
After washing, rinse with clean water and dry carefully. When
you have nished cleaning, reconnect the plug to the mains
supply with dry hands.
Shelves and other accessories (plastic and glass parts) can be
cleaned in the sink using liquid dishwashing liquid and warm
water. Make sure all soap is rinsed o and all parts are dry
before replacing them inside the appliance.
Always keep the door seals clean.
Make sure that no water enters the lamp housing and other
electrical components.
The appliance should be cleaned regularly using a solution of
bicarbonate of soda and lukewarm water.
Clean the accessories separately by hand with soap and
water. Do not wash accessories in a dish washer.
Clean the condenser with a brush at least twice a year.
This will help you to save on energy costs and increase
productivity.
• Clean regularly surfaces that can come in contact with
food and accessible drainage systems.
• Store raw meat and fish in suitable containers to avoid
decontaminating other foods.
• Two-star frozen-food compartments are suitable for
storing pre-frozen food, storing or making ice cream
and making ice cubes.
• One-, two- and three-star compartments are not
suitable for the freezing of fresh food.
15
Defrosting the freezer (Fig. 6.1)
Your appliance performs automatic defrosting. The water
formed as a result of defrosting passes through the water
collection spout, ows into the vaporisation container behind
your appliance and evaporates there.
Make sure you have disconnected the plug of your appliance
before cleaning the vaporisation container.
Remove the vaporisation container from its position by
removing the screws as indicated. Clean it with soapy water
at specic time intervals. This will prevent odours from
forming.
Replacing LED Lighting
Please refer to the Warranty chapter as this should be
changed by authorised personnel only.
The LED interior lights come on when the door is opened.
The performance of the light is not aected by any of the
appliances other settings.
Note: The numbers and location of the LED strips may
change according to the model.
Evaporator
T
ray
Fig. 6.1
16
7. Troubleshooting
Before calling for service, please rst read the following table: this could save you time and money.
Error type Meaning Why What to do
SR “Failure”Warning Appears when one or more of the refrigerator
parts fail or there is a problem in the cooling
system.
Call a service agent for assistance as soon as
possible.
LF Freezer compartment is not cold
enough
This warning especially appears if there has
been a power failure for a long period or
when the refrigerator is operated for the rst
time.
1. Use food within a short time period. Do not
freeze foods that has thawed.
2. Set the freezer temperature to colder
values or set the Super Freeze until the
compartment gets to normal temperature.
3. Do not put fresh food in the appliance until
the fault has cleared.
LP “Low voltage” Warning Freezers switches to standby mode when the
voltage supply falls below 170 Volts.
This feature prevents the compressor from
damage due to low voltage. The freezer
will start operating automatically when the
voltage restores to the required level.
If you are experiencing a problem with your appliance, please check
the following before contacing the after-sales service.
Only a qualied service engineer should service the appliance and
only approved spare parts should be used.
n Isolate the electricity supply before carrying out any
maintenance.
Your freezer does not operate
Check if:
• There is power.
• The plug is connected to the socket correctly.
• The socket fuse or the mains fuse has blown.
• The socket is faulty. To check this, plug another working
appliance into the same socket.
Your freezer is performing poorly
Check if:
• The appliance is overloaded.
• The doors are not closed properly.
• There is any dust on the condenser (Fig. 7.1).
• There is not an adequate distance between the
appliance and surrounding walls. Please refer to
Installation chapter.
Condenser
Fig. 7.1
17
Your appliance is operating noisily
The following noises can be heard during normal operation
of the appliance.
• Cracking (ice cracking) noise occurs: During
automatic defrosting. When the appliance is cooled or
warmed (due to expansion of appliance material).
• Motor noise: Indicates the compressor is operating
normally. The compressor may cause more noise for a
short time when it is first activated.
• Bubbling noise and splashing occurs: Due to the flow
of the refrigerant in the pipes of the system.
• Air blowing noise occurs: During normal operation of
the system due to the circulation of air.
There is a build-up of humidity inside the fridge
Check if:
• All food is packed properly. Containers must be dry
before being placed in the fridge.
• The fridge doors are opened frequently. Humidity of
the room will enter the fridge each time the doors
are opened. Humidity increases faster if the doors are
opened frequently, especially if the humidity of the
room is high.
The doors are not opening or closing properly
Check if:
• There is food or packaging preventing the door from
closing
• The door compartments, shelves and drawers are
placed properly
• The door gaskets are broken or torn
• Your fridge is level.
Recommendations
To stop the appliance completely, unplug from main socket
(for cleaning and when the door is left open)
n Important:
In the case of a power failure, or if the appliance is unplugged
and plugged in again, the gas in the cooling system of your
fridge will destabilise, causing the compressor protective
thermal element to open.
Your fridge will start to operate normally after 5 minutes.
If the appliance will not be used for a long period of time
(such as during holidays), disconnect the plug. Defrost
and clean the fridge, leaving the door open to prevent the
formation of mildew and odour.
If the problem persists after you have followed all the
instructions above, please consult the nearest Authorised
Service Centre.
This appliance is designed for domestic use and for the stated
purposes only. It is not suitable for commercial or common
use. If the consumer uses the appliance in a way that does
not comply with these instructions, we emphasise that the
manufacturer and the dealer will not be responsible for any
repair or failure within the guarantee period.
Tips for saving energy
1. Install the appliance in a cool, well ventilated room, but
not in direct sunlight and not near a heat source (such
as a radiator or oven) otherwise an insulating plate
should be used.
2. Allow warm food and drinks to cool before placing them
inside the appliance.
3. Drinks or other liquids should be covered when inside
the appliance. If left uncovered, the humidity inside the
appliance will increase, therefore the appliance uses
more energy. Keeping drinks and other liquids covered
helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and
opening the doors too frequently as warm air will enter
the appliance and cause the compressor to switch on
unnecessarily often.
5. The door gasket must be clean and pliable. Replace
gaskets if worn.
18
Installation warnings
Before using your appliance for the rst time, please pay
attention to the following points:
• Your appliance may have an odour when it is operated
for the first time. This is normal and the odour will fade
when your appliance starts to cool.
• Before connecting your appliance, ensure that the
information on the data plate (voltage and connected
load) matches that of the mains electricity supply. If in
doubt, consult a qualified electrician.
• We do not accept responsibility for any damages that
occur due to electrical ungrounded usage.
• Place your appliance where it will not be exposed to
direct sunlight.
• Your appliance must never be used outdoors or
exposed to rain.
• Your appliance must be at least 50 cm away from stoves,
gas ovens and heater cores, and at least 5 cm away from
electrical ovens.
• If your appliance is placed next to a deep freezer,
there must be at least 2 cm between them to prevent
humidity forming on the outer surface.
• Do not cover the body or top of appliance with lace. This
will affect the performance of your appliance.
• Do not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see
Cleaning and Maintenance).
• The installation procedure into a kitchen unit is given in
the installation manual. This product is intended to be
used in the kitchen.
• Before using your appliance, wipe all parts with a
solution of warm water and a teaspoon of sodium
bicarbonate. Then, rinse with clean water and dry.
Return all parts to the appliance after cleaning.
8. Installation
This manual suits for next models
3
Table of contents
Other Range Master Freezer manuals
