Rapid Group WX 90 User manual

O P T I M I Z E S W O R K R O U T I N E S E N V I R O N M E N T A L L Y E F F E C T I V E S E C U R E
RAPID Group GmbH
Wiesenstraße 2
64347 Griesheim
Telefon: [phone]
Telefax: [phone]
www.rapid-group.de
[e-mail]
Weiterentwicklung im Sinne des Fortschrittes behalten wir uns vor.
Technical Modifications are subject to change.
Details techniques subject à modification sans avis préalable
nWX 90 # 28 400
i
O P E R A T I N G I N S T R U C T I O N S
No. Description Qty.
1 Tapping screw 3
2 Speed control knob 1
3 Switch block 1
4
Countersunk head tapping screws2
5 Head cover 1
6 Tapping screw 2
7 Rotary knob connector 1
8 Toggle switch 1
9 Lining 1
10 Speed control circuit board 1
11 Motor shell 1
12 Tapping screw 3
13 The handle cover 1
14 Binding post 1
15 Wire pressing piece 1
16 Cable shield 1
17 Motor 1
18 Cable 1
19 Coupler 1
20 Bottom cover 1
21 Flat gasket 3
22 Spring washer 3
23 Bolt 3
24 Tapping screw 3
1
3
2
4
5
6
7
8 9
10
11
12 13
14
115 17
16
18
19
20
21 22
23
24

1. SAFETY
All safety instructions must be observed and followed.
2. Before Using
2.1. There is high speed rotating components. Failure to follow the
safety instructions may lead to serious injury. All safety instructions
must be observed and followed strictly.
2.2. Before installing and starting the barrel pump, the related
engineer must have the considerable qualification and is familiar
with this manuals.
2.3. The installation and maintenance must according to the current
machinery and electrical standard strictly.
2.4. The spare parts life time will be limited by wear and corrosion.
The failure is affected by operating environment. The user has the
responsibility to operate in accordance with the regulations. The
regular maintenance and spare parts change should be performed
regularly. Stop the pump when the pump under irregularity and
obviously dangerous status.
2.5. The pump should install the detection alarm system when it
was installed at the location where may cause the failure or
personal injury.
3. Using
3.1. Wear protective clothing, goggles and in accordance with the
safe production routine when operate the corrosive and hazardous
substance.
3.2. It is prohibited to use plastic or aluminum alloy pump pipe and
the non-explosion proof motor when transferring the flammable
liquids.
3.3. Carry flammable liquids, the earth wire must be installed,
electrostatic protection device and conductive hose must be used
when transferring the flammable liquids.
3.4. Make sure the pump head insert to the liquids completely
before using. Also all the connectors connect tightly. Without
leakage and fall out dangerous situation.
3.5. The suitable flexible pipe must be used during transferring high
temperature liquids.
3.6. Attention to the pumped liquids temperature, viscosity and
density do not exceed the stated upper limit.
[phone]
2

[phone]
3
4. MACHINE DESCRIPTION
MOTOR: AC series motor with the overheating protection components,
Quick coupling adapter, Automatic positioning coupling and
Adjustable speed switch.
ATTENTION!
• Never operate the motors without pump.
• Never leave the pump unattended.
• Never run dry of the pump.
• The pump should not be immersed deeper into the liquid than
the outlet connection.
5. TECHNICAL DATA
Electrical Data
Current Voltage(V) Power (W)
17004501 AC 230 450 3000~11000 20000
17004502 AC 120 450 3000~11000 20000
Rated Speed
(RPM)
Load Speed
(RPM)
PUMP
MODEL
ELECTRICAL POWER
3.7. Install the filters in the pump tube bottom when transport the
liquids with impurity or solids. To avoid the blocking, please check
and clean it regularly.
3.8. Make sure the motor under close status before power on.
Never leave the pump unattended and never operate the motors
without pump.
3.9. Do not touch the tube bottom after switching on the electric or
air source. The impeller under high speed rotating may lead to
equipment damage and personal injury.
Make sure the pump tube working under vertical position. Never
upend or lay flat after using. Pay attention to the residual liquids
may lead to injury or cause environmental damage.

[phone]
4
8. INSTALLATION
Check if the packing was damaged before opening. Make
sure no missed spare parts.
Safety Check
Make sure that the supply voltage corresponds to the
voltage indicated on the rating plate.
8.1 Motor Installation
8.1.1. Pump tube check: Make sure every joint part no looseness.
The coupling and shaft could be rotated flexible.
8.1.2. Motor Check: Make sure the power cable complete, switch
in good condition. Dry running for several minutes to check if
the motor workable. Do not put hands to the motor output
shaft.
8.1.3. Put the motor coupling is directed at the pump tube. Make
sure the pump tube head insert to the motor head completely.
8.1.4. The motor and pump tube position could be adjusted by
360°. Put the pump tube adjusted to the suitable position and
lock the nut to finish the installation. It is recommended that
the pump exports away from the motor power cable.
7. MOVING AND TRANSPORT
The pump tube and motor adopt the carton box packing. There is
enough protection packing material inside. However, never knock on,
heavy load by the non-normal external force. Please transport and
stacking as per packing indication. Keep drying and anti-corrosion of
the stacking place.
6. OPERATING CONDITIONS
6.1. Environmental Conditions
Electro-Motor operating environment: -25~40캜
6.2. Power Supply
Make sure that the supply voltage corresponds to the voltage
indicated on the rating plate.
ATTENTION!
Power from lines with values outside the indicated limits can
damage the electrical components

[phone]
5
9. DAILY USE
Long time continuous running may cause motor overheating, the
overheating protection system will cut the power automatically. The
motor can be restarted work again after cooling down by pressing the
on/off button.
ATTENTION!
The suggested duty cycle is 2 hours. Do not exceed one
hour when the environment temperature more than 30˚C
Please change the electric brush every 250-300hours
8.2 Start
Make sure all the joint parts without leakage. The tube outlet must
be fixed well so to avoid pressure leaking.

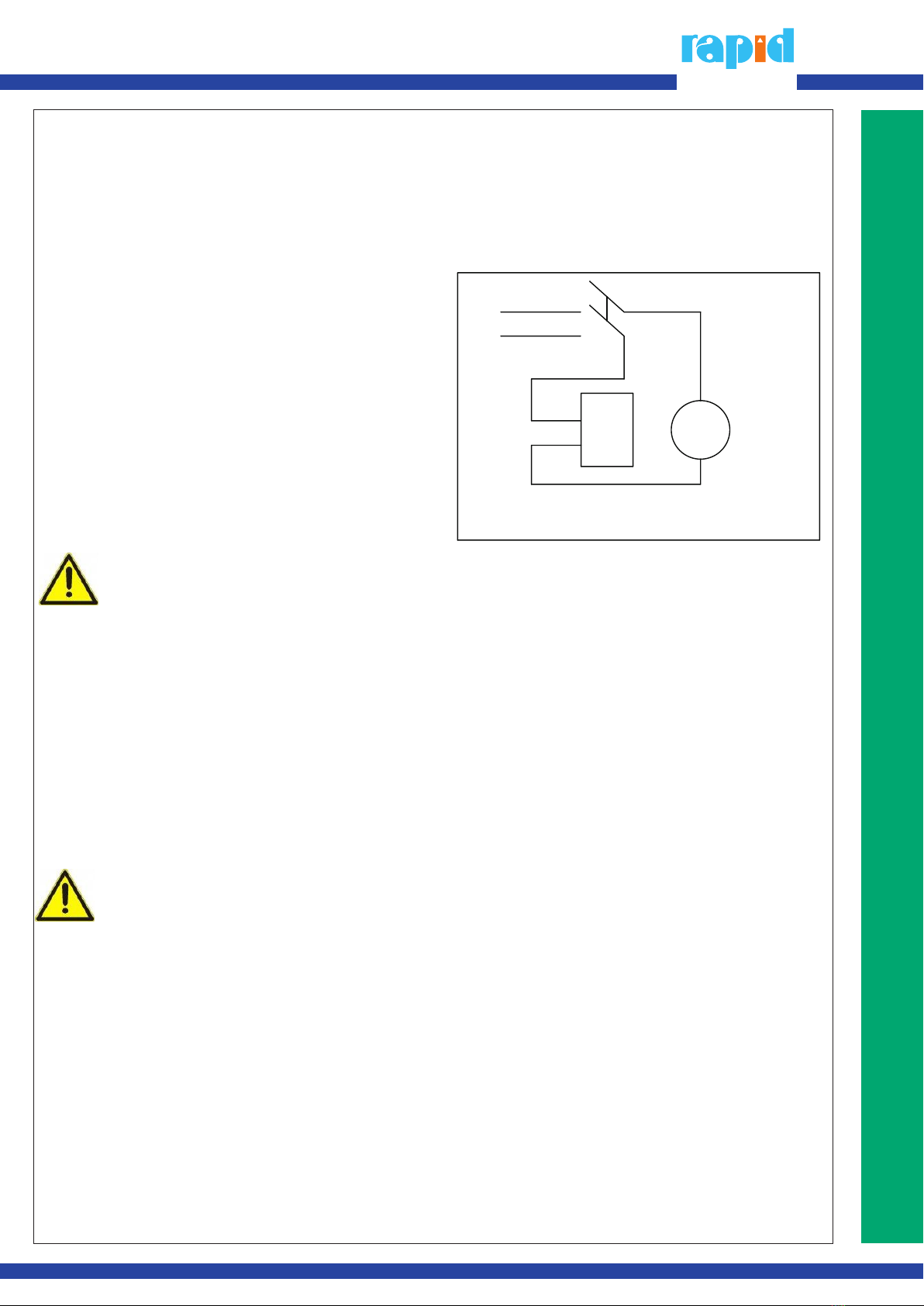

8.3. Electrical Connections
• Terminal strip box complete of:
- ON/OFF switch;
- Speed regulating knob switch
- Speed regulating circuit board
• 5M Power cable
ATTENTION!
IT IS THE INSTALLER’S RESPONSIBILITY TO PREFORM THE
ELECTRICAL CONNECTIONS WITH RESPECT FOR THE
APPLICABLE REGULATIONS.
AC Switch
M
Speed
regulating
circuit
board
10. NOISE LEVEL
Under normal working conditions the noise emission from all models
does not exceed the valve of 80 db at a distance of 1 meter from
the electric pump.

[phone]
6
11. DISPOSING OF CONTAMINATED MATERIALS
In the event of maintenance or demolition of the machine, do not
disperse contaminated parts into the environment.
Refer to local regulations for their proper disposal.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Without opening the
electric or air source
Open the power and air
source
Motor failure, do not
rotating
Motor Check
Outlet close Open the outlet valve
Too big pump lift Short the transportation
distance and height
Too big liquids
viscosity
Check the type with
supplier
Liquids draining out Stop the pump
The inlet block off Clean the inlet
Liquids draining out Stop the pump
Motor overload Check the liquids viscosity
and pump lift
Sliding bearing
damage
Change the sliding
bearing and seal ring
Coupling wear Change the coupling
Seal ring wear Change the seal ring
Circuit failure Check the circuit
Restart the motor after
cooling down
Change the electric brush
No ow rate or
small ow rate
Vibration, Big
noise
Pump tube
leakage
Long time working of
the motor, overheating
protection, electric
brush damage
12. PROBLEMS AND SOLUTIONS
