RATTAN 146/6904 User manual

Rattan 4 Seater Set - Table
Dimensions
Width - 80cm
Height - 38cm
Issue 1 - 13/09/13
Important – Please read these instructions fully before starting assembly
Assembly Instructions - Please keep for future reference 146/6904
Depth - 45cm
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Care and mainte nance
1
This product is
manufactured from
toughened safety glass.
In the unlikely event that
the glass fails it will break
into a large number of
small fragments that may
be spread over a wide
area. This is a feature of
toughened glass,
designed to remove the
risk of injury from glass
breaking into large shards.
If the glass is chipped
or broken, stop using the
product and consult the
manufacturer or supplier.
Check you have all the
components and tools
listed on page 2.
Remove all fittings from
the plastic bags and
separate them into their
groups.
Keep children and
animals away from the
work area, small parts
could choke if swallowed.
Make sure you have
enough space to layout
the parts before starting.
Do not stand or put
weight on the parts during
assembly, this could
cause damage.
Assemble on a soft
level surface to avoid
damaging the unit or your
floor.
Dispose of all packing
carefully and responsibly.
Do not sit or stand on
this table.
Do not place very hot or
very cold items on the
glass.
The unit
weighs approximately
7.6kgs.
Warning:
Please lift with care.
Wash glass with mild
soap and water, rinse
thoroughly, and dry glass
completely.
We recommend the use
of furniture covers when
not in use.
Do not use the glass as
chopping surface. Do not
strike the glass with hard
or pointed items.
In order to prolong the
life and ryou
table, we recommend it be
stored in a dry and
protected area during off
season periods.
Do not use washing
powders or any abrasive
substances which may
scratc h the surface.

Hexkey x 1
2

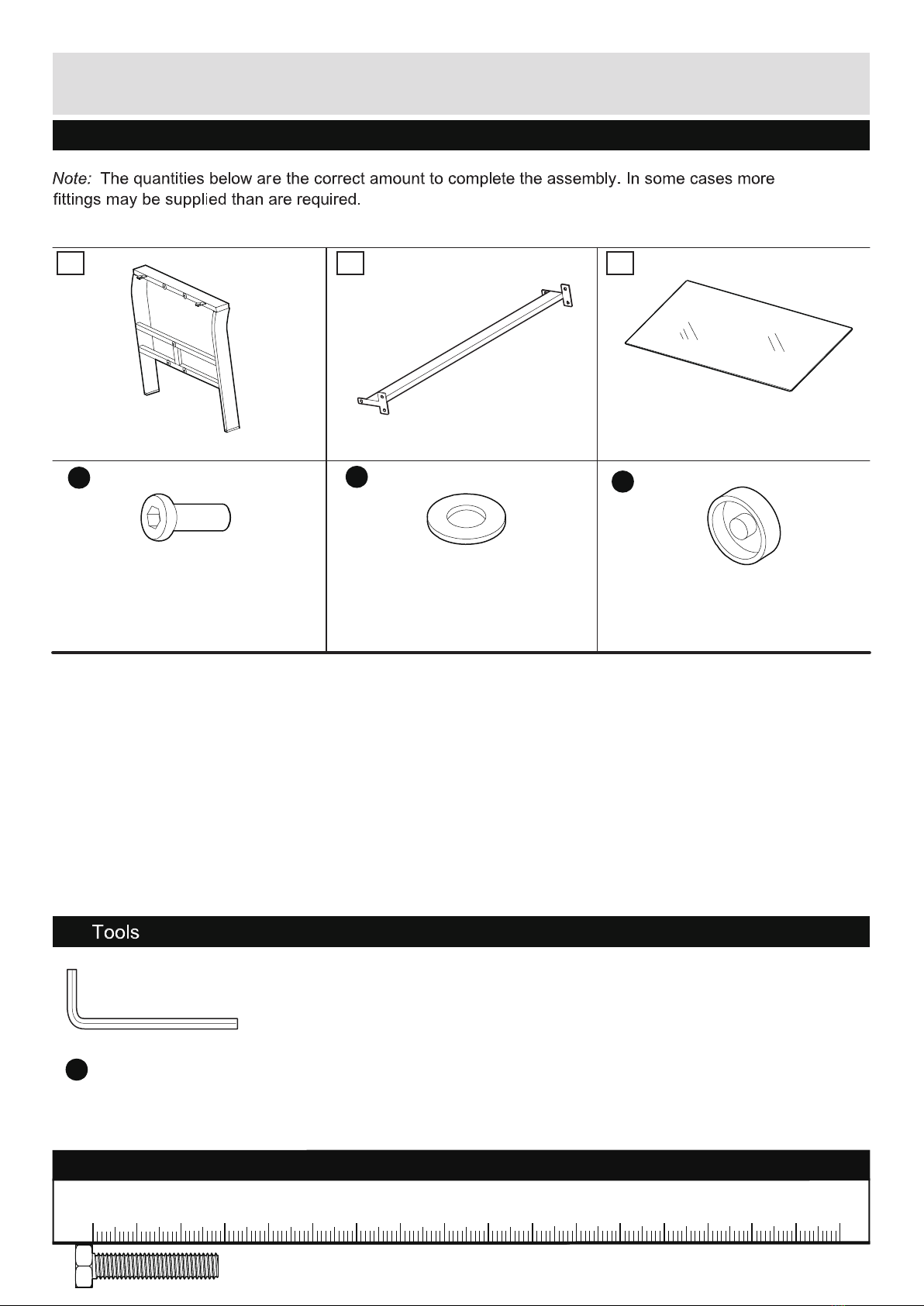

Components - Parts & Fittings
P
Provided
lease check you have all the parts & fittings listed below
E
Table End x 2 Support bar x 1
Washer x 6 Screw Cap x 6Screw x 6
Glass x 1
A
21 3
BC
M6X15mm
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
If you have damaged or missing components, call the Customer Helpine: 0845 640 08 00

Fit the glass onto the
two table ends
carefully.
3
Assembly Instructions
Step 1
Step 2

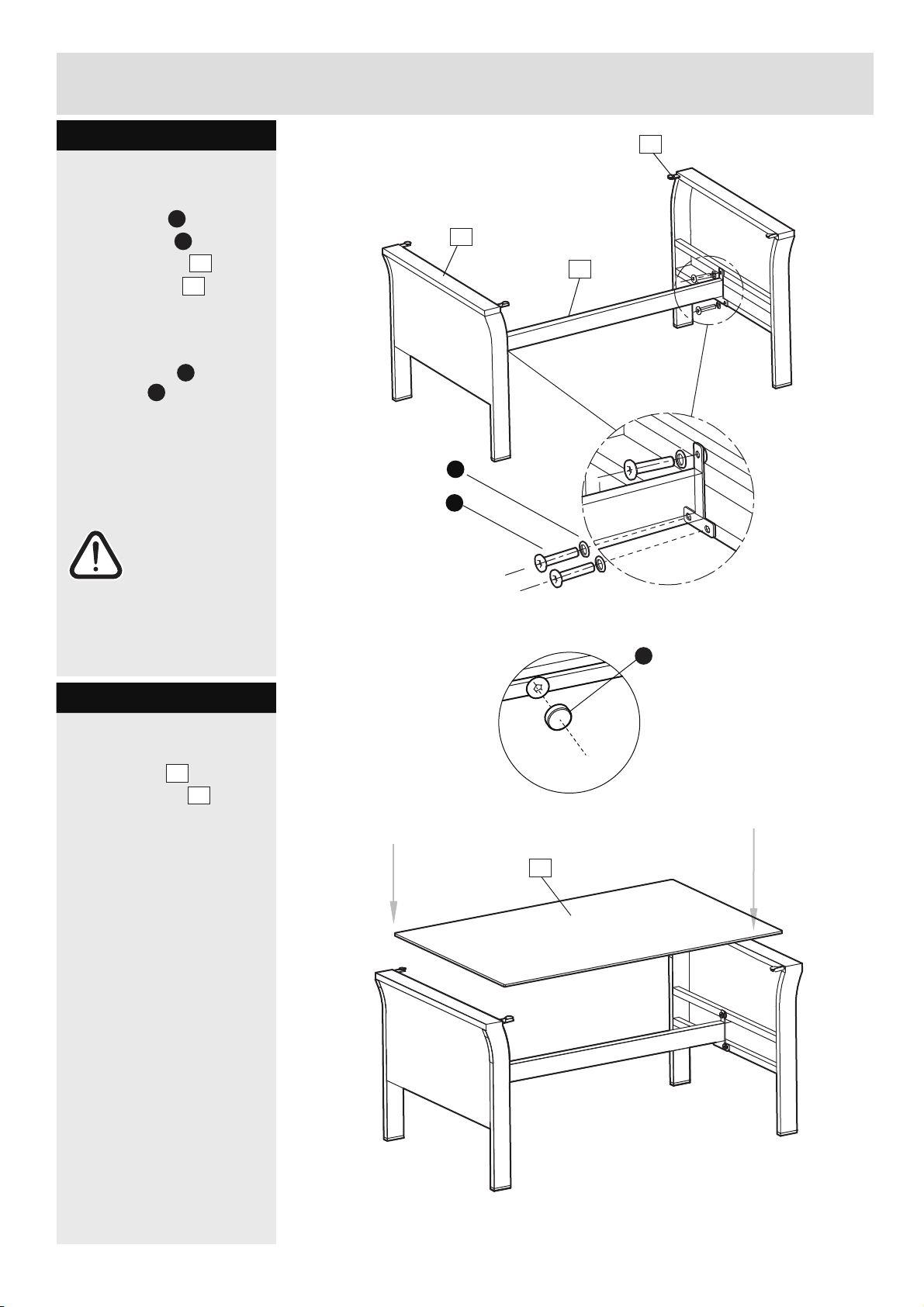

Use screws
and washers to fix
the support bar to
the table ends .
Important:
Do not fully
tighten all screws
until assembly is
complete.
B
A
A
C
2
1
2
1
B
A
3
C
Fix screw cap
to screws
1
3
1

4
Assembly Instructions
Step 3

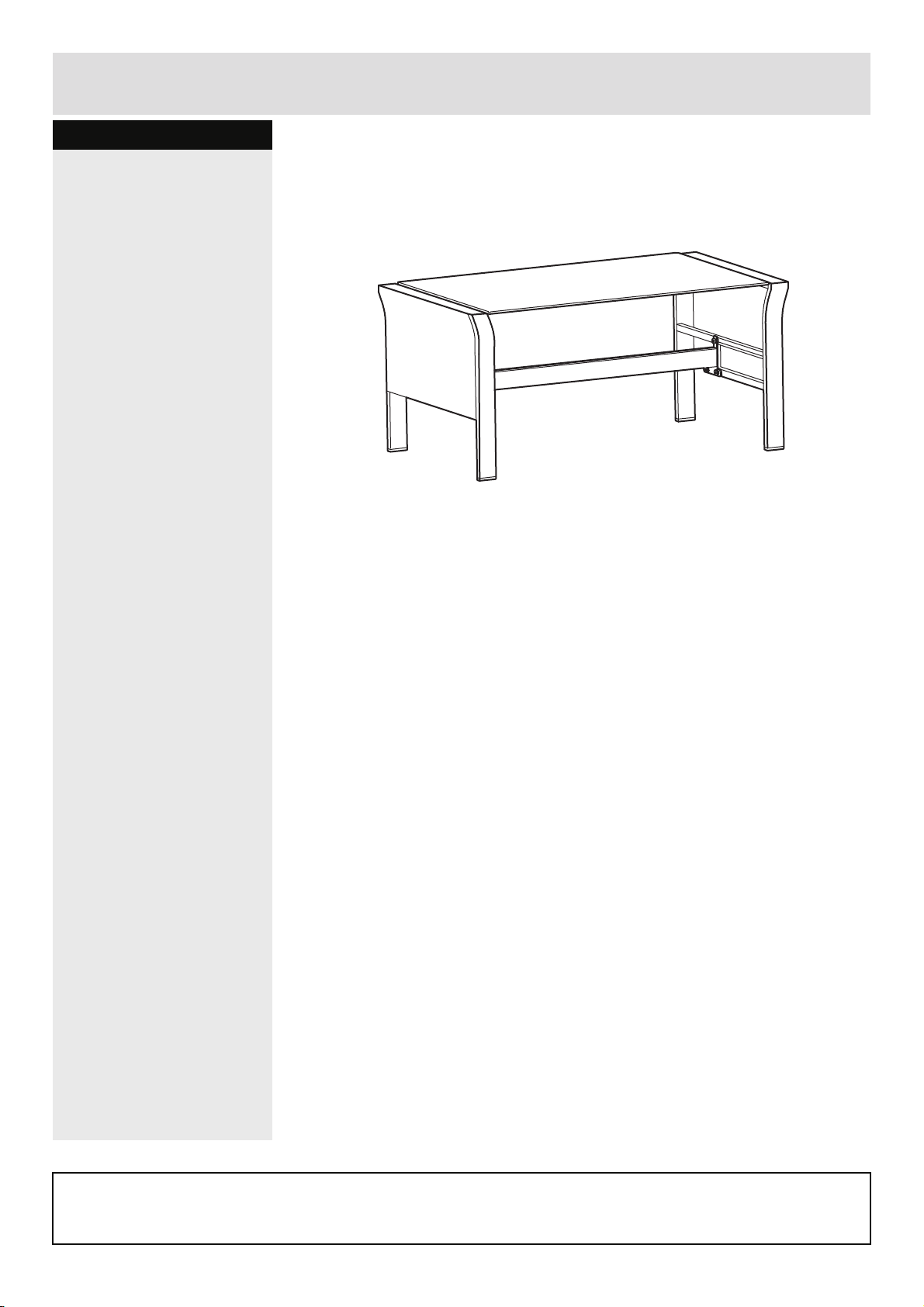

Assembly is complete
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW

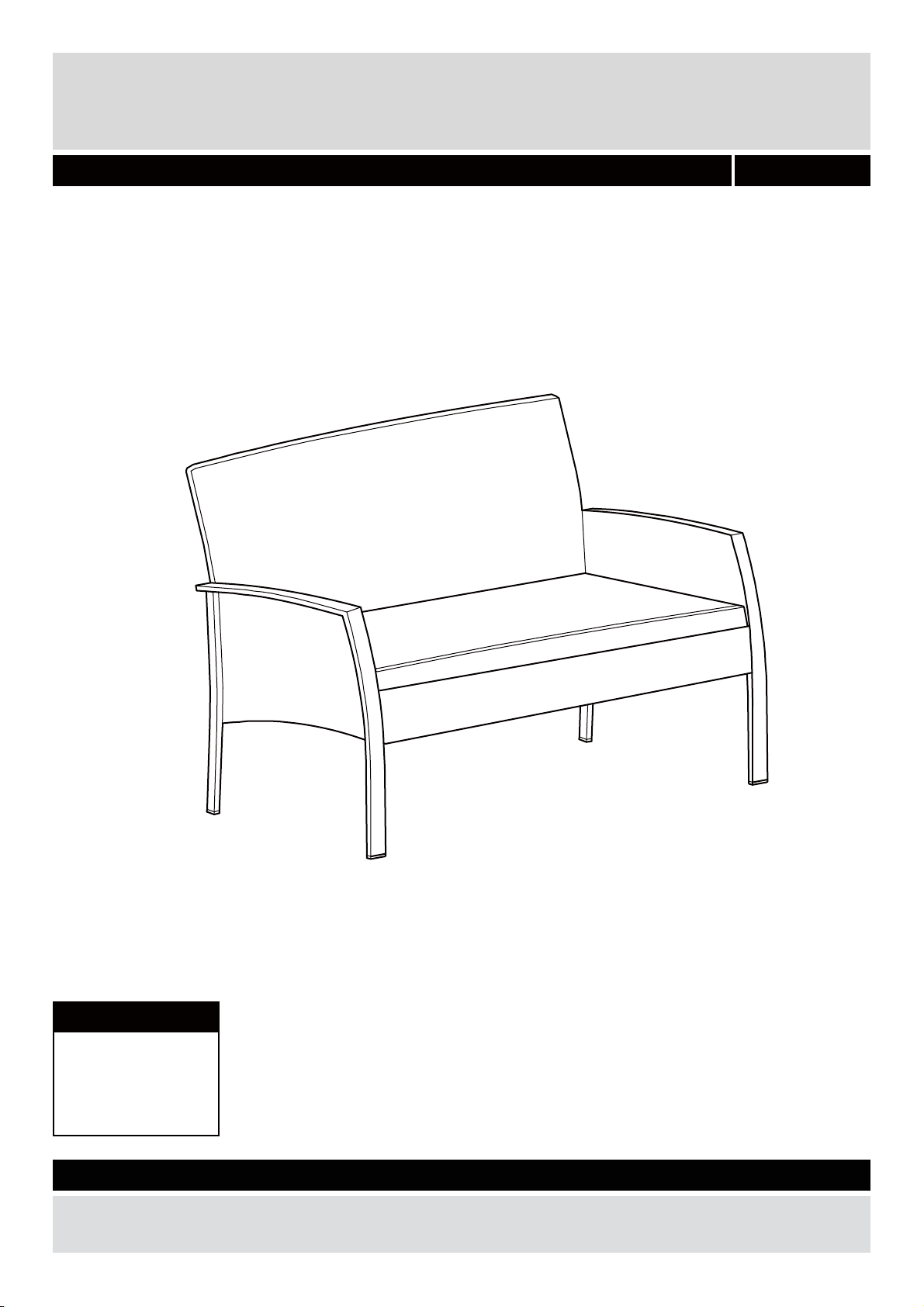

Rattan 4 Seater Set - Bench
Dimensions
Width - 113cm
Height - 76cm
Issue 1 - 13/09/13
Important – Please read these instructions fully before starting assembly
Assembly Instructions - Please keep for future reference 146/6904
Depth - 71cm
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW

•
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2.
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make su re you have enough
space to layout the parts before
starting.
• Do not stand or put weight on the
product during assembly, this could
cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
bench or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws ,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
Care and mainte nance
• Maximum safe seated
weight: 200kgs.
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
r
the e are no loose screws on
• Fom time to time check that
r
this chair.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Do not fully tighten all screws
until assembly is complete.
• Make sure each screw
matches the corresponding
figure to ensure correct
assembly.
1

Hexkey x 1
2
Components - Parts & Fittings
P
provided
lease check you have all the parts & fittings listed below
F
Armrest x 1
Seat x 1 Cushion x 1
Armrest x 1 Backrest x 1
4A
21 3
BD
E
C
M6X55mm
M6X35mm M6X25mm
Screw caps x 12
Screw x 6 Screw x 4 Washer x 12
Screw x 2
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
If you have damaged or missing components, call the Customer Helpine: 0845 640 08 00
5

3
Assembly Instructions
Step 1
Step 2
Important:
Do not fully
tighten all screws
until assembly is
complete.
A
B
D
D
3
1
2
B
D
D
C
4

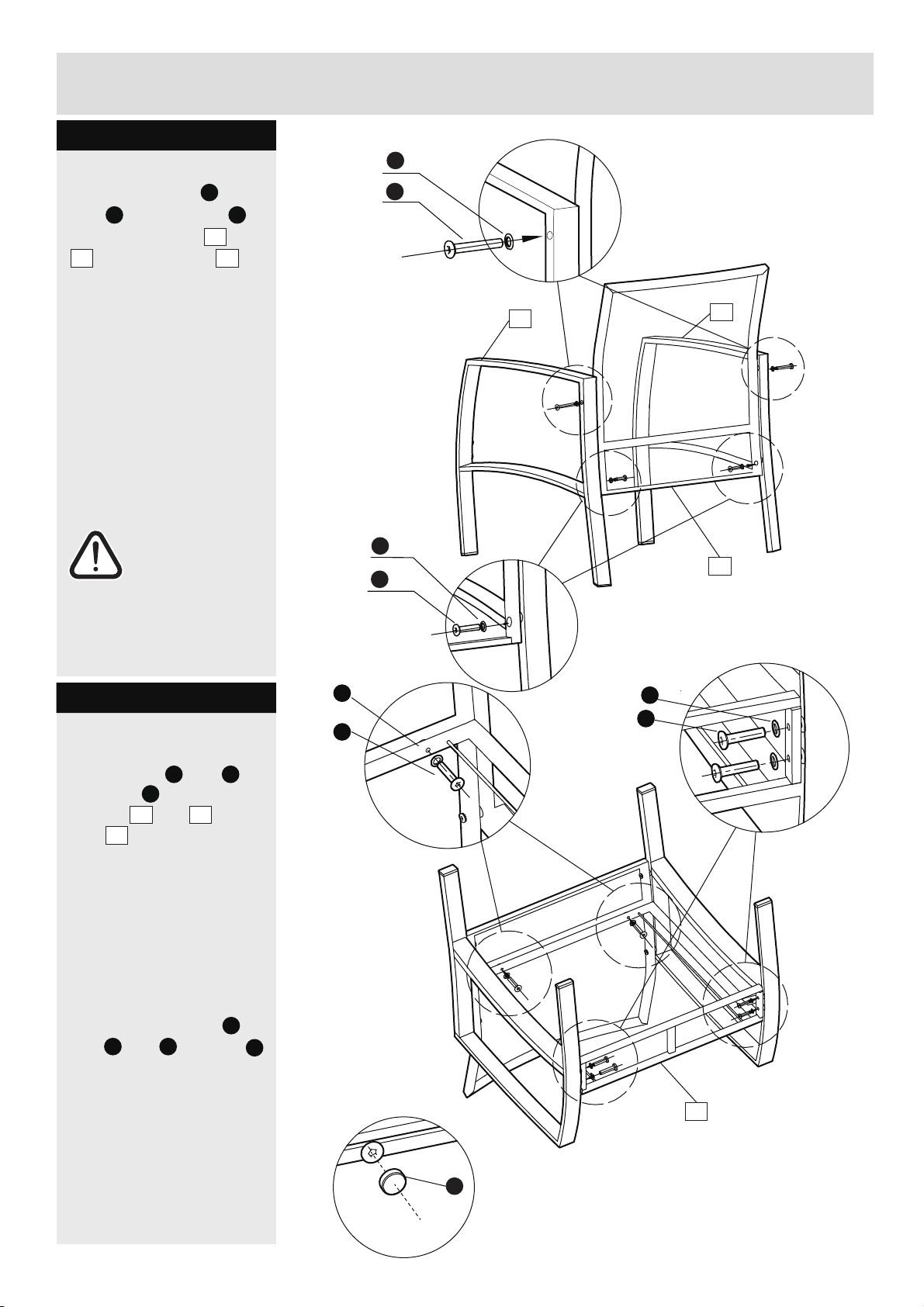

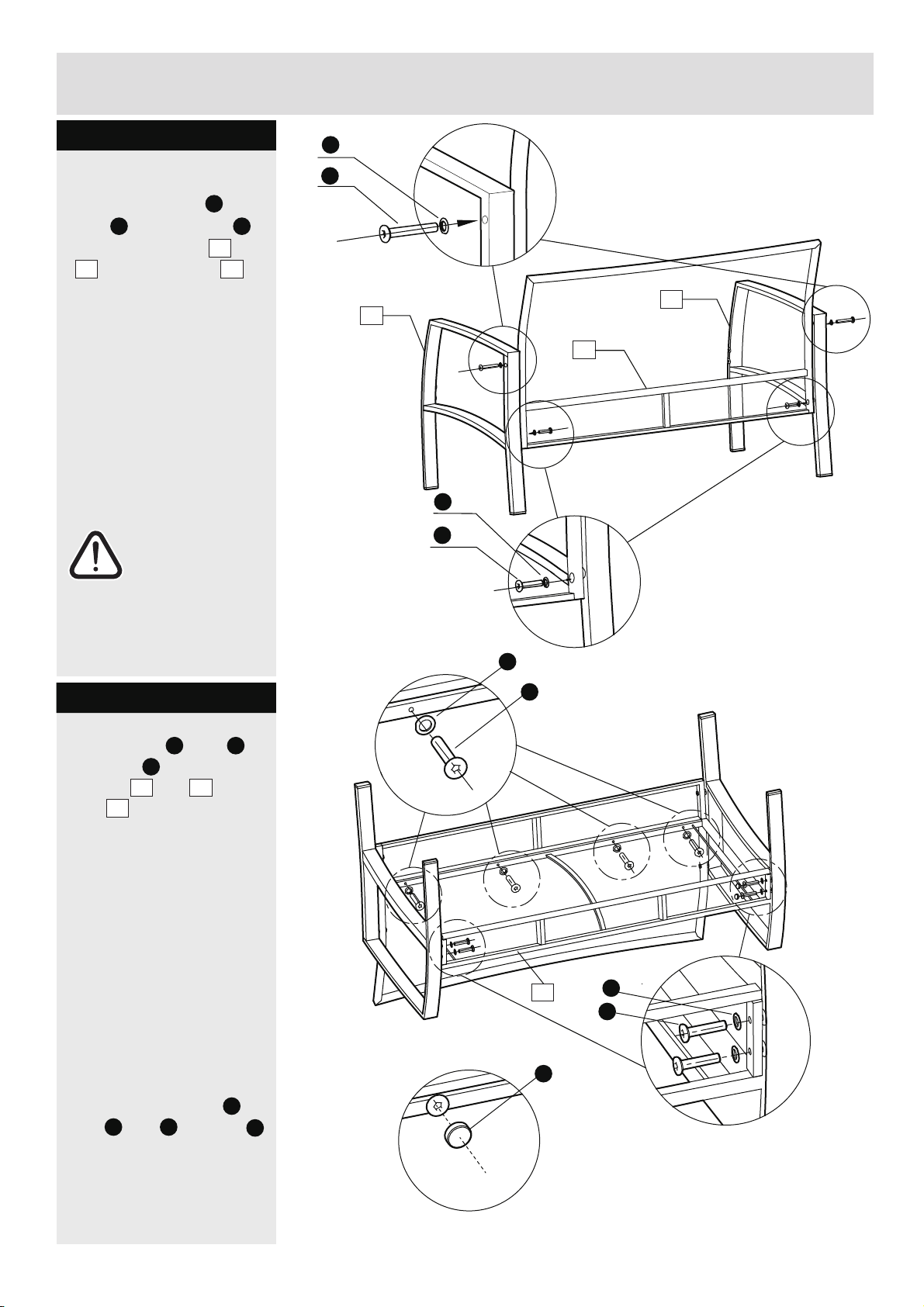

Use long screws
and and washers
to fix the armrest and
to the backrest .
B
A
D
Use screws and
washers to fix the
armrest and to the
seat
Tighten all the screws and
cover all the screws
and and with cap .
D
B C
A
BE C
E
1 2
4
1
2 3

4
Assembly Instructions
Step 3
Step 4
Assembly is complete
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW
5

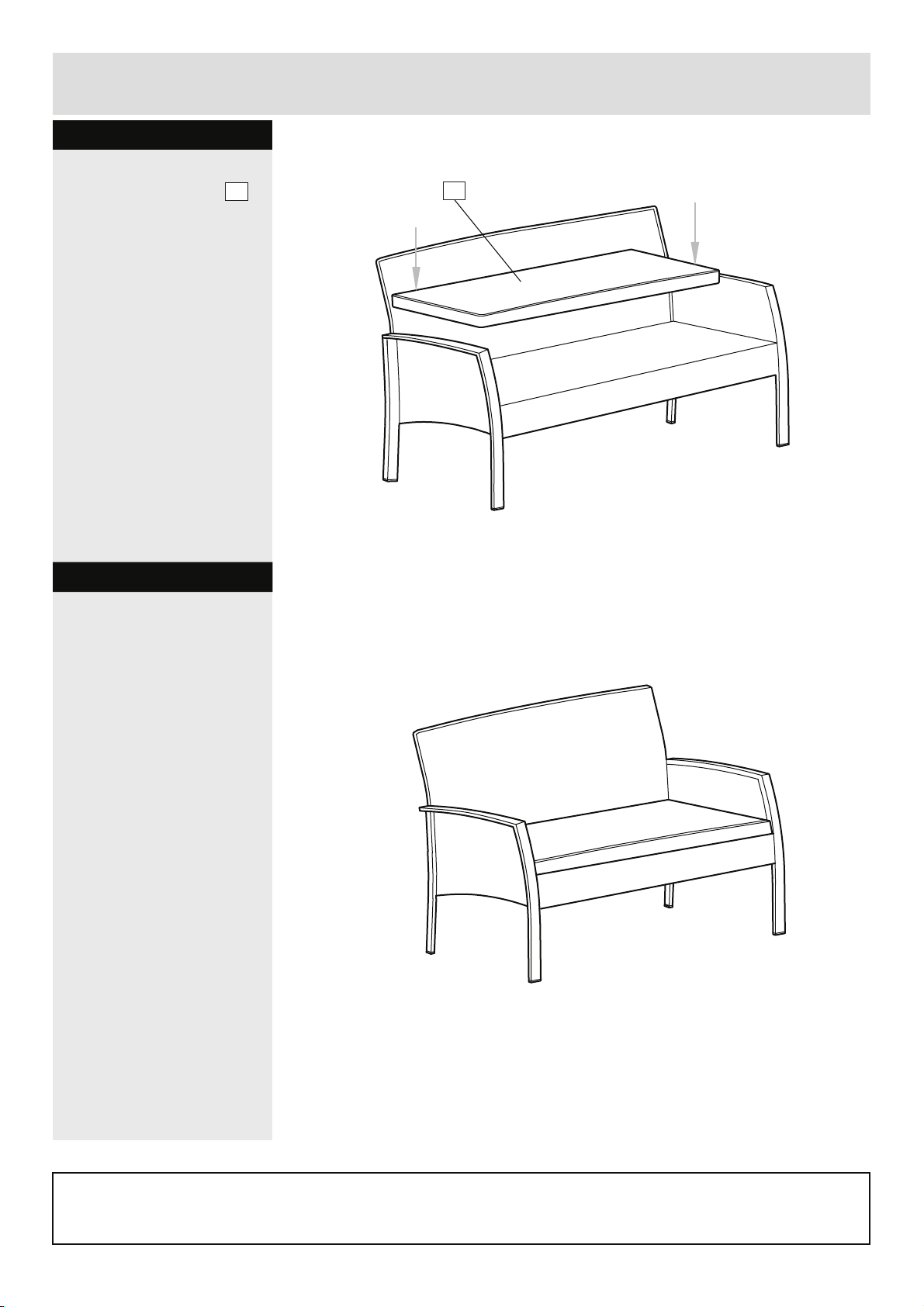

Put the seat cushion
onto the chair.
5

Rattan 4 Seater set - Chair
Dimensions
Width - 61cm
Height - 76cm
Issue 1 - 13/09/13
Important – Please read these instructions fully before starting assembly
Assembly Instructions - Please keep for future reference 146/6904
Depth - 71cm
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW

•
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2.
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make su re you have enough
space to layout the parts before
starting.
• Do not stand or put weight on the
product during assembly, this could
cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
chair or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws ,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
Care and mainte nance
• Maximum safe seated
weight: 200kgs.
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
r
the e are no loose screws on
• Fom time to time check that
r
this chair.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Do not fully tighten all screws
until assembly is complete.
• Make sure each screw
matches the corresponding
figure to ensure correct
assembly.
1

Hexkey x 1
2
Components - Parts & Fittings
P
provided
lease check you have all the parts & fittings listed below
F
Armrest x 1
Seat x 1 Cushion x 1
Armrest x 1 Backrest x 1
4A
21 3
BD
E
C
M6X55mm
M6X35mm M6X25mm
Washer x 10Screw x 4Screw x 4
Screw x 2
Screw caps x 10
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
If you have damaged or missing components, call the Customer Helpine: 0845 640 0800
5

Use screws and
washers to fix the
armrest and to the
seat
Tighten all the screws and
cover all the screws
and and with cap .
3
Assembly Instructions
Step 1
Step 2
Important:
Do not fully
tighten all screws
until assembly is
complete.
D
B C
A
BE C
Use long screws
and and washers
to fix the armrest and
to the backrest .
B
A
D
12
3
A
D
B
D
4
B
DD
C
E
1
3
1 2
4
2

4
Assembly Instructions
Step 3
Step 4
Put the seat cushion
onto the chair.
Assembly is complete
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW
5
5
