Rattler 310D User manual

331100DD
➤
OOwwnneerr’’ss//IInnssttaallllaattiioonnGGuuiiddee

i
© 2003 directed electronics, inc.
lliimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy
For a period of one calendar year from the date of purchase of this auto-security device,
Directed Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or replace
(with a comparable reconditioned model), free of cost, any electronic control module
which proves to be defective in workmanship or material under normal use, SO LONG
AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFES-
SIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYS-
TEM WAS ORIGINALLY INSTALLED. If warranty service is necessary you must have
a clear copy of your sales receipt containing all of the information shown on the follow-
ing page.
After the first calendar year, from the date of purchase of this auto-security device,
Directed Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace
(with a comparable reconditioned model) any electronic control module which proves to
be defective in workmanship or material under normal use FOR A CHARGE OF $45.00,
SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A
PROFESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH
THE SYSTEM WAS ORIGINALLY INSTALLED. If warranty service is necessary you
must have a clear copy of your sales receipt containing all of the information shown on
the following page.
This warranty contains the entire agreement relating to warranty and supersedes all pre-
vious and contemporaneous representations or understandings, whether written or oral.
IN ANY EVENT, DIRECTED ELECTRONICS, INC. IS NOT LIABLE FOR THE
THEFT OF THE VEHICLE AND/OR ITS CONTENTS.
This warranty is void if the product has been damaged by accident, unreasonable use,
neglect, improper service or other causes not arising out of defects in materials or con-
struction. This warranty is nontransferable and does not apply to any unit that has been
modified or used in a manner contrary to its intended purpose and does not cover bat-
teries. The unit in question must be returned to the manufacturer, postage prepaid. This
warranty does not cover labor costs for the removal, diagnosis, troubleshooting or rein-
stallation of the unit. For service on an out-of-warranty product a flat rate fee by model is
charged. Contact your authorized dealer to obtain the service charge for your unit.
These systems are a deterrent against possible theft. Directed Electronics, Inc. is not offer-
ing a guarantee or insuring against the theft of the automobile or its contents and dis-
claims any liability for the theft of the vehicle and/or its contents. Directed Electronics
does not authorize any person to create for it any other obligation or liability in connec-
tion with this security system.

ii © 2003 directed electronics, inc.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WAR-
RANTIES ARE EXCLUDED BY THE MANUFACTURER AND EACH ENTITY
PARTICIPATING IN THE STREAM OF COMMERCE THEREWITH. THIS
EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLUSION OF ANY
AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR-
RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL
WARRANTY OF NON-INFRINGEMENT OF PATENTS, IN THE UNITED
STATES OF AMERICA AND/OR ABROAD. NEITHER THE MANUFACTURER
OR ANY ENTITIES CONNECTED THEREWITH SHALL BE RESPONSIBLE OR
LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMIT-
ED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOW-
ING, REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF
EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, MANUFACTURER
DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-
TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or con-
sequential damages. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
IIMMPPOORRTTAANNTTNNOOTTEE::
This product warranty is automatically void if its date code or serial number is defaced,
missing, or altered. This warranty will not be valid unless you have completed the war-
ranty card and mailed it to Directed Electronics, Inc. within 10 days after purchase to the
address listed on the warranty registration card.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
➤Date of purchase
➤Your full name and address
➤Authorized dealer's company name and address
➤Type of alarm installed
➤Year, make, model and color of the automobile
➤Automobile license number
➤Vehicle identification number
➤All security options installed on automobile
➤Installation receipts

1
© 2003 directed electronics, inc.
ttaabblleeooffccoonntteennttss
lliimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy................................................................................ii
wwhhaattiissiinncclluuddeedd............................................................................................................33
iinnssttaallllaattiioonnttoooollss............................................................................................................33
iimmppoorrttaannttiinnffoorrmmaattiioonn..................................................................................................44
system maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
your warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
pprriimmaarryyhhaarrnneessss((HH11)),,1122--ppiinnccoonnnneeccttoorr......................................................................66
rreellaayyhhaarrnneessss((HH22)),,66--ppiinnccoonnnneeccttoorr..............................................................................77
iinnssttaallllaattiioonn....................................................................................................................88
step 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
step 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
step 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
step 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
step 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
step 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
step 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
step 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
step 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
step 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
step 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
step 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
step 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
ttrraannssmmiitttteerrffuunnccttiioonnss..................................................................................................3377
standard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
ttrraannssmmiitttteerr//rreecceeiivveerrlleeaarrnnrroouuttiinnee................................................................................3388
ooppeerraattiinnggsseettttiinnggsslleeaarrnnrroouuttiinnee..................................................................................4411
to access another feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
to exit the learn routine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
ffeeaattuurreessmmeennuu............................................................................................................4444
ffeeaattuurreeddeessccrriippttiioonnss....................................................................................................4455
uussiinnggyyoouurrssyysstteemm......................................................................................................4477
arming/locking with transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
arming without transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
disarming/unlocking with transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
disarming without a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
ignition-controlled door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
ignition-controlled door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

2© 2003 directed electronics, inc.
valet mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
manual valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
remote valet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
ddiiaaggnnoossttiiccss..................................................................................................................5522
arming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
system status chirps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
nuisance prevention circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
ccooddeehhooppppiinngg™™rree--ssyynncchhrroonniizzee................................................................................5577
ttrroouubblleesshhoooottiinngg..........................................................................................................5577
gglloossssaarryyoofftteerrmmss........................................................................................................5599
sseeccuurriittyy&&ccoonnvveenniieenncceeeexxppaannssiioonnss............................................................................6611
wwiirriinnggqquuiicckkrreeffeerreenncceeddiiaaggrraamm..................................................................................6633
nnootteess..........................................................................................................................6644

3
© 2003 directed electronics, inc.
wwhhaattiissiinncclluuddeedd
➤On board Double Guard Shock Sensor
➤Control Module
➤Two 3-Button Transmitters
➤12-Pin Main H/1 Harness
➤6-Pin H/2 Secondary Harness
➤Plug-in Status LED
➤Plug-in Valet/Program Button
➤514 Revenger Siren
➤Starter Kill Harness

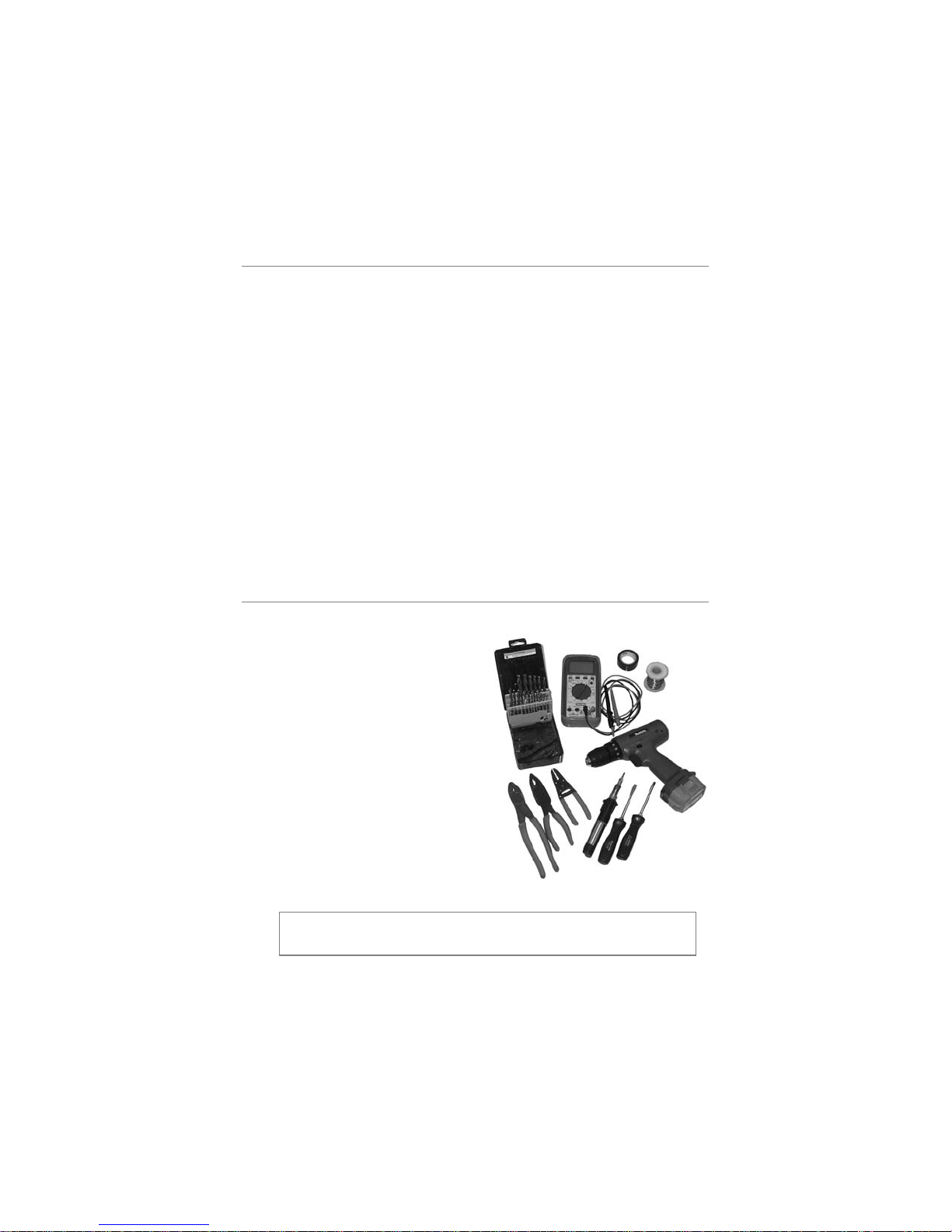

iinnssttaallllaattiioonnttoooollss
➤Digital Multi-Meter
➤Drill
➤9/32 and 5/16 Drill Bits
➤Screwdrivers
(Phillips and Flathead)
➤Wire Stripper
➤Solder Iron
➤Electrical Tape
➤Pliers
➤Crimping Tool
note: The installation tools required will vary depending
on your vehicle.

4© 2003 directed electronics, inc.
iimmppoorrttaannttiinnffoorrmmaattiioonn
Congratulations on the purchase of your security system. This
system has other optional features. Properly installed, this system
will provide years of trouble-free operation.
Please take the time to carefully read this Owner’s/Install Guide
in its entirety and watch the Rattler Do-It-Yourself Installation
Video prior to installing your system.
You can print additional or replacement copies of this manual by
accessing the Directed web site at www.diyrattler.com.
system maintenance
The system requires no specific maintenance. Your remote is
powered by a miniature 3-volt battery (type CR2032) that will
last approximately one year under normal use. When the battery
begins to weaken, operating range will be reduced and the LED
on the remote will dim.
➜
important! If you are not comfortable working with elec-
tronics or unfamiliar with the tools required, please con-
tact your local dealer for advice or ask to have the remote
start professionally installed to avoid costly damages.
Failure to properly install the security system may result
in property damage, personal injury, or both.

5
© 2003 directed electronics, inc.
your warranty
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Please note that it is necessary to keep your proof of purchase.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is
subject to the following conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesirable operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this device.
➜
➜

6© 2003 directed electronics, inc.
pprriimmaarryyhhaarrnneessss((HH11)),,
1122--ppiinnccoonnnneeccttoorr
HH11//11
HH11//22
HH11//33
HH11//44
HH11//55
HH11//66
HH11//77
HH11//88
HH11//99
HH11//1100
HH11//1111
HH11//1122
ORANGE (-) 500 mA Ground-When-Armed Output
BLACK/WHITE (-) 200 mA Domelight Supervision Output
WHITE (+) Light Flash Output
WHITE/BLUE (-) 200 mA Channel 3 Validity Output
GREEN (-) Door Trigger Input, Zone 3
BLUE (-) Instant Trigger, Zone 1
VIOLET (+) Door Trigger Input, Zone 3
BLACK (-) Chassis Ground Input
YELLOW (+) Ignition Input, Zone 5
BROWN (+) Siren Output
RED (+) 12V Constant Power Input
RED/WHITE (-) 200mA Channel 2 Validity Output

7
© 2003 directed electronics, inc.
rreellaayyhhaarrnneessss((HH22)),,
66--ppiinnccoonnnneeccttoorr
*note: VIOLET and VIOLET/BLACK are common at
the fuse holder.
HH22//11
HH22//22
HH22//33
HH22//44
HH22//55
HH22//66
WHITE/BLACK Lock #87A Normally Closed
GREEN/BLACK Lock #30 Common–Output
VIOLET/BLACK* Lock #87A Normally Open–Input
BROWN/BLACK Unlock #87A Normally Closed
BLUE/BLACK Unlock #30 Common–Output
VIOLET Unlock #87 Normally Open–Input
