Raypak 181/182 Manual

INSTALLATI N & PERATING
INSTRUCTI NS
CATA OG NO. 6000.57G Effective: 05-27-10 Replaces: 12-12-08 P/N 241086 Rev. 8
WARNING: If these instructions are not followed exactly, a fire or explosion may
result causing property damage, personal injury or death.
F R Y UR SAFETY: Do not store or use gasoline or other flammable vapors and
liquids or other combustible materials in the vicinity of this or any other appliance. To
do so may result in an explosion or fire.
WHAT T D IF Y U SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
This manual should be maintained in legible condition and kept adjacent to the heater or in another safe place for
future reference.
For 181/182, 260/261, 330/331 &
400/401 – Boilers & Water Heaters
D-2
Power
Vent

2
Rev. 8 reflects the following:

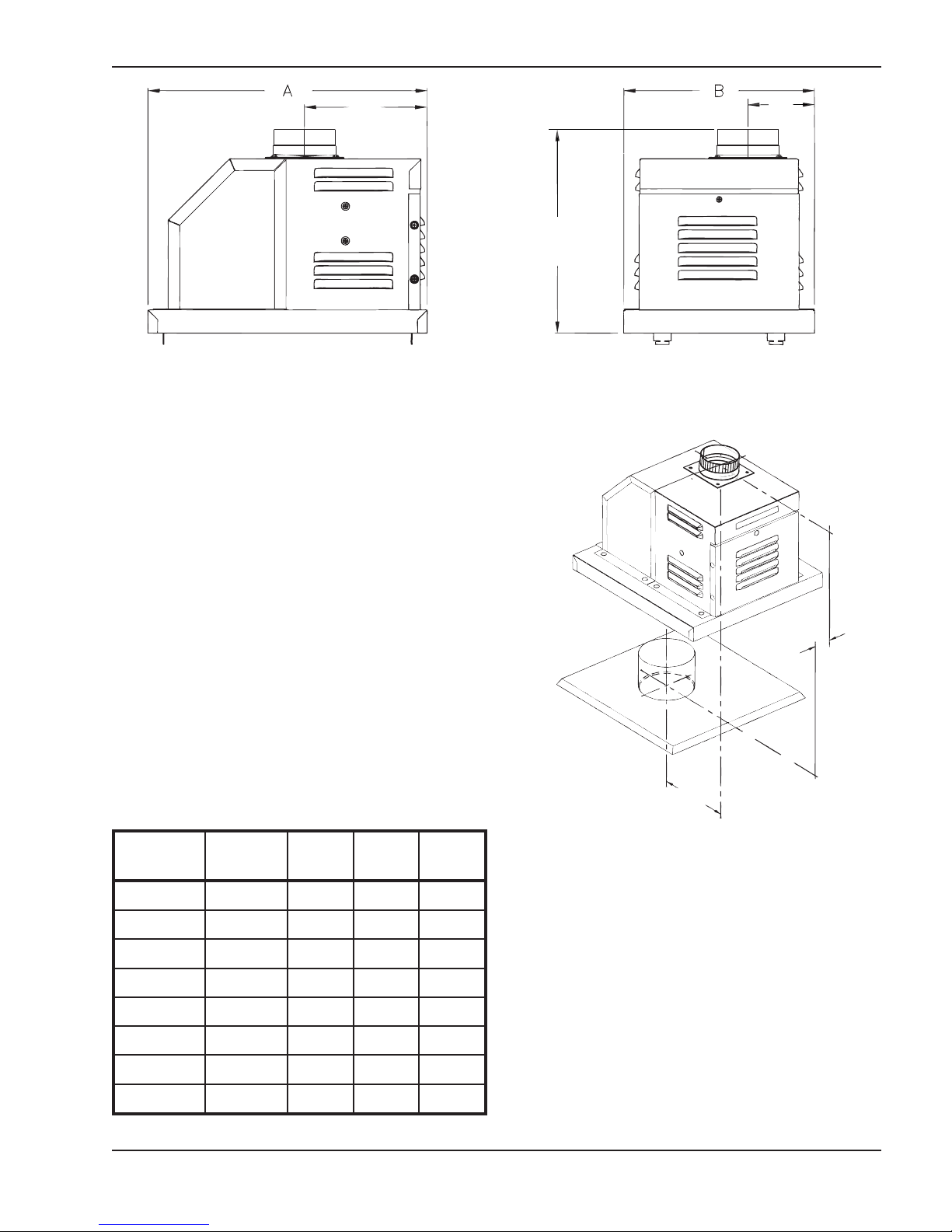

Changes to: Fig. 2 on page 5, Fig. 4 on page 7, Fig, 5 on page 8, Dimensional Drawing on page 13, Illustrated Parts ist
on page 15
Additions: Note on page 4, Wiring Diagrams on pages 11-12

Warnings 3
Pay Attention to These Terms 3
Receiving Equipment 4
General Specifications 4
Installation 4
Mounting the Assembly 4
Wiring a Power Vent Assembly to
an Appliance with IID Ignition 7
Venting 7
Wiring Diagrams 9
182-260 H4/WH1 (Atmospheric) 9
181-261 H4/WH1 ( ow NOx) 10

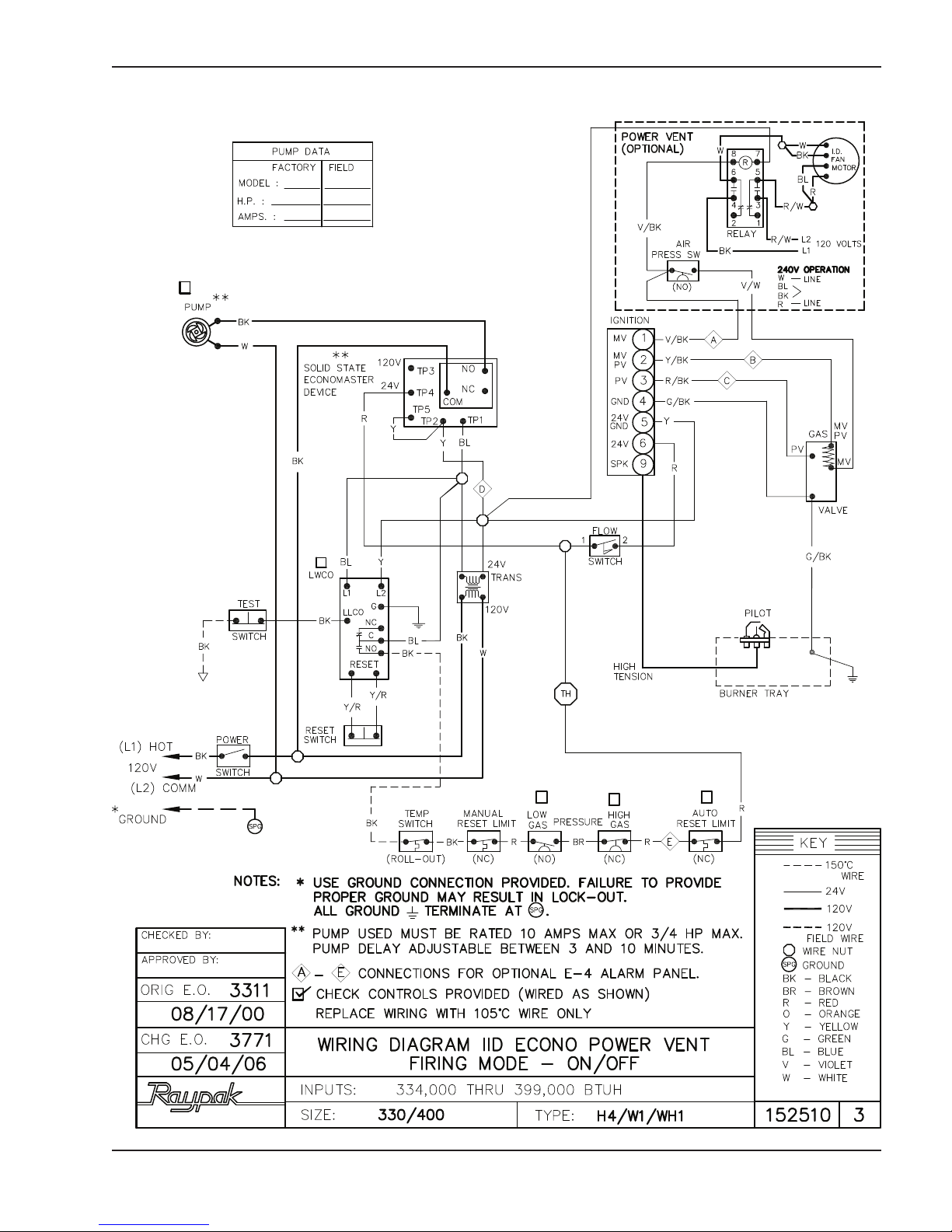

330-400 H4/WH1 (Atmospheric) 11

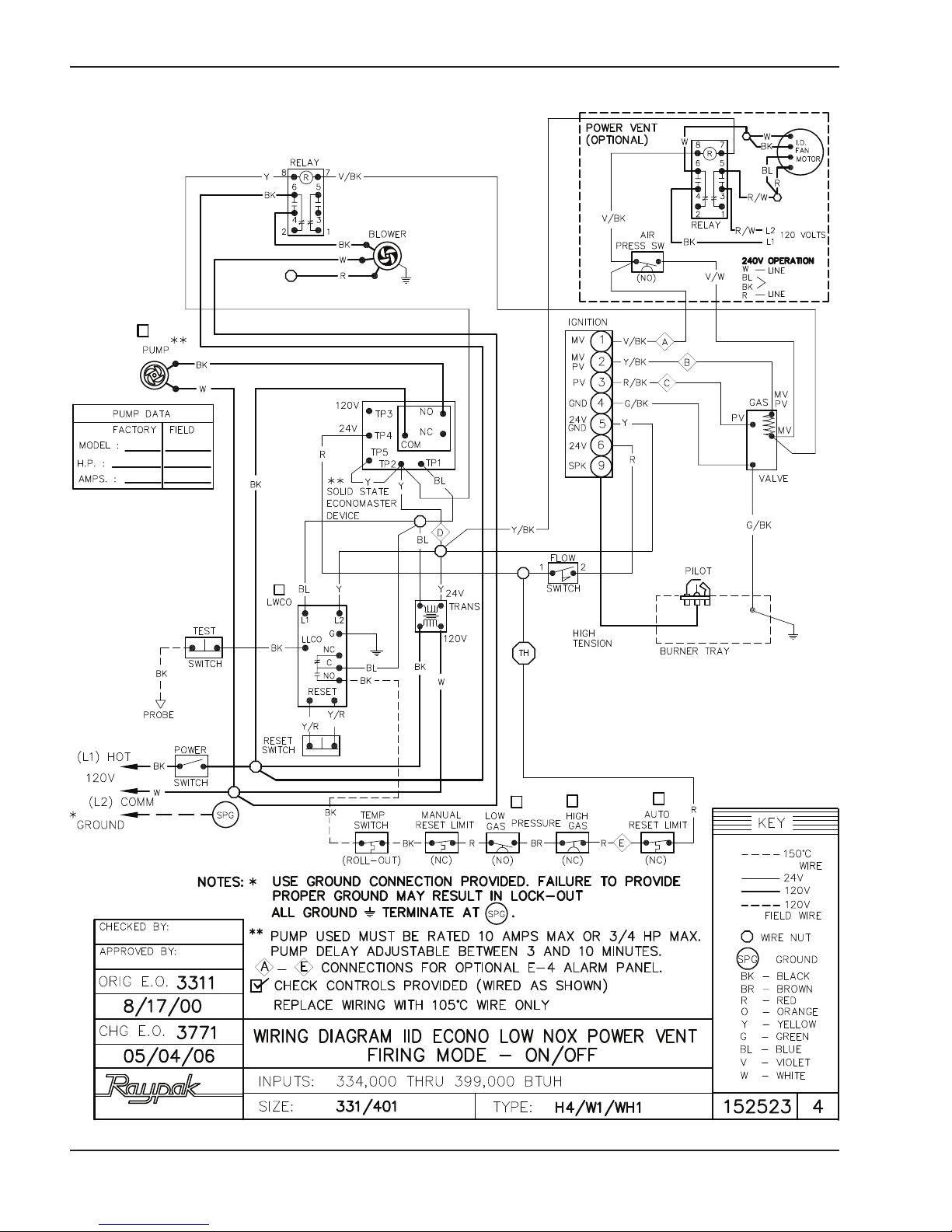

331-401 H4/WH1 ( ow NOx) 12
Sequence of peration 14
Start Up Procedures 14
Draft Proving Switch 14

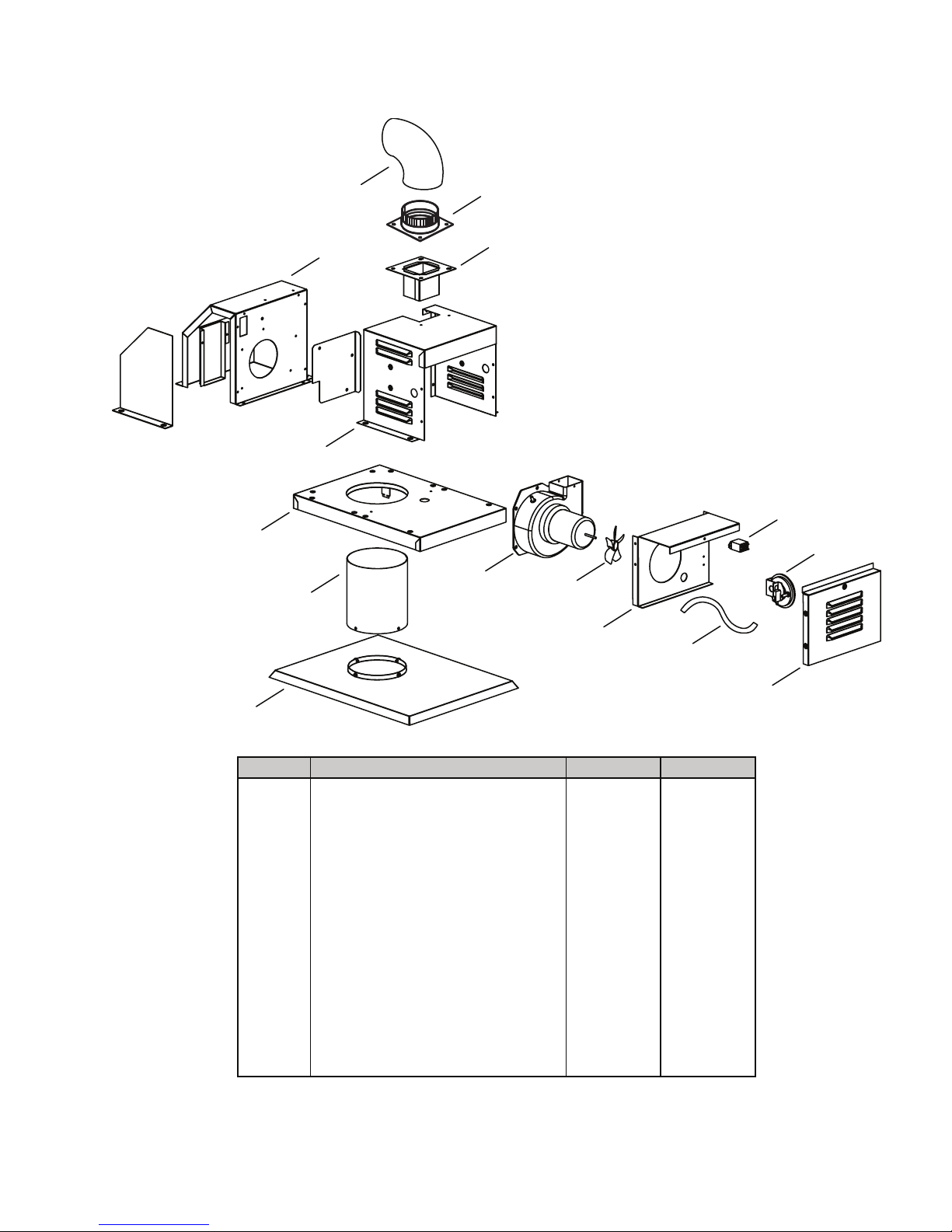

Illustrated Parts List 15
C NTENTS
3
DANGER: Indicates the presence of immediate hazards which will cause severe
personal injury, death or substantial property damage if ignored.
WARNING: Indicates the presence of hazards or unsafe practices which could cause
severe personal injury, death or substantial property damage if ignored.
CAUTI N: Indicates the presence of hazards or unsafe practices which could cause
minor personal injury or product or property damage if ignored.
N TE: Indicates special instructions on installation, operation, or maintenance which
are important but not related to personal injury hazards.
WARNINGS
Pay Attention to These Terms
N TE: Minimum 18 AWG, 105°C, stranded wire
must be used for all low voltage (less than 30 volts)
external connections to the unit. Solid conductors
should not be used because they can cause
excessive tension on contact points. Install conduit
as appropriate. All high voltage wires must be the
same size (105°C, stranded wire) as the ones on the
unit or larger.

Receiving Equipment
On receiving your equipment, check the carton visual-
ly for external damage. If the carton is damaged, make
anote on the Bill of ading when signing for the equip-
ment. Remove the complete assembly from the carton
if it is damaged, and report the damage to the carrier
immediately. Be sure that you receive the number of
packages indicated on the Bill of ading. Claims for
shortages and damages must be filed with the carrier
by consignee.
Purchased parts are subject to replacement only
under the manufacturer's warranty. Debits for defec-
tive replacement parts will not be accepted and
defective parts will be replaced in kind only per our
standard warranties.
When ordering parts, you must specify Model and
Serial Number of the unit. When ordering under war-
ranty conditions, you must also specify date of
Installation.
Raypak recommends that this manual be reviewed
thoroughly before installing the D-2 Power Vent. If
there are any questions which this manual does not
answer, please contact your local Raypak
Representative.
THIS MANUA SHOU D BE MAINTAINED IN EGI-
B E CONDITION AND KEPT ADJACENT TO THE
UNIT.
General Specifications
The D-2 Power Vent Assembly is tested and certified
to the latest edition of the American National Standard
ANSI Z21.56. standard for pool heaters, Z21.10.3 for
water heaters and Z21.13 for boilers.
The Power Vent Assembly is a fan assisted combus-
tion system designed for application to Raypak Heater
Models 181-401. The unit, when installed as directed,
is capable of operating in applications such as through
the wall venting and reduced horizontal and vertical
vent pipe sizes in new and existing installations.
The D-2 Power Vent assembly includes a blower with
a 120/240 volt 60 Hz 1.0/1.95A 3200 RPM motor, a
plenum complete with a draft proving switch and a
motor relay. When provided for field mounting the
assembly is equipped with a wire harness.
Installation
The equipment must be installed in accordance with
local codes, or in the absence of local codes with the
latest edition of the National Fuel Gas Code, ANSI
Z223.1, the National Electrical Code, ANSI/NFPA 70.
The equipment shall be installed in accordance with
those installation regulations in force in the local area
where the installation is to be made. These shall be
carefully followed in all cases. Authorities having juris-
diction shall be consulted before installations are
made.
Mounting the Assembly
Follow these instructions if the Power Vent
venting system was purchased as an
optional assembly kit.
1. Remove existing pagoda top (outdoor units) or
drafthood (indoor units). To remove the pagoda top,
push the four brackets inward and pull up the pagoda
top. The pagoda may then be discarded.
2. Unscrew the four screws holding the outer top using
a phillips screw driver. Remove the jacket top.
3. Replace the inner stack adapter. If the heater had a
drafthood installed previously, remove the inner stack
adapter and replace it with the Power Vent stack
adapter. Otherwise, install the Power Vent stack
adapter.
4. Unscrew the access panel on the right side of the
appliance. Set aside the screws with the access panel.
5. Remove the knurled screw holding the front door
and set it aside with the door.
6. Mount the jacket top above the unit. Note: Do not
install at this point.
4
Table A: Draft Assembly Application and Kit umbers
Model o.
Minimum
Connection
Diameter
Kit
umber
Factory
Wired
181/182 4” 008757 120V
260/261 4” 008757 120V
330/331 4” 008758 120V
400/401 4” 008758 120V
N TE: The D-2 Power Vent comes factory-wired for
120V, but can be field-converted for 240V operation.
See wiring diagrams.

5
7. Mount the Power Vent on the outer top.
8. Route the conduit harness of the Power Vent thru
the outer top hole, around the adapter towards the
back of the unit. Continue routing the harness thru the
corner slot, which leads to open area behind the
access panel. Finally, route only the wire harness thru
the 7/8” grommet hole located on the sway brace.
Follow instructions on page 7 to wire the Power Vent.
Note: Newer units have a 7/8” grommet located on the
rain shield, which would eliminate routing the harness
around the back corner.
9. Re-mount the jacket top to its original position and
screw in the four screws holding it down to the appli-
ance.
10. If the appliance is a 181, 182, 330 or 331, remove
the tabs underneath the power vent using a 5/16” nut
driver and relocate them closer to the center of the
Power Vent as shown in Fig. 1.
11. Mount the Power Vent assembly bottom on the 6”
vent as shown below. Twist the assembly downward.
Snap the mounting brackets into their appropriate slot
to hold the Power Vent in position. Note: While twisting
you may notice some roughness, this is due to a tight
seal between the 6” vent and the Power Vent flue box.
12. Re-mount the access panel.
13. Re-mount the front door along with the knurled
screw on the heater.
TABS
BEFORE AFTER

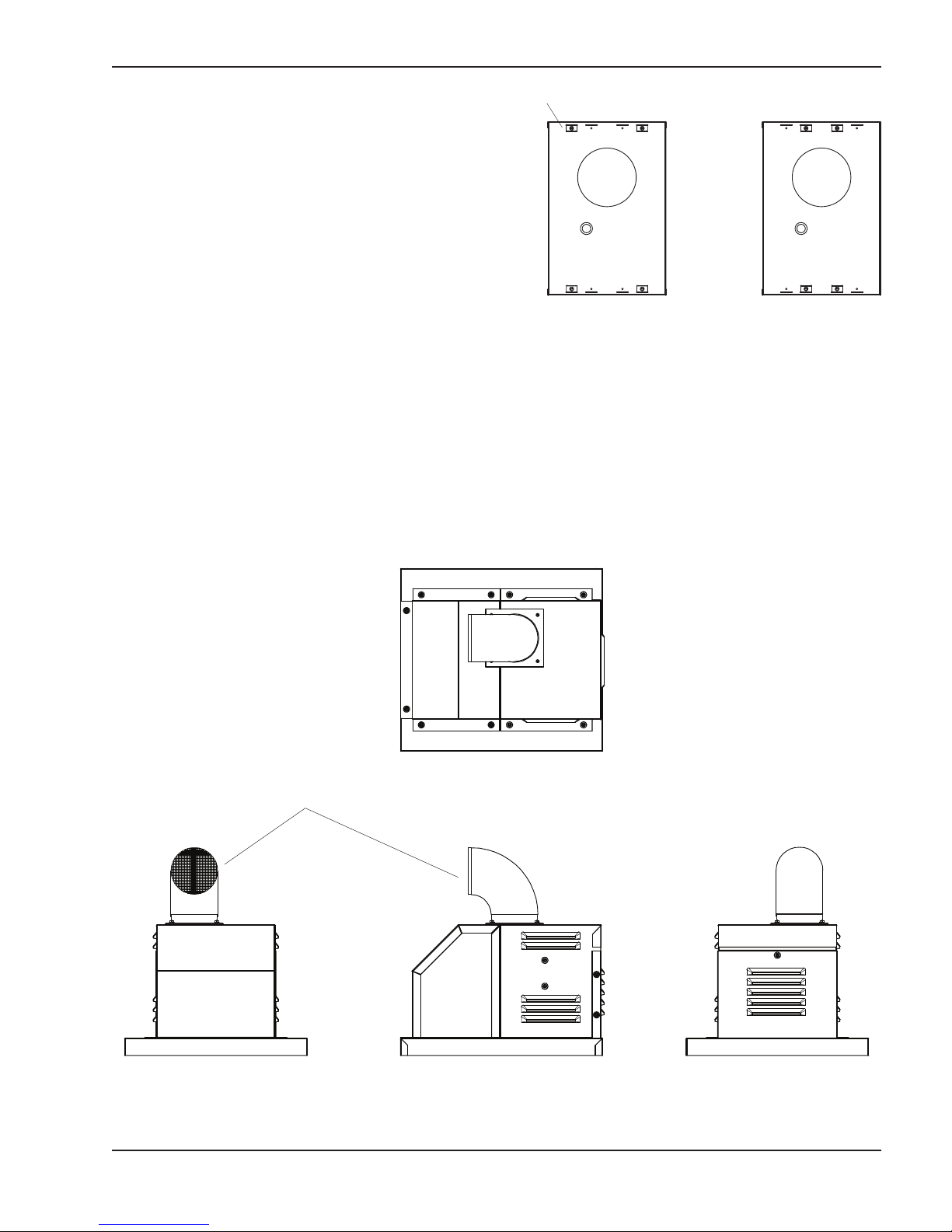

Fig. 1: Reposition the Tabs as ecessary (see step 10)
Fig. 2: Draft Assembly
TOP VIEW
LEFT SIDE FRONT VIEWREAR VIEW
EXHAUST
OUTLET
Note: The 90° elbow may be used as a termination cap.

6
U.S. Installations1Canadian Installations2
AClearance above grade, veranda, porch,
deck, or balcony 1ft (30 cm) 1 ft (30 cm)
BClearance to window or door that may be
opened
4ft (1.2m) below or to side
of opening; 1 foot (30 cm)
above opening
3ft (91 cm)
C Clearance to permanently closed window **
D
Vertical clearance to ventilated soffit located
above the terminal within a horizontal dis-
tance of 2 ft (61cm) from the centerline of the
terminal
5ft (1.5m) *
EClearance to unventilated soffit **
FClearance to outside corner **
GClearance to inside corner 6ft (1.83m) *
HClearance to each side of center line ex-
tended above meter/regulator assembly *
3ft (91 cm) within a height
15ft above the me-
ter/regulator assembly
IClearance to service regulator vent outlet *6ft (1.83m)
J
Clearance to non-mechanical air supply inlet
to building or the combustion air inlet to any
other appliance
4ft (1.2m) below or to side
of opening; 1 ft (30 cm)
above opening
3ft (91 cm)
KClearance to mechanical air supply inlet 3ft (91 cm) above if within
10 ft (3m) horizontally 6ft (1.83m)
LClearance above paved sidewalk or paved
driveway located on public property 7ft (2.13m) 7ft (2.13m) t
MClearance under veranda, porch, deck or
balcony *12 in. (30 cm) TT
1Inaccordance with the current ANSIZ223.1/NFPA54National Fuel Gas Code
2Inaccordance with the current CAN/CGA-B149 Installation Codes
tVent terminal shall not terminate directly above sidewalk or paved driveway located between 2 single family dwellings that serves
both dwellings
TT Permitted only if veranda, porch, deck, or balcony is fully open on a minimumof two sides beneath the floor and top of terminal and
underside of veranda, porch, deck or balcony is greater than 1 ft(30cm)
*Clearances in accordance with local installation codes and the requirements of the gas supplier

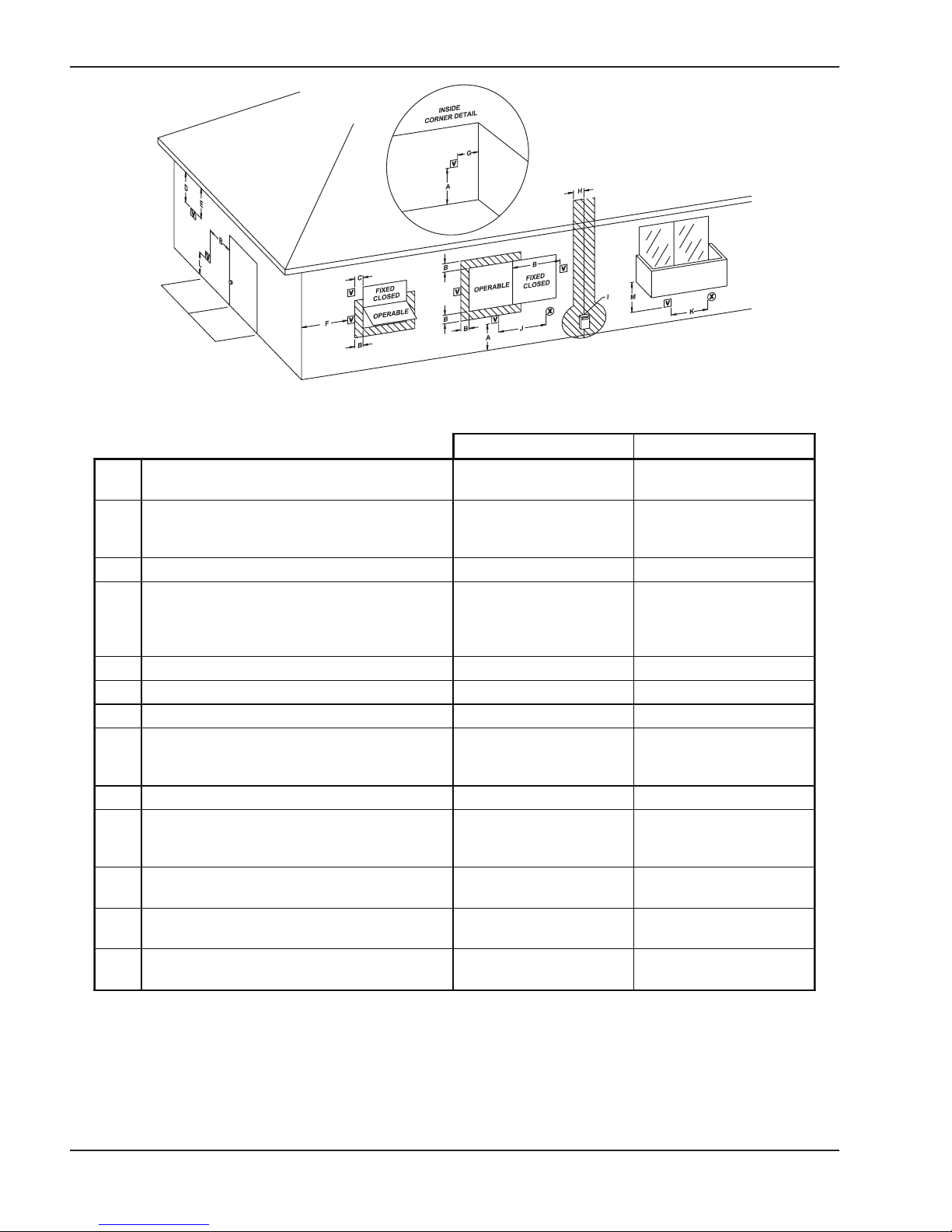

Fig. 3: Minimum Clearances from Vent/Air Inlet Terminations – Indoor and Outdoor Installations
Table B: Vent/Air Inlet Termination Clearances

7
Wiring a Power Vent Assembly
to an Appliance with IID
Ignition

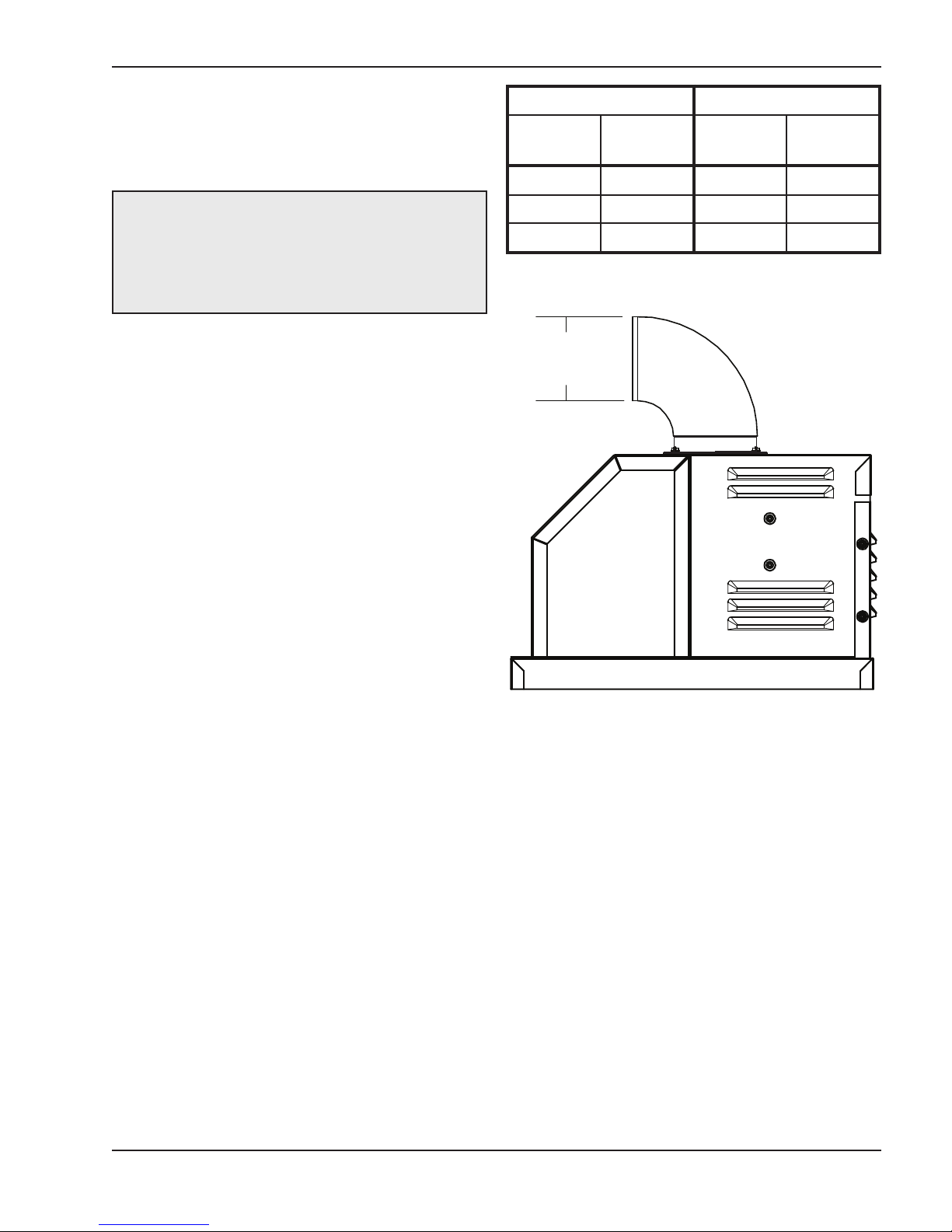

Venting
The vent pipe must be the same size or one size larg-
er than what is indicated. The D-2 Power Vent is
capable of 360-degree discharge rotation and oper-
ates with a positive vent static pressure and with a
vent gas temperature less than 400°F. The total
length of horizontal run shall not exceed an equiv-
alent of 40 feet including termination cap. For all
cases, each 90-degree elbow reduces the maximum
horizontal vent run by 10 feet and each 45-degree
elbow in the vent run reduces the maximum vent run
by 5 feet. See the table below for maximum vent
lengths using 90-degree and 45-degree elbows.
The D-2 Power Vent uses positive pressure to push
flue gases through the vent pipe to the outside. The
vent must be installed to prevent flue gas leakage.
Care must be taken during assembly to ensure that all
joints are sealed properly and are airtight.
The vent must be installed to prevent the potential
accumulation of condensate in the vent pipes. It is rec-
ommended that:
a) The vent be installed with a slight downward slope
of not more than 1/4” per foot of horizontal run to the
vent terminal.
b) The vent be insulated through the length of horizon-
tal run.
For appliances installed in extreme cold climate, it is
recommended that:
a) The vent be installed with a slight upward slope of
not more than 1/4” per foot of horizontal run to the vent
terminal. In this case, an approved condensate trap
must be installed per applicable codes.
b) The vent be insulated through the length of the hor-
izontal run.
Fig. 4: Draft Assembly
The Raypak Power Vent operates with a positive vent
static pressure and with a vent gas temperature that
avoids excessive condensate production in the vent
and as such it is listed as a CATEGORY III appliance.
Exception: When a Power Vent is connected to a ver-
tical vent of sufficient height to generate a negative
draft in the system. Consult sizing guide or factory.
The D-2 Power Vent assembly is suitable for through
the wall venting, and for connection to smaller size
vent pipes and breeching other than the standard
atmospheric heater.
WARNING: Disconnect all electrical power to the
unit before servicing to avoid potential shock injury
or damage to the unit. To change voltages, follow
wiring diagram for correct voltage connections.
Improper wiring connections can burnout the relay
and blower motor.
90 Degree Elbows 45 Degree Elbows
Quantity Maximum
Length (ft) Quantity Maximum Length (ft)
1 30 1 35
2 20 2 30
3 10 3 25
Table C: Reduced Maximum Equivalent Vent Run
LEFT SIDE
4"
DIAMETER

8
LEFT SIDE
The D-2 Power Vent assembly includes a wire harness, shown in Fig. 6 below, which provides quick connec-
tions with the respective controls in the heater control box. The harness is of sufficient length to fit the appliance
for which it is sized.
Reference the wiring diagram supplied with each appliance for actual connections.
Fig. 5: Through the Wall Vent
PRESSURE
SWITCH
GAS
VALVE
RELAY
Y/BK
Y/BK
V/BK
V/W
Y/BK V/BK
V/BK
V/W
Fig. 6: D-2 Power Vent Wire Harness

9
Wiring Diagrams—182-260 H4/WH1 (Atmospheric)

10
181-261 H4/WH1 (Low N x)

11
Wiring Diagrams—330-400 H4/WH1 (Atmospheric)

12
331-401 H4/WH1 (Low N x)

13
D
12.95
C
1.88
4.38
SEE TABLE D FOR
DIMENSIONAL DATA
Model
o. A B C D
181 18.13 12.38 7.88 4.25
182 18.13 12.38 7.88 4.25
260 18.13 12.38 7.88 4.25
261 18.13 12.38 7.88 4.25
330 17.50 15.75 7.63 6.00
331 17.50 15.75 7.63 6.00
400 17.50 15.75 7.63 6.00
401 17.50 15.75 7.63 6.00
Table D: Dimensional Data

14
Sequence of peration
On call for heat, the D-2 Power Vent fan (and appli-
ance pump) start. When the flow switch circuits close,
the ignition system consisting of an electronic spark
module, pilot gas system and flame sensor, are ener-
gized. When draft proving switch closes and all safety
circuits are proven, the automatic main gas valves will
open and the heater will operate. When the operating
limit circuit is satisfied, the heater will shut down.
Start Up Procedures
The water system, the gas system and the electrical
system for the heater should be completed and
checked as per the heater installation manual and
associated documents.
1. Turn on power to the heater with the manual main
gas valve and pilot gas valve off. The electric power
supply requirements are:
a. Dual-voltage fan motor.
120/240 volt 60Hz 1.0/1.95 Amp fan
motor for models 181-401.
2. Check power connections.
3. Close heater power switch.
4. Set operating control to call for heat.
a. Fan motor starts, draft proving switch clos-
es.
b. Heater pump starts, flow switch closes.
c. Ignition module energized.
d. Check for spark at gas pilot.
5. Turn operating control to end call for heat.
6. Wait a minimum of 60 seconds.
7. Open pilot gas valve.
a. Repeat procedure outlined in #4 above.
8. After pilot gas is proven and main safety shut-off
valve is energized.
a. Main burners will ignite.
9. Heater will operate until call for heat is satisfied.
10. Restart unit and visually check all components for
proper operation.
11. Check all vent connections and joints for leakage.
Correct if found.
12. To restart unit after a failure, follow the procedures
outlined above and other subsequent or related sec-
tions outlined in the heater manual.
EMERGE CY SHUTDOW : SHUT OFF ALL
POWER A D GAS, CALL GAS UTILITY.
Draft Proving Switch
The draft proving switch insures that the blower is
operating. The switch is in the limit circuit and does not
allow the ignition module to operate unless it is closed.
NEGATIVE PRESSURE
CONNECTOR
Fig. 7: Draft Proving Switch

15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Call Out Description 181-261 330-401
F487800F487800yaleR1
F651800F651800rewolB2
3NO Pressure Switch 008062F 008135F
4Elbow 4"-90° with Screen 010827F 010827F
F386800F286800xoBeulF5
6 Base Assembly 008684F 008685F
F686800F686800ralloCeulF7
F886800F786800rotpadAeulF8
F986800F986800egnalF"49
10 Blower Adaptor 008690F 008690F
11 Control Cover 008691F 008691F
12 Control Swaybrace 008692F 008692F
13 Silicone Hose 008693F 008693F
F496800F496800lenaPtnorF41
15 Blower Cooling Fan 011549F 011549F
Illustrated Parts List

www.raypak.com
Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 [phone] Fax [phone]
itho in U.S.A.
