Victory UC800 User manual

NOTICE: For residential use only.
Installer: Leave this guide with the homeowner.
Homeowner: Keep this guide for future reference.
Rev.20230303b
INSTALLATION GUIDE
AND USERS MANUAL
Professional Under Cabinet Range Hood
Model Name: UC800

Important Safety Notice................................................................... 3
Electrical Requirements.................................................................. 5
Venting Requiremens...................................................................... 6
Calculating Duct System Length.................................................... 7
Specications................................................................................... 7
Required Tools.................................................................................. 8
PartsSupplied................................................................................... 8
Dimensions........................................................................................ 9
Preparation........................................................................................ 11
Rough-In............................................................................................ 12
Installation......................................................................................... 12
Venting Methods............................................................................... 16
Wiring Diagram................................................................................. 18
Range Hood Operations................................................................... 19
Troubleshooting................................................................................ 20
Do’s and Don’ts for Duct Venting.................................................... 21
Use and Care Information................................................................ 21
Maintenance...................................................................................... 22
Bulb Replacement............................................................................ 23
Warranty............................................................................................. 24
Disclaimer.......................................................................................... 25
Contact Us........................................................................................ 25
| UC8002 UC800 | 3
TABLE OF CONTENTS

• The installation in this manual is intended for qualied installers, service technicians or
persons with similar qualied background. Installation and electrical wiring must be done by
qualied professionals and in accordance with all applicable codes and standards, including
re-rated construction.
• DO NOT attempt to install this appliance yourself. Injury could result from installing the unit
due to lack of appropriate electrical and technical background.
• Range hood may have very sharp edges; please wear protective gloves if it is necessary to
remove any parts for installing, cleaning or servicing.
• Activating any switch ON before completing installation may cause ignition or an explosion.
• Due to the size and weight of this range hood, two-person installation is recommended.
To reduce the risk of re, electric shock, or injury to persons:
• For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials
and vapors.
• The combustion air ow needed for safe operation of fuel-burning equipment may be a󰀨ected
by this unit’s operation. Follow the heating equipment manufacturer’s guideline and safety
standards such as those published by the National Fire Protection Association (NFPA), and
the American Society of Heating, Refrigeration and Air Conditioning Engineers (ASHRAE),
and the local code authorities.
• Before servicing or cleaning unit, switch power OFF at service panel and lock service panel
to prevent power from being switched ON accidentally.
• Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl
spaces, ceiling, attics and/or garages.
• Ducted fans MUST always be vented to the outdoors.
• Use only metal ductwork and this unit MUST be grounded.
• Su󰀩cient air is needed for proper combustion and exhausting of gases through the duct to
prevent back drafting.
• When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other
hidden utilities.
• All electrical wiring must be properly installed, insulated and grounded.
• Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease
re.
• Check all joints on duct work to insure proper connection and all joints should be properly
taped.
• Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the vendor.
To reduce the risk of a stove top grease re:
• Keep all fans, spacers, lters, grease tunnels, oil containers and grease-laden surfaces
clean. Grease should not be allowed to accumulate on fan, ba󰀪e, spaces, lter, grease
tunnel and oil container.
• Always turn range hood ON when cooking at high heat or when cooking foods that produce
ames.
• Use high settings on cooking range only when necessary.
• Never leave surface units unattended at high settings. Boil overs cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
| UC8002 UC800 | 3
IMPORTANT SAFETY NOTICE
Read all instructions before installing and operating this appliance

• Clean ventilating fan frequently.
• Always use appropriate cookware and utensils size.
• Always use cookware appropriate for the size of the surface element.
To reduce the risk of injury to persons in the event of a stove top grease re:
• Smother ames with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner.
Be careful to PREVENT BURNS. Never pick up a pan that has ames—you may be burned.
Keep ammable and/or combustible material away from ames. If the ames DO NOT go out
immediately, EVACUATE and CALL the FIRE DEPARTMENT or dial your local emergency
service immediately.
• DO NOT use WATER, including wet dishcloths or towels — it will result in a violent steam
explosion
• Use an extinguisher ONLY if:
• You know you have a Class A, B, C extinguisher, and you already know how to operate it.
• The re is small and contained in the area where it has started.
• The re department is on the way.
• You can ght the re while having access to a safe exit.
To reduce the risk of injury to persons in the event of a gas leaks:
• Extinguish any open ame.
• DO NOT turn on the range hood fan or any type of ventilator.
• DO NOT turn on the lights or any type of appliance.
• Open all doors and windows to disperse the gas. If you still smell gas, call the gas company
and re department or dial your local emergency service immediately.
Your safety and the safety of others is very important. We have provided many important
safety messages in this manual and on your appliance. Always read and obey all safety
messages. All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you
and others. All safety messages will follow the safety alert symbol and the word “WARNING”.
The manufacturer and/or distributor/reseller declines all responsibility in the event of failure
to observe the instructions given here for installation, maintenance and suitable use of the
product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused directly or indirectly by
the range hood.
| UC8004 UC800 | 5
IMPORTANT SAFETY NOTICE
Read all instructions before installing and operating this appliance

IMPORTANT: Observe all governing codes and ordinances.
It is the customer’s responsibility:
• To contact a qualied electrician
• To assure that the electrical installation is adequate and in conformance with National
Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian
Electrical Code, Part 1 and C22. 2 No. 0-M91 - latest edition** and all local codes and
ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician
determine that the ground path is adequate.
A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit.
DO NOT ground to a gas pipe.
Check with a qualied electrician if you are not sure that the range hood is properly grounded.
DO NOT have a fuse in the neutral or ground circuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box
through exible armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain
relief must be provided at each end of the power supply cable.
Wire sizes (copper wire only) and connections must conform with the rating of the appliance
as specied on the model/serial rating label. Wire sizes must conform to the requirements
of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22.
1-94, Canadian Electrical Code Part 1 and C22. 2 No. 0-M91 - latest edition** and all
local codes and ordinances. A U.L. - or C.S.A. - listed conduit connector must be provided
at each end of the power supply cable (at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
| UC8004 UC800 | 5
ELECTRICAL REQUIREMENTS

• Duct system must terminate to the outside (roof or side wall).
• DO NOT terminate the duct system in an attic or other enclosed area.
• DO NOT use 4” (10.2 cm) laundry-type wall caps.
• Use metal/aluminum duct only. Rigid metal/aluminum duct is recommended.
• DO NOT use plastic duct.
• Always keep the duct clean to ensure proper airow.
• Calculate the following gures before installation:
1. Distance from the oor to the ceiling.
2. Distance from stove/countertop to range hood
3. Height of hood and duct cover.
For the most e󰀩cient & quiet operation:

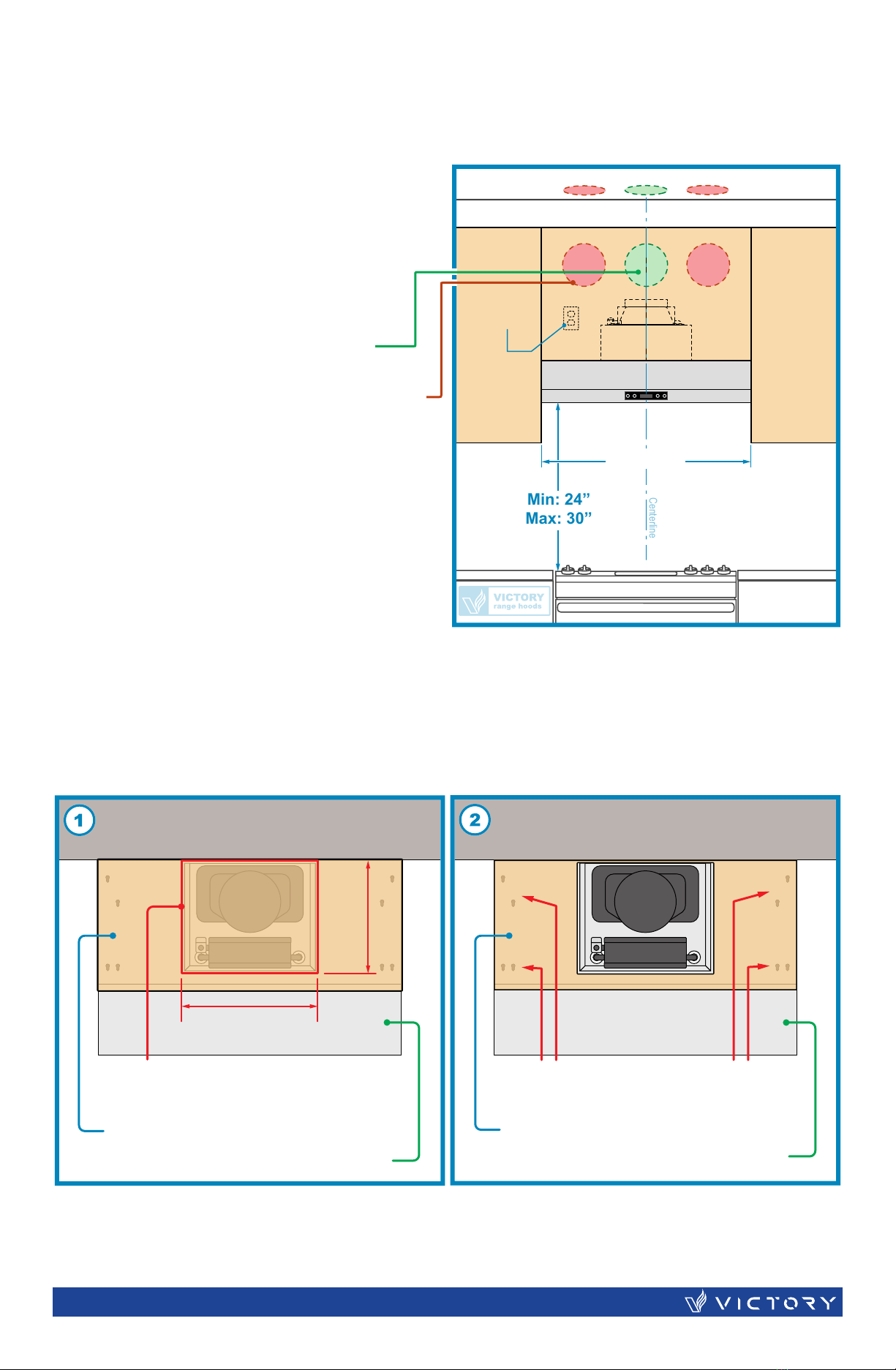

• A distance of 24” to 30” is recommended* between stove top and the bottom of range hood
• It is recommended that the range hood be vented vertically through the roof through 6” or bigger
round metal/aluminum duct work.
• The size of the duct should be uniform.
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24” (61 cm) of straight duct between the elbows if more than one
elbow is used.
• DO NOT install two elbows together.
• The length of duct system and number of elbows should be kept to a minimum to provide e󰀩cient
performance.
• The duct system must have a damper. If the wall cap has a damper, DO NOT use damper (if
supplied) on top of the range hood.
• Use aluminum foil tape to seal all joints in the duct system.
• Use caulking to seal exterior wall or roof opening around the cap. USE 6” ROOF OR WALL VENT
CAP MINIMUM.
IMPORTANT:
• A 6” round duct (standard for this range hood) must be used to maintain maximum airow e󰀩ciency.
• Always use rigid type metal/aluminum ducts if available to maximize airow when connecting to
provided duct.
• Please use Duct Run Calculation below to compute total available duct run when using elbows,
transitions and caps.
• ALWAYS, when possible, reduce the number or transitions and turns in the duct run. If a long duct
run is required, increase the duct size from 6” to 8”. If a reducer is used, install a long reducer
instead of a pancake reducer. Reducing the duct size will restrict airow and decrease e󰀩ciency.
• If turns or transitions are required: Install as far away from opening and as far apart, between 2, as
possible.
• Minimum mount height between stove top to hood bottom should be no less than 24-inch*.
• Maximum mount height between stove top to hood bottom should be no higher than 32-inch*.
• It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and re hazard; while hoods mounted too high will be hard to reach and will loose
its performance and e󰀩ciency.
• If available, also refer to stove top manufacturer’s height clearance requirements and recommended
hood mounting height above range.
Minimum Duct Size:
• Round - 6”
* Due to different ceiling height congurations, recommended height may not be applicable.
| UC8006 UC800 | 7
VENTING REQUIREMENTS

To calculate the length of the duct system you require, subtract the equivalent feet for each “Duct
piece” (Table Below) used in the system from the “Recommended maximum run” (Table Below). The
longest duct run that is acceptable (if completely straight) is 50 feet. The number of duct pieces (elbow,
transition, etc.) installed in your duct run will determine the maximum length the duct run can be. Please
refer to the example below:
Duct Run Calculation:
Recommended maximum run
6” round duct 50 ft
Duct piece deduction
Each 90º elbow used 9 ft
Each 45º elbow used 5 ft
Each 6” to 3/14 x 10” transition
used
7 ft
Side wall cap with damper 7 ft
Roof cap 7 ft
Duct Run Calcuation example:
One roof cap, two 90º elbows, and one 45º elbow
used:
7ft + 9ft + 9ft + 5ft = 30ft used.
The above duct pieces used are equivalent to
30ft of a straight duct run. Subtract 30ft from the
allowable 50ft. The remaining distance of 20ft is the
longest that the straight ducting (in addition to the
duct pieces) can be.
Body Stainless Steel
Power Rating 120V/60Hz (USA & Canada standard)
General Input Power 120W + # of light x Voltage of light
Motor Input Power 120 W
Motor Revolution 800 RPM (±10%) to 1300 RPM (±10%)
Levels Of Speed Control 3 Levels
Maximum Airow 600 CFM
Air Pressure 150 Pa (200 Pa Maximum)
Noise Level (dB / Sone) Approx 35 / 0.7 to 67 / 6.5 (Lowest to Highest Speed)
Motor Type Single Chamber Ultra Quiet
Fan Type Centrifugal / Sirocco
Control Type Digital Display Panel
Filtration Type Aluminium Filter
Illumination 2 x 35W GU10 Halogen, 120V (12V LED Optional)
Ducting Size Top 6” Round
Warranty 1 YEAR ( parts warranty )
* Subject to change without notice, please contact your local reseller for details.
| UC8006 UC800 | 7
CALCULATING VENT SYSTEM LENGTH
SPECIFICATIONS

M4 - 4mm Big Head (x6) For duct transition installation.
Inner Ring Light Key
(used to gain access to your light housing to replace the Halogen GU10 bulb
should your r ange hood come installed with t hem. P lease r efer t o Bulb
Replacement page for more information).
Baffle Filters (x2)
Ø - 6” Transition
Range Hood UC800
Putty
Knife Pencil
Tape
Measure
Level
Phillips
Screwdriver
Aluminum Tape
Power
Drill
Utility
Knife Drywall
Knife
NOTE:
Where necessary, additional screws will be needed for installation and added support, but
are not included. Please review contents before installation.
| UC8008 UC800 | 9
REQUIRED TOOLS

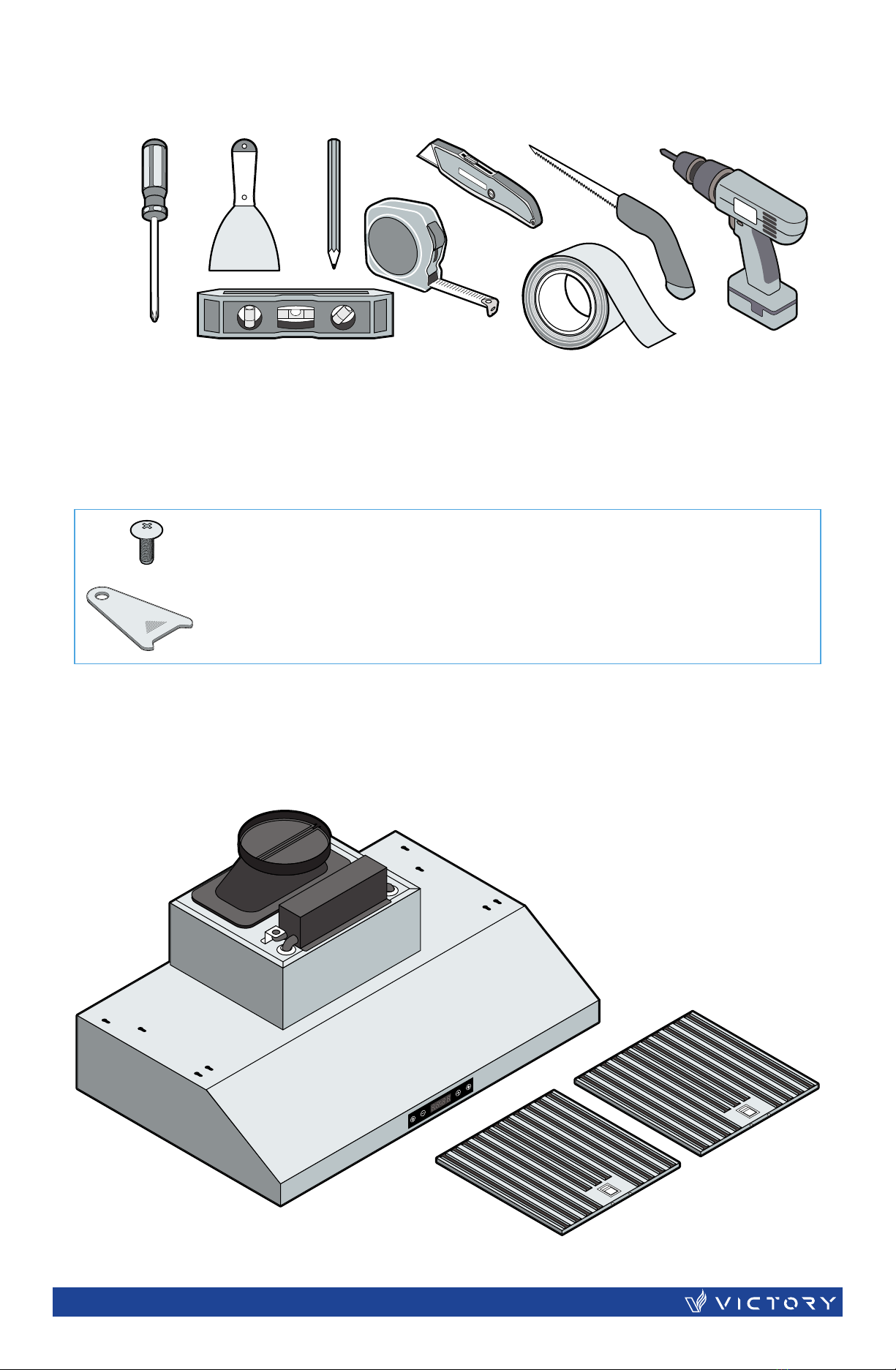

PARTS SUPPLIED

BOTTOM VIEW
SIDE
VIEW
FRONT
VIEW
TOP VIEW
1 ¾”
10 ½”
¼”
5”
12”
19”
29 ½”
UC800 - Model 30
| UC8008 UC800 | 9

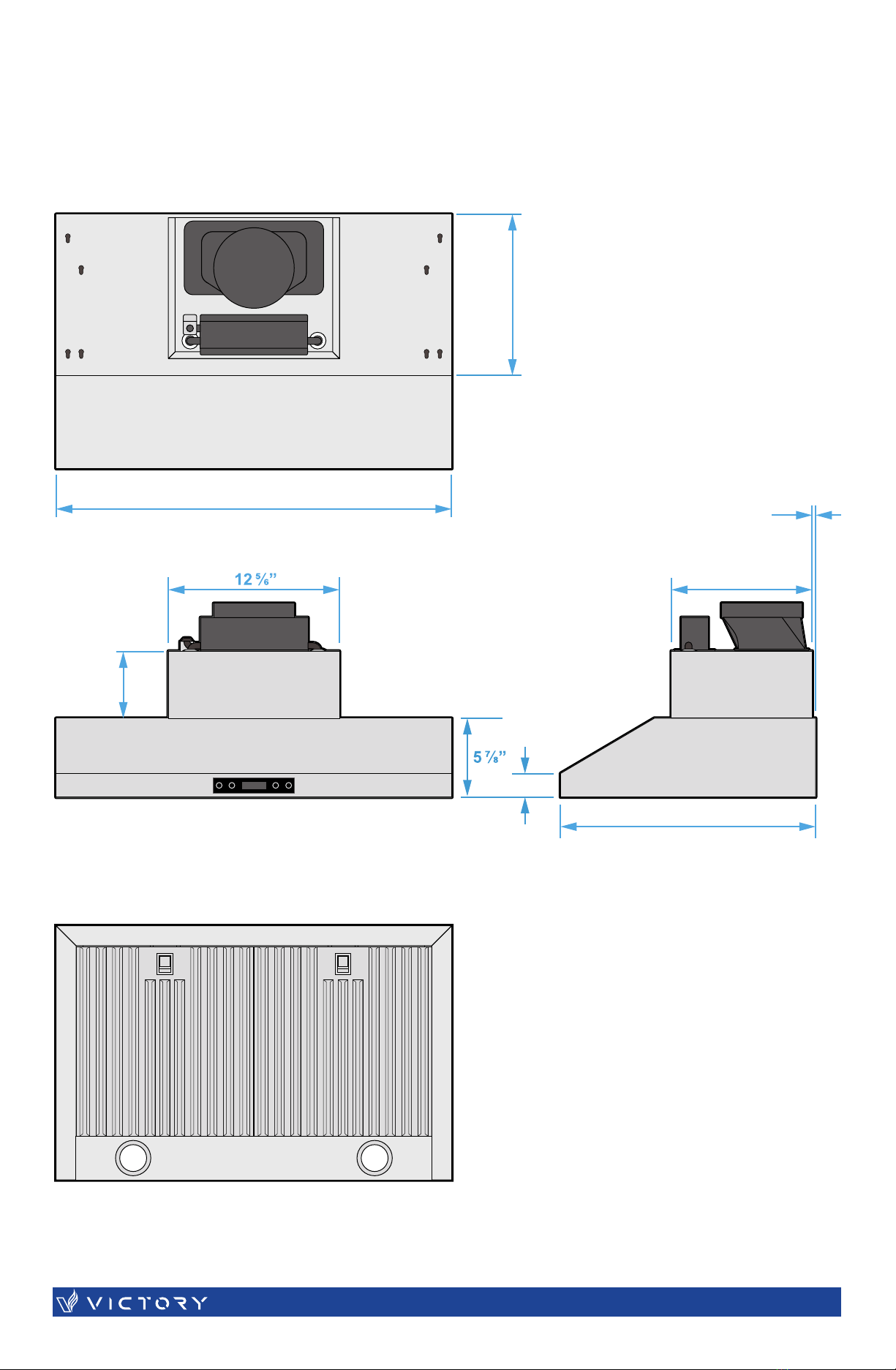

DIMENSIONS

BOTTOM VIEW
SIDE
VIEW
FRONT
VIEW
TOP VIEW
1 ¾”
10 ½”
¼”
5”
12”
19”
23 ½”
UC800 - Model 24
| UC80010 UC800 | 11
DIMENSIONS

Advanced Preparations:
• Be familiar with the controls of the range hood by reading through Range Hood Operations.
• Place the range hood on a at, stable surface. Connect the range hood to a designated
standard outlet (please refer the product label for the suitable voltage of this unit) and turn
on the range hood. Verify all operations of the range hood by referring to Range Hood
Operations. Place all supplied parts and required hardware on a at, stable surface and
verify the existence of all supplied parts.
• Carefully remove the white or blue plastic protective coat from the range hood.
Preparations:
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
• Decide the location of the venting pipe from the hood to the outside. Refer to Venting Methods.
• A straight, short vent run will allow the hood to perform more e󰀩ciently.
• Try to avoid as many transitions, elbows, and long run as possible. This may reduce the
performance of the hood.
• Using 45 degee elbows is better than using 90 degree elbows.
• IMPORTANT: Peel white plastic protective coat o󰀨 the hood, if any.
• Use aluminum tape to seal joints between pipe sections.
THE HOOD MUST BE TESTED BEFORE INSTALLATION.
Victory Range Hoods Inc. will not be responsible for additional labour costs related to
reinstallation of the hood due to transportation internal damage or wiring issues.
| UC80010 UC800 | 11
PREPARATION

Centerline
Min: 24”
Max: 30”
24” or 30”
UC-800 Range Hood
120v Outlet
location
Side Cabinet
Side Cabinet
Cooking Surface
Ceiling
FRONT VIEW
Back Wall
TOP VIEW
Bottom panel of the top cabinet
Top view of range hood
13 ³/4”
10 ³/4”
***Cut opening underneathe the cabinet
to accommodate the size of the blower
housing and power cable.
Back Wall
TOP VIEW
Drill pilot holes underneathe cabinet
that line up with the installation
holes on top panel of range hood
Bottom panel of the top cabinet
Top view of range hood
Measure the distance between
the stove top and the bottom of
range hood. A distance of 24”
to 30” is recommended*.
*Due to dierent ceiling height
congurations, recommended
height may not be applicable.
Preferred areas to install wall or
roof vent ducting.
Wall or roof vent may be installed in these
areas but not recommended.
| UC80012 UC800 | 13
ROUGH-IN
INSTALLATION

Centerline
Ceiling
Cabinet
Wall
Recommended
but not included:
M4 - 4mm
Countersink
woodscrew
with washer
Connect the range hood’s electrical wiring and check the fan motor and lights are functioning.
Be alert of any electrical hazards and refer to the product label for the suitable voltage
of this unit.
(3) Lift and insert the range hood underneathe
the cabinet. Ensure the wiring also passes
through the opening created below the
cabinet.
(4) Secure with 8 woodscrews from the inner
side of the range hood.
CAUTION: Make certain the range hood is
secure before releasing!
| UC80012 UC800 | 13

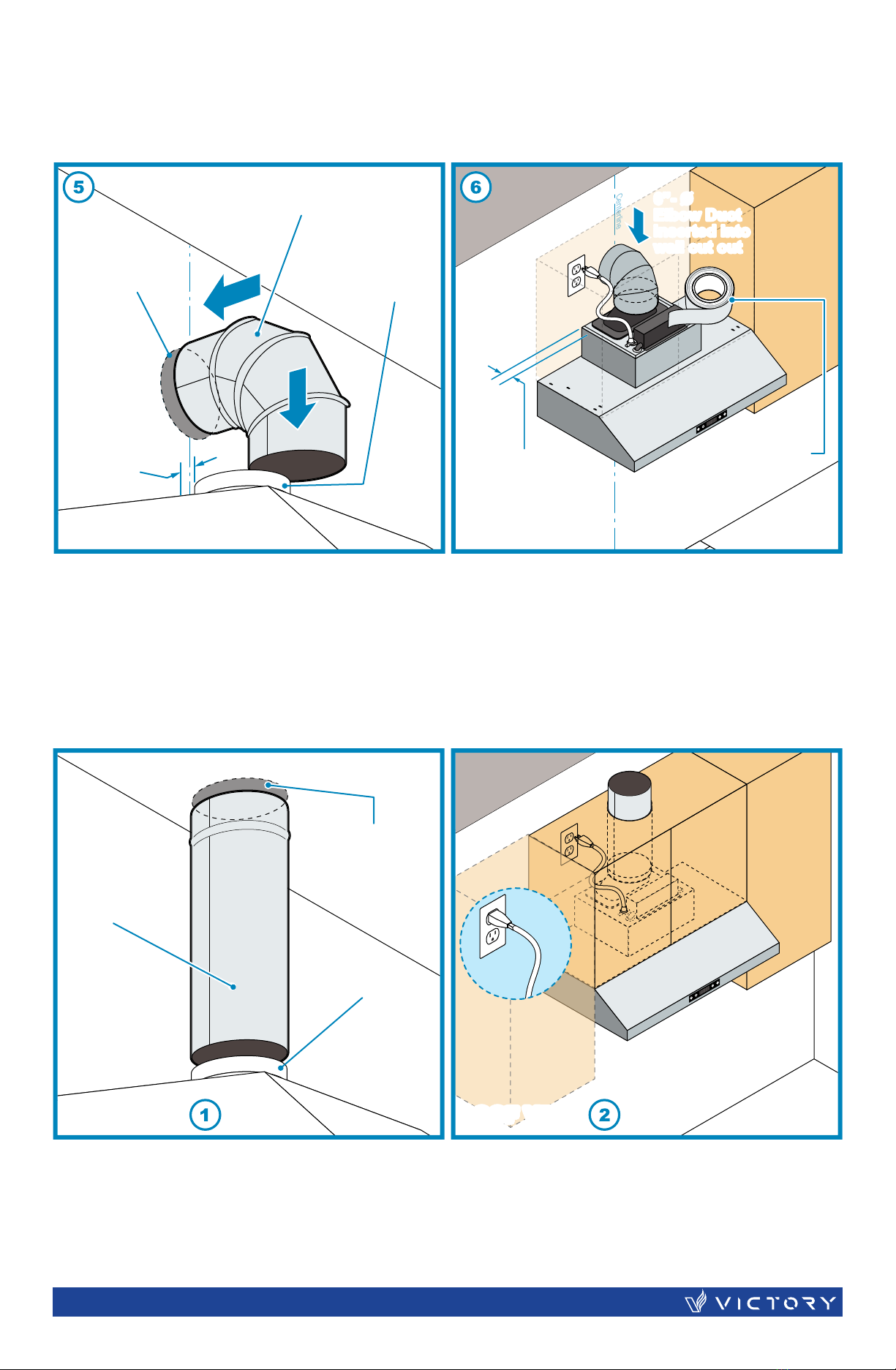

INSTALLATION (Continued)

6”- Ø Elbow Duct
6”- Ø Connector
Cut out hole
in wall to
accommodate
elbow duct.
Distance from
wall to connector
circumference
edge: 1 ¾ ”
WALL VENT
Counter
Top
Ceiling
Wall
Cabinets
6”- Ø
Elbow Duct
inserted into
wall cut out
6”- Ø
Elbow Duct
inserted into
wall cut out
Use aluminum
foil tape to secure
all joints
Distance from
wall to transition
circumference
edge: 1 ¾”
Centerline
6”- Ø Duct
6”- Ø Transition
Cut out hole
on the top panel
of cabinet, and
in ceiling for
exhaust duct
ROOF VENT
Counter
Top
Ceiling
Wall
Cabinets
ROOF VENTROOF VENT
Distance from wall to transition circumference
edge for 6” - Ø Transition will be 1 ½”.
Use aluminum foil tape to make all joints
secure and air tight.
Use 6” round steel pipe to connect the
exhaust on the hood to the ductwork above.
Use aluminum foil tape to make all joints
secure and air tight.
Ensure the cylinder duct passes through,
leading to the roof cut out for exhaust
connecting duct.
| UC80014 UC800 | 15
INSTALLATION (Continued)

BOTTOM VIEW
Retractable Tabs
Tab Inserts
Lift Lever
SIDE VIEW
Ba󰀪e Filters
| UC80014 UC800 | 15

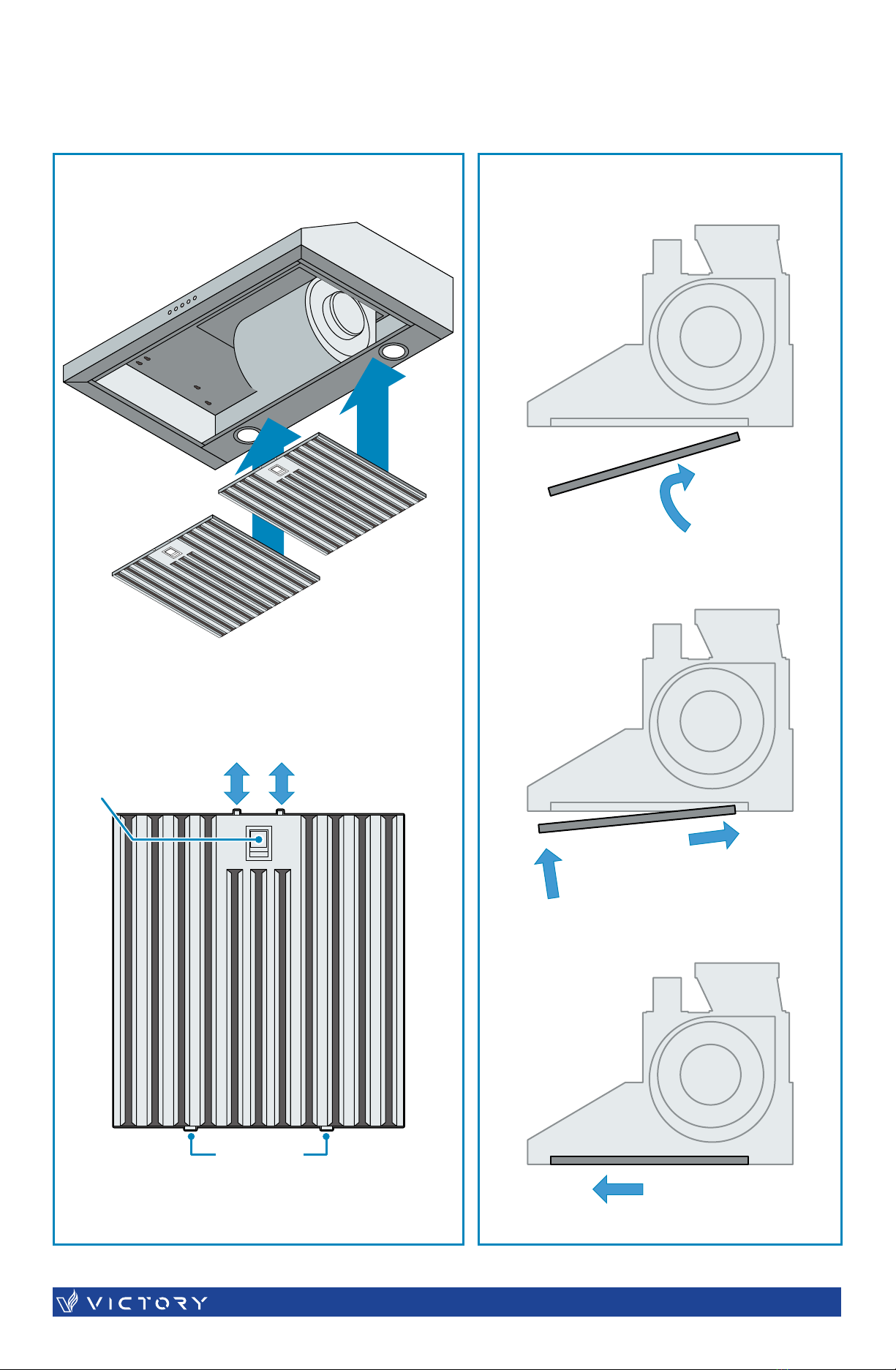

INSTALLATION (Filters)

Motor
Optional Backdraft Damper
Wrap insulation required
for cold climates
Minimum
6” Ø Duct
36” (typical)
Min: 24” Max: 30”
(30” min for 9’ ceiling)
From bottom of range hood
to the top of 6” transition is:
14⅜”
Min height: 77⅜”
from bottom of duct
to ground when range
height to stove is 24”
Min height: 83⅜”
from bottom of duct
to ground when range
height to stove is 30”
Wall Vent
Roof Vent
| UC80016 UC800 | 17
VENTING METHOD

Power Outlet 120v
Backdraft Damper
Wrap insulation
required for cold climates
6” Ø Duct for remote blower installations
Min height: 76”
from power outlet
to floor when range
height to stove is 24”
Min height: 82”
from power outlet
to floor when range
height to stove is 30”
Wall Vent
(alongside joist)
Wall Vent with
Optional Remote Blower
Roof Vent
| UC80016 UC800 | 17
REMOTE BLOWER (Optional)

Black
White
AC-L
AC-N
MO-n
MO-1
MO-2
MO-3
(FAN1)
(FAN2)
(FAN3)
LAMP-L
LAMP-N LIGHTS
M
Capacitor
Yellow
Yellow
White
Blue
Pink
Red
White 110V
Black 110V
L
N
Plug to Outlet
| UC80018 UC800 | 19
WIRING DIAGRAM

Power
Power-Off Delay
Decrease Value
Light
Increase Value
Digital Display
This range hood is designed to remove smoke, cooking vapours and odours from the cook
tp area. For best results, start the range hood before cooking and allow it to operate several
minutes after the cooking is completed to clear all smoke and odours from kitchen.
BUTTON FUNCTIONS:
• Power: Power ON/OFF the range hood and activate power-o󰀨 delay timer.
• Decrease Value: Blower (motor) speed decrease, timer value decrease, and enter timer
mode.
• Increase Values: Blower (motor) speed increase, timer value increase, and cleaning
reminder reset.
• Digital Display: Shows current blower (motor) speed (F1-F3)
• Light: Turns ON/OFF lights.
CONTROLS:
• Adjusting the blower (motor) speed:
• Press Power button once to turn on the system. The Digital Display shows the blower
(motor) speed level. Press Decrease Value button will decrease the speed of the blower
(motor) from F3 to F1 (strongest to quietest). Press Increase Value button will increase
the speed of the blower (motor) from F1 to F3 (quietest to strongest).
• Adjusting the delay timer function:
Three-Minute Delay Power-O󰀨
• While the fans are running, press Power button once to enter Power-O󰀨 Delay Timer
mode, the Digital Display will ash and blower (motor) will turn o󰀨 after 3 minutes.
• During this 3 minutes delay, changing speeds will not a󰀨ect the countdown.
• The 3 minute Power-O󰀨 Delay Timer function can be cancelled by pressing Power button
once.
Immediate Power-O󰀨
• When the fans are operating in normal mode (Power-O󰀨 Delay Timer inactivated), rapidly
press the Power Control (On/O󰀨) button twice to turn o󰀨 the blower (motor).
• Lights:
• Press Light button once to turn on the lights, and once again to turn o󰀨 the lights.
| UC80018 UC800 | 19
RANGE HOOD OPERATIONS

1. If the range hood or lights do not operate
after installation:
• Check if the range hood has been plugged
in, make sure that all power has been
turned back ON, fused not blown and all
electrical wiring are properly connected.
• Swap out light assembly to working ones to
determine whether it is caused by defective
bulbs. See Replacing the light bulbs page.
2. The range hood vibrates when the blower
is on:
• The range hood might not have been
secured properly on to the ceiling or wall.
• The impeller may be out of balance.
3. The blower or fan seems weak: • Duct is too small. Range hood WILL NOT
function e󰀩ciently with insu󰀩cient duct size.
For example: Connecting this hood to 4” or
5” duct will reduce the suction and create
extra noise and vibrations. Check if duct
is clogged or if damper unit is not installed
correctly or opening properly. A tight mesh
on a side wall cap unit might also cause
restriction to the air ow.
4. The lights work but the blower is not
spinning at all, is stuck or is rattling.
• The blower might be jammed or scraping
the bottom due to shipping damage. Please
contact us immediately.
5. The hood is not venting out properly: • Make sure the distance between the stove
top and the bottom of the hood is within*
24” and 30” in distance. *Due to dierent
ceiling height congurations, recommended
height may not be applicable.
• Reduce the number of elbows and length
of duct work. Check if all joints are properly
connected, sealed, and taped.
• Make sure the power is on high speed for
heavy cooking.
• The duct size must be 6”, or larger. Please
make sure there are NO reducers or
plenums in the duct work.
• Refer to Duct Venting in the Venting
Methods page for illustrative examples.
NOTE: For all other inquiries, please contact Victory Range Hoods.
TROUBLESHOOTING
| UC80020 UC800 | 21
