Razberi LP500-360 User manual

5 Megapixel, 360 View IR Mini-Dome
LP500-360
User Manual
9.20.2012

razberi technologies™
1
Table of Contents
1. Overview..................................................................................................................................2
1.1 Features........................................................................................................................2
1.2 Package Contents.........................................................................................................3
1.3 Connectors....................................................................................................................4
1.4 Cable Definition (Optional)............................................................................................ 5
2. Camera Cabling....................................................................................................................... 6
2.1 Connect Power..............................................................................................................6
2.2 Connect Ethernet Cable................................................................................................6
3. System Requirements ............................................................................................................ 7
4. Camera Access....................................................................................................................... 8
5. Setup Video Resolution........................................................................................................ 13
6. Configuration Files Export / Import..................................................................................... 14
Appendix A: Technical Specifications........................................................................................ 15
Appendix B: Delete the Existing DC Viewer............................................................................... 17
Appendix C: Setup Internet Security .......................................................................................... 18

razberi technologies™
2
1. Overview
The LP500-360 mini-dome camera is designed to provide cost effective
panoramic (180°) or surround view (360°) of wide open areas. Packaged in a
discrete, low profile enclosure, the 5 Megapixel CMOS progressive scan sensor
provides a high density of pixels to reduce the number of cameras required to
cover a wide field of view. The LP500-360 is compatible with the user-friendly
razberi™ ServerSwitch NVR for quick plug-and-play installation.
1.1 Features
i. Progressive Scan CMOS Sensor
ii. 5M resolution
iii. Dual Streams, Full HD 1080P real-time + D1 real-time
iv. Quad Streams support
v. Quad Streams Compression:
H.264 Baseline / Main / High Profile + MJPEG
vi. 360° Panorama View
vii. ePTZ
viii. Quad View
ix. Tampering Alarm
x. Wide Dynamic Range
xi. Motion Detection
xii. Privacy Masks
xiii. Day / Night (ICR)
xiv. IR LED Module
xv. Built-in MIC & Speaker
xvi. Micro SD support
xvii. ONVIF support

razberi technologies™
3
1.2 Package Contents
Please verify that the package contains the following items listed below.
LP500-360
Self-tapping screws
(×3)
Plastic Anchors
(×3)
Security Screw
(×1)
Security Torx
Power Terminal
Block (x1)
Quick Guide CD
All In One Cable (Optional)
NOTE: The supplied self-tapping screws are mainly for softer substrate /
material installation such as wood. For other installation environments
such as cement wall, it is required to pre-drill and use plastic anchors
before fastening the supplied self-tapping screw on the wall.

razberi technologies™
4
1.3 Connectors
Please remove the security screws and the cover to reach the connectors.
The diagram below shows the LP500-360 connectors and reset button.
No.
Connector
Pin
Definition
Remarks
1 Power*
DC 12V
1
Power
Power connection
2
Reserved
3
GND
AC 24V
1
Power-1
2
Earth GND
3
Power-2
2
RJ-45
-
10/100 Mbps Ethernet / PoE
3
Alarm & Audio I/O*
-
Alarm & Audio I/O
4 Reset Button -
Restore to default setting
Press the button with a proper tool
5
Micro SD Card Slot
-
For video recording storage
*All in One Cable is required for Power, Alarm and Audio I/O utilization.

razberi technologies™
5
1.4 Cable Definition (Optional)
No.
Connector
Pin
Definition
Remarks
1 Audio I/O Pink Line In Two-way audio transmission
Green Line Out
2 Alarm
(4-Pin Terminal Block)
1
ALM_IN –
Alarm connection
2
ALM_IN +
3
ALM_OUT –
4
ALM_OUT +
3
Power DC Jack
-
DC 12V
Power connection
Power Wires
Red AC 24V (+)
Remove DC Jack connector
head, and apply AC 24V with
Red and Black wires (as
shown in the diagrams
below).
Black AC 24V (–)
4 Alarm & Audio I/O
1
GND
Two-way audio transmission /
Alarm connection
2
Line In
3
Line Out
4
-
5
ALM_IN –
6
ALM_IN +
7
ALM_OUT –
8
ALM_OUT +
5 Power Wires Red
DC 12V (+) /
AC 24V (+)
Power connection
Black
DC 12V (–) /
AC 24V (–)

razberi technologies™
6
2. Camera Cabling
Please follow the instructions below to complete LP500-360 connection.
2.1 Connect Power
Please refer to Section: Connectors. Alternatively, connect the Ethernet cable to
the camera’s RJ-45 port and plug the other end of the cable into a PoE switch.
NOTE: If using PoE, make sure Power Sourcing Equipment (PSE) is in
use in the network.
2.2 Connect Ethernet Cable
Use of Category 5 Ethernet cable is recommended for the network connection.
Cable length shall not exceed 100 meters. Connect one end of the Ethernet
cable to the RJ-45 connector of the LP500-360, and the other end of the cable
to the network switch, PC or Razberi ServerSwitch.
NOTE: In some cases, you may need use an Ethernet crossover cable
when connecting the LP500-360 directly to the PC.
Check the status of the link indicator and activity indicator LEDs; if the LEDs are
unlit, please check LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.

razberi technologies™
7
3. System Requirements
To access the LP500-360 via web browser, please ensure your PC has a good
network connection and meets the minimum requirements as described below.
Items System Requirement
Personal Computer
Minimum :
1. Intel®Core™ i5-2430M @ 2.4 GHz
2. 4 GB RAM
Recommended:
1. Intel®Core™ i7-870 @ 2.93 GHz
2. 8 GB RAM
Operating System
Windows VISTA / Windows XP / Windows 7
Web Browser Microsoft Internet Explorer 6.0 or later
Firefox
Chrome
Safari
Network Card
10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer ActiveX control plug-in for Microsoft IE

razberi technologies™
8
4. Camera Access
For initial access to the LP500-360, users can search the camera through the
installer program: DeviceSearch.exe, which can be found in “DeviceSearch”
folder in the supplied CD.
Device Search Software Setup
Step 1: Double click on the program Device Search.exe. After its window
appears, click on the <Device Search> button on the top side.
Step 2: The security alert window will pop up. Click on <Unblock> to continue.
Device Search
Step 3: Click on <Device Search> again, and all the discovered IP devices will
be listed in the page. The LP500-360’s default IP address is:
192.168.0.250.
Step 4: Double click or right click and select <Browse> to access the camera
directly via web browser.
Step 5: Enter the default username and password at the prompt.
The default login ID and password for the Administrator are:
Login ID
Password
Admin 1234
NOTE: ID and password are case sensitive.

razberi technologies™
9
NOTE: It is strongly advised that administrator’s password be
altered for the security concerns. Refer to Full HD Multiple
Streams IP Camera Menu Tree for further details.

razberi technologies™
10
Additionally, users can change the IP Camera’s network properties to either
DHCP or Static IP. Refer to the following section for changing the LP500-360
network properties.
Changing LP500-360 Network Properties
Users can change an LP500-360’s network properties, ex. from static IP to
DHCP in the discovered device list:
Step 1: In the discovered device list, click on the LP500-360 to change its
network properties. On the selected camera, right click “Network Setup.”
Meanwhile, record the LP500-360’s MAC address, for future identification.
Step 2: The “Network Setup” page will appear. Select “DHCP,” and press the
“Apply” button.
Step 3: Click on <OK> . Wait for one minute to re-search the LP500-360.
Step 4: Click on the <Device Search> button to search all the devices. Then
select the LP500-360 with the correct MAC address. Double click on the
LP500-360, and the login window will appear..
Step 5: Enter User name and Password to access the LP500-360.
Installing DC Viewer Software Online
For the initial access to the LP500-360, a client program, DC Viewer, will be
automatically installed to your PC when connecting to the LP500-360.
If the Web browser doesn’t allow DC Viewer installation, please check the
Internet security settings or ActiveX controls and plug-ins settings (refer to
Section: Setup Internet Security) to continue the process.
The Information Bar (just below the URL bar) may come out and ask for
permission to install the ActiveX Control for displaying video in the browser.
Right click on the Information Bar and select <Install ActiveX Control…> to allow
the installation.

razberi technologies™
11
The download procedure of DC Viewer software is specified as follows.
Step 1: In the DC Viewer installation window, click on <Next> to start
installation.
Step 2: The status bar will show the installation progress. After the installation
is completed, click on <Finish> to exit the installation process.
Step 3: Click on <Finish> to close the DC Viewer installation page.

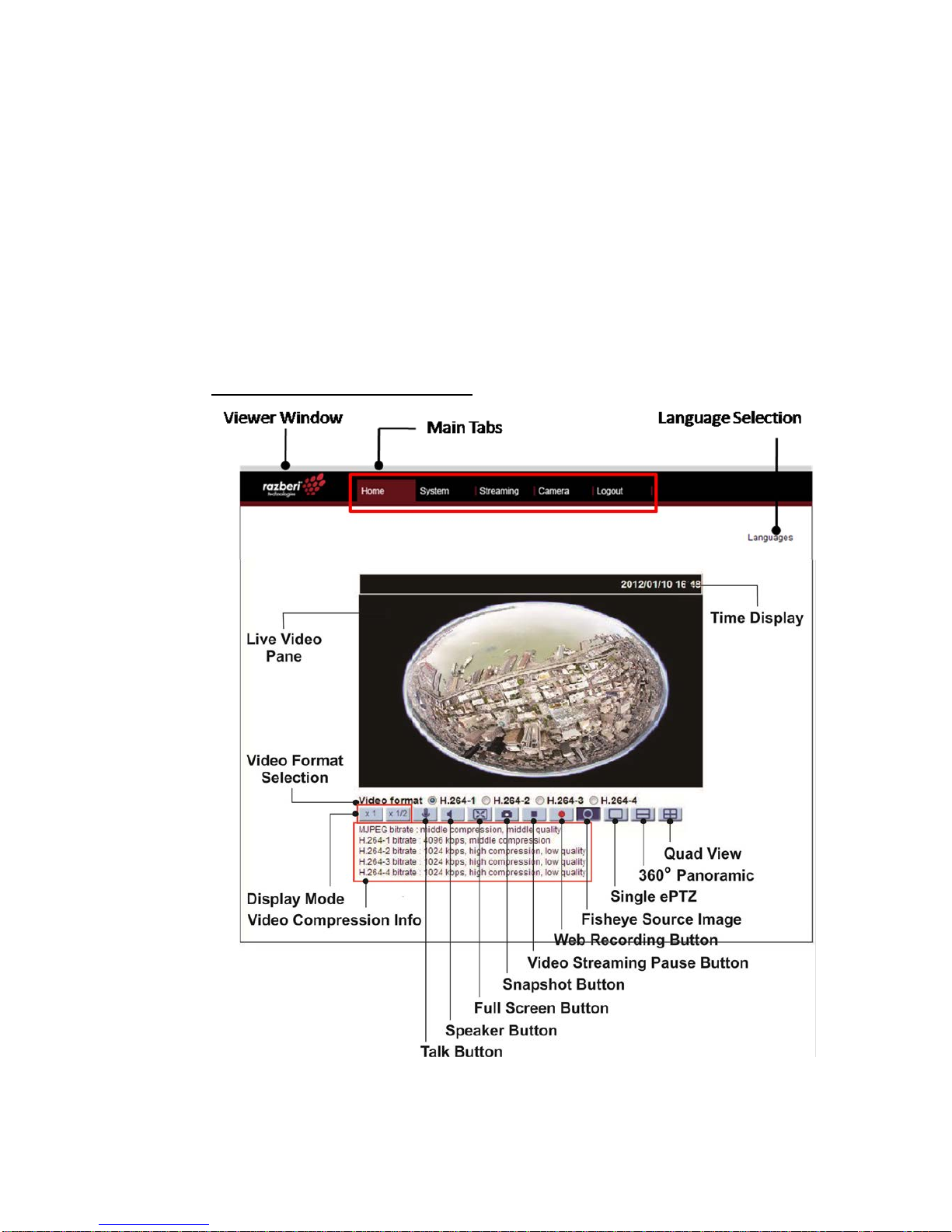

Once the DC Viewer is successfully installed, the LP500-360’s Home page will
be able to correctly display as shown below.
Ceiling Mount Installed Camera

razberi technologies™
12
Wall Mount Installed Camera
Note: Please refer to Full HD Multiple Streams LP500-360 Menu Tree
for more button function detail.

razberi technologies™
13
5. Setup Video Resolution

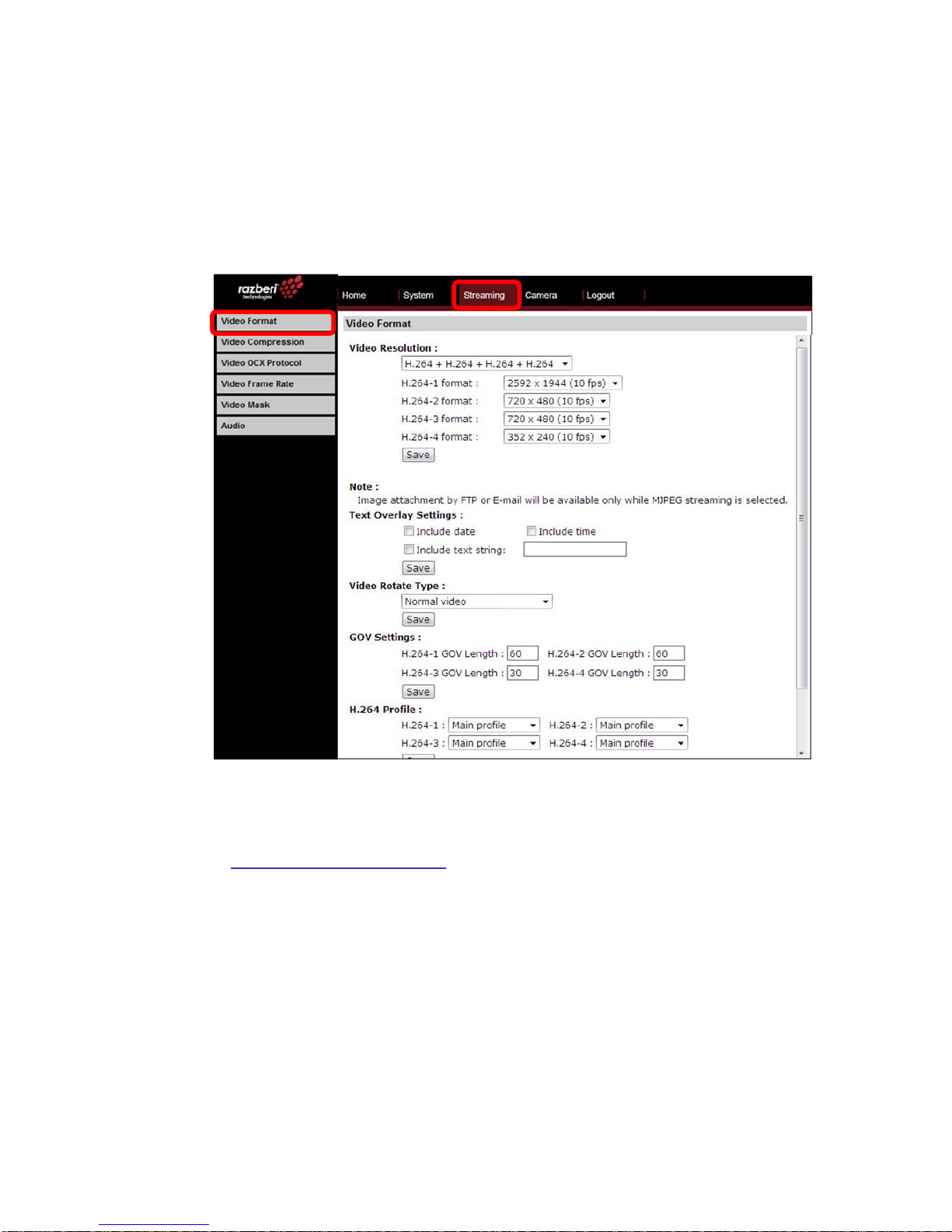

Users can setup Video Resolution on Video Format page of the user-friendly
browser-based configuration interface.
Video Format can be found under this path: Streaming> Video Format.
The default value of Video Resolution is: H.264 2592 x 1994 (10 fps) + H.264
720 x 480 (10 fps). For more Video Resolution combination detail, please refer
to Appendix: Video Resolution. Click on <Save> to confirm the setting.

razberi technologies™
14
6. Configuration Files Export / Import
To export / import configuration files, users can access the Maintenance page
on the user-friendly browser-based configuration interface.
The Maintenance setting can be found under this path: System> Maintenance.
Users can export configuration files to a specified location and retrieve data by
uploading an existing configuration file to the LP500-360.
Export
Users can save the system settings by exporting the configuration file (.bin) to a
specified location for future use. Click on the <Export> button, and the popup
File Download window will come out. Click on <Save> and specify a desired
location for saving the configuration file.
Upload
To copy an existing configuration file to the LP500-360, please first click on
<Browse> to select the configuration file, and then click on the <Upload> button
for uploading.

razberi technologies™
15
Appendix A: Technical Specifications
Camera
W8
Image Sensor
5M Progressive CMOS
Effective Pixels
2592(H) x 1944(V)
Minimum illumination
0.2 lux (Color) @ F2.8
0.02 lux (B/W) @ F2.8
White Balance
Manual / AWB / ATW
Shutter Speed
1 ~ 1/10k sec.
Lens
Lens
Stereo Projection Type
1/2.5" Fisheye Lens
Focal Length
1.05 mm
F Number
F2.8
FOV
180° @ Full Resolution
Operation
Multiple Languages
English / French / German / Italian / Korean / Simplified Chinese /
Traditional Chinese / Russian
Image Setting
Backlight
Compensation
On / Off
White Balance
Auto / Manual
Noise Reduction (3D)
On / Off
Wide Dynamic Range
On / Off
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion detection
On / Off
Privacy Mask Type
Color
ICR
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off
Audio Type
Built-in Speaker (Max. 2W Mono) /
Microphone or Two-way Audio (Line in / Line out)*
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps Ethernet
Video Compression
H.264 Baseline / Main Profile / High Profile / MJPEG
Video Streaming
Single Stream: 2592 x 1944 (10 fps)
Single Stream: 2048 x 1536 (15 fps)
Simultaneous H.264 1080p (25/30 fps) + MJPEG D1 (25/30 fps)
Simultaneous H.264 1080p (25/30 fps) + H.264 D1 (25/30 fps)
Quad Streams
Video Resolution
H.264
5M (2592 x 1944) / 3M (2048 x 1536) / Full HD 1080P / SXGA /
HD 720P / XGA / SVGA / D1 / VGA / CIF
MJPEG
Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Security
HTTPS / IP Filter / IEEE 802.1x
Alarm*
Input
1 Set
5V 10kΩ pull up
Output
1 Set
Photo Relay Output 300V DC / AC
Event Notification
HTTP / FTP / SMTP
Micro SD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator

razberi technologies™
16
Mechanical
Built-in IR
Illuminator
Working Distance
5 m
Wavelength
850 nm
Number of LEDs
6
Lens Mounting
M12 Fisheye Lens
Connectors
Alarm & Audio
8 Pin Terminal Block, Pitch 2.5 mm
Power
3 Pin Terminal Block
Ethernet
RJ-45
All in one Cable*
Audio I / O
Line in / Line Out
Alarm
4 Pin Wire Cables
Power
DC 12V
DC Jack
AC 24V
Power Wire Cables AC 24V (+), AC 24V (-)
General
Operating Temperature
-10°C ~ 50°C (14°F ~ 122°F)
Humidity
10% ~ 90%, No Condensation
Weatherproof Standard
Rugged Camera- IP66
Dimension
Ø 149 x 45.8 mm (Ø 5.87 x 1.80 in.)
Weight
350 g (0.77 lbs)
Power Source
DC 12V* / AC 24V* / PoE
Power Consumption
Max. 12W
Regulatory
CE / FCC / RoHS
(*) Optional

razberi technologies™
17
Appendix B: Delete the Existing DC Viewer
For users who have installed the DC Viewer in the PC previously, please first remove the
existing DC Viewer from the PC before accessing the LP500-360.
Deleting the DC Viewer
In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or
Remove Programs>. In the <Currently installed programs> list, select <DCViewer> and
click on the button <Remove> to uninstall the existing DC Viewer.
Deleting Temporary Internet Files
To improve browser performance, it is suggested to clean up the all the files in the
Temporary Internet Files.
The procedure is as follows:
Step 1: Click on the <Tools> tab on the menu bar and select <Internet Options>.
Step 2: Click on the <Delete> button under <Browsing history> section. Then click on the
<Delete Files> button under the <Temporary Internet files> section.
Step 3: A confirmation window will pop up. Click on <Yes> to start deleting the files.

razberi technologies™
18
Appendix C: Setup Internet Security
If ActiveX control installation is blocked, please either set Internet security level to default or
change ActiveX controls and plug-ins settings.
Internet Security Level: Default
Step 1: Start the Internet Explorer (IE).
Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
Step 3: Click on the <Security> tab, and select <Internet> zone.
Step 4: Down the page, click on the <Default Level> button and click on <OK> to confirm
the setting. Close the browser window, and restart a new one later to access the IP
Camera.
ActiveX Controls and Plug-ins Settings
Step 1: Repeat Steps 1~3 of the previous section above.
Step 2: Down the page, click on the <Custom Level> button to change ActiveX controls
and plug-ins settings. The Security Settings window will pop up.
Step 3: Under <ActiveX controls and plug-ins>, set ALL items (as listed below) to
<Enable> or <Prompt>. Please note that the items vary by IE version.
ActiveX controls and plug-ins settings:
1. Allow previously unused ActiveX controls to run without prompt.
2. Allow Scriptlets.
3. Automatic prompting for ActiveX controls.
4. Binary and script behaviors.
5. Display video and animation on a webpage that does not use external media player.
6. Download signed ActiveX controls.
7. Download unsigned ActiveX controls.
8. Initialize and script ActiveX controls not marked as safe for scripting.
9. Run ActiveX controls and plug-ins.
10. Script ActiveX controls marked safe for scripting.
Step 4: Click on <OK> to accept the settings and close the Security Settings window.
Step 5: Click on <OK> to close the Internet Options screen.
Step 6: Close the browser window, and restart a new one later to access the LP500-360.

razberi technologies™
19
