RCA F27669 User manual

TELEVISION
F27669
diagonal
1

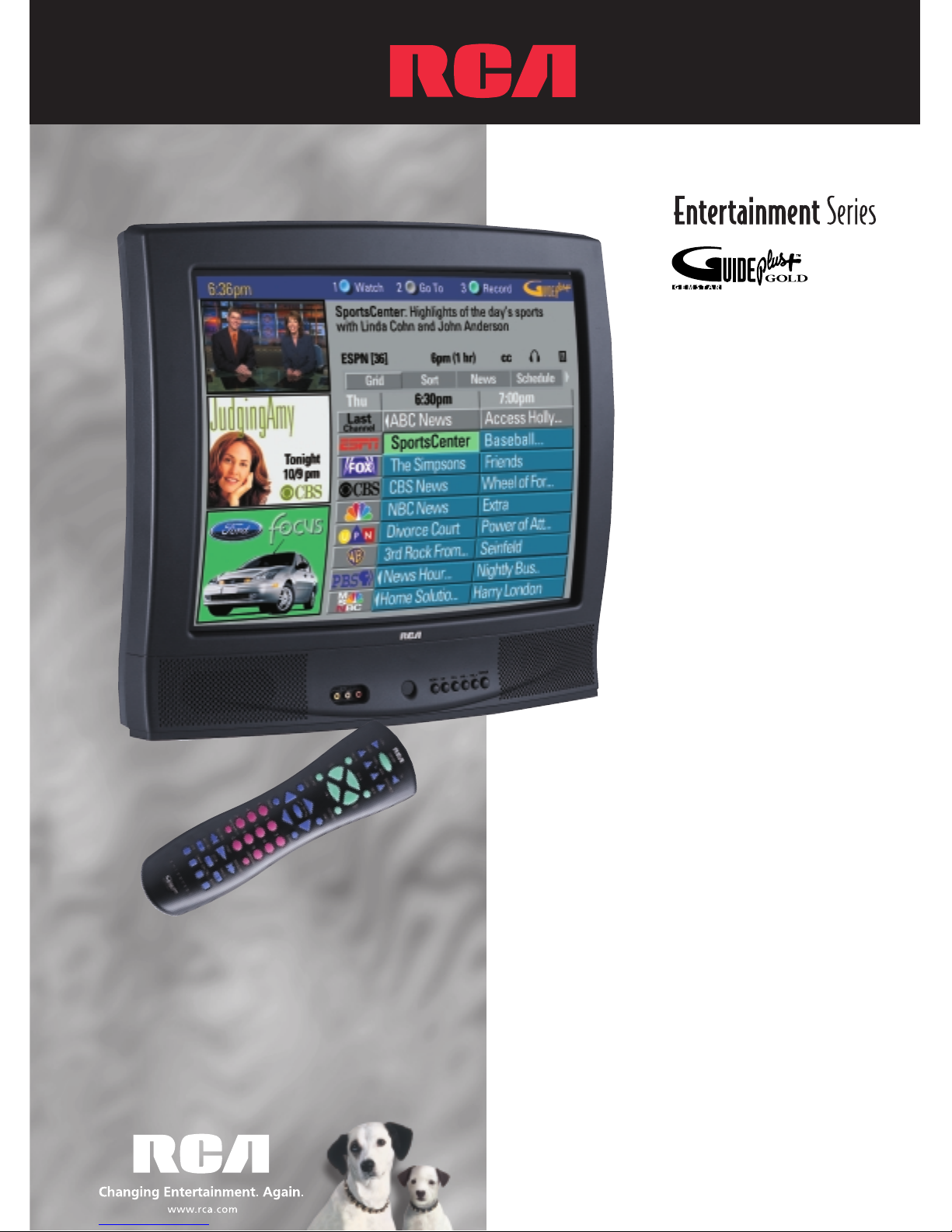

27" Stereo
Television
• High-Performance Video System with
680 Lines of Horizontal Resolution2
➤Color Picture-In-Picture3
➤3-Line Digital Comb Filter
➤Dark-Tint, High-Contrast Picture Tube
➤GUIDE Plus+ GOLD1On-Screen
Program Guide
➤Master Touch®Universal
Glo-In-The-Dark Remote
➤Front Audio/Video Inputs
➤Audio/Video Input with S-Video Input
• One Pair of Switchable (Variable/Fixed)
Audio Outputs
• Sound Logic™Audio Leveler

• Broadcast Stereo with dbx5
Noise Reduction
Improves the clarity and fidelity
of stereo broadcasts by restoring
dynamic range and suppressing
unwanted noise.
• Low-Noise Audio System
Delivers a 60dB signal-to-noise
ratio for spectacular quality sound.
• Second Audio Program
(SAP)
Decodes the second audio
program available on some
broadcasts.
• Separate Bass/
Treble Control
Customize audio sound output
to specific room environment or
personal preference via on-screen
menu adjustment.
• Front-Fired Speaker System
Front-fired full-range frequency
drivers provide excellent imaging
while localizing voices at the
screen.
• Sound Logic™Audio Leveler
When turned on, eliminates the
annoying “blast” of sound during
commercial breaks.
Picture Remote
Sound

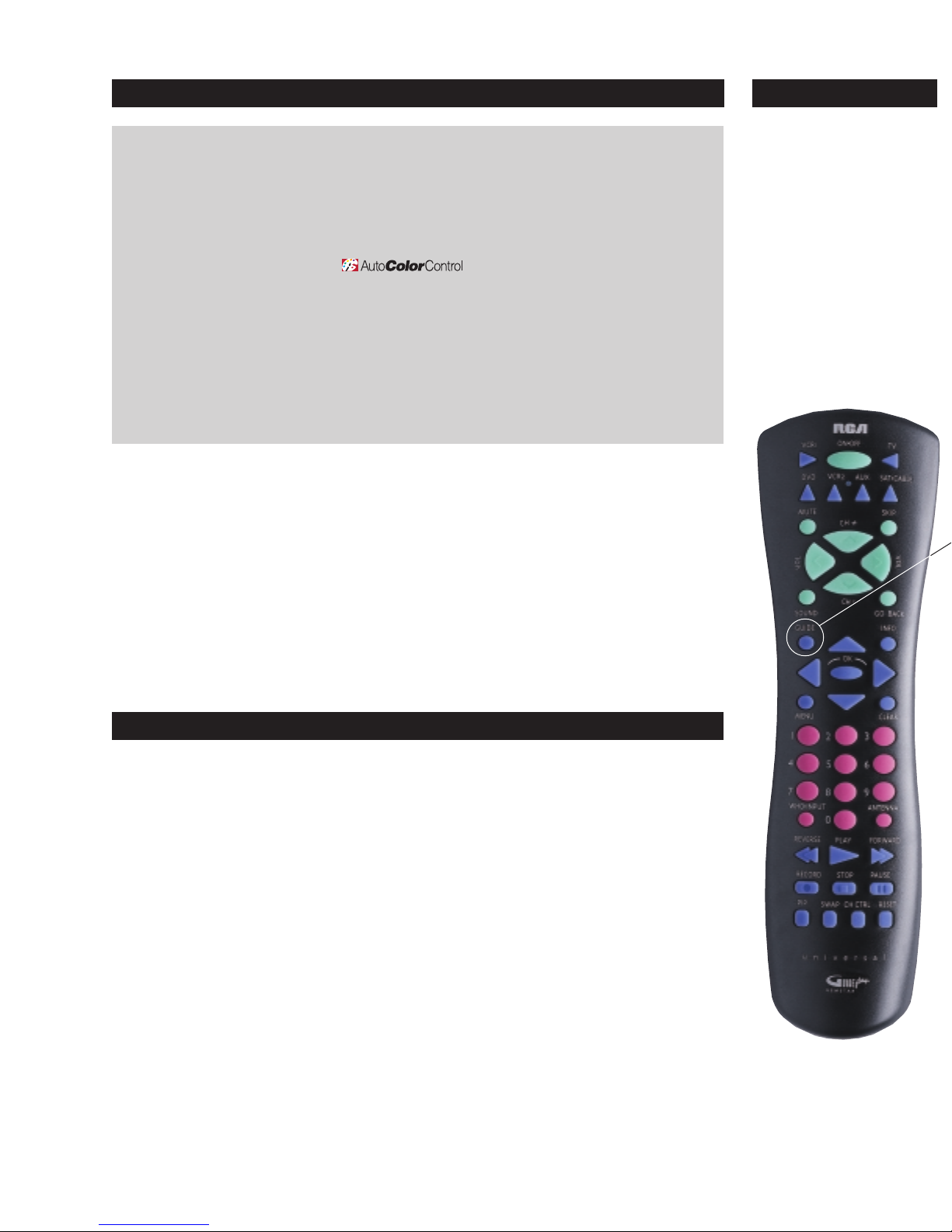

➤Master Touch®Universal
Glo-In-The-Dark Remote,
CRK76TA1
Ergonomic design with glo-in-the-
dark buttons provides complete
TV operation plus control of the
primary functions of virtually every
brand of remote-controllable
VCRs and cable boxes, and
RCA®-DIRECTV™Systems. Also
controls most functions of
RCA DVD Players and select
functions of some brands of
audio components. Frequently
used buttons glow in the dark,
making it easy to find the correct
functions even at night.
• Adjustable Picture Control
Custom picture settings are just
a button-press away. Adjust and
store Contrast, Color, Tint, Black
Level, and Sharpness settings for
personal picture performance
depending on your own
individual tastes.
➤Dark-Tint, High-Contrast
Picture Tube
Dark glass picture tube delivers
outstanding picture contrast for
blacker blacks, brilliant whites,
and deep rich colors even in
bright room conditions.
• Preferred Picture Presets
Optimize the picture by selecting
the correct setting depending on
the lighting conditions of the
room. Choose between four set-
tings for bright lighting, normal
lighting, dim (soft) lighting, and a
customer-selectable and savable
“personal” setting.
• 181-Channel
Tuning Capability4
Digitally-controlled frequency
synthesis tuning system “locks
on” to cable and standard signals
with unsurpassed accuracy.
➤3-Line Digital Comb Filter
Digital separation technology
for color and edge detail dramati-
cally enhances picture resolution
by eliminating blurred edges
between colors and reducing
dot crawl, producing a new level
of picture sharpness and detail.
• High-Performance Video
Amplifier
Delivers high resolution and clarity
by extending the video frequency
response. Optimizes performance
from high-resolution sources
such as the RCA®-DIRECTV™
System, DVD players, and
S-Video signals (S-VHS, Hi8).
• Dynamic BlackStretch
Circuitry
Extends black levels in bright
scenes to enhance contrast
and detail.
•
Automatically maintains natural
flesh tones and color fidelity
from channel to channel and
scene to scene.
• Adjustable Color Warmth
Customer-selectable color
temperature system allows
for background color balance
adjustment of the picture to
personal preference. Setting
choices are Cool, Warm, or
Normal.
• Contrast/Color Tracking
System
Synchronizes contrast
and color settings to maintain
vibrant images.
High-Performance Video System
Advanced circuitry delivers outstanding picture performance with up to 680 lines of horizontal resolution2
.
F27669

➤Color Picture-in-Picture3
Watch two programs at the same
time—both in color. Remote-
controlled operation includes
Picture-In-Picture On/Off, Move
and Swap.
•
Countdown timer returns TV
to original channel, so other
channels can be browsed during
program breaks.
• Auto Tune
After initial setup, just pressing
one component button on the
TV’s remote (either VCR, RCA®-
DIRECTV™System, cable, or DVD)
turns on both the TV and the
component and also automatically
tunes the TV to the correct
viewing channel. Just one press!
• Picture Memory for
Video Inputs
Custom picture settings are
activated whenever direct video
inputs are selected. Allows tailored
picture performance with each
video source.
• Picture Reset
Instantly returns picture to factory
settings for Color, Tint, Contrast,
Brightness, and Sharpness.
• Advanced Auto
Channel Search
Auto Cable/Air Switch sets tuner
to cable or “off-air” frequencies
during initial setup. Then system
automatically scans for and locks
active channels into channel
memory.
• On-Screen Menu System
On-screen displays make it easy
to adjust more picture, sound, and
convenience features from either
the remote control or the TV front
panel buttons.
• Interactive Setup Menu
Convenient on-screen menu system
automatically steps user through
the initial setup procedures.
• Trilingual On-Screen Display
Allows the on-screen menu system
to be displayed in one of three
languages (English, French, or
Spanish).
• On-Screen Time and
Channel Display
Displays time and channel number
at the press of a button.
• Programmable
Timer System
Convenient scheduling system can
be used in a variety of ways:
–Sleep Timer
Automatically turns off the TV
after a preset time period — for
those times when you drift off to
sleep in front of the television.
–Alarm Timer
Wake up to your favorite morning
show or turn on your television
automatically to catch your
favorite program.
–Scheduling Timer
Since the alarm setting remains in
the TV memory indefinitely, the
TV can be scheduled to turn on
at the same time every day.
•
Assign on-screen characters to easily
identify channels (e.g. NBC, HBO,
ESPN, VH-1).
• Front Panel Lockout
Completely disables front panel
controls to prevent toddlers from
altering settings.
• V-Chip Parental Control
Puts control back into the hands of
the viewer by blocking unwanted
television broadcasts with U.S.
Government required circuitry.
Blocks three types of programs:
regular television programs,
broadcast movies and unrated
programs.
Program rating information is
sent by the broadcaster continu-
ously during the program. The
television will match program
rating to user preference and
block the entire program (when
program is aired with the encoded
signal). User preference is secured
using a four-digit password.
• Non-Volatile Memory
In case of most power outages,
the picture adjustments and
channel selections are stored in
electronic memory.
• Caption Vision Closed
Caption Capability6
Assists the hearing impaired, helps
children learn to read, and aids in
the teaching of English as a second
language. Built-in Closed Caption
Decoder displays the audio portion
of a program as text on the TV
screen (when program is aired
with the encoded signal).
Convenience
“Command” Buttons
Program
Info
Promotional
Windows
Preview
Window
Channel
Line-ups
Guide
Selector
Program
Grids
The Program Guide appears
on your television.
WHAT’S ON TV!
Tonight, Tomorrow
and the Next Day!
2 ways to find your programs
➁
GUIDE Plus+ GOLD1Interactive Program Guide
Find out What's On! The GUIDE Plus+ Gold1Program Guide
is a FREE, built-in service that provides instant listings of all your
TV shows at the touch of a button. View listings up to seven days
in advance and enjoy the capability of One-Touch Recording
to your VCR.
The Grid Guide
Using your remote, easily scroll through
current or future TV listings to see what’s
on. As each program is highlighted, an
informative summary appears in the
Program Info area.
Press
Here.
➀
Convenience
The Sort Guide
Find your favorite sports, movies, or kids’
programs, for up to seven days in advance, in-
stantly with the Sort Guide.
And The Benefit
of One-Touch Record*
Even if your VCR is flashing 12:00, the
GUIDE Plus+ GOLD1Program Guide can
record your favorite shows. Simply use your re-
mote to highlight the program you want to
record, set it to record and the GUIDE Plus+
GOLD1Program Guide does the rest! You can
even set shows to record daily and weekly!
*compatible with most VCRs
MSNBC News Guide
Check out up-to-date national and world
news stories from MSNBC in the News Guide.
Comprehensive coverage includes business,
sports, and entertainment news.

TELEVISION
©2001 Thomson multimedia Inc.
Form S-F27669
Trademark(s) ® Registered
Marca(s) Registrada(s)
Photos and features subject to change
without notice. Illustration of product finish
may vary from actual color. Screen sizes
measured diagonally.
Printed in the U.S.A. 3/01
PC15892
GAC38656
➤Audio/Video Monitor Panel
Color-coded monitor panel
provides direct audio and video
connections for optimum
performance and system flexibility.
Includes audio/video input, one
S-Video input, plus switchable
audio outputs for fixed and
variable level control.
•G-LINK
1Connector
The G-LINK1connector allows the
GUIDE Plus+ GOLD1Program
Guide to work with your VCR
(enabling one-touch record)
and/or cable box (ability to tune
directly to a station when the
program guide is on your TV
screen).
• One Pair of Switchable
(Variable/Fixed)
Audio Outputs
Connect TV to an external audio
source with speakers (AV receiver,
subwoofer, power amplifier) to
create a true home theater setup.
Switchable outputs offer maxi-
mum flexibility for connecting
various types of external audio
components.
➤Front Audio/Video Inputs
The front jacks allow for the
convenient connection of
components such as game
systems, camcorders, digital
cameras, and other A/V
components.
➤S-Video Input with
Auto Detection
Direct Y/C input connects TV to
compatible S-Video source (e.g.,
DVD player, RCA®-DIRECTV™
System, S-VHS VCR/Hi8 VCR/
camcorder, or Internet set-top
device) for high-resolution playback.
1 GUIDE Plus+ GOLD and G-LINK are trademarks of Gemstar-TV Guide International, Inc .
2 Lines per picture width, 510 lines based on EIA measurement criteria.
3 VCR or second video source required.
4 Check your cable company’s compatibility requirements.
5 dbx is a registered trademark of Carillon Electronics Corporation.
6 This television receiver provides display of television closed captioning in accordance
with §15.119 of the FCC rules. This television receiver does not support color attributes
of television closed captioning.
Bush is a registered trademark of Bush Industries, Inc.
Connections
Specifications
F27669
Screen Size (diagonal) 27"
Finish Ebony Texture
Cabinet Dimensions 233⁄4" H, 263⁄4" W, 191⁄2" D
Approx. Shipping Weight 85 Lbs.
Lines of Horizontal Resolution 6802
Bush®Base VS64930
VIDEO RL / MONO
S-VIDEO
AUDIO
RL
CABLE/
ANTENNA
G-LINK
IN
OUT
• Back Panel
Plus
• Limited Warranty
– 90 days for labor charges.
– One year for parts.
– Two years for picture tube.
– See RCA dealer or visit
www.rca.com for
complete details.
• Front Panel
