RCA P42WED33 User manual

rca.com/television
Find Inside:
•Connections ........ page 8
• Remote................ page 20
• Features .............. page 25
•Menus ................. page 34
•FAQs.................... page 42
•Troubleshooting ... page 43
Plasma User’s Guide
Changing Entertainment. Again.
Changing Entertainment. Again.
Book 1.indb 1Book 1.indb 1 3/3/06 12:23:25 PM3/3/06 12:23:25 PM

Important Information
The exclamation point within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
This lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence of
uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
Caution: To prevent the risk of electric shock, do not remove cover (or back).
No user serviceable parts inside. Refer servicing to qualified service personnel.
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT NOTICE
The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed
warranty card and keep it in a secure area. This is for your security.
CAUTION: WHEN POSITIONING THIS EQUIPMENT ENSURE THAT THE MAINS PLUG AND SOCKET IS EASILY
ACCESSIBLE.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE. THE APPARATUS SHALL NOT BE EXPOSED
TO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE
PLACED ON THE APPARATUS.
CAUTION
This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit to
other equipment. To prevent electromagnetic interference
with electric appliances such as radios and televisions, use
shielded cables and connectors for connections.
Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to
operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code
(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable
entry as practical.
Important: This television is a table model and is designed to sit on a firm, flat, surface. Don't place the TV on soft
carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked resulting in reduced
lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top
and sides of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally
tipped over, pushed off, or pulled off. This could cause personal injury and/or damage the TV. Refer to the Important
Safety Instructions on the next page.
This symbol indicates that this product contains mercury. Special disposal of this product for environmental
reasons may be required under the laws applicable to your jurisdiction. For disposal or recycling
information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
Product Registration
Please fill out the product registration card (packed separately) and return it immediately. For US customers: Your RCA
Consumer Electronics product may also be registered at www.rca.com/television. Registering this product allows us to
contact you if needed.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No. _____________________ Serial No.____________________ Purchase Date __________________
Dealer/Address/Phone _________________________________________________________________________
Warning: Do not use the Freeze feature for an extended period of time. This can cause the image to be permanently
imprinted on-screen. Such damage is not covered by your warranty. Press any button to unfreeze the picture at any
time.
Book 1.indb 2Book 1.indb 2 3/3/06 12:23:40 PM3/3/06 12:23:40 PM

Important Information
Important Information i
Important Safety Instructions
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
15. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1984 (Section 54 of Canadian Electrical Code, Part 1) provides information
with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode. See following example.
ANTENNA
LEAD IN
WIRE
GROUND CLAMP
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
ELECTRIC SERVICE
EQUIPMENT
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
Book 1.indb 3Book 1.indb 3 3/3/06 12:23:41 PM3/3/06 12:23:41 PM

This page intentionally left blank
Book 1.indb 4Book 1.indb 4 3/3/06 12:23:41 PM3/3/06 12:23:41 PM

5
Table of Contents
Important Safety Instructions....................................... i
Chapter 1: Connections and Setup
Things to Consider Before You Connect ..................... 6
Protect Against Power Surges................................ 6
Protect Devices from Overheating ........................ 6
Position Cables Properly to Avoid Audio
Interference .......................................................... 6
Use Indirect Light.................................................... 6
Check Supplied Parts .............................................. 6
Connecting Speakers to Your TV ................................ 7
Mounting Your TV to the Wall..................................... 7
Get the Picture .............................................................. 8
Getting Digital Channels........................................ 8
Getting Regular (Analog) Channels ...................... 8
Choose Your Connection .............................................. 9
Video (Basic) Connection ..................................... 10
Component Video (Advanced) Connection ........ 10
HDMI/DVI Connection .......................................... 12
VGA Connection ................................................... 14
Plug in the TV.............................................................. 15
Put Batteries in the Remote ....................................... 15
Turn on the TV............................................................. 15
How to Use the Remote Control to Complete the
Initial Setup ............................................................... 15
Complete the Initial Setup ......................................... 16
Set the Menu Language ...................................... 16
Complete Channel Setup ..................................... 16
What To Expect ........................................................... 17
Watching TV ......................................................... 17
Changing Channels............................................... 17
Explanation of Jacks (in alphabetical order)............. 18
Buttons and Other Jacks On Your TV ........................ 19
Front Panel Buttons.............................................. 19
Left Side Input Jacks (when facing back of TV) .. 19
Chapter 2: Using the Remote Control
Button Descriptions for TV Mode .............................. 20
Button Descriptions for DVD and VCR Modes .......... 21
Using the INPUT Button ....................................... 21
Programming the Remote to Operate Other
Devices....................................................................... 22
Find Out If You Need to Program the Remote .. 22
Programming the Remote ................................... 22
How to Use the Remote After You’ve
Programmed It.................................................... 23
Remote Control Codes................................................ 24
Chapter 3: Using the TV's Features
Channel Banner........................................................... 25
Autotuning.................................................................. 25
Parental Controls and V-Chip ..................................... 26
How V-Chip Works for USA and Canada............. 27
Lock/Unlock Parental Controls ........................... 27
US V-Chip TV Ratings............................................ 28
Blocking Canadian V-Chip Ratings ...................... 29
V-Chip Movie Rating Limit ................................... 30
Block Channels...................................................... 30
Block Digital Channels.......................................... 30
Front Panel Block.................................................. 31
Lock Time Menu.................................................... 31
Blocking Unrated/Exempt Programs ................... 31
Future Rating Region ........................................... 31
Additional Features .................................................... 32
Screen Formats...................................................... 32
MultiTask Audio.................................................... 33
Calendar ................................................................ 33
Chapter 4: Using the TV's Menu System
Using the Menu System ............................................. 34
Channel Guide Menu.................................................. 34
Sound Menu................................................................ 34
Picture Menu ............................................................... 36
Setup Menu................................................................. 38
Parental Control Menu ............................................... 41
Time Menu................................................................... 41
Chapter 5: Other Information
Frequently Asked Questions (FAQs) .......................... 42
Troubleshooting.......................................................... 43
V-Chip Rating Explanations........................................ 46
US V-Chip Rating System ...................................... 46
Canadian English V-Chip Rating System.............. 46
Canadian French V-Chip Rating System .............. 47
Limited Warranty ........................................................ 48
Care and Cleaning....................................................... 49
Plasma Panel’s Protection Function ..................... 49
Image Burn-in and After-image Lag.................... 49
Book 1.indb 5Book 1.indb 5 3/3/06 12:23:41 PM3/3/06 12:23:41 PM

Graphics contained within this publication are for representation only.
6 Chapter 1
Chapter 1: Connections and Setup
Things to Consider Before You Connect
Protect Against Power Surges
• Connect all devices before you plug any of their power cords into the wall outlet or power
strip. NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV and/or device(s) before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety
Instructions at the beginning of the User's Guide.
Protect Devices from Overheating
• Don’t block ventilation holes on any of the devices. Arrange the devices so that air can
circulate freely.
• Don’t stack devices.
• If you place devices in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air
from it won’t flow around other devices.
Position Cables Properly to Avoid Audio Interference
• Insert each cable firmly into the designated jack.
• If you place devices above the TV, route all cables down the side of the back of the TV
instead of straight down the middle.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin
lead cables away from audio/video cables.
Use Indirect Light
Don’t place the TV where sunlight or room lighting will be directed toward the screen. Use soft
or indirect lighting.
Check Supplied Parts
Check that the following parts were packed with your product.
Remote control
Part # RCR311TBM2S
2 AAA batteries Power cord
DVD ON OFF
VCR TV
VOL
MUTE GO BACK
CH
CLEAR MENU
PRESETS
CC
GUIDE
INFO
SKIP
123
456
789
0
INPUT ANTENNA
REVERSE PLAY FORWARD
RECORD STOP PAUSE
AGAIN ZOOM OPEN CLOSE
SPEED SEARCH
OKOK
Note: If you need to replace your remote, call 1-800-338-0376. A shipping and handling
fee, and the appropriate sales tax, will be charged upon ordering. Have your Visa,
MasterCard, or Discover Card ready.
Eight screws
for speakers
2 speakers 2 sets of speaker
wire
Book 1.indb 6Book 1.indb 6 3/3/06 12:23:42 PM3/3/06 12:23:42 PM

Connections and Setup
Chapter 1 7
Connecting Speakers to Your TV
Note: If you're connecting a home theater to the TV using the
Audio Out jacks, you don't need to connect the speakers. Go to
page 18 for more information on the Audio Out jacks.
There are two speakers packed with your TV you need to attach in
order to hear the sound from your TV. Locate the two speakers, eight
screws, and two sets of speaker wire. You'll need a Philips screwdriver
to attach the screws. To connect your speakers:
1. Stand at the back of the TV and hold the speaker so the speaker
grill faces forward and the speaker brackets face you, as the
graphic to the left shows.
2. The pin on the back side of the speaker bracket goes into the
middle hole between the screw holes on the TV. Then attach the
screws to the two holes at the top of the speaker and two holes at
the bottom of the speaker. Follow the same instructions to attach
the other speaker.
3. Take one set of speaker wire. Notice the conductors of the wire
are different colors. One conductor is gray; the other one is
copper. This is important to remember when connecting because
the ends of the conductor need to go into the same colored
speaker terminals on the speaker and the TV.
4. Locate the speaker terminals on the speakers and on the TV. The
bottom graphic to the left shows the locations.
5. The rubber piece on the speaker wire, called a ferrite core,
should be closest to the TV when connected. Starting with the
left speaker, press down on the red tab of the speaker terminal to
insert the exposed wire of the copper conductor, for example, into
the terminal hole. On the back of the TV, connect the other end
of the copper conductor to the first red speaker terminal on the
left. Connect the other conductor to the black speaker terminals,
connecting on the back of the TV to the first black speaker
terminal on the left. Follow the same instructions to connect the
speaker wire to the right speaker. Make sure the conductors match
red to red and black to black.
Speaker terminals
Speaker
brackets
One conductor is gray
One conductor is copper
Speaker wire
Mounting Your TV to the Wall
Caution: The wall mount must bear a minimum of five times
the TV’s net weight without causing damage.
You must first purchase a universal wall mount to mount your TV to
the wall. Then follow these instructions:
1. You need to remove the base first in order to attach the wall
mount.
A. Place the TV facedown on a surface that is soft, yet strong
enough to hold the TV.
B. Use a Philips screwdriver to remove the screws from the two
holes on each side of the TV’s base as the arrows indicate in
the graphic to the left.
2. Make sure all cables are already connected before attaching the
wall mount to the TV.
3. Follow the directions included with the wall mount to mount the
TV to the wall.
Remove the screws from the two holes on
each side of the TV’s base.
Left
speaker
Right
speaker
Pin holes
Book 1.indb 7Book 1.indb 7 3/3/06 12:23:42 PM3/3/06 12:23:42 PM

Connections and Setup
8 Chapter 1

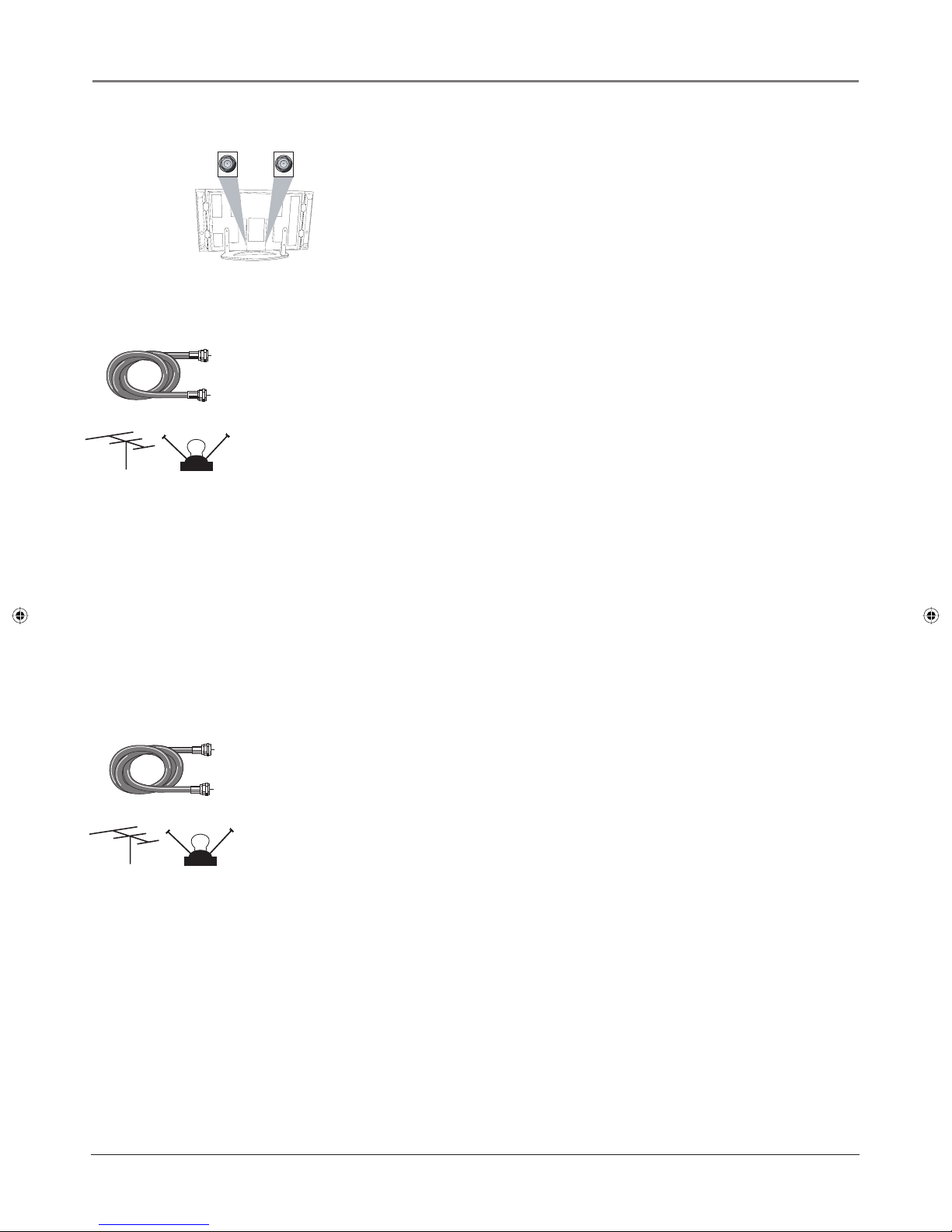

Get the Picture
The first part of setting up your TV is to get the picture, also known
as the signal. The back panel of your TV allows you to receive analog
channels by using the ANTENNA/CABLE ANALOG INPUT and digital
channels by using the ANTENNA/CABLE DIGITAL INPUT. See the
graphic to the left for these locations.
ANTENNA/CABLE
ANALOG INPUT
ANTENNA/CABLE
DIGITAL INPUT
Coaxial cable
Outdoor or Indoor
antenna
Getting Digital Channels
What You Need
• Antenna ("rabbit ears") or outdoor antenna with coaxial cable
A. Do you have an indoor or outdoor antenna? If not, go to step B. If so, plug the antenna or
coaxial cable from the wall outlet into the ANTENNA/CABLE DIGITAL INPUT to receive
free off-air local digital channels.
B. Do you have satellite or a set-top box? If not, go to Getting Regular (Analog) Channels. If
so, you need to call your cable company or satellite service provider. They may use special
cables to allow you to view digital channels. To view your regular channels, go to Getting
Regular (Analog) Channels Step B.
What You Need To Know
• Visit www.antennaweb.org to get help deciding what type of antenna to use to receive the
local digital channels available to you. By entering where you live, this mapping program
tells you what local analog and digital stations are available using a certain antenna.
• When you get to the Channel setup screen in the Initial Setup, make sure you set the
options for using a digital signal source. To complete a channel search now, go to page 16.
• When you are ready to watch channels, make sure you are tuned to the Digital Input. Press
the ANTENNA button to tune to the Digital Input (look for Dat the bottom left of the TV
screen. Go to page 17 for more information).
Getting Regular (Analog) Channels
What You Need
• Antenna ("rabbit ears") or outdoor antenna with coaxial cable
OR
• Coaxial cable with cable
A. Do you have an indoor or outdoor antenna? If not, go to step B. If so, plug the antenna or
coaxial cable from the wall outlet into the ANTENNA/CABLE ANALOG INPUT to receive
free off-air local analog channels.
B. Do you have cable? If so, plug the coaxial cable from the wall outlet into the ANTENNA/
CABLE ANALOG INPUT to receive your cable channels.
What You Need to Know
• Visit www.antennaweb.org to get help deciding what type of antenna to use to receive the
local analog channels available to you. By entering where you live, this mapping program
tells you what local analog and digital stations are available using a certain antenna.
• When you get to the Channel setup screen in the Initial Setup, make sure you set the
options for using an analog signal source. To complete a channel search now, go to
page 16.
• When you are ready to watch channels, make sure you are tuned to the Analog Input.
Press the ANTENNA button to tune to the Analog Input (look for Aat the bottom left of the
TV screen. Go to page 17 for more information).
Coaxial cable
or
Outdoor or Indoor
antenna
or
Book 1.indb 8Book 1.indb 8 3/3/06 12:23:43 PM3/3/06 12:23:43 PM

Connections and Setup
Chapter 1 9
Jacks Used Cables Needed Go to...
Audio/Video page 10-11
page 12-13
HDMI™
OR
Video
Audio R and L/MONO
HDMI/DVI
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
HDMI
HDMI/DVI adapter
Choose Your Connection
Note for US customers: If you prefer, we can provide you with the name of an Authorized Service Representative
who will visit your home for a fee to install your electronic entertainment system and to instruct you in its
operation. For details about this service, call 1-888-206-3359.
For additional assistance while using your product, please visit www.rca.com/customersupport.
R
AUDIO
VIDEO
L/MONO
AUDIO
VGA
VIDEO
VGA
Audio
page 14
Audio
VGA
+
+
Audio
These jacks are located on
the left side of the TV when
facing the back.
There are several ways to connect your TV. Please use the following chart to determine which connection is best
for you. Proceed to the appropriate page and connect your TV.
R
AUDIO
COMPONENT
INPUT
(CMP1) Y
Pb/Cb
Pr/Cr
L
Y Pb/Cb Pr/Cr
Audio R and L
Audio
Component Video page 10-11
Book 1.indb 9Book 1.indb 9 3/3/06 12:23:43 PM3/3/06 12:23:43 PM

Connections and Setup
10 Chapter 1
COMPONENT VIDEO
YPb Pr
VIDEO
INPUT LR
AUDIO
VIDEO
OUTPUT
S-VIDEO
S-VIDEO
LR
AUDIO
LR
AUDIO
R
AUDIO
VIDEO
L/MONO
Video (Basic) Connection
This is an example of a connection using the Video jack. Go to the top of page 11 for specific
instructions.
1
Don't forget: If necessary,
connect antenna or cable to
get a picture. Go to page 8 for
instructions.
2
3
COMPONENT VIDEO
YPb Pr
VIDEO
INPUT LR
AUDIO
VIDEO
OUTPUT
S-VIDEO
S-VIDEO
LR
AUDIO
LR
AUDIO
R
AUDIO
COMPONENT
INPUT
(CMP1)
Y
Pb/Cb
L
Pr/Cr
Component Video (Advanced) Connection
This is an example of a connection using the Component Video jacks. Go to the middle of
page 11 for specific instructions.
1
Don't forget: If necessary,
connect antenna or cable to
get a picture. Go to page 8 for
instructions.
2
3
Book 1.indb 10Book 1.indb 10 3/3/06 12:23:44 PM3/3/06 12:23:44 PM

Connections and Setup
Chapter 1 11
• If you're done
connecting devices to
your TV, go to page 16
to complete the Initial
Setup.
• To continue
connecting devices, go
to the next page.

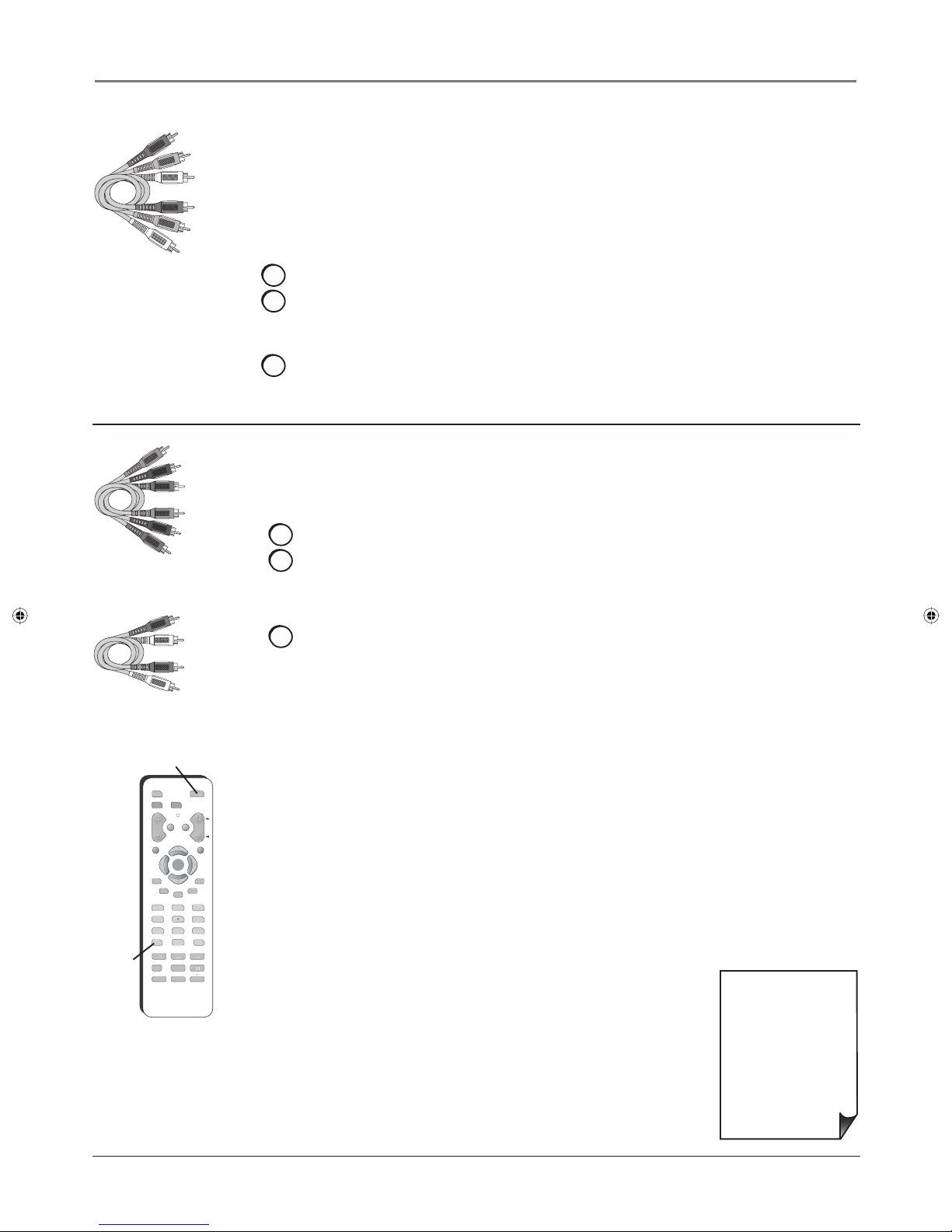

Connecting the Device with Component Video (Advanced)
This connection allows you to connect a device that has Y Pb Pr or Y Cb Cr jacks, for
example, a DVD player.
Using the example of a DVD player:
1. If necessary, connect your cable and/or off-air antenna as described on page 8.
2. Connect your Y Pb Pr component video cables.
Connect three video cables or special Y Pb Pr cables to the COMPONENT INPUT
(CMP1) Y Pb/Cb Pr/Cr jacks on the back of the TV and to the Y Pb Pr or Y Cb Cr
outputs on the DVD player.
3. Connect your red and white audio cables.
Connect the audio (red and white) cables to the CMP1 AUDIO R and L jacks on the
back of the TV and to the Audio Output jacks on the DVD player.
DVD ON OFF
VCR TV
VOL
MUTE GO BACK
CH
CLEAR MENU
PRESETS
CC
GUIDE
INFO
SKIP
123
456
789
0
INPUT ANTENNA
REVERSE PLAY FORWARD
RECORD STOP PAUSE
AGAIN ZOOM OPEN CLOSE
SPEED SEARCH
OKOK
INPUT
button
ON•OFF button
Use these buttons
to view the picture
of the device you’ve
connected to the TV.
Connecting the Device with Video (Basic)
This connection allows you to connect a device that has a Video Out jack, for example, a
DVD player.
Note: If the device you're connecting also has Component Video jacks and you have
component video cables, we recommend you use the Component Video (Advanced)
Connection instead. See instructions below.
Using the example of a DVD player:
1. If necessary, connect your cable and/or off-air antenna as described on page 8.
2. Connect your yellow video cable to the side of the TV.
Connect a video cable to the VIDEO Input jack on the side of the TV and to the Video
Output jack on the DVD player.
3. Connect your red and white audio cables to the side of the TV.
Connect the audio (red and white) cables to the AUDIO R and L/MONO jacks on the
side of the TV and to the Audio Output jacks on the DVD player.
Red
Yellow
Composite cables are color
coded- Yellow= video;
Red= right audio; white=
left audio
White
Component Video cables
(Y Pb Pr) are color coded-
Green, Blue and Red
White
Red
Audio cables are color
coded- Red= right audio;
white= left audio
Green
Blue
Red
Viewing the Picture from the Connected Device
1. Plug in the TV (see page 15 for details) and the device, if they aren't already
plugged in.
2. Turn on the TV and the device you want to view, for example a DVD player.
3. Repeatedly press the INPUT button on the remote control to scroll through the Video
Input Channels until you see VID (if connected to the VIDEO jack) or CMP1 (if
connected to the CMP1 jacks) displayed at the bottom of the TV's screen. To go back
to viewing TV channels, press the ANTENNA button.
Note: If the picture from the DVD player appears black and white and your device
is connected to the VIDEO Input, you might be tuned to the wrong input. Make sure
you press INPUT until you see VID displayed at the bottom of the TV's screen.
Book 1.indb 11Book 1.indb 11 3/3/06 12:23:45 PM3/3/06 12:23:45 PM

Connections and Setup
12 Chapter 1
OR
Device with DVI
L
R
Device with HDMI
Audio Out DVI Out
Pb
Y
Video Out
Pr
HDMI Out
L
R
Audio Out
R
AUDIO
HDMI/DVI
VIDEO
L
B
HDMI/DVI Connection
This is an example of a connection using the HDMI/DVI jack.
A
*Don't forget: If necessary, connect
antenna or cable to get a picture. Go
to page 8 for instructions.
C
*
Book 1.indb 12Book 1.indb 12 3/3/06 12:23:46 PM3/3/06 12:23:46 PM

Connections and Setup
Chapter 1 13
HDMI cable
HDMI/DVI adapter
White
Red
Audio cables are color
coded- Red= right audio;
White= left audio
HDMI cable
• If you're done connecting
devices to your TV, go to
page 16 to complete the
Initial Setup.
• If you experience HDMI
problems, go to the HDMI
Troubleshooting section on
page 45.
Connecting the Device
High-Definition Multimedia Interface (HDMI) technology is an uncompressed digital connection
that carries both video and audio data by way of an integrated mini-plug cable. Since HDMI
technology is based on Digital Visual Interface (DVI), the jack on the back of your TV is also
compatible with devices that have a DVI output jack.
DVD ON OFF
VCR TV
VOL
MUTE GO BACK
CH
CLEAR MENU
PRESETS
CC
GUIDE
INFO
SKIP
123
456
789
0
INPUT ANTENNA
REVERSE PLAY FORWARD
RECORD STOP PAUSE
AGAIN ZOOM OPEN CLOSE
SPEED SEARCH
OKOK
INPUT
button
ON•OFF button Viewing the Picture from the Connected Device
The device in this connection is connected to the HDMI/DVI jack. To view this device:
1. Plug in the TV (see page 15 for details) and the device, if they aren't already plugged
in.
2. Turn on the TV and the device you want to view, for example a set-top box.
3. Repeatedly press the INPUT button on the remote control to scroll through the Video
Input Channels until you see HDMI displayed at the bottom of the TV's screen. To go
back to viewing TV channels, press the ANTENNA button.
Using the example of a set-top box:
• If your set-top box has an HDMI jack, connect an HDMI cable.
Connect an HDMI cable to the HDMI/DVI Input jack on the back of the TV and to
the HDMI Out jack on the back of the device.
–OR–
• If your set-top box has a DVI jack, connect an HDMI cable and an
HDMI/DVI adapter.
A. Connect an HDMI cable to the HDMI/DVI Input jack on the back of the TV.
B. Attach an HDMI/DVI adapter to the end of the HDMI cable, then connect the
adapter to the DVI Out jack on the set-top box.
C. Since you’re using an HDMI/DVI adapter, you need to connect Audio left and right
cables to the HDMI/DVI R and L AUDIO jacks on the back of the TV and to the R
and L jacks on the back of the device.
Use these buttons
to view the picture
of the device you’ve
connected to the TV.
Book 1.indb 13Book 1.indb 13 3/3/06 12:23:47 PM3/3/06 12:23:47 PM

Connections and Setup
14 Chapter 1
VGA Connection
This is an example of a connection using the VGA jack.
AUDIO
VGA
VIDEO
Connecting the Device
This connection allows you to connect to a personal computer.
1. If necessary, connect your cable and/or off-air antenna as described on page 8.
2. Connect your monitor cable.
Connect one end of a 15-pin monitor cable to the VGA VIDEO jack on the TV and the
other end to the PC's video output jack. Note, if your PC's video output isn't 15-pin, you'll
need an adapter that can connect to a 15-pin monitor cable.
3. Connect your audio cable.
Connect a 3.5 mm stereo mini pin cable (sometimes referred to as 1/8" stereo mini pin) to
the VGA AUDIO jack on the back of the TV and the other end to the Audio Output jack on
the PC.
Notes: Don't leave images such as still images on-screen for a long time because it may
cause screen burn-in. Go to page 49 for more information.
The maximum panel resolution is 852 x 480 for model P42WED33; 1024 x 768 for
model P42WHD33. Be sure to set your PC to the correct monitor output setting.
The MultiTask Audio™ feature allows you to listen to the sound from the TV while the PC
is connected. Go to page 33 for more information.
Viewing the PC
1. Plug in the TV (see page 15 for details) and the PC, if they aren't already plugged in.
2. Turn on the TV and the PC.
3. Press the INPUT button on the remote control to scroll through the Video Input Channels
until you see VGA displayed at the bottom of the TV's screen. To go back to viewing TV
channels, press the ANTENNA button.
1
2
3
Don't forget: If necessary,
connect antenna or cable to
get a picture. Go to page 8 for
instructions.
Book 1.indb 14Book 1.indb 14 3/3/06 12:23:47 PM3/3/06 12:23:47 PM

Connections and Setup
Chapter 1 15
DVD ON OFF
VCR TV
VOL
MUTE GO BACK
CH
CLEAR MENU
PRESETS
CC
GUIDE
INFO
SKIP
123
456
789
0
INPUT ANTENNA
REVERSE PLAY FORWARD
RECORD STOP PAUSE
AGAIN ZOOM OPEN CLOSE
SPEED SEARCH
OKOK
Plug in the TV
Plug the end of the power cord into the back of the TV. Plug the other end into a grounded
wall outlet. Insert the plug completely into the outlet. Do not plug into an outlet controlled by
a light switch.
Put Batteries in the Remote
• Remove the battery compartment cover from the back of the remote by pushing the tab
and lifting off the cover.
• Insert two fresh batteries. Make sure the polarities (+ and -) are aligned correctly.
• Replace the cover.
Turn on the TV
Turn on your TV by pressing the Power button on the front of the TV or ON•OFF on the
remote control.
Tip
To access the setup menus manually, press MENU and
choose Setup.
Arrows
OK
button
How to Use the Remote Control to
Complete the Initial Setup
The technical term is “Navigation” – how you move through the on-
screen menus. The theory is the same throughout the menu screens:
highlight your choice and select it.
To highlight a menu item, press the arrow buttons on the remote to
highlight one of the items listed on the screen. Use the up or down
arrow button to move up or down. Use the right or left arrow button
to view other selections for a menu choice or to display a sub-menu.
More than one selection displays, for example, On...; a menu choice
with a sub-menu displays dots (...).
Note: Highlighted means that the menu item stands out from
other menu items on the list (appears darker, brighter, or a
different color).
Book 1.indb 15Book 1.indb 15 3/3/06 12:23:48 PM3/3/06 12:23:48 PM

Connections and Setup
16 Chapter 1

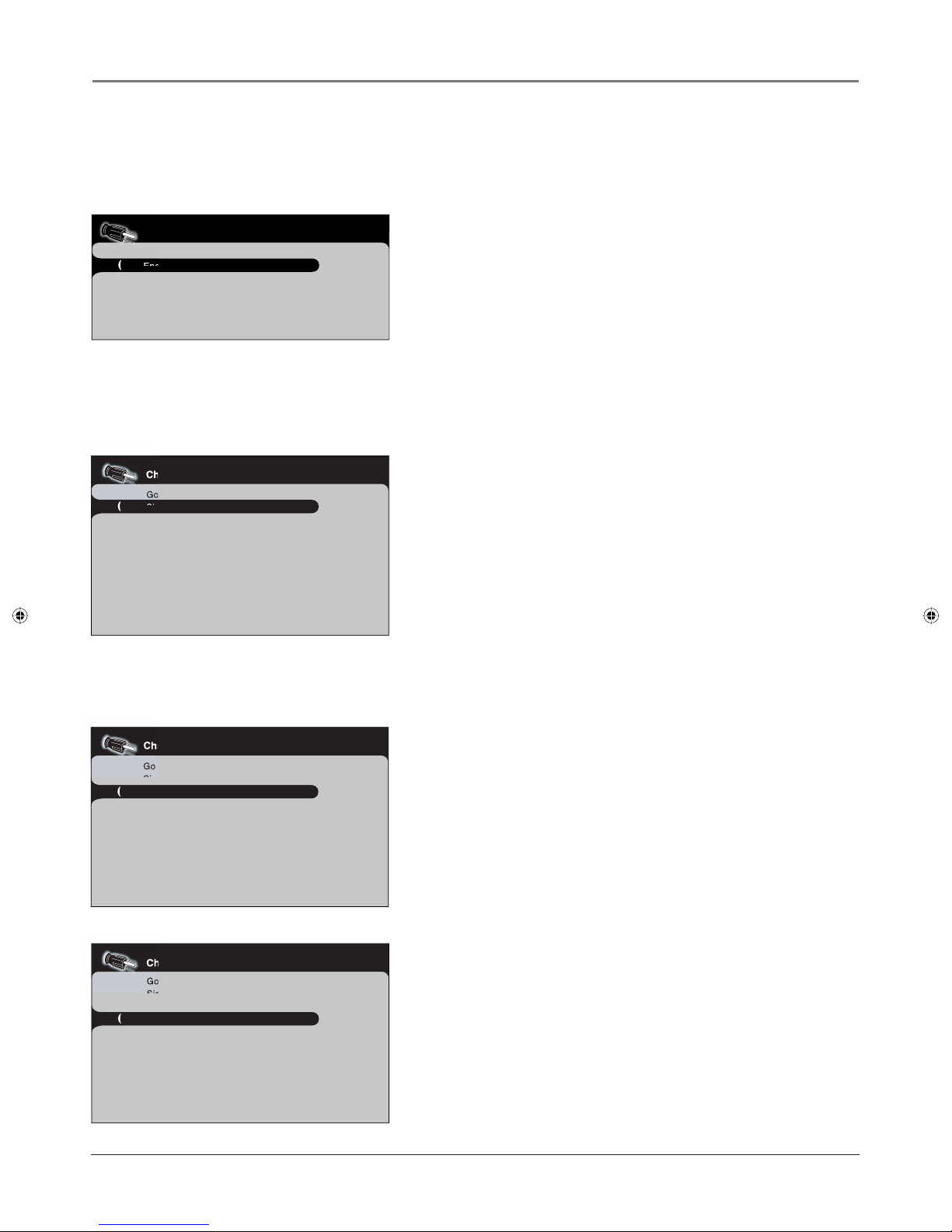

Complete the Initial Setup
The menu system in your TV allows the TV’s features to work properly. The first time you turn
on your TV, the language screen appears.
Channel setup
Go back
Signal source Both...
Ana. signal type Cable...
Dig. signal type Autodetection...
Auto Ch. search ...
Auto Ch. update ...
Channel setup
Go back
Signal source Analog...
Ana. signal type Cable...
Dig. signal type Autodetection...
Auto Ch. search ...
Auto Ch. update ...
English
Français
Español
Set the Menu Language
The first part of the setup allows you to select your preferred language
for the menu system.
If English is your preferred language, press OK. To choose another
language, press the down arrow button until that language is
highlighted, and press OK.
Complete Channel Setup
Make sure you've connected the TV to cable and/or an off-air signal
before you start the next part of the setup.
Set the Signal Source
1. A. Did you connect a signal to both ANTENNA/CABLE ANALOG
and DIGITAL INPUTS on the back of your TV? If not, go to step
1B. If so, press the down arrow button to highlight Ana. signal
type and go to step 2.
B. Did you connect a signal to only the ANTENNA/CABLE
ANALOG INPUT? If not, go to step 1C. If so press the right arrow
button to select Analog and then press the down arrow button to
highlight Ana. signal type. Go to step 2.
C. Did you connect a signal to only the ANTENNA/CABLE
DIGITAL INPUT? If not, go to step 2. If so, press the right arrow
button to select Digital and then press the down arrow button to
highlight Dig. signal type. Go to step 3.
Set the Analog Signal Type
2. A. Did you connect cable to the ANTENNA/CABLE ANALOG
INPUT? If not, go to step 2B. If so, leave the option set to Cable
and then press the down arrow button to highlight Dig. signal
type. Go to step 3.
B. Did you connect an antenna to the ANTENNA/CABLE
ANALOG INPUT? If not, go to step 3. If so, press the right arrow
button to highlight Antenna and then press the down arrow
button to highlight Dig. signal type. Go to step 3.
Channel setup
Go back
Signal source Analog...
Ana. signal type Cable...
Dig. signal type Autodetection...
Auto Ch. search ...
Auto Ch. update ...
Set the Digital Signal Type
3. If you connected a signal to the ANTENNA/CABLE DIGITAL
INPUT, leave the option set to Autodetection. The signal type is
chosen for you and changes on-screen according to that type once
a signal is detected. Press the down arrow button to highlight Auto
Ch. search. Go to step 4.
Book 1.indb 16Book 1.indb 16 3/3/06 12:23:48 PM3/3/06 12:23:48 PM

Connections and Setup
Chapter 1 17
Complete the Channel Search
4. Even though the initial channel search can take several minutes,
you must complete it in order for your TV to display channels and
programming. Press OK to begin the channel search. The menu
shows the TV is running a channel search. When it's complete, the
Channel setup menu remains on-screen. To exit the menu system,
press CLEAR.
Some channels might have been found during the channel search
that are unavailable to view and you might want to get rid of these
so they don't appear as you change channels. To do this press OK
(the List and Labels menu appears). Note that removing channels
from your channel list may be time consuming, so you might want
to do it later. Go to page 38 for details on editing your
channel list.
What To Expect
Watching TV
• Remember: If you have an analog signal connected to your
ANTENNA/CABLE ANALOG INPUT, then look for an Aat the
bottom of the screen to make sure you're tuned to the Analog
input. Press the ANTENNA button if the Aisn't appearing.
Analog video is sent in a 4/3 format, which your TV displays these
channels in a 16/9 format. Press the left or right arrow button
to view the different formats available. Go to page 32 for more
explanation of screen formats.
Channel setup
Go back
Signal source Analog...
Ana. signal type Cable...
Dig. signal type Autodetection...
Auto Ch. search Running...
Auto Ch. update ...
Progress
Channels found 10
Ch. search in progress. Press CLEAR to cancel
Any channels already found will be stored.
Look for the Aat the bottom of the screen to
make sure you're on the Analog Input.
Look for the Dat the bottom of the screen to
make sure you're on the Digital Input.
A10 CBS
D10-1 CBS
• Remember: If you have a digital signal connected to your
ANTENNA/CABLE DIGITAL INPUT, then look for a Dat the
bottom of the screen to make sure you're tuned to the Digital
input. Press the ANTENNA button if the Disn't appearing.
Most digital video is sent in a 16/9 format which does fill your
screen, but sometimes is sent in 4/3 which does not fill your
screen. It depends on how the station or source device is
formatting the video. If there are bars on-screen, press the
left or right arrow button to try a different format that may
eliminate the bars. Go to page 32 for more explanation of screen
formats.
Changing Channels
• Digital channels can have both primary channels (like the analog
channel number) and sub-channels. First tune to the Digital Input
by pressing the ANTENNA button and look for a Dat the bottom
left of the screen. To tune to a digital channel with a sub-channel,
enter the primary channel number, then press the right arrow
button. Enter the sub-channel number and press OK.
• Depending upon the type of signals you have connected to your
HDTV, you might notice that the channels change slower than
you’re used to. This is perfectly normal. Digital cable channels
sometimes take longer to tune.
If you connected cables to the ANALOG
and DIGITAL INPUTS, the TV runs 2 separate
channel searches.
Book 1.indb 17Book 1.indb 17 3/3/06 12:23:48 PM3/3/06 12:23:48 PM

Connections and Setup
18 Chapter 1
Explanation of Jacks (in alphabetical order)
This section describes the jacks on the back panel of your TV. There are several ways to
connect devices.
ANTENNA/CABLE ANALOG INPUT Lets you connect a coaxial cable to receive the signal
from the antenna, cable, or cable box.
ANTENNA/CABLE DIGITAL INPUT Lets you connect a coaxial cable to receive the signal
from the antenna.
COMPONENT INPUTS Lets you connect a device that has component video jacks, such as a
DVD player.
• CMP1 Y Pb/Cb Pr/Cr (Component Video) Provides optimum picture quality because the
video is separated into three signals. Use three video-grade or component video cables for
the connection. When using CMP1 Y Pb/Cb Pr/Cr, make sure you connect left and right
audio cables to the CMP1 L and R AUDIO jacks.
• CMP1 L AUDIO Provides left audio connection when using the CMP1 video inputs. The left
audio connector is usually white.
• CMP1 R AUDIO Provides right audio connection when using the CMP1 video inputs. The
right audio connector is usually red.
• CMP2 Y Pb/Cb Pr/Cr (Component Video) Same as described for CMP1 Y Pb/Cb Pr/Cr and
CMP1 Audio above. Make sure you connect the left and right audio cables to the CMP2 L
and R AUDIO jacks.
HDMI/DVI Input Lets you connect a device, such as a digital cable box, with an HDMI or a
DVI output.
• HDMI/DVI INPUT (High-Definition Multimedia Interface/Digital Visual
Interface) Provides an uncompressed digital connection that carries both video and audio
data by way of an integrated mini-plug cable. Since HDMI technology is based on Digital
Visual Interface (DVI), the jack on the back of your TV is also compatible with DVI devices.
• L AUDIO (used for DVI only) Provides left audio connection when using the DVI jack. The
left audio connector is usually white.
• R AUDIO (used for DVI only) Provides right audio connection when using the DVI jack.
The right audio connector is usually red.
Note: If using HDMI/DVI as a DVI connection, remember to connect the left and right
audio cables because the DVI cable carries only the picture signal, not the sound.
MONITOR OUT Connect a VCR or DVD-recorder to record digital and analog programs
(excluding copy-protected programs and component video formats) while the TV is turned on.
You must leave the TV on the same channel you are recording.
AUDIO Use the Audio Out jacks when using the MONITOR OUTPUT Video jack or use these
jacks by themselves to connect an audio receiver to the TV for enhanced sound quality. If you
use these jacks to receive your sound, you don't need to connect the speakers supplied with
the TV. Make sure you set the Audio output correctly in the Advanced Settings Sound menu. Go
to page 36 for more information.
• L (Audio) Provides left audio connection. The left audio connector is usually white.
• R (Audio) Provides right audio connection. The right audio connector is usually red.
Book 1.indb 18Book 1.indb 18 3/3/06 12:23:49 PM3/3/06 12:23:49 PM

Connections and Setup
Chapter 1 19
VGA Connect your computer, or other device with a VGA output, to this jack using a 15 pin
D-sub cable.
VGA AUDIO (Stereo mini jack) Use to obtain sound when a PC is connected to the VGA jack.
Use a 3.5 mm stereo mini pin cable (sometimes referred to as 1/8” stereo mini pin) to connect a
PC to your TV. Go to page 14 for more information.
Note: When using the VGA input, don't leave images such as still images on-screen for a
long time because it may cause screen burn-in. Go to page 49 for more information.
Buttons and Other Jacks On Your TV
Front Panel Buttons
If you cannot locate your remote, you can use the front panel buttons of your TV to operate
many of the TV’s features.
MENU Brings up the TV Main menu.
VOL > Increases the volume. In the TV menu system, acts like the right arrow button on the
remote control and adjusts menu controls.
VOL < Decreases the volume. In the TV menu system, acts like the left arrow button on the
remote control and adjusts menu controls.
CH Scans up through the channel list. In the TV menu system, acts like the up arrow button
on the remote control and adjusts menu controls.
CH Scans down through the channel list. In the TV menu system, acts like the down arrow
button on the remote control and adjusts menu controls.
POWER Turns the TV on and off.
Left Side Input Jacks (when facing back of TV)
L/MONO and R AUDIO Receives audio from another device such as a camcorder, video game
console, VCR, or DVD player. Use when connecting to the VIDEO or S-VIDEO Input.
VIDEO Input Receives video from another device such as a camcorder, video game console,
VCR, or DVD player. To access a device connected to the VIDEO jack press the INPUT button
on your remote until VID appears at the bottom of the screen.
S-VIDEO Input Allows you to connect an S-Video cable from another device. Make sure
you also connect audio cables from the device to the TV. To access a device connected to the
S-VIDEO jack press the INPUT button on your remote until SVID appears at the bottom of the
screen.
Note: Do not connect an S-Video and a regular video cable to the side jacks at the same
time.
(Headphones) Allows you to connect headphones to listen to the sound coming from the
TV. To adjust volume control of the headphones, go to the Headphone settings option in the
Sound menu.
>
>
Book 1.indb 19Book 1.indb 19 3/3/06 12:23:49 PM3/3/06 12:23:49 PM

Graphics contained within this publication are for representation only.
20 Chapter 2
Chapter 2: Using the Remote Control
Button Descriptions for TV Mode
Arrows Used to highlight different items in the TV menu and to
adjust the menu controls. When viewing a channel, press the left
or right arrow to change the screen format: 4/3, 14/9 zoom, 14/9
panning, 16/9 zoom, Cinerama, and 16/9. Go to page 32 for more
information on screen formats.
Indicator Indicates the programming mode when programming the
remote to control other devices. Lights when you press a valid button
on the remote. Flickers when a button is pressed and the batteries are
low.
(0-9) Number Buttons Enter channel numbers and time settings
directly through the remote control.
To enter a one-digit analog channel, enter a zero first. To enter a two-
digit channel, press the two digits. To enter a three-digit channel, press
and hold the “1” button until “1” and two dashes (– –) appear, then
add the second two digits. Example: to tune to channel 123, press and
hold 1 until “1– –” appears, release the 1 button and then press 2
and 3.
To enter a digital channel with a sub-channel, enter the main channel,
then press the right arrow to enter the sub-channel and press OK.
ANTENNA Switches between Analog and Digital input channel.
When tuned to an input, press to go back to the most recently used
tuner (Antenna or Digital input).
CC Brings up the Closed Caption menu.
CH + or CH - Scans up or down through the current channel list.
Press once to change the channel up or down; press and hold to
continue changing channels.
CLEAR Removes any menu or display from the screen and returns
you to normal viewing.
GO BACK Returns you to the previous channel.
GUIDE Displays the Channel Guide menu. Go to page 34 for more
information.
INFO Brings up the channel banner; press again to clear the screen.
INPUT Accesses the available video input channels (VID, SVID,
CMP1, CMP2, VGA, and HDMI). Press the CH+ or CH- or ANTENNA
button to resume TV viewing.
MENU Brings up the Main menu.
MUTE Reduces the TV’s volume to its minimum level. Press again to
restore the volume.
OK When in the menu system, selects highlighted items. While
watching TV, freezes the picture.
ON•OFF When in TV mode, turns the TV on or off. If in another
mode (VCR or DVD) and programmed, will turn the device on or off.
PRESETS For the Analog input, displays Picture and Sound preset
option. For the Digital input, displays Picture and Sound preset; and
Dig. Ch. Aud. Lang. and CH+/CH- buttons.
Tip
To turn off most RCA, GE, and Proscan components
that are connected to the TV, press ON•OFF twice
within two seconds.
This feature only works with most RCA, GE, and
Proscan products.
DVD ON OFF
VCR TV
VOL
MUTE GO BACK
CH
CLEAR MENU
PRESETS
CC
GUIDE
INFO
SKIP
123
456
789
0
INPUT ANTENNA
REVERSE PLAY FORWARD
RECORD STOP PAUSE
AGAIN ZOOM OPEN CLOSE
SPEED SEARCH
OKOK
Indicator
Note: If you need to replace your
remote, call 1-800-338-0376. A
shipping and handling fee, and the
appropriate sales tax, will be charged
upon ordering. Have your Visa,
MasterCard, or Discover Card ready.
Remote control part number
RCR311TBM2S
Book 1.indb 20Book 1.indb 20 3/3/06 12:23:49 PM3/3/06 12:23:49 PM
