Redarc SMFB1160 User manual

Monocrystalline Solar Blankets
SMFB1160, SMFB1160-K,
SMFB1240, SMFB1240-K,
SMFB1300 & SMFB1300-K

2
MONOCRYSTALLINE SOLAR BLANKETS
REDARC Solar Blankets are designed to provide high efficiency in a robust, flexible construction.
They are constructed using heavy duty canvas and robust materials making them suitable for off–road
and outback conditions.
WARNING AND IMPORTANT SAFETY INSTRUCTIONS
INST129-4-EN
SAVE THESE INSTRUCTIONS — THIS MANUAL
CONTAINS IMPORTANT SAFETY INSTRUCTIONS FOR
REDARC SOLAR BLANKETS.
DO NOT operate Solar Blankets UNLESS YOU HAVE READ
AND UNDERSTOOD THIS MANUAL and the Blanket is installed
as per these installation instructions. REDARC recommends
that the Blanket be installed by a suitably qualified person.
WARNING
RISK OF EXPLOSIVE GASES:
Working in vicinity of a Lead-Acid battery is dangerous.
Batteries generate explosive gases during normal operation.
For this reason, it is of utmost importance that you follow the
instructions when installing and using the Solar Blanket.
WARNING: Check the manufacturer’s data for your battery
and ensure that the maximum voltage of the profile you select
does not exceed the manufacturer’s recommended maximum
charging voltage. If the maximum voltage is too high for your
battery type, please select another charging profile.
RISK OF DAMAGE AND INJURY FROM IMPROPERLY
SECURED BLANKETS:
Solar Blankets mounted to all types of vehicles, including
but not limited to, 4×4 Vehicles, RVs, Caravans, etc. are
subject to high wind and vibration forces when driving. The
instructions provided in this manual are just intended as a
guide. Solar Blankets must be securely attached to the vehicle
in accordance with all local and national safety standards. In
addition, the solar mount manufactures' instructions must
be adhered to or may be required to be exceeded to comply
with local and national standards. It is recommended that a
suitably qualified installer be used.
CAUTION
1. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they are supervised or have been instructed on
how to use the appliance by a person responsible for their
safety. Children should be supervised to ensure that they
do not play with the appliance.
2. Do NOT connect the Solar Blanket directly to a Battery. A
Solar Regulator must be used between the Solar Blanket
and the Battery.
3. Only use the Solar Blanket for charging Lead Acid,
Gel, Calcium content, AGM or Lithium Iron Phosphate
batteries using a Solar Regulator suitable for the Battery’s
chemistry.
4. The Battery should be mounted in a well ventilated area,
as far as possible from any ignition sources. NEVER
smoke or allow a spark or flame in the vicinity of battery
or engine. This may cause the battery to explode.
5. An unconnected Blanket exposed to light may generate
voltages up to their rated open-circuit voltage on their
leads. Completely cover all Blankets with an opaque
material during installation, and when connecting or
disconnecting conductors to reduce the chance of an
electrical spark.
6. The Solar Blanket will achieve best results when proper
battery maintenance is regularly performed. This includes
but is not limited to checking water and specific gravity
levels of the battery.
7. Do not use mirrors or other devices to artificially
concentrate sunlight on the Blanket.
8. All Blankets used in series, parallel, or series-parallel
should be positioned to receive identical amounts of light
to reduce risk of Blanket damage.
9. Partially shaded or partially obscured Solar Blankets will
have reduced output, and can potentially damage the
Solar Blanket.
PERSONAL SAFETY PRECAUTIONS
10. To assist with the safe operation and use of the Solar
Blanket when connected (via a Regulator) to the battery:
a) Wear complete eye protection and clothing protection.
Avoid touching eyes while working near a battery.
b) If battery acid contacts your skin or clothing, remove
the affected clothing and wash the affected area of
your skin immediately with soap and water. If battery
acid enters your eye, immediately flood the eye with
running cold water for at least 10 minutes and seek
medical assistance immediately.

3
CONTENTS
MONOCRYSTALLINE SOLAR BLANKETS ���������������������������������������������������������������������������������� 2
WARNING AND IMPORTANT SAFETY INSTRUCTIONS ��������������������������������������������������������������� 2
1 SUPPLIED PARTS������������������������������������������������������������������������������������������������������������ 4
2 MONOCRYSTALLINE SOLAR BLANKET FEATURES��������������������������������������������������������������� 5
3 160W MONOCRYSTALLINE SOLAR BLANKET ��������������������������������������������������������������������� 6
4 240W MONOCRYSTALLINE SOLAR BLANKET ��������������������������������������������������������������������� 7
5 300W MONOCRYSTALLINE SOLAR BLANKET ��������������������������������������������������������������������� 8
6 SOLAR OPTIMISATION ���������������������������������������������������������������������������������������������������� 9
6.1 Angle to the Sun��������������������������������������������������������������������������������������������������������9
7 SYSTEM WIRING �����������������������������������������������������������������������������������������������������������10
7.1 Monocrystalline Solar Blanket Connection — Battery Clip Cable ����������������������������������10
7.2 Monocrystalline Solar Blanket Connection — Battery Eyelet Terminal Cable ������������������10
7.3 BCDC Solar Blanket Connection with RK1260��������������������������������������������������������������11
7.4 BCDC Solar Blanket Connection �������������������������������������������������������������������������������� 11
8 MONOCRYSTALLINE SOLAR BLANKET INSTALLATION GUIDE ����������������������������������������������12
8.1 Connecting the Solar Blanket������������������������������������������������������������������������������������12
8.2 Using the Solar Blanket��������������������������������������������������������������������������������������������12
8.3 Cleaning the Solar Blanket ���������������������������������������������������������������������������������������12
8.4 Storing the Solar Blanket������������������������������������������������������������������������������������������12
8.5 Fuse Protection �������������������������������������������������������������������������������������������������������13
9 WARRANTY�������������������������������������������������������������������������������������������������������������������14

4
1 SUPPLIED PARTS
1. Monocrystalline Solar Blanket
2. 5m Anderson-to-Anderson extension cable SRC0018 (kit only)
3. 1.5m Anderson-to-battery clip cable SRC0009 (kit only)
4. SRPA Solar Regulator variant (kit only)
24
3
1
2
4
3
1
2
4
3
1

5
2 MONOCRYSTALLINE SOLAR BLANKET FEATURES
Serial Label
Spec Label

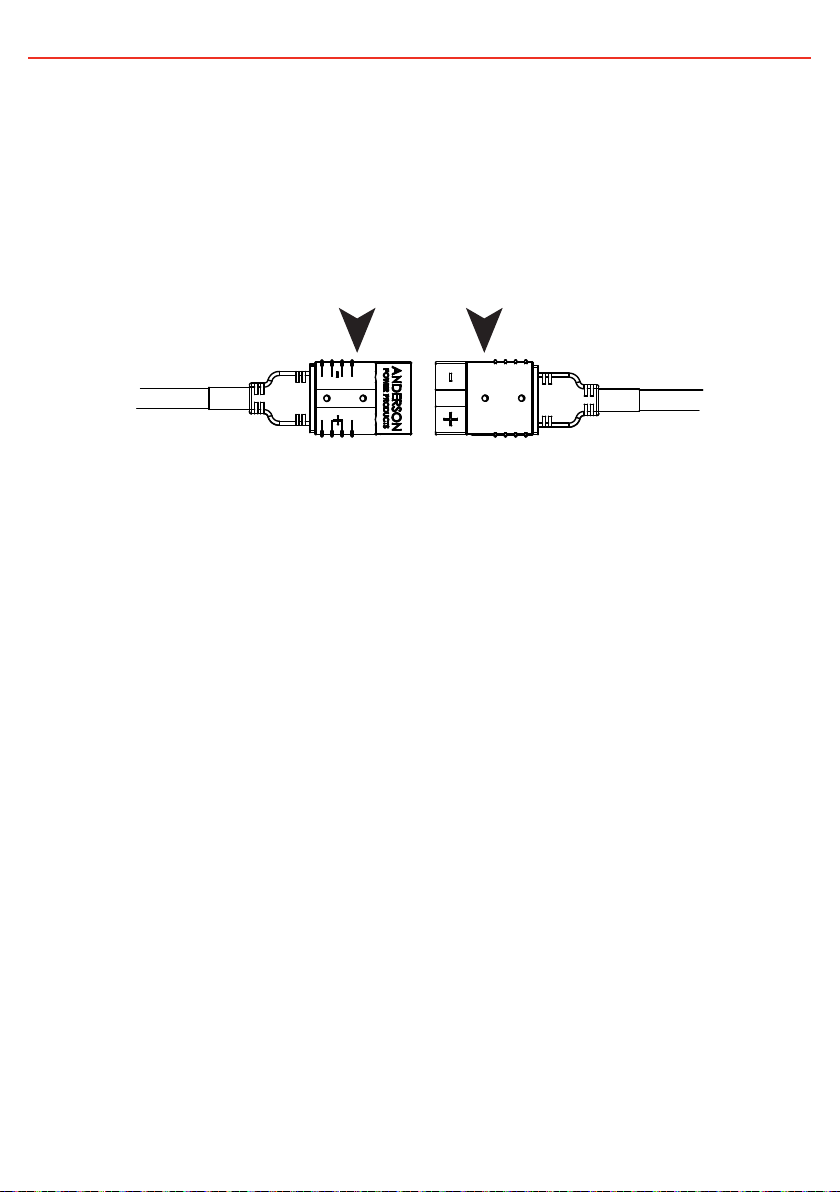

Anderson™
Connector
Wrap around
Velcro Sleeve
Junction Box
Monocrystalline Cell
Eyelets for
mounting
options
Tough Backing Material

6

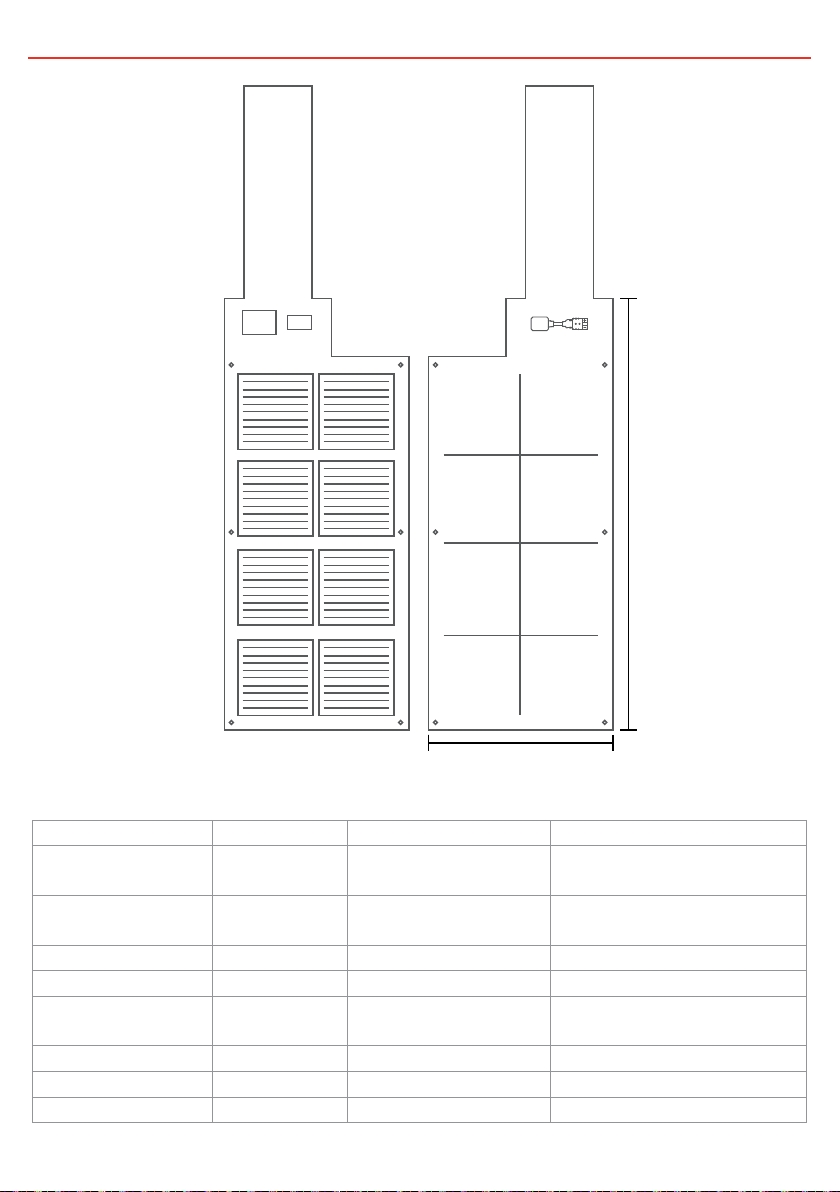

3 160W MONOCRYSTALLINE SOLAR BLANKET
740 mm / 29.1"
1635 mm / 64.4"
SPECIFICATIONS
Model SMFB1160 Cell efficiency 21%
Cell type Monocrystalline Dimensions (open) 1635×740×2.5mm/
64.4"×29.1"×0.1"
Backing material Canvas Dimensions (closed) 365×365×70mm/
14.4"×14.4"×2.8"
Max. power output 160W Connector type Anderson™SB™ 50
Max. power voltage 18.0V Cable length 120mm/4.7"
Max. power current 8.9A Operation temp. 0°C to +85°C/
+32°F to +185°F
Open circuit voltage 21.5V Weight 4.8kg/10.5 lb
Short circuit current 9.5A Mounting eyelets Yes (6) Diameter–8mm/0.3"
Power tolerance ±5% Min. regulator capacity 20A

7

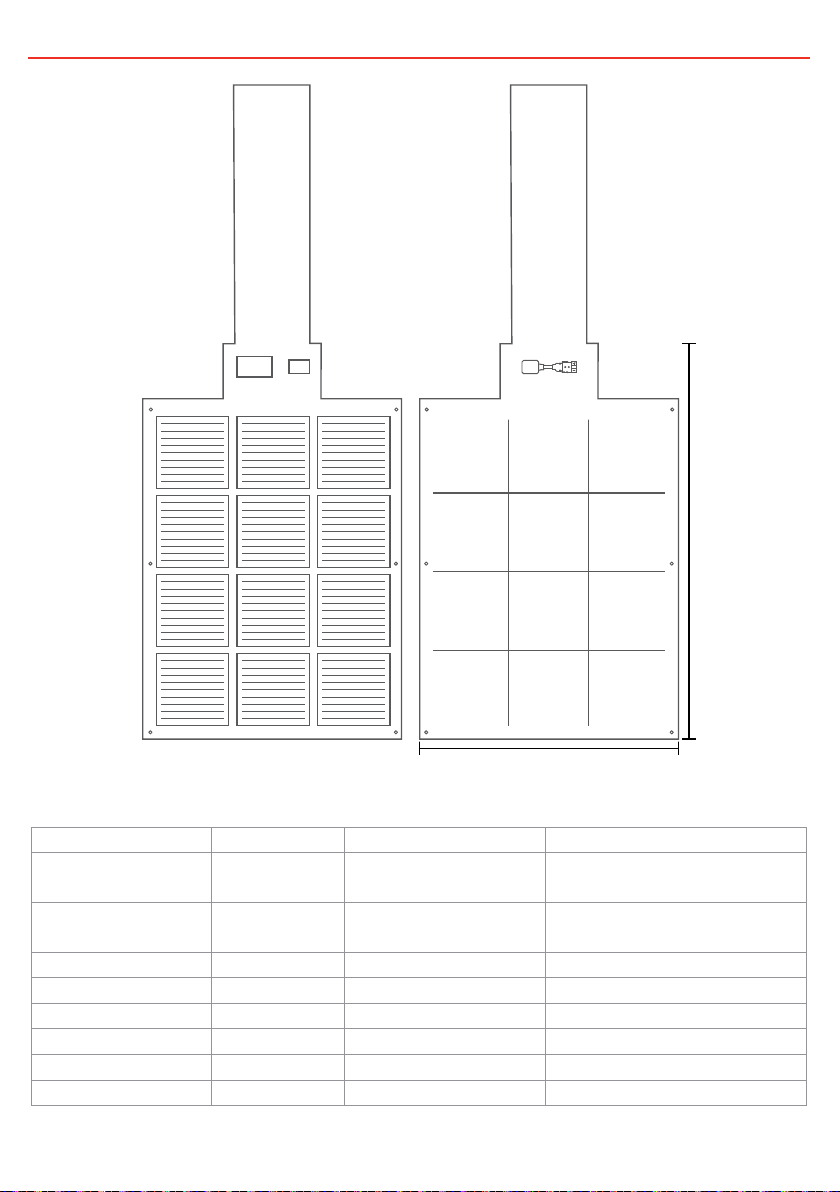

4 240W MONOCRYSTALLINE SOLAR BLANKET
1635 mm / 64.4"
1110mm / 43.7"
SPECIFICATIONS
Model SMFB1240 Cell efficiency 21%
Cell type Monocrystalline Dimensions (open) 1635×1110×2.5mm/
64.4"×43.7"×0.1"
Backing material Canvas Dimensions (closed) 365×365×75mm/
14.4"×14.4"×2.9"
Max. power output 240W Connector type Anderson™SB™50
Max. power voltage 18.0V Cable length 120mm/4.7"
Max. power current 13.4A Operation temp. 0°C to +85°C/+32°F to +185°F
Open circuit voltage 21.5V Weight 7.0kg/15.4 lb
Short circuit current 14.2A Mounting eyelets Yes (6) Diameter–8mm/0.3"
Power tolerance ±5% Min. regulator capacity 20A

8
5 300W MONOCRYSTALLINE SOLAR BLANKET
1995 mm / 78.5"
1110mm / 43.7"
SPECIFICATIONS
Model SMFB1300 Cell efficiency 21%
Cell type Monocrystalline Dimensions (open) 1995×1110×2.5mm/
78.5"×43.7"×0.1"
Backing material Canvas Dimensions (closed) 365×365×80mm/
14.4"×14.4"×3.1"
Max. power output 300W Connector type Anderson™SB™50
Max. power voltage 17.0V Cable length 120mm/4.7"
Max. power current 18.0A Operation temp. 0°C to +85°C/+32°F to +185°F
Open circuit voltage 20.0V Weight 8.5kg/18.7 lb
Short circuit current 19.0A Mounting eyelets Yes (6) Diameter–8mm/0.3"
Power tolerance ±5% Min. regulator capacity 30A

9
6 SOLAR OPTIMISATION
6.1 Angle to the Sun
REDARC Solar Blankets will perform at their peak with the Blanket face angled directly towards the sun.
However, in practice this is not always achievable. REDARC recommends having the Solar Blanket/s
angled between 20° and 40° from the ground. This will ensure the best total output from your Blanket
across the course of the day, no matter what season.
Angle to sun between
20° and 40°
GROUND
In the southern hemisphere, the sun is always in the NORTHERN half of the sky. As such facing your
Blanket NORTH ensures the best angle to the sun for a Solar Blanket across the course of the day. In the
northern hemisphere, the sun is always in the SOUTHERN half of the sky. As such facing your Blanket
SOUTH ensures the best angle to the sun for a Solar Blanket across the course of the day.
N
W
Path of the
sun always
NORTH
Panel
facing
NORTH
E
S
S
E
N
Path of the
sun always
SOUTH
Panel
facing
SOUTH
W
Southern Hemisphere Northern Hemisphere

10
7 SYSTEM WIRING
7.1 Monocrystalline Solar Blanket Connection — Battery Clip Cable
10 m (32'9") SRC0019,
1.5 m (4'11") SRC0008 or
5 m (16'5") SRC0018
-
1.5 m (4'11") SRC0009
Fuse
Regulator Fuse Size
SRPA0240 30A
SRPA0360 40A (see REDARC FK40)
Fuses are not supplied.
For other installations, appropriate sized fuses
must be used and should be determined according
to specific installation requirements
Solar Regulator
SRPA0240 or
SRPA0360
Remote Monitor
SRPA-RM
7.2 Monocrystalline Solar Blanket Connection — Battery Eyelet
Terminal Cable
10 m (32'9") SRC0019,
1.5 m (4'11") SRC0008 or
5 m (16'5") SRC0018
-
1.5 m (4'11") SRC0010
Fuse Regulator Fuse Size
SRPA0240
SRPA0360 40A
30A
Fuses are not supplied.
For other installations, appropriate sized fuses
must be used and should be determined according
(see REDARC FK40)
Solar Regulator
SRPA0240 or
SRPA0360
Remote Monitor
SRPA-RM

11
6 SYSTEM WIRING

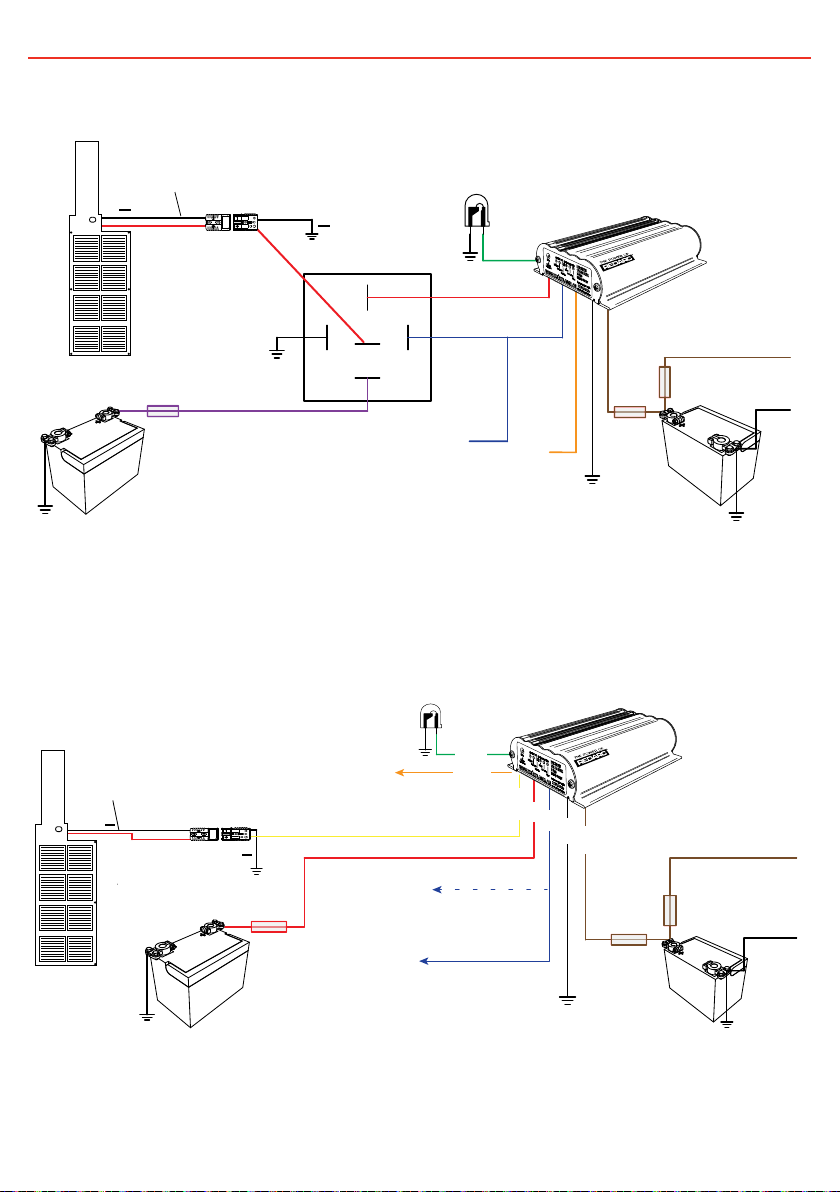

7.3 BCDC Solar Blanket Connection with RK1260
Loads
Load
Fuse
Fuse
Battery
config.
wire
Start
Battery
Fuse
RK1260
to vehicle
ignition
Note: Power wires must be
at least 6 mm² (9 AWG) and must be
crimped using an
appropriate crimp tool.
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
30
87
87a
85
86 Blue
Red
Black
Purple
10 m (32.9') SRC0019 or
1.5 m (4.1') SRC0008 or
5 m (16'5") SRC0018
BCDC1225,
or
BCDC1250
+
+BCDC1240
7.4 BCDC Solar Blanket Connection
10 m (32'9") SRC0019 or
1.5 m (4'11") SRC0008 or
5 m (16'5") SRC0018
Anderson
Connector
(not included)
BCDC1225D,
or
BCDC1250D
+
+
BCDC1240D
12V or 24V
Start Battery
Bank
Fuse
Fuse
Optional LED
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
Charging Profile Select
Refer to BCDC manual
Red
Blue
Orange
Black
Brown
Green
Yellow
Standard
Trigger Settings
Low Voltage
Trigger Settings
Load
Fuse
Loads
to Vehicle Ignition
Refer to BCDC manual
Leave unconnected
Refer to BCDC manual

12
8 MONOCRYSTALLINE SOLAR BLANKET INSTALLATION GUIDE
8.1 Connecting the Solar Blanket
• Take care when connecting and disconnecting the Anderson™plug to avoid damage
to the cable and junction box.
• Always pull from the connectors and not from the cable.
Pull from
to disconnect
connectors
8.2 Using the Solar Blanket
• While in use, place the wrap around velcro sleeve behind the Blanket.
• REDARC Solar Blankets are UV stabilised, however, the high level of UV exposure will still lead to some
degradation of product appearance after extended use.
• Do not walk on the Solar Blanket.
• Not recommended to use in the rain.
• Not recommended for use when subjected to salt spray conditions.
8.3 Cleaning the Solar Blanket
• Prevent scratches and increase charging performance by keeping the solar
Blanket free from dust, dirt or sand.
• Allow your Blanket to cool before cleaning.
• Do not use any chemical cleaning agents as it may damage the solar cell surface and degrade
performance.
• Carefully remove dust or dirt using a sponge or damp clean chamois and dry with a
soft micro fibre cloth.
8.4 Storing the Solar Blanket
• Allow your Solar Blanket to dry before folding away to prevent the likelihood of corrosion.
• Store your Solar Blanket in a dry, cool place.
• Take care to store your Blanket securely to prevent damage during transit.

13
8 MONOCRYSTALLINE SOLAR BLANKET INSTALLATION GUIDE
WARNING
RISK OF DAMAGE AND INJURY FROM IMPROPERLY SECURED BLANKETS:
Solar Blankets mounted to all types of vehicles, including but not limited to, 4×4 Vehicles, RVs, Caravans,
etc. are subject to high wind and vibration forces when driving. The instructions provided in this manual
are just intended as a guide. Solar Blankets must be securely attached to the vehicle in accordance
with all local and national safety standards. In addition, the solar mount manufactures' instructions
must be adhered to or may be required to be exceeded to comply with local and national standards. It is
recommended that a suitably qualified installer be used.
REDARC Monocrystalline Solar Blankets features reinforced eyelets at the four corners and sides of the
Blanket to allow for various mounting options. These Blankets can also be setup across your vehicle,
caravan or tent and can be used to provide shade as well as performing their power generating function.
When Blankets are subjected to airflow from underneath this provides the most efficient result when used
as a source of shade.
8.5 Fuse Protection
Fuse protection is required for wire and component protection in case of short circuit. Fuses are to be
fitted as close as possible to the battery positive terminal.
REDARC recommend using MIDI style bolt down fuses as they ensure a low resistance connection. The
REDARC FK40 and FK60 fuse kits are recommended.
Blade type fuses are not recommended as they can result in high resistance connection
which causes excess heat and may damage the fuse holder and/or the wiring. Self–resetting circuit
breakers are not recommended as they may trip prematurely due to the heat generated by the current
flowing through the wires.

14
9 WARRANTY
Limited Warranty
For full warranty terms and conditions, visit the link below or refer to the contact details applicable to
your region.
Australia and New Zealand
www.redarc.com.au/warranty
REDARC Electronics Pty Ltd
23 Brodie Road (North),
Lonsdale SA 5160
Australia
North America
www.redarcelectronics.com/warranty
REDARC Corporation
c/o Shallco, Inc.
308 Component Dr.
Smithfield, NC 27577
USA
Australia +61 8 8322 4848
New Zealand +64 9 222 1024
UK/Europe +44 (0)20 3930 8109
USA +1 (704) 247 5150
Canada +1 (604) 260 5512
Mexico +52 (558) 526 2898

15
NOTES

FREE TECHNICAL ASSISTANCE
For product and technical support contact your regional distributor,
call our head office between 8:00 a.m. to 5:30 p.m. Australian Central
Standard Time, Monday to Friday, or send us an email.
Australia
www.redarc.com.au
+61 8 8322 4848
New Zealand
www.redarcelectronics.co.nz
+64 9 222 1024
North America
www.redarcelectronics.com
United States
+1 (704) 247 5150
Canada
+1 (604) 260 5512
Mexico
+52 (558) 526 2898
UK/Europe
www.redarcelectronics.eu
+44 (0)20 3930 8109
www.redarc.com.au
INST129-4-EN
This manual suits for next models
5
Table of contents
Other Redarc Solar Panel manuals
Popular Solar Panel manuals by other brands

SFC Energy
SFC Energy XTREMESOLAR XTR-S290P Series installation manual

AU Optronics
AU Optronics BenQ PM096BW0 installation guide

Sharp
Sharp ND-R250A5 installation manual

REC
REC TwinPeak 2S Mono 72 Series installation manual

Halo
Halo SE502 operating instructions

Clenergy
Clenergy V-ezRack SolarRoof installation guide
