• Ceiling Fa n Ow n e r ’s Ma n u a l •
Style that revolves around you.
• ak i n a •
WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
1/08

ge n e r a l in s t a l l a t i O n & Op e r a t i O n in s t r u C t i O n s
I m p o r t a n t Sa f e g u a r d S :
1. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before
beginning.
2. To avoid possible electrical shock, be sure electricity is turned off at the main power box before wiring. All
electrical connections must be made in accordance with local codes, ordinances and/or the National Electric Code. If
you are unfamiliar with the methods of installing electrical wiring and products, secure the services of a qualified and
licensed electrician as well as someone who can check the strength of the supportive ceiling members and make the
proper installation(s) and connections.
3. Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades should
be at least 7 feet from floor.
4. When mounting on a ceiling outlet box, an approved box UL listed as “suitable for fan support” is required.
The box and its supporting members must be able to support the moving weight of the fan’s listed weight.
The box must not be able to twist or work loose. Installation on a concrete ceiling should be performed by
qualified personnel.
5. Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the carton
until ready to be installed to protect its finish. If you are installing more than one ceiling fan, make sure that you do
not mix fan blade sets, as each blade is part of a weighted set.
6. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet
box. The wires should be spread apart with the common conductor and the grounding conductor on one side of the
outlet box, and the “HOT” wires on the other side.
7. Electrical diagrams are for reference only.
8. After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling and/or
causing damage or injury.
9. The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that,
under normal conditions, further lubrication should not be necessary for the life of the fan.
10. To operate the reverse function on this fan, press the reverse button while the fan is running.
11. Please note that the total wattage of the uplights and an optional downlight cannot exceed 300 watts.
1

Warnings:
• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or
optional lighting.
• Support directly from building structure.
• To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
• To reduce the risk of fire, electrical shock, or personal injury, only use this fan with an appropriate speed control
device designed for use with ceiling fans if you choose a wall control. DO NOT USE INCANDESCENT LIGHT
DIMMER. Do not use this fan with any transformer type fan speed control device.
• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or
cleaning the fan. Do not insert any objects(s) between rotating fan blades.
NOTE: The important precautions, safeguards and instructions appearing in this manual are not meant to cover
all possible conditions and situations that may occur. It must be understood that common sense, caution and
carefulness are factors which cannot be built into this product. These factors must be supplied by the person(s).
installing, caring for, and operating the unit.
tO O l s a n d Ma t e r i a l s re q u i r e d
Thank you for choosing a Regency Ceiling Fan. You have chosen the best!
Your new ceiling fan has been designed to provide many years of service and enjoyment.
• Phillips screwdriver
• Blade screwdriver
• Wrench or pliers
• Wire cutter
• Stepladder
• Wiring supplies as required by
electrical code
2
iM p O r t a n t sa F e t y pr e C a u t i O n s

1. Unpack your fan and check the contents. Do not discard the carton. If warranty replacement or repair is ever necessary, the
fan should be returned in original packing. Remove all parts and hardware. Do not lay motor housing on its side, or the
decorative housing may shift, be bent or damaged.

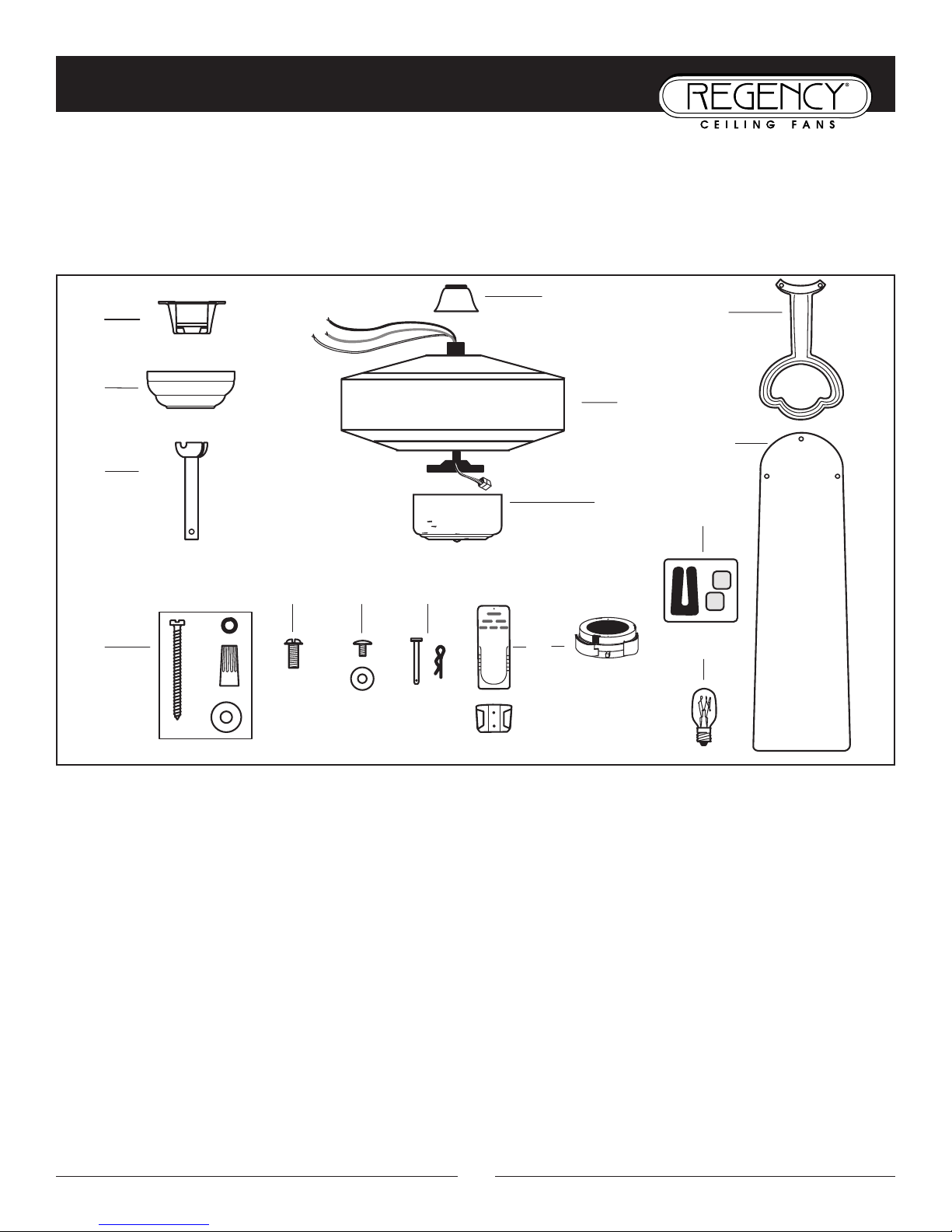

2. Examine all parts. You should have the following:
un p a C k i n g yO u r Fa n
3
1
9
10 11
3
12
8
4
5
13
6
7
2
LIGHT
FAN/OFF
HI MED LOW
FOR/REV
5GM
5GM
14
15
1. Hanging bracket
2. Ceiling canopy
3. Downrod/ball assembly
4. Decorative collar cover
5. Fan housing with motor (Remove and discard rubber shipping supports around motor, if included on your
fan. Save screws.)
6. Detachable receiver housing
7. Blade arms (5)
8. Fan blades (5) (Packed in separate box.)
9. Bracket hardware (wood screws, washers, wire nuts)
10. Blade arm to motor screws (10)
11. Blade arm to blade screws, w/washers (15)
12. Downrod pin and cotter pin
13. Remote control transmitter and receiver w/wall holster
14. Balance kit
15. Light bulbs (E12, 25W x 4)
NOTE: Design of parts shown above may look slightly different for your specific model of fan.

pr e p a r a t i O n
4
Parts identification on
assembled fan
Blade
Blade
Arm
Collar
Cover
Downrod
Fan
Housing
Uplights (on top
of fan motor
housing)
pr e p a r a t I o n :
Verify that you have all parts before beginning the installation. Check foam insert closely for missing parts. Remove motor
from packing. To avoid damage to finish, assemble motor on soft padded surface or use the original foam inset in motor box.
Do not lay fan on its side as this could result in shifting of motor in decorative enclosure.
Caution: To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All wiring
must be in accordance with National and Local Electrical Codes and the ceiling fan must be grounded as a precaution against
possible electrical shock.
in s t a l l i n g t h e ha n g i n g Br a C k e t
1. Locate ceiling joist where fan is to be mounted, being
sure location agrees with the requirements in the
minimum clearance section of this guide. Wood joist
must be sound and of adequate size to support 35 lbs.
(See Page 1, Items 3 and 4)
2. If not already present, mount a UL listed outlet box
marked “suitable for fan support”, following the
instructions provided with the outlet box. The out-
let box must be able to support a minimum of 35
pounds.
3. Attach hanging bracket to outlet box using screws
provided with the outlet box.
White
Black
Ceiling Fan
Outlet Box
Receiver
Hanging
Bracket
Flat Washer
Split
Washer
Outlet Box
Screw
Power Lines
120V
4. Connect the white wire from the outlet box to the white wire on AC In side of the receiver.
5. Connect the black wire from the outlet box to the black wire on the AC In side of the receiver.

in s t a l l i n g th e Fa n
at t a c h up l I g h t gl a S S :
5
1. Remove the four uplight mounting screws and grommets (Fig. 1)
2. Install uplight glass to the fan body and resecure the four uplight mounting screws and grommets (Fig. 2)
3. Install the four E12 candelabra light bulbs into the sockets located on the fan body. (Fig. 3)
Fig. 1 Fig. 2
Fan
Body
Fan
Body
Mounting
Screw
Grommet
Mounting Screw
Grommet
Uplight
Glass
Uplight
Glass
E12 Light
Bulb
Light Socket
Fig. 3

1. Carefully support fan body (motor) in its styrofoam packing with the mounting collar (where the wires come out)
facing upward.
2. Remove ball from the downrod by loosening set screw in the side of the ball. Slide ball down and remove ball pin;
remove ball.
3. Feed the wires from top of fan through end of the downrod of choice and set end of downrod into mounting collar so
the hole in the downrod lines up with the hole in the side of the mounting collar.
4. Insert downrod pin through holes in mounting collar and downrod; slip cotter pin through small hole in end of
downrod pin to hold downrod in place.
5. Tighten jam screws against downrod using a large flat blade screwdriver to ensure a tight fit against downrod. Tighten
nuts against mounting collar.
NOTE: Fan has 6 feet of hook-up wire
in case you are using a long extension
downrod. Wires can be cut so only 8 inches
or so extend beyond the top of the downrod
to make the electrical connections easier
and safer.
6. Feed wires through collar cover and slide
collar cover down the downrod to top of
fan.
7. Feed wires through canopy screw
cover plate and canopy, then slide
both over downrod to lay on top of
collar cover. It will be attached to
ceiling later.
8. Feed wires through ball and slide ball
over downrod, past hole in the top end
of the downrod. Insert ball pin (removed
in step 2), slide ball up, and tighten set
screw to secure ball in place.
at t a c h do w n r o d :
in s t a l l i n g th e Fa n
5
Fan Body
Downrod
Pin
Cotter Pin
Mounting Collar
Collar Cover
Canopy
Downrod / Ball Assembly
Canopy Screw
Cover Plate
Jam / Set Screw
Nut

in s t a l l i n g t h e Fa n C O n t i n u e d
6
WARNING: To avoid damaging the blade arms and blades, do not install them onto fan until fan is fastened to ceiling.

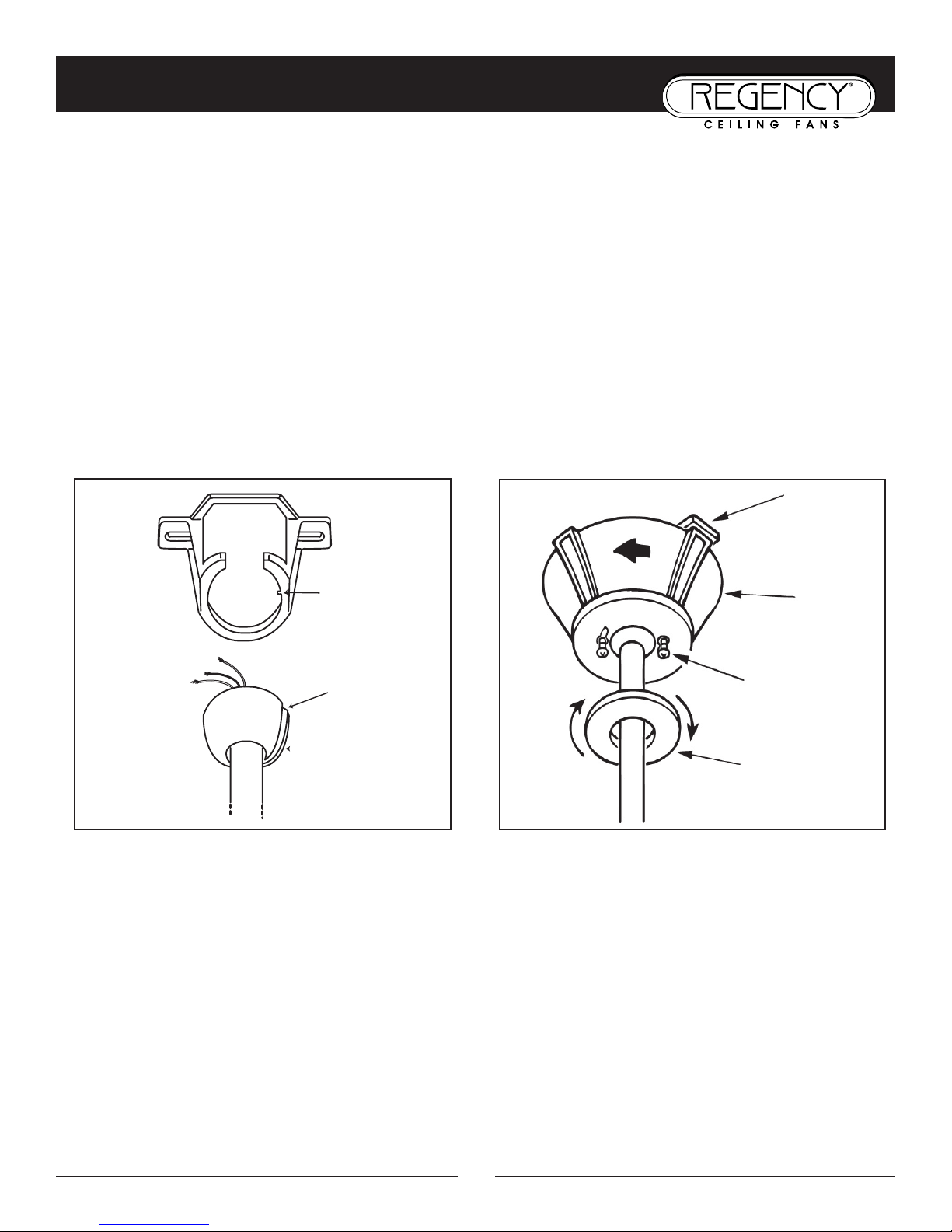

1. Lift ball/downrod/fan into hanging bracket opening.
NOTE: The tab opposite hanging bracket opening should
fit in slot on ball (Fig. 1).
2. Make wire connections, (refer to page 7 “Electrical Connections”).
3. Slide canopy up and fasten to hanging bracket with 2 screws provided, make sure receiver is inside of canopy (Fig. 2).
4. Slide canopy screw cover plate up to canopy and attach to screws. Align slots with screw heads and twist on to lock
in place (Fig.2).
Ball
Ball slot
Hanging
bracket
tab
Receiver
Canopy
Hanging bracket
Screws
Canopy Screw
cover Plate

el e c t r I c a l co n n e c t I o n S :Be sure electricity is turned off at the main power box before wiring
el e C t r i C a l CO n n e C t i O n s
7
1. Five wires are connected to the fan (Fig. 1).
Black – this is the “hot” power to run fan.
Orange - this is the “hot” power to operate the uplight
Blue - this is the “hot” power to operate the down light (lightkit)
White – this is the “common” power to run fan and light.
Green – ground wire (on bracket, downrod, and outlet box).
2. Connections (Fig. 1):
Connect the black wire from the motor side of the receiver to the black wire of the fan.
Connect the white wire from the motor side of the receiver to the white wire on thee fan.
Connect the orange wire on the receiver to the orange wire on the fan.
Connect the blue wire on the receiver to the blue wire on the fan.
3. Connect the green ground wire from the outlet box to the downrod, and hanging bracket. (Fig. 1)
4. Carefully insert the receiver into the hanging bracket making sure that the wires do not get caught or damaged
(Fig. 2).
Green / Ground
Green / Ground
Blue
Blue
Orange Orange
White
White
Black
Black
Hanging
Bracket
Downrod / Ball
Assembly
Receiver
Fig. 1
Fig. 2

Bl a d e at t a C h M e n t

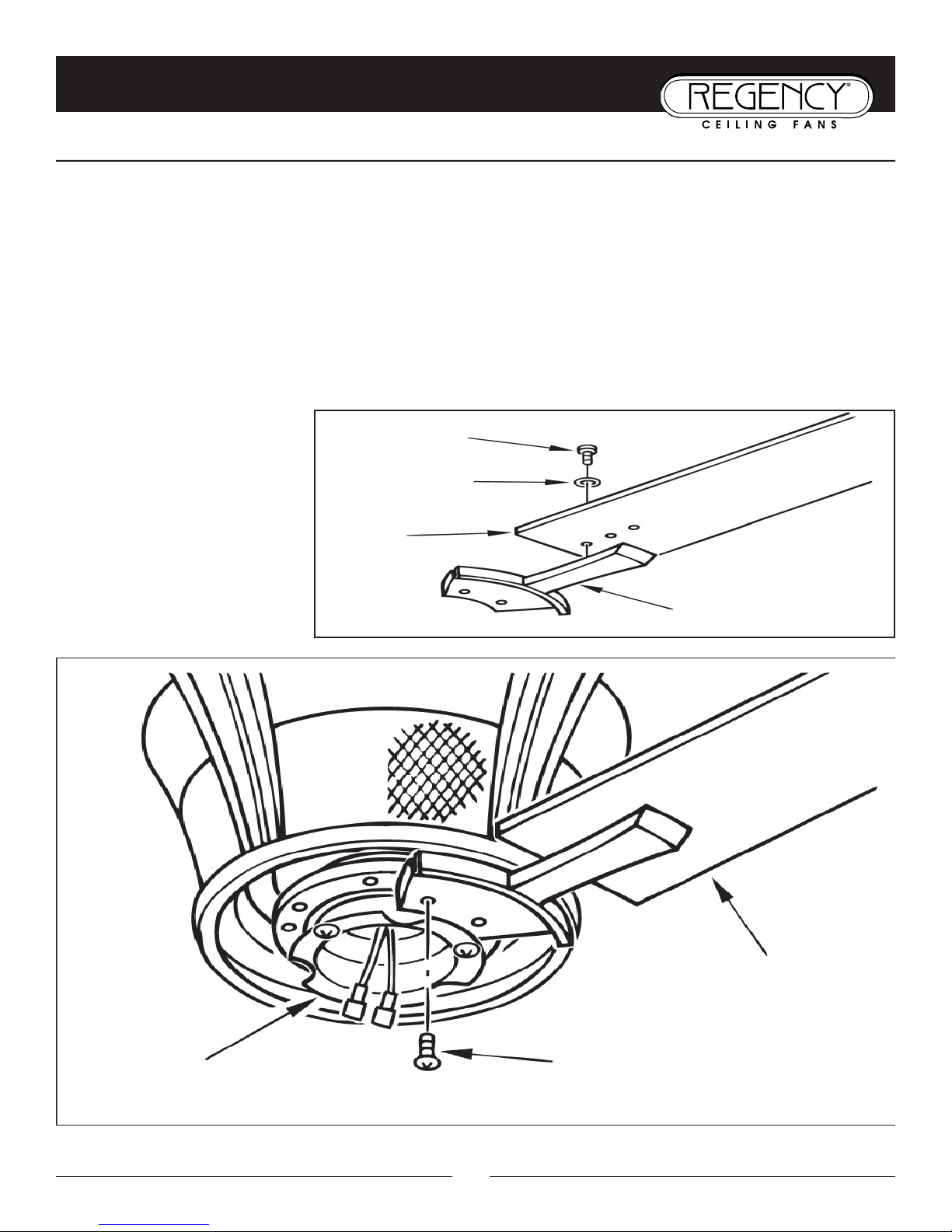

Bl a d e at t a c h m e n t :
1. Place fiber washer on screw. Insert this assembly through the blade and start the screw into the blade arm. Repeat this
procedure without tightening the screw until all 3 screws have been started into the blade arm (Fig. 1).
NOTE: Fans that have painted finishes may be packed with gaskets that can be used between the blade arm and blade
to help prevent a clicking noise that may develop if blade screws loosen over time.
2. Tighten each screw starting with center screw.
3 Fasten blade assembly to motor with provided screws and metal lockwashers (Fig. 2). Repeat procedure for
remaining blades. Make sure screws are TIGHT! Loose motor screws can contribute to unnecessary humming
and wobbling during operation.
NOTE: Cordless power screwdrivers
are NOT recommended, as they tend
to strip the heads of the screws and
usually will not fully compress the
spring washers on the motor screws.
Use a large flat blade screwdriver for
final tightening to fully compress the
spring washers. This will help ensure
proper alignment of the blades and
noise-free, wobble-free running.
NOTE: Design of parts shown
above may look slightly different
for your specific model of fan. Fig. 2
Screw
Fiber Washer
Blade
Blade Arm
Fig. 1
Blade Assembly
Blade To Motor Screw
Fan Motor
Fig. 2
8

9
at t a C h i n g li g h t kit

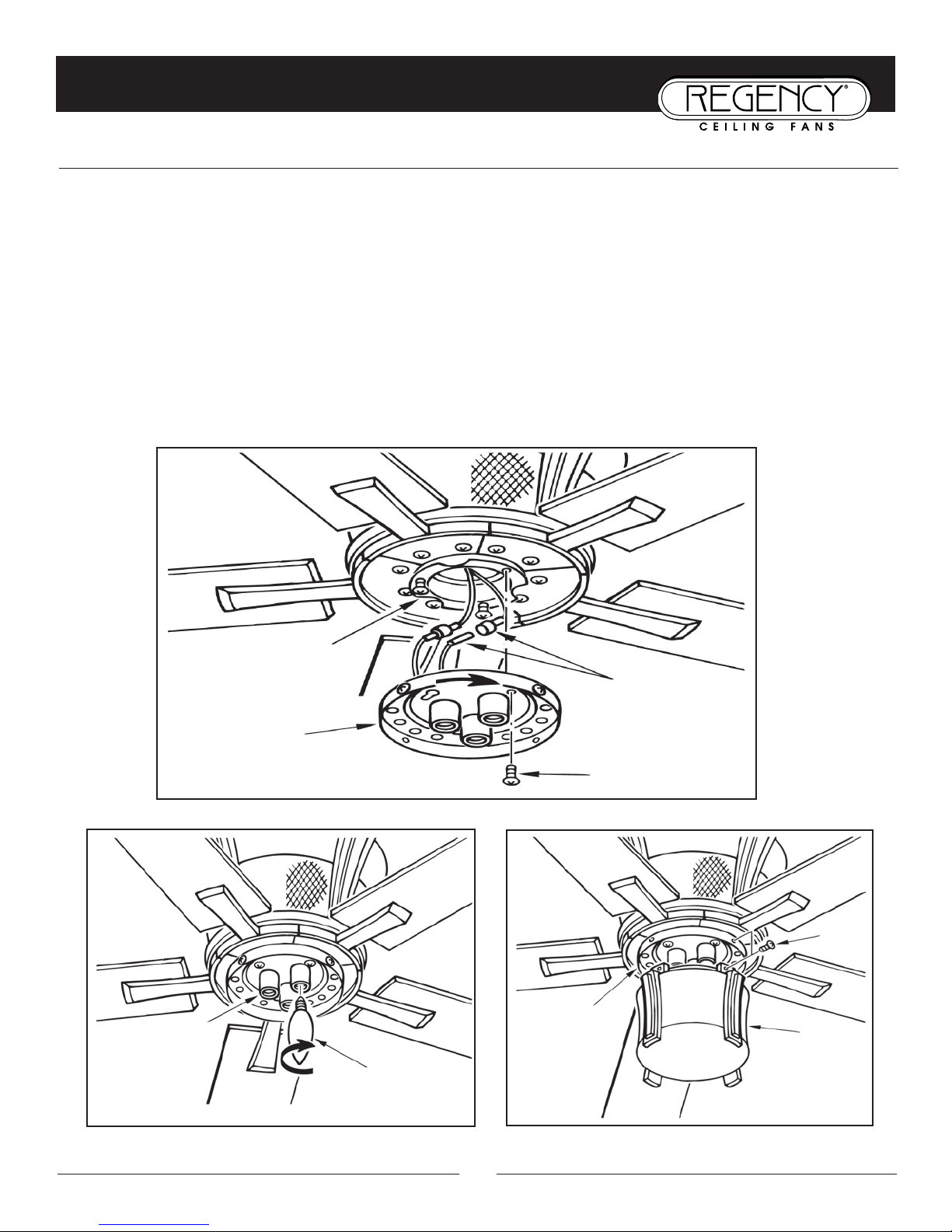

lI g h t KI t In S t a l l a t I o n
1. Attach the light kit base using the quick connects. Black wire to black wire, and white wire to white wire (Fig. 1).
2. Remove one screw from the motor light kit mounting area (Fig. 1).
3. Lift light kit base up to fan motor. Insert the screws from the motor into the key hole on the light kit base and rotate
until it locks in place. Then tighten the two loose screws and reinsert the third screw and tighten all the way. (Fig. 1).
4. Screw the three E12 candelabra light bulbs into the sockets (Fig. 2).
5. Attach globe to light kit base using the four light kit screws (Fig. 3).
Quick Connects
Screw
LIght Kit Base
Fan Motor
E12 Bulb
Socket
Fig. 1
Fig. 2 Fig. 3
Light Kit
Base
Screw
Globe

10
re M O t e CO n t r O l
ge n e r a l In f o r m a t I o n
NOTE: For use with a standard remote control.
Multiple code choices are included with your fan’s remote control in case:
• you have more than one remote control fan and want them to respond only to their own remote control
• you have other radio controlled devices in your home that may interfere with the fan remote control (i.e. garage door
opener)
• you experience radio interference on a chosen frequency (code setting)
Se t -u p a n d op e r a t I n g In S t r u c t I o n S
Setting the code:
This unit has 16 different code combinations. To set the code, perform these steps:
1. Setting the code on the TRANSMITTER:
a. Remove battery cover.
b. Slide code switches to your choice of ON or OFF position. Use a small screwdriver or ball point pen to slide
each switch firmly up or down.
c. Install 9v battery (not included).
d. Replace battery cover on transmitter.
2. Setting the code on the RECEIVER:
a. Locate the code switches on the bottom of the remote receiver.
b. Slide code switches to the SAME POSITIONS as set on your transmitter.
Operating buttons on the transmitter:
HI – fan high speed
MED – fan medium speed
LOW – fan low speed
FAN OFF – fan speed off
LIGHT – light brightness and off
FOR/REV – forward or reverse (down or up) air flow
• The light function is controlled by pressing the light button. Hold button down to increase or decrease light bright-
ness. Tap button quickly to turn light off or on.
• Keep pressing the button for more than one second to dim the light and vary it cyclically from dim to bright and back again.
• The light button has auto return (memory function), so it will stay at the same brightness as the last time it was turned off.
• Range of the transmitter is approximately 25 ft.
Manual Forward and Reverse is located on the top of the fan (Fig. 1).
Fig. 1
FOR / REV

WARM MONTHS
Forward (counterclockwise)
COOL MONTHS
Reverse (clockwise)
op e r a t I n g B u t t o n S o n t h e tr a n S m I t t e r
HI – fan high speed
MED – fan medium speed
LOW – fan low speed
FAN/OFF – fan speed off
LIGHT – light brightness and off function for uplight
FOR/REV – forward and reverse
• The light functions are controlled by pressing the light button. Hold button down to
increase or decrease light brightness. Tap button quickly to turn light off or on.
• Keep pressing the button for more than one second to dim the light and vary it
cyclically from dim to bright and back again.
• Range of the transmitter is approximately 25 ft.
• Forward/Reverse Direction:
Forward is a counterclockwise rotation of the blades when viewed from beneath
the fan. This will create a downward breeze that can be felt below the fan. This is the
normal direction for the fan to run when the weather is warm.
Reverse (clockwise) will draw air up through the blades and towards the ceiling, down
the walls, and into the living space during the cooler months.
IMPORTANT: To prevent damage or cause injury, be sure that fan is switched to off and blades have stopped
moving completely before attempting to change direction of rotation.
11
Op e r a t i O n
1. If fan will not start: Check main and branch circuit breakers and/or fuses. Check line wire connections to fan and switch
housing wiring. Make sure forward/reverse switch is set to one or the other position, not stuck in between.
2. If fan is noisy: Check and make sure that all screws in motor housing are snug (but not over tight). Check that the screws
securing blade brackets to the motor are tight. Check that wire connectors in switch housing are not rattling against each other
or the interior wall of the switch housing. Check that all glassware is finger tight and that bulb(s) are well held in the sockets,
if a light kit is used. Check that the canopy is firmly attached to hanging bracket and not vibrating against ceiling.
3. If fan wobbles: Check that all blades are firmly screwed into blade arms. Check that all blade arms are firmly secured to the
motor. Make sure that the light kit (if present) is firmly attached to switch housing and that all glassware and shades are
fastened properly. Wobble can also result from even the smallest deviations in distance from blade tip to blade tip - if
measurements from blade tip to blade tip are not equal, loosen screws connecting blade to bracket one at a time and adjust
blade(s) so that distances are equal. Interchanging adjacent blades may redistribute mass and result in smoother operation.
Blade arms can be bent slightly to restore same pitch to all blades if a blade is different than the other blades when viewed
edge on.
tr O u B l e s h O O t i n g - in Ca s e O F di F F i C u l t y

th a n k y O u F O r p u r C h a s i n g a re g e n C y Ce iling Fa n .
Write to us at:
Regency Ceiling Fans
P.O. Box 730
Fenton, MO 63026
For additional troubleshooting tips,
visit us on the Web at: www.regencyfan.com
1/08 Regency Ceiling Fans
Periodic cleaning of your new ceiling fan is about the only maintenance that is needed. Only use a soft brush or lint free cloth to
avoid scratching the finish. DO NOT use water when cleaning your ceiling fan. It could damage the motor or the wood blades,
and/or create the possibility of electrical shock.
NOTE: Periodically it may be necessary to re-tighten blade screws to prevent clicking or humming sound during
operation. This is especially true in climates with broad temperature and humidity ranges and in fans with painted or high gloss
blades.
NOTE: When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to
the blades.
Ca r e a n d Cl e a n i n g
