Reginox Amanzi User manual

USER MANUAL

Please read and follow our step by step guide to the installation, operation and care for the
electronic instant hot water appliance and you will soon be making that first cup of coffee or
tea from your new appliance.
We are delighted that you have chosen our instant boiler and tap. This unique electronic
instant hot water appliance will save you time and effort when requiring near boiling water
for making tea and coffee and we are sure you will discover many new uses each day.
WHAT YOU NEED TO KNOW BEFORE YOU STAT
For your safety and satisfaction please read all the instructions, cautions and
warnings before installing or using this electronic instant hot water appliance.
This electronic instant hot water appliance is not intended for commercial use
IMPORTANT NOTICE: This product can cause harm if installed incorrectly and
should only be installed by a competent person, if you feel for any reason
unsure about the installation please contact a qualified plumber or electrician to
ins-tall the appliance.
Make sure all electrical wiring and connections conform to local standards.
Make sure all water connections conform to local standards.
A standard 220/240v grounded 13 amp switched electrical outlet is required
under the sink for the electronic instant hot water appliance electrical power and
must supply electrical power continuously to the appliance.
The power outlet must be connected to the 13amp fused plug supplied.
The instant hot water appliance is an open vented system appliance when
not being operated the pressure is 1.0bar.The operating pressure is 1.5
bar to 5 bar.
The water filter must be connected to the electronic instant hot water appliance.
Failure to change filter every 6 months may invalidate your warranty.
Equipment Required:
Tape Measure Adjustable Wrench

SAFETY INSTRUCTIONS PLEASE READ BEFORE YOU STARTCOMPONENTS INCLUDED
The alert symbols displayed on the right point to
important safety information to make you aware of
potential hazards that can cause serious injury or
death. Please pay special attention to the
informaion following these warning alerts. Failure to
comply with these instructions could result in
property damage, serious injury or death.
Electric Shock: Using an ungrounded connection or improper connection
of the power supply to the product can result in a serious injury or death
from electrical shock.
Electric Shock: Do not remove the earthing terminal
Do not reconstruct the plug
Do not disassemble main box and any part for the power.
Please read this chapter carefully for your own safety and the safety of
those around you. Please read the safety information in this instruction,
installation guide and on the product in order to install and use the product
accordingly, so as to avoid any injury. The safety information will tell you
what the potential danger is, how to avoid it, and identify what will happen
if you do not operate following the instruction.
Important
The instructions are only intended as a guide, if there is any doubt then
please contact a certified plumber or electrician or point of purchase and
avoid using the product until it has been checked.
The electronic instant hot water appliance is supplied with the following:
Electronic Instant Hot Water Appliance with 13amp UK Plug
The water connections are to allow correct connections from the instant
hot water tap to the electronic instant hot water Appliance.
Inlet and Outlet Connectors 3/8"BSP to Silicon
Inlet and Outlet Connectors 3/8"BSP to 1/2"BSP.

When using all electrical appliances, basic safety precautions should
always be followed including the information below:
To protect against electrical shock, do not place cord, plugs or unit near or
in water or other liquids and do not operate the electronic instant hot water
appliance controls or power socket with wet hands.
Check the power rating of your electronic instant hot water appliance is
suitable for the power rating of the electrical circuit it is being installed on.
Do not operate or install the electronic instant hot water appliance if it
appears to have any missing parts, be damaged / faulty eg damaged cord,
plug.
Do not use outdoors or in a damp area.
Do not use the electronic instant hot water appliance for anything other th-
an the intended Domestic use.

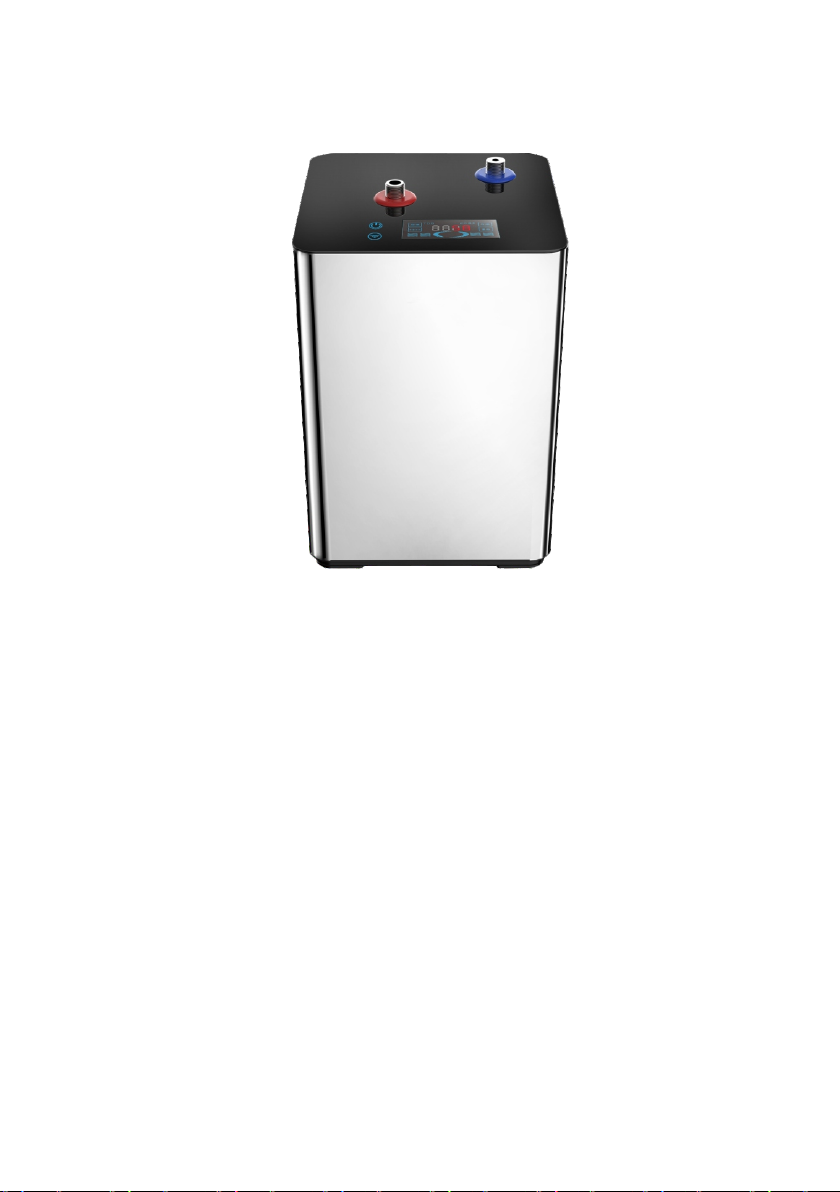

The electronic instant hot water appliance must be installed vertically as
shown on front cover with inlet and outlet connections at the top of
appliance.
Ensure the front of the unit is visible and the front temperature dial can be
easily reached.
Do not attempt to open, modify or service this electronic instant hot water
appliance. Repairs should be carried out by Authorised Service
personnel. Opening the unit may void the guarantee.
The instant hot water appliance is an open vented system appliance
when not being operated the pressure is 1.0.bar. The operating
pressure is 1.5 bar to 5 bar.
Turn off all controls before unplugging.
Do not unplug by pulling the cable. To unplug, grasp the plug, not the cable.
Property Damage: To avoid the risk of flooding, regularly inspect the unit for any
signs of leakage.
This electronic instant water appliance is not intended for use by
persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have
been give-n supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the electronic instant hot water
appliance or instant hot water tap, a safety spring back handle is used to
control the flow of the near boiling water for additional safety.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS CAREFULLY

INSTALLATION REQUIREMENTS
A 220/240-volt, 50 Hz, AC -only 13 amp fused, grounded electrical power
supply is required. It is recommended that a separate circuit serving only
electronic instant hot water appliance be provided or use an outlet that
can be turned on/off by a switch.
This electronic instant hot water appliance is equipped with a power supp-
ly cord with a power plug. To minimise possible shock hazard, the cord m-
ust be plugged into mating, ground-type outlet, grounded in accordance
with all national and local codes and ordinances.If a socket outlet is not
available, it is the responsibility and obligation of the customer to have a
properly grounded outlet installed by a qualified electrician.
Don’t install the electronic instant hot water appliance outdoors or in
location that may fall below zero degrees C, otherwise the pipes and the
tap will be frozen and there will be serious safety trouble, possible
bodilyinjury, accidents and damage caused.
It’s forbidden to wash the electronic instant hot water appliance with water
directly.
The installation environment should be ventilated, with protection from
the direct sunshine.
When installing the electronic instant hot water appliance, provide
approximately 10cm to 15cm (4-51/2") of air space on the sides of the unit
for air circulation and approximately 2.5cm(1") from the mounting wall.
The environment humidity should be in the range of 10% to 60%. Be sure
there is no dew.
If local codes permit, the instant hot water tap feed line should be
connected to the hot and cold water supply line using isolation valves or
another means for providing the hot and cold water to the tap.
IMPORTANT: If local codes do not permit the use of isolation valves,
special feed valves can be obtained from your local plumbing supply
distributor.
Connecting a standard Tap may cause injury and will damage the
electronic instant hot water appliance and void the guarantee. Due to high
water temperature, and for safety reasons, the electronic instant hot
water appliance is not under pressure.

PREPERATION FOR INSTALLATION
INSTALLATION
Unlike other household hot water appliances, this electronic instant hot
water appliance is Non Pressurised for safety reasons. For this electronic
instant hot water appliance, the Instant Hot Tap is placed before the
electronic instant hot water appliance, creating an "open vent" system
and consequently no pressure is built up inside the appliance.
IMPORTANT: Install the Instant Hot Water Tap in accordance with the
fitting Instructions provided with the Hot Water Tap.
Preparation for the electronic instant hot water appliance
installation
IMPORTANT: Observe all local governing codes and
ordinances.
The electronic instant hot water appliance must be mounted vertically and
level.
Before you begin, select a suitable location ideally directly under the
instant hot water tap or close to it to ensure the connection pipes will
connect from the instant hot water tap to the electronic instant hot water
appliance.
The electronic instant hot water appliance is not under pressure,
consequently, there is a slight delay in water flow after the Hot Water
Handle has been turned on. This is normal and indicates that the
electronic instant hot water appliance is functioning properly.
It is recommended that you have access to a separate power circuit
serving only your electronic instant hot water appliance. See previous
pages for more information on “ELECTRICAL REQUIREMENTS”.
Ensure that the electronic instant hot water appliance is placed so that
you will be able to view and reach the touch control on the front face for
adjustments.
Step
1–
Ensure the electronic instant hot water appliance is NOT connected to the
Electric Power during installation.
Place the electronic instant hot water appliance in position and check to
ensure that the instant hot water tap connection pipes and the power cord
will reach without being stretched.
The electronic instant hot water appliance must be positioned so the
tubes from and to the instant hot water tap do not twist or kink.

The electronic instant hot water appliance inlet connection is a 3/8"BSP
male threaded connector. The outlet connector is 3/8"BSP male thread
connected to a push on connector.
Check the connections type and size on the instant hot water tap for the
inlet connections.
Put the 3/8"BSP to Silicon adapter on the hot water outlet and put
3/8"BSP to 1/2"BSP adapter on the cold water inlet. Screw both adapters
with wrench.
Connect the tank with the tap according to the boiling water tap manual.
Fitting a pressure reducing valve to the cold mains inlet if the mains
pressure is above 5bar. Tighten with a wrench and move to check if the
complete installation leaks.
INSTALLATION CONTINUED
Step 2– Connect Tap
Step 3 Priming and Checking for Water Tightness–
Before the electronic instant hot water appliance is plugged into the power
socket it must be tested for water tightness and no leaks.
Open all water valves to allow water to flow to the instant hot water tap.
Turn the spring back instant hot water handle and hold to fill the electronic
instant hot water appliance this will take about 90 seconds.
When the electronic instant hot water appliance is full, water will flow from
the instant hot water tap spout.
Turn the instant hot water handle off and check all connections for water
tightness and leaks.
Any leaking joint must be tightened to ensure no water leakage and the
above priming undertaken again and checked for water tightness before
connecting to the power socket.

Connect the plug to the power socket and turn on the power socket at the
switch.
The electronic instant hot water appliance display panel will now light up
with the on/off
INSTALLATION CONTINUED
Step 4–
Step 5–
Electronic Control Display Panel
ON/OFF to control the power. The light will illuminate Green.
Temperature setting: press to select one of 5 temperature:
75℃,85℃,90℃,95℃,98℃
IN
OUT

INSTALLATION CONTINUED
If the electronic instant hot water appliance is empty of water and is turned
ON then this will be automatically sensed, the display will show "E3". The
tank needs to fill with water through the boiling water control handle on the
tap.
When the display shows "E4", please unplug and plug the boiler. If the
problem still exists, please contact service center to have the tank
checked and repaired.
lf the electronic instant hot water appliance is not powered off or filled with
water then after approximately 5 minutes the electronic instant hot water
appliance will automatically power down until it is primed with water using
the instruction set out earlier.
Once the Temperature is set the light will show Red while the tank is being
heated. Once the temperature has been reached the light will turn to
Green
When the instant hot water is drawn from the instant hot water tap or the
water temperature falls in the electronic instant hot water appliance falls
below the required temperature setting then it will automatically re heat to
the required temperature setting.
To turn off the electronic instant hot water appliance at any time push the
off button.

NOTICE MAINTENANCE AND CARE INSTRUCTIONS CONTINUED
Maintenance & power Saving
The electronic instant hot water appliance like any water heater has a
limited operational life span and will eventually fail. ln order to ensure
maxim-um protection and to avoid possible damage to any property or
personal injury the electronic instant hot water appliance should be
inspected regularly for any water leakage or damage.
Regularly check for any signs of water leakage, if there is any water
leakage then replace any loose or split silicon tubes or flexi tails which can
cause water leakage and damage.
To provide additional water security to avoid property damage the
electronic instant hot water appliance can be placed in a drain pan and
connected to a suitable drain outlet to avoid any water damage. The drain
pan should be installed using the manufacturers installation instructions.
lf the electronic instant hot water appliance is not being used for long
periods of time ie:
over 7 days, to save power we recommend you switch off using
the"ON/OFF"switch.
Seasonal Shutdown
The hot water system(tank and tap)must not be exposed to freezing
temperatures. lf there is a possibility of this the system must be drained of
water. Shut-off the mains supply and unplug the unit from the electricity
mains and allow the tank to cool for at least 1 hour. Disconnect the inlet
supply to the tank and remove the silicone hose outlet pipe, lift the unit to
the sink, turn upside down and drain all the water from the tank. When
reinstalling follow the original installation instructions.

TROUBLE SHOOTING
WaterandSteam is
spitting from the instant
hot water tap spout
Unit is boiling
Turn the instant hot
water tap handle on
and release the water.
Pressure is lower than
1.5 bar or higher than
5 bar
Check the pipe pressure.
Check if aerator is blocked
and remove the dirts in
the aerator.
Water is not hot.
The electronic instant
hot water appliance is
unplugged.
Make sure the electronic
instant hot water
appliance is plugged in
and connected to a
grounded electric outlet
Make sure that the
circuit breaker and fuse
are working correctly
Re-set the temperature
to the lower
temperature
Water temperature
setting is set to high
temperature.
Water is too hot.
Water is dripping from
the instant hot water
tap spout.
The expansion
chamber isn’t draining
the system correctly
due to very small draw
off water
Draw off 0.5L of water
to clear and prime the
system. Avoid less
than 150ml draw offs
of water.
The spout is blocked Remove and clean the
aerator
PROBLEM POSSIBLE CAUSE WHAT TO DO

TROUBLE SHOOTING
Slow Flow from the
spout
Water Filter may be
clogged from impurities
in the inlet mains water
The water filter must be
changed every 6 months
or this will void
guarantee
Remove the electronic
instant hot water
appliance as per the de
scaling instructions and
flush through all pipes
to ensure water flow.
PROBLEM POSSIBLE CAUSE WHAT TO DO
Water does not flow
straight away
The electronic instant
hot water appliance is
design for non
pressurisde operation
and there will be slight
delay till the near boiling
water appears
After a large volume of
water has been drawn
off there may a slightly
longer delay in the water
appearing from the
instant hot water tap
spout
Turn on all the water
valves
Water Valves have
been turned off
No Water Flowing
Inlet Pipes have been
twisted or blocked
Ensure the pipes are
not twisted or kinked
to restrict flow
Remove and clean the
aerator
IF YOU ARE IN ANY DOUBT THEN POWER OFF THE ELECTRONIC
INSTANT HOT WATER APPLIANCE AND CALL THE SERVICE AGENT

For Service Request please contact:

Check out our full range of Kitchen Products
Kitchen Sinks
Stainless Steel Kitchen Sinks
Granite Composite Kitchen Sinks
Glass Kitchen Sinks
Ceramic Kitchen Sinks
Franke Kitchen Sinks
Kitchen Taps
Contemporary Kitchen Taps
Traditional Kitchen Taps
Franke Kitchen Taps
Pull out Rinser Kitchen Taps
Instant Boiling Water Taps
Insinkerator Waste Disposal Units
