Remex 20 User manual

TECHNICAL MANUAL
FLEXIBLE DISK SYSTEMS
MODELS: REMEX 20, REMEX40
REMEX 24, REMEX 48
~,PMral
Products

112670-108E
TECHNICAL MANUAL
FLEXIBLE DISK SYSTEMS
MODELS: REMEX 20, REMEX40
REMEX 24, REMEX 48
IMPORTANT INFORMATION
Changes to the equipment which are made between manual
printings
are Iisted in an addendum at the rear of the manua I.
As a convenience, alist of change pages is given aS,the last
page ~n the manua I. It is recommended that each of these
pages
be marked II Refer to Addendum" so that these changes
can be
identified.
EX-CELL-O CORPORATION
/(EMEX
1733 AltonSt •• P.O. Box e-19533 oIrvine, CA 92713

FOR YOUR SAFETY
Before undertaking any maintenance procedure, whether it be a specific trouble-
shooting or maintenance procedure described herein or an exploratory procedure
aimed at determining whether there has been a malfunction, read the applicable
section of this manual and note carefully the ~ and
~:oe~J contained therein. ~
The equipment described in this manual contains voltages hazardous to human life
and safety and may contain mechanical components capable of inflicting personal
injury. The cautionary and warning notes are included in this manual to alert
operator and maintenance personnel to the electrical and mechanical hazards and
thus prevent personal injury and damage to equipment.
This equipment genera~es, uses, and can radiate
radio frequency energy and if not installed and
used in accordance with the instructions manual,
may cause interference to radio communications.
As temporarily permitted by regulation it has
not been tested for compliance with the limits
for Class A computing devices pursuant to Sub-
part J of Part 15 of FCC Rules, which are de-
signed to provide reasonable protection against
such interference. Operation of this equipment
in a residential area is likely to cause inter-
ference in which case the user at his own expense
will be required to take whatever measures may be
required to correct the interference.
CopyrightC 1979 by REMEX, a division of EX-CELL-O
Corporation. Printed in the United States of
America. All rights reserved. This book or parts
thereof may not be reproduced in any form without
permission of the publishers.

SELLER warrants to the original BUYER only that the products will be free
from defects in material or workmanship for the following periods, whichever
is applicable: (i) Software and firmware products, thirty (30) days from
date of shipment; (ii) Punch mechanism. products, ninety (90) days from
date of shipment; (iii) Flexible disk drives and disk system products, one
hundred
eighty (180) days from date of shipment; (iv) All other paper tape
products, one (1) year from date of shipment; and (v) All other products,
ninety (90) days from date of shipment. Any product, or part thereof, which
under normal operating conditions proves defective in material or workmanship
within the time period applicable to such product, as determined by an inspec-
tion by SELLER, will be repaired or replaced, at SELLER'S option, free of
charge provided BUYER: (i) Promptly notifies SELLER of the defect; (ii)
Returns the defective product to SELLER, transportation prepaid; and (iii)
Establishes that the product has been properly installed, maintained, and
operated in accordance with SELLER'S instructions or the instructions con-
tained in its operations or maintenance manuals and within the limits of
normal usage. SELLER'S warranty as to software and firmware shall be void
and of no effect if changes or additions have been made to the software or
firmware (or if the software or firmware has been adapted by the BUYER) to
serve a function not within the system specifications of SELLER.
All replacement products, or parts thereof furnished under this warranty,
will be invoiced in the usual manner and adjustments . will be made after the
product, or part thereof, claimed to be defective has been returned to and
inspected at SELLER'S plant. Replacement products, or parts thereof, fur-
nished under this warranty shall be F.O.B. BUYER'S plant, and SELLER shall
not be responsible for installation costs. (For all international transac-
tions, replacement products shall be furnished F. o. B. SELLER'S plant and
BUYER shall be responsible for all customs and brokerage fees.) BUYER shall
'be liable for all freight, inspection and handling costs if such product or
such parts do not prove to be defective. In no event will any claim for
labor or incidental or consequential damages be allowed for removing or re-
placing a defective product. No warranty is made as to any product or part
which has been subject to misuse, abuse, accidents, or alteration, or to
improper or negligent use, maintenance, storage, transportation or handling.
BUYER will be provided with brand names of recommended media. Since consis-
tency of media quality cannot be guaranteed from lot to lot, SELLER does not
warrant that the published specifications for media wear will always be
achieved.
The liability of SELLER under this warranty, or for any loss or damage to the
products whether the claim is based on contract or negligence, shall not in
any case exceed the purchase price of the products and upon the expiration of
the warranty period all such liability shall terminate. The foregoing shall
constitute the exclusive remedy of BUYER and the exclusive liability of SELLER.
The terms of this warranty do not in any way extend to any product which was
not manufactured by SELLER or an affiliate of SELLER.

This warranty shall be vo~a, and SELLER shall no~ De liable for any breach
of warranty, if the product or parts shall have been repaired or altered by
persons other than SELLER, unless expressly authorized by SELLER in writing.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WAB.RANTIES
EXPRESSED OR IMPLIED. ALL IMPLIED WAB.RANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED BY SELLER AND ARE EXCLUDED
FROM THIS AGREEMENT. SELLER SHALL NOT BE LIAB:4E FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ~ BREACH OF WARRANTY.
LIMITATION OF LIABILITY. BUYER'S EXCLUSIVE REMEDY FOR BREACH OF WARRANTY
SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS: provided, if the pro-
ducts are incapable of being repaired or replaced, BUYER'S exclusive remedy
shall be money damages, but such damages shall not exceed the purchase price
of the products.
Any claim for breach of SELLER'S warranty must be in writing addressed to
SELLER and must set forth the alleged defect in sufficient detail to permit
its easy identification by SELLER. All breach of warranty claims must be
made within thirty (30) days after expiration of t~e warranty period which is
applicable to the defective product. The appl~cable time periods are set
forth in the above warranty term. Any breach of warranty claim not timely
made will not be honored by SELLER and will be of no force and effect.
On any claim of any kind,
loss or damage arising out
ery, resale, installation,
repair, operation or use
vided in the term entitled
cable to the products.
including negligence, SELLER'S' liability for any
of, or from the design, manufacture, sale, deliv-
technical direction of installation, inspection,
of any products shall in no case (except as pro-
Patent Indemnity) exceed the pu~chase price allo-
IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT OR WARRANTY OR
ALLEGED NEGLIGENCE, SHALL SELLER BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE, LOSS OF
USE OF THE EQUIPMENT OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF
SUBSTITUTE EQUIPMENT, FACILITIES OR SERVICES, DOWNTIME COSTS, OR CLAIMS OF
CUSTOMERS OF BUYER FOR SUCH DAMAGES.
PATENT INDEMNITY. SELLER retains for itself any and all property rights in
and to all designs, inventions and improvements pertaining to any products
and to all patents, trademarks, copyrights and related industrial property
rights arising out of the work done in connection therewith. BUYER expressly
agrees that it will not assert any rights to property rights retained herein
by SELLER.

Section
I
1.1
1.2
1.3
1.4
II
2.1
2.2
2.3
2.4
III
3.1
3.2
TABLE OF CONTENTS
Title
GENERAL DESCRIPTION. • • • • • • • • •
EQUIPMENT DESCRIPTION
SPECIFICATIONS. •• •••••
EQUIPMENT SUPPLIED. • . • • • •
MODEL NUMBER DESIGNATION AND SYSTEM
CONFIGURATIONS. • • • • .
INSTALLATION AND INTERFACE • • • .
UNPACKING
MOUNTING.
INITIAL ADJUSTMENTS
POWER AND SYSTEM CONNECTIONS. • .
OPERATING INSTRUCTIONS
OPERATOR CONTROLS • • • • .
DRIVE .OPERATION •• .• • • •
Page
• • • 1-1
• 1-1
· . . . . 1-2
• • • 1-2
• • 1-3
·.... 2-1
2-1
· . . . . 2-1
• • 2-1
• • 2-2
• 3-1/3-2
••••• 3-1/3-2
. • • 3-1/3-2
IV
4.1
4.2
V
5.1
5.2
5.3
5.3.1
5.3.2
5.3.3
VI
6.1
6.2
6.3
THEORY OF OPERATION
FLEXIBLE DISK DRIVES. •
POWER SUPPLY DESCRIPTION
MAINTENANCE .•
GENERAL • • • • • • .
MAINTENANCE PROCEDURES.
ADJUSTMENT, POWER SUPPLY •.•••.
+5Vdc POWER SUPPLY ADJUSTMENT •••
+24Vdc POWER TEST.
-12V dc POWER TEST. • •
PART REPLACEMENT
GENERAL • • •
COVER REM)VAL •
POWER SUPPLY CARD REIDVAL
. . . . . . 4-1
• 4-1
· . . . . 4-1
5-1
5-1
5-1
5-1
5-1
5-2
5-3
6-1
6-1
6-1
6-2
v

Section
6.4
TABLE OF CONTENTS
(CONTINUED)
Title
TRANSFORMER REPLACEMENT •...
Page
• 6-2
vi
VII
7.1
7.2
VIII
8.1
PARTS LIST ••
GENERAL
KIT OF PARTS.
SCHEMATIC DRAWINGS •
GENERAL • • • •
. . ..,..
..
.".. .
•7-1
•7-1
•7-1
• 8-1/8-2
• 8-1/8-2

LIST OF ILLUSTRATIONS
Rear View of REMEX 20/814284 • •
Rear View
of REMEX 40/114175 ••
Figure
1-1
1-2
2-1
2-2
Title
Remex 40 System.
Installation Drawing • • ...
........
......
...
• II
Page
1-1
1-6
2-2
2-3/2-4
7-1
7-2
7-3
7-4
7-5
7-6
8-1
8-2
Top View REMEX 40/114175-XXX •••••••
Inside View, Power Supply 114180-001 • • •
Front View of REMEX 40/114175-XXX
Top View of REMEX 20/814284-XXX •••••••
Inside View, Power Supply 114280-001 •
Front View of REMEX 20/814284-XXX
System
Schematic, REMEX 20/40 •••••• ••
Schematic, Power Supply Card 114191-001.
7-15
7-16
7-17
7-18
7-19
7-20
8-3/8-4
8-9/8-10
vii

viii
Table
1-1
1-2
1-3
1-4
1-5
5-1
5-2
7-1
7-2
7-3
7-4
7-5
7-6
7-7
7-8
LIST OF TABLES
Title
Kit of Parts Supplied • •
REMEX 40 Configurations .
REMEX 20 Configurations •
REMEX 48 Configurations •
REMEX 24 Configurations •
Maintenance Equipment Required.
Power Supply Specification. • • • .
Recommeqded Spare Parts • • • • •
Parts List, REMEX 40/114175-XXX .••.•
Parts List, REMEX 40/814288-XXX •• . • • •
Parts List, REMEX 20/814284-xxx •
Parts List, REMEX 48/814290-XXX •
Parts List, REMEX 24/814286-XXX •
Cabinet Assembly 114276-001 ••••••
Printed Circuit Card Assembly, .
Power
Supply 114191-001 • • • . •
Page
1-3
1-4
1-4
1-5
1-5
5-1
5-4
7-2
7-3
7-6
7-7
7-8
7-10
7-12
7-14

SECTION I
GENERAL DESCRIPTION
~ ..
1.1
EQUIPME1~ DESCRIPTION
The REMEX 20, 40, 24 and 48 are slim line packages which contain two diskette
drives, a DC power supply and the appropriate cabinet and mounting hardware.
The power supply is identical in all models and is covered in this manual.
The REMEX 20 contains two RFD2000 or RFD2001 drives, the REMEX 40 contains two
RFD4000 or RFD4001 drives, the REMEX 24 contains two REMEX RFS2400 drives and
the REMEX 48 contains two RFS4800 drives. The drives are completely de-
scribed in their separate manuals which are shipped with the corresponding
system.
Figure 1-1. Remex 40 System. The appearance of
the 20, 24 and 48 is nearly identical.
l12670-l08A 1-1

1.2
SPECIFICATIONS
The specifications are as follows:
Drive: See appropriate drive manual
An internal fan provides air flow over the power supply heat
sinks and drive motors. Entrance air is from the rear and
exits on the left hand side. Two inches of access to these
areas must be provided when equipment is mounted in a rack
or cabinet.
+5 VDC ±0.25V @4 amps
+24VDC ±1.0V @ 1.8 amps
-12VDC ±2.0V unregulated @ 0.3 amps
100, 115 VAC ± 10%; 50, 60 Hz ± 0.5 Hz @ 2.0 Amps, Max.
or 220, 240 VAC ± 10%; 50 Hz ± 0.5 Hz @ 1.0 Amps, Max.
DC Power:
Output
AC Power:
Input
Air Flow
Requirements:
Environmental: Temperature - Operating:
Non-Operating:
Drawing
400
to 1150F with media
-30
0
to 155?F without media
Size:
Height: 5.22 inches
Width at Panel: 19 inches
Width behind Panel: 17.22 inches
Depth: 21.32 inches
See Figure 1-2, Installation
Humidity - Operating:
Non-Operating:
20% to 80% (without condensation)
5% to 98% (without condensation)
1.3
EQUIPMENT SUPPLIED
The kit of parts shipped with the various systems are listed in Table 1-1.
1-2
l12670-108A

Table 1-1.
Kit of Parts
Supplied.
REMEX
Quantity
~
Part No.
~
li .!ill ~
Bracket,
Chassis Support
114186-001 222 2
Bracket, Chassis
Support
114324-001 222 2
Bracket~ Chassis
Support
114324-002 2222
Cord, Power,
AC
708000-110 1 1 1 1
Fuse, 2A, F101 (l15VAC only)
705715-121 1
~
11
Fuse, lA, F101 (230VAC only)
705716-003 111 1
Fuse Carrier (115VAC only) ,705750-121 1 1 1 1
Fuse Carrier (230VAC only)
705750-122 1111
Manual, RFD400X/RFD200X
112670-103 11
Manual, RFS2400/4800 112670-109 11
Manual, Power
Supply
112670-108 1 1 1 1
Nut,
Hex 10-32
713501-016 88 8 8
Screw,
BHM 10-32 x 3/8
709031-806
16 16
16
16
Washer, Flat, No. 10 713521-308 8 8 8 8
Washer, Lock, No. 10 713541-306 8888
1.4
MODEL NUMBER DESIGNATION AND SYSTEM CONFIGURATIONS
The model number system is used for product identification. It includes a
basic model series number which is followed by a virgute (/) apd then a six
digit number and finally a three digit dash number. The model number is
used to code and identify a particular combination of .options used in a
given product line •. This number is printed on the serial tag and is
located on one of the rear surfaces. Those digits to the left are the basic
model series of the product line (REMEX 40, 20, 48, 24) The six digits to
the right· and the three dash dash numbers give the top assembly number of
the product. The three digit dash number is unique for any particular com-
bination of options and configurations used in the basic assembly. Tables
1-2 through 1-5 list the' various model numbers and a description of the
system configurations for the REMEX 40, 20, 48 and 24, respectively.
Consult the various drive manuals for the differences in the drives.
112670-l08B
1-3

Table 1-2. REMEX 40 Configurations
Model Number
REMEX 40/814175-001
REMEX 40/814175-002
REMEX 40/814175-003
REMEX 40/814175-004
REMEX 40/814175-005
REMEX 40/814175-006
REMEX 40/814288-001
REMEX 40/814288-002
REMEX 40/814288-003
REMEX 40/814288-004
REMEX 40/814288-005
REMEX 40/814288-006
REMEX 40/814288-007
REMEX 40/814288-008
REMEX 40/814288-009
REMEX 40/814288-010
REMEX 40/814288-011
REMEX 40/814288-012
f
I
Description
Dual RFD4000 Drives, 100-l15VAC, 50Hz
Dual RFD4000 Drives, 115VAC, 60Hz
Dual RFD4000 Drives, 220VAC, 50Hz
Dual RFD4001 Drives, 100-115VAC, 50Hz
Dual RFD4001 Drives, 115VAC, 60Hz
Dual RFD4001 Drives, 220VAC, 50Hz
Single RFD4000 Drive, 100-115VAC, 50Hz
Single RFD4000 Drive, 115VAC, 60Hz
Single RFD4000 Drive, 220VAC, 50Hz
Dual RFD4000 Drives, 100-115VAC, 50Hz
Dual RFD4000 Drives, 115VAC, 60Hz
Dual RFD4000 Drives, 220VAC, 50Hz
Single RFD4001 Drive, 100-115VAC, 50Hz
Single RFD4001 Drive, 115VAC, 60Hz
Single RFD4001 Drive, 220VAC, 50Hz
Dual RFD4001 Drives, 100-115VAC, 50Hz
Dual RFD4001 Drives, 115VAC, 60Hz
Dual RFD4001 Drives, 220VAC, 50Hz
Model Number
i
I REMEX 20/814284-001
I REMEX 20/814284-002
I REMEX 20/814284-003
I REMEX 20/814284-004
I REMEX 20/814284-005
I REMEX 20/814284-006
REMEX 20/814284-007
REMEX 20/814284-008
REMEX 20/814284-009
REMEX 20/814284-010
REMEX 20/814284-011
REMEX 20/814284-012
1-4
Table 1-3. REMEX 20 Configurations
Description
Single RFD2000 Drive, 100-115VAc, 50Hz
Single RFD2000 Drive, 115VAC, 60Hz
Single RFD2000 Drive, 220VAC, 50Hz
Dual RFD2000 Drive, 100-115VAC, 50Hz
Dual RFD2000 Drive, 115VAC, 60Hz
Dual RFD2000 Drive, 220VAC, 50Hz
Single RFD2001 Drive, 100-ll5VAC, 50Hz
Single RFD2001 Drive, 115VAC, 60Hz
Single RFD2001 Drive, 220VAC, 50Hz
Dual RFD2001 Drives, 100-115VAC, 50Hz
Dual RFD2001 Drives, 115VAC, 60Hz
Dual RFD2001 Drives, 220VAC, 50Hz
112670-108B

Table 1-4. REMEX 48 Configurations
¥JOde 1 Number
REMEX 48/814290-001
REMEX 48/814290-002
REMEX 48/814290-003
REMEX 48/814290-010
REMEX 48/814290-011
REMEX 48/814290-012
REMEX 48/814290-013
REMEX 48/814290-014
RE~~ 48/814290-015
REMEX 48/814290-016
REMEX 48/814290-017
REMEX 48/814290-018
Mode 1 Number
REMEX 24/814286-001
REMEX 24/814286-002
REMEX 24/814286-003
REMEX 24/814286-010
REMEX 24/814286-011
REMEX 24/814286-012
REMEX 24/814286-013
REMEX 24/814286-014
REMEX 24/814286-015
REMEX 24/814286-016
REMEX 24/814286-017
REMEX 24/814286-018
112670-108B
1

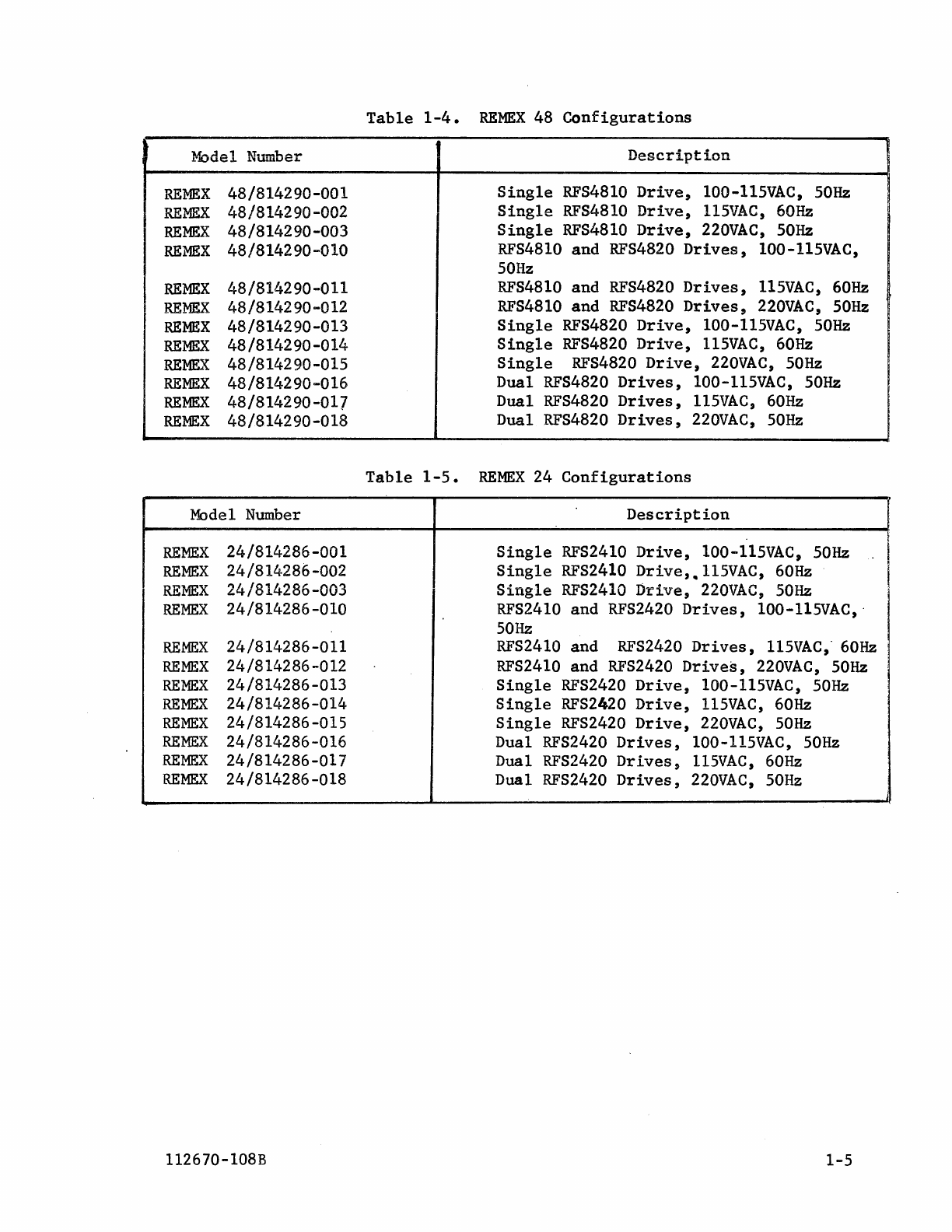

Table 1-5.
Description
Single RFS4810 Drive, 100-115VAC, 50Hz
Single RFS4810 Drive, ll5VAC, 60Hz
Single RFS4810 Drive, 220VAC, 50Hz
RFS4810 and RFS4820 Drives, 100-115VAC,
50Hz
RFS4810 and RFS4820 Drives, 115VAC, 60Hz
RFS4810 and RFS4820 Drives, 220VAC, 50Hz
Single RFS4820 Drive, 100-115VAC, 50Hz
Single RFS4820 Drive, l15VAC, 60Hz
Single RFS4820 Drive, 220VAC, 50Hz
Dual RFS4820 Drives, 100-ll5VAC, 50Hz
Dual RFS4820 Drives, l15VAC, 60Hz
Dual RFS4820 Drives, 220VAC, 50Hz
REMEX 24 Configurations
Description
!
Single RFS2410 Drive, 100-115VAC, 50Hz I
Single RFS2410 Drive,.115VAC, 60Hz I
Single RFS241Q Drive, 220VAC, 50Hz
RFS2410 and RFS2420 Drives, 100-115VAC,·
50Hz
RFS2410 and RFS2420 Drives, l15VAC,· 60Hz
RFS2410 and RFS2420 Drives, 220VAC, 50Hz
Single RFS2420 Drive, 100-115VAC, 50Hz
Single RFS2420 Drive, 115VAC, 60Hz
Single RFS2420 Drive, 220VAC, 50Hz
Dual RFS2420 Drives, lOO-115VAC, 50Hz
Dual RFS2420 Drives, ll5VAC, 60Hz
Dual RFS2420 Drives, 220VAC, 50Hz
1-5

NarES: UNI£SS OTI"/~Ii!Y:/IS6: GP£C"/~EC.
I. .4a. DIHEJ.!S'~NS ARE REt&: OMl.)'.
~ C'M4SSIS sup~r e~.4CK£r.s1 'SNEV
AI./J:> HAROW""RE" 70 A./()(/,vr 7"'!)
~/PUGN7 IMCA:: ARt: IAI KIT ar ~,rs,
LIST OF MATe:IlIALS
j;;;;;f"""-I
Y/£W A-A
.ROTAr£.O I~O·
REMEX 40/814288,
.-~V48"E
rRI/Iof srl?lP
~7"
1'1':'U1Je Af..v.~ 1# rN',s SMt:4
roe $ING<.£ DRIVIr Sl'$"1l!fM'
Installation Drawing,. REMEX 20/814284,
REMEX 48/814290 and REMEX 24/814286.
1-2. Figure
--1 19.00
(51---
17
1/0
•
!l/.32
I
In .LJt:==~==-:t:==========1 ::!!- ~I~S;:=::::LJ
I
I
.L d:c
S
===~\9~=5::::C=~~'=====_---I~8b
,---------------------------------_._----_ ..

-----.---- 17-~2 -£~~ ---
No.,4S: UJ.,JUS$ OrNEp.WI5£ SI"£C/,q/D.
/. ,l/u. CJ,U~~';&VS ,I}~ .R£'- OMf..)'.
tIl C'M45S/S SUPPORT l!J6IJCK,,'5, '!iN.V"
""NoD ",l/rl)J-.,,-9A?e 7'0 Mot/AJ.,. TO
iDSVIP~.A1T ~19t:1t: ~N t,v KIT (Y' !"AFT!;.
If~r~;r<=_~_~_~~_:_' __ C;E_,~_~
j
/
A.<:
INNr
_£R
5WI1'CN
/
..f¥i'It:)y~
TJfO,M5TRIP
st.Or
•
Installation Drawing, REMEX 40/114175.
s
Figure 1-3.
•
•
\.fS -r-----/J-.·$-5---- -_ -_ -_- _-_- _/'11_.+0
00
_-_-_-_-_-_-".-55-_-_-_-_-_-_-_-_- .... -_-,-.,
E~~~:====;;-===-~:::±::- ~~
......
I
-...J
---
......
I
00

SECTION II
INSTALLATION AND Ir..TTERFACE
2.1
UNPACKING
To provide the most protection during transit, specially designed and rein-
forced packing cartons are used to ship the REMEX System. When removing the
system from the carton, lift the system with both hands under it. Never lift
or attempt to carry the system by any covers, drive doors or other delicate
parts. Carefully inspect the unit for any apparent damage as soon as it is
removed from the carton. In the event the equipment has been damaged as a
result of shipping, the carrier and REMEX must be notified as soon as possible.
It is important that during unpacking, installation
and operation that the read/write' heads do not come
in contact with stray magnetic "fields.
2.2
MOUNTING
The system is desi~ed to operate in a horizontal mode; however, the system
will operate standing on either side. Mounting hardware and brackets are'
provided in the kit of parts. The bracket mounting is shown in Figure 1-2.
It is important that the air flow requirements given in Section 1.2 be
followed during mounting and operation and that no obstruction occurs in the
air flow path.
2.3 INITIAL ADJUSTMENTS
"Each system has been accurately adjusted and aligned before leaving the
factory. No adjustment or calibration should be required prior to install-
ation or use. Drive A has the line terminator removed and a shorting plug
has been removed from U-U and installed at u-4 on the circuit card. This
gives a Unit Ready on pin 4 of the output connector. Drive B retains the
line terminator and has the shorting plug removed from U-U and installed
at U-6. This gives a Unit Ready output on pin 6 of the output connector.
In addition, drive A has a shorting plug on DS1 which selects it as drive
1 or pin 26 and drive B has its shorting plug on DS2 which selects it as
drive 2on pin 28. See Sections 2and 3 of the drive manual for interface
signal details.
112670-108A
2-1

2.4 POWER AND SYSTEM CONNECTIONS
AC power is applied to FLIOI at the rear of the system via the supplied power
cord. See Figure 2-1 for rear view. It is also necessary to install the fuse
FlOl and fuse carrier supplied in the kit of parts. The power switch SlOl is
also located at the rear of the unit and must be placed in the ON position
before operating the system. REMEX 20 and 40 units are provided with a daisy
chained 50-wire flat ribbon cable and connector. REMEX 24 and 48 units are
provided with a 34-wire flat ribbon cable and connector. A connector is also
provided (REMEX 24 and 48 only) for connection of an expansion chassis (if
used). Refer to Section 2.4 in the drive manuals for the signal interface
descriptions for the particular drive being used.
~J
Always consult the serial number tag for proper
voltage and frequency to be used. Failure to do so
could result in damage to the unit. It is not
recommended that the power supply or drives be
changed in the field to accept a voltage or
frequency other than that listed on the serial
number tag. See Tables 1-2 through 1-5 for
model number explatations and the required
voltage and frequency.
FUOl S101
I
I/0 CABLE flOl
Figure 2-10 Rear View of REMEX 20/814284.
The rear view of REMEX 40/814288,
48/814290 and 24/814286 is identical.
2-2 112670-108B

110 CABLE
FUOl S.JOl
I
F10l
Figure 2-2. Rear View of REMEX 40/114175.
112670-108B
2-3/2-4

SECTION III
OPERATING INSTRUCTIONS
3.1
OPERATOR CONTROLS
The system operates under control of acomputer or microprocessor except for
loading and unloading diskettes. Apower ON-OFF switch is provided on the
rear panel. An indicator in the door opening button indicates when a drive
is busy. The button is also mechanically interlocked to prevent opening
of the door when the drive is s,elected. Drive A is defined as the drive on
the operator's left and,drive B is on the right.
3.2 DRIVE OPERATION
The loading and unloading of diskettes and the various modes of operation
for each of the drives is contained in Section ,3 'of the particular drive
manual.
112670-108A
3-1/3-2
