Before you begin
Welcome
The system you are about to install comes factory pre-loaded with EMC®Celerra®Network Server
software (DART) and CLARiiON®storage array software (FLARE®).
Software upgrade
If you bought a software maintenance contract, you are entitled to software upgrades only after the
installation, Celerra Startup Assistant (CSA), and registration have successfully completed.
Site preparation
Complete the site preparation by verifying the following activities before installation:
• Network connections
• Power requirements
• Rack space requirements
Default IP addresses
The system components communicate with each other using a private Internet Protocol (IP) network.
By default, this network uses the IP addresses listed in the following table.
If your existing IP network uses addresses on these subnets, you are required to change the private
network addresses of your Celerra Network Server to different subnets before the installation.
Primary internal network 128.221.252.100
Backup internal network 128.221.253.100
Netmask 255.255.255.0
IP address of storage processorA 128.221.252.200
IP address of storage processor B 128.221.253.201
Gateway IP address of storage processorA 128.221.252.104
Gateway IP address of storage processor B 128.221.253.104
Internal system addresses Factory values

4
Installation overview
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
This CD contains the intellectual property of
EMC Corporation or is licensed to EMC Corporation
from third parties. Use of this CD and the intellectual
property contained herein is expressly limited to the
terms and conditions of the License Agreement.
EMC® Celerra® NS20
Back Next Cancel
EMC® Celerra® NS20 System
Tutorial
CSA Installation
P/N nnn-nnn-nnn-A0n
EMC®
Tutorial
CSA Installation
P/N nnn-nnn-nnn-A0n
Step 4. Register with the
service provider.
Implementation
Step 3. Install using the
Celerra Startup Assistant.
Step 2. Assemble and cable
the Celerra NS-120 on site.
Step 1. Order the Celerra NS-120
and prepare the site.
Installation
!!
!
!!
Step 5. Configure for production. CNS-001465

5
Installation overview steps
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
Installation steps:
1. Review and complete the Celerra worksheet, pages 31-32,and verify that the site is properly
prepared for the installation of your Celerra NS-120.
About 20 minutes.
2. If your Celerra NS-120 is to be installed in a customer-supplied rack, use this document to unpack
the system from the mini-rack shipping container, remove the reusable rails, and install the system
in your available rack.
About 40 minutes.
Note: If your Celerra NS-120 system arrived at your site in a pre-installed cabinet and is
previously cabled, verify the cabling before you begin the use of your system.
Cable your system according to the instructions and illustrations contained in this document.
Ensure that all of your cables are seated securely.
About 45 minutes.
3. When you install your Celerra NS-120, use the Celerra Startup Assistant (CSA) to pre-configure
your system. The latest version of the CSA can be downloaded from the Celerra Tools section on
Powerlink®.. The CSAis also on the Celerra Applications & Tools CD.
About 15 minutes.
4. Register your system with the service provider. If you do not register your system now, using the
Celerra Startup Assistant, your request for support from your service provider will be delayed.
You can also register your Celerra NS-120 by downloading the Registration Wizard on Powerlink.
About 5 minutes.
Implementation step:
5. After you have registered your Celerra NS-120 system, you must configure the system for
production. You can use the Provisioning Wizard in the CSA, one of the several pre-packaged
implementation configurations based on common usages, or your own implementation using
Celerra Manager to configure your system. At the end of each one of these configurations,
your system will be ready for production.
Note: If your Celerra NS-120 system has the Fibre Channel-enabled option use
Navisphere®Manager to provision storage for use by other Hosts.

6

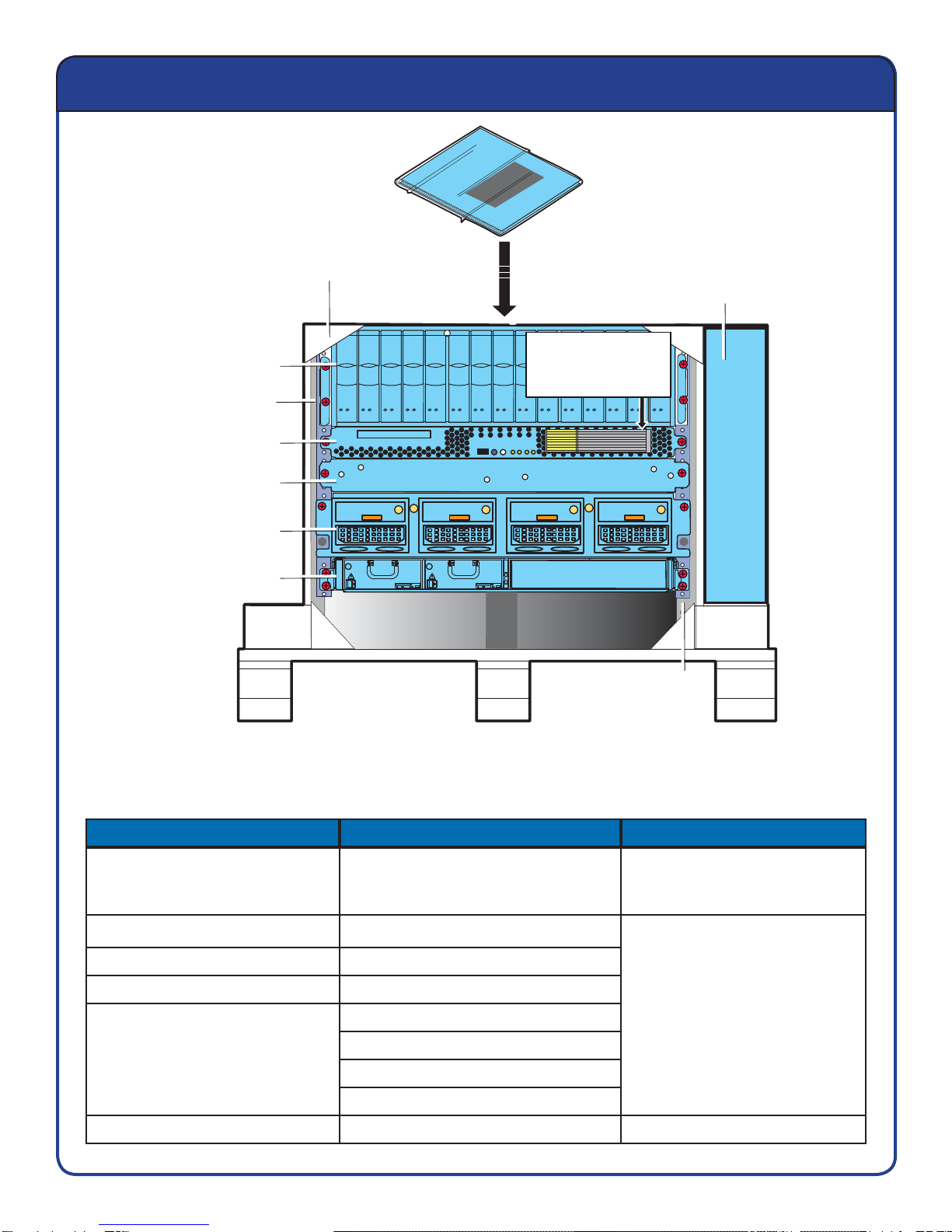

Unpacking the Celerra NS-120 system
If your Celerra NS-120 system was purchased and shipped in an EMC 40 Unit cabinet, (70 in.
where1 unit =1.75 in.), start on page 15 of this document and confirm that the cables are installed
correctly and securely; otherwise start unpacking your Celerra NS-120 system from the disposable
mini-rack shipping container.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
CNS-001471

7
Note: The table represents components that are shipped with Celerra’s disposable mini-rack.
If additional accessory boxes are necessary they will be shipped separately.
Front
Shrink-wrapped Installation Guide,
environmental information and notices
Disposable mini-rack
Accessory box
CNS-001463
Disk-array
enclosure (DAE)
Standby power
supply (SPS)
Control Station
(CS)
Blade enclosure
Storage processor
enclosure (SPE)
Ganged rails
Remove this label and
paste it on the back of
the front cover of this
installation guide.
Ganged rails
Contents of package
Disposable mini-rack Accessory box Document inventory list
Disk-array enclosure Standby power supply interconnect
cable kit
Installation guide with storage
processor options and cabling
diagrams
Ganged rails Fibre Channel cables
Environmental compliance
information and notices
Control Station Power cables
Standby power supply Serial cables
Storage processor enclosure
Crossover cables
Ethernet cables for internal network
Bezels
Hardware for non-factory installs
Blade enclosure
For more information, refer to Celerra Tools on http://Powerlink.EMC.com

8
Remove components from shipping container
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
2. Carefully set aside each component as
it is removed from the mini-rack shipping
container.
Caution: Two people are required to remove the components. Only remove screws holding
the components in place at this time. Do not remove the screws holding the rails in place; this
may cause damage to the components. Only remove one component at a time.
3. The reusable ganged rails
remain in the mini-rack at this time.
1. Using a Phillips-head screwdriver, remove only 7 screws per side. Keep the removed screws
to install the components in the rack.
Front
Mini-rack
2 Control Station (CS)
4Storage processor
enclosure (SPE)
3 Standby power
supply (SPS)
1Disk-array
enclosure (DAE)
5Blade enclosure
Remove ONLY
7 screws
per side.
Remove ONLY
7 screws
per side.
CNS-001457
Disk-array
enclosure
Standby power supply
Control Station
Blade enclosure
Storage processor enclosure
1
2
3
5
4
Remove this label and
paste it on the back of
the front cover of this
installation guide.
TLASerial Number
ModelNumber
DARTVersion
FlareVersion
UnitTested
Pre-Configured
MACAddress
SPAIP:192.168.1.200
SPBIP: 192.168.2.201
Ganged rails
!

9
Remove ganged rails from shipping container
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
Remove the screws holding the component rails in place in the disposable mini-rack.
Keep the screws to install the ganged rails in your rack.
Rail slide with extensions
Remove 2 screws
each side.
Disposable mini-rack
Remove the ganged rails
from mini-rack.
Remove the ganged rails
from mini-rack.
CNS-001459MOD
Rail slide with extensions
Front of rack
Threaded
screw holes
Ganged rails
Ganged rails

10
Note: The ganged rails must be aligned carefully. Two people are required to install the components.
1. Insert the rail slide and seat both rail extensions into the rear channel of your rack. We
recommend placing the top rail pin into the hole just above a National Electrical Manufactures
Association (NEMA) Unit (U) marker.
2. Align the front of the ganged rail as shown below. Insert two retention screws in the front and
back of each rail. See the following illustration.
3. Do not fully tighten the retention screws yet. Allow some adjustment space for the installation of
the components.
Install rails into site rack from the front
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
1
7
13
16
17
18
19
21
22
23
3
10
Install the retaining screw in
hole 2 of the rail.
Rear of rack
Front of rack
Ganged rail slide
Install 2 retaining screws
on each side of your rack
to hold the rails in place.
2nd screw hole
from top
CNS-001455MOD
5th screw hole
from bottom
Detail
1 Unit = 1.75 in.
ganged rails
Ganged rails
extensions
After inserting the rail
extensions, install 2 screws
on each side of your rack
to hold the rails in place.
Rail extensions
5
2nd screw hole
from the top of the rail
5th screw hole
from the bottom
of the rail
Install the retaining screws
Threaded
screw holes
Threaded
screw holes
1
2
3
4
6
7
8
9
10
11
12

11
Install components, latches, and bezels
1. Starting with the bottom component first, install each component.
2. Fully tighten the retention screws and ensure that each component is installed securely.
3. Install the needed latches, as you install the components.
4. After all the components and latches are in place, snap on the bezels.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
2 screws per side
Front
A and B sides
bezel bracket
Disk-array enclosure (DAE)
2 bracket screws each side
Install the bottom component first.
Ensure that each component
is secure before you install the
component above it.
1
2
3
4
5
CNS-001461MOD NEW
Rail catch
1 screw per side
Control Station (CS)
Standby power supply (SPS)
Storage processor (SP)
Front
Snap on bezels
Press to install the bezel,
then release.
Press
The indentation goes
toward the inside of
the rack.
Install the lower
screw first with 2 screws
on each side.
Right front side
Inside
Blade enclosure
1U latch, 2 screws each side
Inside

12

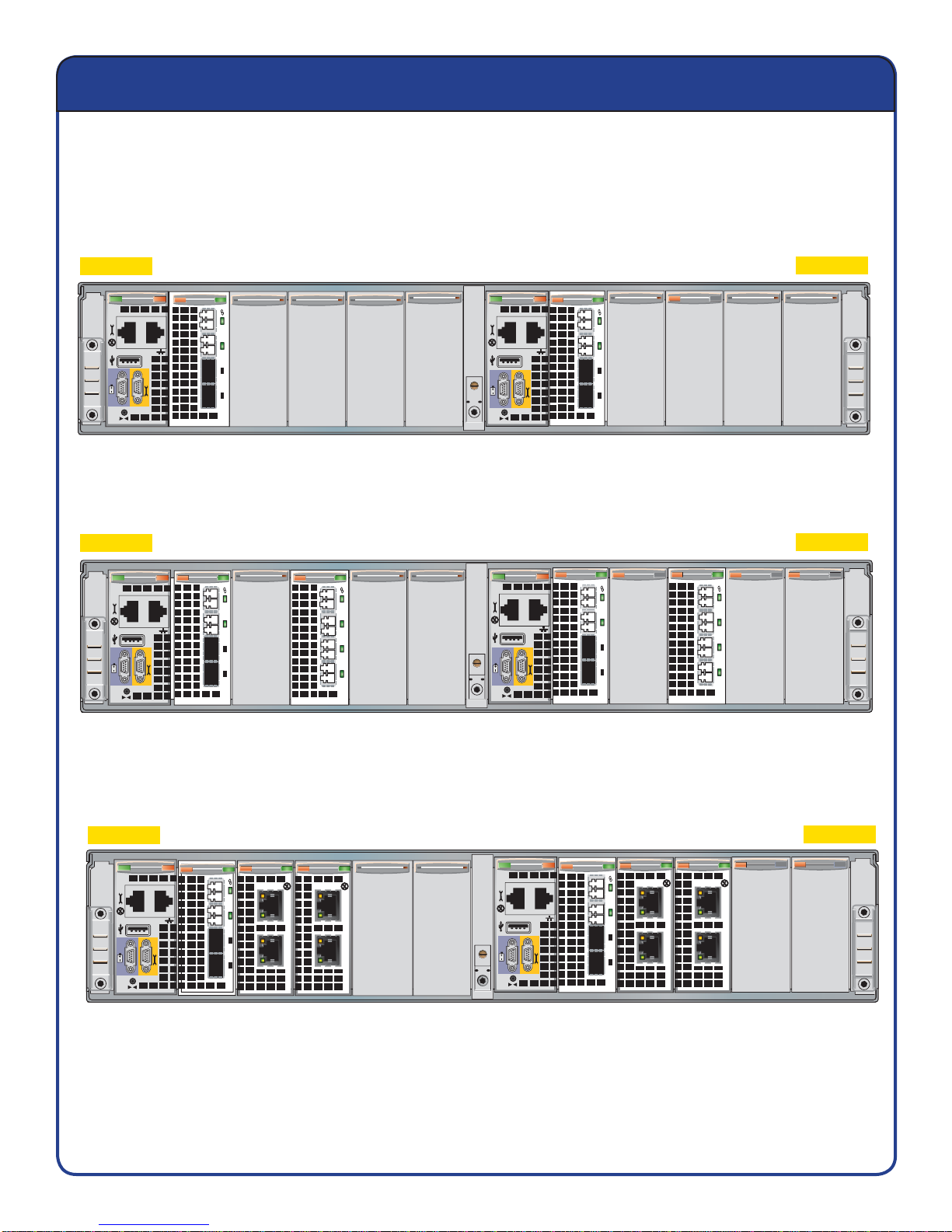

Typical NS-120 storage processor (SP) configurations. Your particular SP
configuration may differ from the models shown here.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
EMC Celerra NS-120 storage processor models
10/100/1000
NS-120 configuration with additional iSCSI modules
B0 B1 B2 B3 B4 MGMT A A0 A1 A2 A3 A4
CNS-001462MOD
B0 B1 B2 B3 B4 MGMT A A0 A1 A2 A3 A4
10/100/1000
0 0
NS-120 Base configuration
MGMT B B0 B1 B2 B3 B4 MGMT A A0 A1 A2 A3 A4
10/100/1000 10/100/1000
0
0
0
MGMT B
NS-120 configuration with additional Fibre Channel module
MGMT B
123
123
123
00123
123
10/100/1000
0123
10/100/1000
0123
SP B SP A
SP B SP A
SP B SP A
0123
1230

13
EMC Celerra NS-120 blade types
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
Blade enclosure
FRU label
10/100 23
FRU label
10/100 23
4 copper Ethernet ports
Blade enclosure
046-003-710_A01
FRU label
10/100
046-003-710_A01
FRU label
10/100
2 10-GbE optical and 2 copper ports
fxg 0 fxg 1
Blade 2 CNS-001460
Blade 2

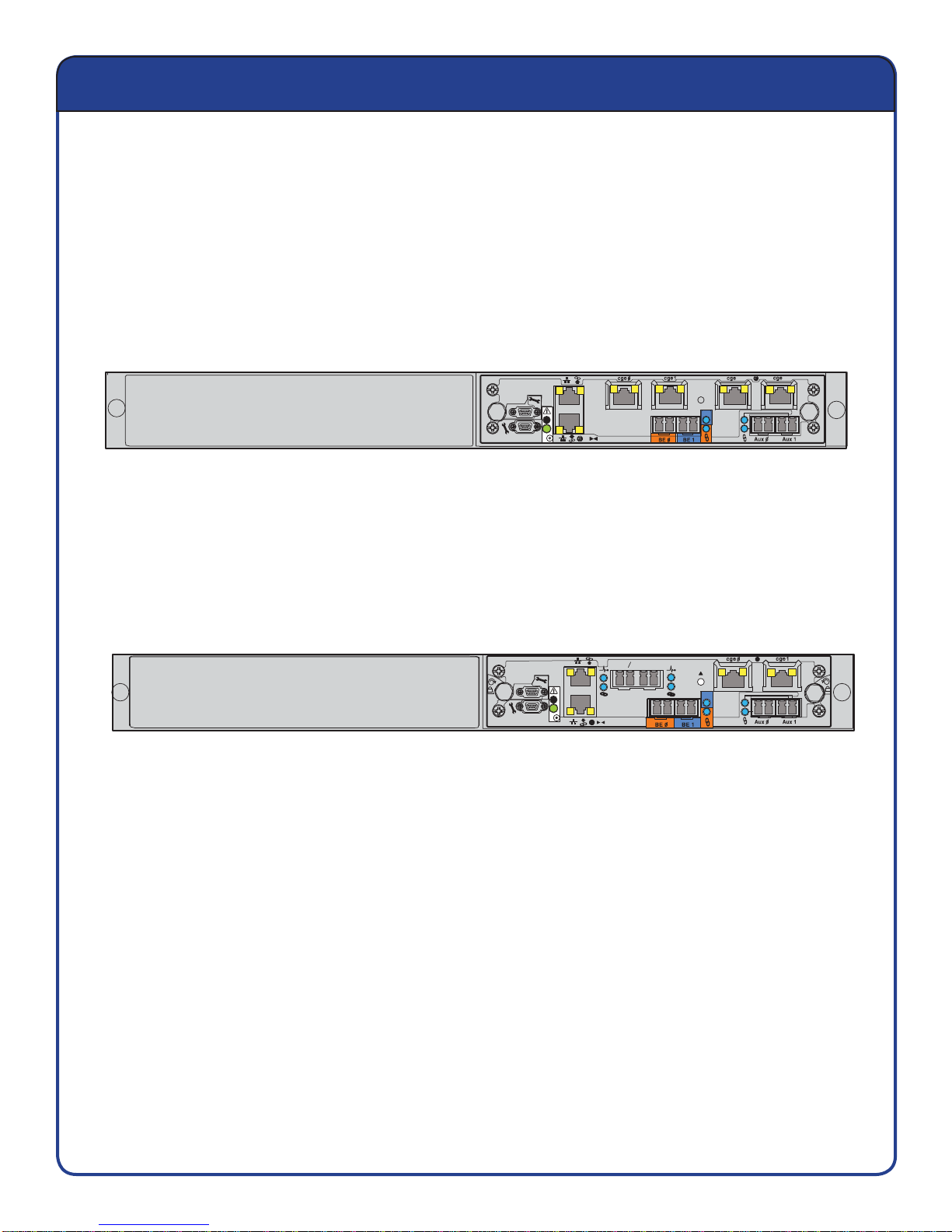

The NS-120 blade enclosure contains 1 of the 2 blade types shown
in the following illustration.

14
EMC Celerra NS-120 configuration
NS-120 single blade rear view stackup.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
046-002-842_A01
BE 0 BE 1
10/100
Blade 2
Power
Power
Switch
Standby power supply
4 5 6 7
0
1 2 3
4 5 6 7
0
1 2 3
EXP PRI
EX
4Gb
EXP
PRI
4 5 6 7
0
1 2 3
4 5 6 7
0
1 2 3
EXP PRI
EX
4Gb
EXP
PRI
LCC A
0
MGMT B B0 B1 B2 B3 B4 MGMT A A0 A1 A2 A3 A4
CNS-001469
10/100/1000 10/100/1000
0
0
0
LCC B
Storage processor enclosure
123
123 123
Disk-array enclosure
Control Station
MGMT
ACS
BSerial Console
MODEM plug
VGA socket
Blade enclosure
Note: The blade in your Celerra system may have four Ethernet copper ports or two
10-GbE optical ports and two copper ports.

15
Cabling the EMC Celerra NS-120 system

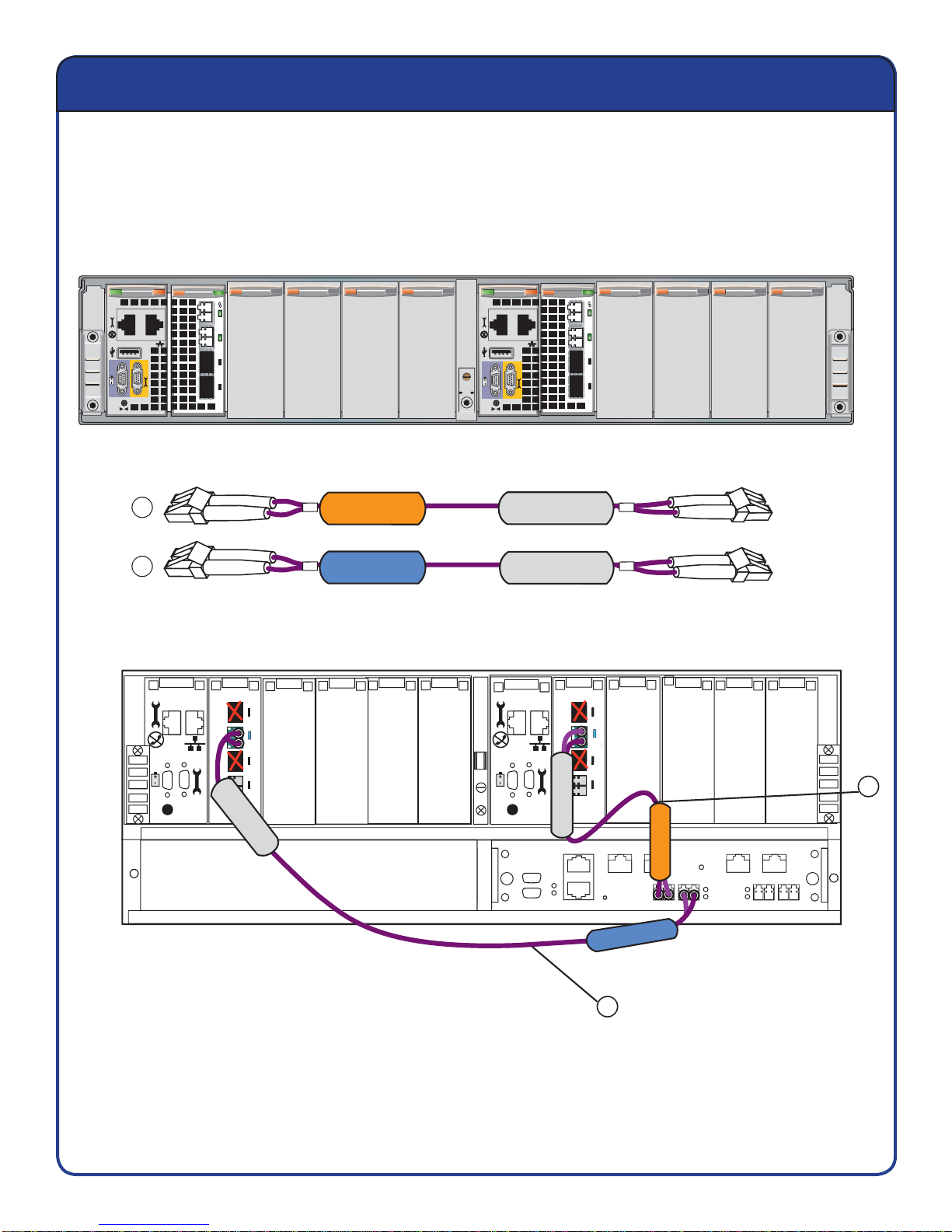

Cable the NS-120 Fibre Channel cables.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
MGMT B B0 B1 B2 B3 B4 MGMT A A0 A1 A2 A3 A4
12 30
12 30
12 30
Blade 2
CNS-001464
SP B
Blade enclosure
SP A
BE0
BE1 BE0
BE1
1
2
SPA A0 Port2
Blade 2 BE 0
2 Fibre
1
2
Storage processor enclosure (SPE)
SPA A0 Port2
Blade 2 BE 0
1230
SPB B0 Port2
Blade 2 BE 1
2
2
3
3
Blade 2 BE 1 SPB B0 Port2
NS-120 Base configuration with 4 Fibre Channel ports per storage processor (SP)
0
MGMT B B0 B1 B2 B3 B4 MGMT A A0 A1 A2 A3 A4
10/100/1000 10/100/1000
0
0
0
123 123
Blade 3
Note: The blade in your Celerra system may have four Ethernet copper ports or two
10-GbE optical ports and two copper ports.

16
Cabling the EMC Celerra NS-120 system
Cable the Celerra NS-120 standby power supply (SPS) and MODEM ports.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
12 30
12 30
12 30
1
0
Standby power
supply (SPS)
Modem
Control Station
(CS)
Storage processor
enclosure (SPE)
SPS A
1230
Blade 3 Blade 2
SP B SP A
CNS-001470
SPS A
Blade enclosure
SPS B
SPA MGMT A
CS
2
If SPS B is installed in your system, connect the cable as shown.
SPS A
SPA MGMT A
2
SPS B
SPB MGMT B
3
3
SPS B
SPB MGMT B
Modem CS
1
1

17
Cabling the EMC Celerra NS-120 system

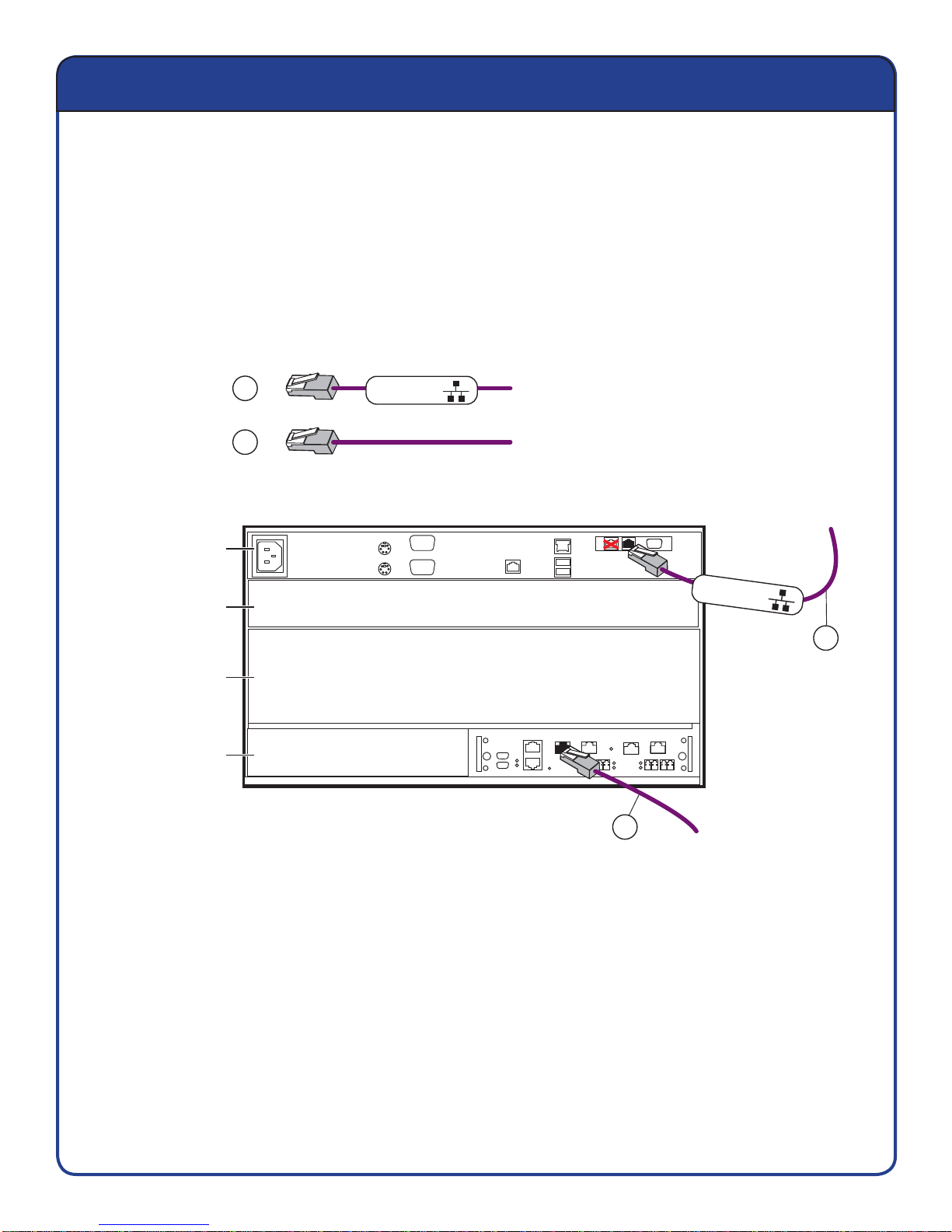

Cable the NS-120 internal local area network (LAN) cables.
12 30
1230
1
2
3
2
1
Control Station (CS)
Standby power
supply (SPS)
Storage processor
enclosure (SPE)
Blade enclosure
Blade 2
CNS-001466
3
Blade 2
SPB MGMT B
A
CS
CS
B
Blade 2
SPA MGMT A
CS
B
SPA MGMT A
SPB MGMT B
Blade 2
Blade 2
A
CS
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
Note: The blade in your Celerra system may have four Ethernet copper ports or two 10-GbE
optical ports and two copper ports.

18
Cabling the EMC Celerra NS-120 system
Cable the NS-120 public local area network (LAN) cables.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
A
B
Blade 3
To public LAN
CNS-001468
Blade 2
2
2To public LAN (customer supplied)
1To public LAN
MGMT
To public LAN
1
Storage processor
enclosure (SPE)
Blade enclosure
Control Station
(CS)
Standby power
supply (SPS)
cge0 cge1 cge2 cge3
MGMT
Note: The blade in your Celerra system may have four Ethernet copper ports or two
10-GbE optical ports and two copper ports.
Note: Attach the customer-provided Ethernet cables from your public LAN starting with blade 2,
cge 0 port. Populate the cge ports as needed.

19
Cabling the EMC Celerra NS-120 system
Cable the NS-120 disk-array enclosure (DAE) cables.
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
1230
1230
Standby power supply (SPS)
123
21FC-22FC
BE0
Control Station (CS)
Blade enclosure
0
1230
1230
1230
Standby power supply (SPS)
123
21FC-22FC
!!
!!
!
PRI
EXPPRI
#
!
EXP
PRI
#
BE0
Control Station (CS)
PRI B connector
Latch side up
LCC B
PRI A connector
Latch side down
LCC A
A
B
LCC B
PRI
1
2
Blade enclosure
Pull/release tab
Pull/release tab
0
1230
LCC B
LCC A
Disk-array
enclosure (DAE)
Storage processor
enclosure (SPE)
EXP
EXP #
A
B
A
B
A
B
DAE
DAE
Disk-array enclosure
Pull/release tab
Pull/release tab
Storage processor (SP) B latch up (top SP)
Link control card (LCC) B
Storage processor (SP) A latch down (bottom SP)
Link control card (LCC) A
CNS-001451MOD
2
1
EXP PRI
EXP
PRI
LCC A PRI
PRI B connector
PRI A connector
SPA A0 Port 0
LCC B PRI SPB B0 Port 0
PRI
LCC A
SPA A0 Port 0
SPB B0 Port 0

20
Powering the EMC Celerra NS-120 system
For more information, refer to Celerra Tools on http://Powerlink.EMC.com
Power Up procedure for single standby power supply (SPS) system.
Note: Verify that the cabinet circuit breakers are in the ON position. If you are installing the
NS-120 into an existing cabinet that contains other components, do not turn off the cabinet
circuit breakers. Ensure that the switch for SPS A is turned OFF.
Connect the power cables as follows:
A yellow circle with a number indicates the power cable number.
1. Connect power cable from the first disk-array enclosure (DAE) power A to SPS A .
2. Connect power cable from the first DAE power B to the left power distribution panel (PDP).
3. Connect storage processor (SP) power cable A to SPS A.
4. Connect SPS A to the right PDP.
Turn on the SPS A switch.
5. Connect SP B power cable to the left PDP.
Wait for the amber fault LED on each SP to turn off (approximately 3 to 4 minutes).
6. Connect the blade enclosure power cables.
7. Connect the Control Station to the left PDP.
Wait for the control station to power up; this may take 5 to 10 minutes.
4
#
2
1
8
7
3
6
5
Note: If the amber LEDs on the front or back of the storage system remain on for more than 10
minutes, make sure that the system is properly cabled.
