Remta SP10 User manual

COMMERCIAL ORANGE JUICE MACHINE
Producer: REMTA MAKİNA İTH. İHR. SAN. TİC. LTD. ŞTİ.
Producing Address: Akçaburgaz Mah. 4. Cad. 153. Sok. No:23 34522 Esenyurt - İstanbul
[phone] • [email protected] • www.remta.com.tr
MODELS: SP10 - PS10 - ES10
USER MANUAL

1. PRESENTATION
Dear user;
Our best thanks to you about you to choose our product and trust in us. Our
products are used in lots of domestic cities like your choice. Our product is
manufactured according to the standard rules. We kindly remind that you to
read the user manual carefully for having the best performance against your
expectations from the product and using for long time and be sure the other
users read it, too. Please care about the rules written below before calling the
service.
2. WARNINGS
Please read this manual carefully and be sure the other users read it, before the
product is installed and operated for first. The product will be out of warranty if
you operate the device without reading the user manual. The user manual
should be written carefully to install, use and the maintenance of the product
that you have bought. The electrical circuit that you will plug in your product,
should be suitable for the legislations. The faults are in your responsibility which
are occurred by your electrical circuit. Please call the authorized service to have
more information about the subjects that you have doubts or misunderstand.
We wish you to have the best performance from the product. You will be
charged when you want service next to you about this product.
3. DESCRIPTION AND PURPOSE OF THE PRODUCT
The device is designed to be used in the industrial kitchen services (collective
food services, restaurants, touristic places, buffets and etc.) This device is a
commercial product. The motor which is fixed into the main body squeezes
the fruit to get the fruit juice. The device seperates the pulp and the cores of
the fruit. The device has 2 different size squeeze apparatus.

4. SAFETY DETAILS
• The device works with 220-230 Volt ~ 50-60 Hz electricity.
• If the electrical cable is damaged please contact with the service.
• The device should be switched off before plugged into the electricity.
• The all flammable solid and liquid materials (cloth, alcohol kinds, petrochemical
materials, wooden materials, plastic materials and curtain) should be removed
from the area that the device is operated.
• Do not clean the product under flowed and pressured water.
• The device can be used together with our other products in the same product serie.
• The device should be located and operated in a suitable for legislation
and well aired place. Please check the instructions before locating and
operating the device.
• The device is produced to use for industrial purposes and should be used by the
well educated person.
• Noone should try to fix the device except the producer and the authorized service.
• If any flame occurs next to the devicein the close location, please shut down
the gas valves and the circuit breaker with out any panic. Use fire extinguisher.
Never use water to extinguish the flame.
• The device should be plugged into the grounded socket out. Be sure that
you have grounded line in your electricity circuit.
• All user should read the user manual.
• Keep away from the children.
• Do not use the device out its main purpose.
• Do not close the air flow holes of the device.
• The device should be located on a non-flammable surface.

5. USING THE DEVICE
5.1. FIRST USE:
• Clean the parts which touch directly to the food carefully and well .
• Remove the splash blocker helmet.
• Remove the squeeze part by pulling it upwards.
• Remove the filter and its cap by pulling them upwards.
• These parts should be cleaned with a standard dish detergent and be dried well.
5.2. USAGE:
1. Fix and prepare the case, filter, squeeze apparatus and its helmet.
2. Cut the fruit in the half.
3. Put a glass infront of the juice flow case.
4. Turn on the on-off switch and operate the device.
5. Push and hold the half of the fruit on the squeeze apparatus. Hold the splash
blocker with your other hand. That gives a ergonomical usage.
6. Turn off the device at the end of the use.
5.3. CLEANING:
• Plug out the device from the electricity socket before cleaning.
• Remove and clean the squeeze part from the main body.
• Clean the device after every use.
• Do not let the water to touch the motor. Do not pour water into the machine.
Clean the main body with a wet cloth.
• Do not clean the main body under flow water.
• You can wash the removable parts in the dishwasher.
5.4. CARRYING AND MOVING
• Plug out the device from the electricity socket before carrying.
• It can be carried by human power.
• Do not bump or drop the device while you carry it.
5.5. MONTAGE:
• The under set desk should be parralel with the ground and have adjustable legs
when the device is use on it.
• The electricity circuit should be checked by authorized person and has to be
connected to the circuit breaker that located at least 170 cm height.
• The electricity circuit should have a leakage current breaker as 30 mA.
• The device should be used with grounded electricity circuit.

5.6. EFFICIENCY USE
• Switch off the device when it is out of use.
• Allways keep the device clean.
• Please obey the directives written in the user manual.
• At 24 °C, you can have the best performance from the device.
• The device can work between -5 and +40 °C.
6. CLEANING AND MAINTENANCE
6.1. CLEANING:
• Clean the out surface with a sponge via using dish detergent and dry it out
after every end of service beginning the first use.
• Do not use nitric acid or any kind of CHEMICAL MATERIALS to clean the device.
6.2. MAINTENANCE:
• Before any maintenance plug out the device from the electricity socket.
• Worn off parts should be replaced with the original exparts.
• The periodical maintenance should be done by the user.
• We recommend to maintenance for about per every 2 months according
to the using frequency.
• It will be charged to user for maintenance even the device is warranty.
Before any maintenance plug out the device from the electricity socket.
Worn off parts should be replaced with the original exparts.
The periodical maintenance should be done by an authorized technician.
We recommend to maintenance for about per every 6 months according
to the using frequency.
It will be charged to user for maintenance even the device is warranty.
6.3. LIFE OF THE DEVICE
The life of the device is about 10 years if it is used according to the
recommendations in the user manual.

6.4. FAULTS AND FAULT SOLUTIONS
1- The device is connected to the electricity socket out but it is not working!
• Check the main circuit breaker,
• Check the electric cable of the device,
• Check the thermostat and the on / off switch,
• If the problem still continuous please call the authorized service.
Do not struggle to fix it by your self.
2- Fruit juice is not coming out;
• Check the filter and be sure it is cleaned.
6.5. SERVICE AND EXPART POINT
REMTA MAKİNA İTH. İHR. SAN. ve TİC. LTD. ŞTİ.
Adres: Akçaburgaz Mah. 4. Cad. 153. Sok. No:23 Esenyurt / İstanbul
Tel: [phone]
ser[email protected] • www.remta.com.tr
You can find all comunication information about our services in the link below.
www.remta.com.tr/yetkili-servisler

225*260*445mm
ÜRÜN ÖLÇÜSÜ
Product Dimensions
SP10
KOD
Code
PS10
ES10
225*260*445mm
245*315*415mm
6 kg
AĞIRLIK
Weight
180 W
GÜÇ
Power
6 kg
6 kg
180 W
180 W
220-230 V
VOLTAJ
Voltage
220-230 V
220-230 V
50-60 Hz
FREKANS
Frequence
50-60 Hz
50-60 Hz
ELEKTRİKLİ MEYVE SIKACAĞI
REMTA MAKİNA • AKÇABURGAZ MH. 4.CD 153.SK. NO:23
ESENYURT / İSTANBUL / TURKEY • TEL: [phone]
MADE IN TURKEY
SERİ NO:
www.remta.com.tr
ÜRÜN KODU: PS10
MODEL: LÜKS MODEL / LUX MODEL
VOLTAJ / Voltage
AKIM / Nominal Current
GÜÇ / Power
ÜRÜN SINIFI / Product Class
AĞIRLIK / Weight
EBAT / Dimensions
...........................................:
................................:
..................................................:
.......................:
..........................................:
........................................:
220 - 230 V 50-60 Hz
1 A
180W
I / IP 20
6 KG
225x260x445 mm

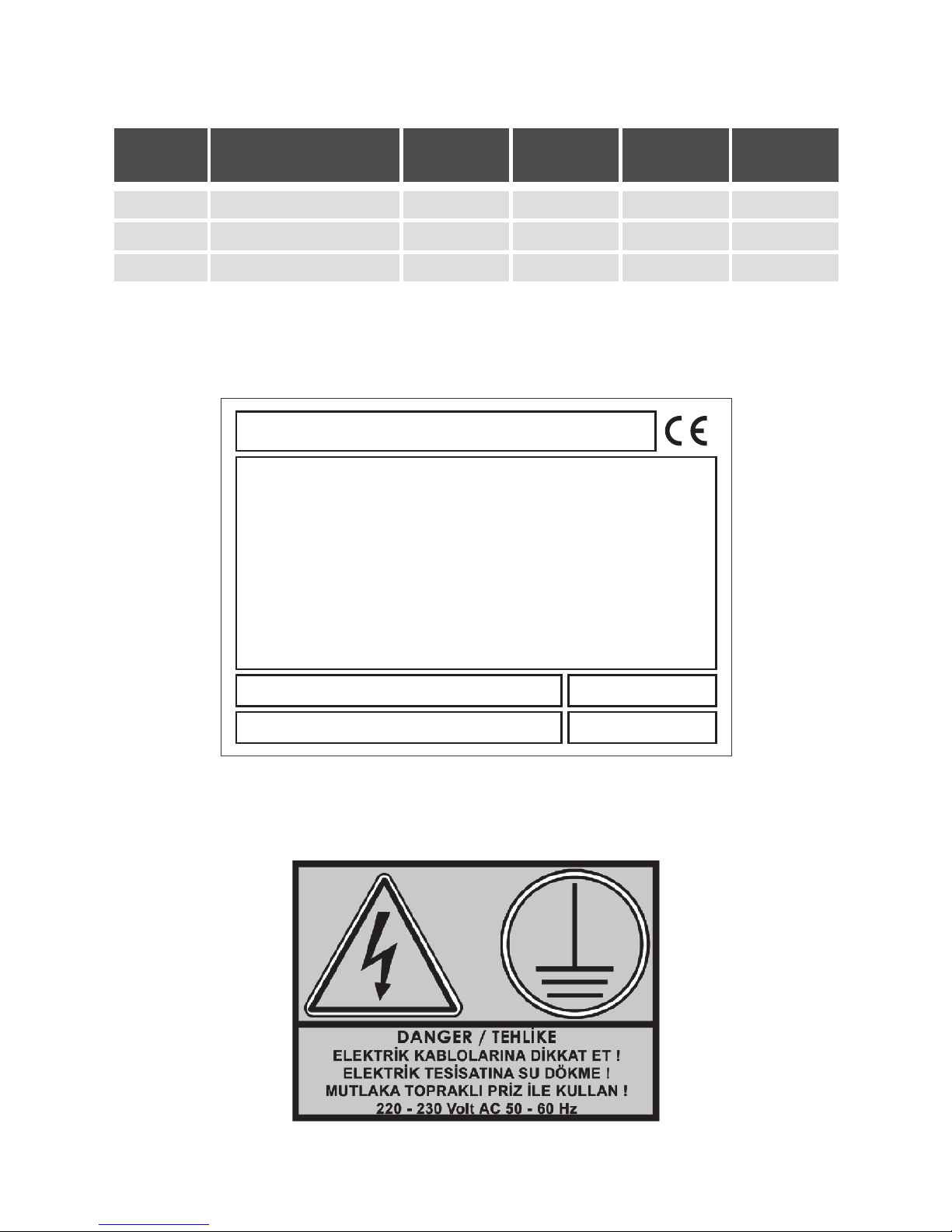

7. TECHNICAL PROPERTIES AND THE LABELS
WARNING! GROUNDED ELECTRICITY CIRCUIT

8. WIRING DIAGRAM
GREY
WHITE RED
RED
WHITE
MOTOR
CAPASTOR
ON / OFF
SWITCH
GREY
BLUE
BROWN

9. PARTS DESCRIPTION
HELMET
SQUEEZE
APARATUS
CAP
FILTER
MIDDLE TRAY
SHAFT
MAIN BODY
BOTTOM TRAY
