Restoration Hardware Bistro WOD52AGV5RW User manual

Installation Guide
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pgs. 5 - 6
Canopy Assembly. pg. 6
Blade Assembly. pg. 7
Automated Learning Process./
Activating Code. pg. 8
Wall Control Operation. pg. 8
Remote Control Operation. pg. 9
Testing Your Fan. pg. 9
Troubleshooting. pg. 10
Parts Replacement. pg. 10
Warranty. pg. 10
net weight of fan: 17.2 lb (7.8 kg) PRINTED IN CHINA
READ THESE INSTRUCTIONS
AND SAVE THEM FOR FUTURE USE
E192641
RESTORATION
HARDWARE
For Model:
Bistro Ceiling Fan
WOD52AGV5RW

SAFETY TIPS.
page 1
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code,
and ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are
different colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should be
mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other
upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least
35 pounds (16 kilograms). The outlet box must be supported directly by the building structure. Use only
UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support of 15.9 kg (35 lbs.) or less," and use the mounting screws provided with the outlet
box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and
may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are
designed to accept only one12 gauge house wire and two lead wires from the fan. If your house wire is larger than
12 gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an
electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and
marked suitable for use with the model fan you are installing. Switches must be UL general use switches.
Refer to the instructions packaged with the light kits and switches for proper assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid state speed control
device or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan
speed will cause a loud humming noise from fan.]
8. Do not operate the reverse switch until fan has come to a complete stop. [NOTE: if using remote control with
reverse capability, reverse fan blade direction only when on LOW speed.]
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after installation.
Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.

1. Unpacking Your Fan.
2. Parts Inventory.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
a. canopy. 1 piece
b. hanging bracket. 1 piece
c. 4in. downrod and hanging ball. 1 piece
d. 12in. dowrod. 1 piece
e. motor housing. 1 piece
f. yoke cover. 1 piece
g. blade arm. 5 pieces
h. canopy cover (in hardware pack). 1 piece
i. blade. 5 pieces
j. wall control and plate. 2 separate pieces

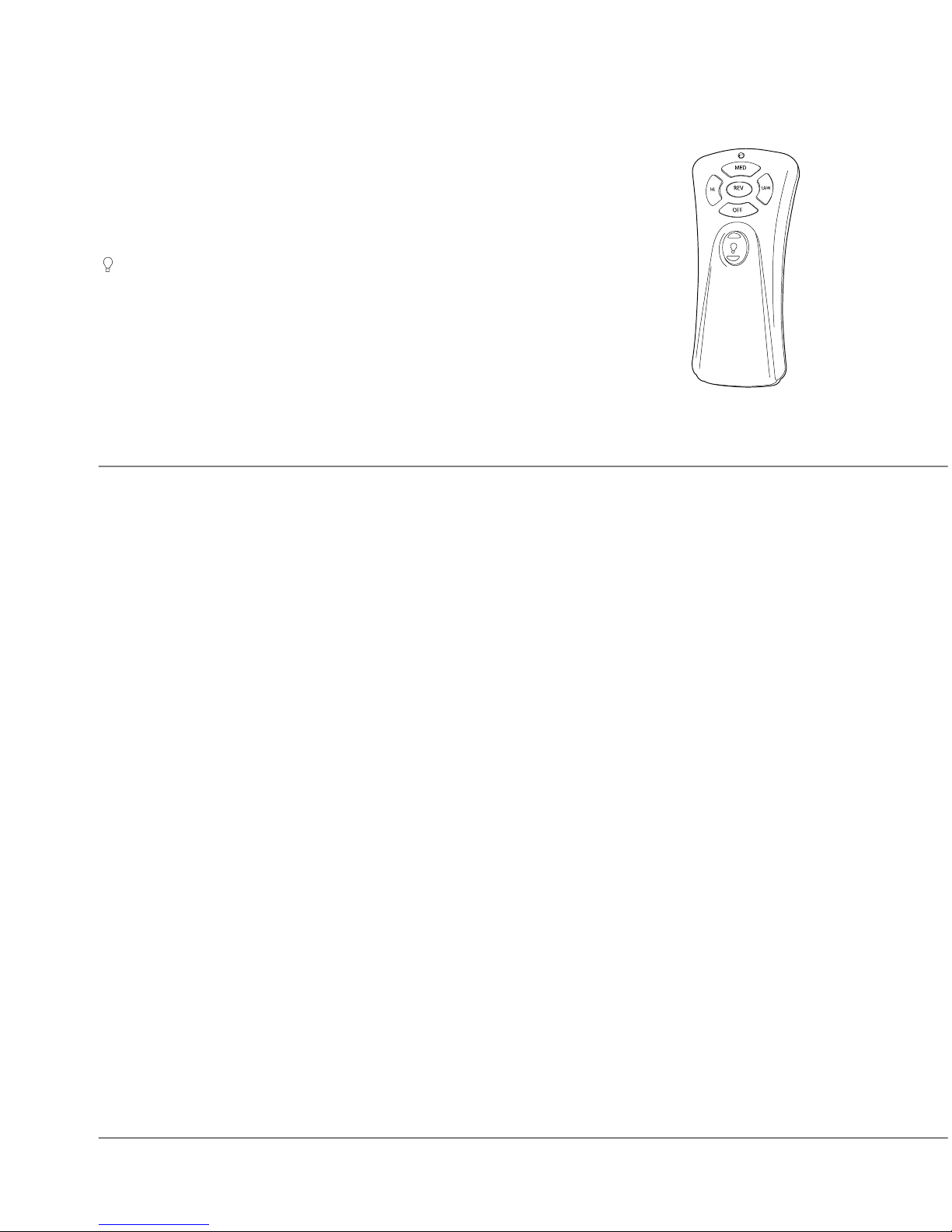

k. remote control transmitter. 1 piece
l. remote control receiver. 1 piece
m. hardware packs
page 2
ab
c
g
m
e
i
f
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
d
jkl
w/remote w/wall
control
h

3. Installation Preparation.
4. Hanging Bracket Installation.
page 3
ON
OFF
ON
OFF
Turn off circuit breakers to current fixture from breaker
panel and be sure operating light switch is turned to the
OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure
and can support the full weight of the fan. Ensure the outlet
box is clearly marked "Suitable for Fan Support." If not, it
must be replaced with an approved outlet box. Failure to
do so can result in serious injury.
CAUTION: Be sure outlet box is grounded properly and
that a ground wire (green or bare) is present.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers provided with
new or original outlet box.*If installing on a vaulted
ceiling, face opening of hanging bracket towards high
point of ceiling. Arrange electrical wiring around the
back of the hanging bracket and away from the bracket
opening.
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as this will
support the fan.
hanging bracket
outlet box screws
flat washers
spring washers
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7ft. (2.13m) from the floor and 30in.
(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400 square
feet (37.2 square meters).
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
blade edge
7 feet
(2.13m)
(76cm)
30
inches
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling.The
hanging length can be extended by purchasing a
longer downrod (0.5in./1.27cm diameter). Other
installation, such as flushmount, is not available
for this fan.
Vaulted ceiling
angle is not to
exceed 25 degrees.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire cutters
and rated electrical tape.
downrod
installation
flushmount
installation

NOTE: The important safety precautions and
instructions appearing in the manual are not meant
to cover all possible conditions and situations that
may occur. It must be understood that common
sense and caution are necessary factors in the
installation and operation of this fan.
page 4
5. Fan Assembly.
yoke set screw
downrod
yoke cover
canopy
pin
clip
motor
housing
set screw hole
set screw
hanging ball
stop pin
A
B
electrical wiring
If you wish to extend the hanging length of your
fan, you must remove the hanging ball from the
4in. downrod provided to use with the 12 in.
downrod included with the fan (or an extended
downrod, sold separately). [If you wish to use the
4in. downrod, please proceed to instructions
following the dotted line below.]
If you do not wish to use the 4in. downrod, you
will need to remove the hanging ball from the 4in.
downrod for use with the 12in. (or longer)
downrod.To remove hanging ball, loosen set
screw on hanging ball, lower hanging ball and
remove stop pin. Slide hanging ball off the
original downrod, A, and slide it down the longer
downrod, B (the top of the downrod should be
noted as having a set screw hole; use this hole
when setting the set screw). Insert stop pin into
top of extended downrod and raise hanging ball.
Be sure stop pin aligns with slots on the inside of
the hanging ball.Tighten set screw securely.
Tip: To prepare for threading electrical wires
through downrod, apply a small piece of electrical
tape to the ends of the electrical wires--this will
keep the wires together when threading them
through the downrod.
Locate canopy cover in hardware pack. Loosen
yoke set screws and nuts at top of motor housing.
Remove pin and clip from motor housing yoke.
Slide downrod through canopy, canopy cover
and yoke cover. [Note: Canopy cover must be
turned with shiny side toward the motor.]
Thread electrical wires through downrod and pull
extra wire slack from the upper end of the
downrod.
Place downrod into the motor housing yoke and
re-insert pin and clip that were previously
removed. Tighten yoke set screws and nuts
securely. Lower yoke cover to motor housing.
["Fan Assembly" continued on next page.]
canopy cover

5. Fan Assembly. (cont.)
page 5
hanging ball slot
hanging bracket tab
With the hanging bracket secured to the outlet
box and able to support the fan, you are now
ready to hang your fan. Grab the fan firmly with
two hands. Slide downrod through opening in
hanging bracket and let hanging ball rest on
the hanging bracket.Turn the hanging ball slot
until it lines up with the hanging bracket tab.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
6.Wiring.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring or if the house/building wires are different
colors than those referred to in the diagram to the
right, please use a qualified electrician.
When downrod is secured in place on the
hanging bracket, wire the RECEIVER with wire
connectors provided as shown in diagram at
right.
Tip:While you are wiring, keep in mind that
wires must not obstruct receiver from sliding
into hanging bracket.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
Gently insert receiver (flat side up) into hanging
bracket and carefully push wires and taped wire
connectors into outlet box. Let antenna rest
outside of hanging bracket.
white supply wire
black supply wire
black
black
white
blue
blue
white
from receiver
black
AC IN L
AC IN N
white
white
ground (green
or bare)
from fan
from receiver
antenna
from ceiling
(wiring for receiver)
black
receiver

page 6
6.Wiring. (cont.)
canopy
hanging bracket
7. Canopy Assembly.
IN ORDER TO WIRE WALL CONTROL, remove
existing wall switch.Wire the WALL CONTROL with
wire connectors provided as shown in diagram at
right.
* Wrap each wire connector separately with
electrical tape as an extra safety measure. Gently
push wires and taped wire connectors into outlet
box.
Use a ballpoint pen or a small screwdriver to set the
code switches 1 through 4 on the wall control.
Factory setting is pre-set and not recommended for
use. Write down number sequence for use in
Section 9.
Note: Since this fan comes without a light kit, check
to be sure that the dimmer switch (labeled D and X)
is set in the "OFF" position (X).
Attach wall control to outlet box and secure with
screws from original wall switch. Attach front plate to
wall control using 2 screws provided in the wall
control.
black (OUT to fan)
green
black
(AC IN from
breaker box)
black
(TO POWER supply)
(wiring for wall control)
black
green/
green/
bare
bare
ground
ground
green/
bare
ground
outlet box
wall
control plate
1234X
D
code
switches
dimmer
switch
screw
antenna
receiver
screw
Locate 2 screws on underside of hanging
bracket and remove screw closest to the open
end of the hanging bracket. Partially loosen
the other screw. Lift canopy to hanging
bracket. Place rounded part of slotted hole in
canopy over loosened screw in hanging
bracket and push up.Twist canopy to lock.
Re-insert screw that was removed and then
tighten both screws securely. Slide canopy
cover up to canopy, aligning rounded part of
slotted holes in canopy cover with
screwheads in bottom of canopy.Turn canopy
cover to the right (clockwise) until it stops.
*Remember that antenna for remote control
receiver must rest outside of hanging bracket. canopy cover

page 7
8. Blade Assembly.
blade arm screws
lock washers
motor housing
blade arm
blade
plastic
motor lock
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
in one of the hardware packs. Hold blade arm up
to blade and align holes. (Important: Be sure to
install blades with ridged side facing UP and flat
side facing the FLOOR.) Insert 3 blade attachment
screws (along with washers) with fingers first and
then tighten screws securely with Phillips
screwdriver. Repeat procedure for remaining
blades.
Remove blade arm screws and lock washers from
underside of motor. If plastic motor locks are
installed with blade arm screws, discard plastic
motor locks (save blade arm screws and lock
washers to secure blade arms). Align blade arm
holes with motor screw holes and attach blade
arm with lock washers and blade arm screws.
Before securing screws permanently, repeat this
procedure with remaining blade arms. Securely
tighten all screws.
Note:Tighten blade arm screws twice a year.
blade attachment
screws and washers

page 8
9. Automated Learning Process./Activating Code.
10.Wall Control Operation.
CAUTION:The remote control transmitter can be
programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other
programmable receiver or fan.
Remove battery cover on back side of remote
control transmitter.
Use a ballpoint pen or a small screwdriver to set
the code switches 1 through 4 for the
transmitter. Use the same number sequence used
when wiring the wall control in Section 6.
Note: Since this fan comes without a light kit,
check to be sure that the dimmer switch (labeled
D and X) is set in the "OFF" position (X).
Install one 9-volt battery (sold separately) in
transmitter. Note: Leave battery connected but
outside of battery compartment until learning
process is complete.
Restore electrical power and then set slider
switch on wall control to the ON position.Within
30 seconds of turning on the wall control, press
the "OFF" button, located on the front of the
transmitter, for 5 seconds.Test the fan functions
to confirm the learning process is complete--see
Section 12.
Place battery in battery compartment and then
re-attach battery cover on transmitter.
battery
cover
dimmer
switch
code
switches
TRANSMITTER
(back)
TRANSMITTER
(front)
ON/OFF slider switch - turns wall control ON or OFF
HI button - turns fan to HIGH speed
MED button - turns fan to MEDIUM speed
LOW button - turns fan to LOW speed
FAN OFF button - turns fan OFF
REV button - used to REVERSE blade direction (fan
must be set on low before reversing blade
direction)
LIGHT button - (for use with optional light kit, sold
separately)turns light ON/OFF when pressed once;
dims light when pressed and held down

12.Testing Your Fan.
11. Remote Control Operation.
HI button - turns fan to HIGH speed
MED button - turns fan to MEDIUM speed
LOW button - turns fan to LOW speed
OFF button - turns fan OFF
REV button - used to REVERSE blade direction (fan must be
turned low before reversing blade direction)
button - (for use with optional light kit, sold
separately)controls light function: turns light ON/OFF
when tapped quickly; pressing and holding button down
for more than 0.7 seconds converts it into dimmer. Auto
resume capability keeps light at same brightness level as
the last time it was turned off.
It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and light switch (if applicable). Locate
ON/OFF slider switch on wall control and set to
the ON position. Test fan speeds with the
different fan speed buttons. Next, locate remote
control and test fan speeds with different fan
speed buttons. If the remote control operates all
of the functions of the fan, battery has been
installed correctly. If the wall and/or remote
controls do (does) not operate all of the fan
functions, refer to "Troubleshooting" section to
solve any issues before contacting Customer
Service.
Fan must be on LOW before setting the fan to
reverse direction. Use REV button to recirculate
air depending on the season.
page 9

Troubleshooting. Warranty.
WARNING: Failure to disconnect power
supply prior to troubleshooting any wiring issues may
result in serious injury.
Problem: Fan fails to operate.
Solutions:
1. Check power to wall switch/wall control.
2. Check to be sure code switches in remote control
transmitter and wall control are set properly.
3.Verify that receiver is wired properly.
4.Verify that wall control is wired properly.
5. Check to be sure fan is wired properly.
6. Check that red light on remote control transmitter
turns on when a button is pressed indicating that the
battery is good.
7. Learning process between fan, remote control
transmitter and wall control may not have been
successful and code was not activated.Turn off power
and repeat instructions in next to last paragraph of
Section 9 (page 8).
Problem: Fan fails to operate with remote control.
Solutions:
1. Check that red light on remote control transmitter
turns on when a button is pressed indicating that the
battery is good.
2. Check to be sure code switches in remote control
transmitter and wall control are set properly.
3. Learning process between fan, remote control
transmitter and wall control may not have been
successful and code was not activated.Turn off power
and repeat instructions in last paragraph of Section 9
(page 8).
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit provided in one of the
hardware packs. If no blade balancing kit is provided,
please call Customer Support,1-800-527-1292, to request
one.
2. Check to be sure set screw(s) on motor housing yoke
is (are) tightened securely.
3. Check to be sure set screw on hanging ball is
tightened securely.
For parts and information, please refer to
"Parts Inventory" on page 2.
Customer Support:
1-800-527-1292
Parts Replacement.
LITEX LIFETIME LIMITED WARRANTY:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship.Contact Litex Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid, to Litex Industries, Ltd.We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace, at no charge to the original purchaser, any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries.We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: LITEX
INDUSTRIES, LTD. will repair the fan, at no charge to the
original purchaser for labor only, if the fan motor fails to
operate satisfactorily when failure results from normal use.
Parts used in the repair will be billed to the purchaser at
prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever.This
limitation as to consequential damages shall not apply in
states where prohibited.
page 10
RESTORATION
HARDWARE
