Reveal RS3-SX User manual

RS3 - SX
With you on the front line
Quick Start
and User Manual
REVEALMEDIA.COM

Introduction
Welcome to the most versatile
body camera in the world. For
your convenience, the camera
is set up and ready to go in
three easy steps.
RS3 - SX Quick Start and User Manual - page 2

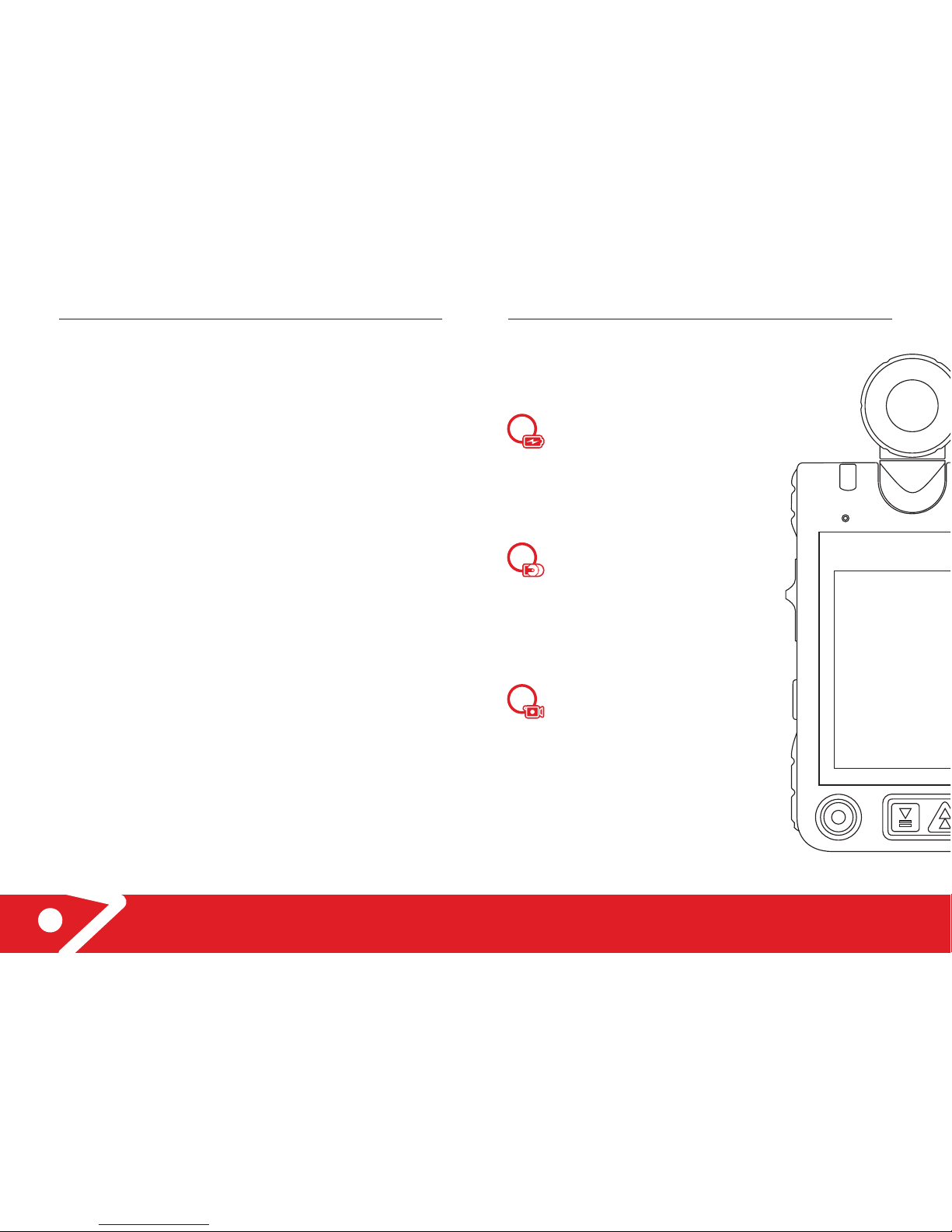

Quick start
2
1
3
RS3 - SX Quick Start and User Manual - page 3
Quick start
Charge
Charge the camera for
three hours or until the
charging light turns
green.
Mount
Choose how to mount
your camera; you can
use either the Klickfast
attachments, clips or a
lanyard.
Record
Slide the red switch
down to start
recording. To stop
recording, slide the red
switch up.

Charge
Open the cover on the side
of the camera
1
Insert the 3.5mm jack
into the USB port and
connect to a computer or
plug to charge.
NOTE: This is the same
cable that will upload
video to a computer.
RS3 - SX Quick Start and User Manual - page 4
Quick start
Mount
Choose your mount
•klickfast
•pocket clip / lanyard
Align the mount on the back
of the camera and use a
screw to secure.
2
RS3 - SX Quick Start and User Manual - page 5
Quick start

Record
Pull down the red switch
to record.
As confirmation:
•The camera will beep
three times.
•The LED and the
recording light on the
screen will flash red.
Pull the switch back up to
stop recording.
As confirmation:
•The camera will beep
twice.
•The lights will stop
flashing.
3
Quick start
RS3 - SX Quick Start and User Manual - page 6
Camera articulation
CAUTION: DO NOT OVER
ROTATE!
The camera head does not
rotate 360°
Operation
RS3 - SX Quick Start and User Manual - page 7

On board
playback
Hold down the
POWER button to
turn the camera on.
Once on, press the
PLAY button to
open the playback
mode.
Stealth mode
Hold FWD or RWD button for
three seconds to activate or
deactivate Stealth Mode.
Stealth mode enables
recording without the front
facing screen or LED light.
Mark as important
Select a video in thumbnail
view and press to mark
video.
The symbol will
appear in the bottom right
corner of the thumbnail.
Operation
RS3 - SX Quick Start and User Manual - page 8
Power on/off / Go back
When the unit is off, press and hold
to turn power on. Press and hold to
turn power off.
When in preview mode, press
POWER to go back.
FORWARD VIDEO
REWIND VIDEO
PLAY / PAUSE VIDEO
MARK AS IMPORTANT
BATTERY
MICRO SD CARD
(up to 32GB)
Battery and
microSD card
insertion
Slide catch down to
open battery and
microSD card cover
Operation
RS3 - SX Quick Start and User Manual - page 9
Head camera input
Insert external camera cable
into the port on the right side
of the camera. Only use
authorised Reveal external
cameras.

RS3 - SX Quick Start and User Manual - page 10
Through
DEMS
Open the
auto-uploader
or camera
interface.
Right click on
a camera and
select
“settings”.
Without DEMS
NOTE: You must be the administrator on
the computer to change the camera
settings.
1) Download the Reveal camera
settings manager from
www.revealmedia.com/downloads
2) Run the program on the computer
3) Select which camera you want to
edit from the list on the left and edit
the options on the right.
Insert key pad
and press
MENU to begin.
Press ESC to
exit menu.
Press OK to
select option.
Press UP to
scroll through
options.
Press DOWN to
scroll through
options.
Settings
RS3 - SX Quick Start and User Manual - page 11
LED light notification
ON
recording ON not
recording
OFF
not
recording
Not Charging
Charging via Mains
Charger
Charged Via Mains
Charger
Charging via Docking
Station plugged
ONLY into Mains
Charged via Docking
Station plugged
ONLY into Mains
Charging via USB
Cable plugged into
PC (In Mass Storage
Mode)
Charged via USB
Cable plugged into
PC (In Mass Storage
Mode)
Charging via Docking
Station plugged into
both Mains and PC
(In Mass Storage
Mode)
Charged via Docking
Station plugged into
both Mains and PC
(In Mass Storage
Mode)
Flashing RED
RED & BLUE
alternate
flashing
RED & GREEN
alternate
flashing
RED & BLUE
alternate
flashing
RED & GREEN
alternate
flashing
N/A
N/A
N/A
N/A
RED
BLUE
GREEN
BLUE
GREEN
RED & BLUE
alternate
flashing
RED & GREEN
alternate
flashing
RED & BLUE
alternate
flashing
RED & GREEN
alternate
flashing
No LED on
BLUE
GREEN
BLUE
GREEN
N/A
N/A
N/A
N/A

RS3 - SX Quick Start and User Manual - page 12
1280 x 720 30FPS (DEFAULT)
848 x 480 60FPS
1920 x 1080 30FPS
1440 x 1080 30FPS
ON
OFF (DEFAULT)
ON (DEFAULT)
OFF
AUTO (DEFAULT)
SUNNY / CLOUDY /
FLUORESCENT/INCANDESCENT
ENGLISH (DEFAULT)
ON (DEFAULT)
OFF
SET YYYY/MM/DD HR/MIN/SEC
ON
OFF (DEFAULT)
30 SECS / 2 MIN / 5 MINS / OFF
1. RESOLUTION
2. PRE-RECORDING
Stores 30 seconds prior to
record activation
3. AUDIO ALARMS
4. WHITE BALANCE
5. LANGUAGE
6. TIME AND DATE
STAMP
7. TIME AND DATE
SETUP
8. START IN
STEALTH MODE
9. AUTO LCD OFF
Editable menu settings
RS3 - SX Quick Start and User Manual - page 13
Editable menu settings
10. DEFAULT SETTINGS
11. UNIT ID SETUP
12. PRE-RECORD MUTE
No audio is recorded during the pre-record
section of video. Once the user slides into
record mode, audio is then recorded
13. PROTECTED MODE
The files cannot be played back on
standard media players. Playback requires
Reveal Media DEMS V3 or above
14. TRUSTED MODE
RS3 - SX will not mount as mass storage
device unless connected to Reveal Media
DEMS V3 or above
15. RECORD OFF MODE
For single or two actions to stop recording
16. FIRMWARE VERSION
NO / YES
USER SET (five
alphanumerics)
ON
OFF (DEFAULT)
ON
OFF (DEFAULT)
ON
OFF (DEFAULT)
SLIDER ONLY
(DEFAULT)
SLIDER PLUS
BUTTON
Displays what
version of firmware
is installed on the
device
WARNING!
•Camera head does not rotate completely 360°.
FORCING IT WILL CAUSE DAMAGE TO THE CAMERA HEAD!
•Please take care when connecting and disconnecting
the USB cable.

Klickfast
Attach the klickfast to use
with a klickfast dock.
Head Mount
For use when a higher view
point is advantageous.
(optional extra)
Pocket clip /
Lanyard
For use in a
non-confrontational
environment.
Mounting and usage options
RS3 - SX Quick Start and User Manual - page 14
For in-car use
Attach suction mount
to windscreen or
dashboard for in-car
camera.
(optional extra)
Table top
For use in interviews
and other static
situations.
Harness
For use with loose
fitting clothes or
uniforms.
(optional extra)
Mounting and usage options
