1 Product Instructions
It is a mini GPS Tracker (Size: 48*60*22mm; Weight: 120g), built-in GPS Antenna and
GSM Antenna.
By it, you can:
1. Check the vehicle location and status by Mobile and SMS.
2. Track the vehicles remotely.
3. Real-timely track the vehicles on the Internet and by Mobile.
1.1 Interface
- -
1

WynnYeen International (China) Limited
www.wynnyeen.com [e-mail]
GPS Mini Vehicle Tracker Instruction
1. SIM: Port for SIM card
2. LED: Status light
3. DC+ connect to + of battery
ACC connected to Ignition Line
pOff connected to Relay to control Engine of auto
GND connected to – of battery
1.2 Installation Instruction
Please test after installation. Please make sure ACC, DC+, GND are connected
correctly. Otherwise, the device cannot work. Please check the device status through signal
light after power on:
LED flashes for one second which indicates GSM registers successfully.
LED flashes three seconds one time, which indicates GPS is obtaining orientation
LED is on which indicates work successfully (GSM has registered and GPS has
obtained the orientation).
If LED is on 0.1 second then off 0.1 second for more than 3 minutes, please make
sure SIM card inserted well. Without SIM card, the device cannot work.
- -
2

WynnYeen International (China) Limited
www.wynnyeen.com [e-mail]
GPS Mini Vehicle Tracker Instruction
- -
3
2 SMS Operation Instruction
SMS Format: A******,cmd,param1,param2…
1. ******is the password, Initial Password is 000000
2. cmd is the command ID.
3. Param is the command parameter. Different cmd use different parameters. All the
parameters must use half-angle symbol. Wrong SMS format or wrong password, it will not
respond.
2.1 Location Enquiry (000)
Message format: A******,000
e.g. A000000,000
Reply: Longitude E113.93923 Latitude N22.54079 08-10-20 17:38:30,
User could enquiry in HTTP://maps.google.com.
2.2 Change Password (001)
Message format：A******,001,New Password
e.g. A000000,001,123456
Note:000000 is the old password ,123456 is the new password.
Reply：Set Password OK!
2.3 Real-time return setting (002)
Message format：A******,002, XXX
XXX=0 is for STOP, value of XXX is within [15~64800] seconds.
e.g. A000000,002,30
Message replied after successful setting: Set time interval (30) OK! Message contains

WynnYeen International (China) Limited
www.wynnyeen.com [e-mail]
GPS Mini Vehicle Tracker Instruction
- -
4
position information will be sent in every 30 seconds after successful setting.
2.4 Alarm Number setting
Message format：A******,003,1, TelNumber
e.g. A000000,003,1,136xxxxxxxx
Message replied after successful setting：Set Telephone OK!
2.5 Over-speed Alarm Setting (005)
Message format：A******,005,XXX
XXX=[000,200] (unit: km/h)XXX=00 is close the function.
e.g. A000000,005,020
Message replied after successful setting: Set Over speed (20) KM OK!
If the vehicle is over speed you set, it will send alarm SMS to SOS mobile number. 20 KM/H
Over speed!
2.6 e-Fence Setting(006)
Message format：A******,006,XX
XX =[00-50] (Unit:100m) .
When XX=0, e-Fence is OFF. And the maximum limited value of XX is 50*100=5000m. e.g.
A000000,006,10
Reply: Set Distance (1000)M OK! When user is out of the bound region (e.g. 1020m), a
prompt message will be sent to the user: 1020m is further than 1000m!
2.7 Engine Cut-off Setting (007)
Message format: A******,007,X
X=0 cut off engine , x=1 resume engine, For security, this command will execute when the

WynnYeen International (China) Limited
www.wynnyeen.com [e-mail]
GPS Mini Vehicle Tracker Instruction
- -
5
speed less than 20Km / h or the ACC is off .
e.g. A000000,007,0
2.8 Sleep Mode (021)
Message format: A******,021,X
X=1 Open Sleep Mode, x=0 Do not Sleep
In Sleep Mode, the tracker will sleep and close the power of GPS Module when Acc is off
(engine is off).
2.9 Restart Tracker (099)
Message format: A******,099,RESETSYSTEM.
It will reboot the device after 30 seconds after receiving the SMS. After the rebooting, it will
respond: Reset System OK!
3 GPRS Settings
3.1 Set APN (APN=Access Point NAME)
Message format: A******,012,APN
Length of APN is limited within 100 characters, E.g:A000000,012,cmnet
“cmnet”is the APN of China Mobile
Please get from the SIM card provider.
3.2 Set the IP and Port of Gprs_Server
Message format: A******,010,IP,PORT
e.g. A000000,010,121.37.58.10,6902
121.37.58.10 is the IP of GPRS_server, 6902 is the port of GPRS_Server application (in

WynnYeen International (China) Limited
www.wynnyeen.com [e-mail]
GPS Mini Vehicle Tracker Instruction
communication with GPS camera tracker)
3.3 Open GPRS function
Message format: A******,011,X
(note:x=1 open GPRS, X=0 close GPRS)
e.g. A000000,011,1
GPRS function will be open, and GPS Camera tracker will send data to Internet. Users
can turn off this function through sending SMS: A000000,011,0
3.4 Query the GPRS Setting
Message format: A******,004
The device will send back GPRS setting parameters. You can use it to check whether the
parameter sets correctly.
（1）Device ID
（2）APN (China Mobile is CMNET, China Unicom is UNINET)
（3）Server IP address
（4）Server port
（5）GPRS open status（0- off ，1- on）
（6）GPRS connecting status（0- Internet is bad，1- work well）
（7）GSM signal value（1~31），if value<10 is too weak to work well.
- -
6

WynnYeen International (China) Limited
www.wynnyeen.com [e-mail]
GPS Mini Vehicle Tracker Instruction
4 GPS tracking system on website

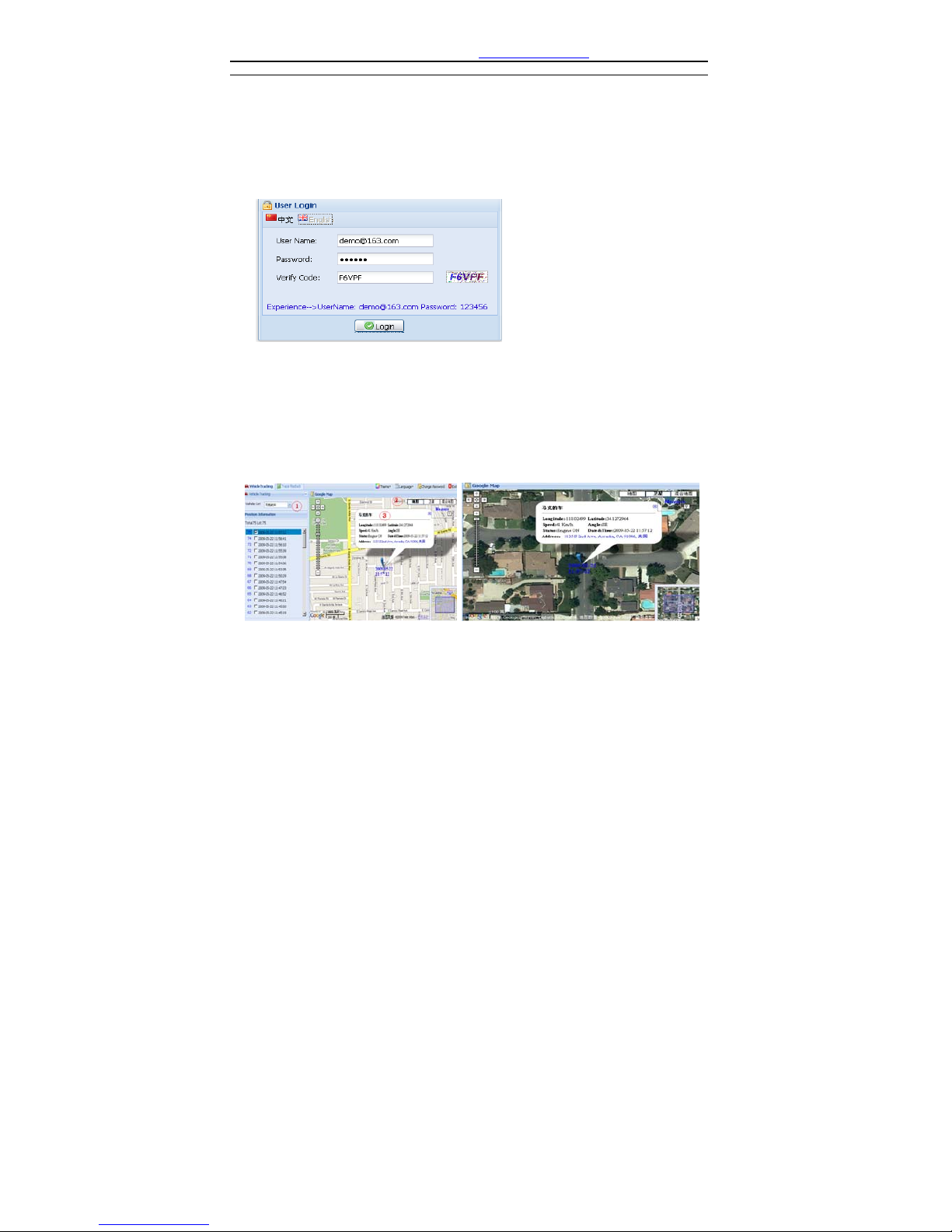

4.1 User Login
Google Map can support many different languages. It can change map language for
local language by itself.
4.2 Vehicle real-time tracking
1 choose vehicle 2 map mode 3.vehicle state.
Google map have 3 model: map mode, satellitic mode and Hybrid mode
Map mode satellites mode：
- -
7

WynnYeen International (China) Limited
www.wynnyeen.com [e-mail]
GPS Mini Vehicle Tracker Instruction
4.3 Vehicle history record playback
Please point run history review page
1 choose vehicle 2 start time 3 inquire time 4.setup review speed 5 start
review process
You can know that time date, speed, way and distance summary.
- -
