Reyconns GPS168G User manual

1
GPS VEHICLE TRACKER
USER MANUAL

2
Content
1 Summary functions --------------------------------------------------------------------------------- 3
2 Application --------------------------------------------------------------------------------- 3
3 Hardware Description
3.1 Front face -------------------------------------------------------------------------------------- 3
3.2 Bottom face --------------------------------------------------------------------------------------- 4
4 Specifications ---------------------------------------------------------------------------------------- 4
5Usage
5.1 SIM card installation ----------------------------------------------------------------------- 5
5.2 GPS Vehicle Tracker Installation ---------------------------------------------------------- 5
5.3 Startup ------------------------------------------------------------------------------ 6
5.4 Initialization ------------------------------------------------------------------------ 6
5.5 Change or resume the password ----------------------------------------------------- 6
5.6 Authorization ------------------------------------------------------------------------ 6
5.7 Real-time polling -------------------------------------------------------------------------- 6
5.8 Auto track ------------------------------------------------------------------------------ 7
5.9 Remote control oil and circuit --------------------------------------------------------- 7
5.10 Modes switch between “track” and “monitor” ----------------------------------------- 8
5.11 Geo-fence ------------------------------------------------------------------------ 8
5.12 Movement Alert -------------------------------------------------------------------------- 8
5.13 Overspeed Alert --------------------------------------------------------------------------- 8
5.14 Restart the tracker --------------------------------------------------------------------------- 8
5.15 SOS Button ---------------------------------------------------------------------- 8
5.16 Cut power alert ------------------------------------------------------------------------ 9
5.17 Set time Zone ------------------------------------------------------------------------ - 9
6 Cautions ---------------------------------------------------------------------- 9
7 Faults & Solutions ---------------------------------------------------------------------- 9
8 How it works --------------------------------------------------------------------------------------------------------- 10

1 Summary function
Working Based on existing GSM network and GPS satellites, this product can locate and monitor any remote targets by
SMS and GPS.
1.1 Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the
working status. You can choose the Positioning Platform by yourself.
1.2 Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and
the installed unit will send out alarm to the authorized numbers.
1.3 Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.
1.4 Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor
the sound around 5 meter.
1.5 Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will
send the movement alert to all authorized numbers.
1.6 Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit
will send the overspeed alert to all authorized numbers.
1.7 Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to
all authorized numbers when it breaches the district.
1.8 The Unit: send SMS to resume the default of unit.
1.9 Auto Track: You can set up auto track by SMS or on-line positioning platform.
1.10 Mileage statistics; ACC checking; cutting off power and alarm.
1.11 Compatible with the original anti-theft alarm: It will send SMS alarm after the original anti-theft alarm warning.
1.12 Modify the IP and Port of Communication Protocol for different on-line positioning platform
2 Application
Vehicle rental / Fleet management etc
Protect wealth etc
Provide peace-of-mind for businessmen
Manage personnel
3 Hardware Description
3.1 Side face
3
INDICATOR
FOR SIGNALS
GPS ANTENNA
GSM ANTENNA

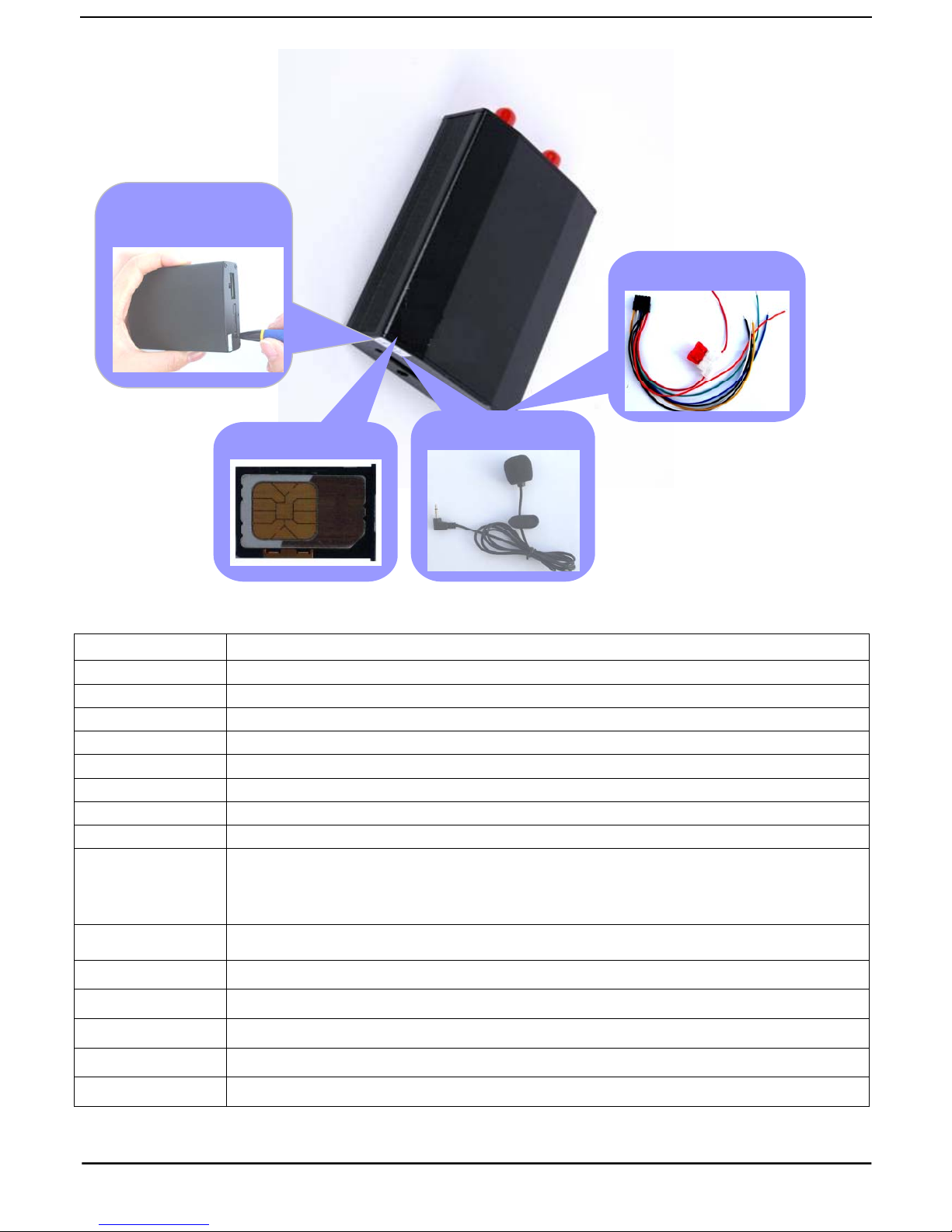

3.2 Bottom face
PRESS BUTTON TO
TAKE OUT SIM CARD.
SIM CARD
MICROPHONE
WIRE BOX
4 Specification
Content Specs.
Dim. 86mm*63mm*25mm
Weight 0.51kgs
Network GSM/GPS
Band 850/1800/1900Mhz or 900/1800/1900Mhz or 850/900/1800/1900
GPS chip SIRF3 chip
GSM module SIMCOM 900B
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix Cold status 45s Warm status 35s
Hot status 1s
Work voltage DC10V—36V
Battery 3.7V / 1500mAh
Standby <50mA
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +70°C
Humidity 5%--95%RH
4

5 Usage
5.1 SIM card installation
Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format,
can’t be identified for PDU format.
5.1.1 Put SIM card into card box.
5.1.2 Put the card box into host as picture.
5
5.2 GPS Vehicle Tracker Installation
5.2.1 Install Wire Box
5.2.2 GPS Vehicle Tracker Installation

Installation steps (caution: the following installation should under no power, otherwise will be dangerous)
6
Wire for cutting off oil of the tracker
Yellow wire connects the relay feet 86; 85 feet to
12 V DC anode, 87Afeet and 30 feet in series in the
supply oil circuits.
Wire for cutting off circuit of the tracker
White wire connects relay feet 86; 85 feet to
12 V DC anode, 87A feet and 30 feet are in
series in the supply power circuits.
5.3 Startup
Emergency triggering alarm
Blue wire connects the anode of the alarm
button; the black wire connects the cathode
of the alarm button.
Power supply line
The red wire connects 12V“+”;Black wire connects
to12V“-”
5.3.1 Installed the tracker in the car,then put the SIM card into the tracker host outdoors.
5.3.2 For first use, please initialize the unit and restore it to default setting.( please refer to 5.4for instruction.)
5.3.3 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals, and the red
indicator will keep flashing every 2 seconds when the GPS module is in standby mode. When the blue indicator is keep
shine, the unit has been located.
5.3.4 When this unit receives GPS signals normally, you can use it and do all the following settings.
5.4 Initialization
Send “begin+password” in SMS to the unit, it will reply “begin ok” and initialize all the settings. (Default password: 123456)
5.5 Change the password
5.5.1 Send SMS "password+old password+space+new" password to change the password.
Remark: Make sure the new password is in 6 digits, or else the tracker can not recognize the password.
5.5.2 you can Send "resume+password" to the tracker, to restore the original setting in case of losing the new password.
5.6 Authorization
There are only 4 numbers able to be authorized.

5.6.1 Call the tracker for 10 times, it will make the cell phone number as the authorized number automatically.
5.6.2 Send SMS "admin+password+space+cell phone number" to set up a authorized number. The other authorized
numbers should be set by the first authorized number. If the number is successfully authorized, the unit will reply "admin
ok!" in SMS.
5.6.3 Send SMS "noadmin+password+space+authorized number" to delete the authorized number.
5.6.4 For roaming purpose, you have to add your country code ahead of the cell phone number, for example, please "send
admin123456 008613311113333"to tracker to set 13311113333 as an authorized number.
5.7 Real-time polling
5.7.1 If there is no authorized number, when any number dials up the unit, it will report a Geo-info; If there is already an
authorized number, then it will not respond when an unauthorized number calls it up.
5.7.2 When an authorized number dials up the unit, it will hang up and report a real-time Geo-info as below:

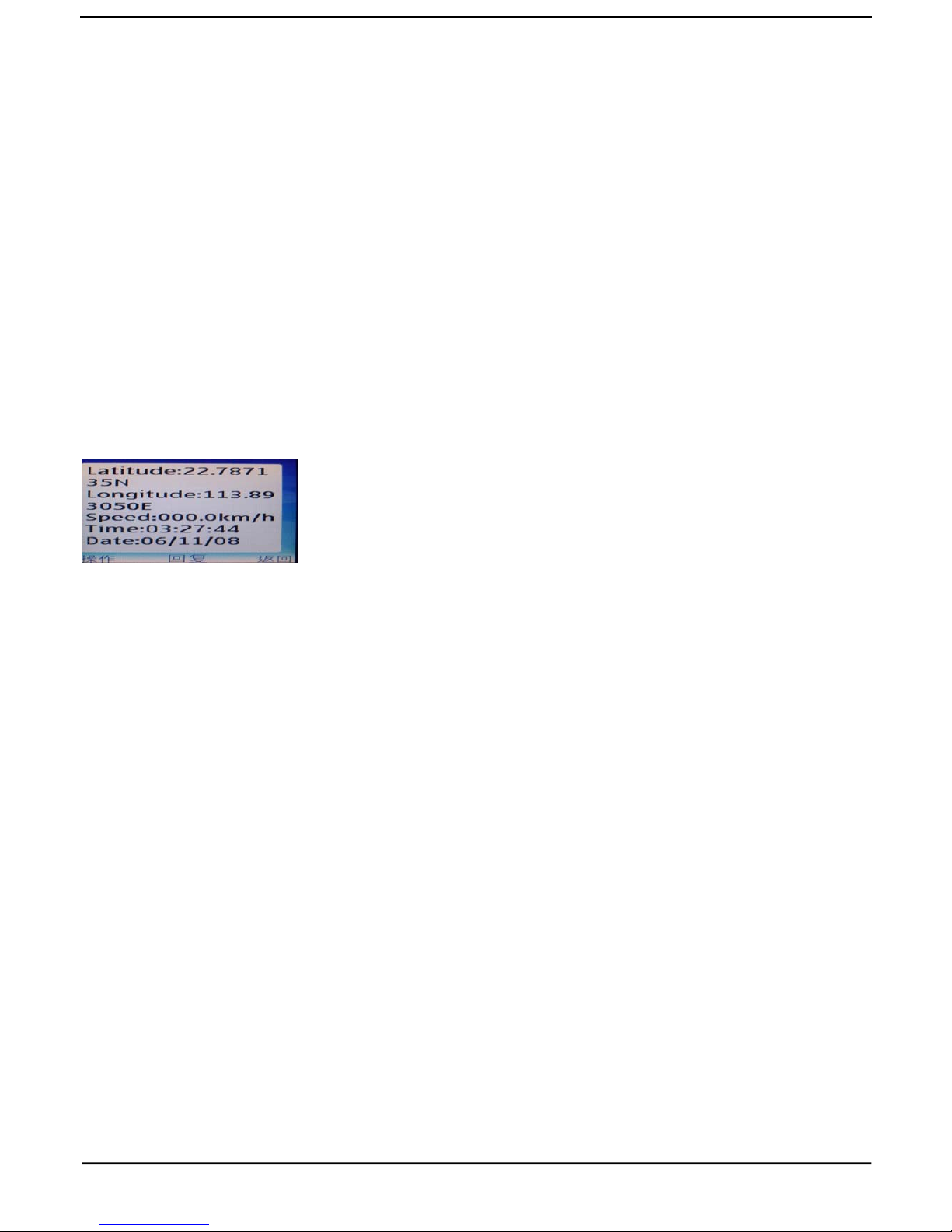

5.8 Auto Track
Report a Geo-info at 30s intervals to the authorized numbers for 15 times:
5.8.1 Set up: Send SMS "at30sum15 " to the unit, it will report the Geo-info at 30s intervals for 15 times. The setting must
be maximum 65535 in value.
5.8.2 Send SMS "at30sum0" to the unit, it will reply SMS heaps of times.
5.8.3 Cancel: Send noat+password to delete the “auto track”.
5.9 Remote control oil and circuit
5.9.1 Control oil
Send SMS "stopoil+password" to control oil. For example send SMS:stopoil123456
To supply the oil again, send SMS "supplyoil+password" to the unit.
5.9.2 Control circuit
Send SMS "stopelec+password" to control circuit. For example send SMS: stopelec123456
To supply the circuit again, send SMS "supplyelec+password" to the unit.
If there is no authorized number, all number can control. If there is already an authorized number, only the authorized
number can control.
7

8
5.10 Modes switch between "tracker" and "monitor"
5.10.1 The default mode is "tracker".
5.10.2 Send SMS "monitor+password" to the unit, and it will reply “monitor ok!” and switch to “monitor”mode.
5.10.3 Send SMS "tracker+password" to the unit, it will reply “tracker ok!” and restore to “track” mode.
5.11 Geo-fence
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized
numbers when it breaches the district.
5.11.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can Send SMS
"stockade+password+space+longitude,latitude;longitude,latitude" to unit to set the restricted district. In case of breach,
it will send SMS “stockade!+geo-info” to the authorized numbers.
Remark : The first longitude& latitude is coordinate of the top left corner of the Geo-fence, while the second
longitude&latitude is the coordinate of the bottom right corner. It will alarm one time in each setting.
5.11.2 Cancel: Send SMS "nostockade+password" to deactivate this function.
This function will be out of effect after the unit moves outside the district.
5.12 Movement alert
5.12.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can send SMS "move+password" to the
unit, then the unit will reply “move ok!”. In case of such a movement, it will send SMS “Move” along with a Geo-info to the
authorized numbers. It will alarm one time in each setting.
5.12.2 Cancel: Send SMS "nomove+password" to deactivate the movement alert.
Remark: This function will be out of effect after the unit moves outside the district.
5.13 Overspeed alert:
5.13.1 Set up: Send SMS "speed+password+space+080" to the unit (suppose the speed is 80km/h), and it will reply
"speed ok!". When the target moves exceeding 80 km/h, the unit will send SMS "speed+080!+Geo-info" to the authorized
numbers. It will alarm one time in each setting.
5.13.2 Cancel: Send SMS nospeed+password to deactivate the overspeed alert
5.14 Restart the tracker.
Send SMS "reboot+password" to the tracker. For example“reboot123456”.The tracker will be restarted.
5.15 SOS button
Press the SOS for 3 second, it will send "help me !+ Geo-info" to all the authorized numbers every 3 minutes. It will stop
sending such a SMS when any authorized number reply SMS "help me !+ Geo-info" to the tracker.

9
5.16 Cut power alert
If cut power,the unit will send SMS alert.
SMS format: " Cut powerAlert+Geo-info".
5.17 Set Time Zone
In order to make the time as the same with the user country, please send SMS command "zone123456 space time zone". For example, if
user country time is GMT+8, then send"zone123456 8"to the device. If user country time is GMT-6, then send"zone123456 -6"to device. The
device will reply SMS" set time zone ok".
6 Caution
6.1 Make sure to read this manual carefully before using this product.
6.2 Please insert the SIM card before installing, and make sure the SIM card has no password, otherwise the tracker will
not work normally.
6.3 The tracker’s work voltage is 10V-36V. Please use the tracker in the scope of work voltage.
6.4 Please make sure that all the cables of the tracker has been connected rightly, and then connect the tracker to host
power.
6.5 The tracker works in wireless communications, to avoid electromagnetic interference or incompatible configuration,
please stop using your tracker in the noticed place.
6.6 Keep the unit dries.Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry.
6.7 Clear the unit with a piece of dry cloth. Don’t clean in chemicals or detergent.
7. Faults & The solutions
Faults Solution
Startup Fail Check the battery and see if it is fully charged or correctly installed.
Hang up Fail In existence of an authorized number, an unauthorized number dials up the unit
.
Please initialize the unit and re-set up the authorized numbers.
Monitor Fail Check if the authorized number is setup or in the coverage of signals.
Location report in
digits of zeros. Don’t use it in the place be
y
ond reach of si
g
nals. Place the unit outdoors, especiall
y
when starting it up.
