Reynolds Building Systems the Easton User manual

This manual is copyrighted. Under the copyright laws, this manual
may not be copied, in whole or in part, without consent from Reynolds
Building Systems, Inc. © Copyright 2011
the Easton 12'x 20'
Revised September 12, 2017
Assembly Book
Best Barns USA
Manufactured by Reynolds Building Systems, Inc.
205 Arlington Drive - Greenville, PA 16125

Tongue Edge
LAP Edge
Tool List
Hammer & Phillips Screwdriver
Framing Square & Level
Hand or Circular Saw
Power Drill/Screwdriver
Measuring Tape
2 - 8' Step Ladders
Always wear safety glasses when cutting or nailing!
The siding is made in 4x8 sheets with grooves
cut into the face, the long edge is beveled so
that the siding overlays where they butt.
To identify which edge we want you to use, we
will refer to the edge as either the 'LAP' Edge
or the Tongue Edge. Nail siding with 8d
galvanized nails, spaced 8" apart.
IMPORTANT INFORMATION ABOUT YOUR SHED KIT
Download the most current instruction book at www.barnkits.com; use the "manuals"
link on the menu bar and then select your building kit and size.
Thank you for purchasing our shed kit. Read the instructions before starting the assembly
of the building. If you have any questions about assembling the kit, call 800-245-1577.
Business hours (8:00-5:00 ET) Monday thru Friday. After business hours call 724-866-
HELP (4357) or email to [email protected].
The material that is included in our kit is listed on the back page. The optional floor package,
if purchased, will be supplied by a local lumber supplier.
Our kit does not include the shingles, the quantity needed is listed on the back page. The
siding is primed. You will need to apply a finish coat using latex acrylic paint.
Some of the framing lumber was used in the shipping pallet. Unpack the material from the
pallets, then unscrew the bottom runners from the 2x4s. The bit for the screws is packed
in the hardware bag. This material will be used for wall bracing and tie plates.
Most buildings are installed on a wood floor and the siding was designed to extend over the
wood flooring. If the foundation is a concrete floor cut the siding flush with the bottom of
the wall plate to prevent the concrete from contacting the siding.
Stacking the boards, according to size, will make them easier to find when needed. Some
boards may have colored ends. Do Not discard any material until your building is complete.
Before you begin construction, be sure to study this assembly manual.Also, obtain a building
permit and check all pertinent building code regulations.
Thank you for your purchase. Bill & Linda Rinella, owners

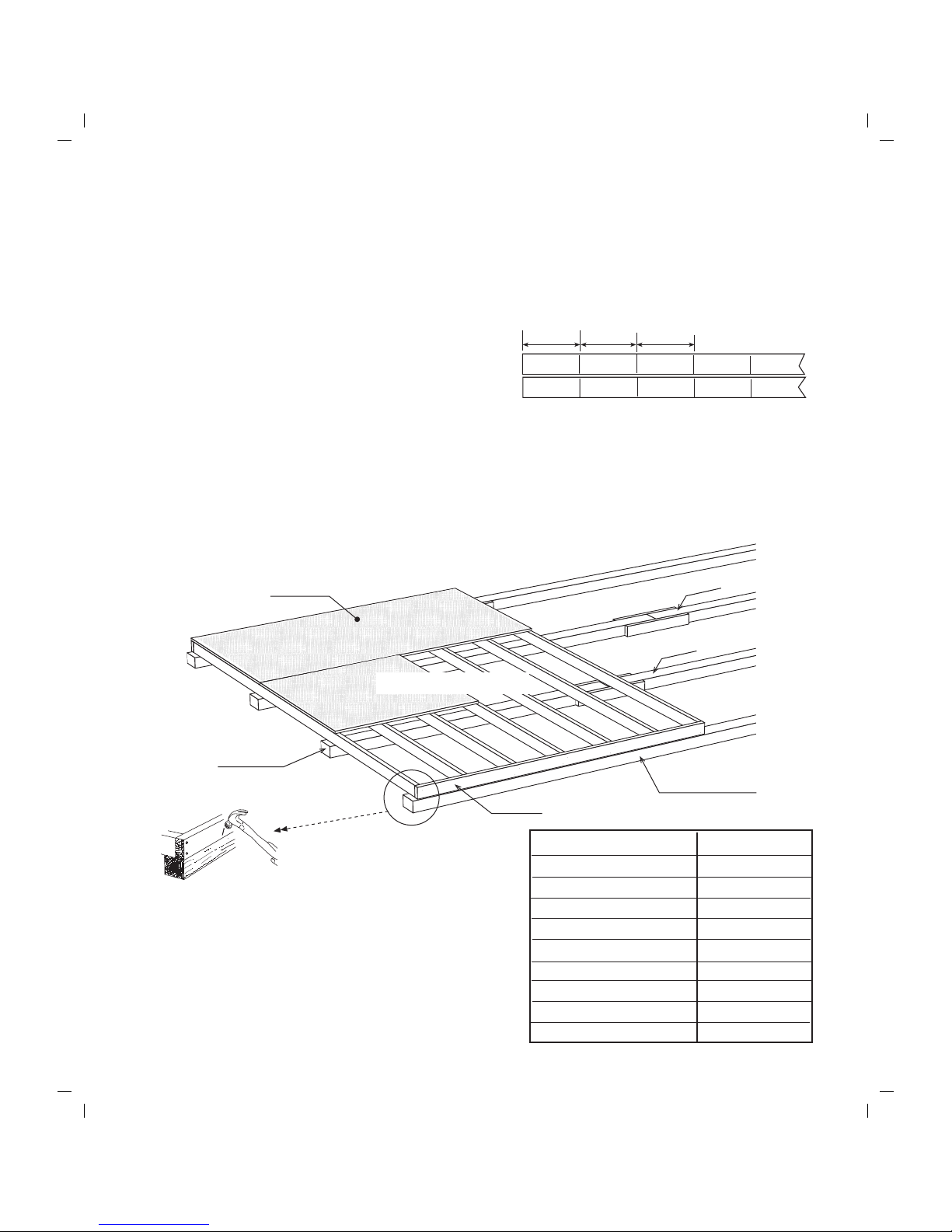

1. Stagger the 4x4 timbers as shown below. Cut (2) two 2x4- 8' boards into 2' long blocks
to secure the 4x4s where they butt together.
Assembly Instructions for
Rear Floor Section
4. Install the floor joists cut above between the 8' joist headers. Secure with 16d galv. deck nails.
5. Place floor assembly over the 4x4s. Square floor assembly. Measure the floor diagonally
(corner to corner) and then the opposite corners; these measurements will be the same when
the floor is square. Toenail frame (headers & joists) to the 4x4 runners.
2. Cut (2) two 2x4-8' to a length of 8' -0". They
will be used for the joist headers. Layout, from
left, for 16" on center joist spacing. 'X' marks
where floor joist will be placed.
6. Cut (2) two 2x4-12' to a length of 12' -0". Layout
for 16" joist spacing, See above.
7. Install floor joists between the joist headers. Square
the floor section and install against the section
assembled above. Toenail to the 4x4s runners.
8. Install 4x8 flooring over the 2x4s. Use 8d galv.
spiral nails spaced 8" apart.
Material Description 12' x 20'
2x4 Treated Blocking 2 pcs. 8'
2x4 PT Joist Headers 2 pcs. 8'
2x4 PT Joist Headers 2 pcs. 12'
2x4 PT Floor Joist 17 pcs. 12'
4x4 Treated Runners 4 pcs. 8'
4x4 Treated Runners 4 pcs. 12'
Flooring 5/8" or 3/4" 8 pcs. 4x8
Galv Spiral Floor Nails 3 lb. 8d
Galvanized Deck Nails 5 lb. 16d
Foundation size is 12'-0" x 20'-0". Check local building codes in your area, the construction may
have to change. For a concrete slab, install sill sealer as a moisture barrier between the concrete
and the wall plates. Foam sill sealer can be purchased at home centers in rolls 3-1/2" or wider.
Constructing Details for Deluxe Floor System
Deluxe floors include 4x4 runners, standard floors do not.
3. Cut (17) seventeen 2x4-12' treated boards to 11' -9". These will be the floor joists. Treated
lumber may be thicker than 1-1/2". Take this into account when cutting the length of floor
joists. Shorten joist measurements if necessary to obtain 12'-0" building width.
XXXX
XXXX
X
X
15-1/4" 16" 16"
4x4-8' Treated
Runner
4x8 Flooring
2x4-8' Joist Header
4x4-12' Treated
Runner
4x4-8' Runner
4x4-12' Runner
4x4-12' Runner
Front Floor Section
::
:::
:
:::::::

!
!

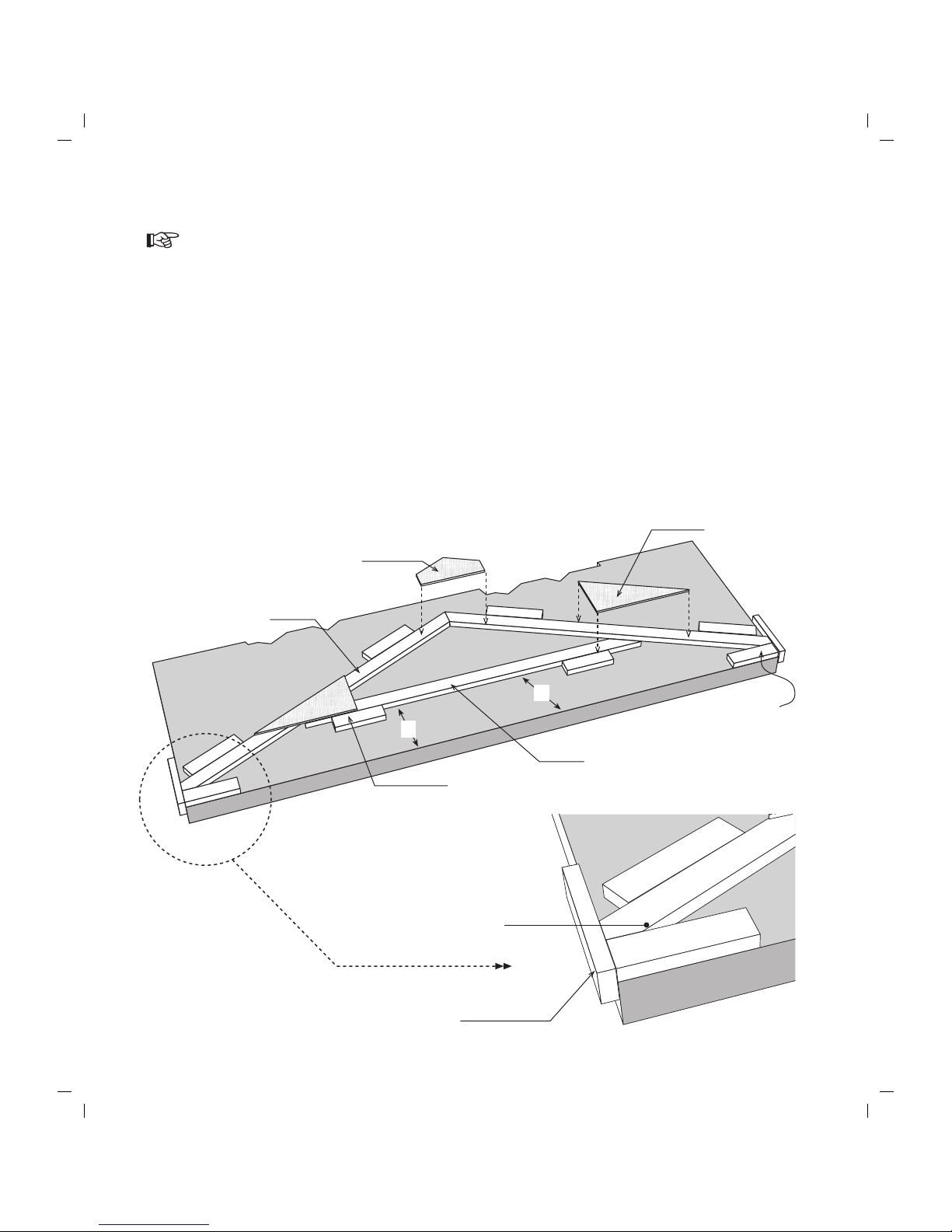

Step 1 Assemble Roof Trusses
1. Screw 2x4 blocks to the 12' wide end of the floor, at the corner to trap the truss boards.
2. Place (2) two 80-1/2" long 2x4 Truss Rafters and a 82" long Collar Tie together as shown
below. The Collar Tie has an angle cut on both ends. Affix 2x4 blocks around the 2x4s to hold
them in place and enable all trusses to be built the same.
3. Secure the 2x4s at the top with a 8" x 20" wood gusset. Apply wood glue between the 2x4s
and the gusset. Nail the gusset to the 2x4s with 6d common nails, 14 nails per gusset.
4. Install 12"x24" gussets to the ends of the collar tie. Glue and nail using 14 nails per gusset.
5. Turn this truss over and apply wood gussets to the opposite side.
6. Repeat to assemble (8) eight more trusses.
Do Not remove blocks from floor until Step 2 is completed.
2x4 Block
Top Gusset
12"x24" Gusset
2x4-82" Collar Tie
2x4 Block
!Install collar tie the same
distance from edge of floor.
80-1/2" Truss Rafter
Building Tip: To aid in the assembly of the trusses, temporarily screw 2x4 blocks to
the floor. This will insure that all the trusses are assembled the same. Use 2-1/2" screws.
There are short 2x4s, that may have an angle on one end, supplied in the kit.
2x4 Block
2x4 Block
2x4 Block
80-1/2" Truss Rafter

Step 2 Assemble Roof Gables
1. Butt (2) two 72" long 2x4s together and secure them with a 3-1/2" x 31-3/4" long plywood
gusset across the top where they butt together. Use glue and 6d common nails. This will be
used as the bottom plate on the roof gables.
23-1/2" Gable Stud
2x4 Gable Plate
72" long 2x4
3/4" Plywood Gusset
2. Assemble another 12' long bottom plate.
3. Place (2) two Truss Rafters in the jig. Secure the top together with a barbed metal plate.
4. Reposition the lower 2x4 blocks to hold the gable plate assembled above, in place.
5. Secure the 2x4 Gable Plate to the Truss Rafter with a 2-1/2" wood screw.
6. Install (2) two 23-1/2" gable studs. Nail through the bottom plate with 10d sinkers
and secure the top with barbed metal drive-on plates.
7. Repeat steps to assemble another gable. Remove the short 2x4 blocks.
Barbed Metal Plate
2x4 Truss Rafter

4. Install a white pine trim board, called a 'Keystone', at the top center of the gable. Install
this trim board extending 1/2" beyond the gable frame. This will permit the roof sheathing
to butt into the trim when installed in a later step.
5. Install 1x6-80" long white pine trim boards on
each side of the gable extending 1/2" beyond the
gable trim.
1x6-80" Trim Board
Keystone
Tip; Paint the siding and trim boards before installing the trim.

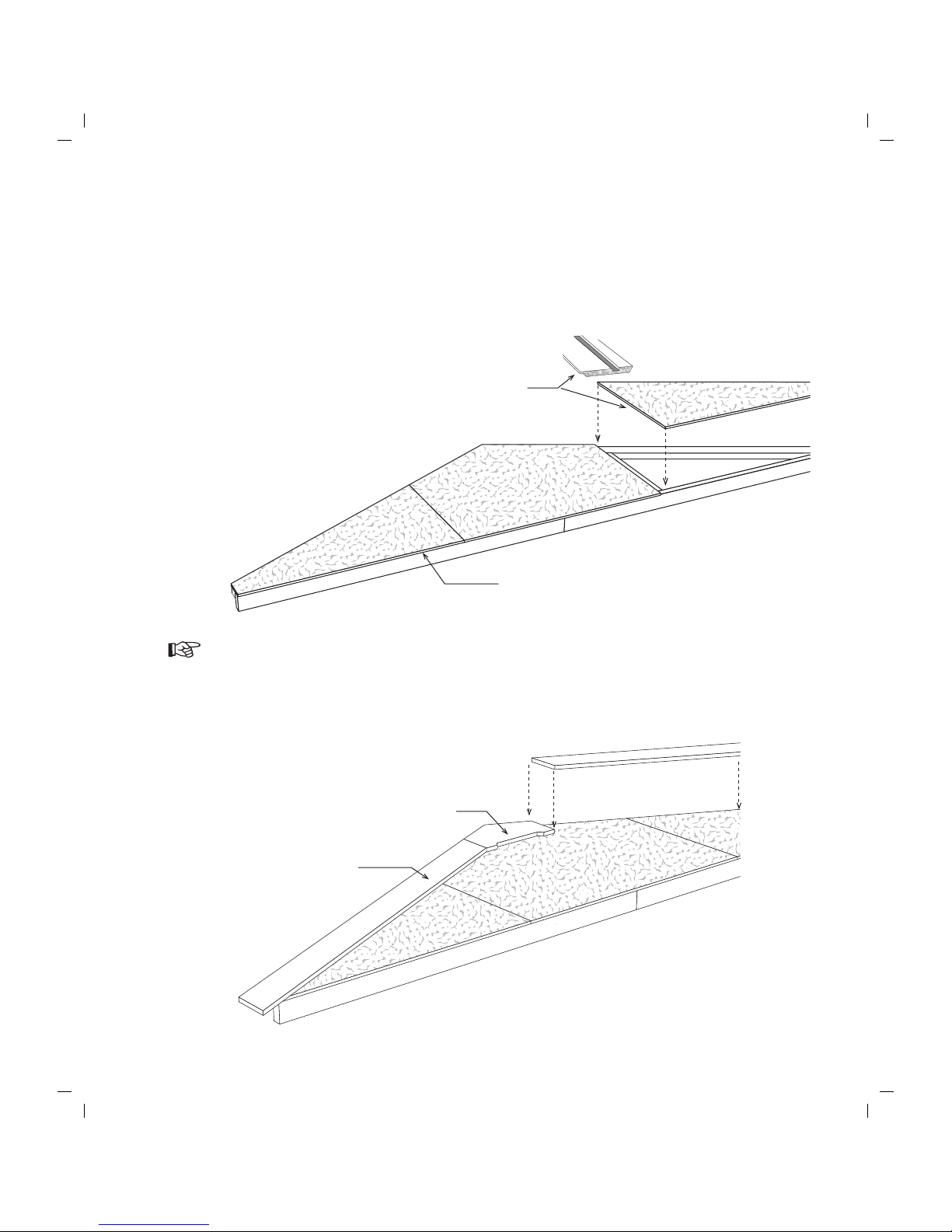

Step 3 Install Siding & Trim on Gables
1. Select one of the gable frames. Turn the gable over letting the bottom plate overhang
the floor so the gable lays flat.
Siding Extends 3/4"
Below Bottom Plate
3. Install siding on the other gable frame.
2. Install gable siding using 6d galv. nails across the
top of the 2x4 frame. Use 8d galv. nails across the
bottom 2x4. The siding will extend 3/4" below the
bottom 2x4. Tip; use a 1x4 trim board as a gauge.
LAP
Edge

Select siding panels that are 75-3/4" in length for this wall panel.
72” Wall Studs
68-1/2" Wall Plate
AB
Step 4 Assemble 12' End Wall Panel
1. Position (4) four 68-1/2" boards together and indicate with 'X' marks where the wall studs will
be located. Mark the ends that will butt together with the letters 'A' and 'B'.
2. Install (8) eight 72" long wall studs, between the wall plates, over the 'X' marks and where the
plates meet. Use (2) two 10d sinkers at each end of stud.
A
A
B
B
XX
XX
X
X
X
X
X
X
X
X
68-1/2" Wall Plate
24"
19-3/4" 24"
23-1/4"
68-1/2" Wall Plate
3. Nail wall frames together using 10d sinkers.
4. Square wall frame. Install the 1st siding panel with the 'LAP' edge extending 3-1/2" past
the wall frame. The bottom will extend 3/4" below the bottom plate. Note;
Cut the siding
flush with the bottom plate if installing the building on a cement slab.
5. Install the other siding panels. Cut the last panel to extend 3-1/2" beyond the wall frame.
Siding to extend 3/4”
below bottom plate
LAP
Edge
A
B
Siding Extends 3-1/2"
Past 2x4 Stud

X
X
X
X
X
X
X
X
72" Wall Plate
24"
23-1/4"

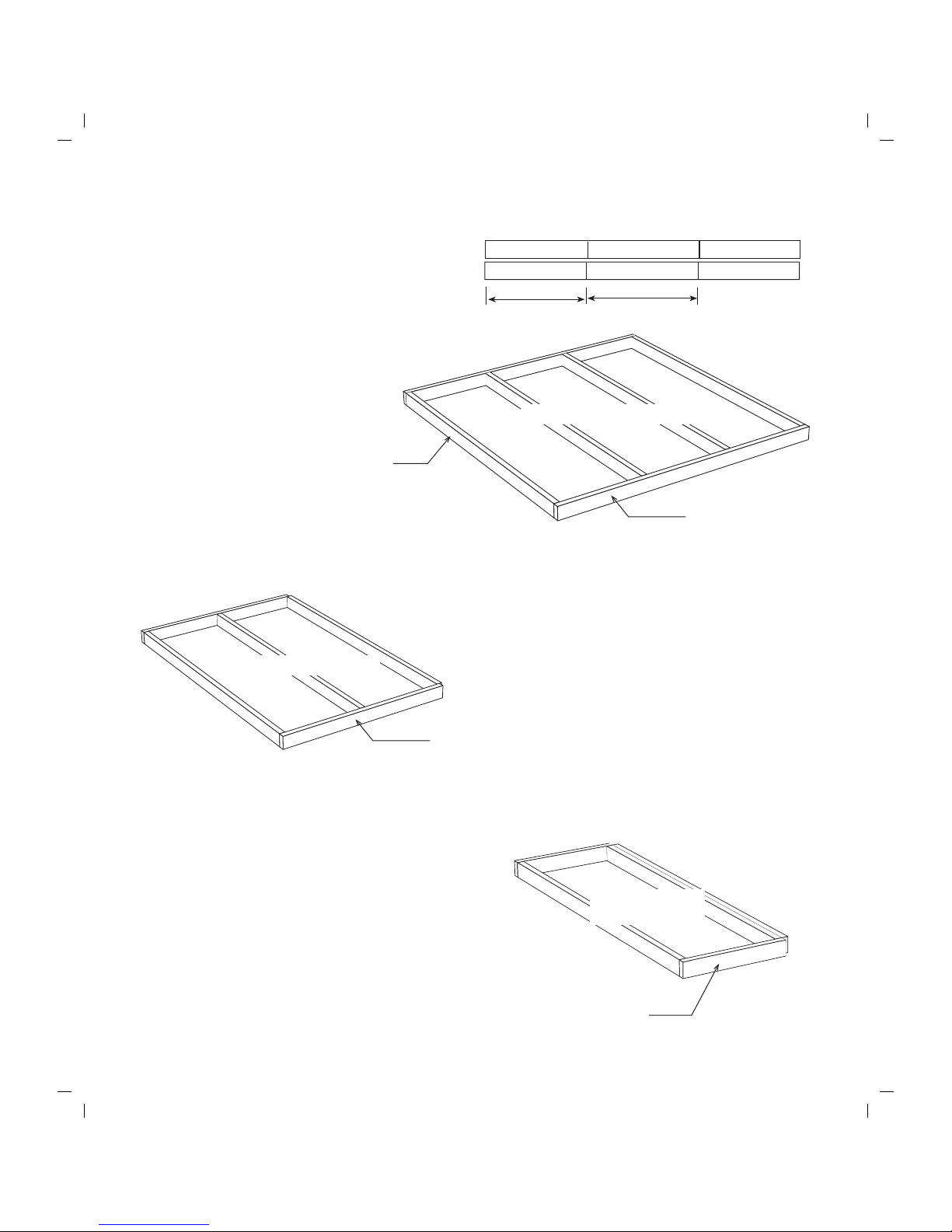

Step 5 Assemble Back & Front Wall Frames
1. Position (2) two 2x4-72" boards together
and indicate with 'X' marks, where the
wall studs will be located.
3. Repeat process to assemble (3) three
more 72" long wall frames. 72" Wall Plate
72" Wall Stud
4. Install (3) three 2x4-72" wall studs between
(2) two 48" long 2x4s. Install the stud in the
center of the wall frame.
5. Repeat to make (1) one more 48" frame.
Make (2) Two Frames
Make (4) Four Frames
48" Wall Plate
2. Install (4) four 72" long wall studs
between the wall plates
6. Install (2) two 2x4-72" wall studs between (2) two 24" long 2x4s.
7. Repeat to make (1) one more 24" frames.
24" Wall Plate
Make (2) Two
Frames

1. Position a 48" wide wall frame against a 72" wall frame as shown below. Nail frames
together with 10d sinkers.
2.
Square wall frame. Measure diagonally (corner to corner). The measurements will be the
same when the wall is square.
Select siding panels that are 79-1/2" in length for the back wall and the front wall.
When installed, the siding will extend 3/4" below the bottom plate and3-3/4" above
the top plate. Cut siding flush with the bottom plate if installing the building on a
cement slab.
Step 6A Assemble 10' Long Back Walls
3. Select a 24" wide panel, with the 'tongue' edge, and install this panel with the 'cut' edge'
flush with the end of the wall and extending 3/4" below the bottom plate.
4. Install (2) two more siding panels.
Siding Extends 3/4" Below Plate
LAP Edge
5. Repeat to assemble another 10' long wall frame, do not apply siding.
Cut Edge
Tongue Edge
72" Wall Plate
48" Wall Plate

Step 6B Assemble Back Walls for 20' Building Length
1. Select the 10' wall frame, without siding, assembled in Step 6A. Position this wall frame,
against the wall panel so the 72" section is against the sided panel as shown below.
DO NOT nail these frames together so they can be separated later.
10' Wall Panel from Step 6A
72" Wall Plate
2. Square the wall frame. Install a full width siding panel but do not nail along the long edge
that overlaps the 10' wall frame. You can nail this edge after the wall panels are installed.
This will enable you to separate the wall panels making them easier to handle.
Do Not Nail Along This Edge
LAP Edge
48" Wall Plate
3. Install another full width siding panel and
the 24" wide siding panel.

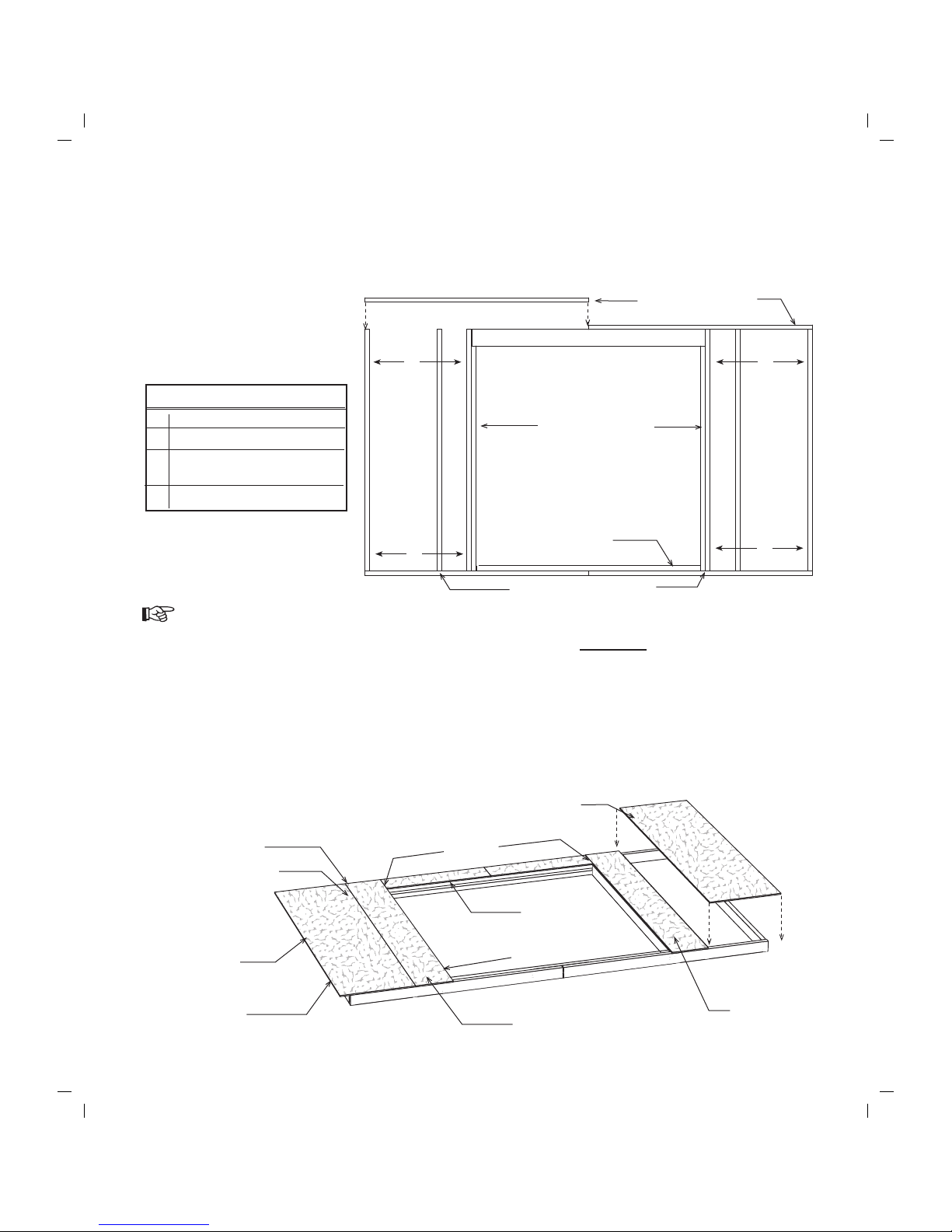

1. Select a 72" wall frame and a 24"wall frame assembled in Step 5.
2. Nail these frames together with
10d sinkers. Square the wall
frame.
3. Repeat to assemble another 8'
wall frame.
4. Select the pre-built wall frame and install it next to the wall frame assembled above.
Use 2-1/2" wood screws
36"
7. You can install the last siding panel with
the door opening.
5. Install the first 79-1/2" long siding panel with the 'LAP edge' flush with the end of
the wall and extending 3/4" below the bottom plate.
6. Install another panel. If installing windows you can cut the opening now. Instructions are
in the window box
Step 7 Apply Siding to Front Wall Frames
Siding Extends 3/4" Below Plate
72" Wall Frame
48" Wall Frame
with Door Opening
96" Wall Frame
24" Wall Frame

XXX
X
9. Install a full width siding panel. DO NOT nail the long edge that overlaps the door siding
panel. You can nail this edge after the wall panels are installed later.
10. Install the last panel. Separate the wall panels.
8. Butt the other 8' wall frame against the center door frame. DO NOT nail frames together.
This will enable you to separate the wall panels making them easier to handle. Temporarily
butting the frames together enables you to align the siding where it overlaps the adjoining
wall panel.
Do Not Nail Along Edge
LAP Edge
Step 7 Apply Siding to Front Wall Frames Continued
1. Cut a 2x4-6' board to a length of 64-1/2". Butt (2) two 68-1/2" boards together. Center the
64-1/2" long 2x4 board (used as a door spacer) on top and screw the boards together using
(4) four 2-1/2" wood screws.
2. Indicate where the wall studs will be located by drawing a line and placing an 'X' mark
next to the line. The wall stud will be installed over, covering, the 'X' marks.
19-3/4"
36-1/4"
2x4 - 68-1/2" Boards
64-1/2' Board (Door Spacer)
19-3/4"
Step 8 Assemble Bottom Plate with Door Spacer

Select siding panels that are 75-3/4" in length for this wall panel.
!
!
!
!
Check measurements. They
should be the same or the
door opening will not be square!
Step 9 Assemble Double Door Wall
2x3 Door Header
Siding 3/4"
Below Header
Cut Edge
Tongue Edge
Cut Edge
Butt Square Edges
Together
5. Locate a 16" siding panel that has a 'LAP' edge. Position the 'cut' edge flush with the left side
of the door opening. Do not nail the 'LAP' edge until the other siding is applied.
6. Select the 24" wide siding panel, with the 'tongue edge', and install this siding panel at the
left end of the wall frame as shown below. The siding will extend 3-1/2" beyond the frame.
7. Install (2) two 4-3/4" pre-cut siding panels over the door opening, flush with the top plate.
8. Install a 16-3/4" siding panel with the 'cut' edge flush with the side of the door opening.
9. Install the last siding panel. It will extend 3-1/2" beyond the 2x4 wall frame.
LAP Edge
LAP Edge
16" Siding Panel
16-3/4"
Siding Panel
Siding Extends 3-1/2"
Past 2x4 Frame
Wall Studs with Door
Jacks Attached
68-1/2" Top Plate
2x4 Bottom Plate w/ Door Spacer
2 68-1/2" Wall Plates
4 72' Wall Studs
2 72' Wall Studs with door
jacks attached
1 Bottom Plate from Step 8
Material List
1. Gather the material listed below to assemble the door wall.
2. Install (4) four 72" wall studs over the 'X' marks. Use (2) two 10d sinkers at each end of stud.
3. Install wall studs, with the
door jacks attached, on each
side of the door spacer.
4. Install door header on the
door jacks.
68-1/2" Bottom Plates
!

2. Install the last siding panel on the back wall. Nail
along the siding where the panels overlap.
Step 10 Set Wall Panels
5. Finish nailing along siding edges that overlap adjoining wall panels.
6. Remove the door spacer from the door opening.
7. Cut out bottom 2x4s from the door openings.Save for tie plate material.
1. Set the back wall panel between the end walls. Secure wall panels together at the corners. Use
(4) four 10d coated nails per corner. Nail wall panels to the floor. Nail through the bottom plate.
Space 10d sinkers 24" apart.
3. Disassemble the longer shipping pallet and use the 82" long 2x4s to brace
the walls to hold them straight.
4. Set the front wall panels between the end walls.
Nail Along
Siding Edge
Cut Bottom 2x4 From Opening
Cut 2x4
From Opening
Remove 2x4 Door Spacer
2x4 Wall
Brace
2x4 Brace on each side
of the door opening

Flush
4. Install corner trim and upper wall trim to the opposite end wall.
Step 11 Install 12' End Wall Trim
1x3x75-3/4" Trim Board
Double Door
Wall
3. Install (2) two 1x3x72-1/4" boards
along each side of the door opening.
Tack these boards with a couple nails;
you may want to move the trim later
when you install the doors.
Siding Extends Below Trim
Trim Flush With Top Of Wall
Step 12 Install End Gable Over Door Wall
Install gables on the 12' end walls. The siding will extend over the 1x4 trim on the lower wall.
NOTbehind the trim. Secure gable to wall by nailing through the gable plate with 10d sinkers.
Nail siding along the overlapped 1x4 trim board with 8d galv. nails.
Siding Overlaps
Wall Trim
1. Install (2) two 1x3-75 3/4" corner trim boards to the sidewall. Install trim flush with the
2x4 top plate and flush with the siding on the front wall. Repeat for back wall. Use 8d
galv. nails, spaced 12" apart.
2. Butt a 1x4-6' board against corner trim flush with top plate. Next cut to fit and install a
1x4-6' trim board to finish.

Back Wall Panels
2x4 Face

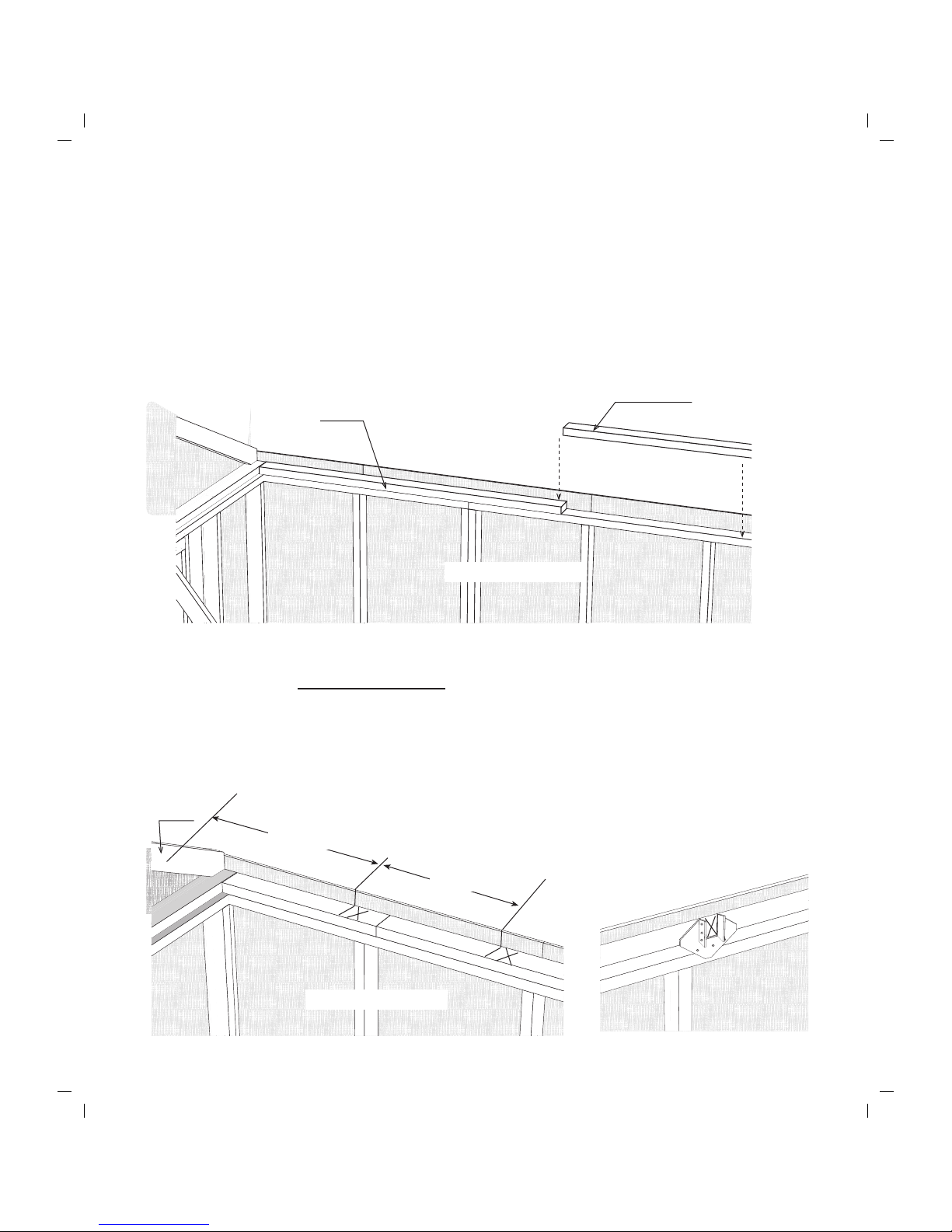

Step 13 Install 2x4 Tie Plates & Layout Roof Trusses
6. Layout the truss spacing. Facing the front of the building, start measuring from the left corner.
Measure from the 2x4 face of the gable when marking the location of the first truss. The last
truss space will be wider. Important: When marking the opposite wall, place the 'X' mark on
the same side of the line so your trusses are parallel when installed.
7. Using 6d common nails, install metal hangers to the 2x4 tie plate. Align the opening center
of the 'X' mark and bottom of the opening flush with the 2x4 tie plate. See Detail 'D'.
2x4-76" Tie Plate
21-3/8"
24"
64-1/2" Tie Plate
Detail 'D'
1. Disassemble the other shipping pallet, the 76" long 2x4s will be used as tie plates. Install all
2x4 tie plates with 10d sinkers.
2. Gather the 2x4s removed from the door openings in Step 10, also to be used for tie plates.
3. Install a 64-1/2" long 2x4 against the gable end. Install (2) two 76" long 2x4s next.
4. Cut one of the 2x4s, from the door opening, to fit against the gable end.
5. Repeat process to install 2x4 tie plates on the opposite wall.
Back Wall Panels

2. Install pre-built soffit overhang boxes on the back wall. Facing the back wall, install the soffit
box marked 'R-1' on the right corner. Use a straight edge to align the top of the 2x4 blocks,
in the overhang, flush with he top of the roof trusses. Screw the soffit overhang to the walls
with 2-1/4" long wood screws. Use (2) two screws between the small 2x4 blocks. When the
soffit boxes are installed correctly the 2x4 soffit blocks will align with the trusses.
3. Install another pre-built soffit overhang box (marked R-2) in the center.
4. Install a pre-built soffit overhang box (marked R-3) to finish.
5. Install the soffit boxes on the front wall. Facing the front wall install the soffit box marked
'L-1' on the left corner.
6 Install soffit boxes marked 'L-2 and L-3'.
7. Install 73-1/4" long 1x4 trim boards flush with the trim on the end walls. Use 8d galv. nails
straight edge
Back Wall Panels
R-1
R-2
Nail through siding into truss
end with one 7d sinker.
1. Install trusses over the 'X' marks. Secure to
metal hangers using 1-1/2" hanger nails.
Step 14 Set Roof Trusses & Overhang
End Gable
Pre-built Soffit
Box
1x4 Corner Trim
Back Wall Panels

Step 15 Install 1x6 Fascia & Roof Sheathing
1. Install (3) three 81" long 1x6 fascia boards on the soffit boxes with the beveled edge flush
with the top of the soffit blocks. Use 8d galv. nails.
2. Install 1x6 fascia boards on the front soffit boxes.
3. Install a 4'x6' roof sheathing panel with the bottom edge flush with the face of the 1x6
fascia. Make sure the trusses are plumb and the roof sheathing meets the center of the truss.
Use 7d sinkers spaced 12" apart.
4. Install the remaining roof sheathing per layout below. The top row of roof sheathing will be
about 1" below the ridge to allow for optional ridge venting.
1x6 Fascia Board
5. Install (2) two 1x3x73-1/4" boards along each side of the front door opening. Tack these
boards with a couple nails; you may want to move the trim later when you install the doors.
48" x 75"
48" x 72" 48" x 48"
37"x 51"
48" x 48"
Back Wall Panels
4X6 Sheathing
straight edge
37" x 72"
37"x 48" 37" x 72"

1. Locate the door marked (Single) on the back door frame. Lay this door on a level
surface with the trim facing up. Depending on which way you want the door to swing,
install (3) three 5" hinges on the left or right side of the door. To position the hinge
properly, hold the rectangular plate against the frame. Use 1-3/4" black screws.
Step 14 Install Doors & Hardware
5. Temporarily prop the doors in the
opening. Leave a space at the top of the
doors and between the doors and the
side trim to allow room for the doors to
expand when they absorb moisture. Use
OSB shim to support bottom of doors.
If your door opening is out of square,
the space around the doors will not be
even. You can remove and reposition
the side trim to make allowances for
this. The side trim does not have to be
flush with the frame of the door opening.
You can move the trim in or out to make
the door spacing equal.
6. Install hinges to trim with 2" black
screws.
OSB Shim
2. Lay the left door with the trim facing up. The
siding on the left door extends past the door trim.
See detail below.
3. Install 5" hinges to the left side of the door frame.
4. Install hinges to the right side of the other door.
7. Install a barrel bolt on the bottom of inside
of left door to secure this door in place
when closed. You will need to drill a hole
in the floor for the round shaft to drop into.
8. Install another barrel bolt at the top of the
door.
Barrel Bolt on the
back of left door
Install Door Latch
Left Door
Siding Extends Past Trim

Install metal roof edge the perimeter of the
building. Install shingles according to the
instructions on the wrapper. If you need more
detailed instructions on installing shingles,
there are good publications at book stores.
Building Size Material List
16' x 12' 20' x 12'
9 bdl. 11 bdl. Roof Shingles by Owner
8 pcs. 9 pcs. Roof 'drip' Edge-10' by Owner
Qty. Qty.
9 Collar Ties 82" 1 64-1/2" Tie palte 4 1x6 Gable Trim 80 "
22 Rafters 80-12" 2 48" Wall paltes 6 1x6 Side Wall Fascia 81 "
7 72" Wall Studds 4 24" Wall Plates 1 1 lb. 8d Galv. Nails 1 lb. 6d Common
6 Pre-built 81" Long Soffit Boxes 1 1 lb. 7d Sinkers 4 Truss Hangers
9 48" x 79-1/2" 3 48" x 75-3/4" 2 48" x 72" 4 37" x 72"
2 24" x 79-1/2" 2 16" x 75-3/4" 2 48" x 75" 2 37" x 48"
2 24" x 75-3/4" 2 32-1/2" x 4-3/4" 4 48" x 48" 2 37" x 51"
6 48" Gable Siding Panels - angle cut on top 4 10"x22" Gussets 8 12"x24" Gussets
7/16" OSB SheathingLP Primed Exterior Siding
Packing List For Material Shipped on Longer Pallet
2x4 Framing & Soffit Boxes White Pine Trim & Hardware
Qty. Qty.
46 Wall Studs & Plates 72 " 4 1x3 Corner Trim 75 3/4"
2 Wall Studs w/ header supports 72 "
4 1x4 Corner Trim 73 1/4"
8 Wall Plates 68 1/2"
4 1x4 Wall Trim 70 "
2 Wall Plates 48 "
2 1x3 Double Door Trim 72 1/2"
4 Gable Studs angled end 23 1/2"
2 White Pine Gable Keystone
3 32" x 72" Barn Doors
32 2-1/2" Soffit Screws 3 lb. 10d Sinkers
1 48" x 75" Wall Frame With Door opening
24 2-1/2" Deck Screws 3 lb. 8d Galv.
1 2-1/2" x 67-1/2" Door Header
74 Black Hinge Screws 2 lb. 7d Sinkers
6 1x4 Drive-on Plate 5 lb. 6d Common
10 2x4 Blocks for Truss Jig 10"
9 5" Door Hinges 1 lb. 6d Galv.
14 Wood Gussets for Trusses 8" x 20"
2 Door Hasp
28 Wood Gussets for Trusses 12" x 24"
2 Bottle Wood Glue
2 Barrel Bolts
2 3/4" Plywood Gble Nailer 3-1/2" x 31-3/4"
2 2" Screw Bits
18 Truss Hangers
Packing List For Material Shipped on Shorter Pallet
SizeSize2x4 Framing
Pre-Built Components
Miscellaneous Lumber
White Pine Trim
Hardware
16" x 10"
2 1x3 Single Door Trim 73 1/4"
