Richmond BCG-40BG User manual

Thermoelectric Cooler
Model No: BCG-40BG
USER MANUAL
Thank you very much for buying this product. Before using your
new refrigerator, please read this user manual to ensure that
you gain the maximum benefit from it.
·INDICATION OF PARTS...................................................................... 2
·INSTRUCTION FOR USES….............................................................. 3
·INSTALLATION INSTRUCTIONS......................................................... 5
·CHANGING THE SWING HINGE ...................................................... 6
·ELECTRIC DIAGRAM............................................................................7
·TECHNICAL DATA ................................................................................8
CONTENTS:
·OPERATING YOUR REFRIGERATOR…............................................. 4
Model No.
Net Volume(liters)
Voltage (V)
Frequency (Hz)
Rated Power (W)
Dimension (mm)
Packing (mm)
Net Weight (kg)
Gross Weight (kg)
Approval
BCG-40BG
36
220-240
50/60
58
402x437x537
460x490x590
12
14
CB/CE
Correct disposal of this product
This symbol on the product, or in its
packaging, indicates that this product
may not be treated as household waste.
Instead, it should be taken to the
appropriate waste collection point for
the recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment and
human health, which could otherwise
be caused by the inappropriate waste
handling of this product. For more
detailed information about the recycling
of this product, please contact your
local council, your household waste
disposal service, or the shop where you
purchased the product.
TECHNICALDATA

·Electric Diagram
·Energy Saving Tips
·The refrigerator should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
·Overloading the refrigerator forces the thermoelectric cooling system to run longer.
·Reduce door openings and extended searches, remove as many item as needed at one time,
and close the door as soon as possible.
·One characteristic of heat-pipe units is the length of time it requires to recover from having
the door opened and shut frequently. It may be necessary to wait longer for the temperature
to return to its former level once the door has been opened for too long. This is normal for
the type of unit.
·Heat-pipe technology costs just pennies to operate. It is environmentally friendly due to the
lack of CFC's.
WARNING:
1.This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or
damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the
rear of the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
9. Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
13. Children aged from 3 to 8 years are allowed to load and unload refrigerating
appliances.
14. This appliance is intended to be used in household and similar applications
such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
15. To avoid contamination of drink, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with drink and accessible
drainage systems.
– Clean water tanks if they have not been used for 48 h, flush the water system
connected to a water supply if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
Note: This appliance contains flammable refrigerant R600a and foaming agent
cyclopentane. Please avoid contact fire when you transport and use it.
Please ask professional for servicing when the machine broke down.
Please send it to your local appointed disposal station when you discard it.

BCG-40BG
·Indication of Parts
·Trouble Shooting Guide
The LED light has burned out.
·Changing the Swing Hinge
PROBLEM
This refrigerator has the capability of the door opening from either the left or right side. The unit
is delivered to you with the door opening from the left side. Should you desire to reverse the
opening direction, please follow the below instructions.
All the hinge can be used for left or right swing,except for model BCH-40 and BCH-42,please
find an additional left upper hinge in the bag of the user manual for installation as below.
·Pull out the three screws from right hinge.
·Remove the hinge (upper and lower) away.
·Install the door in suitable position with hinges, use three self-screws to fix them.
Not plugged in.
The circuit breaker tripped or a blown fuse.
Refrigerator does not operate
Refrigerator does not operate.
The light does not work.
Vibrations.
The door will not close properly.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The room temperature is hotter than normal.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The refrigerator does not have the correct
clearances.
Abnormal voltage.
Check to assure that the refrigerator is level.
The refrigerator is not level.
The door was reversed and not properly
installed.
The gasket is dirty.
The shelves, bins, or baskets are out of
position.
POSSIBLE CAUSE
Low hinge
Foot
Cabinet
Up hinge
Door
Door gasket

·If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
·This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
·Children should be supervised to ensure that they do not play with the appliance.
·WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instruction.
§Warning
·Instruction for use
§Very important
§Power supply
§Note
·Position your refrigerator so that the plug is accessible.
·Keep your refrigerator out of direct sunlight.
·Do not place next to heat generating appliance.
·Do not place directly on the ground. Provide suitable stand.
·The refrigerator will have better performance at ambient of 20-25 degree; We suggest the
refrigerator be powered off if the ambient temperature is lower than 10 degree.
·After plugging the appliance, allow the unit to cool down for 2-3 hours before placing
beverage into the refrigerator compartment.
·Ventilation is very important for this kind thermoelectric refrigerator; The inside PCB will be
broken easily if the ventilation is bad; It will also reduce the life of the refrigerator.
·The refrigerator applies automatic defrosting system, so there is no need to defrost it
manually.
·The refrigerator must be connected to a properly earthed socket in line with relevant valid
country regulations before operating;
·Check the data label (which is on the side of the refrigerator) for voltage and frequency
corresponds to your local one; If not, don't plug your cable into the socket;
·Installation instructions
When install a Heat pipe Refrigerator, ventilation should be considered seriously, please refer
to the following:
·There should be left at least 200 cm³ for ventilation
·The distance between wall and refrigerator side should be at least 20mm
·The bottom should be left at least 50mm for air flowing air passing through must not be preheated

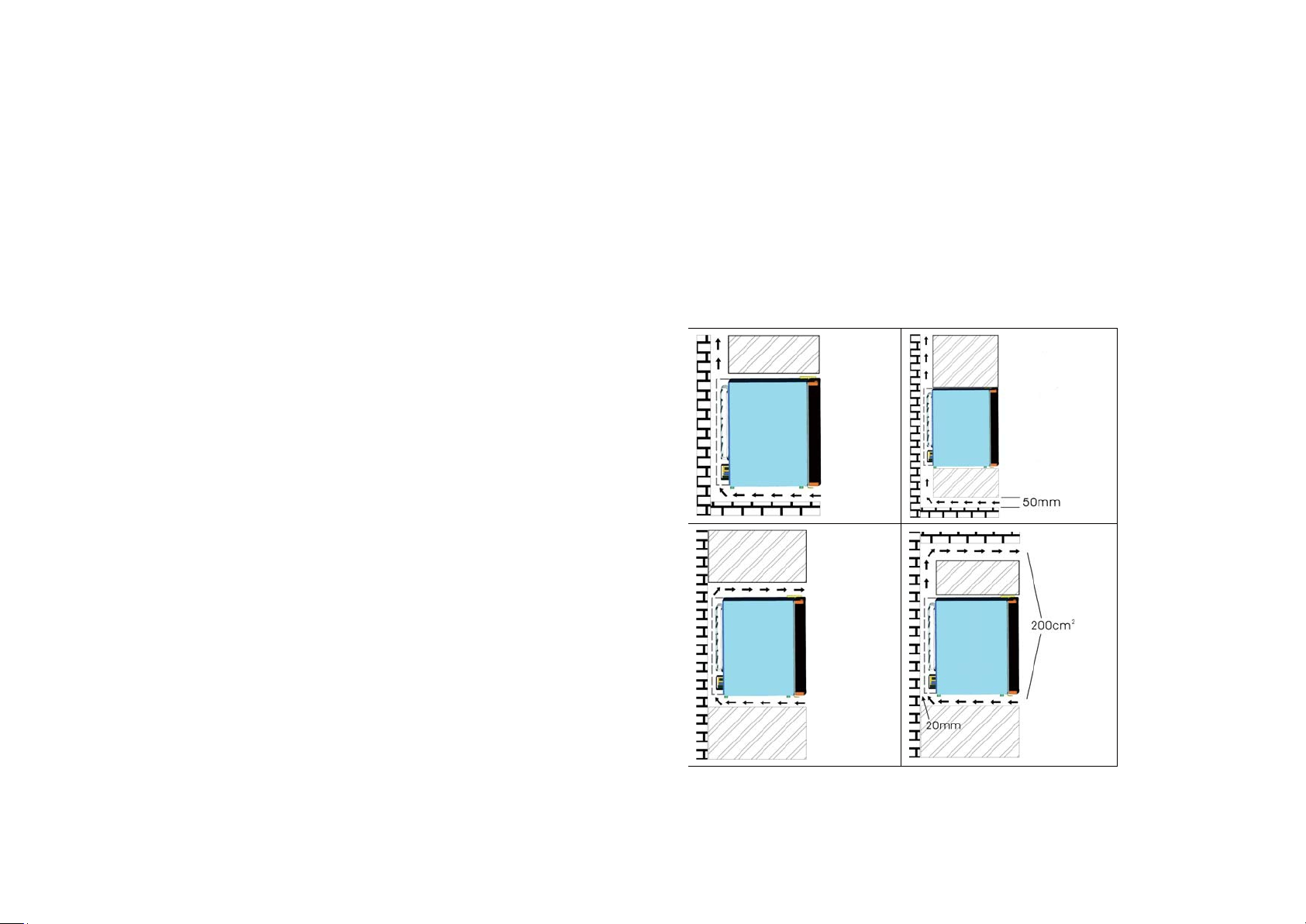

·The following four pictures show four installation ways:
·Entire cooling system should be considered in the ventilation
