Ricoh Mp9200a User manual

NOTICE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communication. However, there is no
guarantee that interference will not occur in a particular
installlation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and
receiver.
● Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
● Consult the dealer or an experienced radio / TV technician
for help.
Warning as to USE
This CD-R/RW & DVD-ROM drive together with software is a
product for utilizing CD-R/RW recording media with rewriting,
erasing and readout capabilities, as an external computer
memory device. Except in the case where copying of
CD-ROMs or the like is especially recognized under the
copyrights laws as being for the purpose of individual use by
the customer or the like, or in the case where the customer has
obtained permission to make copies from the rightholder,
reproduction of CD-ROMs and copyright laws. Take notice that
unauthorized copying may be subject to claims for damages
and to penalties.

CAUTION

Rating voltage for peripherals.

1. Headphone Jack

Rating Voltage output Audio Signal Max. 2V

FCC WARNING

Changes or modification not expressly approved by the party

responsible for compliance could void the user's authority to

operate the equipment.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

Lower a volume

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

The volume that exceeds 70dB occurs and the obstacle

sometimes breaks out.

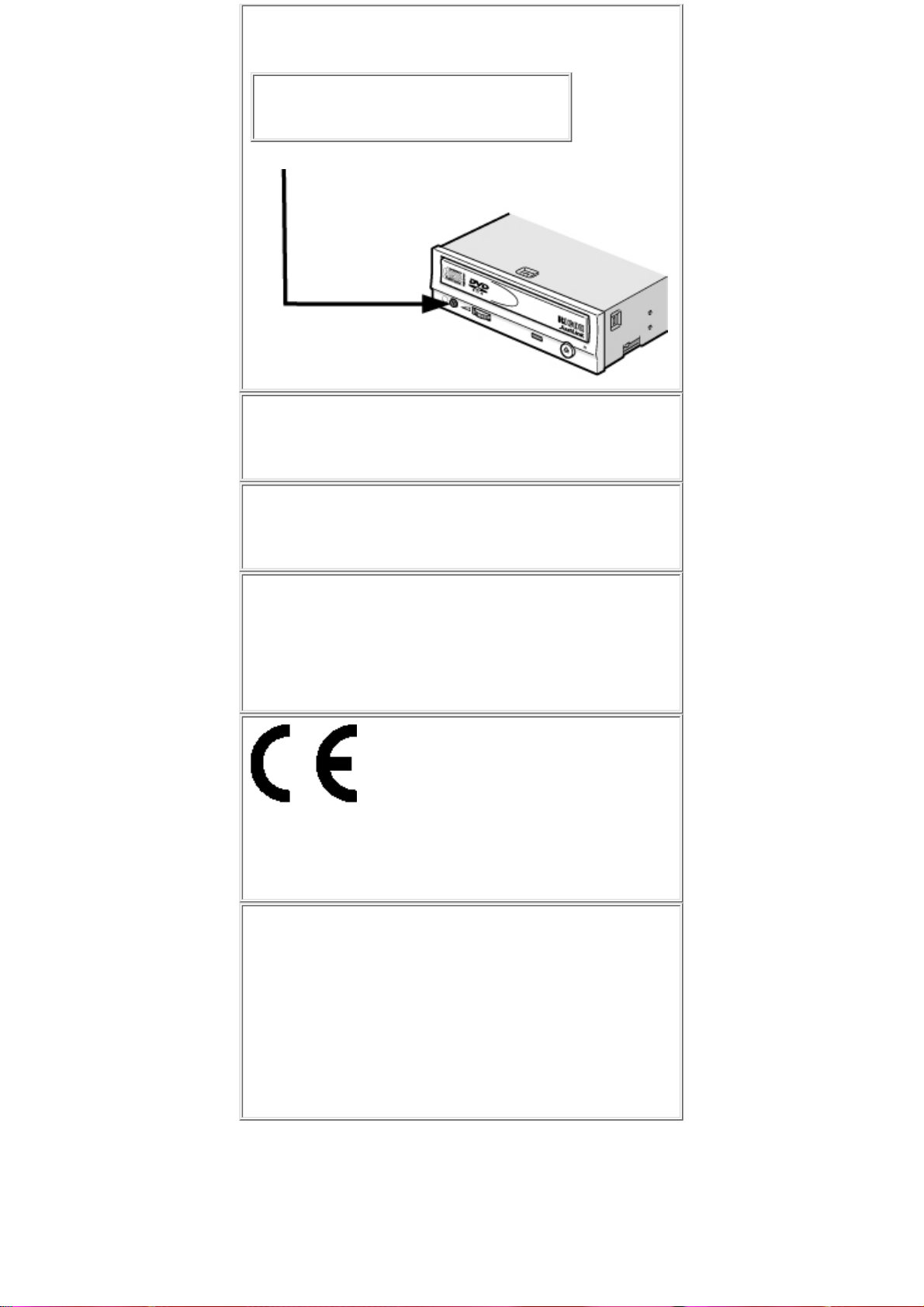

Declaration of Conformity

"The Product complies with the requirements of the EMC

Directive 89/366/EEC and the Low Voltage Directive

73/23/EEC."

Please take notice that the manufacturer of this

equipment does not offer any warranty against data loss

due to inappropriate installation or handling, or direct or

indirect damages.

●

Please take notice that the manufacturer will bear no

responsibility for direct or indirect damages caused by

the use of this product or its malfunction.

●

Please take notice that the manufacturer will bear no

responsibility for damage to data caused by this product.

●

Please backup (copy) all important data as protection

against data loss.

●

PC DOS is a trademark of IBM Inc.● MS-DOS, Windows, Windows ® 95, Windows ® 98, Windows ® Me, Windows NT® and

Windows® 2000 are trademarks registered in the United States and other countries by the

Microsoft Corporation.

●

The company names and product names written in this manual are trademarks or registered

trademarks.

●

This manual uses the following symbols to indicate important information relating to the drive.

Failing to comply with the information in this manual and/or incorrect handling of the drive

may result in serious personal injury or damage to the product.

Indicates restriction or precaution that should be observed.

Provides useful additional information.

This manual contains important notes and product handling information. Be sure to read the

manual before using the product. For easy reference in the future, please keep the manual

at a handy location.

Multimedia Printer series

Thank you for purchasing the Multimedia Printer series drive MP9200A (hereafter referred to as the

drive). The drive enables you to play DVD-ROM or CD-ROM discs, write once and play CD-R discs, or

write, play, and rewrite CD-RW discs.

The following marks indicate media that can be used with the drive.

A new technology called Just Link incorporated

that overcomes buffer underrun problems

Buffer underrun errors that would occur when data transfer falls behind writing operation has been

inevitable for CD-R/RW drives. Just Link, which we at Ricoh developed on our own, is a new

technology that predicts possible occurrences of buffer underrun errors in advance and automatically

avoids them. The MP9200A is the industry's first-ever drive that features Just Link. With this

technology, the MP9200A ensures stable writing operation even under circumstances where buffer

underrun errors tend to occur with conventional drives.

New technology: (Optimum Write

Speed Control) function

When any write speed greater than 12X is specified, this function checks the media's capability to see

if it can be written at above-12X speeds. If the media is not capable of such speeds, the write speed is

reduced to 16X or 12X.

Caution

The JustSpeed (Optimum Write Speed Control) function is set to ON by default.

Depending on the ON/OFF setting of this function, the write speed is controlled as specified

below.

When the speed control is ON

Writing is performed at the speed of 16X in the lead-in area, at 16X from the 0-minute

position up to around the 5-minute position, and then accelerating up to 20X

approximately from the 5-minute position to the 15-minute position.

●

When the speed control is OFF

Writing is performed at the speed of 12X in the lead-in area, at 16X from the 0-minute

position up to around the 10-minute position, and 20X from around the 10-minute

position and after.

●

Obey the following cautions when handling the drive or discs.

Cautions During Installation

Install the drive in accordance with the specifications. Be careful to avoid locations

likely to cause vibration or shock.

●

Avoid locations where there is high humidity, excessive dust, or poor ventilation.●

Avoid locations in direct sunlight, with severe changes in humidity, or places where

there are extremely high or low temperature variations.

●

Don't use the drive near radio or television receivers. It may interfere with their

reception.

●

Do not disassemble the drive. Dismantling the drive to attempt repairs or for other

reasons is dangerous because the laser may radiate outside the unit.

●

Cautions During Use

Don't suddenly move the drive from a cold place to a warm place, or suddenly raise the

room temperature. Condensation may occur, causing abnormal operation.

●

Make sure to remove the disc before moving the drive. The disc may be damaged,

causing data loss.

●

Be careful to prevent foreign objects such as liquids or metal from entering the drive.

Should by chance a foreign object enter the drive, please consult the dealer where the

drive was purchased.

●

Don't use benzene or thinner to clean dirt from the drive. Don't allow chemicals such

as insecticides to contact the drive. Use a soft cloth to wipe the drive, or moisten a

cloth with neutral detergent diluted with water and use it to clean particularly dirty

areas.

●

Don't cutoff the electric power while the drive is operating.●

When connecting two E-IDE devices to the Primary or Secondary connectors, make

sure that the two devices are not both configured as Master, or both as Slave. If they

are both set the same, Windows may fail to run or recognize the drives.

●

The total length of the E-IDE cable should be less than 18 inches (about 45 cm).●

Make sure the power to the host computer is turned OFF before connecting.●

Never insert a damaged disc into the drive.●

In wintertime, don't use a disc soon after bringing in from outdoors. Use it only after it●

has reached room temperature.

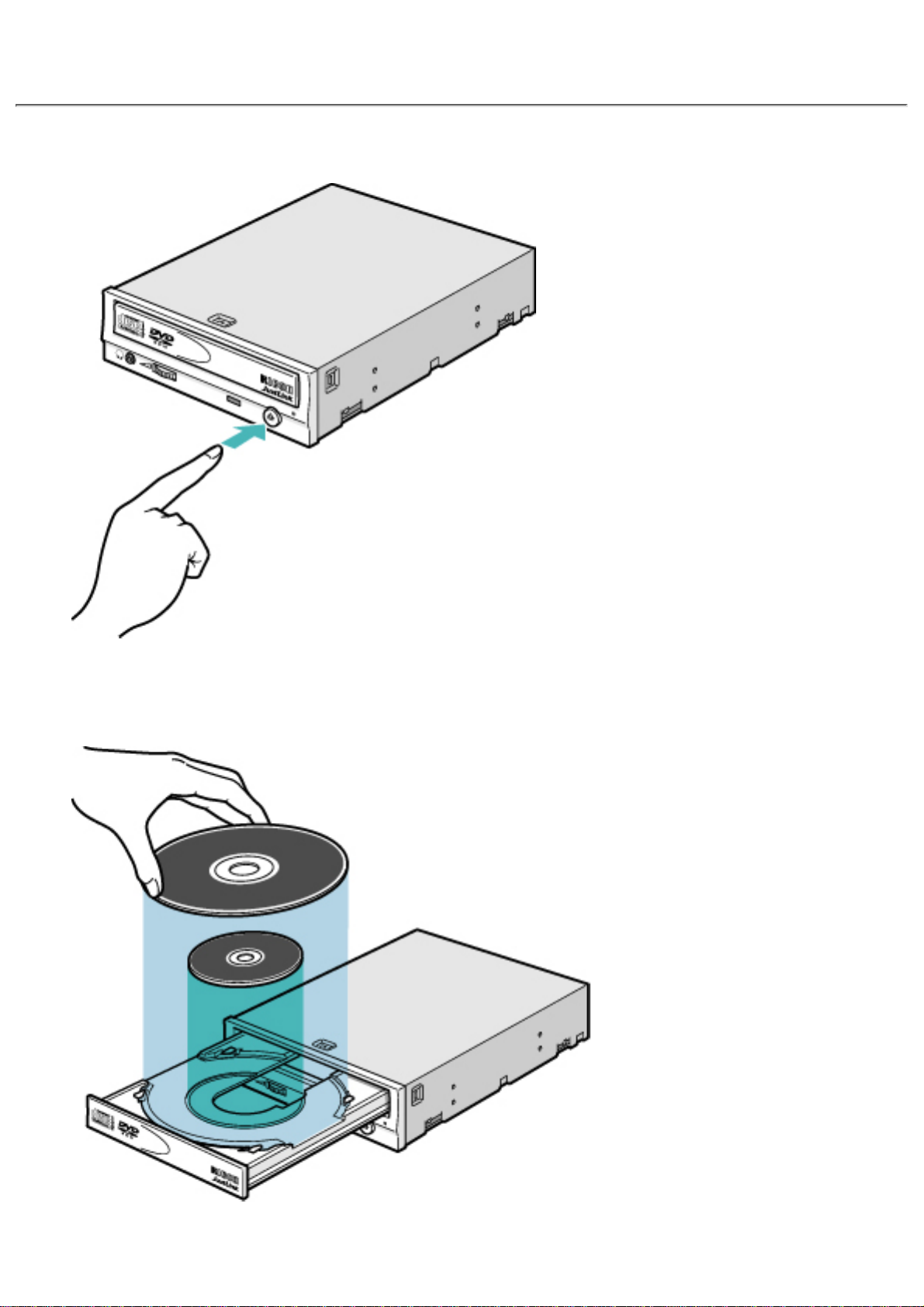

Cautions Concerning Disc Cleaning

Remove the disc by pressing the eject button.●

Use compressed air to clear dust from the disc. (Spray the compressed air for about 5

seconds).

●

Check to see if there is dirt on the surface of the disc. Be careful not to touch the disc

with the fingers when doing this. (See Fig. 1)

●

After cleaning the disc with compressed air, place it on the disc tray and mount it.(See

Fig. 2)

●

We suggest using dry air cleaner as compressed air for cleaning.●

Other Cautions

When moving the equipment, make sure that the disc has been removed from the

drive.

●

When connecting connectors, make sure that the power is OFF. If the power is ON,

there is a possibility of short circuit.

●

When not using the drive for a long period, dust may adhere to the disc tray. Before

using the drive again, use dry air cleaner to remove the dust from the tray.

●

Do not use any commercially available cleaning kit, because such a kit may damage

the drive.

●

fig1

Check1. Recording surface2.

fig2

50 to 100mm1.

Back

JustLink has made auto-avoidance against buffer underrun

errors possible.

●

JustSpeed offers optimum write speed control that matches

the CD-R media.

●

An improved anti-heat design means that no cooling fan is needed.● Easy-to-use tray model.● Enhanced-IDE (ATAPI) model● Compliant with industry standard Orange Book Part II (CD-R) and Part III (CD-RW).● Can read not only CD-R and CD-RW discs, but also video CDs, music CDs, photo

CDs*1, and CD-Text

●

Can read data at 40x speed (6.0MB/sec data transfer rate), write data at 20x speed

(CD-R, 3.0MB/sec data transfer rate.) and write data at 10x speed *2(High Speed

CD-RW, 1.5MB/sec data transfer rate).

●

The recorded CD-RW media can be played in a DVD player or a multi-read CD-ROM

Player, maintaining future compatibility.

●

Supports random UDF for easy writing to CD-RW discs.● UDMA-capable

*1 Bundled software does not support this writing format.

*2 The speed at which to write on the current standard CD-RW discs is 4x

recording (at a data transfer rate of 600KB/second).

●

Explains the system environment required for using the drive as a CD-R/CD-RW drive.

PC IBM PC/AT compatible

Operating System Windows Me/98/95(ORS2 or later)

Windows NT Workstation Ver.4.0 (Service Pack 5) or later

Windows 2000 (Professional)

CPU Pentium 166 MHz or higher (When using JustLink)

Memory 64MB or more

Hard disk Hard disk with average access time of 19msec or less, and data transfer speed of

1,200KB/sec or greater. 1GB or more free space.

Interface Enhanced-IDE interface (as Primary Slave, Secondary Master, or Slave)

Drive bay 5.25-inch half height bay required

Power +5V/+12V power socket required

Recommendation discs*2 Recommendation Tested to be compatible

CD-R Ricoh Taiyo Yuden, Mitsui Chemicals, Mitsubishi

Chemical, Maxell

CD-RW Ricoh Mitsubishi Chemical*1

High Speed CD-RW Ricoh Mitsubishi Chemical

*1 The disc written using the CD-R/RW drive may not be readable by CD-ROM drives.

Multi-read compatible (Random UDF compatible) drives are necessary.

*2 Even if it is the recommendation disc, some of discs may have possibility to fail

writing with highest writing speed with the problem on the disc. In this case, please

try to write with lower writing speed, or please try to use another disc.

Multi-read compatible (Random UDF compatible) drives are:

Drives that can read low reflectivity discs.● Drives that support Packet Write.●

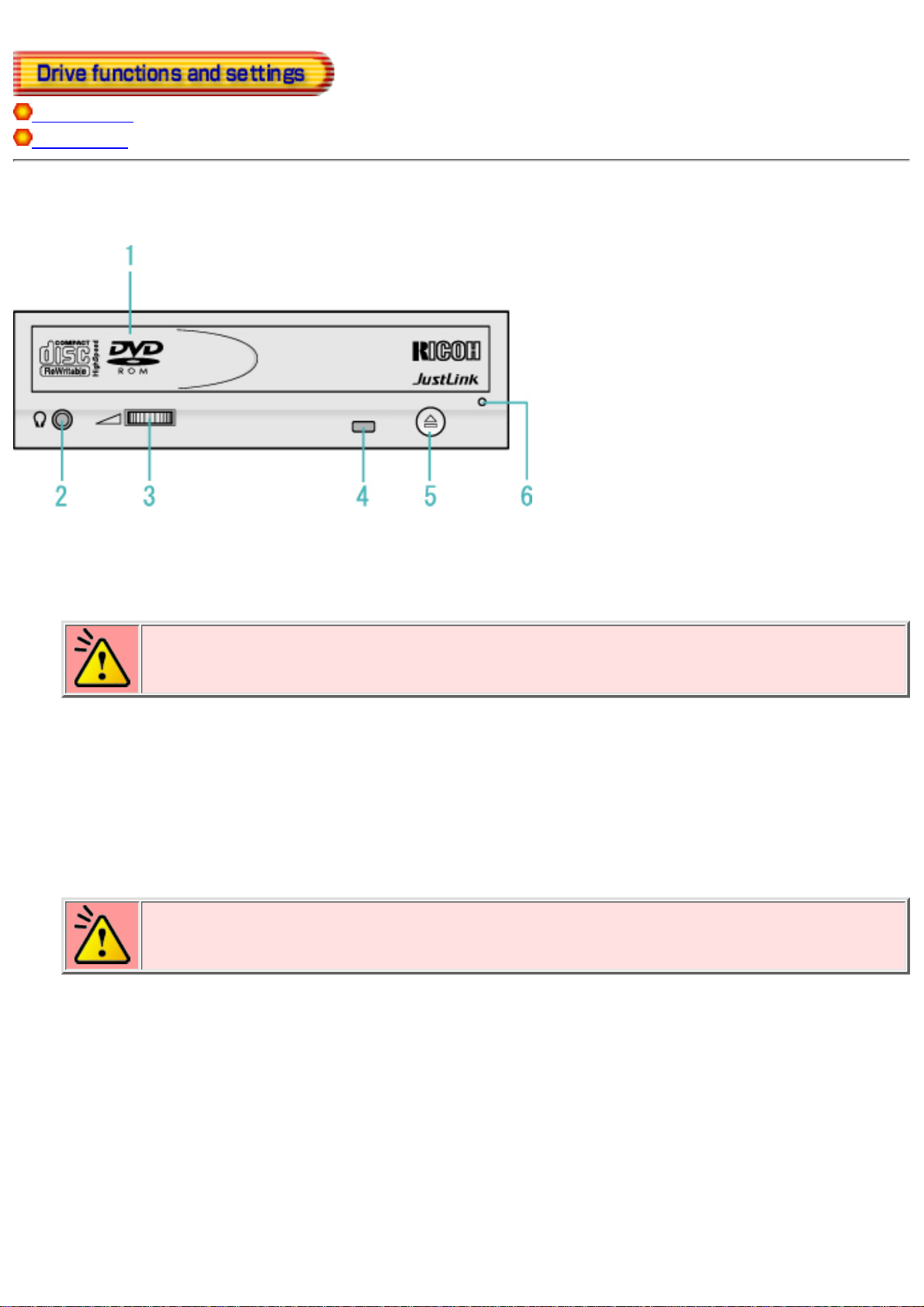

Front Panel

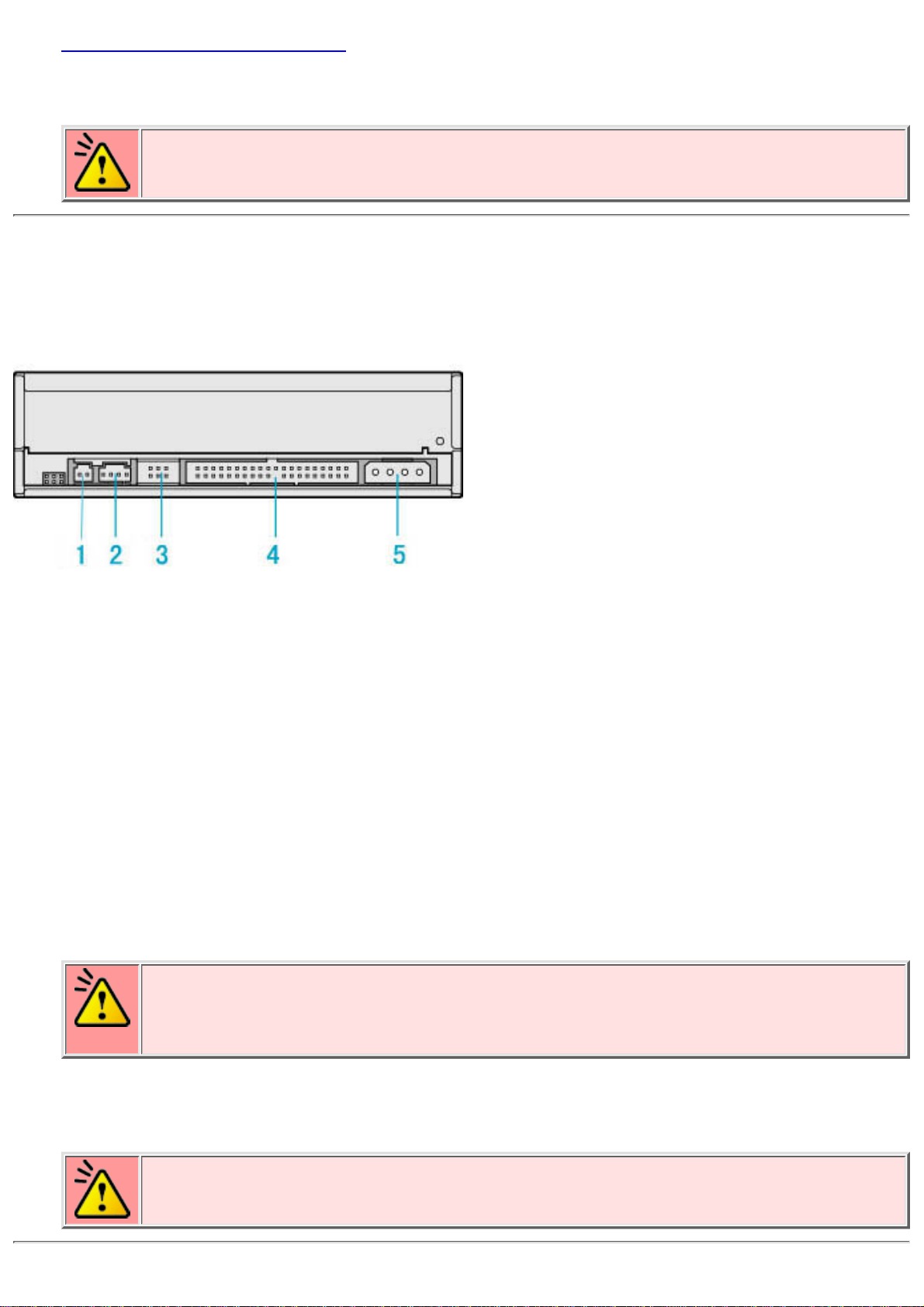

Rear panel

Front Panel

Disc tray

This is the tray for the disc. Place the disc on the ejected disc tray, then lightly push the tray (or push

the eject button) and the disc will be mounted.

Caution

Don't use force to pull out or push in the disc tray. This might cause damage to the

loading section of the drive.

Headphone jack

This jack is for connecting headphones or mini-speakers.

Volume control

This is used to adjust the output volume of the headphone jack. It can't be used to adjust the output

volume for the audio output connectors on the rear panel.

Caution

Turn the volume down before turning on the power. Sudden loud noises can damage

your hearing.

Busy indicator

This indicator lights orange when a disc is mounted into the drive. When the disc is being accessed, it

flashes or lights orange. If a disc is not mounted, the indicator does not light even when the power is

turned on. When a illegal disc is loaded or some hardware trouble occurs, the indicator blinks.

Eject button

This is the button used to eject or insert in the disc tray.

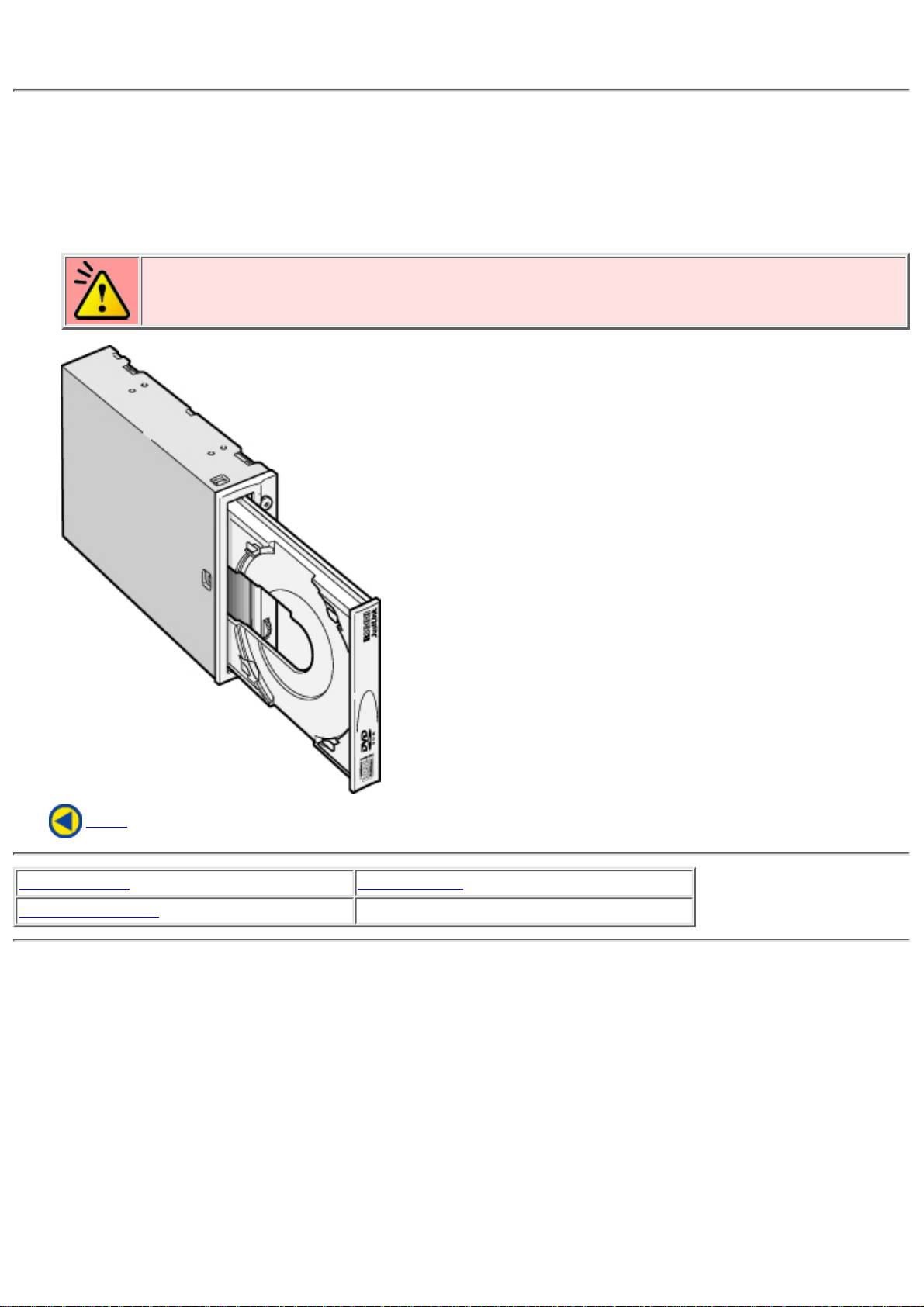

Emergency eject hole

This drive has a function that allows the disc to be ejected manually for an emergency case such as

failure of the drive or a power outage.

Caution

This feature is a last measure to be used only in an emergency. Using it excessively

will cause malfunction.

Rear panel

Digital Audio (SPDIF) Output Connector

Provides output to a sound card (Digital signal).

* No digital audio cable is included with the MP9200A.

Analog Audio Output Connector

Provides output to a sound card (Analog signal).

Jumper Connector

This jumper determines whether the drive is configured as a master or slave. Changing the

master-slave configuration takes effect after power-on reset.

IDE Interface Connector

Connect to the IDE (Integrated Device Electronics) interface using a 40-pin flat IDE cable.

Caution

Do not connect or disconnect the cable when the power is on, as this could cause a

short circuit and damage the system. Always turn the power OFF when connecting or

disconnecting the cable.

Power Connector

Connects to the power supply (5 and 12V DC) of the host computer.

Caution

Be careful to connect with the proper way.

Connecting the wrong way may damage the system (and is not guaranteed).

Emergency Eject

This drive has a function that allows the CD to be ejected manually, if this becomes necessary in an

emergency such as failure of the drive or a power outage.

Follow the following procedures in such a case.

Caution

This feature is a last measure to be used only in an emergency. Using it excessively will

cause malfunction.

Turn the power to OFF.1.

Insert a fine tipped object into the emergency eject hole.

The front door pops open and the disk tray comes partway out.

Pull the front door to open it all the way,

then grip the disc tray between thumb and forefinger and gently pull it

straight out.

If you cannot get a good grip on the disc tray with your fingers, use a steel binder clip

or spring clamp to pull it out.

Back Next

Load the disc Disc ejection

Emergency Eject Using the Drive in a Vertical Position

Disc ejection

Press the eject button1.

Slowly take the disc out of the disc tray2.

Press the eject button or push the disc tray and the tray will be inserted back

into the drive.

Caution

After ejecting the disc, return the disc tray inside the unit quickly. When the disc tray is in

the ejected position, dust and other debris will enter, possibly causing read errors, write

errors, or drive failure.

Back Next

Load the disc Disc ejection

Emergency Eject Using the Drive in a Vertical Position

Load the disc

Press the eject button.1.

Place the disc on the disc tray.

Be careful not to touch the recording surface of the disc.

Load the disc by pressing the eject button or by lightly pushing in the3.

disc tray.

Load the disc Disc ejection

Emergency Eject Using the Drive in a Vertical Position

Using the Drive in a Vertical Position

The drive can be installed in a vertical position.

Locate the four tabs on the disc tray.

Turn each of them inwards untill they click into place.

When loading a disc, insert it into the inner side of the tabs.

Caution

Cannot be used with 80mm CDs.

Cannot be used with business card CDs.

Back

Load the disc Disc ejection

Emergency Eject Using the Drive in a Vertical Position

Specific knowledge of hardware and software is necessary to install the drive. We cannot

guarantee against direct or indirect damage resulting from improper connections. Ask your

supplier for details of the installation procedure.

Before Installation

Before installing the drive, please note the following points.

You will need the following:

A Phillips head screw driver of a suitable size to fit the securing screws for the drive unit.❍ The manual for the computer, to know the location of the IDE connector.❍

●

Turn off all peripheral devices of the computer, and the computer itself, and disconnect their

power cords from the wall sockets.

●

Discharge any static electricity by touching the computer covers etc.● Before installing the drive, be sure to read the following cautions and information on preparation.

Keep a serial number label at the location specified by "READ ME FIRST".

●

Installing the Drive

Jumper Set Up1.

Removing the Computer Cover2.

Mounting the Drive3.

Connecting the Power Connector4.

PC Connections5.

Sound Card Connection6.

Replacing the Computer Cover7.

Device Drivers8.

1. Jumper Set Up

Before installation, set the jumper on the jumper connector on the rear panel.

Master (MA)

Drive set as Master (factory default)

Slave (SL)

Drive set as Slave

Cable Select (CS)

Drive mode set by CSEL on the host IDE interface

The drive can be connected as the Master or Slave on an E-IDE (ATAPI) interface.● When several (up to four) E-IDE devices are connected, each must be set in a unique

way.

●
