Rider Godfrey Iron II User manual
Contents
1.0 - Introduction
2.0 - Buttons
3.0 - Functions
4.0 - Current Time
5.0 - Compass Mode
6.0 - Barometer Mode
7.0 - Altimeter Mode
8.0 - Data Log Mode
9.0 - Chronograph Mode
10.0 - Timer Mode
11.0 - Ski Mode
12.0 - Alarm Mode
13.0 - Set Mode
1.0 Introduction
Thank you for purchasing the Godfrey Iron Rider II from Rider by Rockwell.
We are sure you will enjoy using this quality timepiece. Please visit
for any questions or to get more info.
This watch provides current time, compass, barometer, altimeter, data log,
chronograph, timer, ski, and alarm functions.
For longer watch life, avoid exposing it to extreme or harsh conditions for
extended periods. Avoid rough use or impacts. Do not open the watch case
unless it is done by a authorized service provider.
Keep this manual on hand as a reference.
For a video tutorial of this watch visit:
store.rockwellwatches.com/collections/iron-rider-2-1
B1
B2
B3
B5
B4
2.0 Buttons
3.0 Functions
B4 B4 B4 B4
B4
B4
B4B4B4
B4
Navigating your watch
The watch has the following modes: TIME, COMPASS, BAROMETER,
ALTIMETER, DATA LOG, CHRONOGRAPH, TIMER, SKI, ALARM and SET. You
can change modes by pressing B4
3.1 Night Mode
Turning on Night Mode
From the main TIME screen, press and hold B3 to turn Night Mode on/o. When Night Mode
is on, the backlight will automatically turn on when any button is pushed between the hours
of 19:00 and 07:00 (7pm to 7am). The light will NOT automaticall turn on during the day, but
can still be activated by pushing the “Light/Set” button (B5).
Press &
hold B3 for
3 secs
4.0 Current Time
B2 B2 B2
Press B4 from Set mode to enter Time mode. The watch will momentarily display
TIME and then display view 1. The watch is equipped with a dual time feature
which counts up individually with the same seconds. It also features 4 different
views at time mode each with a different set of information. Following are the
information in each view:
View 1 - weather icon, month, date, day of the week, and time
View 2 - weather icon, day of the week, time and temperature.
View 3 - weather icon, day of the week, time and current barometric pressure.
View 4 - weather icon, day of the week, time and current altitude.
4.1 Current Time
Displaying Time 1 and Time 2
With Time mode displayed press and hold B1 for 2 seconds to switch to Time 2.
Press and hold again for 2 seconds to switch back to Time 1.
Press &
hold B1 for
2 secs
5.0 Compass Mode
Active for
20 seconds
B1/B3
Press B4 from Time mode to enter Compass mode. The watch will momentarily
display COMP and then display “- - - -“and then the compass direction with
bearing in degrees. The compass will be active for 20 seconds. After 20
seconds, it will display back “- - - -“. Press B1 or B3 to activate the compass
again.
If the watch enters the Compass mode for the first time, it will automatically
enter the compass calibration mode.
5.1 Compass Mode
Rotate the watch twice horizontally at a rate of 15 seconds per rotation. Press
B1 or B3 to end compass calibration and return to compass mode.
Press and hold B5 to enter compass calibration manually as shown below.
Press &
hold B5
Press & hold
B5 for 2 sec
Release
B5
Rotate watch twice,
at 15 sec per turn
5.2 Compass Mode
Setting the declination angle
Press B1 or B3 to change the value of the blinking digit. Press B4 to go to the
next digit. Once you’re done press B5 to exit and return to compass mode.
If you wish to set the declination angle, press B5 after rotating the watch twice.
B5
B4 B4
B4
B1/B3
B1/B3
6.0 Barometer Mode
Press B4 from TIME mode until watch displays “BARO”. There are 5 views in
Barometer mode to change views press B2. The views are as shown below.
View 1 - Weather Icon, Sea Level Barometric pressure, Current Barometric pressure.
View 2 - Weather Icon, Sea Level Barometric pressure, Temperature.
View 3 - Difference View, Weather Icon, Sea Level Barometric pressure, Current Barometric.
View 4 - 24 hour Recall View.
View 5 - Weather Icon, Current Barometric pressure and time.
B2 B2
B2
B2
B2
6.1 Barometer Mode
Changing the Unit
While in the first view, you can change the barometric pressure unit, by pressing
and holding B3 until the new unit stops blinking as shown below.
Press &
hold B3
Press &
hold B3
for 2 sec
Press &
hold B3
Press &
hold B3
for 2 sec
Release B3Release B3
6.2 Barometer Mode
Changing the Temperature unit from C to F or vice versa, press B2 to go to the
second view first. Once in the second view press and hold B3 until the new unit
stops blinking.
Press &
hold B3
Press &
hold B3
for 2 sec
Press &
hold B3
Press &
hold B3
for 2 sec
Release B3Release B3
Difference View
Press B1 to start the difference measurement and press B3 to stop the
difference measurement. Once stopped the watch will display sea level
barometric pressure and current barometric pressure.
B1
Press &
hold B3
for 2 sec B3
B3
6.3 Barometer Mode
B1
B3
B1
B3
6.4 Barometer Mode
24 Hour Recall View
To display the barometric pressure for the last 24 hours in graphical presenta-
tion. Press B1 or B3 to scroll through the data. HR 0 means the current
pressure, HR -1 is the pressure 1 hour ago and so on.
Calibrating the Barometer
Press and hold B5 to enter calibration mode. Press B1 or B3 to change value of
the blinking digit. Press B4 to move on to the next option as shown below.
The sea level barometric pressure you can get this information from your local
weather station.
7.0 Altimeter Mode
B2 B2 B2
B2
Press B4 from Barometer mode to enter Altimeter mode. The watch will
momentarily display ALTI and then display the maximum altitude and accumulat-
ed altitude. The display will then change to view 1. ALTI mode has 4 views and
to change views press B2.
7.1 Altimeter Mode
View 1 - Current altitude, and timer
View 2 - Difference View, Current altitude, and timer
View 3 - 24 hour Recall View
View 4 - Current Altitude and time
B3
B3
Changing the Unit
Changing the altimeter unit from FT. to M or vice versa, press B2 to go to the
fourth view first. Once in the fourth view press and hold B3 until the new unit
stops blinking.
7.2 Altimeter Mode
B1
B3 Press &
hold B3 for
2 secs
B1
Recording an Altimeter Log
You can only record an altimeter log in view 1 and 2. A maximum of 10 logs can
be created.
While in view 1 or view 2, press B1 to start recording. Press B3 to stop the
recording and to save your data press and hold B3, watch will display “SAVE
LOG”.
7.3 Altimeter Mode
B1
B3
B1
B3

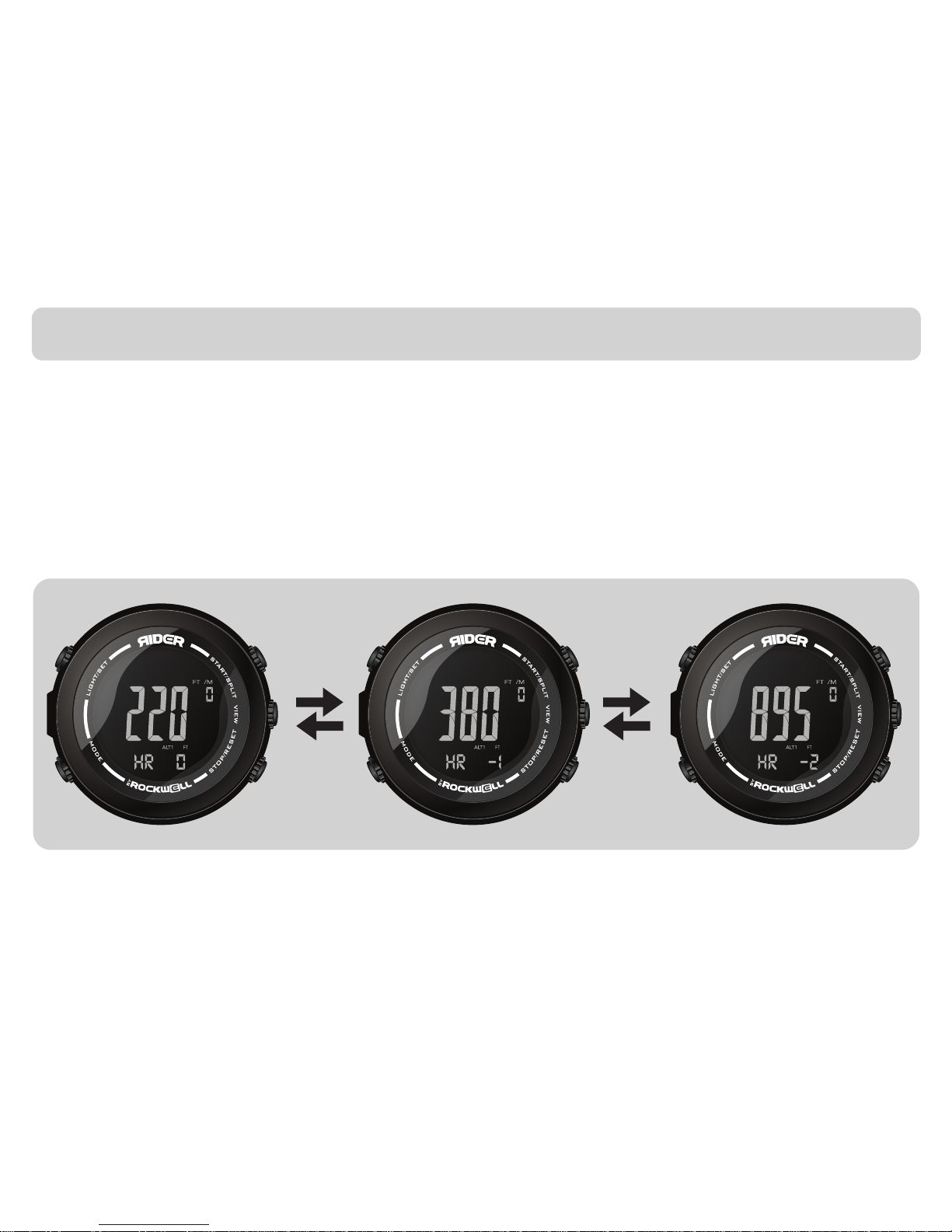

24 Hour Recall View
You can view the previous 24 hours record of Altitude for that selected hour in
the past. Press B1 or B3 to scroll though the various data.
