Riello RS 300/E LN Quick start guide

20008423 (4) - 04/2012
Installation, use and maintenance instructions
Forced draught gas burners
Code Model Type
20011898 RS 300/E LN 1110 T72
20011900 RS 400/E LN 1111 T72
20011902 RS 500/E LN 1112 T72
GB
Progressive two stage or modulating operation

1 20008423
GB
Index
1 Information and general instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Information about the instruction manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.2 General dangers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1.3 Danger: live components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Guarantee and responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2.1 Owner’s responsibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety and prevention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Personnel training. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Technical description of the burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Electrical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2.1 Fan motor IE1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2.2 Fan motor IE2/EPACT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Overall dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.5 Burner equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.6 Firing rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.7 Burner components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.7.1 Burner description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.7.2 Panel board description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.8 Control box for the air/fuel ratio (LMV51...). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.9 Actuators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1 Notes on safety for the installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2 Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3 Preliminary checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.4 Operation position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.5 Removal of the locking screws from the shutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.6 Securing the burner to the boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.6.1 Boring the boiler plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.6.2 Blast tube length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.6.3 Burner securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.6.4 Accessibility to the interior of the combustion head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.7 Electrode positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.8 Combustion head setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.9 Rotation of fan motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.10 Gas train . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.10.1 Gas train assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.10.2 Gas feeding line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.10.3 Gas pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.11 Electrical wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.12 Thermal relay calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.12.1 Electro-mechanical thermal relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.12.2 Electronic thermal relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.13 Motor connection at 208-230 or 460V only for RS 300/E LN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.14 Motor connection at 575V only for RS 300/E LN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.15 Reversible direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.16 Motor connection at 208-230 or 460V only for RS 400/E LN - RS 500/E LN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.17 Motor connection at 575V only for RS 400/E LN - RS 500/E LN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.18 Reversible direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

20008423 2
GB
Index
5 Start-up, calibration and operation of the burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.1 Notes on safety for the first start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.2 Adjustments before first firing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.3 Burner start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.4 Burner firing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.5 Combustion air adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.5.1 Air adjustment for maximum output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.6 Air/fuel control and power modulation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.6.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.7 Final calibration of the pressure switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.7.1 Air pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.7.2 Maximum gas pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.7.3 Minimum gas pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.8 Final checks (with the burner working). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1 Notes on safety for the maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.2 Maintenance programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.2.1 Maintenance frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.2.2 Checking and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.3 Opening the burner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.4 Closing the burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
A Appendix - Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
B Appendix - Burner start up report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Information and general instructions
20008423 3
GB
1.1 Information about the instruction manual
1.1.1 Introduction
The instruction manual supplied with the burner:
is an integral and essential part of the product and must not
be separated from it; it must therefore be kept carefully for
any necessary consultation and must accompany the burner
even if it is transferred to another owner or user, or to another
system. If the manual is lost or damaged, another copy must
be requested from the Technical Assistance Service
of the area;
is designed for use by qualified personnel;
offers important indications and instructions relating to the
installation safety, start-up, use and maintenance of the
burner.
Symbols used in the manual
In some parts of the manual you will see triangular DANGER
signs. Pay great attention to these, as they indicate a situation
of potential danger.
1.1.2 General dangers
The dangers can be of 3 levels, as indicated below.
Maximum danger level!
This symbol indicates operations which, if not carried
out correctly, cause serious injury, death or long-
term health risks.
This symbol indicates operations which, if not carried
out correctly, may cause serious injury, death or
long-term health risks.
This symbol indicates operations which, if not carried
out correctly, may cause damage to the machine
and/or injury to people.
1.1.3 Danger: live components
This symbol indicates operations which, if not carried
out correctly, lead to electric shocks with lethal con-
sequences.
Other symbols
ENVIRONMENTAL PROTECTION
This symbol gives indications for the use of the
machine with respect for the environment.
This symbol indicates a list.
Abbreviations used
Ch. Chapter
Fig. Figure
Pag. Page
Sec. Section
Tab. Table
Delivery of the system and the instruction manual
When the system is delivered, it is important that:
The instruction manual is supplied to the user by the system
manufacturer, with the recommendation to keep it in the room
where the heat generator is to be installed.
The instruction manual shows:
- the serial number of the burner;
- the address and telephone number of the nearest Assist-
ance Centre;
The system supplier carefully informs the user about:
- the use of the system,
- any further tests that may be necessary before the system
is started up,
- maintenance and the need to have the system checked at
least once a year by the manufacturer or another special-
ised technician.
To ensure a periodic check, recommends the
drawing up of a Maintenance Contract.
1 Information and general instructions
DANGER
WARNING
CAUTION
............................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
DANGER

20008423 4
GB
Information and general instructions
1.2 Guarantee and responsibility
guarantees its new products from the installation date,
in accordance with the regulations in force and/or the sales con-
tract. At the moment of the first start-up, check that the burner is
integral and complete.
Failure to observe the information given in this man-
ual, operating negligence, incorrect installation and
the carrying out of non authorised modifications will
result in the annulment by of the guarantee
that it supplies with the burner.
In particular, the rights to the guarantee and the responsibility
will no longer be valid, in the event of damage to things or injury
to people, if such damage/injury was due to any of the following
causes:
incorrect installation, start-up, use and maintenance of the
burner;
improper, incorrect or unreasonable use of the burner;
intervention of unqualified personnel;
carrying out of non authorised modifications on the equip-
ment;
use of the burner with safety devices that are faulty, incor-
rectly applied and/or not working;
installation of untested supplementary components on the
burner;
powering of the burner with unsuitable fuels;
faults in the fuel power supply system;
use of the burner even following an error and/or an irregular-
ity;
repairs and/or overhauls incorrectly carried out;
modification of the combustion chamber with inserts that pre-
vent the regular development of the flame, as structurally
established;
insufficient and inappropriate surveillance and care of those
burner components most subject to wear and tear;
use of non-original components, including spare
parts, kits, accessories and optionals;
force majeure.
furthermore declines any and every responsibility
for the failure to observe the contents of this manual.
1.2.1 Owner’s responsibility
Please pay attention to the Safety Warnings contained within
this instruction manual. Keep this manual for your records and
provide it to your quali fi ed service agency for use in profession-
ally setting up and maintaining your burner.
Your burner will provide years of ef fi cient operation if it is pro-
fessionally installed and maintained by a qualifi ed service tech-
nician. If at any time the burner does not appear to be operating
properly, immediately contact your qualifi ed service agency for
consultation.
We recommend annual inspection/service of your gas heating
system by a qualifi ed service agency.
Failure to follow these instructions, misuse, or incorrect adjust-
ment of the burner could lead to equipment malfunction and re-
sult in asphyxiation, explosion or fire.
If you smell gas:
Do not touch any electrical items.
Open all windows.
Close all gas supply valves.
Contact your local gas authority immediately.
• Do not store flammable or hazardous materials in the vicinity of
fuel burning appliances.
• Improper installation, adjustment, alteration, service or mainte-
nance can cause property damage, personal injury or death.
• Refer to this manual for instructional or additional information.
• Consult a certified installer, service representative or the gas
supplier for further assistance.
• Burner shall be installed in accordance with manufacturers re-
quirements as outlined in this manual, local codes and authori-
ties having jurisdiction.
WARNING
WARNING

Safety and prevention
20008423 5
GB
2.1 Introduction
The burners have been designed and built in compli-
ance with current regulations and directives, applying the known
technical rules of safety and envisaging all the potential danger
situations.
It is necessary, however, to bear in mind that the imprudent and
clumsy use of the equipment may lead to situations of death risk
for the user or third parties, as well as the damaging of the burn-
er or other items. Inattention, thoughtlessness and excessive
confidence often cause accidents; the same applies to tiredness
and sleepiness.
It is a good idea to remember the following:
The burner must only be used as expressly described.
Any other use should be considered improper and therefore
dangerous.
In particular:
it can be applied to boilers operating with water, steam, dia-
thermic oil, and to other users expressly named by the manu-
facturer;
the type and pressure of the fuel, the voltage and frequency
of the electrical power supply, the minimum and maximum
deliveries for which the burner has been regulated, the pres-
surisation of the combustion chamber, the dimensions of the
combustion chamber and the room temperature must all be
within the values indicated in the instruction manual.
Modification of the burner to alter its performance and desti-
nations is not allowed.
The burner must be used in exemplary technical safety condi-
tions. Any disturbances that could compromise safety must
be quickly eliminated.
Opening or tampering with the burner components is not
allowed, apart from the parts requiring maintenance.
Only those parts envisaged by the manufacturer can be
replaced.
2.2 Personnel training
The user is the person, body or company that has acquired the
machine and intends to use it for the specific purpose. He is re-
sponsible for the machine and for the training of the people
working around it.
The user:
Undertakes to entrust the machine exclusively to suitably
trained and qualified personnel.
Must take all the measures necessary to prevent unauthor-
ised people gaining access to the machine.
Undertakes to inform his personnel in a suitable way about
the application and observance of the safety instructions.
With that aim, he undertakes to ensure that everyone knows
the use and safety instructions for his own duties.
Must inform the manufacturer if faults or malfunctioning of the
accident prevention systems are noticed, along with any pre-
sumed danger situation.
Personnel must always use the personal protective equip-
ment envisaged by legislation and follow the indications given
in this manual.
Personnel must follow all the danger and caution indications
shown on the machine.
Personnel must not carry out, on their own initiative, opera-
tions or interventions that are not within their province.
Personnel are obliged to inform their superiors of every prob-
lem or dangerous situation that may arise.
The assembly of parts of other makes, or any modifications,
can alter the characteristics of the machine and hence com-
promise operating safety. The manufacturer therefore
declines any and all responsibility for any damage that may
be caused by the use of non-original parts.
2 Safety and prevention

20008423 6
GB
Technical description of the burner
3.1 Technical data
(1) Reference conditions: Ambient temperature 68 °F (20 °C) - Barometric pressure 394” wc - Altitude 329 ft.
(2) Pressure at test point 5) (Fig. 5), with zero pressure in the combustion chamber, and maximum burner output
(3) Sound pressure measured in manufacturer’s combustion laboratory, with burner operating on test boiler and at maximum rated
output.
* Firing rate for C-ETL Canadian Listing
LIST OF AVAILABLE MODELS
3 Technical description of the burner
Model RS 300/E LN RS 400/E LN RS 500/E LN
Output (1)
max. kW
MBtu/hr
1500 - 4220 (3834*)
5112 - 14390 (13082*)
2000 - 4995 (4541*)
6817 - 17043 (15494*)
2715 - 5740 (5217*)
9468 - 19580 (17800*)
min. kW
MBtu/hr
555
1893
888
3030
1100
3787
Fuel
- max. delivery
- pressure at max. delivery (2)
SCFH
“ wc
Natural gas
14070
7
Natural gas
16654
13
Natural gas
19138
15
Operation Low - high or modulating
Standard applications Boilers: water, steam, thermal oil
Ambient temperature °F 32 - 104 (0 - 40 °C)
Combustion air temperature °F max 140 (60 °C)
Noise levels (3) dBA 82 85 88
Designation Electrical supply Starting Code
RS 300/E LN TC
230V-60Hz
Direct 20011898 460V-60Hz
575V-60Hz -
RS 400/E LN TC 460V-60Hz Star/Delta 20011900
575V-60Hz -
RS 500/E LN TC 460V-60Hz Star/Delta 20011902
575V-60Hz -

Technical description of the burner
20008423 7
GB
3.2 Electrical data
3.2.1 Fan motor IE1
Model RS 300/E LN
RBNA Code - -
Control circuit power supply V/Ph/Hz 120/1/60
Main power supply (+/- 10%) V/Ph/Hz 230/3/60 460/3/60
Fan motor rpm
HP
V
A
3480
7.5
230
19.4
3480
7.5
460
9.7
Ignition transformer Gas V1 - V2
I1 - I2
120 V - 1 x 8 kV
1.6 A - 20 mA
Electrical power consumption W6550
Electrical control circuit consumption W max 750
Total electrical consumption W7300
Electrical protection NEMA 1
Model RS 400/E LN RS 500/E LN
RBNA Code - -
Control circuit power supply V/Ph/Hz 120/1/60
Main power supply (+/- 10%) V/Ph/Hz 460/3/60
Fan motor rpm
HP
V
A
3460
10
460
14.9
3500
20
460
30.5
Ignition transformer Gas V1 - V2
I1 - I2
120 V - 1 x 8 kV
1.6 A - 20 mA
Electrical power consumption W10350 19900
Electrical control circuit consumption W max 750
Total electrical consumption W11100 20650
Electrical protection NEMA 1

20008423 8
GB
Technical description of the burner
3.2.2 Fan motor IE2/EPACT
3.3 Packaging
The packaging of the burner (Fig. 1) rests on a wooden plat-
form that is particularly suitable for lift trucks.
The overall dimensions of the packaging are shown in the
table.
The weight of the burner complete with its packaging is
shown in table.
Model RS 300/E LN
RBNA Code ---
Control circuit power supply V/Ph/Hz 120/1/60
Main power supply (+/- 10%) V/Ph/Hz 230/3/60 460/3/60 575/3/60
Fan motor rpm
HP
V
A
3500
7.5
230
18.6
3500
7.5
460
9.3
3500
7.5
575
7.4
Ignition transformer Gas V1 - V2
I1 - I2
120 V - 1 x 8 kV
1.6 A - 20 mA
Electrical power consumption W6300 6300 6250
Electrical control circuit consumption W max 750
Total electrical consumption W7050 7050 7000
Electrical protection NEMA 1
Model RS 400/E LN RS 500/E LN
RBNA Code ----
Control circuit power supply V/Ph/Hz 120/1/60
Main power supply (+/- 10%) V/Ph/Hz 460/3/60 575/3/60 460/3/60 575/3/60
Fan motor rpm
HP
V
A
3510
10
460
11.5
3510
10
575
8.8
3545
20
460
23.5
3545
20
575
18.8
Ignition transformer Gas V1 - V2
I1 - I2
120 V - 1 x 8 kV
1.6 A - 20 mA
Electrical power consumption W8350 8000 16450 16500
Electrical control circuit consumption W max 750
Total electrical consumption W9100 8750 17200 17250
Electrical protection NEMA 1
inch A B C lbs
RS 300/E LN 77 11/64“37 1/64“38 3/16“496
RS 400/E LN 77 11/64“37 1/64“38 3/16“520
RS 500/E LN 77 11/64“37 1/64“38 3/16“551
D36
Fig. 1

Technical description of the burner
20008423 9
GB
3.4 Overall dimensions
The maximum dimensions of the burner are given in Fig. 2.
Bear in mind that inspection of the combustion head requires the burner to be opened by rotating the rear part on the hinge.
The overall dimensions of the burner when open are indicated by L and R.
3.5 Burner equipment
The burner is supplied complete with:
Flange gasket
4 flange fixing screws M 16 x 50
4 screws to secure the burner flange to the boiler: M 18 x 70
2 spacers
Instruction manual and spare parts list
inch ABCDEFGH I LRS
RS 300/E LN 52 3/16“20 1/2“6 7/16“12 5/16“23 5/32“DN80 28 11/32“34 9/64“14 1/32“46 1/4“41 17/32“12 19/32“
RS 400/E LN 52 3/16“20 1/2“6 7/16“12 5/16“23 5/32“DN80 30 1/2“34 9/64“14 1/32“46 1/4“41 17/32“12 19/32“
RS 500/E LN 52 3/16“20 1/2“6 7/16“14 17/32“23 5/32“DN80 30 1/2“34 9/64“14 46 1/4“41 17/32“12 19/32“
AB
C
F
ED
IG
H
R L
R
S S
Fig. 2
D3099

20008423 10
GB
Technical description of the burner
3.6 Firing rates
Maximum output must be selected in the hatched area of the
diagram.
Minimum output must not be lower than the minimum limit
shown in the diagram:
The firing rate was obtained considering a room
temperature of 68 °F and an atmospheric pressure
of 394 “wc (approx. 0 ft above sea level), with the
combustion head adjusted.
The firing rates were obtained in special test boilers.
Fig. 4 indicates the diameter and length of the test combustion
chamber.
Example for RS 500/E LN
Output 18500 Mbtu/hr - diameter 39.4 inch - length 16.5 ft.
Model MBtu/hr
RS 300/E LN 1893
RS 400/E LN 3030
RS 500/E LN 3787
WARNING
0
2
4
6
8
10
12
14
16
18
mbar
MBtu/ h
7
6
5
4
3
2
0
1
w.c.
05200
kW
4800
4400
4000
3600
32002800
2400
2000
1600
1200
800
400
0 2000 4000 6000 8000 10000 12000 14000 16000 18000
RS 300/E LN
RS 400/E LN
Burner power output
Combustion chamber pressure
0
2
4
6
8
10
12
14
16
18
20
mbar
22
24
9
8
7
6
5
4
3
2
0
1
w.c.
05600
5200
4800
4400
4000
36003200
2800
2400
20001600
1200
800
400
0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000
6000
MBtu/ h
kW
Fig. 3
D9400
RS 500/E LN
Combustion chamber pressure
D9401 Burner power output
Firing rate for C-ETL Canadian Listing
Firing rate for C-ETL Canadian Listing
15. 7 19. 7 23. 6 31. 5 39. 4 47. 2
ft
inches
ft= 0,12
MBtu/hr 18.9
11.3
7.5
1000
1.5
760
16.5
13.2
9.9
6.6
3.3
1.6
MBtu
hr
37870
23.0
29.6
22.7
Fig. 4
D9396

Technical description of the burner
20008423 11
GB
3.7 Burner components
3.7.1 Burner description
1 Lifting eyebolts
2Fan
3 Fan motor
4 Air gate valve servomotor
5 Gas pressure test point
6 Combustion head
7 Ignition pilot
8 Flame stability disk
9 Electric panel board - cover
10 Servomotor for gas butterlfy valve
11 Air inlet to fan
12 Manifold
13 Thermal insulation screen for securing burner to boiler
14 Gas butterfly valve
15 Shutter
16 Lever for movement of combustion head
17 Gears for movement of air damper
18 Air pressure switch (differential operating type)
19 Air pressure test point
20 Maximum gas pressure switch with pressure test point
21 QRI infrared sensor
22 Hinge for opening burner
23 Air pressure test point pressure test point “+”
24 Air pressure test point pressure test point “-”
25 Ignition pilot attachment
The burner can be opened either on the right or left
sides, irrespective of the side from which fuel is sup-
plied. When the burner is closed, the hinge can be re-
positioned on the opposite side.
9 1 17 1615
8
14
20
11
7
19
1625
10 22
13 512 24 4
3
23
18
2
21
Fig. 5
D9399
WARNING

20008423 12
GB
Technical description of the burner
3.7.2 Panel board description
1 “OFF - LOCAL - REMOTE” switch
2 “POWER ON” signal
3 “CALL FOR HEAT” signal
4 Terminal strip “XAUX”
5 “FUEL ON” signal
6 “ALARM SILENCE” button
7 “BURNER LOCK-OUT and RESET” pushbutton
8 Low air pressure switch
9 Operator panel with LCD display
10 Burner terminal board “X1”
11 Control box for checking flame and air/fuel ratio
12 Ignition transformer “TA”
13 Control box trasformer “T1”
14 Step-down trasformer (available)
15 Terminal strip “X2”
16 Fan motor contactor and thermal relay with reset button
17 “K6” relay (only for star/delta version)
18 Bracket for shielded cables with thumbscrew
Warning: used only to avoid a break in the cable’s shielding,
hence do not overtighten.
19 “KS1” contactor (only for star/delta version)
20 Auxiliary fuse
21 DIN bar for: relay, fuse holder and terminal strip “XAUX”
22 Horn
23 ”K1” relay
24 “K3” relay
25 “K5” relay
26 “K2” relay
27 “KL1” contactor (only for star/delta version)
28 “K7” relay
29 “KT1” contactor (only for star/delta version)
30 DIN bar for “X2” terminal strip, thermal relays and contactors
31 “KST1” Star/delta starter timer (only for star/delta version)
32 Holes for cables grommets for electrical wirings, accessories
and power supply (to be carried out by the installer)
33 Plug/socket for maximum pressure switch
34 Plug/socket for air actuator
35 Plug/socket for QRI flame sensor
Two types of burner failure may occur:
Flame safeguard lock-out
If the flame safeguard alarm 6)(Fig. 6) lights up, it indicates
that the burner is in lock-out. To reset, press the reset push-
button.
Fan motor trip
release by pressing the pushbutton on thermal overload
16)(Fig. 6). See “Thermal relay calibration” on page 25.
*
DIRECT START ( RS300/E)
11
20
9
14
7
6
5
3
2
1
32
10
16
15
18
32
30
8
24 13 12
23
21
28
25
422
26
*
33 34
35
START/ DELTASTART(RS400-500/E)
17
31
29 19
27
Fig. 6
D11897

Technical description of the burner
20008423 13
GB
3.8 Control box for the air/fuel ratio (LMV51...)
Warning notes
To avoid injury to persons, damage to property
or the environment, the following warning notes
must be observed!
The LMV51... is a safety device!
Do not open, interfere with or modify the unit.
Riello S.p.A. will not assume responsibility for
any damage resulting from unauthorized interfer-
ence!
Risk of explosion!
Incorrect configuration can lead to excessive fuel
supply which might cause an explosion!
Operators must be aware that incorrect settings
made on the AZL5… display and operating unit and
incorrect settings of the fuel and / or air actuator
positions can lead to dangerous burner operating
conditions.
All activities (mounting, installation and service work, etc.)
must be performed by qualified staff.
Before making any wiring changes in the connection area of
the LMV5..., completely isolate the plant from mains supply
(all-polar disconnection). Ensure that the plant cannot be
inadvertently switched on again and that it is indeed dead. If
not observed, there is a risk of electric shock hazard.
Protection against electrical shock hazard on the LMV5... and
on all connected electrical components must be ensured
through appropriate mounting.
Each time work has been carried out (mounting, installation
and service work, etc.), check to ensure that wiring is in an
orderly state, that the parameters have been correctly set and
make the safety checks.
Fall or shock can adversely affect the safety functions.
Such units must not be put into operation even if they do not
exhibit any damage.
In programming mode, the position check of actuators and
VSD (checking electronic fuel / air ratio control) is different
from the check during automatic operation.
Like in automatic operation, the actuators are still jointly
driven to their required positions. If an actuator does not
reach the required position, corrections are made until that
position is reached. However, in contrast to automatic opera-
tion, there are no time limits to these corrective actions.
The other actuators maintain their positions until all actuators
have reached the positions currently required.
This is essential for setting fuel /air ratio control.
This means that during the time the fuel / air ratio curves are
programmed, the person making the plant settings must con-
tinuously monitor the quality of the combustion process (e.g.
by means of a flue gas analyzer).
Also, if combustion levels are poor, or in the event of danger-
ous situations, the commissioning engineer must take appro-
priate action (e.g. switching off manually).
To ensure the safety and reliability of the LMV5... system, the
following points must also be observed:
– Condensation and ingress of humidity must be avoided. Should
such conditions occur, make sure that the unit will be completely
dry before switching on again!
– Static charges must be avoided since they can damage the
unit’s electronic components when touched.
Mechanical design
The LMV5... is a microprocessor-based burner management sys-
tem with matching system components for the control and supervi-
sion of forced draft burners of medium to large capacity.
The following components are integrated in the basic unit of the
LMV5...:
• Burner control with gas valve proving system
• Electronic fuel / air ratio control with a maximum of 4 (LMV51…)
or 6 (LMV52…) actuators
• Optional PID temperature / pressure controller (load controller)
• Optional VSD moduleMechanical design
Installation notes
• Ensure that the electrical wiring inside the boiler is in compliance
with national and local safety regulations.
• Do not mix up live and neutral conductors.
• Make certain that strain relief of the connected cables is in com-
pliance with the relevant standards (e.g. as per DIN EN 60730
and DIN EN 60 335).
• Ensure that spliced wires cannot get into contact with neighbor-
ing terminals. Use adequate ferrules.
• Always run high-voltage ignition cables separately while observ-
ing the greatest possible distance to the unit and to other cables
• The burner manufacturer must protect unused AC 230 V termi-
nals with dummy plugs (refer to sections Suppliers of other ac-
cessory items).
• When wiring the unit, ensure that AC 230 V mains voltage ca-
bles are run strictly separate from extra low-voltage cables to
warrant protection against electrical shock hazard.
WARNING
Fig. 7
D9301

20008423 14
GB
Technical description of the burner
Electrical connection of ionization probe and flame detector
It is important to achieve practically disturbance- and loss-free
signal transmission:
• Never run the detector cables together with other cables:
– Line capacitance reduces the magnitude of the flame signal.
– Use a separate cable.
• Observe the permissible cable lengths.
• The ionization probe is not protected against electrical shock
hazard. The mainspowered ionization probe must be protected
against accidental contact.
• Locate the ignition electrode and the ionization probe such
that the ignition spark cannot arc over to the ionization
probe (risk of electrical overloads).
Technical data
LMV51... basic unit Mains voltage AC 120 V -15 % / +10 %
Mains frequency 50 / 60 Hz ±6 %
Power consumption < 30 W (typically)
Safety class I, with parts according to II and III to DIN EN 60730-1
Terminal loading
‘Inputs’
Unit fuse F1 (internally) 6.3 AT
Perm. mains primary fuse (externally) Max. 16 AT
Undervoltage
• Safety shutdown from operating position
at mains voltage
• Restart on rise in mains voltage
< AC 96 V
> AC 100 V
Oil pump / magnetic clutch (nominal voltage)
• Nominal current
• Power factor
1.6A
cos> 0.4
Air pressure switch test valve (nominal voltage)
• Nominal current
• Power factor
0.5A
cos> 0.4
Terminal loading
‘Outputs’
Total contact loading:
• Mains voltage
• Input current of unit (safety loop) total
load on contacts resulting from:
- Fan motor contactor
- Ignition transformer
- Valve
- Oil pump / magnetic clutch
AC 120 V -15 % / +10 %
Max. 5 A
Single contact loading:
Fan motor contactor (nominal voltage)
• Nominal current
• Power factor
1A
cos> 0.4
Alarm output (nominal voltage)
• Nominal current
• Power factor
1 A
cos> 0.4
Ignition transformer (nominal voltage)
• Nominal current
• Power factor
1.6 A
cos> 0.2
Fuel valve gas (nominal voltage)
• Nominal current
• Power factor
1.6 A
cos> 0.4
Fuel valve oil (nominal voltage)
• Nominal current
• Power factor
1.6 A
cos> 0.4
Cable lengths Main line Max. 100 m (100 pF/m)
Environmental
conditions
Operation
Climatic conditions
Mechanical conditions
Temperature range
Humidity
DIN EN 60721-3-3
Class 3K3
Class 3M3
-20...+60 °C
< 95 % r.h.

Technical description of the burner
20008423 15
GB

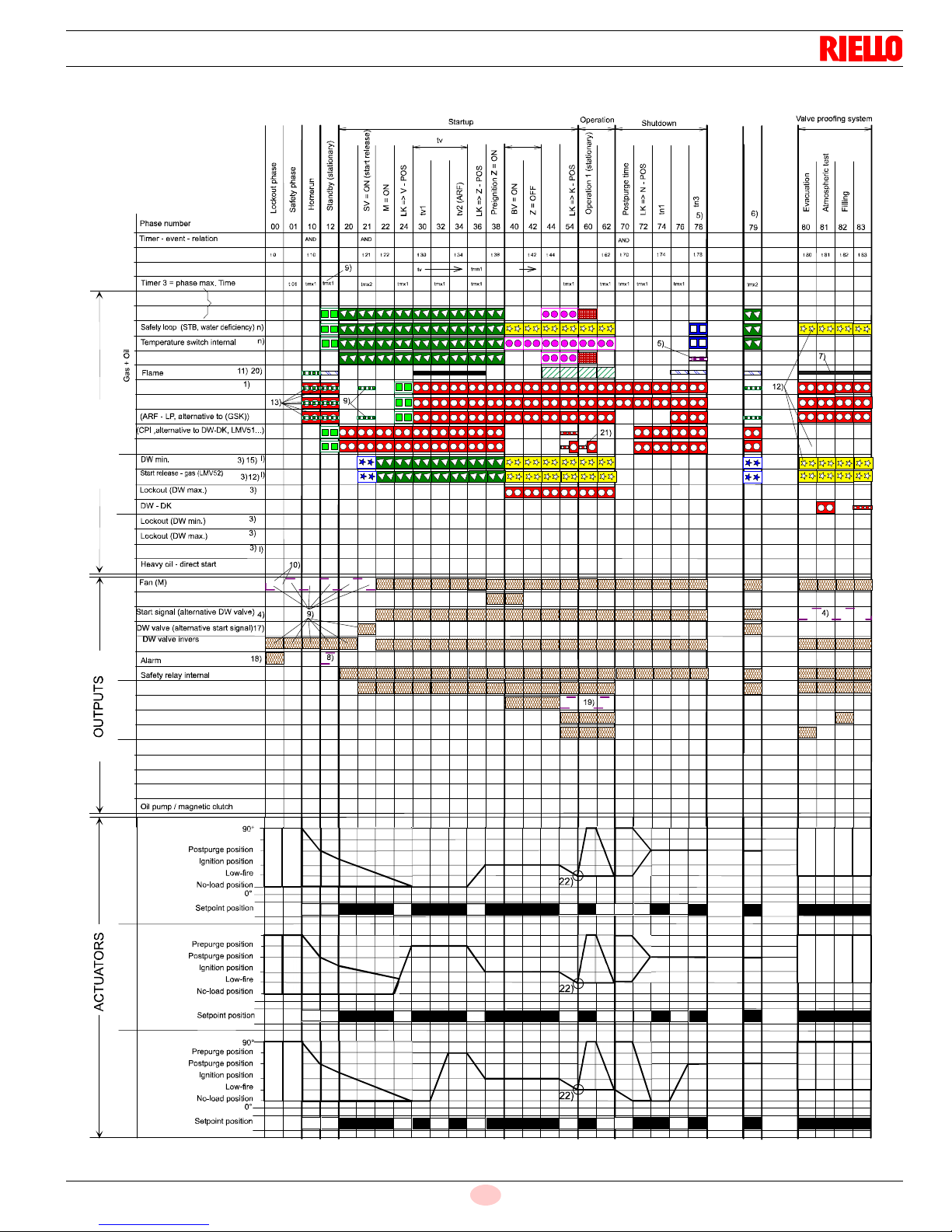

Operation sequence of the burner
TSA1
k)
Gas
Gas
OR
0° / 0%
90° / 100%
TSA1
Fuel
Actuator 2, 3
Nox red.
Actuator 6
Gas+oil
Oil
Ignition (Z)
Fuel valve, SV
Fuel valve, PV
Fuel valve, V1
Fuel valve, V2
Fuel valve, V1
Fuel valve, V2
Fuel valve, V3
Fuel valve, SV
Oil
INPUTS
Timer 1
Timer 2
Fuel 1 (oil)
Fuel 2 (gas)
Controller - ON (internal + external)
Air pressure switch (LP)
Start release - oil
Fuel
selection
Fan conductor contact (GSK)
Interval 1 ti1
Operation 2 LK => K - POS
SR = ON
Pressure test
Direct start
Air, Aux, VSD
Actuator 1, 4, 5
(CPI function with LMV52...)
(alternative start signal)
Fig. 8
D9507

20008423 16
GB
Technical description of the burner
Legend to the sequence diagrams:
Depending on the parameter, valve proving takes place:
between phase 62 and phase 70 or/and
between phase 30 and phase 32.
Assignment of times:
t0 Postpurge lockout position
t01 Max. time safety phase
t10 Min. time home run
t21 Min. time start release
t22 Fan runup time t30 Prepurge time part 1
t34 Prepurge time part 3
t36 Min. ON time oil pump
t38 Preignition time gas / oil
t42 Preignition time OFF
t44 Interval 1 gas / oil
t62 Max. time low-fire
t70 Afterburn time
t74 Postpurge time 1 gas / oil (tn1)
t78 Postpurge time 3 gas / oil (tn3)
t80 Valve proving evacuate time
t81 Leakage test time atmospheric pressure
t82 Leakage test filling test
t83 Leakage test time gas pressure
tmn1 Min. time extraneous light test (5 s.) after skip over of pre-
purge
tmx1 Max. damper running time
tmx2 Max. time startup release
tmx3 Max. time circulation heavy oil
tn Postpurge time
TSA1 Safety time 1
TSA2 Safety time 2
tv Prepurge time gas / oil
Signal ON Signal OFF Next phase
Parameter direct start
Checking with controller on
Deviation 10
No Rep. decrement
10
70
Without VP70 with VP80
62
Stop, up to Ph – max. time 01
Stop, up to Ph – max. time 10
Input: don´t care
Output: OFF
Output: ON
00, Rep = 0
12, Rep > 0
01
0-3 s.
00, Rep = 0
12, Rep > 0
01
0-30 s.
00, Rep = 0
12, Rep > 0
01
0-3 s.
00, Rep = 0
12, Rep > 0
01
79
10
Param.

Technical description of the burner
20008423 17
GB
Legend to the sequence diagrams:
1) Parameter: With / without pressure switch
2) Parameter: Short / long preignition time for oil only Short /
long oil pump – ON – time
3) Delayed shutdown within TSA1 + TSA2
4) Parameter: Output as startup signal / pressure switch relief
valve
5) Parameter: Normal / direct startup
Normal startup sequential phase = 10
Direct startup sequential phase = 79
(when R = ON)
6) Sequential phase = 24
7) Only with valve proving during startup
8) Parameter: With / without alarm on prevention of startup
9) Parameter: With continuous purging the shown output sig-
nals are inverted
10) Fan controlled as before
Running time when LOCK OUT = T_FanLockout LF
11) Parameter: With / without extraneous light test in STANDBY
12) With valve proving during startup phase 10
13) Parameter: Normal / continuous purging
Normal purging: Checking for off in 10, stop to
Ph-max time 01
Continuous purging: Checking for on in 10 and
12, Stop up to phase-max time 01
14) Parameter: “OilPressureMin”, “akt_from_ts“ no check
before TSA1 (LO, HO) or TSA2 (LOgp, HOgp)
15) Parameter: “GasPressureMin“, “deakt_xOGP“ pres-
sure switch-min can be deactivated for oil pro-
grams with gas pilot
16) Parameter: “OilPumpCoupling“, “direct_coupl“ shutoff
valve oil has to be connected to output “Oil pump
/ magnetic clutch“.
Output is active when fan is on and for another
15 s after fan is switched off
17) Parameter: “Start / pressure switch valve“,
“PS_Reli_Inv“ Output pressure switch
valve will be logically inverted
18) Parameter: “Alarm act / deact“, “deactivated“ The alarm
output can temporarily be deactivated (for cur-
rent error only)
19) Parameter: Only with LMV51...: Continuous pilot gas / oil:
Activated Pilot valve is also activated in op-
eration
20) Parameter: Only with LMV51...: Extraneous light, pilot
phase, operating phase gas / oil Separate
flame supervision possible
21) Parameter: Only with LMV51...: pressure switch valve prov-
ing / CPI or StartReleaseGas Parameter-
dependent ON / OFF test
CPI Gas: OFF test for gas trains only
CPI Oil: OFF test for oil trains only
CPI Gas+Oil: OFF test for gas and oil trains
22) Parameter: After LMV51... software version 04.50 and
AZL5... software version 04.40, dependent on
parameter StartPktOperation
0° Position as supplied (0°)
90° Actuator fully open (90°)
AGR Fuel gas recirculation
CPI Closed position indication
DP Pressure tester
PS-VP Pressure switch – valve proving
FCC Fan contactor contact
LF Air damper
APS Air pressure switch
N Postpurging
SR Safety relay
SLT Safety limit thermostat
TL Temperature limiter
Repetition counter:
k) Heavy oil
l) Restricted startup behavior
n) Restricted safety loop
Permissible positioning range
In Standby: actuator can travel within the permissible po-
sitioning range, but is always driven to the home position.
Must be in the home position before changing the phase.

20008423 18
GB
Technical description of the burner
3.9 Actuators
Warning notes
To avoid injury to persons, damage to property
or the environment, the following warning notes
should be observed!
Do not open, interfere with or modify the actua-
tors!
All activities (mounting, installation and service work, etc.)
must be performed by qualified staff.
Before making any wiring changes in the connection area of
the actuator, completely isolate the burner control from the
mains supply (all-polar disconnection).
Ensure protection against electric shock hazard by providing
adequate protection for the connection terminals and by
securing the housing cover.
Check to ensure that wiring is in an orderly state.
Fall or shock can adversely affect the safety functions. Such
units must not be put into operation, even if they do not
exhibit any damage.
The housing cover may only be removed for
short periods of time for wiring or when making
the addressing.
It must be made certain that dust or dirt will not
get inside the actuator while such work is carried
out.
Use

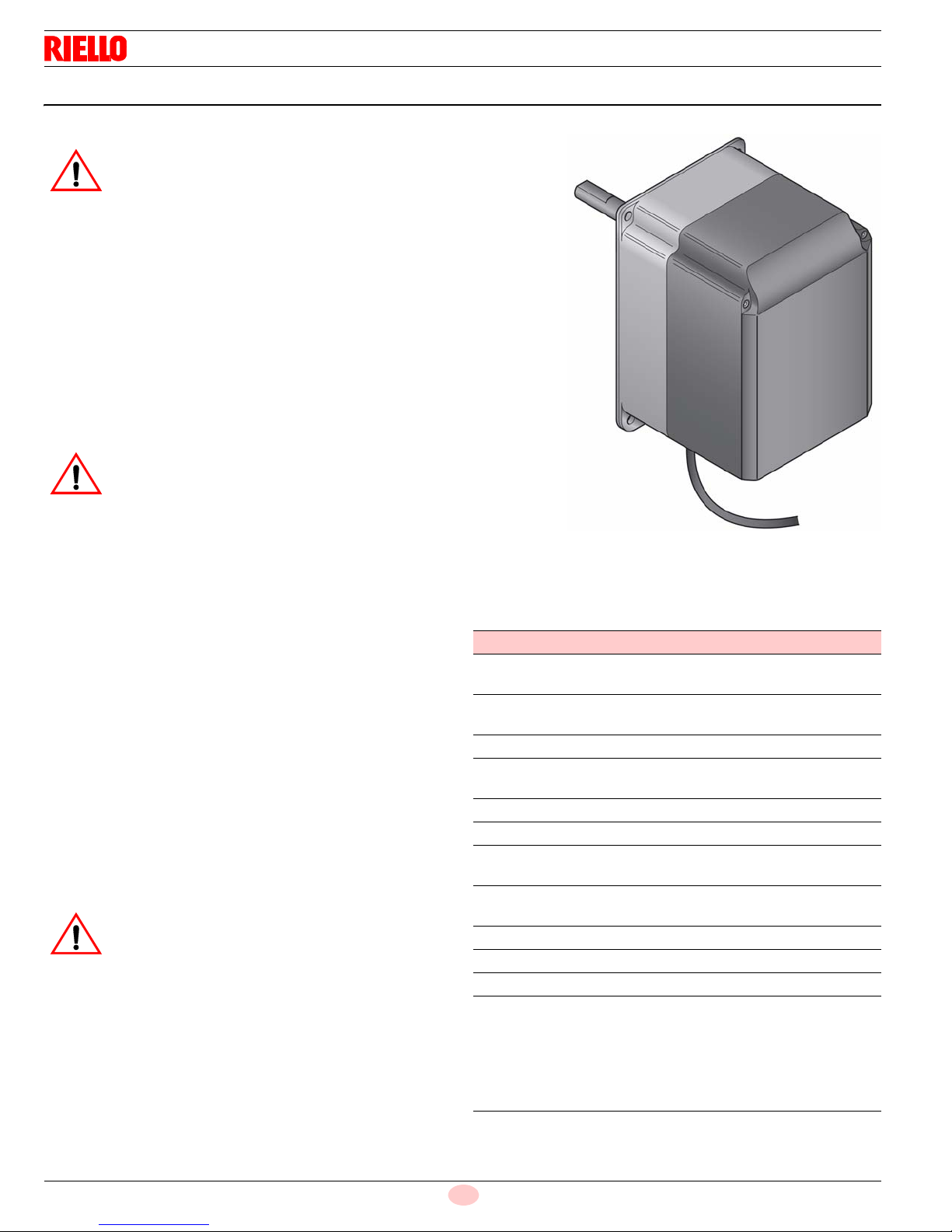

The actuators (Fig. 9) are used to drive and position the air
damper and the gas butterfly valve, without mechanical leverag-
es but via the interposition of an elastic coupling.
When used in connection with burner controls or electronic fuel
/ air ratio control, the associated controlling elements are con-
trolled depending on burner output.
Installation notes
• Always run the high-voltage ignition cables separate from the
unit and other cables while observing the greatest possible dis-
tance.
• To ensure protection against electric shock hazard, make cer-
tain that the AC 230 V section of the actuator is strictly segregat-
ed from the functional low-voltage section.
• The holding torque is reduced when the actuator’s power supply
is switched off.
When servicing or replacing the actuators, take
care not to invert the connectors.
Technical data
WARNING
WARNING
WARNING
Model SQM45.295A9 SQM48.497A9
Operating voltage AC 2 x 12 V via bus cable from the ba-
sic unit or via a separate transformer
Safety class Extra low-voltage with safe isolation
from mains voltage
Power consumption 9...15 VA
Degree of protection To EN 60 529, IP 54, provided ade-
quate cable entries are used
On time 50 %, max. 3 min. continuously
Electrical connections RAST3.5 terminals
Direction of rotation
(when facing the shaft)
- Standard: counterclockwise
- Reverse: clockwise
Running time (min.)
for 90° 10 s. 30s.
Holding torque (max.) 1.5 Nm 20 Nm
Nominal torque (max.) 3 Nm 20 Nm
Weight approx. 1 kg approx. 1.6 kg
Environmental conditions:
Operation
Climatic conditions
Mechanical conditions
Temperature range
Humidity
DIN EN 60721-3-1
class 1K3
class 1M2
-20...+60 ×C
< 95 % r.h.
D8271
Fig. 9
