Road Rover C7005BR Instruction Manual

Installing Guide of Opel Insignia
1
1. The original car audio system 2. Pry the decorative board with crow plate
3. Pry the left decorative board 4. Pry the three buckles and the right decorative board
5. Decorative boards taken away 6. Pry the display screen of the original car
7. Disconnect the back connection cables of 8. Pry the screws and the head unit board
the display screen, and take off the display of the original car
frame of original car

Installing Guide of Opel Insignia
2
9.Pry the four date wires in the back of the head unit 10. Pry the screws and take out the head unit
11. Disconnect the power cord and antenna in the 12. Pry the side plate of the glove box
back of the head unit. Pay attention to the buckles
13.Pry the four screws for fixing the glove box 14. Pull out the glove box
15. Pull out the inside clapboard rail 16. Open the glove box and be care of the guide
inside

Installing Guide of Opel Insignia
3
17. Attached accessories: A.GPS Display Screen 18. Connect the Power Cord and AUX
B. GPS Head Unit C. Fixing Brackets etc cables of the GPS device
D. Screen Supplementary Mat E. AUX Cable
F. Power Cord G. Data Wire H. AV Cable
I. Switch Wire J. GPS Antenna
19. Pull out the cables of the GPS device from 20.Keep the back cables in the glove box in
order.
the back uper hole of the glove box
21. Push the GPS device into the glove box 22. Push the GPS device to the end
along the slot
23.Ensure the two back buckles of the GPS device 24. Fix GPS antenna
button up with glove box

Installing Guide of Opel Insignia
4
25.Connect the data wire, GPS antenna and 26. Pull the blue and green cables in the power
cord, AV cable, etc data wire and AUX cable from the left gap to
theplaceofdisplayscreen
27.Pull the power cord and data wire from the 28. Install the glove box and fix the screws
display screen, and pull the AUX cable from the
place of head unit
29. Install the side plate of glove box 30. The diagram of part of the head unit installed
31. Pry the display screen of the original car 32. Pry the button panel on the right and left
sides of air-condition air outlet and the four iron
buckles

Installing Guide of Opel Insignia
5
33.Install the air outlet, button panel and iron 34. The diagram of GPS display screen installed
buckles to the display screen of GPS device and
be care of the buckles
35. Hide the AUX cable inside the side plate 36. Fix the AUX cable along the inside of the
on the left position of copilot, then pull to the armrest box with viscose, and insert into the AUX
place of armrest box port in the glove box
37. Stick the screen supplementary mat attached 38. Connect the longer side of the switch cable
in the box to the screen of original car to protect
the screen
39. Install the fix bracket 40. Fix the barcket as picture showed

Installing Guide of Opel Insignia
6
41. Insert the switch cable to the uper place of 42. Connect the blue data wire in the AUX cable
the display screen and connect with the plug and the blue cable of original car(11 pin) and
packoforiginalcar withelectricianplastic
43. Connect the green data wire in the AUX 44. Install the power cord of original car and
cable and the green cable of original car(28 pin) antenna
and pack with electrician plastic
45. Install the data wire of the original car head 46. Install the power cord, data wire and switch
unitpanel cableoftheGPSscreen,thentestthefunctions
47. Install the GPS display screen 48. Install the decorative board

Installing Guide of Opel Insignia
7

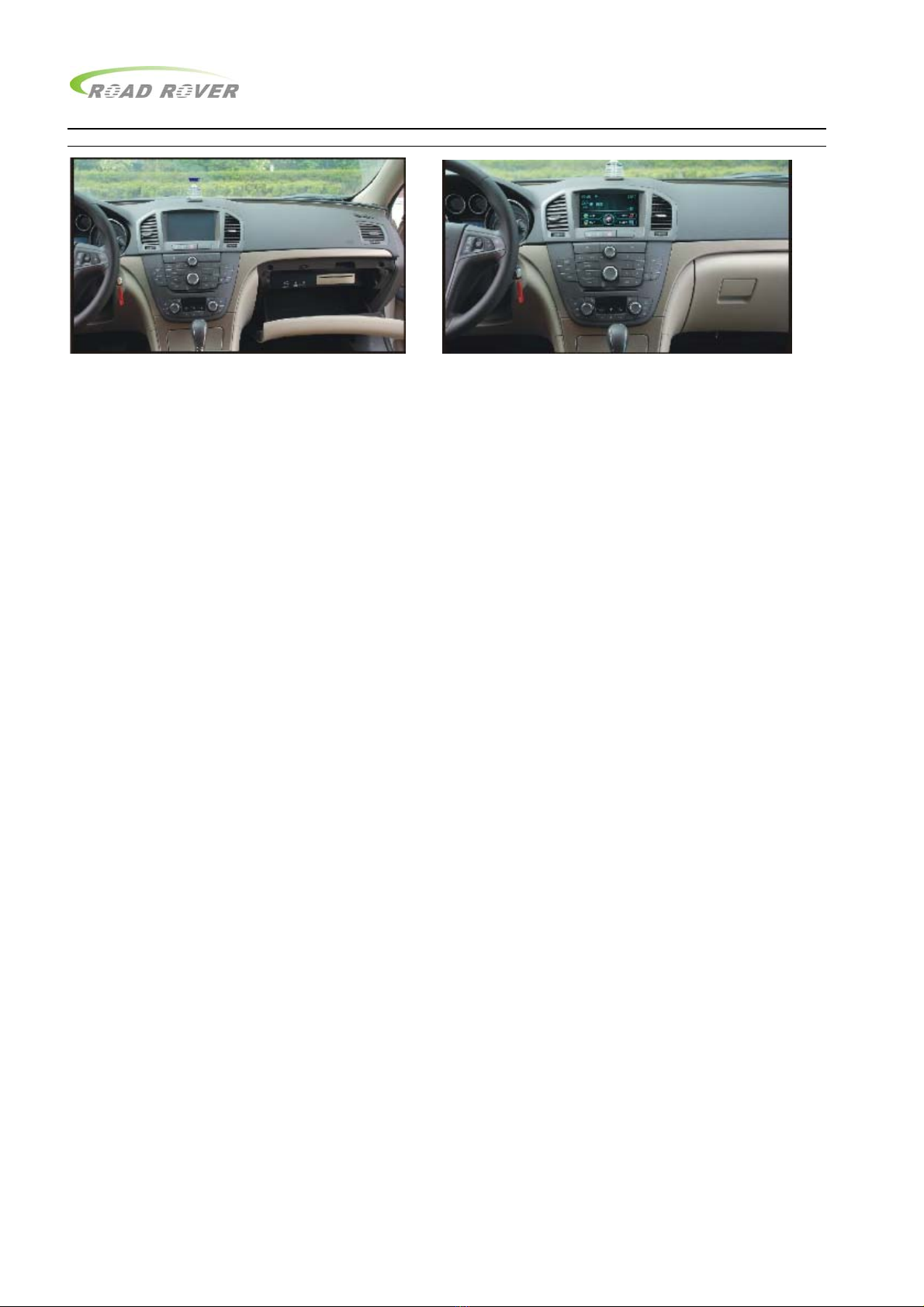

49. Installation done 50. Test every functions
■Install GPS Antenna
GPS antenna may be installed inside the car such as on the dashboard or coat rack; it may be also installed outside
the bar such as the top of car or on the trunk lid.
GPS antenna must have an open “visual field” towards the sky. If the glass of the car window is equipped with
explosion-proof film or heat insulation film, it might greatly reduce the receiving strength; in that case it’s advised
to install the GPS antenna outside the car.
■Precautions
zOnly the professional installing technicians are allowed to install and maintain this product.
zInstallation or maintenance by the laypeople might cause electric shock or other risks and even damage the
unit.
zIn the process of connecting connector, pay attention to the hook position, don’t pull wires forcibly to avoid
invalid connection;
zPlease use the attached wire of the system, otherwise the accident of fire or smoke or damage to the unit or
vehicle might be caused;
zDon’t cut off any extra wire which is kept for future use. Protect the ends of wire with insulating tape;
zIn order to avoid short circuit, please disconnect the anode of the power accumulator before any connection
and installation;
zEnsure all lines are placed and protected in good condition, don’t let them interfere in any moveable parts of
the car such as steering wheel, gearlever, brake pedal, sliding chair, door or other parts;
zThe voice is input through AUX, so please ensure audio cable connectes well with the AUX port of the
original car audio system
zThis Teana GPS can be fit for new Teana 2.0 Comfort Edition, 2.0 GT Edition and 2.4 Comfort Edition
