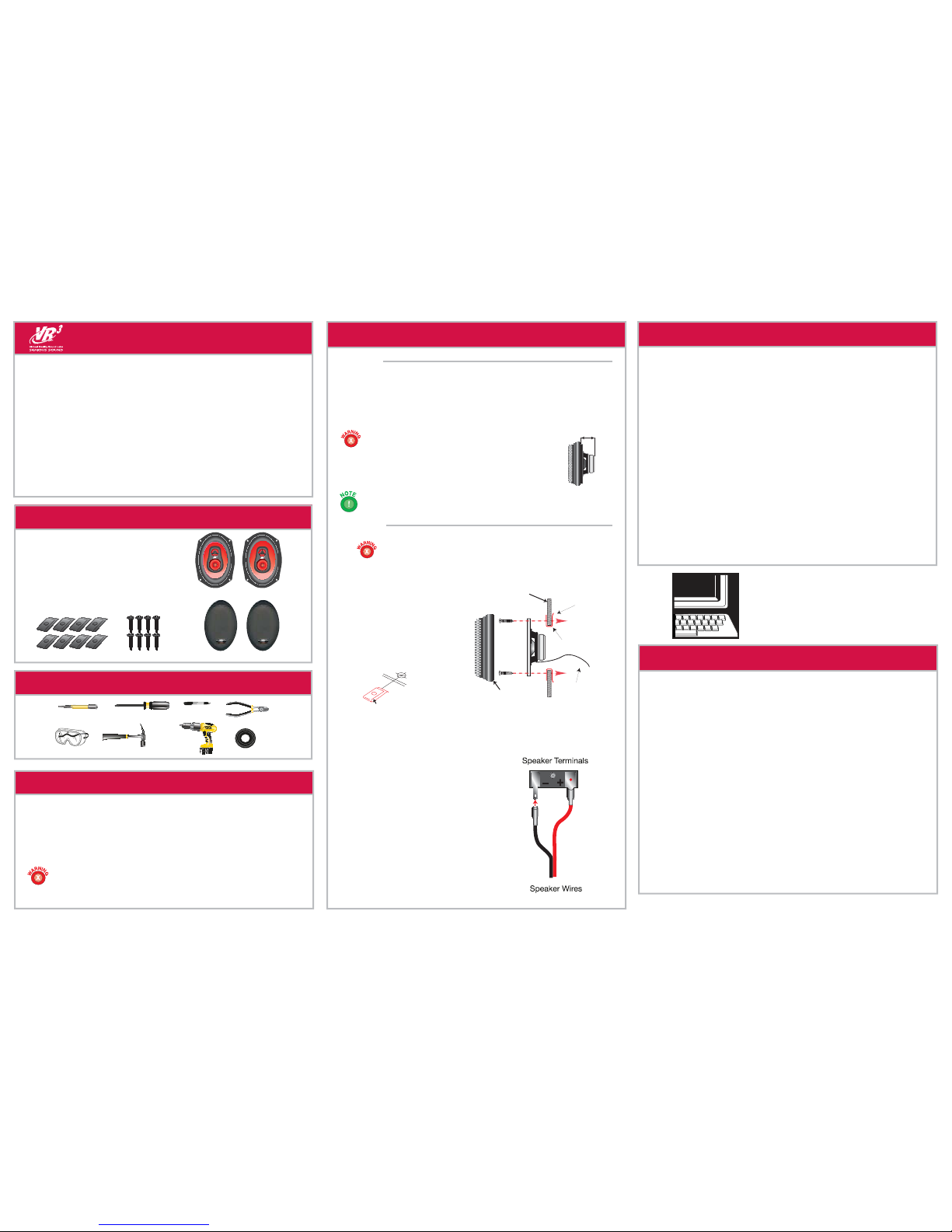

Roadmaster 3-Way Speakers RS460 User manual

• Nail Set/Center Punch • Marker/Pen
• Safety Glasses • Electrical Tape
• Phillips Screwdriver
• Hammer
• Wire Cutter
• Electric Drill
with 1/16" bit
INTERIOR PANEL
SPRING NUT
The small hole of
the spring nut is
on this side of panel
SPEAKER GRILL
SPEAKER
WIRE
Sprin
g
Nut
GIVE US A CALL, WE'LL HELP YOU INSTALL.
1-800-445-1797
PLEASE DO NOT RETURN PRODUCT TO STORE.
Visit us on the WEB
www.vr-3.com
For Information and Technical Assistance,
Call Toll-Free in U.S.A. and Canada.
RS460
4” x 6” Three-Way Speaker
Dear Customer,
CONGRATULATIONS.
The RS460 4” x 6” 3-way speakers, when used as described, will give you years of
dependable service in your car, truck, RV or mini-van. We have taken numerous mea-
sures in quality control to ensure that your product arrives in top condition, and will
perform to your satisfaction. In the rare event that your RS460 4” x 6” 3-way speakers
contain a damaged or missing item, does not perform as specified, requires warranty
service, or you have an installation problem, DO NOT RETURN THIS PRODUCT TO
THE STORE. PLEASE CALL OUR TOLL FREE NUMBER FROM THE U.S.A. AND CAN-
ADA 1-800-445-1797 and ask to speak with a member of our technical service team,
or submit your questions by E-Mail to [e-mail] and a member
of our technical service team will respond by E-Mail to your questions. Our in-house
technical service team will expedite delivery of your part, advise you on installation,
or help troubleshoot a problem with you. If your product needs warranty service, our
technical service team representative will help you obtain the fastest remedy possible
under the warranty.
Before You Install
We understand that automotive audio equipment installations can be troublesome at
times, even to the most experienced of installation technicians. If you are not confi-
dent working with electrical wiring, removing and reinstalling interior panels, carpet-
ing, dashboards or other components of your vehicle, please call our TOLL-FREE help
line 1-800-445-1797 and our in-house technical service team will answer your instal-
lation questions.
Before installing these speakers, check the vehicle’s manual for locations of
important vehicle components such as air bags, CO2 systems, fuel systems,
& electrical systems installed in the vehicle. Accidental deployment of air bags
may result in serious injury.
Parts & Specifications
• 4” x 6” Polypropylene Coated Paper Cones
• 6 Oz. Magnet
• Foam Rubber Surrounds
• 100 Watts Maximum Peak Power per Pair
• 20 Watts RMS Power per Pair
• 115 - 20,000 Hz Frequency Response
• Bridgeless 1.5” Midrange speakers
• .5” Dome Tweeters
• Quick Connect Terminals
Tools Needed To Install
Installation
25/8" or 61/2cm
Speaker Depth
If you are installing the RS460 speakers to upgrade/replace your existing speakers, re-
move the existing speakers from your vehicle, disconnect the speaker wires and mark
the polarity. Place the RS460 speakers in the location you selected in your vehicle and
connect the existing speaker wires. Make sure to keep the polarity of the speakers and
wires correct (positive wire to positive speaker terminal and negative or ground wire to
negative terminal)
Before you install your speakers you must make sure you
have enough depth/space behind the mounting surface.
You do not want the back of the speaker magnet to touch any part
of your vehicle, or interfere with the operation or function of any
component in your vehicle. (ie. windows or trunk lid)
Before mounting the speakers in a precut hole, use the template to check
that the holes for the speaker and the screws will line up correctly.
Location
You should only mount your speakers in factory precut holes. We
DO NOT recommend that you cut holes for mounting the speakers. If
there are no factory precut holes consider having the speakers pro-
fessionally installed.
Mounting
1. Connect the speaker wires to
the speaker. Maintain polarity by
connecting the positive wire to the
positive speaker terminal, and the
negative wire to negative speaker
terminal.
2. Slip the supplied spring nuts into
place and align the holes.
3. Screw the speaker into
place with screws (provided).
4. Firmly attach the speaker
grill cover.
What if there is no sound?
1. Your stereo may have a blown fuse. Replace fuse with the same amperage and
style.
2. You may have improper wiring. Refer to the wiring guide that came with your stereo/
amplifier. Check all wires for a secure connection.
What if the sound volume is low?
Your stereo may not have enough power, you may have to install an amplifier to
drive the speakers
Why do I have a whining noise coming from the speakers?
You may have poor filtering of your alternator. If that is the case then you
may need to add an alternator filter to the power lead.
Why do I have odd sounding noises coming from the speakers?
You may have corroded battery terminals and/or a weak battery. If the terminals on
the battery are corroded clean them, then check the sound. If the sound system is still
making noises check battery strength. If it is low, recharge or replace the battery.
Why does the speaker have sound coming from one channel only?
First make sure the balance control is set correctly. If the balance is set correctly
your stereo may be defective or the speaker may be defective. To troubleshoot
this problem you MUST change both positive and negative leads of each channel with
the positive and negative leads of the opposite channel, if the same speaker has no
sound then the speaker is no good, if the opposite speaker has no sound then your
stereo may be defective.
Limited Warranty
VIRTUAL REALIT Y SOUND LABS® products are designed and manufactured to provide a high level of trouble -free per-
formance. VIRTUAL REALIT Y SOUND LABS® warrants, to the original purchaser, that its products are free from defects in
material and workmanship for 30 days from the date of original purchase. As part of our commitment to product excellence,
VIRTUAL REALIT Y SOUND LABS® and/or its affiliates routinely improve the designs, materials or production methods of
its existing products. Because it is impractical to publicize all changes in every product, we reserve the right to make such
changes without notice.
CONDITIONS OF WARRANTY:
If during the 30 day warranty period your new product is found to be defective, VIRTUAL REALITY SOUND L ABS® will repair
such defect, or replace the product, without charge for parts or labor subject to the following conditions:
1. All repairs must be performed by VIRTUAL REALITY SOUND L ABS® and/or its affiliates in Eatontown, New Jersey.
2. The equipment must not have been altered or been damaged through negligence, accident, or improper operation.
3. The replacement of parts are exempted from this warranty when replacement is necessary due to normal wear and tear.
4. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.
5. Repair or replacement parts supplied by VIRTUAL REALITY SOUND LABS® under this warranty are protected only for the
unexpired portion of the original warranty.
6. In the c ase of c ar s tere os , this warrant y do es n ot extend to th e elim in ation of car static or moto r no is e; correction of antenna
problems; costs incurred for the removal or reinstallation of the product; damage to tapes, speakers, accessories or car elec-
trical systems.
7. VIRTUAL REALITY SOUND LABS® will not be responsible for any charge incurred for installation.
OWNER’S RESPONSIBILITIES:
VIRTUAL REALIT Y SOUND LABS® will make every effort to provide warranty service within a reasonable period of time.
SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED, OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING
SERVICE, PLE ASE CALL TOLL FREE 1-800-445-1797, 8:30am - 4:30pm EST.
In order to provide you with the proper warranty service, we request that you adhere to the following procedure:
1. Include a copy of your sales receipt or bill of sale with your unit when it is returned for warranty service.
2. I f it is ne c e s sary to r e turn y o ur pro d u ct for s e r v ice, p l e ase re t urn it s e c urel y p a cke d , pref e rably i n t he ori g inal s h i ppin g carton,
and freight and insurance prepaid to the following address: VIRTUAL REALIT Y SOUND LABS, Service Depar tment, 41 James
Way, Eatontown, New Jersey 07724.
3. Please include a detailed explanation of the problem you are having.
4. If your product is found by VIRTUAL REALITY SOUND LABS® to have a defect in material or workmanship, within the
warranty period, it will be repaired or replaced at no charge and returned to you prepaid. Where permitted by Iaw VIRTUAL
REALITY SOUND LABS® liability shall be limited to that set for th in this warranty. This warranty shall be the exclusive remedy
of the purchaser.
VIRTUAL REALIT Y SOUND LABS® makes no other warranty of any kind, expressed or implied; and all implied warranties, are
hereby disclaimed by VIRTUAL REALITY SOUND LABS® and excluded from this warranty, VIRTUAL REALITY SOUND L ABS®
and/or its affiliates, the manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or con-
sequential, arising out of the use or intended use of the product.
©2008 Intellectual Solutions Inc., All rights reser ved. All designs, logos and images are the exclusive property of Intellectual Solutions
Inc. and/or its affiliates. U.S. and Foreign Patents Pending. 071108 Printed in China 00000
2 Speakers
2 Grills
8 Screws
8 Spring Nuts
Maintain proper polarity by attaching the
Positive Wire(+) to Positive Terminal(+) and
the Negative Wire(-) to Negative Terminal(-)
Speaker wires with female disconnects on
one end are recommended. When connect-
ing the speaker wires to your speakers in a
new installation, you should follow the wiring
instructions from your audio system’s manu-
facturer.
Attach the quick disconnect connectors to
the speaker terminals as shown. Maintain
proper polarity by attaching the Positive
Wire(+) to Positive Terminal(+) and the Nega-
tive Wire(-) to Negative Terminal(-).
For most systems the positive wire attaches
to the positive speaker terminal and the neg-
ative wire attaches to the negative terminal.
Frequently Asked Questions
