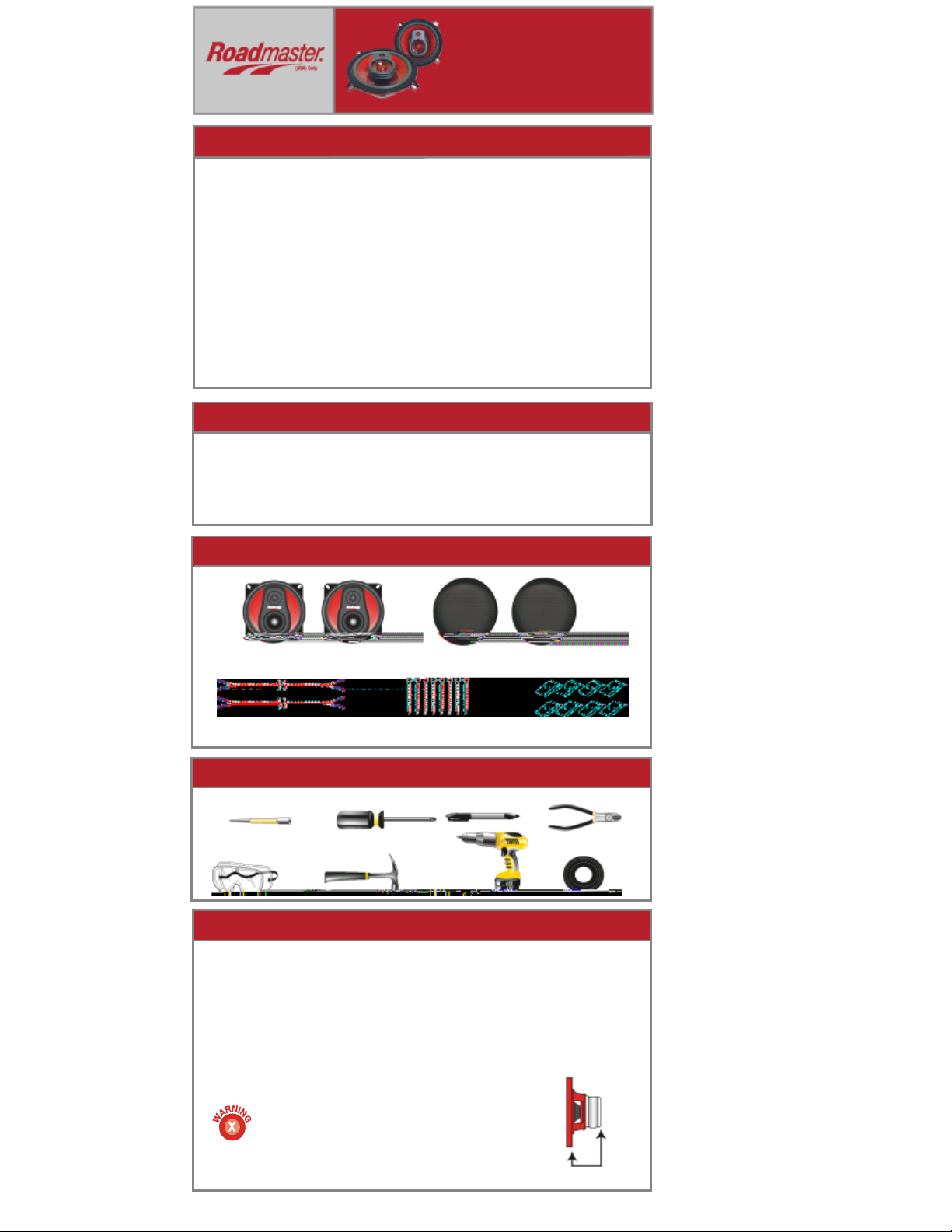

Roadmaster Car Component Speaker User manual

© Copyright 2004 ROADMASTER (USA) CORP. Rev. 2 - 09/14/04 Printed in China 00000
To Strip Insulation from Wire: To Attach Wires to Terminals:
INTERIOR PANEL
SPRING NUT
The small hole of
the spring nut is on
this side of panel
SPEAKER
WIRE
ROADMASTER (USA) CORP. products are designed and manufactured to provide a high level of trouble-free performance. ROADMASTER (USA) CORP.
warrants, to the original purchaser, that its products are free from defects in material and workmanship for 30 days from the date of original purchase. As part
of our commitment to product excellence, ROADMASTER (USA) CORP. routinely improves the designs, materials or production methods of its existing
products. Because it is impractical to publicize all changes in every product, we reserve the right to make such changes without notice.
CONDITIONS OF WARRANTY:
If during the 30 day warranty period your new product is found to be defective, ROADMASTER (USA) CORP. will repair such defect, or replace the product,
without charge for parts or labor subject to the following conditions:
1. All repairs must be performed by ROADMASTER (USA) CORP. in Eatontown, New Jersey.
2. The equipment must not have been altered or been damaged through negligence, accident, or improper operation.
3. The replacement of parts are exempted from this warranty when replacement is necessary due to normal wear and tear.
4. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.
5. Repair or replacement parts supplied by ROADMASTER (USA) CORP. under this warranty are protected only for the unexpired portion of the original
warranty.
6. In the case of car stereos, this warranty does not extend to the elimination of car static or motor noise; correction of antenna problems; costs incurred for the
removal or reinstallation of the product; damage to tapes, speakers, accessories or car electrical systems.
7. ROADMASTER (USA) CORP. will not be responsible for any charge incurred for installation.
OWNER'S RESPONSIBILITIES:
ROADMASTER (USA) CORP. will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU
HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED, OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE
CALL TOLL FREE 1-800-445-1797, 8:30am - 4:30pm EST.
In order to provide you with the proper warranty service, we request that you adhere to the following procedure:
1. Include a copy of your sales receipt or bill of sale with your unit when it is returned for warranty service.
2. If it is necessary to return your product for service, please return it securely packed, preferably in the original shipping carton, and freight and insurance
prepaid to the following address: ROADMASTER (USA) CORP., Service Department, 6 G Industrial Way West, Eatontown, New Jersey 07724.
3. Please include a detailed explanation of the problem you are having.
4. If your product is found by ROADMASTER (USA) CORP. to have a defect in material or workmanship, within the warranty period, it will be repaired or
replaced at no charge and returned to you prepaid. Where permitted by Iaw ROADMASTER (USA) CORP.’S liability shall be limited to that set forth in this
warranty. This warranty shall be the exclusive remedy of the purchaser.
In a Precut HoleIn a Precut Hole
In a EnclosureIn a Enclosure
The placement of the speakers will vary from vehicle to vehicle. Most vehicles have factory
cut-outs on the rear window deck behind the rear seat, in the front doors, or front kick panels.
Before permanently installing the RS400 speakers in your car, connect the wires to the
speakers according to your audio systems installation manual in the approximate location
you will install them. If you are satisfied with the location, proceed with the permanent
installation.
Before you install the RS400 speakers, you must make sure
you have enough depth/space behind the mounting surface.
You do not want the back of the speaker magnet to touch any
part of your vehicle or interfere with the operation or function of
any component in your vehicle. (i.e. windows or trunk lid)

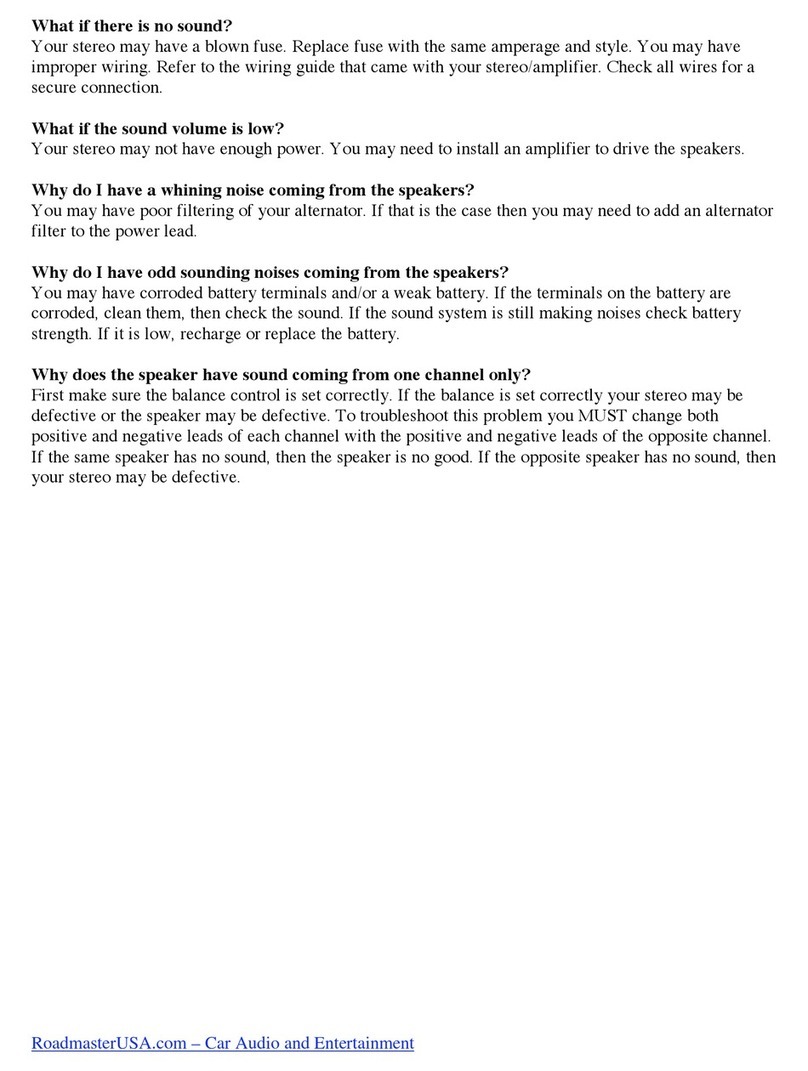

What if there is no sound?
1. Your stereo may have a blown fuse. Replace fuse with the same amperage and style.
2. You may have improper wiring. Refer to the wiring guide that came with your stereo/amplifier. Check
all wires for a secure connection.
What if the sound volume is low?
Your stereo may not have enough power; you may have to install an amplifier to drive the speakers.
Why do I have a whining noise coming from the speakers?
You may have poor filtering of your alternator. If that is the case you may need to add an alternator filter
to the power lead.
Why do I have odd sounding noises coming from the speakers?
You may have corroded battery terminals and/or a weak battery. If the terminals on the battery are
corroded, clean them; then check the sound. If the sound system is still making noises, check battery
strength. If it is low, recharge or replace the battery.
Why does the speaker have sound coming from one channel only?
First make sure the balance control is set correctly. If the balance is set correctly, your stereo may be
defective or the speaker may be defective. To troubleshoot this problem you MUST change both
positive and negative leads of each channel with the positive and negative leads of the opposite
channel. If the same speaker has no sound, then the speaker is no good. If the opposite speaker has
no sound your stereo may be defective.
You should only mount your speakers in factory precut holes. We DO NOT
recommend that you cut holes for mounting the speakers. If there are no
factory precut holes consider having the speakers professionally installed.
1. Connect speaker wires.
2. Slip the spring nut(s) (provided)
into place and align the holes.
3. Place the speaker grill on the
speaker, lining up the hole for
the screws .
4. Screw the speaker and grill into
place with screws (provided).
The RS400 may be installed in a speaker
enclosure. Use the supplied template to
check if the holes in the enclosure matches
the speaker.
All auto audio components must be securely mounted. Driving styles and
road conditions such as sudden stops, sharp curves, and bumpy roads
may cause unsecured items to move about the vehicle, causing physical
injuries to vehicle occupants and/or vehicle damage.
When connecting the speaker wires to your speakers in a new installation, you should follow
the wiring instructions from your audio system’s manufacturer. For most systems the positive
wire attaches to the positive speaker terminal and the negative wire attaches to the negative
terminal.
Use a knife or wire strippers to strip
the insulation off of the last half inch
of the individual wires. Twist the
strands of wire together.
Press on terminal until holes line up. Insert the wires as
shown. Maintain proper polarity by attaching the Positive
Wire(+) to Positive Terminal(+). And attaching the Negative
Wire(-) to Negative Terminal(-)
ROADMASTER (USA) CORP. makes no other warranty of any kind, expressed or implied; and all implied warranties, are hereby disclaimed by
ROADMASTER (USA) CORP. and excluded from this warranty, ROADMASTER (USA) CORP., the manufacturer, distributor and seller shall not be
liable for any injury, loss or damage, incidental or consequential, arising out of the use or intended use of the product.
• Nail Set/Center Punch
• Marker/Pen
• Safety Glasses
• Electrical Tape
• Phillips Screwdriver
• Hammer
• Wire Cutter
• Electric Drill
with 1/16" bit
2.0”or 5.08 cm
Automotive audio equipment installations can be troublesome at times, even to the most
experienced of installation technicians. If you are not confident working with electrical wiring,
removing and reinstalling interior panels, carpeting, dashboards or other components of your
vehicle, please call our toll free help line [phone] and our in-house technical service team
will answer your installation questions.
Before permanently installing the RS400 speakers in your car, connect the wires to the speakers
according to your audio systems installation manual in the approximate location you will install
them. If you are satisfied with the location, proceed with the permanent installation.
2 - 4" Speakers
8 - Screws2 - 17' lengths of Speaker Wire
2 - Speaker Grills
8 - Spring Nuts
• 4" Polypropylene Sprayed Paper Cones
• 7 oz. Magnet
• Foam Rubber Surrounds
• 50 Watts Instantaneous Peak Power Per Speaker
• 10 Watts RMS Per Speaker
• 130 - 20,000 Hz Frequency Response
• Mylar Midrange speakers
• Piezo Button Tweeters
• Push On Terminals
1 Pair RS400
4" 3 Way Speakers
Read First!
Dear Customer,
CONGRATULATIONS. The RS400 Speakers, when used as described, will give you years of
dependable service in your car, truck, RV or mini-van. We have taken numerous measures in
quality control to ensure that your product arrives in top condition and will perform to your
satisfaction. In the rare event that your RS400 Speakers contain a damaged or missing item,
does not perform as specified, requires warranty service, or you have an installation problem,
DO NOT RETURN THIS PRODUCT TO THE STORE. Please call our TOLL FREE number
US [phone] and ask to speak with a member of our technical service team. Or submit
your questions by E-Mail to [email protected] and a member of our
technical service team will respond by E-Mail to your questions. Our in-house technical
service team will expedite delivery of your part, advise you on installation, or help troubleshoot
a problem with you. If your product needs warranty service, our technical service team
representative will help you obtain the fastest remedy possible under the warranty.
Tools Needed to Install
Before You Install
Specifications
Parts
1. Location of Speakers
2. Mounting The Speakers
3. Connecting The Wires
Frequently Asked Questions
Limited Warranty
1-800-445-1797
PLEASE DO NOT RETURN PRODUCT TO STORE.
visit us on the WEB
WWW.ROADMASTERUSA.COM
For Information and Technical Assistance,
Call Toll-Free in U.S.A. and Canada.
Give Us A Call, We'll Help You Install
NOTES
