Robam WK25-M612B User manual

WK25-M612B
With Grill

CONTENTS
--- --- --- --- --- --- --- --- --- -
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
--- --- --- --- --- --- --- --- --- -
IMPORTANT SAFETY INSTRUCTIONS
--- --- --- --- --- --- --- --- --- --- ---
--- --- --- --- --- --- --- --- --- --- --- ------ - --- ---
--- --- --- --- --- --- --- --- --- --- --- --- 8--- --- ----
--- --- --- --- --- --- --- --- --- --- --
SETTING UP YOUR OVEN
--- -
TO REDUCE THE RISK OF INJURY TO PERSONS
GROUNDING INSTALLATION
--
CLEANING
UTENSILS
-
-
-
--- --- --- --- --- --- --- --- --- --
INSTALLATION AND CONNECTION
--- --- --- --- --- --- --- --- --- --

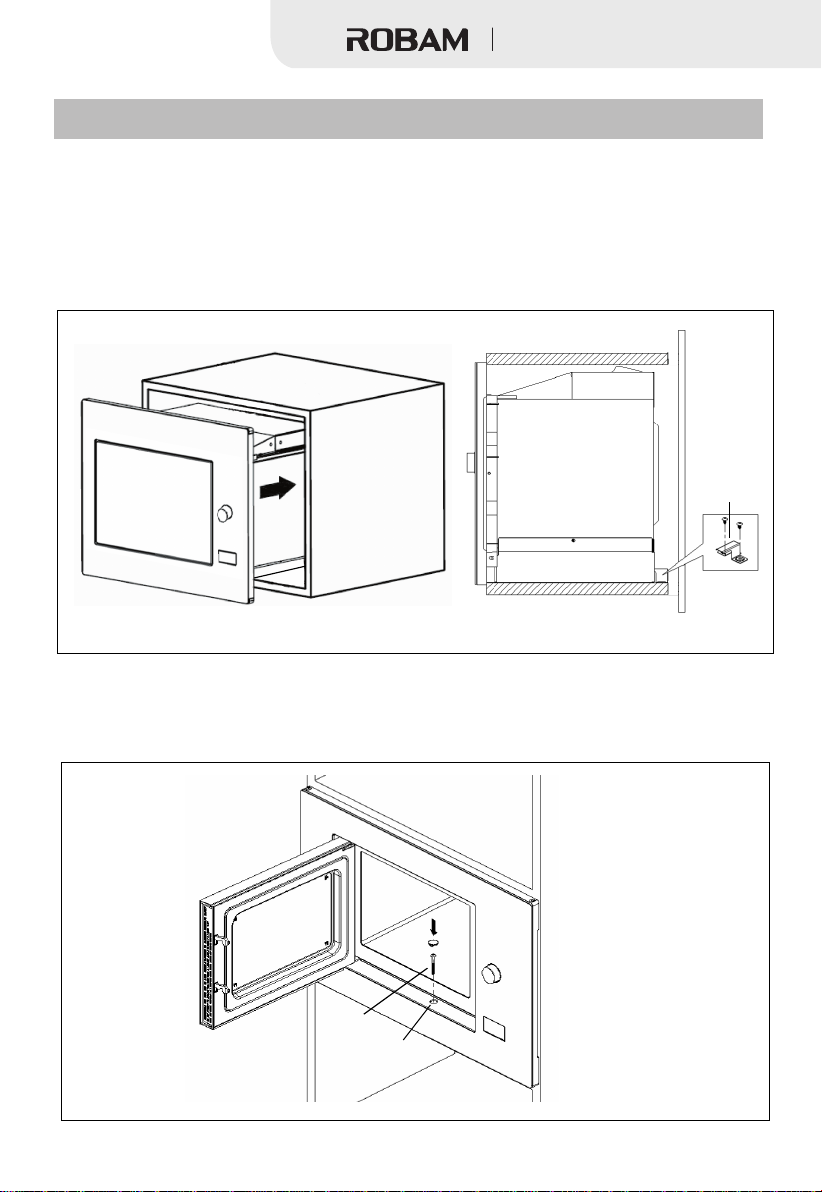

INSTALLATION INSTRUCTIONS
---
--- --- --- --- --- --- --- --- --- -----
OPERATION INSTRUCTION
---
--- --- --- --- --- --- --- --- --- --------
TROUBLE SHOOTING
----
2
3
7
8
10
11
12
16
23

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
240V~50Hz
900W
1450W
1000W
WK25-M612B
(a) Do not attempt to operate this oven with the door open
since this can result in harmful exposure to microwave
energy. It is important not to break or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on sealing
surfaces.
(c) WARNING: If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a competent
person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness,
its surface could be degraded and affect the lifespan of the
apparatus and lead to a dangerous situation.
Specifications
Microwave Oven With Grill
EN-2

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, injury to [persons or
exposure to excessive microwave oven energy when using
your appliance, follow basic precautions, including the following:
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.( For appliance with type Y attachment)
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
4. If the supply cord is damaged, it must be replaced by the
replacing the lamp to avoid the possibility of electric shock.
5. WARNING: Ensure that the appliance is switched off before
1. Read and follow the specific:"PRECAUTIONS TO AVOID
3. Keep the appliance and its cord out of reach of children
less than 8 years.
and above and persons with reduced physical,sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concer`ning use of the
appliance in a safe way and understand the hazards involved.
Children shall not
maintenance shall not be made by children unless they are older
2. This appliance can be used by children aged from 8 years
play with the appliance. Cleaning and user
shall be kept away unless continuously supervised.
than 8 and supervised. Children less than 8 years of age
sealed containers since they are liable to explode.
7. WARNING: Liquids and other foods must not be heated in
person to carry out any service or repair operation that involves
the removal of a cover which
to microwave energy.
6. WARNING: It is hazardous for anyone other than a competent
gives protection against exposure
Microwave Oven With Grill
EN-3

IMPORTANT SAFETY INSTRUCTIONS
WARNING
.ovens
keep the door closed in order to stifle any flames.
eruptive boiling, therefore care must be taken when handling
the container.
stirred or shaken and the temperature checked before consumption,
in order to avoid burns.
12.The contents of feeding bottles and baby food jars shall be
13. Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode, even
after microwave heating has ended.
removed.
14. The oven should be cleaned regularly and any food deposits
11. Microwave heating of beverages can result in delayed
eye on the oven due to the possibility of ignition.
to deterioration of the surface that could adversely affect the
15. Failure to maintain the oven in a clean condition could lead
10. If smoke is emitted, switch off or unplug the appliance and
8. When heating food in plastic or paper containers, keep an
9. Only use utensils that are suitable for use in microwave
life of the appliance and possibly result in a hazardous situation.
door open. (for ovens with a decorative door.)
(for ovens provided with a facility to use a temperature-
16.Only use the temperature probe recommended for this oven.
sensing probe.)
17.The microwave oven must be operated with the decorative
Microwave Oven With Grill
EN-4

IMPORTANT SAFETY INSTRUCTIONS
WARNING
-by clients in hotels, motels and other residential type environments;
-farm houses;
-bed and breakfast type environments.
Drying of food or clothing and heating of warming pads, slippers,
sponges, damp cloth and similar may lead to risk of injury,
ignition or fire.
similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
during microwave cooking.
20. Metallic containers for food and beverages are not allowed
21. The appliance shall not be cleaned with a steam
18.This appliance is intended to be used in household and
19.The microwave oven is intended for heating food and beverages.
22. Care should be taken not to displace the turntable when
above the floor and having detachable turntables. But this is
horizontal bottom hinged door.)
cleaner.
removing containers from the appliance. (For fixed appliances
and built-in appliances being used equal or higher than 900mm
not applicable for appliances with
24. Steam cleaner is not to be used.
25. Surface of a storage drawer can get hot.
hot during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
26. WARNING: The appliance and its accessible parts become
23. The microwave oven is intended to be used built-in.
Microwave Oven With Grill
EN-5

IMPORTANT SAFETY INSTRUCTIONS
WARNING
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
taken to avoid touching heating elements inside the oven.
27. During use the appliance becomes hot. Care should be
28. WARNING: Accessible parts may become hot during use.
Young children should be kept away.
29. The appliance must not be installed behind a decorative
door in order to avoid overheating. (This is not applicable for
appliances with decorative door.)
due to the temperatures generated.
mode, children should only use the oven under adult supervision
30.WARNING: When the appliance is operated in the combination
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
31. Do not use harsh abrasive cleaners or sharp metal scrapers
Microwave Oven With Grill
EN-6

TO REDUCE THE RISK OF INJURY TO PERSONS
GROUNDING INSTALLATION
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
Microwave Oven With Grill
EN-7

CLEANING
UTENSILS
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth
when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
5. Cleaning Tip---For easier cleaning of the cavity walls that the food
half a lemon in a bowl, add 300ml (1/2 pint)
water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft,
dry cloth.
may result in shattering of the glass.
since they can scratch the surface, which
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
competent person to
carry out any service
or repair operation that
i
nvolves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
cooked can touch: Place
Microwave Oven With Grill
EN-8

Materials you can use in microwave oven
Utensils Remarks
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
UTENSILS
Microwave Oven With Grill
EN-9

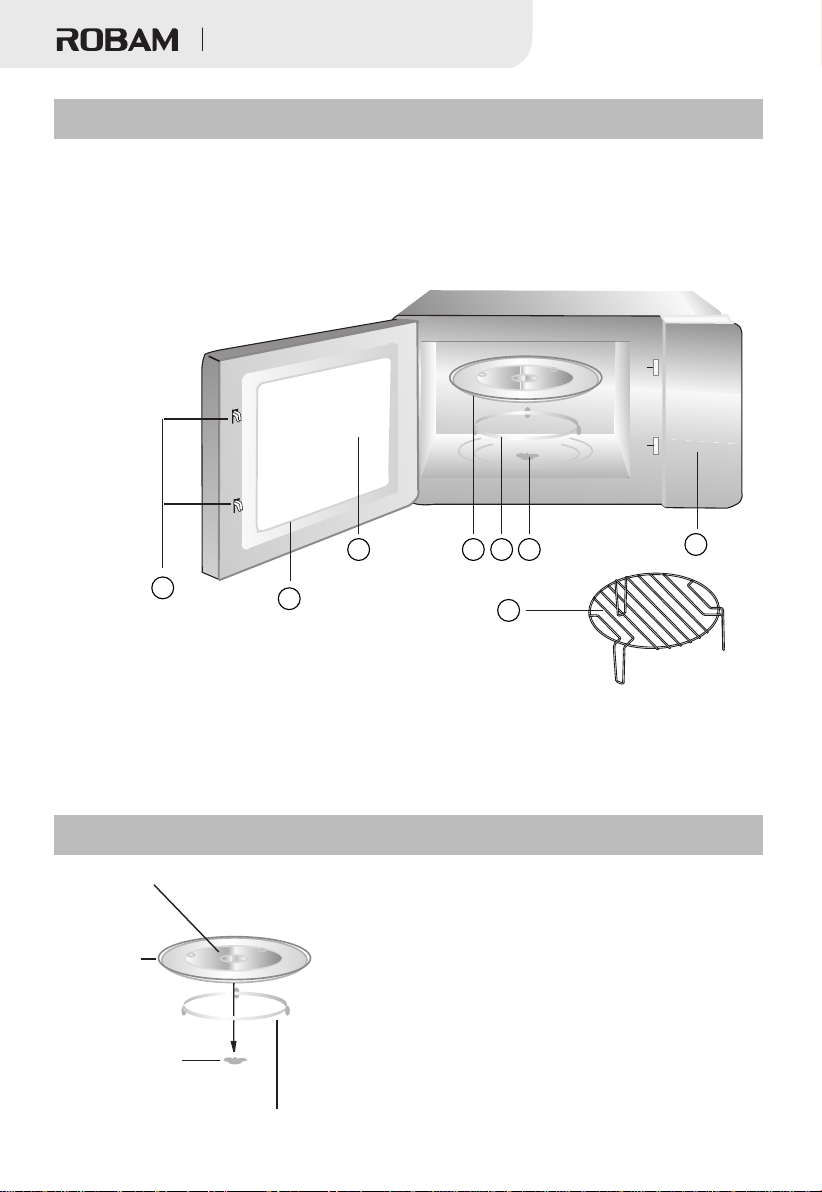

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable shaft
SETTING UP YOUR OVEN
1
2
3
4
5
6
7
8
1. Control panel2. Turntable shaft 3. Turntable ring assembly
4. Glass tray 5. Observation window6. Door assembly
7. Safety interlock system
TURNTABLE INSTALLATION
function and must be placed on the glass tray )
8. Grill Rack( Can not be used in microwave
Microwave Oven With Grill
EN-10

1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only. It is not intended
use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wallmounted cupboard.
5.The appliance is fitted with a plug and must only be
earthed socket.
6.The mains voltage must correspond to the voltage specified on the rating plate.
7.The socket must be installed and connecting cable must
electrician. If the plug is no
disconnecting device must be present on the installation
least 3mm.
8.Adapters, multi-way strips and extension leads must not
result in a risk of fire.
The accessible surface may
be hot during operation.
INSTALLATION AND CONNECTION
for counter-top use or for
connected to a properly installed
only be replaced by a qualified
longer to accessible following installation, an all-pole
side with a contact gap of at
be used. Overloading can
Microwave Oven With Grill
EN-11

 
 
                
             
           
             
             
           
!  " #$
%       

%       

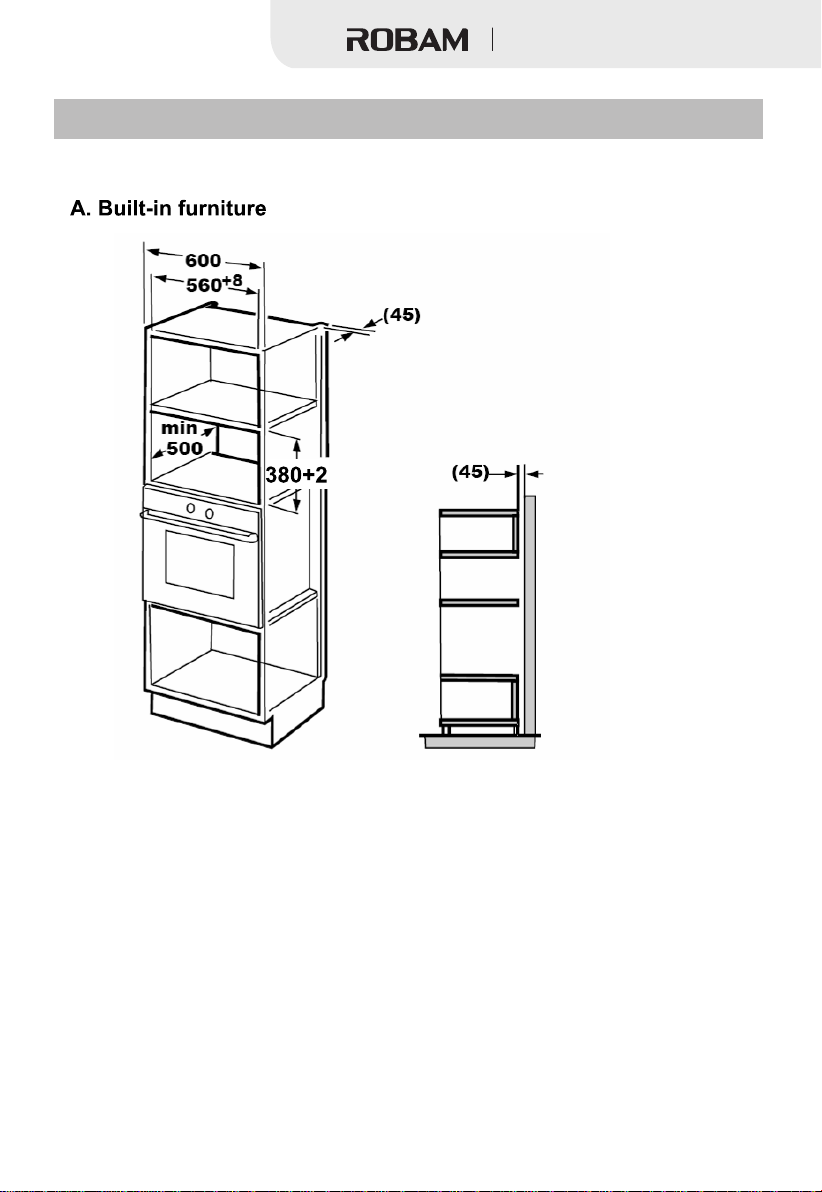

Please Read the Manual Carefully Before Installation
Screw
Trim-kit
plastic
cover
Mounting Plate
INSTALLATION INSTRUCTIONS
Microwave Oven With Grill
EN-12

INSTALLATION INSTRUCTIONS
Microwave Oven With Grill
EN-13

"a""seloH
PN:261800316968
3. Remove the bottom cabinet template and fix the mounting plate with screw.
2. Make the marks on the bottom plane of cabinet according to marks"a" of
the template
put the template on the bottom plane of cabinet.
1. Read the instruction on the BOTTOM CABINET TEMPLATE ,
B.Prep are the cabi inet
Screw
Mounting Plate
INSTALLATION INSTRUCTIONS
Microwave Oven With Grill
EN-14

C .Install the oven
4. Install the oven to the cabinet
- Make sure the back of the oven is locked by mounting plate .
- Do not trap or kink the power cord.
5. Open the door, fix the oven to the cabinet with Screw , at the installation hole.
Installation Hole
Screw
Then fix the Trim-kit plastic cover to the installation hole.
Mounting
Plate
INSTALLATION INSTRUCTIONS
Microwave Oven With Grill
EN-15

2. Microwave Cooking
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.
3 Press " will flash.
5 Press "
The clock setting has been finished.
Note: 1 If the clock is not set, it would not function when powered.
2 During the process of clock setting, if you press " STOP/C
will go back to the previous status automatically.
1 Press " the hour figure flash;
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
1 Press the " Micro./Grill/Combi. " key once, and "P100" will display.
2 Press " " repeatedly or press " " and " " to select
"P100", "P80", "P50", "P30", "P10" will display in order.
3 Press "START/+30
4 Press " " or " " to adjust the cooking time.
(The time setting should be 0:05- 95:00.)
5 Press " START/+30
2 Press " "or " " to adjust the hour figures, the input time should be within 0--23.
4 Turn " "or " " to adjust the minute figures, the input time should be within 0--59.
Microwave Power 80% 50% 30% 10%100%
Display P100 P80 P50 P30 P10
1.Clock Setting
s/Confirm" to start cooking.
lear", the oven
", the minute figures
" twice,
" to finish clock setting. ":" will flash,
Kitchen Timer/Clock
Kitchen Timer/Clock
Kitchen Timer/Clock
s/Confirm" to confirm.
OPERATION INSTRUCTION
Micro./Grill/Combi.
the microwave power from 100% to 10%.
Microwave Oven With Grill
EN-16

4. Defrost By Weight
3. Grill or Combi. Cooking
Press " " once the screen will display "P100", and press
"
power you want, and "G","C-1" or "C-2" will display. Then press " START/+30s/Confirm"
to confirm, and press " " or " " to set cooking time from 0:05 to 95:00.
Press " " again to start cooking.
Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for
10 minutes, you can operate the oven as the following steps.
1 Press " W /T D " once, the screen will display "dEF1".
2 Press " "or " " to select the food weight. The range of weight is 100-2000g.
3 Press " " key to start defrosting.
Grill
Power
100%
45%
64%
0%
55%
36%
Grill
Combi.1
Combi.2
Microwave
Power
Program Display
1 Press " " once, the screen displays "P100".
3 Press " " to confirm.
4 Press " " or " " to adjust the cooking time until the oven displays "10:00".
5 Press " " to start cooking.
2 Continue to press " " until the screen displays "C-1".
Combination Power instructions:
G
C-1
C-2
Note:If half the grill time passes, the oven sounds twice, and this is normal. In order
to have a better effect of grilling food, you should turn the food over,
close the door, and then press" " to continue cooking.
If no operation, the oven will continue working.
START/+30s/Confirm
START/+30s/Confirm
START/+30s/Confirm
START/+30s/Confirm
START/+30s/Confirm
eight ime efrost
OPERATION INSTRUCTION
Micro./Grill/Combi.
Micro./Grill/Combi.
Micro./Grill/Combi.
Micro./Grill/Combi.
" repeatedly or press the " " or " " to choose the
Microwave Oven With Grill
EN-17

5. Defrost By Time
1 Press " " twice, the screen will display "dEF2".
3 Press " " key to start defrosting.
2 Press " "or " " to select the cooking time.The maximum time is 95 minutes.
START/+30s/Confirm
Weight/Time Defrost
1 In waiting state, press " " to choose the menu from "A1" to "A8".
2 Press " " to confirm the menu you choose.
3 Press " " or " " to choose the food weight.
4 Press " " to start cooking.
START/+30s/Confirm
START/+30s/Confirm
1 Press " " once, the screen will display 00:00.
2 Press " " or " " to enter the correct timer.
(The maximum cooking time is 95 minutes)
3 Press " " to confirm setting.
4 When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times.
If the clock has been set(24-hour system), the screen will display the current time.
Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.
START/+30s/Confirm
Kitchen Timer/Clock
1 In waiting state, press " " key to cook with 100% power level
for 30 seconds. Each press on the same key can increase 30 seconds. The maximum
cooking time is 95 minutes.
2 During the microwave,grill,combination cooking and the defrost by time process,
press " " to increase the cooking time.
3 Under the states of auto menu, multi-stage cooking and defrost by weight, cooking time
cannot be increased by pressing " ".
"
4 In waiting state, press " " to choose the cooking time. Then press
to start microwave cooking with 100% power lever .
This can be set as the finst stage of multi-stage cooking.
START/+30s/Confirm
START/+30s/Confirm
START/+30s/Confirm
6. Kitchen Timer
7. Auto Menu
8. Speedy Cooking
"
OPERATION INSTRUCTION
START/+30s/Confirm
Microwave Oven With Grill
EN-18
