Installation Instructions
Original Instructions
58UHF RFID Long-range Transceiver
Catalog Numbers 58UHF-TR-200-LR50US, 58UHF-TR-200-LR50EU
Features
• Global Ultra-High Frequency (UHF) RFID solution
- 865...868 MHz EU and UK model (CE)
- 902...928 MHz US and North America model (FCC)
• Tag compatibility: ISO 18000-63 (EPC global Gen2) compliant
• Inventory speed up to 500 tags/sec (FCC)
• Sensing range up to 5 m (16.4 ft)
• Built-in status indicators for diagnostics
• All-in-one linear and circular antennas
• Excellent reliability in harsh environments
• DLR support
Typical Applications
• Asset tracking
• Data acquisition
• Product handling
• Automotive
• Food and pharmaceutical
• As part of track and trace solution
• Traceability control
• Gate control
• Location control (warehouse)
• Pallet and returnable package management (for sustainability)
Specifications
Status Indicator Functionality
WARNING: Never disassemble or modify the scanner. Doing so
could result in an accident such as fire or electric shock.
Attribute Value
Enclosure rating IP66/67
Operating temperature [°C (°F)] -20…+55 (-4…+131)
Storage temperature [°C (°F)] -40…+85 (-40…+185)
Relative humidity • Operating: 35...95%
• Storage: 25...85%
Vibration 10 g at 10...500 Hz
Shock resistance [g] 50
Tag compatibility ISO 18000-63
Sensing distance, max (1) [m (ft.)]
(1) The setting limits depend on the country or the function. This reference value can vary depending on
the operating environment tag type.
5 (16.4)
Compliance FCC, UL/cUL, CE, UKCA, and ISED
Connector • EtherNet/IP™: M12 4-pin plug DC Micro
• Power and I/O: M12 4-pin socket DC Micro
Communication protocol EtherNet/IP
Supply voltage 19.2…26.4V DC
Current consumption at 24V DC,
max
• Supply: 1 A CLASS2/SELVS
•Input:15mA
•Output:0.5A
Communication rate • RFID: 2048 bps
• Ethernet: 10/100 Mbps, half or full-duplex
Frequency
• 865.7…867.5 MHz EU and UK model (at 600 kHz intervals, 4
channels total)
• 902.75…927.25 MHz US and North America model (at 500 kHz
intervals, 50 channels total)
Name Description State Indicates
MOD Indicates status of the
transceivers
Off No power
Steady green Device operational
Flashing green Standby (device has not been
configured)
Flashing red Major recoverable fault
Steady red Major nonrecoverable fault
Flashing green/red Self-test (power-up testing)
Link1/2 Indicates status of
Ethernet (E1/E2) port
Off No link
Steady green Link
Steady yellow Port disabled
Flashing green Port activity (data packets
currently being exchanged)
Flashing yellow Collision
Steady red Major NIC fault
NET Indicates status of the
connections
Off No power or powered on with
no IP address
Flashing green
No connections (IP address, but
no CIP™ connections are
established, and an exclusive
owner connection has timed
out)
Steady green Connected
Flashing red Connection timeout
Steady red Duplicate IP
Flashing green/red Self-test (power-up testing)
R/W Indicates status of the
read/write commands
Off No power
Steady green Powered but idle
Flashing green Transmitting RF carrier wave
(no tags detected)
Steady yellow Succeeded at tag operation (tag
read/write complete)
Flashing yellow Failed at tag operation (tag
read/write incomplete)
Flashing red RF transmit failure

2Rockwell Automation Publication 58UHF-IN002A-EN-P - December 2022
58UHF RFID Long-range Transceiver Installation Instructions

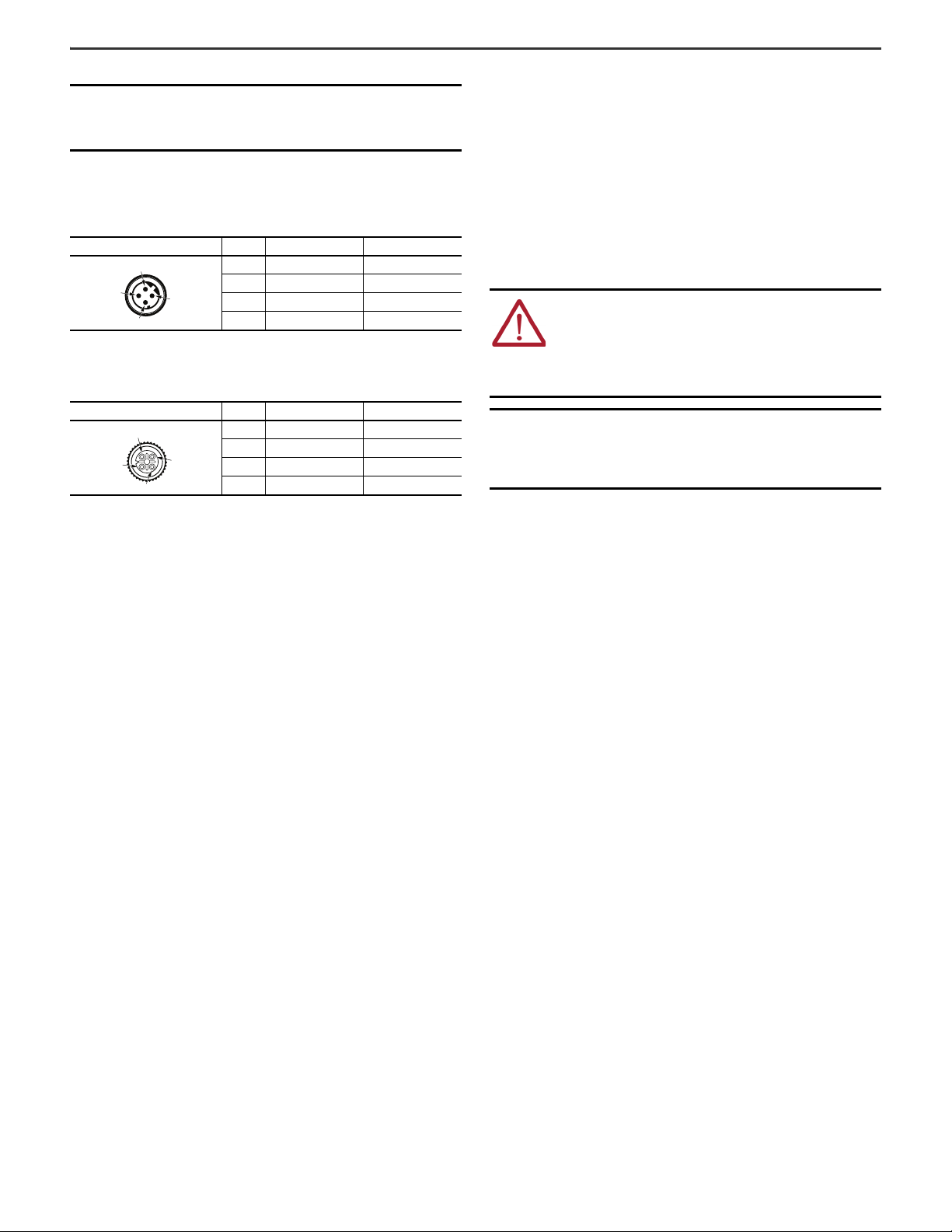

Connector Pinouts
FCC Notice (For U.S. Customers)
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions: (1) This device will not cause
harmful interference; and (2) this device must accept any interference received,
including interference that may cause undesired operation of the device.
Changes and modifications not expressly approved by Rockwell Automation can
void your authority to operate this equipment under Federal Communications
Commissions rules.
This equipment is tested and found to comply with the limits for a Class A digital
device, according to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
IMPORTANT Installation must be in accordance with local and/or
national codes. Servicing energized industrial control
equipment can be hazardous if not in accordance to
recommended safety procedures.
Table 1 - EtherNet/IP (1)
(1) E1 - Standard right-angle Ethernet cables point left.
E2 - Standard right-angle Ethernet cables point right.
DC M12, D-coded, 4-pin Plug Pin Signal Color
1 TxData + White/orange
2 Recv Data + White/green
3 TxData - Orange
4RecvData- Green
Table 2 - Power I/O
DC M12, D-coded, 4-pin Socket Pin Signal Color
1+24VDC Brown
2Input White
3 0V DC Blue
4Output Black
1
2
4
3
1
24
3
ATTENTION: This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instruction manual, can cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference, in which case you must correct the interference
at your own expense.
IMPORTANT This equipment complies with FCC radiation exposure
limits for an uncontrolled environment and meets the FCC
radio frequency (RF) Exposure Guidelines. When you install
and operate this equipment, keep a minimum of 90 cm
(35.4 in.) between the radiator and a person’s body.

Rockwell Automation Publication 58UHF-IN002A-EN-P - December 2022 3
58UHF RFID Long-range Transceiver Installation Instructions
ISED Information
This device complies with Innovation, Science and Economic Development Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference; and (2) this device must
accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Declaration of Conformity
CE Conformity
Rockwell Automation, Inc. declares that the radio equipment type
58UHF-TR-200-LR15EU is in compliance with the 2014/53/EU Radio Equipment
Directive and the 2011/65/EU RoHS Directive.
For a comprehensive CE certificate visit: rok.auto/certifications.
UKCA Conformity
Rockwell Automation, Inc. declares that the radio equipment type
58UHF-TR-200-LR15EU is in compliance with the Radio Equipment Regulations
(2017 No. 1206) and Restriction of the Use of Certain Hazardous Substances in
Electrical and the Electronic Equipment Regulations (2012 No. 3032).
For a comprehensive UKCA certificate visit: rok.auto/certifications.
Türkiye Cumhuriyeti: AEEE Yönetmeliðine Uygundur
IMPORTANT This equipment complies with ISED radiation exposure
limits for an uncontrolled environment and meets RSS-102
of the ISED radio frequency (RF) Exposure rules. Install and
operate this equipment keeping a minimum of 90 cm
(35.4 in.) between the radiator and a person’s body.
Cet équipement est conforme aux limites d’exposition aux
rayonnements énoncées pour un environnement
non-contrôlé et respecte les règles d’exposition aux
fréquences radioélectriques (RF) CNR-102 de l’ISDE. Cet
équipement doit être installé et utilisé en gardant une
distance de 90 cm (35.4 in.) ou plus entre le radiateur et le
corps humain. Application Frequency Range Power
UHF RFID 865…868 MHz 2 W e.r.p.

Publication 58UHF-IN002A-EN-P - December 2022 | -
Copyright © 2022 Rockwell Automation, Inc. All rights reserved. Printed in the Japan
Rockwell Otomasyon Ticaret A.Ş. Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: [phone] EEE Yönetmeliğine Uygundur
10007114406 Ver 00
Allen-Bradley, expanding human possibility, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
CIP and EtherNet/IP are trademarks of ODVA, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Waste Electrical and Electronic Equipment (WEEE)
Rockwell Automation maintains current product environmental compliance information on its website at rok.auto/pec.
At the end of life, this equipment should be collected separately from any unsorted municipal waste.
