Rohnson R-460 User manual

JUICER
Model: R-460
Read this booklet thoroughly before using and save it for future reference

1
IMPORTANT SAFEGUARDS
When using the electrical appliance, the below basic safety precautions should be followed:
1. Read all instructions.
2. Before using check that the voltage power corresponds to the one shown on the
appliance nameplate.
3. Do not operate any appliance with a damage cord or plug or after the appliance
malfunction or has been damaged in any manner. Return the appliance to the nearest
authorized service facility for examination, repair or adjustment.
4. The use of attachment, including sieve, top lid, food pusher, jar not recommended or sold
by manufacture may cause fire, electric shock or injury.
5. Do not place on or near a hot gas or electric burner or in a heated oven.
6. Do not let cord hang over edge of table or counter.
7. Never run the appliance under no food condition.
8. Do not use the appliance if the rotating sieve is damaged.
9. Do not put your fingers or other objects into the juicer opening while it is in operation. If
food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to
push it down. When this method is not possible, turn the motor off and disassemble juicer
to remove the remaining food.
10. Do not push the food with hand, spoon, chopstick and clip etc. other than food pusher
into the hopper when the appliance is connected to power source.
11. Always make sure juicer cover is clamped securely in place before motor is turned on.
Do not unfasten clamps while juicer is in operation.
12. Sharp Blade-Always use food pusher.

2
13. Avoid contacting moving parts.
14. For the juicer, make sure the switch is on “O”position after each use of your juicer.
Make sure the motor stops completely before disassembling.
15. Do not immerse the Motor Unit into water or other liquids.
16. All detachable parts must be dry completely after cleaning, and then assemble them into
appliance for next using.
17. Close supervision is necessary when any appliance is used by or near children.
18. Warn of potential injury from misuse.
19. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
20. Always disconnect the juicer from the supply if it is left unattended and before
assembling, disassembling or cleaning.
21. This appliance shall not be used by children. Keep the appliance and its cord out of
reach of children.
22. Appliances can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and if they understand the hazards
involved.
23. Children shall not play with the appliance.
24. Do not use outdoors.
25．This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;

3
-bed and breakfast type environments.
If the manufacturer wants to limit the use of the appliance to less than the abovem this have
to be clearly stated in the instructions.
26. Save these instructions.
HOUSEHOLD USE ONLY

4
KNOW YOUR JUICER
Small cleaning brush
Food pusher
Hopper
Grinding head
Strainer
Juice container
Juice outlet
Jar
Residue container
Residue outlet Juice outlet cover
Motor unit
Rotary cleaning brush
Power switch
Grinding assembly
FUNCTION DESCRIPTION
The low speed juicing juicer is a unique system where fresh juice comes from squeezing
rather than grinding. The slow juicer squeezes instead of grinding which allows the juice to
maintain its pure color, natural taste, nutrients and vitamins. The juice will flow in your
juice cup from the juice spout, and the pulp will be ejected from pulp ejection spout and be
collected by pulp container. When using the juicer, the pulp container and juice container
must be assembled in position. The details will be described in the following.
FOR THE INITIAL USE
1. Unpack the appliance and place all parts on a horizontal surface.
2. Firstly, upwards remove the grinding assembly and the rotary cleaning brush together,
and then detach the rotary cleaning brush downwards, after it, remove the grinding head
from the strainer upwards (See Fig.1). Finally, immerse all the detachable parts and

5
accessories in warm soapy water and rinse them and dry. But never immerse motor unit in
water for cleaning to prevent the risk of electric shock.
NOTE: The strainer can be cleaned completely by the small cleaning brush.
3. The correct assembly way will be described for details in below sections.
Before assembling, be sure the power cord is unplugged from the power outlet and the
power switch is on the “O”position.
NOTES BEFORE USE
1）Prepare all the required materials according to the characteristics of them
- Materials with hard fiber
The materials with hard fiber shall be cut into slices 3~5cm in length and 1.5~2cm in
thickness.
- Leaf vegetables and materials with long & hard fiber (such as celery, wildcelery herb and
collard etc.)
Cut the stems of the materials into slices 3~5cm in length and then roll up the leaves of the
materials well.
- The fruit with hard core shall be pitted. The cores of peach, plum, mango, apricot and
jujube shall not put into the hopper to avoid any malfunction.
- The materials with thick or hard peel shall be peeled before being put into the juicer for
processing.
- The frozen materials can just be used after being defrosted. Never use ice.
- Never process the materials with high vegetable oil or animal oil with this juicer to avoid
Fig.1

6
the degradation and damage of the grinding head
2）Never put sugarcane, coconut, kudzu or cereal (e.g. bean, rice) without being
soaked with water into this juicer for processing.
3）Do not put overmuch materials in the juicer each time, therefore, the materials
with less moisture and hard fiber shall be put into the hopper after being cut into
slices.
4）Assemble the buffer plate well in position
The buffer plate shall be assembled well in the residue outlet after finish cleaning each
time.
ASSEMBLE YOUR SLOW JUICER
1. Firstly, assemble the jar onto the motor unit by following the operation as below:
Put the jar downwards and make the symbol “ ” on the jar aligns with the symbol “ ” on
the motor unit so that the jar can be locked on the motor unit tightly (See Fig.2). Make
sure the jar is assembled in position properly otherwise the appliance will not operate.
Besides, before operating, please check the buffer plate and make sure that it must be
assembled well in the residue outlet (See Fig.3).
2. Then place the strainer into the rotary cleaning brush. And then push the rotary cleaning
brush (together with the strainer) downwards by making the symbol “ ”on the strainer
align with the symbol “ ” on the motor unit. After it, put the grinding head into the
strainer and ensure the grinding head is covered well into the axis of the motor unit (see
Fig.4).
Fig.3
Fig.2

7
3. Assemble the hopper on the jar correctly. Firstly, put the hopper downwards and then
make the symbol “ ” ( beside the symbol “ ”) on the hopper align with the symbol “ ” on
the motor unit and then rotate the hopper clockwise until the symbol “ ” ( beside the
symbol “ ”) on the hopper aligns with the symbol “ ” on the motor unit (See Fig.5). Make
sure the hopper is assembled in position properly otherwise the appliance will not operate.
To disassemble the hopper from the motor unit, rotate it anticlockwise.
4. Place your juice container below the juice outlet and residue
container below the residue outlet (see Fig.6). Until now, the Juicer
is ready for operating.
Note: When need to remove the whole appliance, please grasp the
motor unit instead of the hopper to remove it to avoid accident.
Fig.4
Fig.5
Fig.6

8
USING YOUR JUICER
1. Before attaching the power cord into the outlet, make sure the power switch is in the “O”
position, the power switch has three settings: “I”indicates “ON”, press the power switch to
“I”position to activate the motor and start making juice; “O”indicates “OFF”position,
press the power switch to “O”position to turn off the machine; “R”means reverse rotation,
which is only used when something is stuck and you need to unclog.
2. Make sure the juice container and the residue container are placed in position.
3. Cut fruits and vegetables into smaller pieces. For example, the carrots shall be cut into
thin slices with size of 15mm×15mm before being put into the machine.
NOTE:
A) Please remove any hard seeds before juicing.
B) It is not recommended to process coconuts or similar hard foodstuffs, since this may
damage the motor.
C ） It is not recommended to process hard fruit or vegetable rich in fiber and starch, such
as sugarcane.
D) The peel and pits should be removed from oranges, lemons, grapefruits and melons.
4. Drop the prepared fruits or vegetables into the hopper and gently push the fruit down
into the grinding head using the food pusher.
5. Connect the appliance to the power source, and then press the power switch to the “ON”
position, the appliance starts to work. After few minutes, the juice flow out.
Caution: Do not turn the power switch from "I" to "R" or from "R" to "I" directly at
any time during operation. If required, firstly press the power switch to “O”position and
make the appliance stop running completely and then turn the power switch from "I" to
"R" or from "R" to "I" .

9
Caution: Do not operate the unit before feeding food to avoid damaging the grinding
assembly (include grinding head and strainer).
Caution: Do not put your fingers or other foreign objects into the feeding opening while
it is in operation.
3. During operation, if the machine is stuck and not operable,
please firstly press the power switch to “O”position and
then press the reset switch which is equipped at the
bottom of appliance (see Fig.7). After it, press and hold
the power switch to the “R”position for few seconds then
try operating again. When reverse function cannot work,
turn off the machine and reassemble following the instructions given. After reassembly
please try turning on the machine.
4. When the juice container is full (the max capacity is 400ml) or the food has been
finished extracting, turn the power switch to the “O” position and empty the juice
container and residue container before continuing extracting.
Note: The max operation time per time shall be less than 15 minutes. Minimum 30
minutes rest time must be maintained between continuous two cycles.
Note: Do not insert too much food to extract per time. During operation, once the juice
container is full, you must stop the appliance and empty the residue container before
next cycle.
Note: During operation, if the interlock switch between the hopper and the motor unit is
disconnected, the motor will stop to prevent from danger.
7. After finish, enjoy your juice in time for best taste. Any unused juice should be stored in
Reset button
Fig.7

10
the refrigerator.
CLEANING AND MAINTENANCE
1. Unplug the appliance and wait it completely cool down before cleaning.
2. In order to detach & clean more easily, plug in and run the juicer without load for about
30 seconds after removing the residue. If the hopper cannot be detached easily, please
follow and repeat the following operation for two or three times: Reverse—OFF—ON, at
the same time, hold and rotate the hopper to detach it. After finish extracting juice, pour
some water into the hopper to clean it so that it will be easier to be detached.
Caution: Do not turn the power switch from "I" to "R" or from "R" to "I" directly at
any time during operation. If required, firstly press the power switch to “O”position and
make the appliance stop running completely and then turn the power switch from "I" to
"R" or from "R" to "I" .
3. Unlock the hopper by turning it in anti-clockwise and then remove it.
4. Detach the rotary cleaning brush, strainer and grinding head in sequence by following
the operation of “FOR THE INITIAL USE”.
5. Rotate the jar anticlockwise and then remove the jar.
6. Empty the residue container, and then clean the hopper, grinding head, strainer, rotary
cleaning brush, jar and residue container under running water. The small cleaning brush
can be used for the strainer for better cleaning.
Caution: Strainer is sharp, so handle carefully during cleaning
Caution: Do not use metal sponge to clean, it will damage the machine.
7. If you need to clean the residue outlet thoroughly, you shall firstly pull the buffer plate
out of the residue outlet and then clean it completely with the small cleaning brush.
8. Wipe the outside of motor unit with damp cloth. Never immerse the motor unit in water.

11
9. Dry all parts and assemble all parts well and then store the appliance in a dry place. The
juice container can be stored in the residue container.

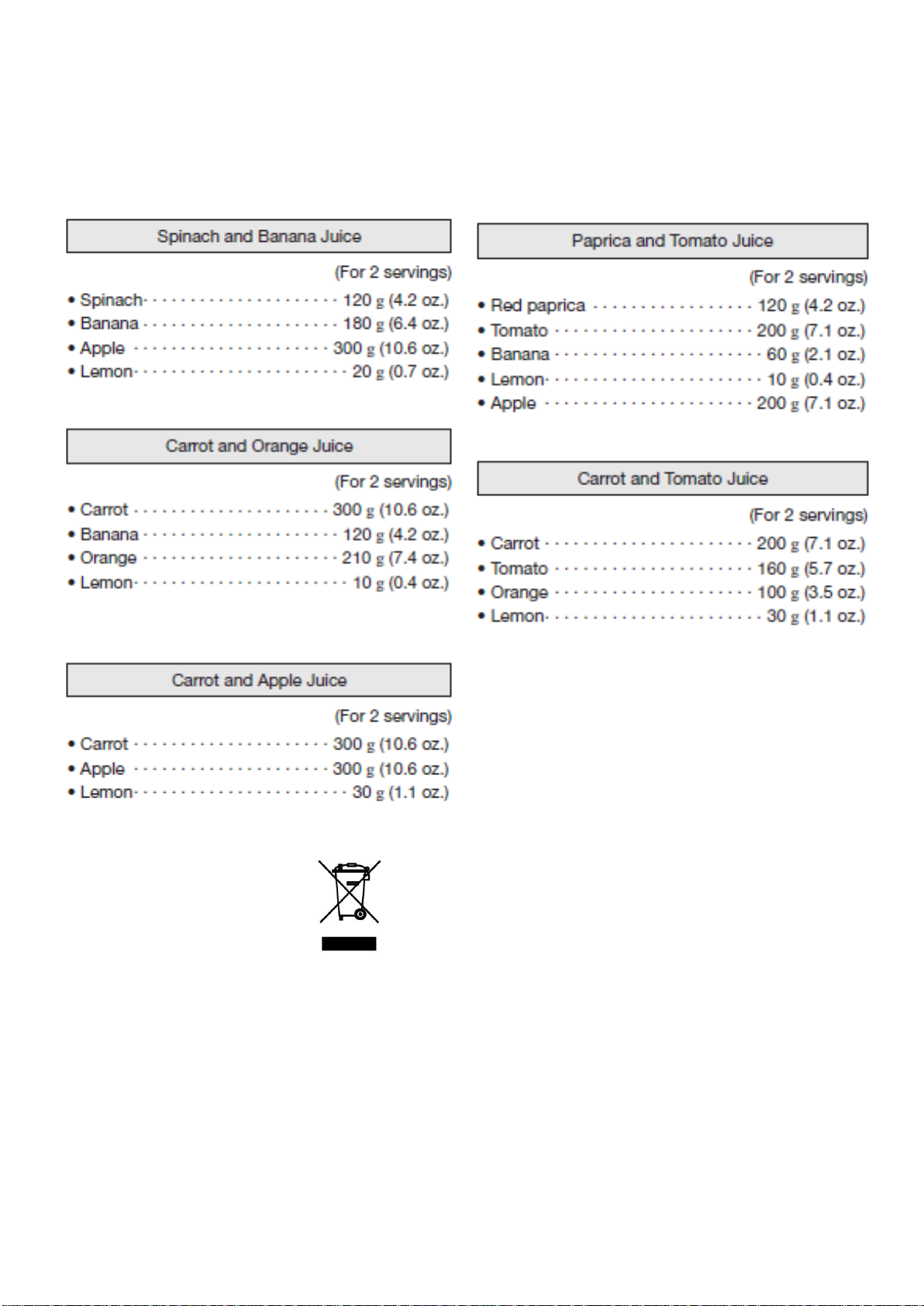

RECIPES
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC
DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a
special local authority differentiated waste collection centre or to a dealer providing this service. Disposing
of a household appliance separately avoids possible negative consequences for the environment and health,
deriving form inappropriate disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to dispose of household appliances
separately, the product is marked with a crossed-out wheeled dustbin.
