Romet 4E User manual

ROMET 4E Electric Vehicle Instruction Manual
ROMET 4E Electric Vehicle Instruction Manual

ROMET 4E Electric Vehicle Instruction Manual
Foreword
◆ Great thanks for using Romet product.
◆ lease read this Instruction Manual carefully before driving your new car. Without knowing the features of the Electric Vehicle, please do not use it.
◆ If you intend to resell your car, please ensure this Instruction Manual attached to the car, because it is an important component of this car.
◆ It is prohibited to refit your car due to the consequential influences on the entire car, especially on safety and durability and the refit may even violate the national
laws and regulations. The warranty excludes the faults or performance degradation resulted from refitting.
◆ There are many models with different configurations to be selected when purchasing the Romet products. This Manual describes all models and configurations of
similar series to this product. Herewith, this Manual may include the potential configurations for the other models while they may not be installed in this product.
◆ The nonstop improvement of the car structure, configuration and part performances ensures safety and high quality of Romet products. Although due care has been
taken to make this publication as complete and accurate as possible, it can still be subject to alteration. ROMET MOTORS reserves the right of changes without any
notices, and special attention is required for the fact that any data, illustrations or descriptions in this Manual are prohibited to be regarded as evidence for indemnity
claim. If any questions to be consulted, we are always at your service.

ROMET 4E Electric Vehicle Instruction Manual
Contents
I. Main Technical arameters 1
II. General Indicating Diagram and Instrument Cluster of Entire Car 5
III. Operation rocedures for New Car 9
IV. Instrument Cluster Appearance 14
V. Seat and Door 24
VI. On/Off Operations of Front & Rear Engine Bonnet 29
VII. Charging 32
VIII. Motor Controller 34
IX. Notes 36
X. Basic Maintenance and arts Replacement 39
XI. Emergency 43
XII. Cleaning and Self-maintenance 49

ROMET 4E Electric Vehicle Instruction Manual
Key Notes
I. Important notes for this Manual
The symbols used in this Manual represent as follows：
This symbol represents a special device or a kit or attachment for the other purposes, while it may not be installed in this product;
This symbol represents the end of a note;
This symbol represents the following information is used for optimum use of this product.
This symbol represents warning note. For your safety and security and prevention of damages on the car, you must read the relevant warning notes.
This symbol represents “No…”, “it is prohibited to do…”or “it should be prevented that…” as you see this safety label shown on the left.

ROMET 4E Electric Vehicle Instruction Manual
1
I. Main Technical Parameters
SPECIFICATIONS
OVER-ALL DEMENSIONS (L*W*H) ㎜ 3090 × 1420 × 1480
WHEELBASE ㎜ 2170
TRACK FRONT/REAR ㎜ 1215/1235
MIN GROUND CLEARANCE（FULL LODED）
㎜ 130
MIN TURNING RADIUS ㎜ 4440
A ROACHING ANGEL deg 30
DESCENT ANGEL deg 42
CURB WEIGHT Kg 820
LOADING CA ACITY Kg 300
MAX S EED Km/h 65
ASSENGER ERSON 4
MAX CLIMBING CA ACITY % 20
MAX.ACCELERATING NOISE db
≦
80
STEERING TY E WHEEL
BARKE TY E FRONT/REAR DISC /DRUM
HAND BRAKE HAND MECHANIC
TYRE 145/70-R12
TYRE RESSURE Kpa 250-280（SUMMER）280-300（WINTER)
RANGE KM 200
(40KM/H STEADY DRIVING,WIND S EED BELOW LEVEL 4)

ROMET 4E Electric Vehicle Instruction Manual
2
ower assembly
1. Type of drive: rear axle drive
2. AC motor parameter as follows:
Model No. YJM-XYQ-5-4 ower 5 kw
Voltage 72V Quota 60 min
Current 104A Speed 3000r/m
Excitation AC asynchronous Insulation Class F
rotection class Ip20
3. Battery pack parameters
Model No. 4-DM-150 Rated voltage 8VAC
Capacity
150AH
3HR 180AH
200AH
Total voltage 72V Quantity (R6) 9 pieces
Connection type 9 batteries in series

ROMET 4E Electric Vehicle Instruction Manual
3
4. The arrangement of the battery pack in the car body is as follows:
5. Batteries are supplied in the front compartment tray while 4 in the rear compartment.
6. The model no. of AC motor controller: G8035, voltage 72V and in series
Model No. SEVCON G8035 Voltage 72V
7. Electric switch accelerator:
0-72V Hall accelerator with 0-5V output voltage
8. The technical parameters of auto hi-frequency intelligent battery charger are as follows:
Input voltage range AC90V-AC265V Output current 25A
Output voltage frequency 45Hz-65Hz ower factor ≧0.99
Output voltage 72VAC Full-load efficiency ≧90%
Waterproof class Ip46 Anti-vibration class SAEJ1378
Ambient temperature -20~50

ROMET 4E Electric Vehicle Instruction Manual
4
II. General Indicatin Dia ram and Instrument Cluster of Entire
1 Rear combination light 16 Rear view mirror
2 Rear window 17 Rear wheel
3 Front seat 18 Exterior door handle
4 Antenna
19
Door ourer handle
5 Sun roof
20
Hook hole
6 Windscreen
7 Wiper
8 Washing nozzle
9 Front engine bonnet
10 Front combination light
11 Label position
12 License plate position
13 Front wheel
14 Front window
15 Light for lateral turn signal

ROMET 4E Electric Vehicle Instruction Manual
5

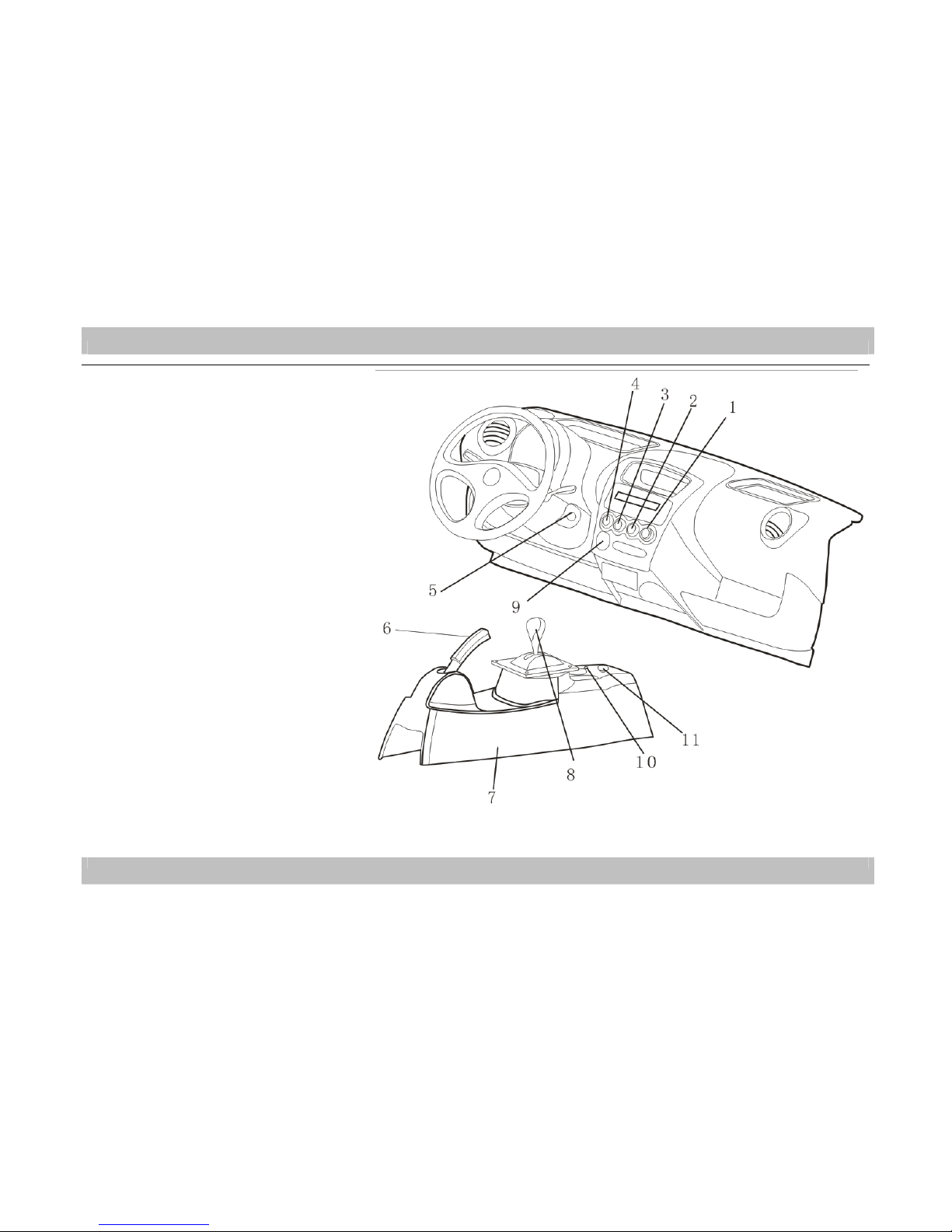

1 Right ventilation adjustment knob (for decoration)
2 Right loudspeaker
3 Inner rear-view mirror and reading light
4 Radio
5 Windscreen wiper and washing switch
6 Combination instrument
7 Left loudspeaker
8 Left ventilation adjustment knob (for decoration)
9 Front light combination switch and turn signal light
switch
10 Steering wheel
11 Ash tray
12 Interior and exterior cycling switch (for decoration)
13 Right sundries box
14 Left sundries box

ROMET 4E Electric Vehicle Instruction Manual
6
1
reparing switch
2
reparing switch
3
Emergency warning flasher switch
4
Heater switch
5
Ignition switch
6
arking lever
7
Assistant instrument cluster
8
Shifting lever
9 ower socket
10 High vs low speed switch
11 power button

ROMET 4E Electric Vehicle Instruction Manual
7
III. Operation Procedures for New Car
1. Notes before using the new car
For a new car, large friction force occurs among running components as car traveling. As running-in of the
components, the friction force will gradually reduce. The following notes are proposed for traveling under 3000km
and with the use of these notes, better operational capacity and economy will be gained after the car running-in.
(1) The traveling speed shall not exceed 40km/h.
(2) It is prohibited to driving the car with over-speed and overload.
(3) The transmission oil must be replaced after traveling 2,000 km.
(4) Emergency braking shall be avoided especially during the first 300Km traveling except for emergency
conditions.
2. Actuation switch: there are three positions for the key in the hole:
Lock (lockin position)
The key can be extracted from or inserted into the lock cylinder, and if the key cannot rotate in the cylinder, please
try to slowly revolve from left to right.
When the car is traveling, the key cannot be rotated to the “LOCK” position, or the steering wheel will be locked
and accidents may be resulted from this condition.
Three rotation positions of the key
ACC (accessory position)
When the ignition switch is at "ACC" position, only the assistant power supply for radio etc will be controlled. At
that time, even the motor is closed; the user can enjoy the radio.
ON (startin position)
When the key is at this position, the turn control, radio and motor are all switched on, and the users can enjoy radio
and open the hazard signal switch.
The features not controlled by the key, such as headlight, horn, interior lights and width indicator can be directly used without key. Inspect whether the

ROMET 4E Electric Vehicle Instruction Manual
8
voltmeter and electricity meter are ample or not.
The key shall not be left in the car with no one or only kids.
3. Start-up operation of Electric Vehicle
The Electric Vehicles can be divided into two pursuant to high and low speeds: one is Electric
Vehicle with low-gear transmission; the other is Electric Vehicle with high-low gear
transmission (option).
As the key is at the start-up position, open the master switch and inspect the road condition in
front and manual braking condition, the user can drive the car only after confirmation for the
above.
① There are three positions for Electric Vehicles with low-gear transmission: Neutral, drive and reverse positions. The control lever is between the two front seats
and the operation procedures are as follows:
(1) When the lever is vertical at the medium position, (2) The leveler is pushed forward to the drive (3) The lever is pushed backward to “R” position.

ROMET 4E Electric Vehicle Instruction Manual
9
it is neutral position. At this time, even slowly
engaging the accelerator, this car cannot travel.
position, and the car will travel after engaging the
accelerator under proper conditions.
And this gear can realize reversing the car (the
reversing red indicator will light up).
Operation procedures of the Electric Vehicle:
For the Electric Vehicles with low-gear transmission, the start-up procedures are as follows: 1. rotate the key to the start-up position; 2.
push the control lever to the forward position; and 3. slowly engage the accelerator pedal. Then you can drive the car.
For the Electric Vehicles with high-low gear transmission, the start-up procedures are as follows: 1. rotate the key to the start-up position;
2. press the forward button of the power switch; 3. push the control lever to the low-gear position; and 4. slowly engage the accelerator
pedal. Then you can drive the car.
① No shifting during engaging the accelerator pedal! Slowly engaging the accelerator pedal during start-up can extend the traveling mileage!
② If the front wheel can not rotate during acceleration, the user shall not drive the car, while the possible reason is that the wheel has been immersed in the
deep sandpit or muddy ground, or it may be blocked by something hard. At this time, if the car is forced to travel, the differential may be damaged. Likewise,
when the car is traveling uphill, the braking shall not only depend on braking pedal to prevent reversing, or the transmission case may be damaged. At that time,
the car shall be stopped on the slope with parking brake!
4. arking brake
For parking braking, lift the manual braking handle (1) with your right hand to brake the car. The user shall first
slightly pull the handle up and use the thumb to press the locking button (2) on the handle top in order to release
the braking handle. ut down the handle (3) and the parking will be released.
If the parking brake is not fully engaged, it is very dangerous to leave the car behind, and your car may
voluntarily move due to environmental factors. If the engine is still running, then the car may suddenly
travel resulting in personal injuries. Thus, you shall ensure your car cannot move and inspect the parking
brake is fully engaged.

ROMET 4E Electric Vehicle Instruction Manual
10
Do not shift into high gear or low gear during accelerating. The transmission will be damaged unless you move your foot away from the accelerator pedal before
change gear.
Forwarding and reversing of the car are subject to the switch of “forward” and “reverse”. Move your foot away from the accelerator pedal during switching forward
gear and reverse gear! Otherwise an accident will take place. Be careful!
1. Do not shift into reverse gear as the car is forwarding, the reverse gear is available only when the car is under the condition of shutting down.
2. The car can be forwarding, only when switched on, and the operating arm is shifted into low gear.
3. The ranges of the car can be reduced as a result of using top gear. Suggest using low gear, or the ranges of the car may be shortened.

ROMET 4E Electric Vehicle Instruction Manual
11
III. Instrument Cluster Appearance
1. Speedometer and odometer
The speedometer shows the speed in km/h, while the odometer shows the traveled mileage of
the car in km.
The LED odometer is installed in the car, with the upper line of mileage and the lower line of
traveled distance.
If you want to calculate the traveled distance of certain mileage, first press the reset button
under the odometer and the traveled distance will be metered.
2. Symbols and explanations
Designation Left turn Right turn High-beam
light
Low-beam
light
Charging
indicator
Symbols
Color Green Green Blue Green Red/green
yellow
Designation T
raveling ready
indicator
Motor overheat
alarming
indicator
osition light
Symbols
Color Green Red Green

ROMET 4E Electric Vehicle Instruction Manual
12
LEFT/RIGHT TURN INDICATOR The turn signal indicator is a green signal light installed on the instrument cluster; the blinking represents the turn
signal light is working. If the blinking frequency is too high or no blinking, please repair the light; if no illumination as the turn switch is open, please repair
fuse, lamp and flash relay. When the danger alarming switch is engaged, the two turn signal lights shall flash simultaneously.
HEADLIGHT INDICATOR The illumination of the high-beam indicator represents the headlight is at the high-beam work state.
LOW-BEAM INDICATOR The illumination of the low-beam indicator represents the headlight is at the low-beam work state.
CHARGING INDICATOR Yellow illumination represents the battery capacity above 80%; green blinking represents charging state, while green stop
represents the battery capacity of 100%; red illumination represents the battery capacity lower than 80%; in addition, when this indicator is flashing, it
means insufficient capacity and asking for charging.
TRAVELING READY INDICATOR It represents turning off the light under the traveling conditions.
MOTOR OVERHEAT ALARMING INDICATOR As this indicator lights up, please park the car in a safe location and restart the car only after the
indicator goes off.
OSITION INDICATOR As illumination of the position light, the position indicator will light up.
The optimum time for charging is when the electricity meter represents 55% capacity, while please immediately charge the car as blinking of the relevant
indicator and 40% capacity. lease keep the battery surface clean to extend the life of the batteries.

ROMET 4E Electric Vehicle Instruction Manual
13
Voltmeter
Scale 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Value 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
ermissible
tolerance
(v)
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
±
1%
Ampere meter
Scale (from
left to right) 1 2 3 4 5 (alarming point)
ercentage 100% 85% 70% 55% 40%
1. When the value in the voltameter is above 85%, this car can be traveling on the road;
when the voltameter is blinking and the value reaches 40%, please charge the car nearby
at once, or the battery life may be negatively affected.
2. When the ignition switch is just turned on, the car doesn’t travel and both meters show
close states.
Ampere meter
scale 8 12 14 16
Volt value (A) 100 200 300 400
ermissible
tolerance ±1 ±2 ±3 ±4
Odometer:
1. ODO represents the total mileage and it is shown with the value simultaneously. Even
keep pressing the reset button, the total mileage will not change!
2. TRI represents subtotal mileage,
When TRI is shown with A simultaneously, the lower line shows subtotal 1; and keep
pressing the reset button, the subtotal mileage will be reset!
When TRI is shown with B simultaneously, the lower line shows subtotal 2; and keep
pressing the reset button, the subtotal mileage will be reset!
3. The LCD red lines, symbols and letters are always indicated.
The speed indication range: 0-80 km/h

ROMET 4E Electric Vehicle Instruction Manual
14
This condition means turning off all
lights.
This condition is to turn on the lights. This condition is to turn on the
headlight, switching between
high-beam and low-beam of the
headlight.
This condition is to turn on the
parking light.
The control lever as shown in the
figure represents the turn lights.
The control lever as shown in the
figure represents the wiper stop.
The control lever as shown in the
figure represents the low-speed swing
of the wiper.
The control lever as shown in the
figure represents the high-speed swing
of the wiper.

ROMET 4E Electric Vehicle Instruction Manual
15
Vertically swing the control lever in the left-right direction as shown in above figures
can realize:
1. Turn off the current headlight; and when the left lever is pushed upward, the
temporary high-beam will light up (giving the overtaking signal). As the signal pole is
released, the signal will stop. The switching between high-beam and low-beam is
shown in the figure.
2. When the right control lever is pushed to "ON" position, the wiper will run; when
“OFF” position, the wiper will stop and automatically reset.
De-frost and de-fog device
Due to the low temperature in winter, there may be fog or frost on the
windshield. De-frost & de-fog switch can be engaged and fog & frost will
dissipate as the temperature is rising. This device applies the electric heating
technology, so the frequent use is improper due to the consequential effects
on the mileage to be traveled.

ROMET 4E Electric Vehicle Instruction Manual
16
Alarming flasher switch
If this switch is turned on, all the turning signal lights will blink and light up; press this switch to turn off
all lights.
When parking the car in the place of potential accidents, if necessary, the alarming flasher must light up to
warn other drivers!
If any button on the instrument cluster can not rebound after pressing, please repair it in the nearby
after-sales service branch!
Cleaning of the ash tray
1. Firstly turn down 1 (as shown in the
figure) and press 2 downward, and
then you can extract the ash tray!
2. Take the baffle out. 3. Throw out the waste. 4. Insert the baffle in the sundries box,
and then insert the tray back into the
sundries slot.
Fire prevention instructions
a) Never take the ash tray as rubbish bin.
b) Fully snuff out the cigarette before close the ash tray.
