Ronda QK1 User manual

PROFESSIONAL INSTALLATION REQUIRED
Installation, Use & Care
Guide
Single Drawer / Cooler QK1

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 2 / 12
PROFESSIONAL INSTALLATION REQUIRED
1
2
Welcome & congratulations
Congratulations on your purchase of this double drawer.
We at Ronda are very proud of our product and we hope you consider us for
future purchases.
This product is made in our factory in Italy with components all made in Italy.
For any questions contact us at : [e-mail]
PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS
Packaging contents:
# 1 SMC Cabinet
# 1 Drawer

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 3 / 12
PROFESSIONAL INSTALLATION REQUIRED
Notes and Installation Tips
ALWAYS USE PROTECTION GLOVES AND EYE SAFETY
GOGGLES: Use care and always use protection gloves and safety
goggles during installation and care. Because the drawers may have
sharp edges, if not handled with care they can cause cuts and
abrasions.
Tools you will need : Power screw driver, manual screw driver, level,
tape measure.
Carefully unpack cabinets making sure not to scratch stainless steel
fronts and not to loose or misplace any components.
DO NOT remove polyethylene protective coating until installation is
complete.
Remove the drawer before installation. This will make cabinet easier to
lift and install and give access to installation hardware.
This product is made only for application on a subframe, which can be
made in different materials (wood, plastic, alluminium) into a wall
structure (Fig. 1)
Do not use the drawer as ladder. This would be dangerous for you and
can cause the item to break.

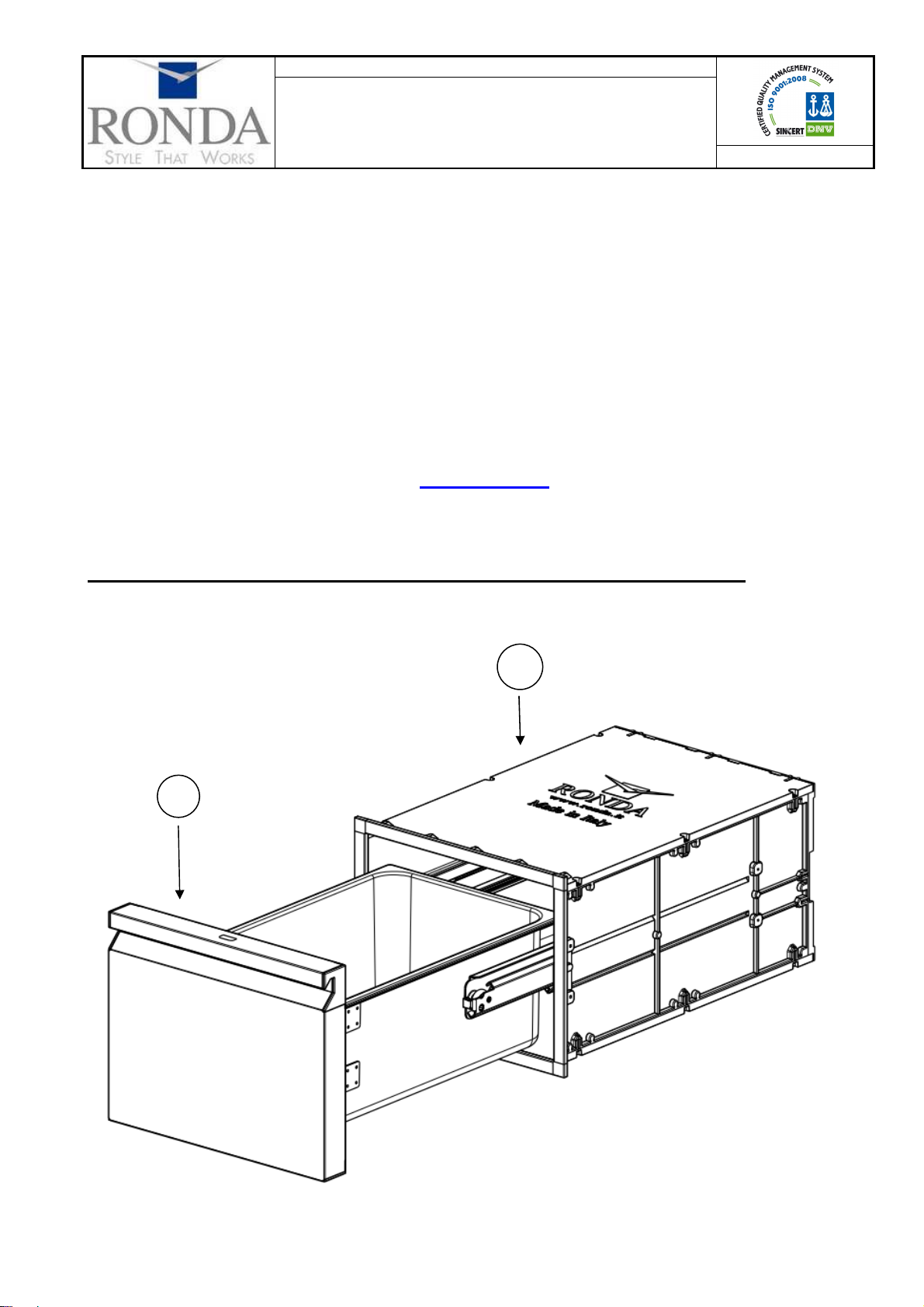

Fig. 1
a
b
Subframe

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 4 / 12
PROFESSIONAL INSTALLATION REQUIRED
Before Installation
Verify model number on the box label.
Verify the counter hole measure refering to the following table :
The maximum deviation permitted is : 0.04’’ (1 mm). Otherwise the
SMC panels get deformed and drawers don’t work properly. Use
spacers to get the right counter hole dimensions.
Check with a level that wall is plumb.
Verify with a level the horizontal and vertical level of the counter hole
and correct if not accurate.
Counter Hole
Model a b
+0,04 + 0,04
inch 14.96
0
11,45
0
+1 +1
QK11
mm 380
0
291
0

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 5 / 12
PROFESSIONAL INSTALLATION REQUIRED
Assembly and Installation
1. Carefully unpack cabinet making sure not to scratch stainless steel fronts.
Stainless is protected by a plastic coating that must be removed
after setup.
2. Remove drawers and store in a safe place.
3. Put the cabinet inside the counter
hole.
ATTENTION:

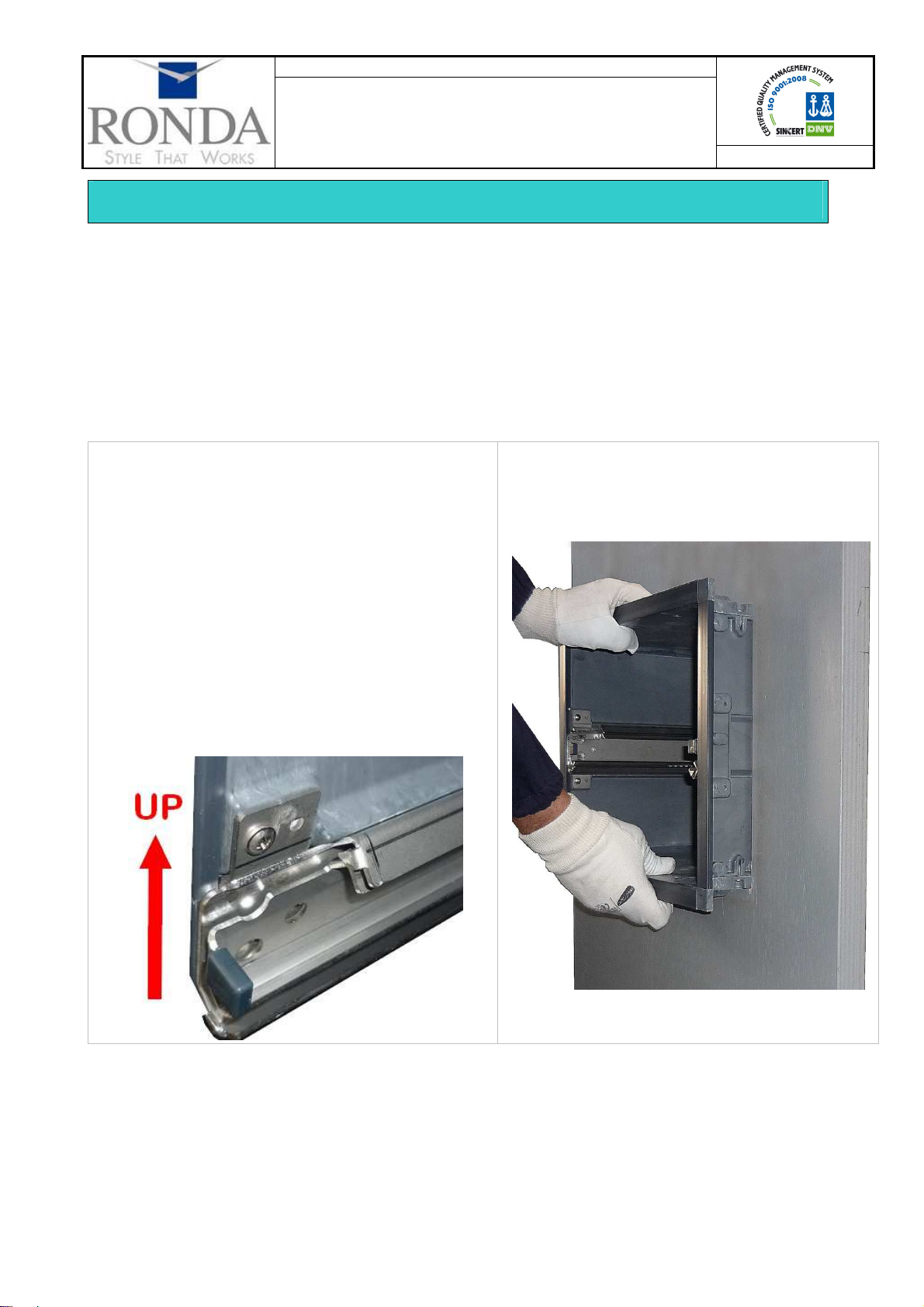

To correctly insert the cabinet , the slots
on the guides must be turned upward. (
see the foto down side )

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 6 / 12
PROFESSIONAL INSTALLATION REQUIRED

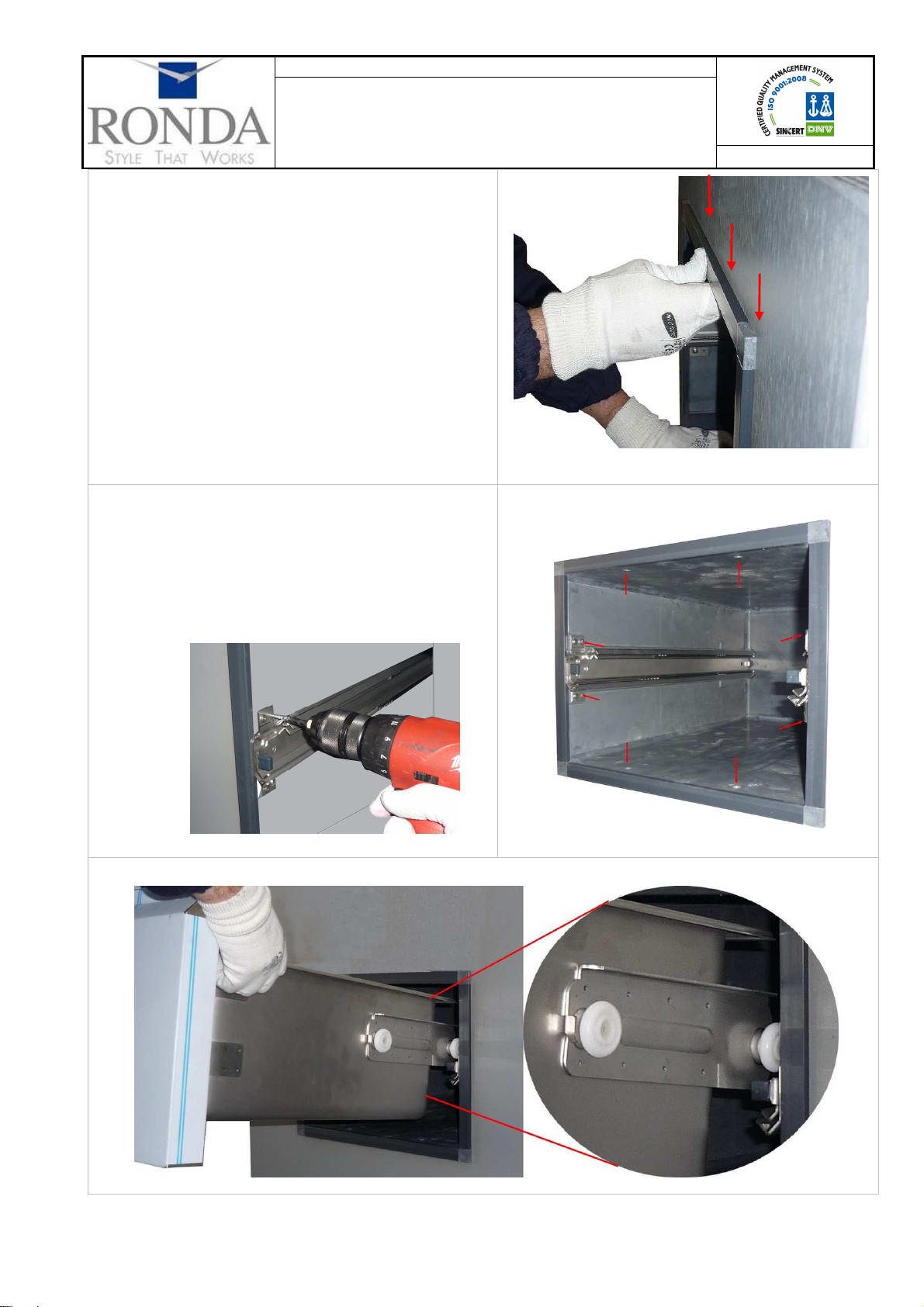

4. Be sure that the cabinet fits well in
the wall.
No clearanceshould be left
between the edges of the cabinet
and the wall.
If not, use spacers to fit.
5. Secure the cabinet to the wall with
screws in the dedicated matching
holes in the cabinet.
Use # 12 mushroom head screws.
6. Insert the drawer rear wheels into the guide slots.

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 7 / 12
PROFESSIONAL INSTALLATION REQUIRED
7. Put the drawer forward, than
lift a bit to insert the second
wheel and put inside.
Close completely the
drawer.

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 8 / 12
PROFESSIONAL INSTALLATION REQUIRED
Care and cleaning
It is imperative that the owner realizes that he/she is required to perform
reasonable maintenance and care of the drawers in order to maintain
the manufacturers warranty. Failure to perform reasonable
maintenance and care may void the warranty.
The following is a list of maintenance steps and things to avoid. This is
not intended to be a complete list, but is to be used as a guideline for
general care.
Carefully remove protective plastic peel coat from each stainless steel
surface.
External Surfaces:
Clean stainless with stainless steel cleaner in direction of grain. Rubbing
across the grain direction may produce minor scratches. Recommended
cleaners are Weiman © , Stainless Steel Magic © and Sheila Shine © .
In a salty air environment, a slightly more oily cleaner like Sheila Shine © will
protect better against oxidation, pitting or slight surface rust. Cleaning the
surfaces periodically will protect the finish for many years. In a heavily salty
area, you will have to clean more frequently as salt breaks down into highly
corrosive chlorine that will attack the metal. Surface corrosion will not affect
performance of the product, but will affect the look.
DO NOT USE scratchy pads, scouring pads, or stiff sponges for cleaning. Do
not use abrasive detergents, powdered cleansers or detergents containing
acid substances or bleach.

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 9 / 12
PROFESSIONAL INSTALLATION REQUIRED
Internal surfaces:
Clean the internal surface of the cabinet use warm water and soap.
Wash after each use and dry to avoid formation of molds and staining.
The cabinet’s working surface are constructed from Sheet Moulding
Coumpound (SMC), a glass rinforced polyester resin resistent to corrosion.
Removing and cleaning the magnetic gasket :
•Carefullyinsertascrewdriver intoacornerof
thegasket(1).
•Liftthegasketuntilitexits fromtheseat(2).
•Removethegasketbyhand(3).
•Cleanwithwaterandneutraldetergent.
•Insert the gasket inits seat andstrongly
press itonalltheperimeter.Youcan
lubricatethegasketseattodothiseasly.
Drawer Guides
Drawer load capacity should not exceed 50 lbs per drawer. Never use an
extended drawer for a ladder or a work platform.
1
2
3

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 10 / 12
PROFESSIONAL INSTALLATION REQUIRED
WARNINGS
•Surfaces can be very hot when exposed to direct sunlight.
•Molds can form if not properly dried.
•Do not use as a ladder.
•Avoid any contact with electrical outlets or wires.
•This is only a food container. It is not a refrigerated space,
and will not prevent food spoilage.
•If exposed to temperatures below – 4 °F and above + 120
°F deformation and malfunction of the drawers can o ccur.
•If installed adjacent to the heating elements of a barbeque,
insulation can be less effective.
•If installed near to the sea, damage from salty water can
occur.
•Keep drawers closed when not in use.

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 11 / 12
PROFESSIONAL INSTALLATION REQUIRED
LIMITED WARRANTY:
1. Limited Warranty.
RONDA warrants for a period of one (1) year from the date of purchase that each new
RONDA product shall be free, under normal use and maintenance, from any defect in
material and workmanship, subject to the exclusions and limitations set forth below.
2. Exclusions:
The limited warranty offered by RONDA is not applicable:
a. to products subject to wear and tear as part of their normal function (rubber parts);
b. to defects resulting from oxidation, damages from salty environment or the action
of atmospheric agents;
c. to defects resulting from incorrect use, misuse, neglect or abuse of the product or
failure to carry out the maintenance recommended by RONDA;
d. removal of drawers from their original location.
e. “remodeling” after original installation.
f. defects caused by failure to provide suitable installation environments for the
product, including without limitation the frame ; and
g. to defects resulting from faulty installation, modifications or adjustments not
recommended or authorized by RONDA in writing, or repairs carried out
improperly.
3. Coverage.
RONDA will remedy any material or workmanship found to be defective within the one (1)
year limited warranty term as follows:
Any RONDA product which is found defective in material or workmanship within the one
(1) year limited warranty term shall be repaired or replaced, at the option of RONDA, at
the RONDA facilities located at
UTi, United States, Inc.
3717 Wilson Road SE, Suite 100
Atlanta
GA 30354
without charge. Any defective RONDA product replaced under this warranty shall
become the property of RONDA.
4. Limitation.
The liability of RONDA under this limited warranty is limited solely to the repair or
replacement of defective product at the RONDA location during normal business hours,
without charge for you. Defects and delays in repair do not give you a right to

IL-MO-047 Rev. 1 04/2010
Single Drawer - QK1
Cooler
Pag. 12 / 12
PROFESSIONAL INSTALLATION REQUIRED
compensation. This limited warranty does not include any expense of or related to
transportation of the RONDA product to or from the RONDA location or compensation for
inconvenience or loss of use of the product while the RONDA product is being repaired or
replaced. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, RONDA
SHALL NOT BE LIABLE FOR ANY OTHER EXPENSE, LOSS OR DAMAGE, WHETHER
DIRECT, INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY ARISING IN
CONNECTION WITH THE SALE OR USE OF OR INABILITY TO USE THE RONDA
PRODUCT FOR ANY PURPOSE.
This limited warranty shall constitute your sole remedy and the sole liability of RONDA,
whether on warranty, contract or negligence grounds, with regard to any actual or alleged
defect in the condition or performance of any RONDA product. TO MAXIMUM EXTENT
ALLOWED BY APPLICABLE LAW, THE FOREGOING STATEMENTS OF WARRANTY
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER REMEDIES.
RONDA’S LIABILITY ON ANY CLAIM OF ANY KIND RELATING TO THESE TERMS OR
THE MANUFACTURE, SALE, DELIVERY, RESALE OR USE OF ANY RONDA
PRODUCT, SHALL IN NO EVENT EXCEED THE PRICE OF THE RONDA PRODUCT
WHICH GAVE RISE TO ANY SUCH CLAIM.
Some States do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
5. Disclaimer.
RONDA is not responsible for any accidents which may occur while the RONDA product
is being used or as a result of, or causes arising from, its installation or use and shall not
be liable for any loss, damages or harm to persons or things derived from the same.
RONDA is not responsible for any damage to the drawers or to the outer casing caused
by failure to properly maintain the product.
This warranty gives you specific legal rights, and you may also have other rights
which vary from State to State.
6. Force Majeure.
RONDA shall not be responsible for any loss, damage or delay caused by industrial
disturbances or disputes, strikes, fire, acts of nature, acts of God, casualty, embargoes,
currency restrictions, labor, conflicts or shortages, war, radiation, civil riot, import or
export restrictions, shortage of materials or labor, or any other cause beyond RONDA’s
reasonable control, even if RONDA knew, had reason to believe, or was advised of the
possibility or probability of any such cause.
Ronda S.p.A.
Via Vegri, 83
36010 Zanè (VI) ITALY
Tel. [phone] – Fax [phone]
Email: [e-mail]
www.ronda.it
