Russell Hobbs RHFZ1 User manual

60cm WIDE FREESTANDING
UPRIGHT 185cm HIGH FREEZER
INSTRUCTION MANUAL
Model number: RHFZ1
Please read these instructions carefully and
keep them for future reference
For Customer Services, Spare parts &
Warranty Information please call
0845 683 8717
Opening times:
Monday - Friday 8am until 8pm
Saturday & Sunday 10am until 4pm

- 1-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
Supplier'snameortrademarkRUSSELL HOBBS
Model/ ItemRHFZ1
Type ofapplianceGT/N390P
The energyefficiencyclassA
Voltage220-240V/ 50HZ
Power1,2A
Energyconsumption1,020kwh/24h
Gross storagevolumeoffrozen food286 lt.
Netstoragevolumeoffrozen food265 lt.
Star ratingof frozen food storage compartment4
RefrigerationsystemStatic
PowercutsafeZh'(32oC) 840 mins(-18ºCto-9ºC)
PowercutsafeZh'(25oC) 960 mins(-18ºCto-9ºC)
Freezingcapacity'26 lt.
Climateclass'T/N
Size(mm) (HxWxD)1850 x595 x634
Netweight68 Kg.
Noise'40 db(A)
TECHNICALSPECIFICATIONS
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 2-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
Index
TECHNICALSPECIFICATIONS..........................................................................1
BEFOREUSINGTHEAPPLIANCE.....................................................................3
Safetyinstructions..............................................................................................................3
Safetywarnings..................................................................................................................3
BeforeSwitching On..........................................................................................................4
Installingandoperatingyourfreezer................................................................................5
THEPARTSOFTHEAPPLIANCEANDTHECOMPARTMENTS.........................6
THEVARIOUSFUNCTIONSANDPOSSIBILITIES.............................................7
Thermostatsetting.............................................................................................................7
Display panel......................................................................................................................8
FOODSTORAGE...............................................................................................9
CLEANINGANDMAINTENANCE.......................................................................10

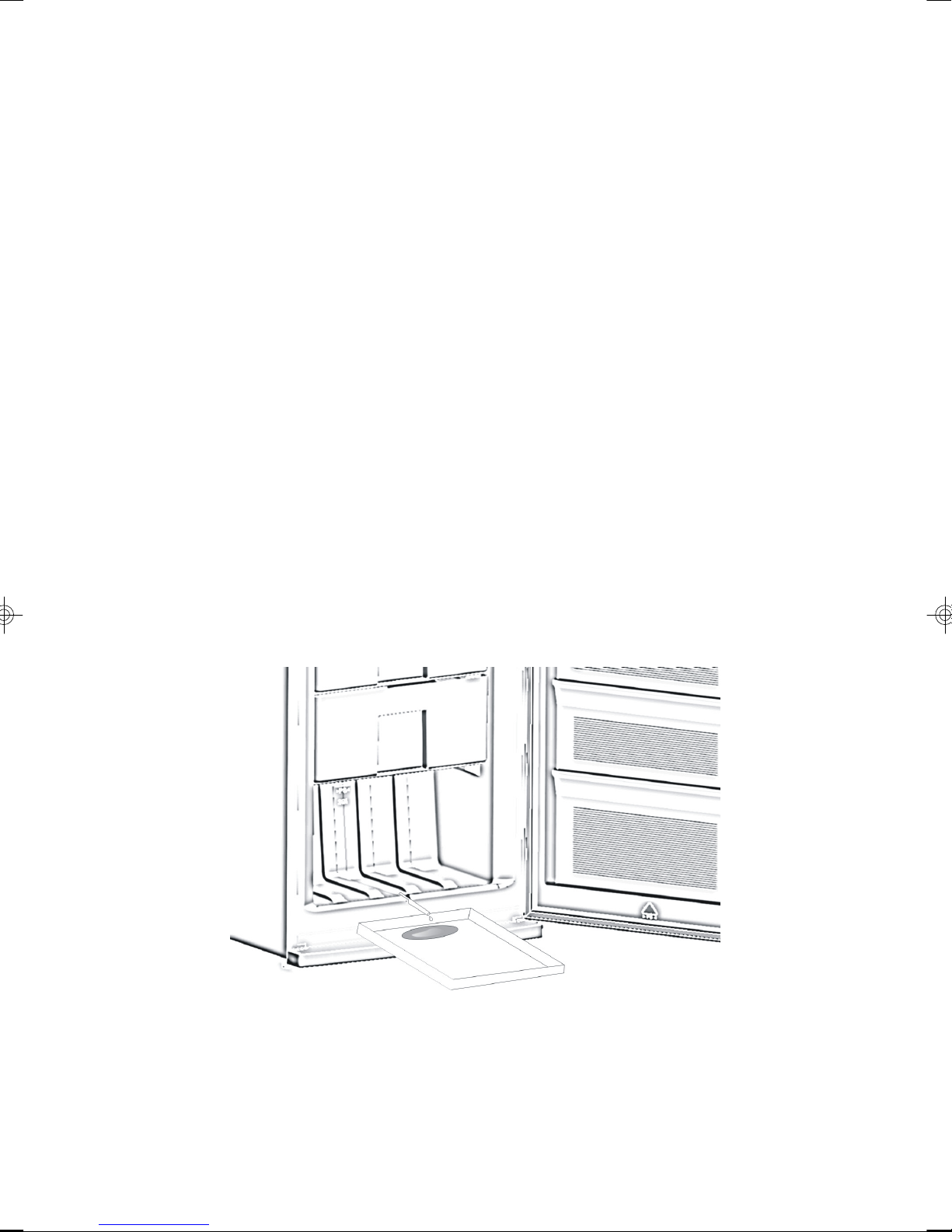

Defrosting.........................................................................................................................11

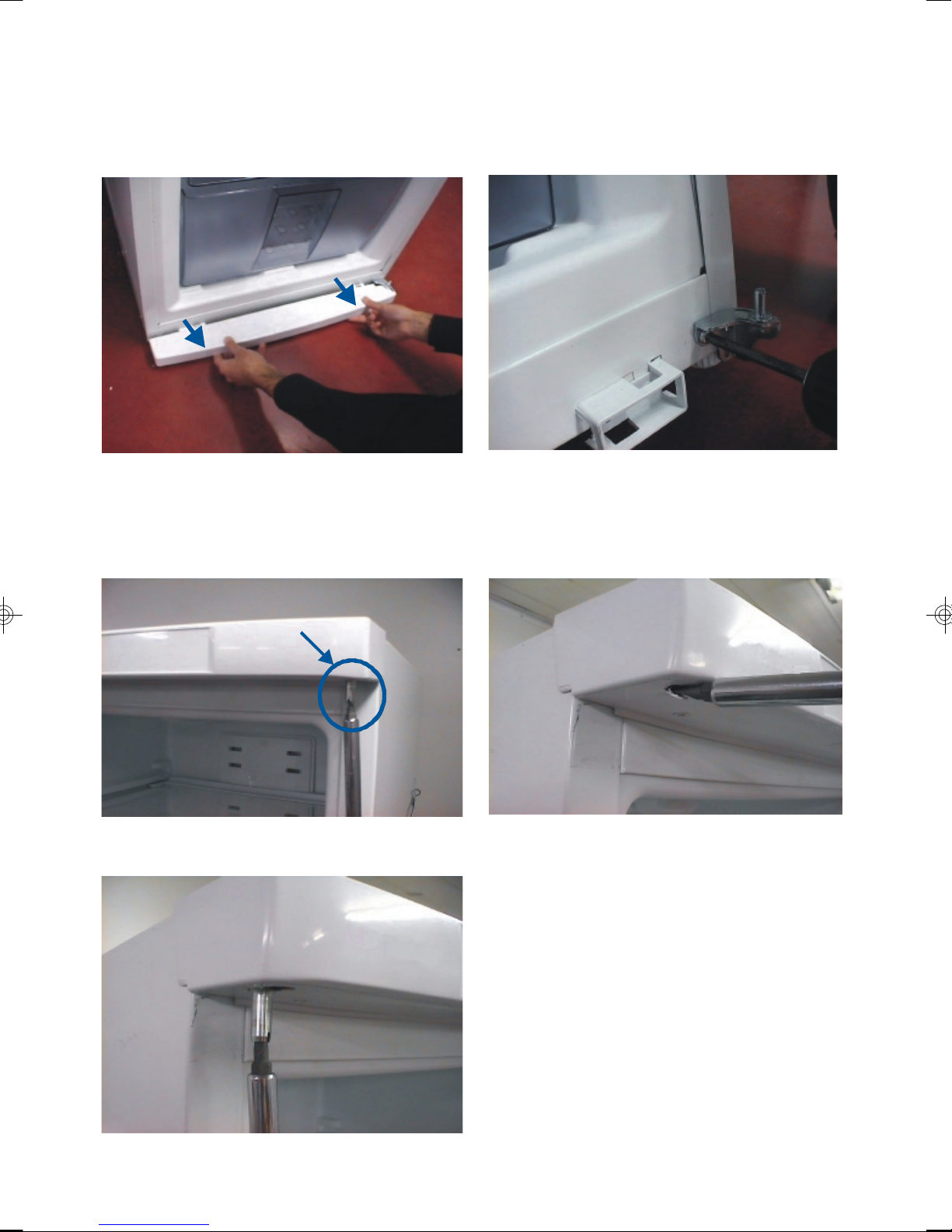

CHANGINGTHEDOORSWINGDIRECTIONTORIGHTHAND.........................12
ASSEMBLYINSTRUCTION(FREEZER-LARDER)...............................................15
TRANSPORTATIONANDCHANGINGOF INSTALLATIONPOSITION...............20
BeforeSwitching On........................................................................................................20
BEFORECALLINGYOURAFTERSALESSERVICE..........................................20
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 3-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
Safetywarnings
Warning: Donotusemechanicaldevices orothermeans toacceleratethedefrosting
process,otherthanthoserecommended bythe manufacturer.Donotuseelectrical
appliances insidethefood storagecompartmentsoftheappliance,unless theyareof
thetyperecommendedbythemanufacturer.Keep ventilation openings,intheappliance
enclosureorinthebuilt-instructure,clearofobstruction.Donotdamage therefrigerant
circuit.
•Donotuseadaptorsmultiplereceptaclesorextensioncord.
•Donotplugindamaged,tornoroldplugs.
•Donotpull, bend,twistordamagethecord.
BEFOREUSINGTHEAPPLIANCE
Safetyinstructions
•Ifthemodelcontains R600a-seenameplateunder refrigerant(thecoolantisobutane),
naturalsgas that, isveryenvironmentallyfriendlybutalsocombustible.When
transportingandinstallingtheunit caremustbetakentoensurethatnoneofthe
refrigerationcircuitcomponentsbecomedamaged.Intheeventofdamageavoid
naked flamesorignitionsourcesand ventilatetheroominwhichtheunitisplaced
forafewminutes.
Warning: Keep ventilationopenings inapplianceenclosureorinstructureforbuilding
in,clearofobstruction.
•Donotusemechanicaldevices orotherartificialmeans toacceleratethedefrosting
process.
•Donotuseelectricalappliancesintherefrigeratororfreezercompartmentofthe
appliance.
•Ifthisappliance istoreplaceanoldrefrigeratorwithalock;breakorremovethe lock
as asafetymeasurebeforestoringit, toprotectchildrenwhileplaying mightlock
themselvesinside.
•Oldrefrigeratorsand freezerscontaininsulationgasesandrefrigerant,which must
bedisposedofproperly.Entrustthedisposalofascrapunitcategoricallyto
competenceofyourlocalwastedisposalserviceandcontactyourlocalauthorityor
yourdealerifyou haveanyquestions.Please ensurethatthe pipe ofworkofyour
refrigeratingunitdoesnotgetdamagedpriortobeingpicked-upbytherelevant waste
disposalservice.
Importantnote:
Pleasereadthisbookletbeforeinstallingandswitchingonthisappliance.The
manufacturerassumesnoresponsibilityforincorrectinstallation andusage asdescribed
inthisbooklet.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 4-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
•Thisappliance isdesigned forusebyadults,do notallow
children toplaywiththeapplianceorletthemtohangoverthe
door.
•Donotplug-inorpullouttheplugfromthe plug socketwithwet
handstopreventelectrocution!
•Donotplaceglass bottlesorbeverage cans inthefreezer
department.Bottlesorcansmay explode.
•Donotplaceexplosive orflammablematerialinyourfreezerfor
yoursafety.Placedrinkswithhigheralcoholamountvertically
andbyclosing theirnecks tightlyinthefreezerdepartment.
•Whentakingicemadeinthefreezerdepartment, do nottouch it,
icemaycauseiceburns and/orcuts.
•Donottouch frozengoodswithwethands!Donot eatice-cream
andicecubesimmediatelyafteryoutakethemout ofthefreezer
department!
•Donotre-freeze frozengoodsafterthayhavethawed.Thismaycausehealthissues
likefood poisoning.
•Donotcoverthebodyortopof freezerwithlace.Thiseffectstheperformanceofyour
freezer.
•Fixtheaccessoriesinthefreezerduringtransportationtopreventdamageto
accessories.
•Whenthedoorofthefreezerisclosed,vacuumwilloccur.Waitforabout1minute
toreopenit.
•Thisapplication isoptionalforeasy
openingdoor.Withthisapplication,
alittlecondensationmayoccur
aroundthisarea andyoumaytake
itout.
•Theapplianceisnotintended forusebypeople(includingchildren)withreduced
physical,sensoryormentalcapabilities,orlackofexperience andknowledge,unless
theyhavebeen given supervision orinstructionconcerninguseofthe applianceby
apersonresponsiblefortheirsafety.Children shouldbe supervised toensurethat
theydon’tplaywiththeappliance.
•Ifthesupplycordisdamagedit mustbe replacedbythemanufacturerorservice
agentorsimilaryqualified peopleinordertoavoidahazard.
BeforeSwitchingOn
•Wait3hoursbeforepluggingtheapplianceintothemainpower
toensureproperperformance.
•Therecanbean odourwhenyou firstswitch ontheappliance,it
willdisappearaftertheappliancestartstocool.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 5-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
Installingandoperatingyourfreezer
•Beforemakingtheconnectiontothepowersupply,ensurethatthevoltage onthe
nameplatecorrespondstothe voltageofelectricalsystematyourhome.
•Operating voltage foryourfreezeris220-240Vat50Hz.
•Beforestartingtouseyourfreezer,please callthenearestauthorizedserviceand get
helpontheinstallation,operationandusageofyourfreezer.
•Themains cordofyourfreezerhas agroundedplug.Thisplug shouldbeused with
agrounded receptaclethathasa16 amperfuseminimum.Ifyou don’t havea
receptacleconfirmingwiththis,pleasehaveitdonebyaqualifiedelectirician.
•Wedonottake theresponsibilityofthedamagesthatoccurdue
toungroundedusage.
•Place yourfreezerinaplacethatit wouldnotbeexposedto
directsunlight.
•Yourappliance shouldbe atleast50 cmaway fromstoves,ovens
andheatercores,andshouldbeatleast5cmaway from
electricalovens.
•Itshouldneverbeusedoutdoorsorleftintherain.
•Fitthe plasticwall spacerstothecondenseratthe back ofthe
freezerinordertopreventcleaning ofthewall and forgood
performance.
•Whenyourfreezerisplacednexttoadeep freezer,thereshould
be atleast2cmbetween themtopreventhumidityon the outer
surface.Donotplaceanythingonyourfreezer,and installyour
freezerinasuitableplacesothatatleast15cmisavailableon
the upperside.
•Ifyou willplace yourfreezernexttoyourkitchencabinets,leave
aspaceof2cmbetweenthem.
•Installthedistance adjustmentplastic(the part withblackvanes
attherear)byturning it 90°topreventthecondenserfrom
touchingthewall.
•Theadjustablefrontlegs shouldbe stabilizedatan appropriateheighttoallowyour
freezeroperateinastableandproperway.Youcan adjustthelegs byturningthem
clockwise(orintheoppositedirection).Thisshouldbe donebeforeplacingfood in
thefreezer.
•Beforeusing yourfreezer,wipeallpartswithwarmwateraddedwithateaspoonful
ofsodiumbicarbonate,andthenrinsewithcleanwaterand dry.Place allpartsafter
cleaning.
•Donotputvery(!)hotfoodorbowlon the toptable.Itcan damagethetoptable.
•Fitthe plasticwallspacerstothecondanseratthebackofthe refrigeratorinorderto
preventleaningtothewallforgoodperformance.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 6-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717

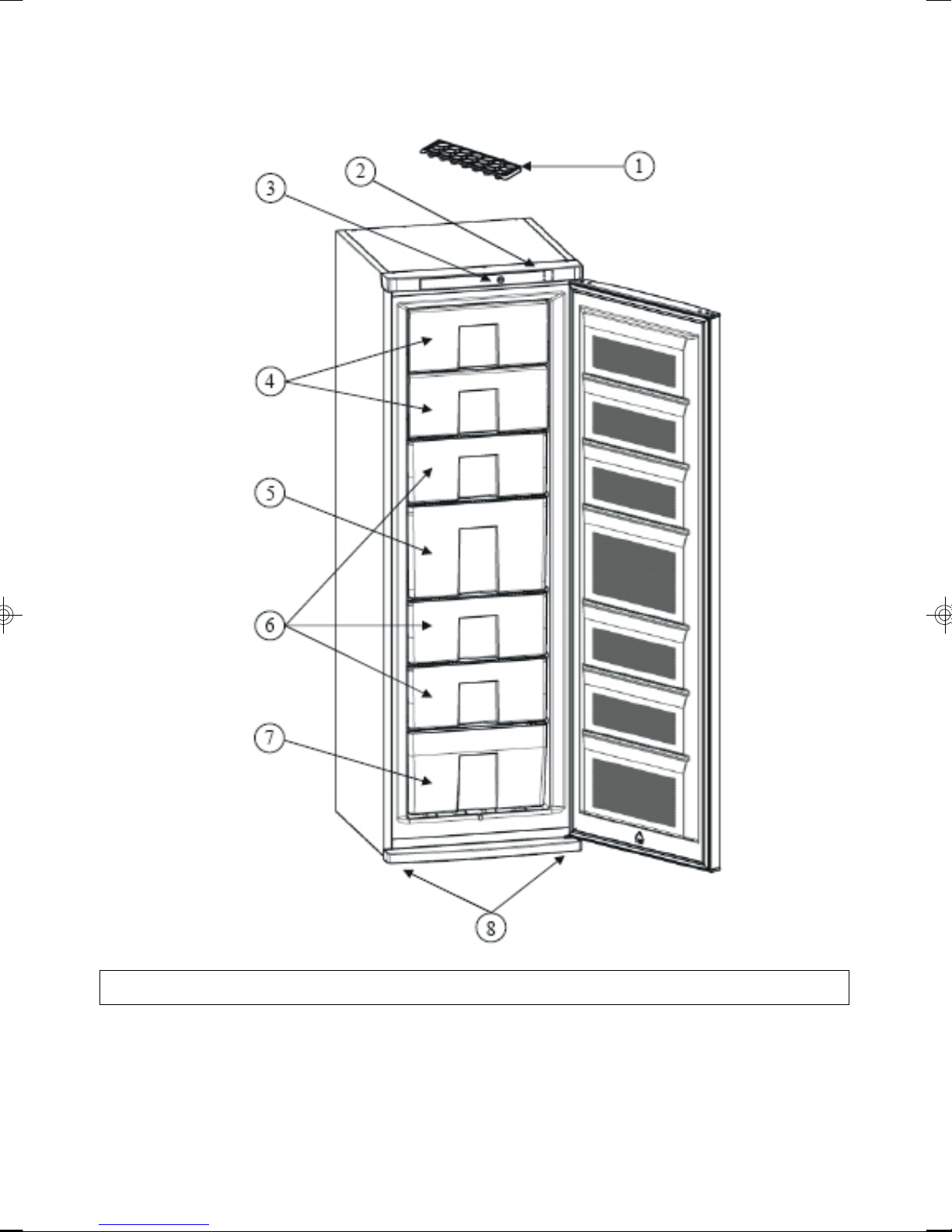

1.ICETRAY
2.DISPLAY PANEL
3.FREEZERTHERMOSTATDIAL
4.FREEZERFLAPS
5.FREEZERBIGDRAWER
6.FREEZERDRAWERS
7.FREEZERBOTTOMDRAWER
8.LEVELLINGFEET
THEPARTSOFTHEAPPLIANCEAND THECOMPARTMENTS
Partsmayvaryaccording tothe appliancemodel.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 7-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
THEVARIOUSFUNCTIONSAND POSSIBILITIES
Thermostatsetting
FREEZERTHERMOSTAT
Freezercontrol
Freezerthermostatautomaticallyregulatesthe inside temperatureofthecompartments.
Byrotating theknobfromposition“1”to“5”, coldertemperatures canbeobtained.
Freezerthermostat setting;
0: Thispositionshowsthermostatisclosed andnocooling isavailable.
1–2: Forshort-termstorage of foodinthefreezercompartment, you canset theknob
betweenminimumandmediumposition.
3–4–5: Forlong-termstorage offoodinthefreezercompartment, you cansetknob
mediumposition.
SF: “SUPERFREEZING”Forfreezingthefresh food.Theappliancewill worklonger.
Soafteryougetthecoldcondition youmustpositiontopreviousposition.
Notethat; theambienttemperature,temperatureofthefreshlystoredfood and howoften
thedoorisopened, affectsthetemperatureinthefreezercompartment. Ifrequired,change
thetemperaturesetting.
5
4
3210
SF
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 8-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
Displaypanel
ORANGELAMP:
GREENLAMP:
REDLAMP:
Whenthe“SuperFreezing”operationison(thermostatdialisinSF
position),theorange lampwillturnon.
Whenthe appliance isconnectedtothe powersupply,the green lamp
onthedisplaypanelwillturnonautomatically.
Whenthefreezercompartmentisnotcoldenough,theredlampwill
turnon.Setthe thermostatdialtoSF(SuperFreeze)position untilthe
redlampisoff. Afteryou getthecoldcondition youmustposition to
previous position.Checkthe frozenfoods.Andif thefoodsgetsthaw,
remembertoconsumetheminashortperiodoftime.
Turningonthe appliance
Oncetheappliance has beenconnectedtothepowersupplymakesurethatthe RED
lampison.ThenturnthefreezerthermostatdialtopositionSF“SUPERFREEZING”until
theredlampisoff(Notethat; forbestinternaltemperaturetheindicatorinthefreezer
thermostatshouldbe positionedbetween 2and4.)
•Whenyoufirstswitchon theappliance,forstarting asuitablecooling,theappliance
shouldwork24hourscontinuouslyuntil it coolsdowntosufficienttemperature.
•Inthistimedonotopenthedoorsooftenandplacealotoffoodinsidetheappliance.
•Ifthe unitisswitchedofforunplugged, you mustallowat least5minutes before
restartingorre-plugged the unitinordernottodamagethecompressor.
OrangeLamp
GreenLamp
RedLamp
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

- 9-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
FOODSTORAGE
•Donotputfreshandwarmfoodwithfrozenfoodsidebyside as itcanthawthefrozen
food.
•Whilefreezingfresh food(i.e.meat,fish and mincemeat) divide themtopartionsin
ordertouseindividually.
•Maximumload;ifyouwanttoloadlargequantitiesandusethemaximumnet capacity,
youcan removethedrawers(Exceptthebottomone).You canstorebulkyitemsdirectly
on theshelves
•Forstoringthefrozenfood;theinstructionsshownonfrozen food packages should
always befollowedcarefullyandif no informationisprovided,food shouldnotbe
stored formorethan 3months fromthepurchaseddate.
•When buyingfrozen foodensurethatthesehavebeen frozen at suitabletemperatures
andthatthe packingisintact.
•Frozen foodshouldbe transportedinappropriatecontainerstomaintainthequality
ofthe food and shouldbereturned tothefreezingsurfaces oftheunitinthe shortest
possibletime.
•Ifapackage offrozenfoodshowsthesignofhumidityandabnormalswellingit is
probablethatithasbeenpreviouslystoredatan unsuitabletemperatureand that
the contentshave deteriorated.
•Thestoragelifeoffrozenfooddependsontheroomtemperature,thermostatsetting,
howoften thedoorisopened,thetypeoffoodandthe lengthoftimerequiredto
transport theproductfromtheshop toyourhome.Alwaysfollowthe instructions
printed onthe packageandneverexceed themaximumstorage lifeindicated.
•Whilefreezingfood ;Maximumamountoffresh food (inkg)thatcanbefrozenin24
hoursisindicatedontheappliancelabel.Foroptimumapplianceperformance to
reach maximumfreezingcapacity,turnthe thermostatknobtoposition SF (Super
Freeze)24hoursbeforeplacingfresh food inthefreezer.24hourson SuperFreeze
function wouldgenerallybesufficientafterplacingfreshfoodinthefreezer.After24
hours,deactivatetheSuperFreeze function.
• Attention; Inordertosave energy,When freezingsmall amountsoffood,the Super
Freezefunction canbedeactivated.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-10-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
CLEANINGAND MAINTENANCE
•Disconnectunitfromthe powersupplybeforecleaning.
•Donotcleanthe appliance byusing
encessiveamountsofwater.
•Thefreezercompartmentshouldbecleaned
periodicallyusingasolutionofbicarbonateofsoda
andlukewarmwater.
•Clean theaccessoriesseparatelywithsoapandwater.
Donotcleantheminthe dishwashermachine.
•Donotuseabrasiveproducts,detergentsorsoaps.
Afterwashing,rinsewithclean wateranddrycarefully.
When thecleaningoperationshavebeencompleted
reconnectthe plug oftheunitwithdryhands.
•Youshouldcleanthe condenser(back ofthe
appliance)withbroomones ayearinordertoprovide
energysavingandincreasetheproductivity.
THEPOWERSUPPLYMUST BE DISCONNECTED.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-11-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
Defrosting
WARNING: Neverusesharpmetaltools,unless recommendedbymanufacturer,forthis
operationastheycandamage thefreezing circuit.
Afteraperiod oftime,frostwillbuildupincertainareasinthefreezercompartment. The
frost,accumulatedinthe freezercompartment,shouldbe removed periodically(usethe
plasticscraperifavailable).
Completedefrostingwillbecomenecessaryif thefrostlayerexceeds3-5mmtomaintain
theefficiencyofthe freezer.
•Theday beforeyoudefrost, set thethermostatdialtoposition“SF”tofreeze the foods
completely.
•During defrosting,frozenfoodsshouldbewrappedinseverallayersofpaperand
keptinacoolplace.Theinevitablerise intemperaturewillshortentheirstorage life.
Remembertousethesefoods withinarelativelyshortperiodoftime.
•Setthe thermostatknob toposition“0”and switchofftheappliance.
•Leavethedooropentoacceleratedefrosting.Removethedefrostwaterfromthe
compartment.
•Thisapplianceisprovidedwithaspecialdrainsystem.
1. Removeallfreezerdrawers.
2. Putabasinon floorforcollectingdefrostwater.
3. Take thedrainpipefromthedocumentationbag,thenplaceitinthegrooveon
thefrontsideoftheflooroftheappliance.
4. If thereisstill wateronthefreezerfloor,youcanclearitaway byusing asponge.
•Cleantheinteriorbyhandwithlukewarmwaterandalittledetergent. Neveruse
abrasive productsoraggressive cleaningagents.
•Drythe inside oftheunit,plug onthemains,andsetthethermostatknobtoposition
“SF”.After24 hours,resetthethermostattothedesiredposition.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-12-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
CHANGING THEDOORSWING DIRECTIONTO RIGHTHAND
1- Removethekick platebypullingforward.
(Fig-1) 2- Unscrewthe bottomhinge fixingscrews andremove it (Fig-2)
3- Dismantlethedoorfromthetop hingebypulling the doordownwards.
4- Unscrewthe pinofthe righttop hinge.
(Fig-3) 5- Thenbyusingaknifecuttheleftsideof thehead panel. (Fig-4)
6- Screwthe pinof thelefttophinge. (Fig-5)
Figure1Figure2
Figure3Figure4
Figure5
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-13-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
7- Replacethedoortopbushing (Fig-6)andtopbushing cap.(Fig-7)
8- Removethe doorbottombushingand
bottomstopperand then insertthemthe left
side.(Fig-8)
9- Removethe doorbottombushingand
insertitintoleft hole.(Fig-9)
10- Unscrewthe pinofhingefromHole1,
rotatethebottomhinge90°andscrewthe
pintoHole2.(Fig-10)
Figure6Figure7
Figure8Figure9
Figure10
Hingepin
Hole1
Hole2
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-14-
ForCustomerServices,SpareParts&WarrantyInformationpleasecall 08456838717
11- Assemblethe doortogetherwithbottom
hinge.Thenscrewthehingetobottomleft
sideofrefrigerator.(Fig-11)
12- Finally,byusing aknifecutleft sideof
thekickplateandassembleit.(Fig-12)
Knifecut
Figure11Figure12
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717
- 15 -
ASSEMBLY INSTRUCTION
FREEZER - LARDER
Side By Side

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717
- 16 -
1) Flat metal kit; 2 pcs. 2) Bent metal kit; 2 pcs.
3) Gasket; 1 pc. 4) Flat screw (M4); 2 pcs.
5) Conic screw; 4 pcs.
7) Fixing bracket front; OPTIONAL
Must be ordered as a spare part.
8) Adjustable feed
9) Double sided tape
6) Flat screw; 2 pcs.
Part list

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717
- 17 -
- 7 -
PDF created with pdfFactory Pro trial version www.pdffactory.com
51
Fig. C 5
2
1
6
Fig. B
Fig. A
-8-
Adjustable feet

For Customer Services, Spare Parts & Warranty Information please call 0845 683 8717
- 18 -
ASSEMBLY INSTRUCTION
Before assembling process,cabinets should be closer regularly.(min 6mm - max 10mm)1.
Align both headpanels by using adjustable feet. (g F)2.
See page 2 for the necessary attachment components.3.
Position the assembly kit4. 1on the back side - down and fasten it up by using screws6
(g.A)
Position the assembly kit5. 2on the back side - up and fasten it up by using screws5 (g B)
Position the assembly kit6. 1on the upside and fasten it up by using screws5 (g C)
Take out the kickplate part for each cabinets.7.
Position the assembly kit8. 2on the front side-down and fasten it up by using screws4
(g D)
Take out the double sided tape located inner side of the gasket9. 3, mount it between two
cabinets beginning from upside to down in the proper form. (g E)
Unscrew the headpanel screws(top and bottom) (g G) , position the assembly kit10. 7and
fasten it up again by using headpanel screws (g H).
