Russell Hobbs RHEM20L User manual

INSTRUCTIONS AND WARRANTY
MODEL NO. RHEM20L
RUSSELL HOBBS 20L ELECTRONIC MICROWAVE OVEN

2
Congratulations on purchasing our Russell Hobbs 20L Electronic Microwave Oven. Each unit is
manufactured to ensure safety and reliability. Before using this appliance for the first time,
please read the instruction manual carefully and keep it for future reference.
FEATURES OF THE RUSSELL HOBBS 20L ELECTRONIC MICROWAVE
OVEN
•20L Capacity
•Digital LED display with Clock
•Power output: 700W
•5 power levels
•Programmable multi-stage cooking
•8 Auto menus: reheat, pizza, meat, vegetable, fish, pasta, potato and soup
•95 minute cooking timer with end signal
•Defrost by time or weight
•With quick start and delay start functions
•Smart Info function
•Elegant mirror finish front
•255mm glass turntable diameter
•User friendly control panel
•Easy to use pull handle door
•Enamel interior for easy cleaning
•With child lock safety feature
•For domestic use only
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your
home.
3. Incorrect operation and improper use can damage the appliance and cause injury to the
user.

3
4. The appliance is intended for household use only. Commercial use invalids the warranty
and the supplier can not be held responsible for injury or damage caused when using the
appliance for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. Close supervision is required when any appliance is used near or by children or invalids.
7. Check the power cord and plug regularly for any damage. If the cord or the plug is
damaged, it must be replaced by the manufacturer or a qualified person in order to avoid an
electrical hazard.
8. Do not use the appliance if it has been dropped or damaged in any way. In case of damage,
take the unit in for examination and/or repair by an authorised service agent
9. Do not operate the oven when empty.
10. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly
or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly qualified person in order to avoid a
hazard.
11. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
12. WARNING: Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a safe way and
understands the hazards of improper use.
13. Do not operate the microwave unit without any food contents inside the cavity.
14. To reduce the risk of fire in the oven cavity:
When heating food in a plastic or paper container, check the oven frequently in terms of the
possibility of ignition.
Remove wire twist-ties from paper or plastic bags before placing the bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order
to stifle any flames.
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils
or food in the cavity when not in use.
WARNING: Liquid or other food must not be heated in sealed containers since they are able
to explode.
15. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has
to be taken when handling the container.

4
16. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in
burns.
17. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens
since they may explode even after microwave heating has ended.
18. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts
before cooking.
19. The contents of feeding bottles and baby jars should be stirred or shaken and the
temperature should be checked before serving in order to avoid burns or scalding.
20. Cooking utensils may become hot because of heat transferred from the heated food.
Potholders/ oven gloves may be needed to handle the utensil.
21. Utensils should be checked to ensure that they are suitable for use in microwave oven.
22. WARNING: It is hazardous for anyone other than a trained person to carry out any service
or repair operation which involves the removal of any cover which gives protection against
exposure to microwave energy.
23. This product is Group 2 Class B ISM equipment. The definition of Group 2 which contains
all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is
intentionally generated and/or used in the form of electromagnetic radiation for the
treatment of material, and spark erosion equipment. For Class B equipment is equipment
suitable for use in domestic establishments and in establishments directly connected to a
low voltage power supply network which supplies buildings used for domestic purpose.
24. Never immerse the unit in water or any other liquid for cleaning purposes.
25. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect
the appliance from the mains. Always unplug the unit when not in use, before cleaning or
when adding or removing parts.
26. The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
27. A short cord is provided to reduce the hazards resulting from becoming entangled in or
tripping over a longer cord.
28. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a
position where it can be pulled on inadvertently.
29. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric
burner or in a heated oven.
30. Do not use the appliance on a gas or electric cooking top or over or near an open flame.

5
31. Use of an extension cord with this appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord, appliance or plug
point. Do not place the extension cord in a position where it can be pulled on by children or
animals or tripped over.
32. This appliance is not suitable for outdoor use. Do not use this appliance for anything other
than its intended use.
33. DO NOT carry the appliance by the power cord.
34. Do not leave this appliance unattended during use. Always unplug the unit when not in use
or before cleaning.
35. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a
hot surface.
36. Ensure that the switch is in the ―Off‖ or ―0‖ position after each use.
37. The manufacturer does not accept responsibility for any damage or injury caused by
improper or incorrect use, or for repairs carried out by unauthorised personnel.
38. In case of technical problems, switch off the machine and do not attempt to repair it
yourself. Return the appliance to an authorised service facility for examination, adjustment
or repair. Always insist on the use of original spare parts. Failure to comply with the above
mentioned pre-cautions and instructions, could affect the safe operation of this machine.
39. The microwave oven should not be placed in a cabinet unless it has been tested in a
cabinet.
40. Appliances are not intended to be operated by means of an external timer or separate
remote-control system.
41. The door or the outer surface may get hot when the appliance is in operation.
42. The rear surface of the appliance should be placed against a wall.
SPECIFICATIONS
Power Consumption:
230V~50Hz 1050W (Microwave)
Output:
700W
Operation Frequency:
2450MHz
Outside Dimensions:
257.6mm (H) x439.5 mm (W) x 328mm (D)
Oven Cavity Dimensions:
208.2mm(H)×306mm(W)×306.6mm(D)

6
Oven Capacity:
20 Litres
Cooking Uniformity:
255mm Diameter Turntable System
Net Weight:
Approx.11.2kg
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
Do not attempt to operate this oven with the door open since open door
operation can result in harmful exposure to microwave energy. It is important
not to break or tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow soil
or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the
oven door close properly and that there is no damage to the
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
If the microwave appliance is not maintained in a good state of
cleanliness, its surface could become degraded, its lifespan affected and
could result in a possibly hazardous situation.
INSTALLATION
1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as a misaligned or bent door, damaged
door seals and sealing surface, broken or loose door hinges and latches and dents inside
the cavity or on the door. If there is any damage, do not operate the oven and contact
qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the
heaviest food likely to be cooked in the oven.

7
4. Do not place the oven where heat, moisture, or high humidity are generated, or near
combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the
oven, 30cm at back and 20cm at both sides. Do not cover or block any openings on the
appliance. Do not remove feet.
6. Do not operate the oven without a glass tray, roller support, and shaft in their proper
positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or
over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Blocking the intake and/or outlet openings can damage the oven.
10. Remove any protective film found on the microwave cabinet surface. Do not remove the
light brown Mica cover that is attached to the oven cavity to protect the magnetron.
11. Never place the glass tray upside down. The glass tray should never be restricted.
12. Both glass tray and turntable ring assembly must always be used during cooking.
13. All food and containers are always to be placed on the glass tray for cooking.
14. If the glass tray or turntable ring assembly cracks or breaks, contact your nearest
authorized service center.

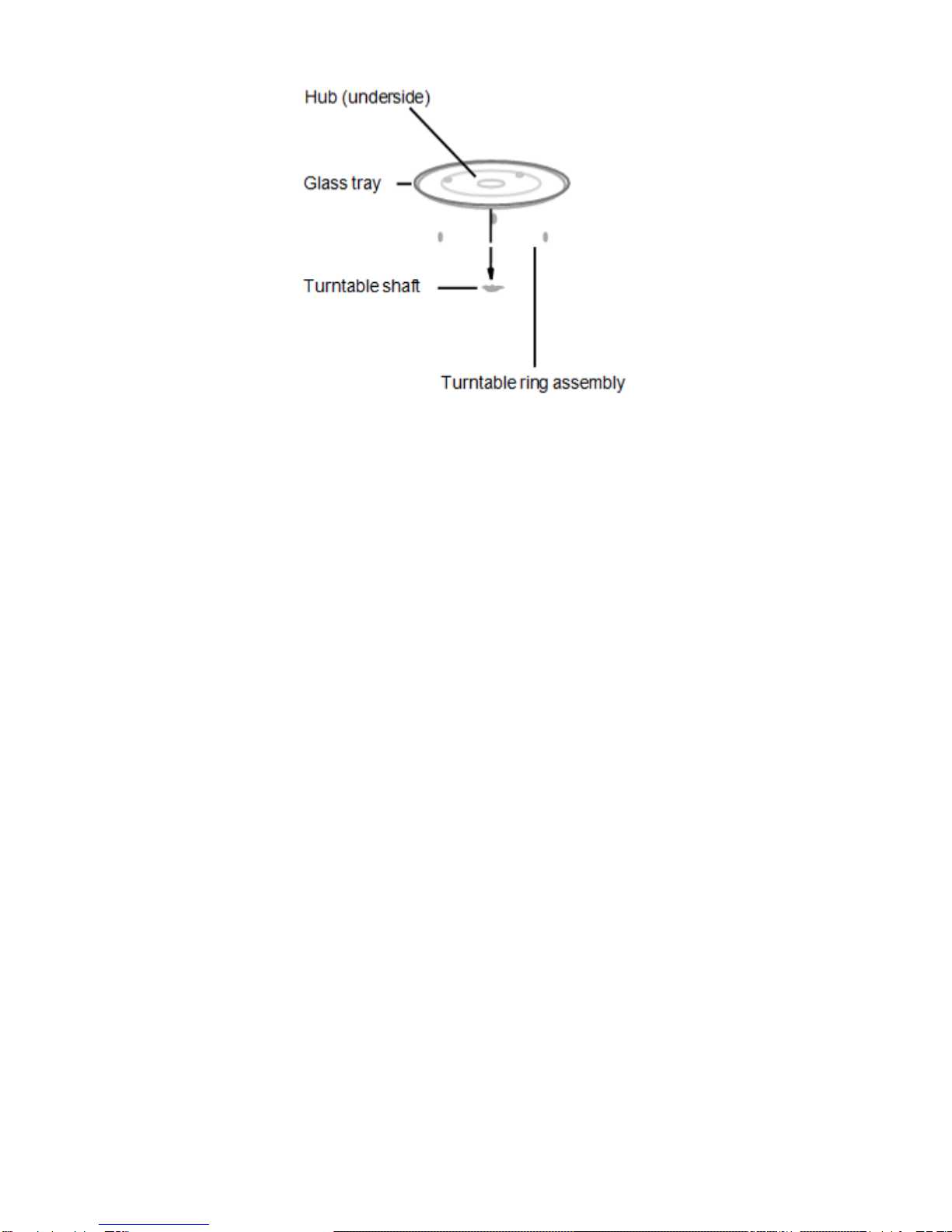

TURNTABLE INSTALLATION

8
RADIO INTERFERENCE
Operation of the microwave oven can cause interference to your radio, TV, or similar
equipment. When there is interference, it may be reduced or eliminated by taking the
following measures:
Clean the door and sealing surface of the oven.
Reposition the receiving antenna of the radio or television.
Relocate the microwave oven with respect to the receiver.
Plug the microwave oven into a different outlet so that microwave oven and receiver are on
different branch circuits.
MICROWAVE COOKING PRINCIPLES
Arrange food carefully. Place thickest areas towards outside of dish.
Watch cooking time. Cook for the shortest amount of time indicated and add more as
needed. Food severely overcooked can smoke or ignite.
Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
Turn foods over once during microwave cooking to speed cooking of such foods as chicken
and hamburgers. Large items like roasts must be turned over at least once.
Rearrange foods such as meatballs halfway through cooking both from top to bottom and
from the center of the dish to the outside.

9
UTENSILS GUIDE
The ideal material for a microwave utensil is material which is transparent. This allows
energy to pass through the container and heat the food.
A microwave cannot penetrate metal, so metal utensils or dishes with metallic trim
should not be used.
Do not use recycled paper products when microwave cooking, as they may contain
small metal fragments which may cause sparks and/or fires.
Round /oval dishes rather than square/oblong ones are recommend, as food in corners
tends to overcook.
The list below is a general guide to help you select the correct utensils:
COOKWARE
MICROWAVE
Heat–Resistant Glass
Yes
Non Heat–Resistant Glass
No
Heat–Resistant Ceramics
Yes
Microwave–Safe Plastic Dish
Yes
Paper Kitchen Towels
Yes
Metal Tray
No
Metal Rack
No
Aluminium Foil & Foil Containers
No
Parchment Paper
Yes
Plastic Wrap
Yes
Wax Paper
Yes
Containers containing metal parts
No
Metal Twist-ties
No
Paper Bags
No
Plastic Foam
No
Wood
No

10

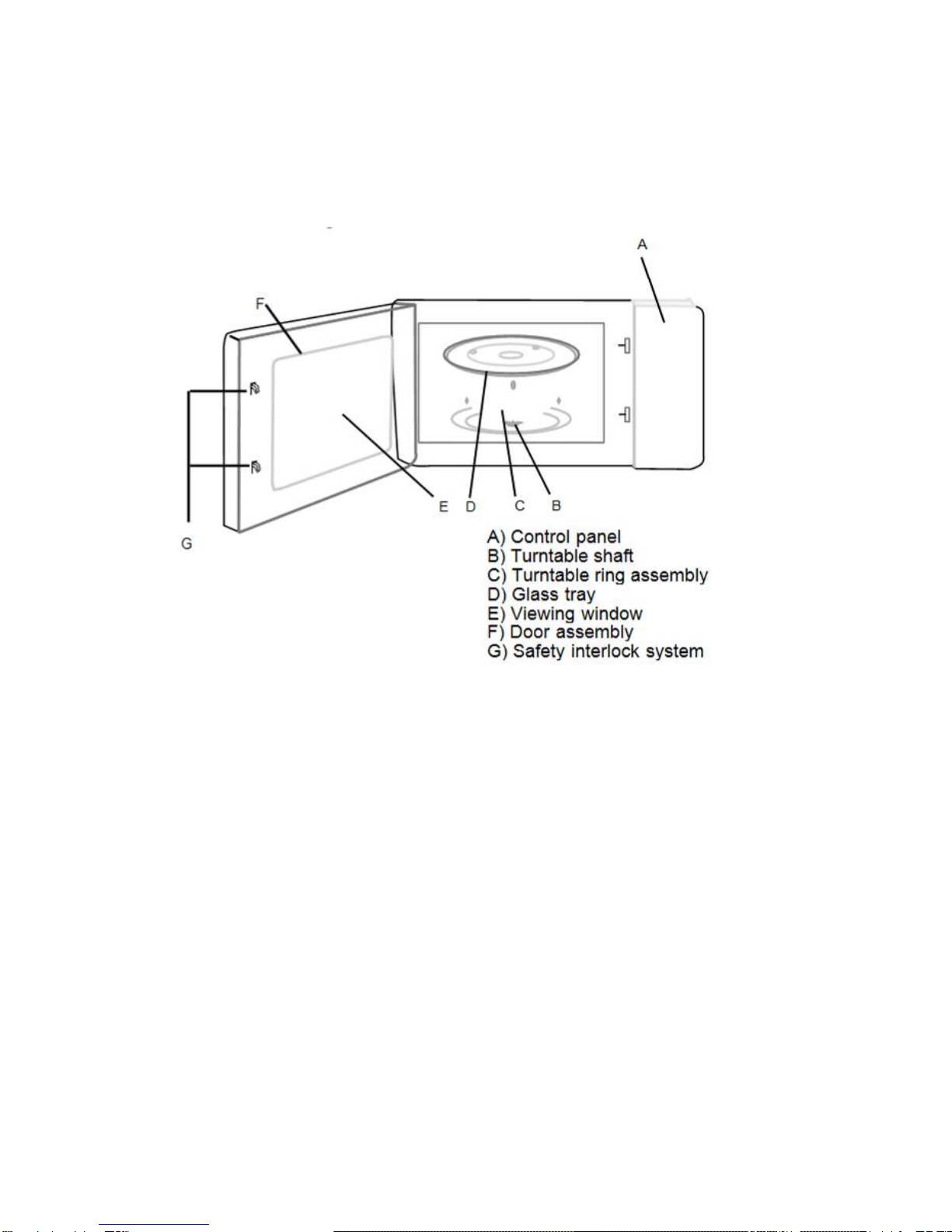

PARTS DIAGRAM

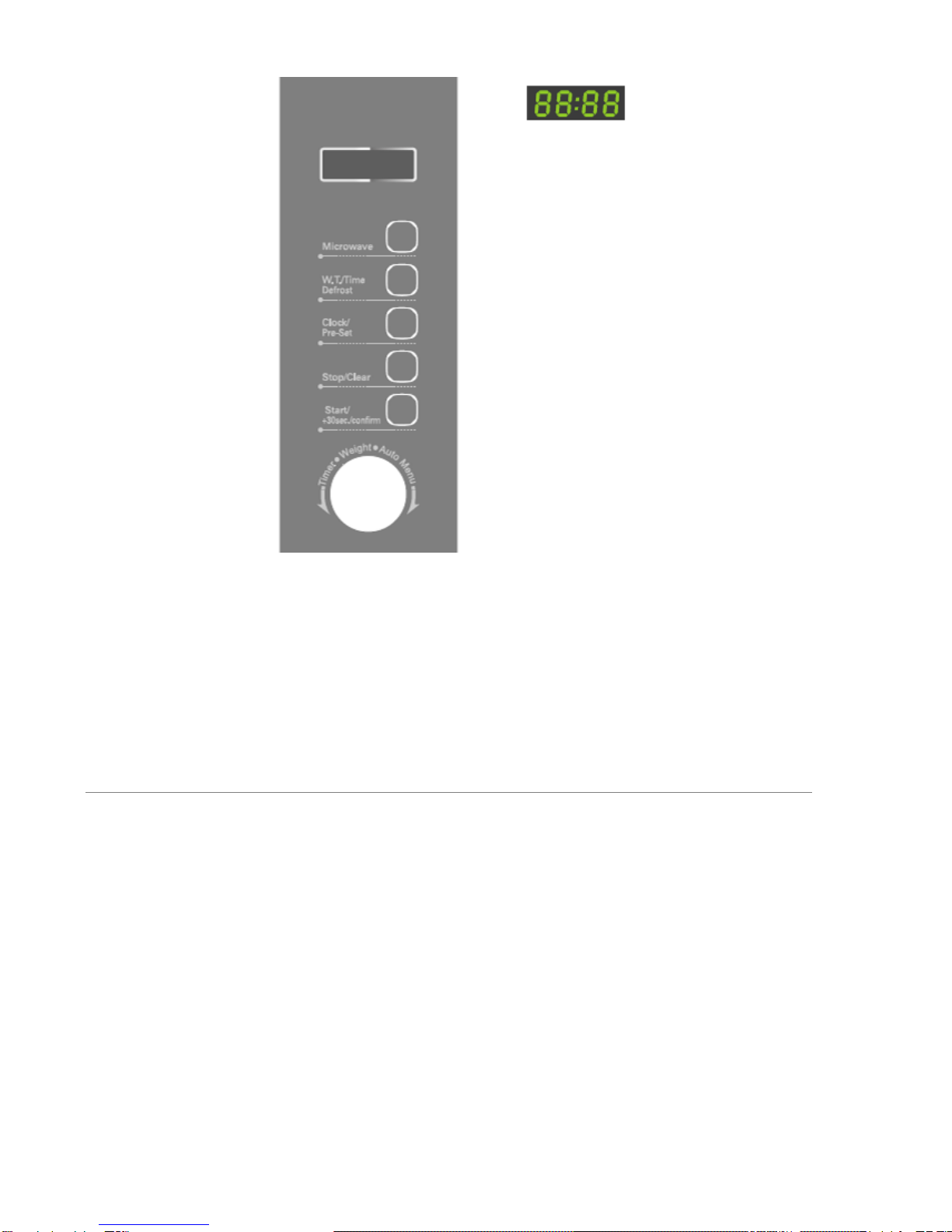

CONTROL PANEL

11
OPERATING INSTRUCTIONS
HOW TO SET THE OVEN CONTROLS
Each time a button is pressed, a beep or alert tone will sound to acknowledge the selection.
SETTING THE DIGITAL CLOCK
With the oven is switched on and ready for input, the LCD display will show ―0:00‖ and the alert
tone will ring once. Press the CLOCK/PRE-SET button once or twice to set the digital clock in
a 24 hour cycle format.
FOR EXAMPLE: Suppose you want to set the clock time to 8:30am.
1. Press CLOCK/PRE-SET and the hour figure will begin to flash
2. Turn the control dial to adjust the hour figure to digit 8. Here the input time should be within
0—23 hours.
3. Press CLOCK/PRE-SET and the minute figure will begin to flash.

12
4. Turn the control dial to adjust the minute figure to digit 30. Here the input time should be
within 0—59 minutes.
5. Press CLOCK/PRE-SET to confirm the clock setting. Now ":" will flash.
Note:
If the clock is not set then it will not show when the microwave is switched on.
During the process of setting the clock, if you press STOP/CLEAR, the oven will revert
to the previous status automatically and clear your clock selection.
MICROWAVE COOKING
The longest cooking time is 95 minutes.
To cook with microwave power alone, press the MICROWAVE button a number of times to
select the desired cooking power level and then use either the START/ +30SEC/ CONFIRM
button to confirm this selection. Now turn the control dial to set a desired cooking time.
Microwave Power Chart:
Microwave Power
Display
100%
P100
80%
P80
50%
P50
30%
P30
10%
P10
For example, suppose you want to cook for 5 minutes at 50% of microwave power.
1. Press the MICROWAVE button once and "P100" will show on the LCD display.
2. Press MICROWAVE three times or turn the control dial to select 50% microwave power.
3. Press either the START/ +30SEC/ CONFIRM button to confirm this selection.
4. Now turn the control dial to adjust the cooking time to 0:05 minutes. (The time setting
should be between 0:05- 95:00.)
5. Press START/ +30SEC/ CONFIRM to start cooking.

13
NOTE: the step quantities for the adjustment time of the coding switch are as follows:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
QUICK START
This feature allows you to start the microwave quickly.
1. In standby mode, press the START/ +30SEC/ CONFIRM button to cook with 100%
microwave power for a 30 second duration. Each time you press on the same button then
the cooking period will increase by 30 seconds. The maximum cooking time is 95 minutes.
2. After choosing the desired period of cooking time, press START/ +30SEC/ CONFIRM to
start cooking.
During the microwave cooking cycle and defrost-by time process, you can press the START/
+30SEC / CONFIRM button to increase the cooking or defrost period of time.
If using an auto menu or defrost-by weight then the cooking or defrost period of time cannot be
increased.
2. Alternatively, you can press START/ +30SEC/ CONFIRM and then turn the control dial to
choose the amount of cooking time desired.
3. Again, after choosing the desired period of cooking time, press START/ +30SEC/
CONFIRM to start cooking.
DEFROST BY-WEIGHT
The time and the defrosting power levels are adjusted automatically once the weight is
programmed in.
FOR EXAMPLE: Suppose you want to defrost food.

14
1. Place food to be defrosted into the microwave.
2. Press the W.T./ TIME DEFROST button once and the screen will display dEF1.
3. Turn the control dial to select the necessary weight of your food. The range is 100-2000g.
4. Now Press START/ +30SEC./ CONFIRM to start defrosting.
DEFROST-BY TIME
The weight and the defrosting power levels are adjusted automatically once the time has been
programmed in.
FOR EXAMPLE: Suppose you want to defrost food.
1. Place food to be defrosted into the microwave.
2. Press the W.T./ TIME DEFROST button twice and the screen will display dEF2.
3. Turn the control dial to select the desired defrost cycle time. The range goes up to 95
minutes.
4. Now Press START/ +30SEC./ CONFIRM to start defrosting.
The following example shows the steps to set up a program multi-stage cooking programme.
Some recipes may require setting a multi-stage program involving defrosting as well as different
microwave power levels.
IN MULTI STAGE COOKING
A maximum of two stages can be set. If one stage is defrosting, it should be inputted in at the
first stage. The alert tone will ring once after each stage and the next stage will begin. Note:
The auto menu cannot be set as a selection of multi-stage cooking.
Example: suppose you want to defrost food for 5 minutes, then cook with 80% microwave
power for 7 minutes. The steps are as follows:
1. Press W.T./ TIME DEFROST twice and the LCD screen will display dEF2.

15
2. Turn the control dial to adjust the defrost cycle time to 5 minutes.
3. Press MICROWAVE once.
4. Now turn the control dial to choose 80% microwave power. P80 will show on the LCD
display.
5. Press START/ +30SEC/ CONFIRM to confirm this selection.
6. Turn the control dial to adjust the cooking cycle time to 7 minutes.
7. Finish your multi-stage selection by pressing the START/ +30SEC/ CONFIRM button to
start cooking.
PRESET (DELAYSTART) FUNCTION
1. Ensure that you have set the digital clock first. (Check ―Setting the Digital Clock‖)
2. Start by inputting the desired cooking program. Remember that two multi-stages can be
selected at most. Note that defrosting should not be set in the preset function.
Example: if you want to cook with 80% microwave power for 7 minutes.
3. Press MICROWAVE once.
4. Turn the control dial to choose 80% microwave power. P80 will show on the display.
5. Press START/ +30SEC/ CONFIRM to confirm this selection.
6. Turn the control dial to adjust the cooking time to 7 minutes.
7. After completion of the above steps, please do not press START/ +30SEC/ CONFIRM
button. Proceed as follows:
Press CLOCK/ PRE-SET and the minute figure will flash on the display.
Turn the control dial to adjust the minute figure. The input time should be within 0—59
minutes.
Now press the CLOCK/ PRE-SET button and the hour figure will flash.
Turn the control dial to adjust the hour figure. Here the input time should be between
0—23 hours.
Press START/ +30SEC/ CONFIRM to finish this setting. ":"will show.
The alert tone will ring twice when the cooking start time arrives and the cooking cycle
will start automatically.
Note: The digital clock must be set first. If it is not set, then the preset (delay start) function will
not work.

16

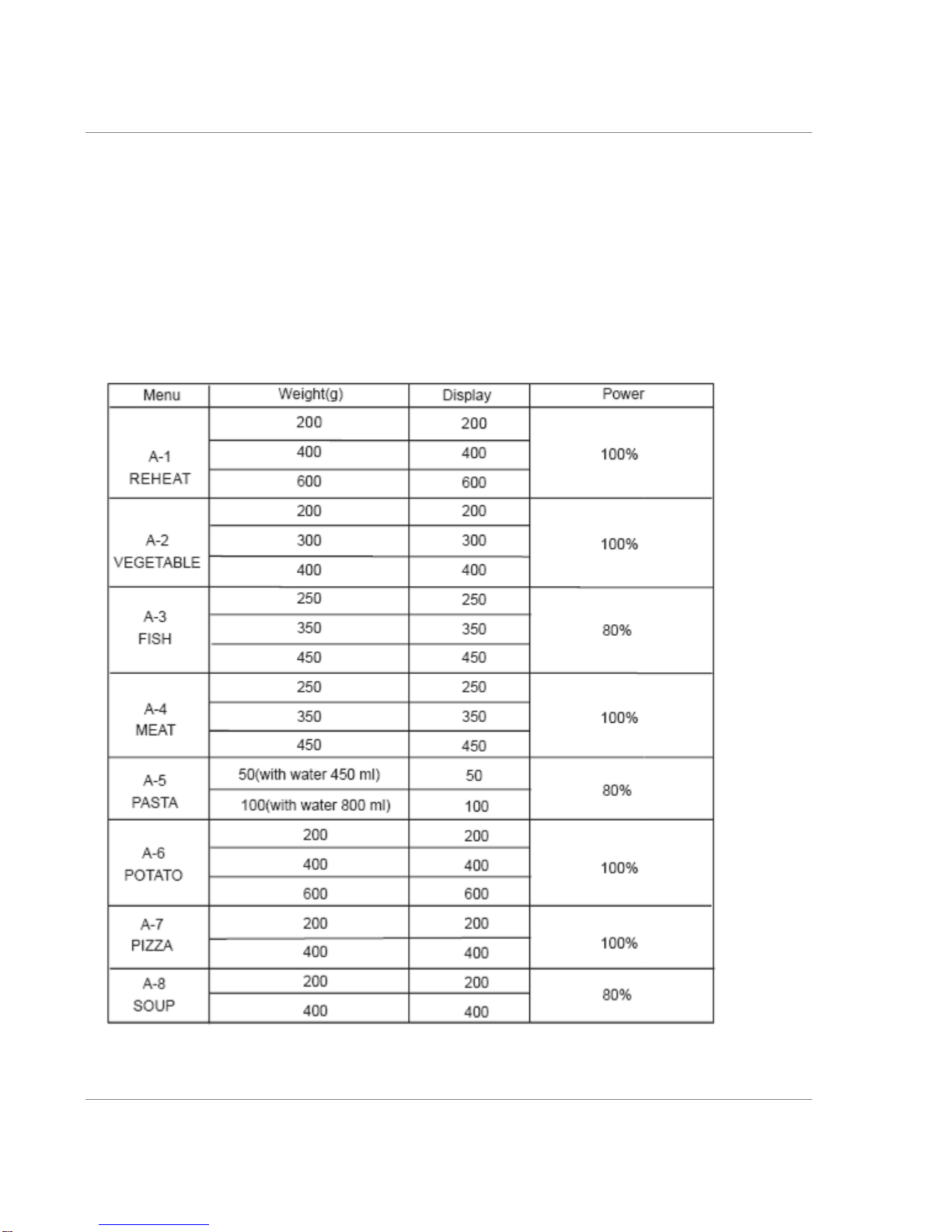

AUTO COOK MENU
1. Whilst in standby mode, turn the control dial right to choose the menu from "A-1" to "A-8".
2. Press START/ +30SEC/ CONFIRM to confirm the menu you have chosen.
3. Now turn the control dial to choose the food weight.
4. Press START/ +30SEC/ CONFIRM to start cooking.
5. After the cooking has finished, an alert tone will sound five times for your convenience.
SMART INFO FUNCTION

17
During the cooking cycle, you can press the MICROWAVE button to observe the cooking
power level. This will be displayed for 2-3 seconds.
During this cycle, press CLOCK/ PRE-SET to check the amount of cooking time. This will
also be displayed for 2-3 seconds.
When in the preset (delayed start) mode, you can press CLOCK/ PRE-SET to enquire the
time for delayed start cooking. The preset time will flash for 2-3 seconds and then the
microwave will return back to the usual clock display.
CHILD LOCK
Use to prevent unsupervised operation of the microwave by children.
To set the CHILD LOCK: Press and hold the STOP/ CLEAR button for 3 seconds. Abeep will
sound indicating that the child lock function has been activated and the display will show the
LOCKED indicator.
To cancel the CHILD LOCK: Press and hold the STOP/ CLEAR button for 3 seconds until the
beep has sounded and the lock indicator on the display goes off.
GETTING TO KNOW YOUR NEW MICROWAVE
A beep or alert tone will sound once when turning the knob at the beginning.
START/ +30SEC/ CONFIRM must be pressed to continue cooking if the door is opened
during the cooking cycle.
If the cooking programme has been set but the START/ +30SEC/ CONFIRM button is
not pressed within 1 minute then the setting will automatically cancel itself out. The
LCD display will revert to the current time.
The beep or alert tone sounds once by pressing on buttons efficiently. Response will
not be received if you are pressing too lightly.
The beep or alert tone will sound five times to remind you when the cooking has
completely.
TROUBLE SHOOTING

18
Normal
Dim oven light
During cooking with low microwave power,
the oven light may become dim. It is
normal.
Steam accumulating on door/ hot air out of
vents
Foods may generate steam during the
cooking process. Most steam will escape
via the vents however some may
accumulate on the oven door. This is
normal.
Trouble
Possible Cause
Remedy
Microwave does not start up
(1) Power cord not
plugged in correctly
Unplug. Then plug in again
after 10 seconds
(2) Fuse blowing or circuit
breaker works
Replace the fuse or reset the
circuit breaker (repaired by
Tedelex Trading (Pty) Ltd.
Service Department)
(3) Trouble with the power
outlet
Test the power outlet with
other electrical appliances
Microwave does not heat
(4) The door is not closed
properly
Close the door well
Glass turntable makes noise
when microwave is in
operation
(5) Dirty roller and cavity
bottom
Refer to ―Cleaning and
Maintenance‖ section of the
instruction manual to clean
dirty or soiled parts.
According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should
be separately collected and treated. If at any time you need to dispose of this product, please
do NOT dispose of this product with household waste. Please send this product to WEEE
collecting points where available.
CLEANING AND MAINTENANCE
This appliance is for household use only and is not user-serviceable.
Do not open or change any parts by yourself. Please refer to a qualified electrical
service department or return to the supplier if servicing is necessary.
Turn off the oven and remove the power plug from the wall socket before cleaning.
Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven
walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty.

19
Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the
door surface.
The outside surfaces should be cleaned with a damp cloth. To prevent damage to the
operating parts inside the oven, water should not be allowed to seep into the ventilation
openings.
Wipe the door and window on both sides as well as the door seals and adjacent parts
frequently with a damp cloth to remove any spills or spatters. Do not use abrasive
cleaner.
Do not allow the control panel to become wet. Clean with a soft, damp cloth. When
cleaning the control panel, leave oven door open to prevent oven from accidentally
turning on.
If steam accumulates inside or around the outside of the oven door, wipe with a soft
cloth. This may occur when the microwave oven is operated under high humidity
condition. And it is normal.
It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm
soapy water or in a dishwasher.
The roller ring and oven floor should be cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be
washed in mild soapy water or dishwasher. When removing the roller ring from cavity
floor for cleaning, be sure to replace in the proper position.
Remove odors from your oven by combining a cup of water with the juice and rind of
one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly
and dry with a soft cloth.
When it becomes necessary to replace the oven light, please consult a dealer to have it
replaced.
The oven should be cleaned regularly and any food deposits removed. Failure to
maintain the oven in a clean condition could lead to deterioration of the surface that
could adversely affect the life of the appliance and possibly result in a hazardous
situation.
Please do not dispose this appliance into the domestic rubbish bin; it should be
disposed to the particular disposal center provided by the municipalities.
Do not use bleach or other abrasive substance or solvents to clean your appliance as it
can be damaging to the finish.

20
STORING THE APPLIANCE
Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure
that all parts are dry before storing.
Store the appliance in its box or in a clean, dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating correctly,
please check the following:
You have followed the instructions correctly
That the unit has been wired correctly and that the wall socket is switched on.
That the mains power supply is ON.
That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the
problem and you need to return the appliance, make sure that:
The unit is packed carefully back into its original packaging.
Proof of purchase is attached.
A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service
agent, in order to avoid any hazard. If service becomes necessary within the warranty period,
the appliance should be returned to an approved Amalgamated Appliance (Pty) Ltd service
centre. Servicing outside the warranty period is still available, but will, however, be chargeable.
CHANGING THE PLUG
