Russell Hobbs RHMI2503B User manual

Model Number:
RHMI2503B
Inverter Digital Microwave
User Guide
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com
PLEASE RETAIN
FOR FUTURE REFERENCE

Page(s)
SAFETY INSTRUCTIONS 3-9
ABOUT YOUR MICROWAVE 10-11
PRODUCT INFORMATION 12
UNPACKING THE MICROWAVE 13
PRODUCT OVERVIEW 14
MICROWAVE OVEN INSTALLATION 15-16
GLASS PLATE INSTALLATION 17-18
CONTROL PANEL 19
HOW TO USE THE MICROWAVE 20-26
COOKING TIPS 27
CLEANING THE MICROWAVE 28
PROBLEM SOLVING 29-32
GUARANTEE & CUSTOMER SERVICES 33
SPARE PARTS 34
CONNECTION TO THE MAINS SUPPLY 35-36
NOTES 37-39
DISPOSAL 40
CONTENTS
2

3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•This appliance is intended to be used in the household
and general domestic applications. It is not intended to
be used in industrial or commercial applications.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervised.
•If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
•It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to microwave energy.
•Liquids and other foods must not be heated in sealed
containers since they are liable to explode.

4
SAFETY INSTRUCTIONS
WARNING:
•A minimum clearance of 7.5cm is required between the
oven and any adjacent walls. Leave a minimum
clearance of 30cm above the oven.
•Use only cookware and utensils that are approved for
use in a microwave oven.
•When heating foodin plastic or paper containers, keep
an eye on the oven due to thepossibility of ignition.
•This microwave is intended for heating food and
beverages only. The drying of food or clothing and
heating of warming pads, wheat bags, slippers, sponges,
damp cloth and similar is extremely dangerous and may
lead to risk of injury, ignition or fire.
•If materials insidethe oven smoke or catch fire, keep the
oven door closed to stifle the flames, turn the oven off
at the wall switch, or shut the power off at the fuse or
circuit-breaker panel. If smoke is emitted , switch off or
unplugtheappliance and keep the door closed in order
to stifle any flames.
•Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

5
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns. Do not
heat baby bottles with the teat left on. Remove it if
replacing the bottle back into the oven.
•Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
•The oven should be cleaned regularly and any food
deposits removed.
•Failure to maintain the oven in a clean condition,
especially if liquid is left under theglass plate, could
lead to deteriorationof thesurface that will adversely
affect thelife of theappliance that may result in a
hazardous condition.
•The microwave oven should be used freestandingonly
and must not be built-in or used in a cabinet
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

6
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•To avoid fire, electric shock, or injury, never immerse the
microwave, cord, or plug in water or liquid.
•Do not use attachments not recommended by the
manufacturer. Only use thermometers approved for use
in microwaves.
•The appliance and its accessible parts may become hot
during use. Care should be taken to avoid touching
heating elements.
•Do not leave the microwave oven unattended while you
are using it.
•Do not use the microwave when it is empty. This could
damage the oven.
•Do not use metal pans, dishes with metal handles or
anything with a metal trim inside the microwave. Do not
use paper covered wire twist-ties on plastic bags.
•Never put objects into the openings on the outer case.
•Food containing a mixture of fat and water (for example,
stock) should stand for 30 to 60 seconds in the oven
after it has been turned off. This is to allow the mixture
to settle and to prevent it from bubbling when a spoon is
placed in it, or a stock cube is added.

7
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•When heating or cooking food or liquid, remember
that there are certain foods (such as, jam, Christmas
pudding, and mincemeat) which heat up very quickly.
•Do not cook any food surrounded by amembrane, such
as egg yolks, potatoes, chicken livers, sausages,
ready meals and so on without piercing them several
times with afork.
•Do not try to deep-fry foods in this microwave oven.
•Do not overcook food.
•Please remember that as food or liquids heat up,
they will release steam or may be spitting. Never cover
any container fully, always leave a gap for steam to
escape.
•Do not use plastic containers when heating or cooking
foods that contain alot of fat or sugar.
•Always have the glass tray and glass plate support in
place when usingthemicrowave oven.
•Do not cook fooddirectly on theglass tray. Put food on
asuitable plate or in a bowl before puttingit in the oven.

8
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Do not use melamine dishes as they contain a
material which will absorbmicrowave energy. This may
cause thedishes to crack or burn, and will slow down
the cookingspeed.
•Do not usethemicrowave oven for heatingutensils,
plates or dishes.
•Do not cook using a container with a restricted
opening, suchas bottles, as they may explode.
•Before you clean your microwave oven, turn it off and
unplug it.
•Keep the inside of the oven clean. When food or
liquids stick to the oven walls, wipe with a damp
cloth. We recommend that you do not use harsh
detergent or abrasives.

9
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•On the right hand wall of the cavity is the wave
guide cover, microwaves are passed through this to
enable your food to cook. It is important that this
wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
•You should clean the outside of the oven with a
damp cloth. Do not allow water to seep into the
ventilation openings.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
•If steam builds up insideor aroundtheoutsideof the
oven door, wipe with asoftcloth. This may happen
when themicrowave oven is usedin humid conditions.
•Regularly remove theglass plate to clean it, wash it
in warm soapy water or a dishwasher. Regularly clean
theglass plate support and oven floor. Simplywipe
the bottom surface of the oven with mild detergent
and water, then dry. You can wash theglass plate
support in mild soapy water.

ABOUT YOUR MICROWAVE
10
Thank you for purchasing your Russell Hobbs microwave oven.
The Russell Hobbs RHMI2503B microwave with Inverter technology
has a sleek and stylish design. Designed with practicality in mind,
this contemporary, 900W microwave is the perfect everyday
microwave, ideal for cooking a variety of meals to perfection with
its inverter technology. Even better, this microwave brings a sleek
look to your kitchen with its mirror door finish, making it a great
addition to your space.
You’ll never have overcooked, dry or unthawed areas of food
thanks to the innovative inverter technology. The special
technology provides constant, even power throughout the cooking
process, yet saves time and energy whilst delivering evenly cooked
or defrosted food. Plus, there are 8 auto cook menus and 10 power
levels for extra precision.
The RHMI2503B comfortably fits a standard size of dinner plate –
up to 12.5” diameter. It comes with a removable and dishwasher
safe glass turn-table for easy cleaning.
Pre-programmed auto cook menus, such as potato, porridge, and
soup, allow you to cook all your favourite foods at the push of a
button. What’s more, there is an automatic defrost setting meaning
all you have to do is input the weight of the food, and the
microwave selects the ideal defrost time, saving you time and
effort.
Additional features include a handy digital clock, auto reheat, pre-
set function, and for added peace of mind, the RHMI2503B
features a child safety lock option, preventing young children from
activating the microwave.

ABOUT YOUR MICROWAVE
How do microwaves work?
Microwaves are high-frequency electromagnetic waves similar to
radio waves. While radio waves may vary in length from one metre
to many kilometres, microwaves are very short (less than 12.5
centimetres.)
Microwaves do not make any heat themselves but cause water
molecules in food to vibrate.
This vibration produces heat that cooks the food. This is why your
food will come out of the microwave piping hot, when your utensils
inside the oven stay much cooler. The microwaves do not stay in the
air or in the food when you open the microwave oven door.
The microwave oven will work using an ordinary household
electrical socket. Inside the microwave oven is the magnetron,
which turns the electrical energy into microwaves.
Microwaves cannot travel through metal, so the inside of the oven
is lined with metal. The door is lined with a fine metal mesh which
stops microwaves getting through. This means that when the
microwave oven door is shut, there is no possibility that
microwaves can be released.
11

12
PRODUCT INFORMATION
Model number RHMI2503B
Rated Voltage 230-240V ~ 50Hz
Rated Output Power (Microwave) 900W
Oven Capacity 25L
Glass plate Diameter 28.8cm
External Dimensions (H x W x D) 29.0 x 49.5 x 39.6 cm
Net Weight; Approx 9.47Kg
Number of Power Levels 10
Accessories Included Glass plate support, Glass
plate, and Wave guide cover.

Before you use your microwave oven
1. Remove all the packaging. Do not remove the large piece of card
from the right hand side of the cavity wall (Refer to the below
image). This is called a wave-guide cover and allows the microwaves
to pass through to cook the food.
Please ensure you keep this cover clean at all times by wiping with
adamp cloth.Do not remove/place in adishwasher.
2. Check the oven after unpacking for any visual damage such as:
●Amisaligned door
●Damage to the door
●Dents or holes in the door window and screen
●Dents in the inside
If you can see any damage do not use the oven, please
contact Customer Service on 0345 209 7461.
This microwave oven weighs approximately 9.47Kg so you must put
it on a horizontal surface that is strong enough to support this
weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
UNPACKING THE MICROWAVE
13

14
PRODUCT OVERVIEW
1. Safety interlock latches
2. Door assembly and window
3. Oven cavity
4. Microwave top
5. Wave guide cover (do not
remove)
6. Screen display
7. Control panel -buttons and
dial
8. Glass plate
9. Galass plate support
12345
6
7
8
9

15
MICROWAVE OVEN INSTALLATION
•Place the oven as far away from radios and televisions as
possible. Using the oven may cause interference with the
reception.

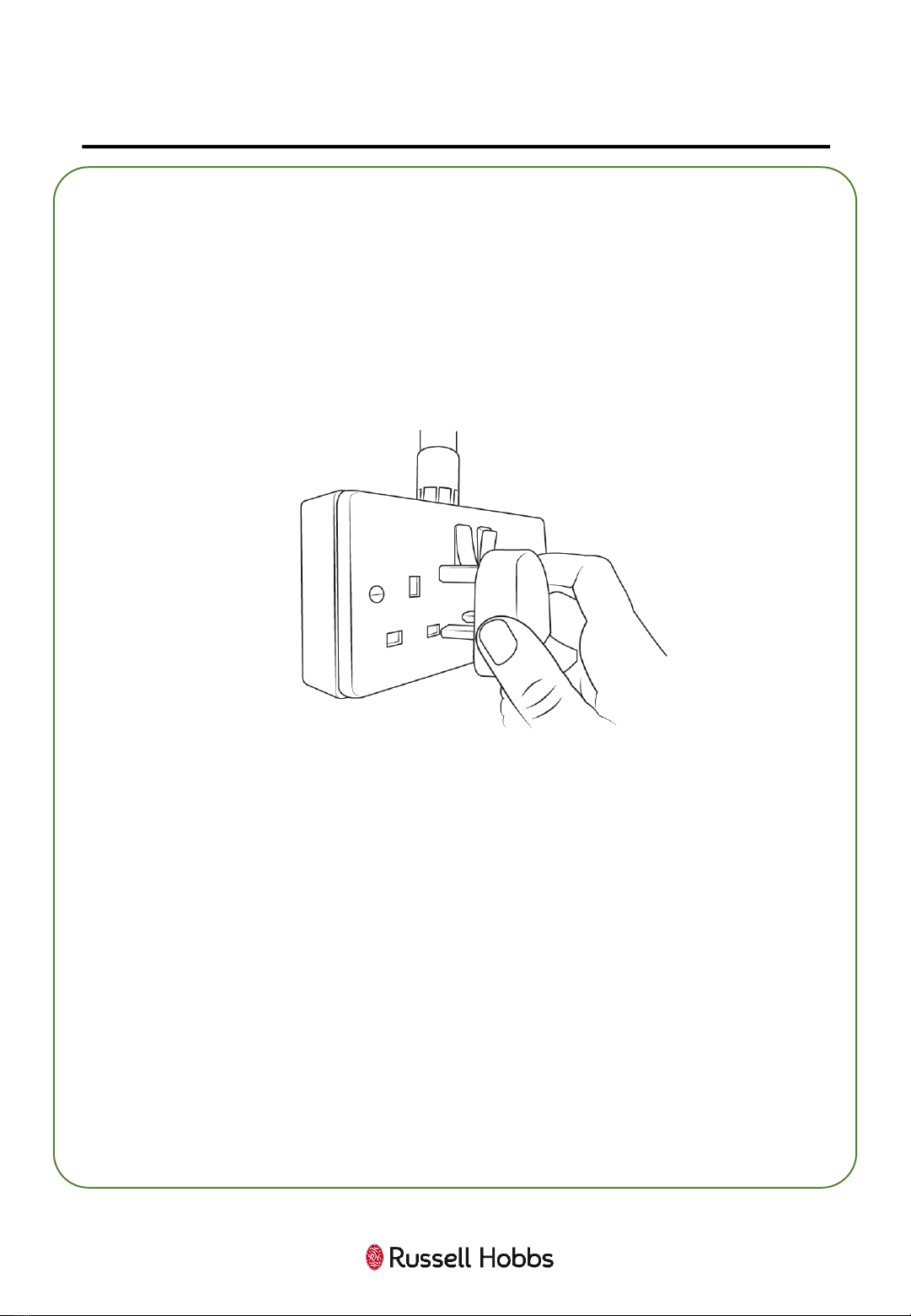

•Plug theoven into a suitable 13 amp mains socket, make
sure the voltage is thesameas on the rating label (donot use
extension cables or mains socket adaptors.)
•The microwave oven should be used freestandingonly and must
not be built-in or used in a cabinet.
•Selecta level surface that provides enough space for theoutlet
vents.

16
MICROWAVE OVEN INSTALLATION
DO NOT obstruct
the ventilation
from themicrowave
Min 85cm
WARNING:
DO NOT install the oven over a cooker or other heat or steam
producing appliance as this will damage the microwave oven.
The minimum installation height is 85cm.
Aminimum clearance of 7.5cm is required between theoven and
any adjacent walls. Leave a minimum clearance of 30cmabovethe
oven.
30cm
7.5cm
7.5cm
7.5cm
This symbol means
“CAUTION: Hot Surface”

17
GLASS PLATE INSTALLATION
•Before first use, check that any securing tape and all packaging
has been removed from the glass tray and glass plate support.
•These parts must never be restricted from rotating.
•Never place theglass tray upside down.
•To assemble the glass plate, since the support is pre-fitted in the
cavity already, place the glass plate on top of the support.

The glass tray and glass plate support must always be used during
cooking(as shown below).
•Do not place the food directly onto the glass tray, always place
on or in suitable microwaveable cookware.
Please check that crockery is microwave safe before using.
•If the glass tray or glass plate support has been damaged in
any way, please contact our Customer Service team on 0345209
7461.
18
GLASS PLATE INSTALLATION

19
CONTROL PANEL
Screen Display
Cooking time, power, action
indicators, and clock time are
displayed.
Power
Press this button anumber of times to
set acooking power level.
Timer
Press this button to use the timer
function.
Weight Defrost
Press this button to use the weight
defrost function.
Time Defrost
Press this button to use the time
defrost function.
Start/+30Sec./Confirm
Press this button to start the cooking
process, quick start and confirm when
programming.
Time/Weight/Auto Menu
Turn to select food you want to cook
from the auto menu, change the
weight/quantity or to select time for
normal microwave power cooking.
Clock
Press this button to set the clock
Stop/Clear
Press to stop the cooking process.
Press and hold for 3 seconds to enable
child lock

20
HOW TO USE THE MICROWAVE
Setting the clock (24 hour)
For example, if you want to set the time to 08:30 (am:)
1. Press the 'Clock'button once.The display will show '0:00’.
2. Turn the 'Time/Weight/Auto Menu'dial clockwise until the hour display
shows '8:'. Press the 'Clock'button to confirm.
3. The display will show '8:00' and the minutes will flash.
4. Set the minutes by turning the 'Time/Weight/Auto Menu'dial clockwise
until the display shows '08:30‘. Press the 'Clock'button to confirm.
The clock is now set and the colon will continue to flash.
Note:
If the clock is not set, the clock will not function when powered.
During the process of clock setting, if you press ‘Stop/Clear’ button, the
oven will go back to the previous status.
Microwave cooking
Once you have correctly installed the unit, turned on the power and set the
clock, you are ready to start cooking.
Your microwave has 10 power levels, the lowest at 10%, then 20%, 30%, 40%,
50%, 60%, 70%, 80%, 90%, up to 100% (or full power.)
Most recipes are cooked on full power –this should be indicated on the
packaging of microwavable food.
1. To select a power level, press the ‘Power’ button.
Microwave Power Chart
100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
P100 P90 P80 P70 P60 P50 P40 P30 P20 P10
