Ryobi RA-NP2325-S User manual

AIRWAVE AIR PINNER
OPERATOR'S MANUAL
ORIGINAL INSTRUCTIONS
RA-NP2325-S
Important! It is essential you read the instructions in this manual before starting and
operating this machine.
6XEMHFWWRWHFKQLFDOPRGL¿FDWLRQV

1. Air inlet cover
2. Air inlet (Nitto style)
3. Air supply
4. Nose
5. No-mar pad
6. Nail length selector
7. Magazine
8. Magazine latch
9. Groove
10. Fasteners
11. Trigger lock
12. Trigger
13. Front plate
14. Bolt
15. Flat blade screwdriver (not included)

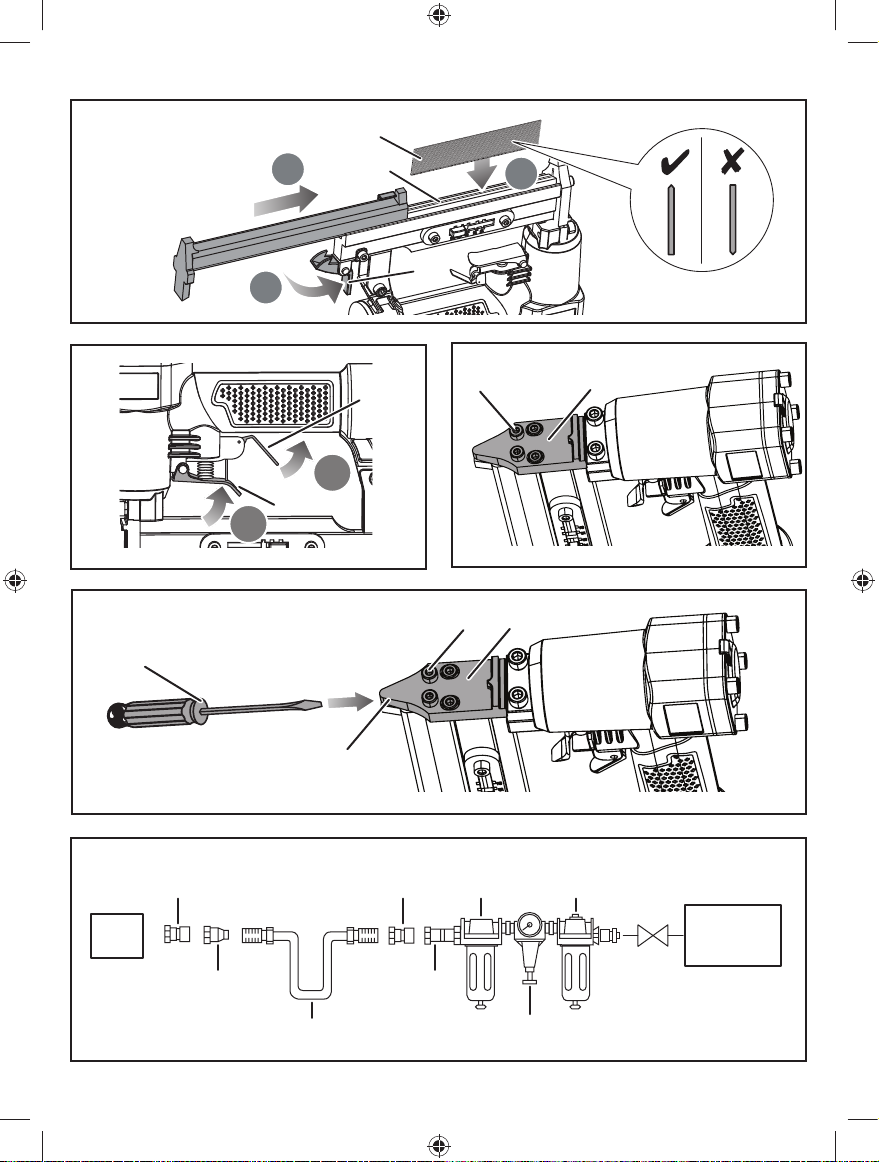

Fig. 1
Fig. 3
Fig. 2
Fig. 4
Fig. 5
1/2 5/8 3/4 1
7/8
12 15 18 22 25
2
2
DESCRIPTION
2
1
3
1
6
7
8
4
5
1
1

12 15 18 22 25
3
8
2
1
9
10
Quick
connector
Quick
connector Lubricator Filter
Cut-off
valve
Regulator
(0-8.5 bar)
Quick
coupler
Tool Air
compressor
Quick
coupler
Air hose
Fig. 6
Fig. 7
Fig. 9
Fig. 8
Fig. 10
4
14
14
13
13
2
1
15
11
12

1
GENERAL SAFETY RULES
ŶFor multiple hazards, read and understand the safety
instructions before installing, operating, repairing,
maintaining, changing accessories on, or working
near, the air tool. Failure to do so can result in serious
bodily injury.
ŶOnly qualified and trained operators should install,
adjust or use the air tool.
ŶDo not modify this air tool. Modifications can reduce
the effectiveness of safety measures and increase the
risks to the operator.
ŶDo not discard the safety instructions; give them to the
operator.
ŶDo not use the air tool if it has been damaged.
ŶTools shall be inspected periodically to verify that the
ratings and markings required by this part of EN 792-
13 are legibly marked on the tool. The employer/user
shall contact the manufacturer to obtain replacement
marking labels when necessary.
PROJECTILE HAZARDS
ŶBe aware that the failure of the work piece, or
accessories, or even of the fastener driving tool itself,
can generate high-velocity projectiles.
ŶAlways wear impact-resistant eye protection during
the operation of the air tool. The grade of protection
required should be assessed for each use.
ŶEnsure that the work piece is securely fixed.
ENTANGLEMENT HAZARDS
Choking, scalping and/or lacerations can occur if loose
clothing, personal jewellery, neck wear, hair or gloves are
not kept away from the tool and accessories.
OPERATING HAZARDS
ŶOperators and maintenance personnel shall be
physically able to handle the bulk, weight and power
of the tool.
ŶHold the tool correctly; be ready to counteract normal
or sudden movements and have both hands available.
ŶMaintain a balanced body position and secure footing.
ŶRelease the start-and-stop device in the case of an
interruption of the compressed air supply.
ŶUse only lubricants recommended by the manufacturer.
ŶPersonal protective safety glasses shall be used; suitable
gloves and protective clothing are recommended.
REPETITIVE MOTIONS HAZARDS
ŶWhen using an air tool to perform work-related
activities, the operator can experience discomfort in
the hands, arms, shoulders, neck or other parts of the
body.
ŶWhile using an air tool, the operator should adopt a
comfortable posture while maintaining a secure footing
and avoiding awkward or off-balanced postures. The
operator should change posture during extended
tasks, which can help avoid discomfort and fatigue.
ŶIf the operator experiences symptoms, such as
persistent or recurring discomfort, pain, throbbing,
aching, tingling, numbness, burning sensations or
stiffness, these warning signs should not be ignored.
The operator should tell the employer and consult a
qualified health professional.
ACCESSORY HAZARDS
ŶDisconnect the air tool from the compressed air line
before fitting or changing the fasteners or accessory.
ŶUse only sizes and types of accessories and
consumables that are recommended by the air tool
manufacturer; do not use other types or sizes of
accessories and consumables.
WORKPLACE HAZARDS
ŶSlips, trips and falls are major causes of workplace
injury. Be aware of slippery surfaces caused by the
use of the tool and also of trip hazards caused by the
air line.
ŶProceed with care in unfamiliar surroundings. There
can be hidden hazards, such as electricity or other
utility lines.
ŶThe air tool is not intended for use in potentially
explosive atmospheres and is not insulated against
coming into contact with electric power.
ŶEnsure that there are no electrical cables, gas pipes,
etc., that can cause a hazard if damaged by use of
the tool.
NOISE EMISSION
The characteristic noise values for the fastener driving tool
have been determined in accordance with EN12549:1999
and EN ISO4871 "Acoustics-Noise test code for fastener
GULYLQJWRROV(QJLQHHULQJPHWKRGVHH6SHFL¿FDWLRQV
These values are tool-related characteristic values and do
not represent the noise development at the point of use.
Noise development at the point of use will for example
depend on the working environment, the work piece, the
work piece support, the number of driving operations, etc.
Depending in the conditions at the workplace and the form
of the workplace, individual noise attenuation measures
may need to be carried out, such as placing work pieces
on sound-damping supports, preventing work piece
vibration by means of clamping or covering, adjusting
to the minimum air pressure required for the operation
involved, etc.
In special cases it is necessary to wear hearing protection
equipment.

2
INFORMATION ON MECHANICALIMPACT(VIBRATION)
The characteristic vibration values for the fastener driving
tool have been determined in accordance with ISO 8662-
11:1999 and EN 12096 – Measurement of vibration in
hand-held power tools – Part 11: Fastener driving tools
VHH6SHFL¿FDWLRQV
This value is a tool-related characteristic value and does
QRWUHSUHVHQWWKHLQÀXHQFHWRWKHKDQGDUPV\VWHPZKHQ
XVLQJWKHWRRO$QLQÀXHQFHWRWKHKDQGDUPV\VWHPZKHQ
using the tool will for example depend on the gripping
force, the contact pressure force, the working direction,
the adjustment of compressed air supply, the workplace
and the work piece support.
ADDITIONAL SAFETY INSTRUCTIONS FOR
PNEUMATIC POWER TOOLS
ŶAir under pressure can cause severe injury.
ŶAlways shut off air supply, drain hose of air pressure
and disconnect tool from air supply whenever not in
use, before changing accessories or where making
repairs.
ŶNever direct air at yourself or anyone else.
ŶWhipping hoses can cause severe injury. Always
check for damaged or loose hoses and fittings.
ŶCold air should be directed away from the hands.
ŶWhenever universal twist couplings (claw couplings)
are used, lock pins shall be installed and whip check
safety cables shall be used to safeguard against
possible hose-to-tool and hose-to-hose connection
failure.
ŶDo not exceed the maximum air pressure stated on
the tool.
ŶNever carry an air tool by the hose.
ŶOnly fasteners listed in the specifications may be used
in the fastener driving tool. The fastener driving tool
and the fasteners specified in the specifications are to
be considered as one unit safety system.
ŶQuick action couplings shall be used for connection
to the compressed air system and the non-sealable
nipple must be fitted at the tool in such a way that no
compressed air remains in the tool after disconnection.
ŶOxygen or combustible gases shall not be used as an
energy source for compressed air operated fastener
driving tools.
ŶFastener driving tools shall only be connected to an
air supply where the maximum allowable pressure of
the tool cannot be exceeded by more than 10%; in the
case of higher pressure ,a pressure reducing valve
which includes a downstream safety valve shall be
built into the compressed air supply.
ŶOnly the main energy and the lubricants listed in
the operating instructions may be used for the
maintenance of fastener driving tools. Only spare
parts specified by the manufacturer or his authorised
representative shall be used.
ŶRepairs shall be carried out only by the manufacturer's
authorized agents or by other experts, having due
regard to the information given in the operating
instructions.
ŶStands for mounting the fastener driving tools to a
support, for example to a work table, shall be designed
and constructed by the stand manufacturer in such
a way that the fastener driving tools can be safely
fixed for the intended use, thus for example avoiding
damage, distortion and displacement.
ŶCheck prior to each operation that the safety and
triggering mechanism is functioning properly and that
all nuts and bolts are right.
ŶDo not carry out any alterations to the fastener driving
tool.
ŶDo not disassemble or make inoperative any parts of
the fastener driving tool such as the dual actuation
trigger system.
ŶDo not perform any “emergency repairs” without
proper tools and equipment.
ŶThe fastener driving tool should be serviced properly
and at regular intervals in accordance with the
manufacturer’s instructions.
ŶAvoid weakening or damaging the tool, for example
by:
– punching or engraving;
– modification not authorized by the manufacturer;
– guiding against templates made of hard material
such as steel;
– dropping or pushing across the floor;
– using the tool as a hammer;
– applying excessive force of any kind.
ŶNever point any fastener driving tool at yourself or at
any other person or animal.
ŶHold the fastener driving tool during the work operation
in such a way that no injuries can be caused to the
head or to the body in the event of possible recoil
consequent upon a disruption in the compressed air
supply or hard areas within the workplace.
ŶNever actuate the fastener driving tool into free space.
This will avoid any hazard caused by free flying
fasteners and excessive strain of the tool.
ŶThe tool shall be disconnected from the compressed
air system for the purpose of transportation, especially
where ladders are used or where an unusual physical
posture is adopted whilst moving .
ŶCarry the fastener driving tool at the workplace using
only the handle, and never with the trigger actuated.
ŶTake conditions at the workplace into account.
Fasteners can penetrate thin work pieces or slip off
corners and edges of workplaces, and thus put people
at risk.
ŶFor personal safety, use protective equipment such as
hearing and eye protection.

3
ŶFastener driving tools are operated by actuating the
trigger using finger pressure.
In addition, fastener driving tool is fitted with a safety
yoke which enables the driving operation to be carried
out only after the nose of the tool is pressed against a
work piece. These tools are marked with an inverted
triangle behind the serial number and are not
permitted for use without an effective safety yoke. A
safety yoke is not required on fastener driving tools
which accelerate the heaviest usable fasteners to a
free flight velocity below an admissible risk of injury.
Those fastener driving tools are not marked with an
inverted triangle.
SAFETY INSTRUCTIONS FOR COMPRESSED AIR
SYSTEM
ŶProper functioning of the fastener driving tool requires
filtered, dry and lubricated compressed air in adequate
quantities.
ŶIf the air pressure in the line system exceeds the
maximum allowable pressure of the fastener driving
tool, a pressure reducing valve followed by a
downstream safety valve shall additionally be fitted in
the supply line to the tool.
ŶThe compressor plant shall be adequately
dimensioned in terms of pressure output and
performance (volumetric flow) for the consumption
which is to be expected. Line sections which are too
small in relation to the length of the line (pipes and
hoses), as well as overloading the compressor, will
result in pressure drops.
ŶPermanently laid compressed air pipelines should
have an internal diameter of at least 19 mm and a
corresponding large diameter where relatively long
pipelines or multiple users are involved.
ŶCompressed air pipelines should be laid so as to
form a gradient (highest point in the direction to the
compressor). Easily accessible water separators
should be installed at the lowest points.
ŶJunctions for users should be joined to the pipelines
from above,
ŶConnecting points for fastener driving tools should be
fitted with a compressed air servicing unit (filter/water
separator/oiler) directly at the junction point.
RESIDUAL RISKS
Even if you are operating this product in accordance
with all the safety requirements, potential risks of injury
and damage remain. The following dangers can arise in
connection with the structure and design of this product:
1. Health defects resulting from vibration and noise
emission if the product is being used over long periods
of time or not adequately managed and properly
maintained.
2. Injuries and damage to property due to fasteners or
the sudden impact of hidden objects during use.
3. Danger of injury and property damage caused by
À\LQJREMHFWV
SYMBOLS
Safety alert
CE conformity
Please read the instructions carefully before
starting the product.
Wear eye protection.
Wear ear protection.
Lubricate with air tool oil daily.
Keep hands away
SPECIFICATIONS
FASTENER
Nail type
Headless pins
(23 Gauge)
Nail range:
12 - 25 mm
Collation angle: 0°
TOOL
Magazine capacity 130 nails
Air inlet size 6.35 mm (1/4”)
Air hose size 9.52 mm (3/8”)
Air consumption 0.35 L/cycle at 6.9 bar (100 psi)
Working pressure
range 4.8 - 8.3 bar (70 - 120 psi)
Exhaust Non- adjustable

4
Tool weight
(no nails)
0.99 kg
NOISE AND VIBRATION
Noise according to EN 12549:1999 and EN ISO 4871
A-weighted sound
pressure level LPA=76.9 dB(A), KPA=2.5 dB
Sound power level LWA=87.9 dB(A), KWA=2.5 dB
A-weighted sound
pressure level(at
working station)
LPA=81.6 dB(A), KPA=2.5 dB
C-weighted sound
pressure level
LPC,peak=117.5 dB(A),
KPC,peak=2.5 dB
Vibration according to ISO 8662-11:1999
Vibration in the
handle
ah,W=24.5 m/s2,
K=1.5 m/s2
INTENDED USE
The tool can be used for the purposes listed below:
ŶFurniture assembly
ŶUpholstery
ŶCabinetry
ŶDecorative mouldings
ŶBedding assembly
ŶPicture framing
ŶBeading
AIR SUPPLY AND OPERATION
ŶEnsure air valve (or trigger) is in the “off” position
before connecting to the air supply.
ŶRequired air pressure range of 4.8 - 8.3 bar (70 - 120
psi), and an airflow according to specifications.
ŶDisconnect the product from the compressed air supply
before changing accessories or making adjustments.
ŶConnect the product to the air hose.
ŶSqueeze the trigger to drive a fastener.
ŶDo not use any additional force upon the product.
WARNING
Ensure the air supply is clean and does not exceed
8.3 bar (120 psi) while operating the product. Too
high an air pressure and unclean air will shorten the
product's life due to excessive wear, and may be
dangerous causing damage and/or personal injury.
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
ŶCarefully remove the tool and any accessories from
the box. Make sure that all items listed in the packing
list are included.
WARNING
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
could result in serious personal injury.
ŶInspect the tool carefully to make sure no breakage or
damage occurred during shipping.
ŶDo not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
Packing list
– Pinner
– Wrench kit
– Air tool oil
– Canvas bag
– Headless pins 20 mm x 500
– Operator’s manual
WARNING
If any parts are damaged or missing do not operate
this tool until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
DOWHUDWLRQ RU PRGL¿FDWLRQ LV PLVXVH DQG FRXOG UHVXOW
in a hazardous condition leading to possible serious
personal injury.
OPERATION
WARNING
Do not use oxygen, combustible gases or bottled gases
as a power source for this tool. The tool will explode and
cause death or serious injury.

5
WARNING
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
VXI¿FLHQWWRLQÀLFWVHYHUHLQMXU\
WARNING
Always wear safety goggles or safety glasses with side
shields when operating tools. Failure to do so could
result in objects being thrown into your eyes resulting
in possible serious injury.
WARNING
Disconnect the tool from the air supply before leaving
the work area, moving the tool to another location, or
handing the tool to another person. Failure to do so
could result in serious personal injury.
WARNING
Always wear eye protection. Eye protection does
QRW ¿W DOO RSHUDWRUV LQ WKH VDPH ZD\ 0DNH VXUH WKH
eye protection chosen has side shields or provides
SURWHFWLRQ IURP À\LQJ GHEULV ERWK IURP WKH IURQW DQG
sides.
PREPARING THE TOOL FOR USE
WARNING
Please read and observe these operating instructions
before using the tool. Basic safety measures should
always be strictly followed to protect against damage to
the equipment and personal injury to the user or other
people working in the vicinity of operation.
Under normal use conditions, the tool should be lubricated
with air tool oil before connecting the tool to an air supply.
$GG DLU WRRO OXEULFDQW LQWR WKH DLU ¿WWLQJ RQ WKH WRRO RQFH
daily with minimal use, or twice a day with heavy use. Only
a few drops of oil at a time is necessary. Too much oil will
only collect inside the tool and will be noticeable in the
exhaust cycle.
Before connecting the tool, check the air compressor
gauge to be sure it is functioning within the proper range
of 4.8 - 8.3 bar (70 - 120 psi).
CONNECTING THE TOOL TO AN AIR SUPPLY
6HH¿JXUH
WARNING
Ensure that the pressure supplied by the compressed
air system does not exceed the maximum allowable
pressure of the fastener driving tool. Set the air
pressure initially to the lower value of the recommended
DOORZDEOHSUHVVXUHVHH6SHFL¿FDWLRQV
WARNING
Empty the magazine to prevent a fastener from being
ejected at the next stage of work in the event that
internal parts of the fastener driving tool are not in the
starting position following maintenance and repair work
or transportation.
WARNING
Connect the fastener driving tool to the compressed
air supply using suitable pressure hose equipped with
quick-action connectors.
WARNING
Check for proper functioning by applying the nose of
the fastener driving tool to a piece of wood or wooden
material and actuating the trigger once or twice.
This tool is designed to operate on clean, dry compressed
air at regulated pressures between 4.8 - 8.3 bar (70 - 120
psi). The correct air pressure is the lowest pressure that
will do the job.
NOTE: Air pressure that is higher than 8.3 bar (120 psi)
may damage the tool.
The tool and air hose must have a hose coupling that
allows all pressure to be removed from the tool when the
coupling is disconnected.
WARNING
Always use a coupling that discharges all the
FRPSUHVVHG DLU LQ WKH WRRO DW WKH WLPH WKH ¿WWLQJ RU
hose coupling is disconnected. Using a coupling that
does not discharge the compressed air could cause
unintended operation and serious personal injury.
WARNING
Do not climb rigging or scaffolding while carrying a tool
that is connected to an air hose. Doing so could result
in serious personal injury.

6
WARNING
The tool is capable of driving a fastener without making
contact with a workpiece. Always point the tool away
from yourself or others and always direct the fastener
toward the work surface before pulling the trigger.
Failure to do so could result in possible serious
personal injury.
Connect the tool to the air supply with a 1/4 in. female
quick connector. For maximum tool performance, a 3/8 in.
VXSSO\OLQHDQG¿WWLQJVDUHUHTXLUHG
NO-MAR PAD
6HH¿JXUH
The no-mar pad attached to the nose of the product helps
prevent marring and denting when working with softer
woods.
WARNING
Disconnect the product from the air supply before
removing or replacing the no-mar pad. Failure to do so
could result in serious personal injury.
The pad can be removed by pulling it down and away from
WKHQRVH7RUHSODFHWKHSDG¿WLWLQWRSODFHRYHUWKHQRVH
LOADING THE TOOL WITH FASTENERS
6HH¿JXUH
WARNING
Keep the tool pointed away from yourself and others
when loading fasteners. Failure to do so could result in
possible serious personal injury.
WARNING
2QO\ WKRVH IDVWHQHUV VSHFL¿HG XQGHU 6SHFL¿FDWLRQV
PD\EHXVHG:KHQ¿OOLQJWKHPDJD]LQHKROGWKHWRRO
so that the nose is not pointing towards the operator or
any other person or animals.
WARNING
The tool’s driving mechanism may cycle when the tool
LV¿UVWFRQQHFWHGWRWKHDLUVXSSO\$OZD\VFRQQHFWWKH
tool to a pressurized air supply before loading fasteners
to prevent injury from unintended cycling. Always make
sure the tool’s magazine is empty at the beginning of
each work session, before connecting to an air supply.
1. Connect the tool to the air supply.
2. Release the magazine latch and slide open the
magazine.
3. With the nose of the tool pointed away from you, feed
a strip of fasteners into the magazine. Be sure the
fasteners are pointed downward.
4. Close the magazine.
WARNING
Use only the fasteners recommended for use with this
tool. The use of any other fasteners can result in tool
malfunction, leading to serious injuries.
WARNING
Never load fasteners with the trigger activated. Doing
so could result in possible serious personal injury.
WARNING
Do not use fasteners with width smaller than that stated
LQ6SHFL¿FDWLRQV'RLQJVRPD\FDXVHIDVWHQHUVWRH[LW
the tool prematurely through the guide track. Do not use
hardened fasteners with pneumatic tools. This could
lead to excessive wear of the guide body and allow
fasteners to exit the back of the guide body, leading to
serious personal injury.
DRIVING A FASTENER
6HH¿JXUH
WARNING
Do not pull the dual actuation trigger system unless the
nose is pressed against the work surface. Accidental
actuation will occur and could cause serious personal
injury.
Avoid triggering the fastener driving tool if the magazine
is empty.
Any defective or improperly functioning fastener driving tool
must immediately be disconnected from the compressed
air supply and passed to a specialist for inspection.
In the event of longer breaks in work or at the end of the
working shift, disconnect the tool from the compressed air
supply and it is recommended to empty the magazine.
The compressed air connectors of the fastener driving tool
and the hoses should be protected against contamination,
the ingress of coarse dust chips, sand, etc, will result in
leaks and damage to the fastener driving tool and the
couplings.
Single sequential actuation mode
The tool employs single sequential actuation mode.
1. Connect the tool to the air supply.
2. Load the tool with fasteners.
3. *ULSWKHWRRO¿UPO\WRPDLQWDLQFRQWURO3UHVVWKHnose

7
of the tool against the work surface.
4. Pull the trigger lock and then squeeze the trigger to
drive a fastener.
5. Allow the tool to recoil away from the work surface as
the fastener is driven.
6. $OZD\V UHPRYH \RXU ¿QJHU IURP WKH WULJJHU DIWHU WKH
fastener has been driven.
WARNING
During normal use the tool will recoil immediately
after driving a fastener. This is a normal function of
the tool. Do not attempt to prevent the recoil by holding
the tool against the work. Restriction to the recoil can
result in a second fastener being driven from the tool.
*ULSWKHKDQGOH¿UPO\OHWWKHWRROGRWKHZRUNDQGGR
not place second hand on top of tool or near exhaust
at any time. Failure to heed this warning can result in
serious personal injury.
SETTING THE AIR PRESSURE
Having checked that the fastener driving tool is functioning
correctly, apply the tool to a work piece and actuate the
trigger.
Check whether the fastener has been driven into the work
piece in accordance with the requirements.
ƔIf the fastener is protruding, increase the air
pressure in increments of 0.5 bar, checking the
result after each new adjustment;
ƔIf the fastener is driven into an excessive depth,
reduce the air pressure in increments of 0.5 bar
until the result is satisfactory.
Work with the lowest possible air pressure. This will give
\RXWKUHHVLJQL¿FDQWDGYDQWDJHV
1. Energy will be saved,
2. Less noise will be produced,
3. A reduction in fastener driving tool wear will be
achieved.
The amount of air pressure required will depend on the
size of the fastener and the workpiece material.
Begin testing the depth of drive by driving a test fastener
into the same type of workpiece material used for the
actual job.
Drive a test fastener with the air pressure set at 6.2 - 6.5
EDU SVL5DLVHRU ORZHU WKHDLUSUHVVXUH WR ¿QG
the lowest setting that will perform the job with consistent
results.
It may be possible to achieve the desired depth with air
pressure adjustments alone.
DRIVE DEPTH ADJUSTMENT
6HH¿JXUH
The tool is factory-set to its maximum depth. The driving
depth of the fastener may be adjusted to a more shallow
depth. It is advisable to test the depth on a scrap workpiece
to determine the required depth for the application.
7RGHWHUPLQHGHSWKRI GULYH ¿UVWDGMXVWWKHDLU SUHVVXUH
and drive a test fastener.
7R¿QHDGMXVWWRDVKDOORZHUGHSWKRIGULYH
1. Disconnect the tool from the air supply.
2. Using a 3 mm hex key, loosen the two bolts on the
front plate. Do not remove the bolts.
3. Slide the front plate toward the nose slightly.
Adjustment is accomplished with very little movement
of the front plate.
4. The plate should be positioned so that it cannot slip
over the bolts.
5. Tighten the bolts securely with the hex key.
6. Reconnect the tool to the air supply.
7. Drive a test fastener after each adjustment until the
desired depth is set.
REMOVING FASTENERS FROM THE TOOL
1. Disconnect the tool from the air supply.
WARNING
Disconnect the tool from the air supply and empty the
magazine before performing maintenance. Failure to do
so could result in serious personal injury.
2. To remove a strip of fasteners from the tool, release
the magazine latch and slide open the magazine.
3. Remove the fasteners from the magazine.
NOTE: $OZD\V NHHS ¿QJHUV FOHDU RI IDVWHQHU WUDFN RI
magazine to prevent injury from unintended release of the
pusher.
4. Close the magazine.
CLEARING A JAMMED FASTENER
6HH¿JXUH
WARNING
Disconnect the tool from the air supply and empty the
magazine before clearing a jammed fastener. Failure to
do so could result in serious personal injury.
If a fastener becomes jammed in the tool, disconnect the
air hose and keep the tool pointed away from you while
clearing the jam.
1. Disconnect the tool from the air supply.
2. Remove fasteners from the tool.
3. Using a 3 mm hex wrench, remove the two bolts and
front plate.
4. If the driver blade prevents removal of bent fasteners
RU IUDJPHQWV XVH D VPDOO ÀDWEODGH VFUHZGULYHU WR
gently tap the driver blade backwards past the jammed
fastener.
5. Remove the jammed fastener and make sure the nail
track is free of bent fasteners or fragments.

8
6. Reinstall the front plate and bolts, making sure they
are secure.
7. Reconnect the tool to the air supply.
8. Reload the tool with fasteners.
MAINTENANCE
WARNING
When servicing use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING
Always wear eye protection with side shields marked to
comply with one of the following standards:
ƔAustralian Standard – AS/NZS 1337
ƔEuropean Standard – CE EN166
ƔAmerican Standard – ANSI Z87.1
Failure to do so could result in objects being thrown into
your eyes resulting in possible serious injury.
WARNING
Disconnect the tool from the air supply and empty the
magazine before performing maintenance. Failure to do
so could result in serious personal injury.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
COLD WEATHER OPERATION
For cold weather operation, near and below freezing,
the moisture in the air line may freeze and prevent tool
operation. We recommend the use of air tool lubricant or
permanent antifreeze (ethylene glycol) as a cold weather
lubricant.
WARNING
Do not store tools in a cold weather environment to
prevent frost or ice formation on the tools’ operating
valves and mechanisms that could cause tool failure.
NOTE: Some commercial air line drying liquids are harmful
to “O” rings and seals. Do not use these low temperature
air dryers without checking compatibility.
AIR SUPPLY PRESSURE AND VOLUME
Air volume is as important as air pressure. The air volume
supplied to the tool may be inadequate because of
XQGHUVL]H¿WWLQJVDQGKRVHVRUIURPWKHHIIHFWVRIGLUWDQG
ZDWHULQWKHV\VWHP5HVWULFWHGDLUÀRZZLOOSUHYHQWWKHWRRO
from receiving an adequate volume of air, even though
the pressure reading is high. The results will be a slow
operation or reduced driving power. Before evaluating tool
problems for these symptoms, trace the air supply from
the tool to the supply source for restrictive connectors,
low points containing water and anything else that would
SUHYHQWIXOOYROXPHÀRZRIDLUWRWKHWRRO
REQUIRED DAILY CHECKLIST
1. Disconnect the air supply from the tool and remove
all fasteners.
2. Check all screws, nuts, bolts, and pins on the tool. If
any of these are loose, they must be tightened with the
appropriate size wrench.
3. Hold the tool with the nose pressed against a
workpiece.
4. Press the trigger lock and then squeeze the trigger.
The trigger lock and trigger should move smoothly,
without binding.
5. While the tool is not loaded, connect the appropriate
air supply at 4.8 bar (70 psi) to the tool.
ƔWithout pulling the trigger, press the nose against
a workpiece several times. The tool must not
operate.
ƔHold the tool with the nose against the workpiece.
Pull the trigger lock and then squeeze the trigger.
The tool must operate.
ƔWith the nose still engaged on the workpiece,
release the trigger. The driver must return to its up
position. Without pulling the trigger lock, press the
trigger several times. The tool must not operate.
6. If the tool successfully meets all the requirements
in this checklist, it is ready for use. Load the proper
fasteners for the desired application.
WARNING
Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use
of attachments or accessories not recommended can
result in serious personal injury.

9
LUBRICATION
$Q DXWRPDWLF LQOLQH ¿OWHUUHJXODWRUOXEULFDWRU LV
recommended (Fig. 10) as it increases product life and keeps
the product in sustained operation. The in-line lubricator
VKRXOGEHUHJXODUO\FKHFNHGDQG¿OOHGZLWKDLUWRRORLO
Proper adjustment of the in-line lubricator is performed by
placing a sheet of paper next to the exhaust ports and
actuate the tool 10 - 15 times without fasteners loaded.
The lubricator is properly set when a light stain of oil
collects on the paper. Excessive amounts of oil should be
avoided.
If it becomes necessary to store the product for an extended
period of time (overnight, weekend, etc.), it should receive
a generous amount of lubrication at that time. Actuate the
tool 10 - 15 times without fasteners loaded to ensure oil
has been evenly distributed throughout the product. The
product should be stored in a clean and dry environment.
ƔIt is most important that the product be properly
lubricated by keeping the air line lubricator filled
and correctly adjusted. Without proper lubrication
the product will not work properly and parts will
wear prematurely.
ƔUse correct lubricant in the air line lubricator. The
lubricator should be of low air flow or changing air
flow type, and should be kept filled to the correct
level. Use only recommended lubricants, specially
made for pneumatic applications. Substitutes
may harm the rubber compounds in the product's
O-rings and other rubber parts.
IMPORTANT!
6HH¿JXUH
,I D ¿OWHUUHJXODWRUOXEULFDWRU LV QRW LQVWDOOHG RQ WKH DLU
system, air operated tools should be lubricated at least
once a day or after 2 hours of work with 2 - 6 drops
of oil, depending on the work environment, directly
WKURXJKWKHPDOH¿WWLQJLQWKHWRROKRXVLQJ
20141223v1

10
TROUBLESHOOTING
PROBLEM CAUSE POSSIBLE SOLUTION
Air leak near the top of the tool or
in the trigger area.
Loose screws. Tighten screws.
Worn or damaged O-rings or seals. Install overhaul kit.
Air leak near the bottom of the
tool.
Loose screws. Tighten screws.
Worn or damaged O-rings or seals. Install overhaul kit.
Tool does nothing or operates
sluggishly.
Inadequate air supply. Verify adequate air supply.
Inadequate lubrication. Lubricate tool.
Worn or damaged O-rings or bumper. Install overhaul kit.
Tool jams frequently.
Incorrect fasteners. Verify that fasteners are the correct
size.
Damaged fasteners. Replace fasteners.
Loose magazine. Tighten screws.
Dirty magazine. Clean magazine.
Worn or damaged driver. Install driver maintenance kit.

11

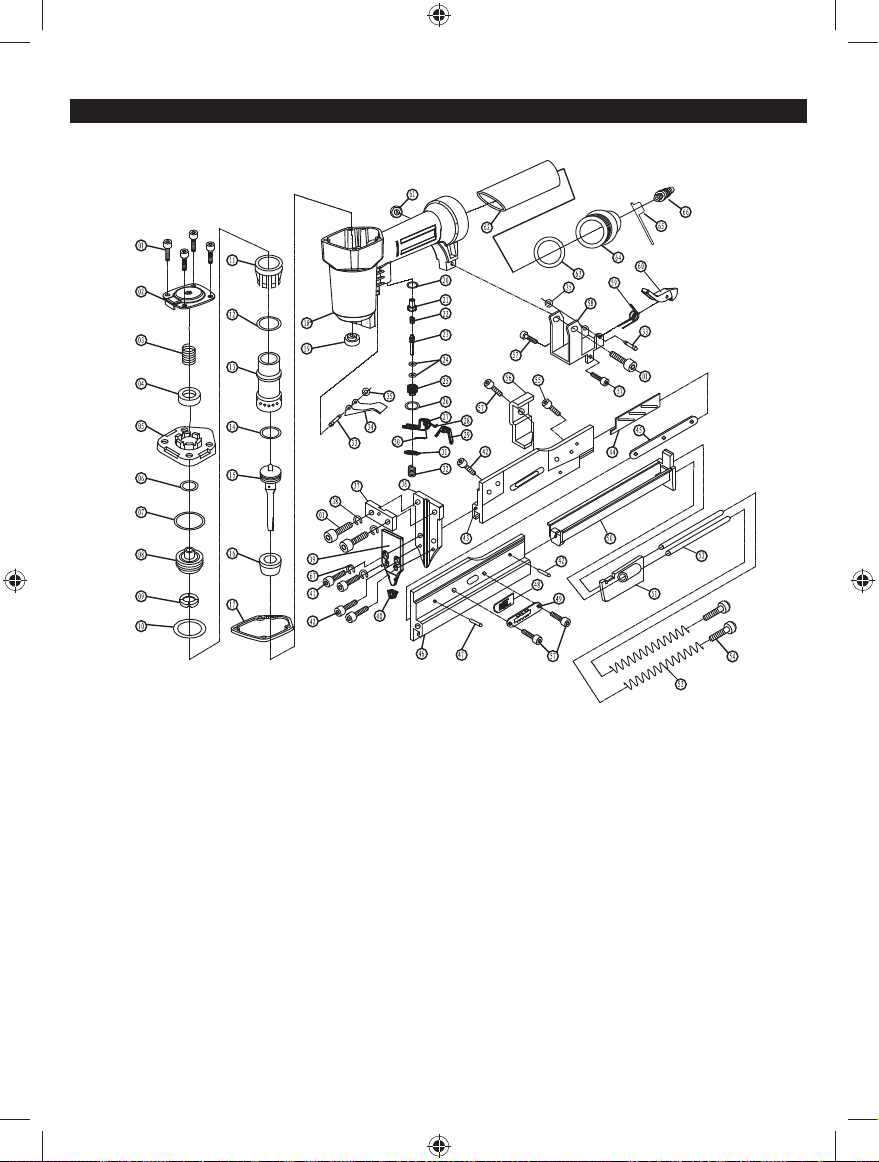

PARTS LIST

No. Description No. Description No. Description No. Description
01 Bolt M5 x 20 18 Tool body 35 Clip ring 52 Pusher spring rod
02 $LUGHÀHFWRU 19 Driver guide washer 36 Driver guide 53 Pusher spring (3.95 x
173L)
03 Compression spring 20 Rectangle washer 37 Driver guide cover front 54 Screw (M4 x 4 mm, Phillips
Hd.)
04 Head valve bumper 21 Valve pocket 38 Split washer (M5) 55 Screw (M4 x 8 mm, Soc.
Hd)
05 Top cap 22 Spring 39 Driver guide cover back 56 Fixing plate
06 O-ring (11.7 x 2.4) 23 Trigger valve pipe 40 No-mar pad 57 Screw (M4 x 6 mm, Soc.
Hd.)
07 O-ring (26.2 x 2.4) 24 O-ring 2.5 x 1.4 41 Screw (M4 x 14 mm,
socket Hd.)
58 Magazine bracket
08 Head valve 25 Trigger valve guide 42 Screw (M4 x 7 mm, socket
Hd.)
59 Latch spring
09 Spring 26 O-ring 11.2 x 2 43 Magazine left 60 Magazine latch
10 O-Ring (21.3 x 3) 27 Double trigger seat 44 Adjustment plate 61 Hex nut (M5).
11 Collar 28 Spring 45 Adjustment plate slide 62 Rubber grip
12 O-Ring (30.2 x 2.65) 29 Double trigger 46 Magazine right 63 O-ring (35.3 x 2.3)
13 Cylinder 30 Pin 47 Pin 64 End cap
14 O-Ring(18 x 2.65) 31 Washer 48 Adjustment tab 65 Air plug cap
15 Driver assembly 32 Spring 49 Fastner size indicator 66 Air plug (NPT 1/4')
16 Bumper 33 Step pin 50 Magazine slide 67 Split washer (M4)
17 Gasket 34 Trigger 51 Pusher

Techtronic Industries (Australia) Pty. Ltd.
Level 1, 660 Doncaster Road
Doncaster, VIC 3108, Australia
Techtronic Industries New Zealand Ltd.
18-26 Amelia Earhart Avenue
Mangere, Auckland 2022, New Zealand
Table of contents
Other Ryobi Staple Gun manuals
