S.Coifman Movement Caliber 1069 User manual

Instruction Manual

2 3

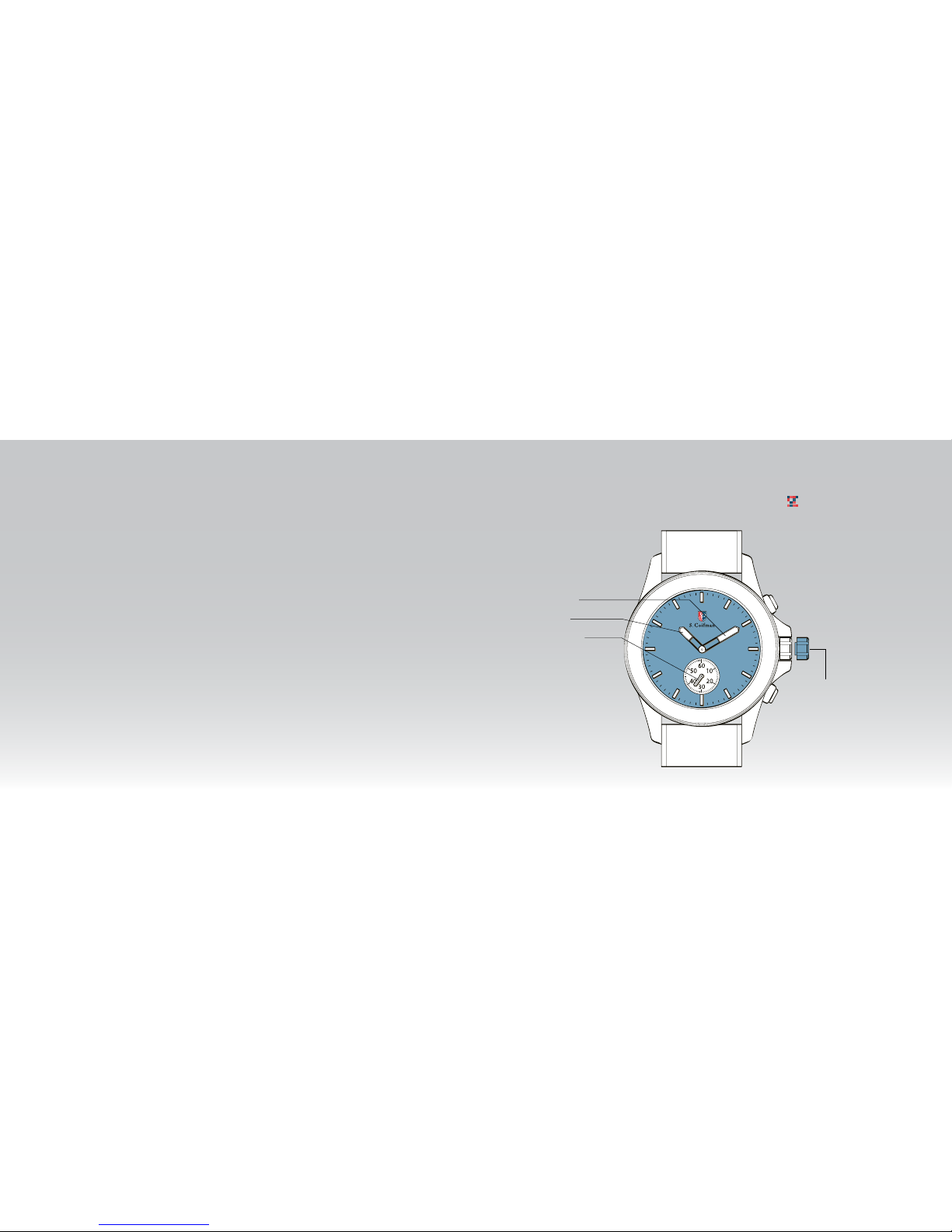

PRESENTATION
Movement Caliber : 1069
Movement Caliber
1069
Display Elements
Minute Hand
Hour Hand
Second Hand
Control Buttons
Crown Positions:
1. Normal position
2. Setting of hour, minute
1 2

4 5
Setting the Time
1.1 Pull the crown to position 2.
1.2 Turn the crown clockwise to set the hour / minute hands to the
desired time.
1.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 1069
1.1
1.2 1.3

6 7
Movement Caliber
2330 / 130 &763

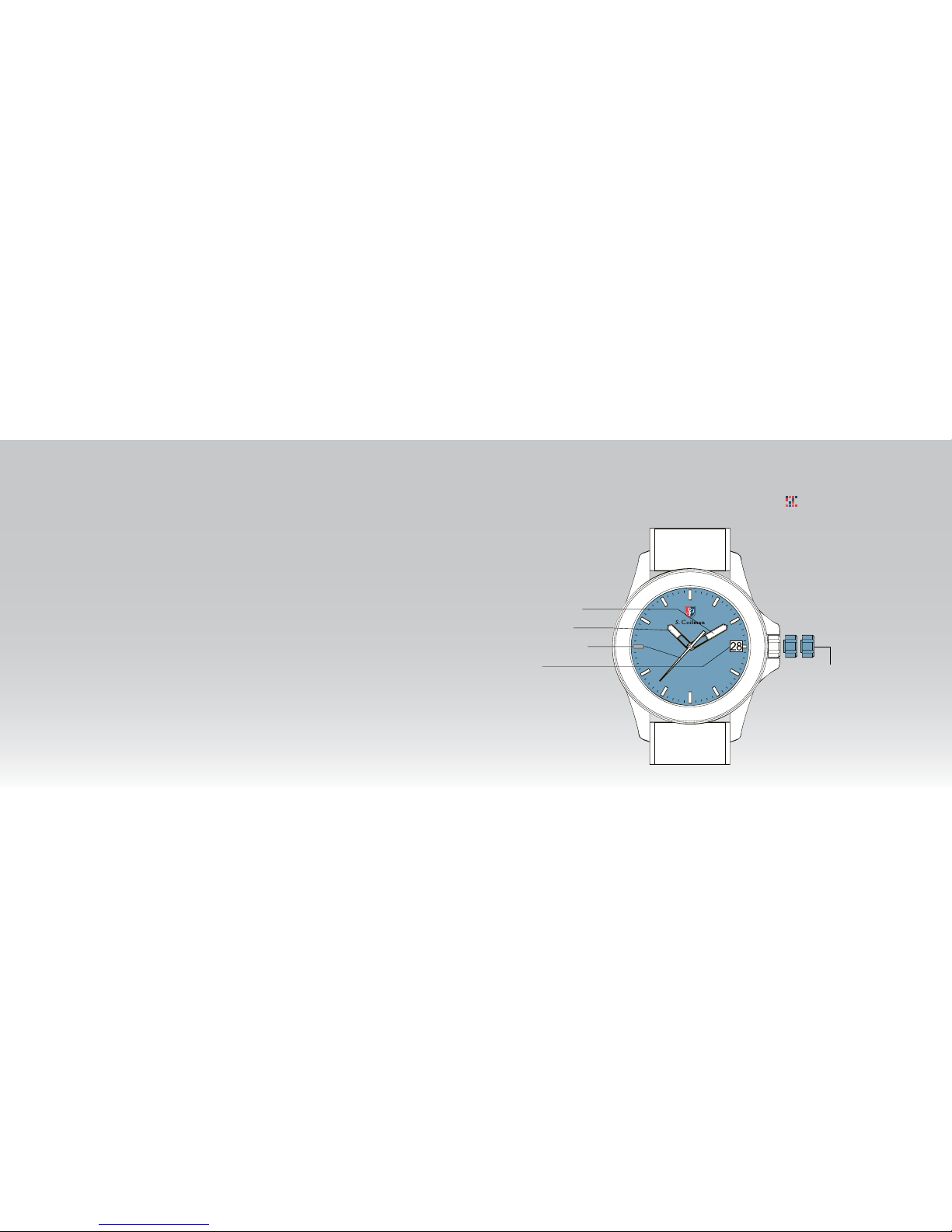

PRESENTATION
Movement Caliber : 2330 /130 &763
Display Elements
Minute Hand
Hour Hand
Second Hand
Date
Control Buttons
Crown Positions:
1. Normal position
2. Quick correction of date
3. Setting of hour, minute, date
123

8 9
Setting the Time
1.1 Pull the crown to position 3.
1.2 Turn the crown clockwise to set the hour / minute hands to the
desired time.
1.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 2330 /130 &763
1.1
1.2 1.3

10 11

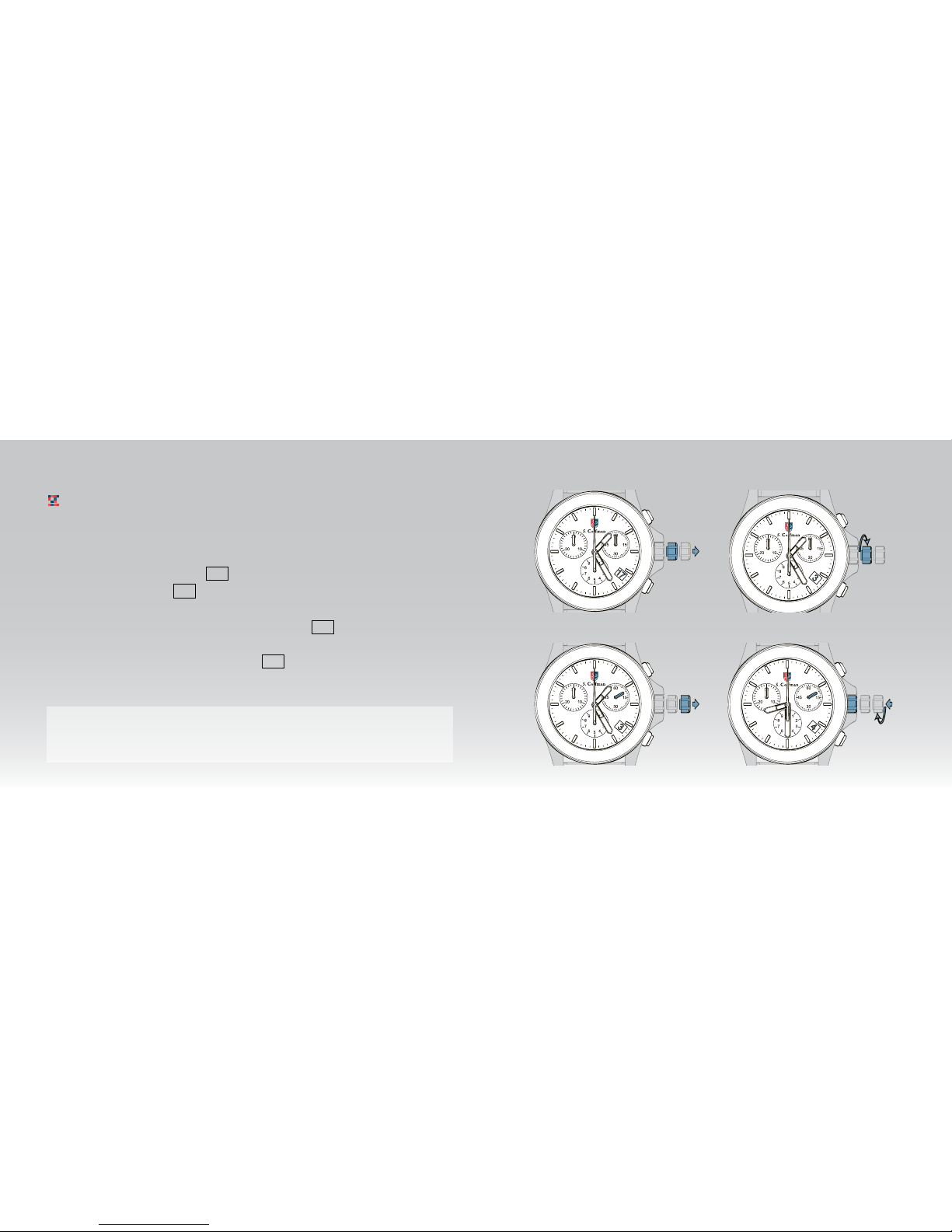

Quick Correction of Date
3.1 Set the crown to position 2.
3.2 Turn the crown clockwise step-by-step to the desired date.
3.3 Push the crown back to position 1.
!! Attention !!
Please Do Not set between 21:00 and 00:30.
SETTINGS
Movement Caliber : 2330 /130 &763
2.1
2.2 2.3

12 13
Movement Caliber
3540.D

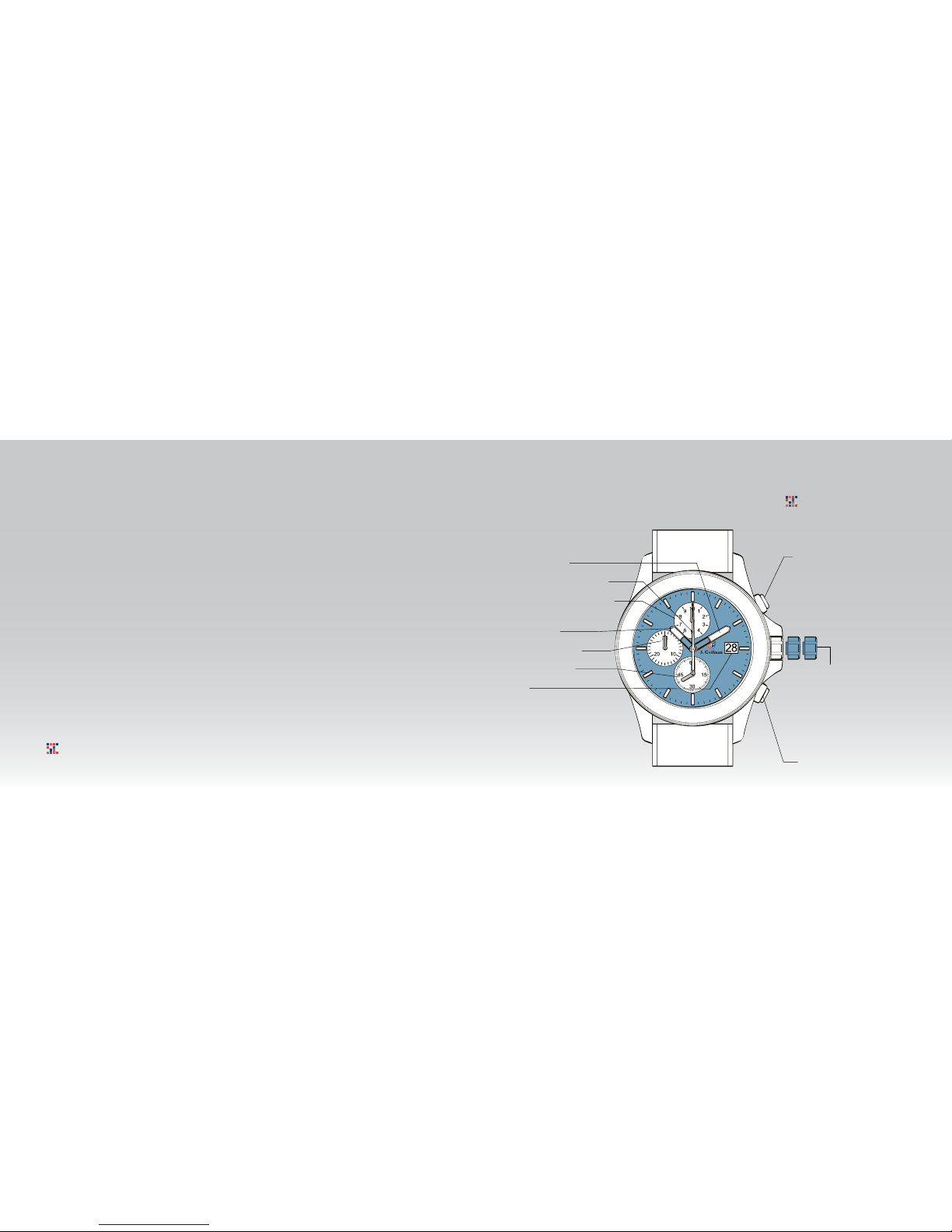

PRESENTATION
INFO
Movement Caliber : 3540.D
Crown Positions:
1. Normal position
2. Quick correction of date
3. Correction of hour,
minute, day, date and
second time zone / 24-hour
Display Elements
Minute Hand
Center Stop-Second
1/10 Second Counter
(Hour counter after 30 minutes)
Hour Hand
Minute Counter
Second Hand
Date
Push Button A
Push Button B
Battery: 384
(diametaer 7.9mm x 3.6mm / SR 41 Accuracy: +20 / -10 seconds per monthSW)
Control Buttons
123

14 15
Setting the Time
➊Pull out the crown to position 3 (the watch stops).*
➋Turn the crown until you reach the correct time 8:45.
➌Push the crown back into position 1.*
SETTINGS
Movement Caliber : 3540.D
1.1 1.2
Please note
* In order to set the time to the exact second, ➊must be pulled out
when the second hand is in position «60».
Once the hour and minute hands have been set, ➌must be
pushed back into position 1 at the exact second.
➊ ➌
➋

16 17

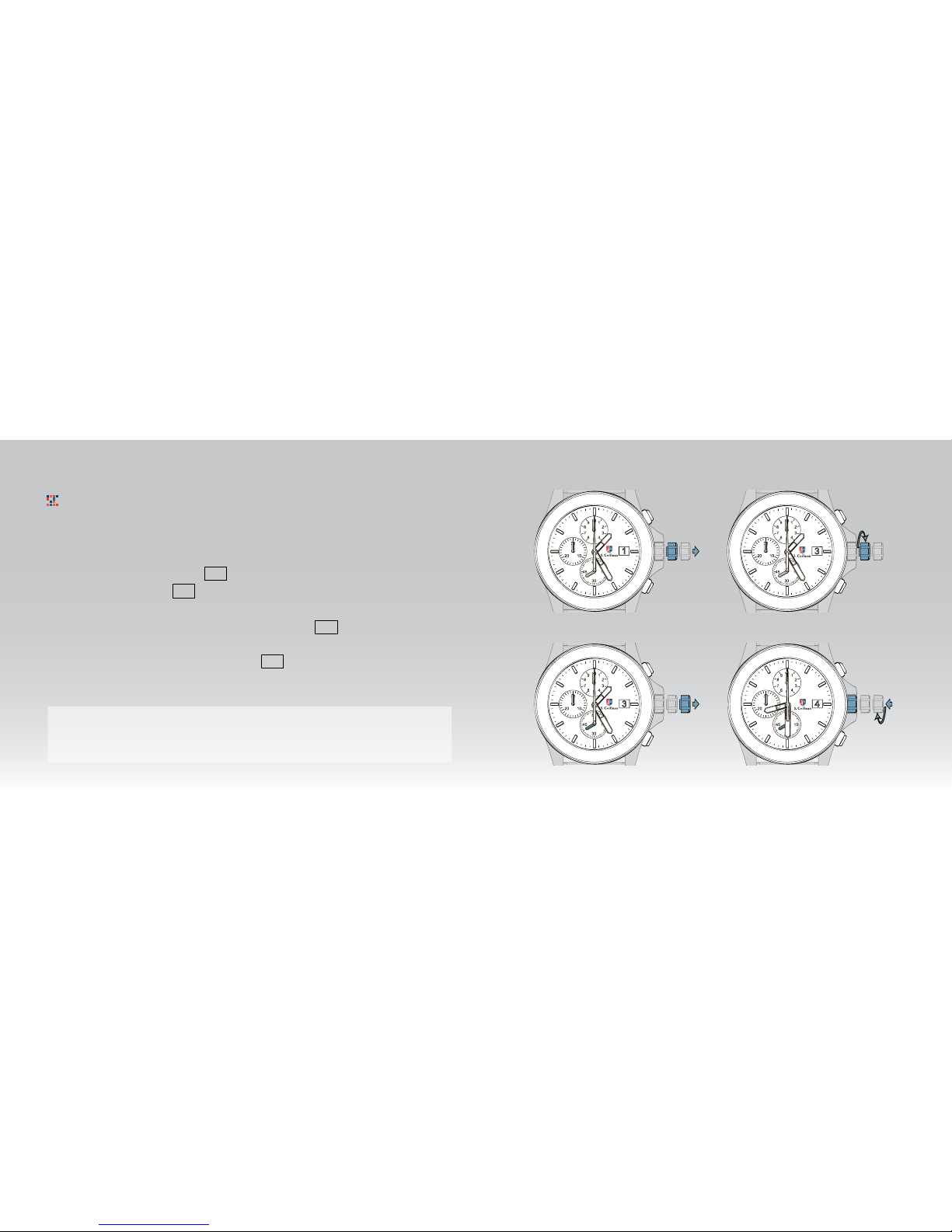

Setting the Date (Quick Mode)
➊Pull out the crown to position 2 (the watch continues to run).
➋Turn the crown until the correct date 1 appears.
➌Push the crown back into position 1.
SETTINGS
Movement Caliber : 3540.D
Please note:
The date can be changed during the date changing phase between 8:30
PM and 12:00 PM; please note that the date must be set to the date of the
following day as in this case, the automatic date changing does not occur at
midnight.
2.1 2.2
➊ ➌
➋

18 19

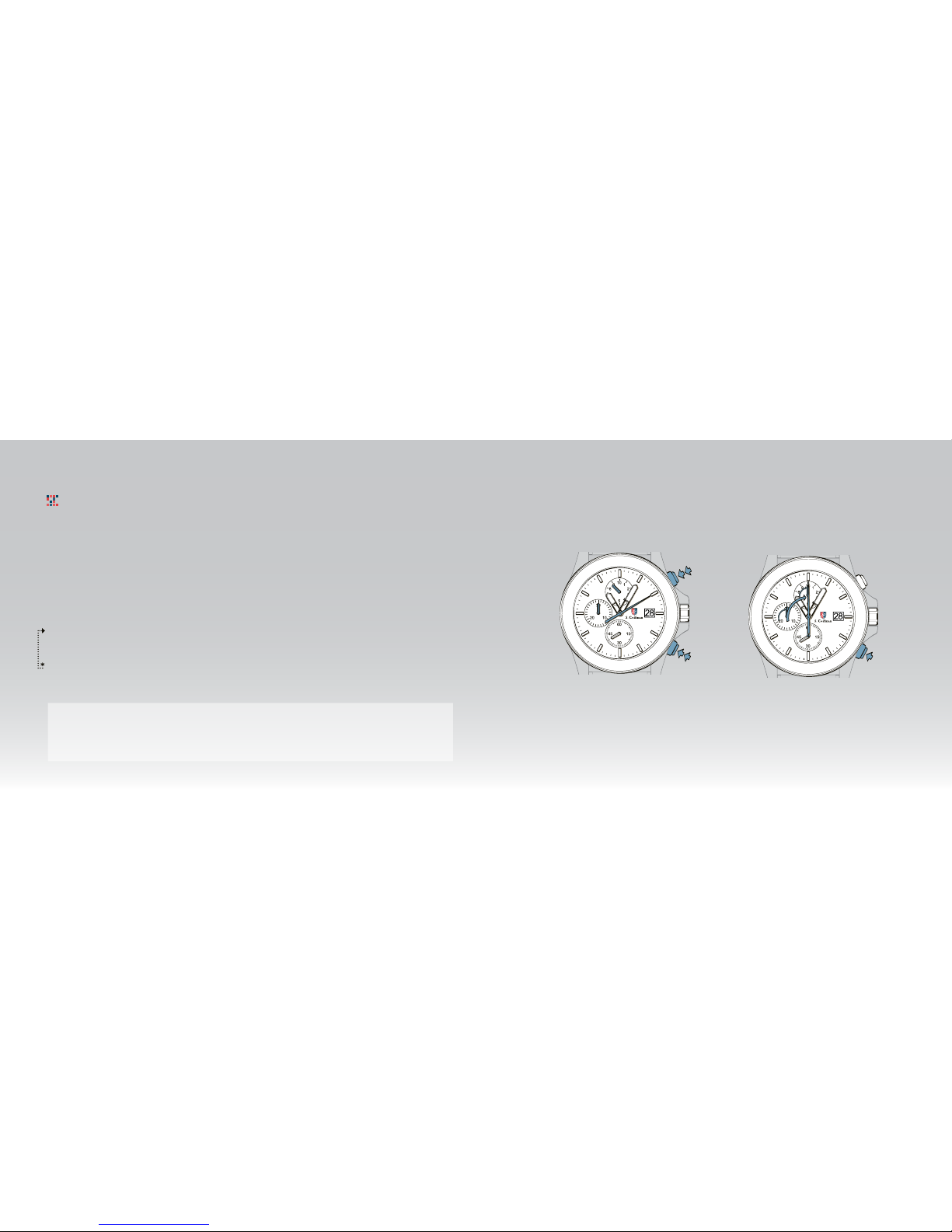

Setting the Date / Time
Example:
– Date / time on the watch: 17 / 1:25 AM
– Present date / time: 4 / 8:30 PM
➊Pull out the crown to position 2(the watch continues to run).
➋Turn the crown until yesterday's date appears 3 .
➌Pull out the crown to position 3(the watch stops).*
➍Turn the crown until the correct date 4 appears.
➎Continue to turn the crown until the correct time 8:30 PM appears.**
➏Push the crown back into position 1.
SETTINGS
Movement Caliber : 3540.D
3.3
3.1
3.4
3.2
➊
➏
➍
➎
➌
➋
Please note:
* To set your watch to the exact second, please refer to chapter titled “Setting
the Time”.
** Please observe the AM / PM clock rhythm.

20 21
FUNCTIONS
Movement Caliber : 3540.D
4.1 4.2
A ➊ ➋
B➌
Chronograph: Basic Function (Start / Stop / Reset)
Example:
➊Start: Press push button A.
➋Stop: To stop the timing, press push button A once more and read the
3 chronograph counters: 4 min / 38 sek / 7/10 sec
➌Zero positioning: Press push button B.
(The 3 chronograph hands will be reset to their zero position).

22 23
FUNCTIONS
Movement Caliber : 3540.D
5.1 5.2
A
➊➋➌➍
B➎
Chronograph: Accumulated Timing
Example:
➊Start:
(start timing)
➋Stop: (e.g. 15 min 5 sec following ➊)
➌Restart:
(timing is resumed)
➍Stop: (e.g. 13 min 5 sec following ➌)
= 28 min 10 sec (The accumulated measured time is shown)*
➎Reset: The 3 chronograph hands are returned to their zero position.
Please note:
* Following ➍, the accumulation of the timing can be continued by pressing push
button A (Restart / Stop, Restart / Stop, …)

24 25
FUNCTIONS
Movement Caliber : 3540.D
6.1 6.2
A
➊➍
B
➋➌
B➎

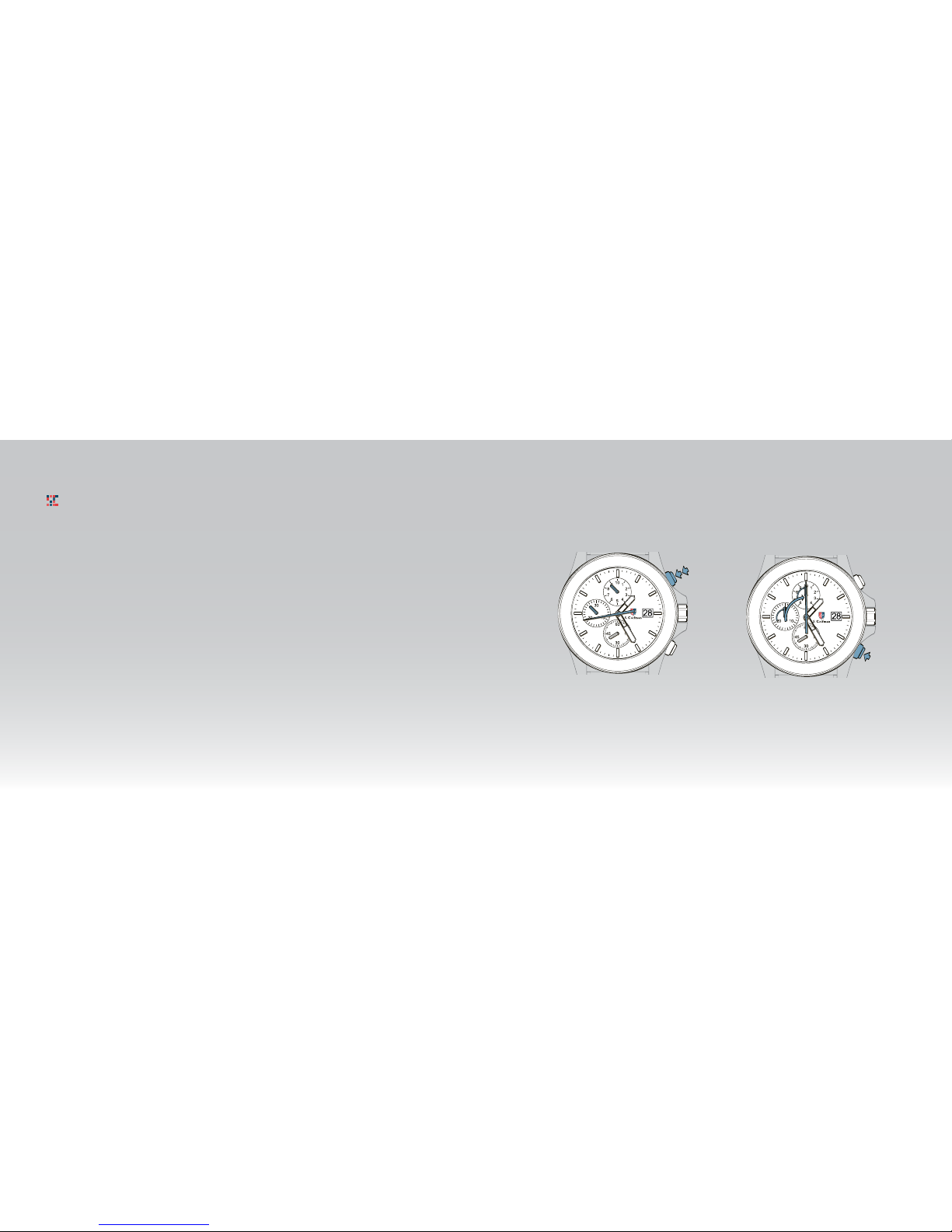

Chronograph: Intermediate or Interval Timing
Example:
➊Start: (start timing)
➋Display interval: e.g. 10 minutes 10 seconds
(timing continues in the background)
➌Making up the measured time:
(the 3 chronograph hands are quickly advanced to the ongoing measured time).
➍Stop: (Final time is displayed)
➎Reset: The 3 chronograph hands are returned to their zero position.
Please note:
* Following ➍, the accumulation of the timing can be continued by pressing push
button A (Restart / Stop, Restart / Stop, …)

26 27
7.1
7.2 7.3
CALIBRATION
Movement Caliber : 3540.D

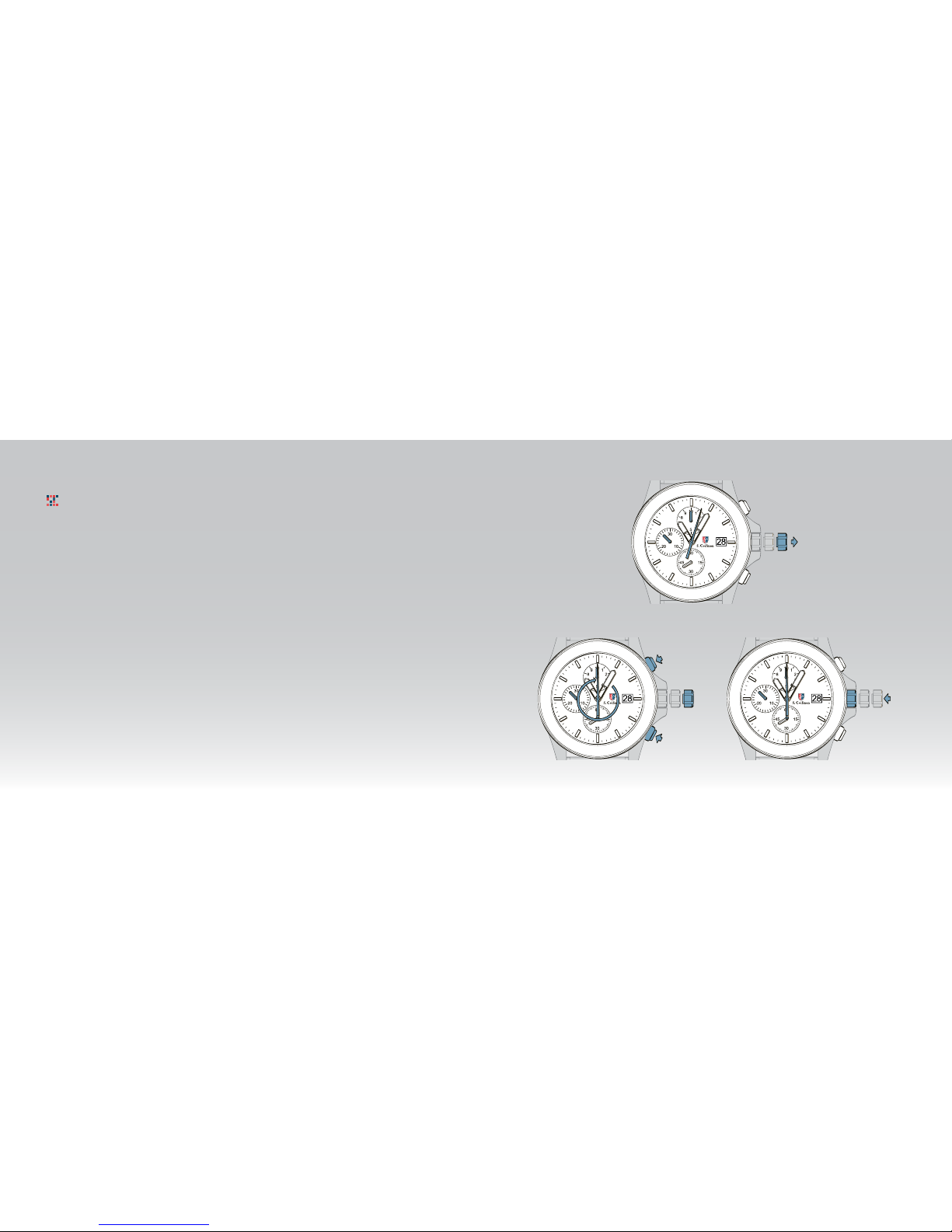

Adjusting the Chronograph Hands to Zero Position
Example:
One or several chronograph hands are not in their correct zero position
and have to be adjusted (e.g. following a battery change).
➊Pull out the crown to position 3
(all 3 chronograph hands are in their correct or incorrect zero position).
➋Keep push-buttons A and B depressed simultaneously for at least 2
seconds
(the center stop-second rotates by 360° ➡corrective mode is activated).
Adjusting the center stop second ➡Single step A1 x short ➡Continuous A long ➡Adjusting the
next hand B ➡Adjusting the 1/10 second counter hand (position 6h) ➡Single step A1 x short ➡
Continuous A long ➡Adjusting the next hand B ➡Adjusting the minute counter (position 9h) ➡
Single step A1 x short ➡Continuous A long
➌Returning the crown to position 1. Termination of the chronograph
hands adjustment can be carried out at any time.
➊
➌
A➋
B➋

28 29
Movement Caliber
5040.D
INFO Battery: 395
(diameter 9.5mm x 2.6mm / SR 927 SW) Accuracy: +20 / -10 seconds per month
PRESENTATION
Movement Caliber : 5040.D
Crown Positions:
1. Normal position
2. Quick correction of date
3. Correction of hour,
minute, day, date and
second time zone / 24-hour
Display Elements
Minute Hand
Center Stop-Second
Second Hand
Hour Hand
Minute Counter
1/10 Second Counter
(Hour counter after 30 minutes)
Date Window
Push Button A
Quick correction of month
Push Button B
Quick correction of second
time zone / 24-hour
Control Buttons
123

30 31
Setting the Time
➊Pull out the crown to position 3 (the watch stops).*
➋Turn the crown until you reach the correct time 8:45.
➌Push the crown back into position 1.*
SETTINGS
Movement Caliber : 5040.D
Please note
* In order to set the time to the exact second, ➊must be pulled out when the
second hand is in position «60».
Once the hour and minute hands have been set, ➌must be pushed back
into position 1 at the exact second.
1.1 1.2
➊ ➌
➋

32 33
2.1 2.2
➊ ➌
➋
Setting the Date (Quick Mode)
➊Pull out the crown to position 2 (the watch continues to run).
➋Turn the crown until the correct date 1 appears.
➌Push the crown back into position 1.
SETTINGS
Movement Caliber : 5040.D
Please note:
The date can be changed during the date changing phase between 8:30
PM and 12:00 PM; please note that the date must be set to the date of the
following day as in this case, the automatic date changing does not occur at
midnight.

34 35
3.3
3.1
3.4
3.2
➊
➏
➍
➎
➌
➋
Setting the Date / Time
Example:
– Date / time on the watch: 17 / 1:25 AM
– Present date / time: 4 / 8:30 PM
➊Pull out the crown to position 2(the watch continues to run).
➋Turn the crown until yesterdays date appears 3 .
➌Pull out the crown to position 3(the watch stops).*
➍Turn the crown until the correct date 4 appears.
➎Continue to turn the crown until the correct time 8:30 PM appears.**
➏Push the crown back into position 1.
SETTINGS
Movement Caliber : 5040.D
Please note:
* To set your watch to the exact second, please refer to chapter titled “Setting
the Time”.
** Please observe the AM / PM clock rhythm.

36 37
4.1 4.2
A ➊ ➋
B➌
FUNCTIONS
Movement Caliber : 5040.D
Chronograph: Basic Function (Start / Stop / Reset)
Example:
➊Start: Press push button A.
➋Stop: to stop the timing, press push button A once more and read the
3 chronograph counters: 4 min / 38 sek / 7/10 sec
➌Zero positioning: Press push button B.
(The 3 chronograph hands will be reset to their zero position).

38 39
5.1 5.2
A
➊➋➌➍
B➎
FUNCTIONS
Movement Caliber : 5040.D
Chronograph: Accumulated Timing
Example:
➊Start:
(start timing)
➋Stop: (e.g. 15 min 5 sec following ➊)
➌Restart:
(timing is resumed)
➍Stop: (e.g. 13 min 5 sec following ➌)
= 28 min 10 sec (The accumulated measured time is shown)*
➎Reset: The 3 chronograph hands are returned to their zero position.
Please note:
* Following ➍, the accumulation of the timing can be continued by pressing push
button A (Restart / Stop, Restart / Stop, …)
