SafetyTracer Mopas BT User manual
www.safetytracer.eu
We protect people
SafetyTracer manual
Mopas BT
Introduction
Thank you for using the SafetyTracer system. We have developed this application with the utmost
care to enable you to sound the alarm when necessary. Unfortunately, despite all the precautions,
you can end up in a situation where you are in need of help. SafetyTracer helps in such situations.
You simply inform others and thus call in help. This manual has been prepared with the utmost
care. If, in spite of this, there are imperfections or if you have other improvements or remarks,
please let us know.
1. Functions and features 2
2. Safety instructions 2
3. Use 3
4. Alarm 4
5. Status overview of the LED ring 4
6. Connecting additional equipment 5
7. Technical information 5
8. Functions & technical specications home beacon 6
www.safetytracer.eu
2
1. Functions and features
2. Safety instructions
Read these safety instructions and user manual carefully before using the Mopas BT. Save this
user manual to consult it if necessary.
Information
Follow the safety instructions in this manual. If there are any questions or ambiguities, you can con-
tact your supplier with your question. General information can be found on www.safetytracer.eu.
Safety precautions
For the correct and safe installation and use of the Mopas BT, it is essential that you follow the
generally accepted safety measures in addition to the additional safety information in this manual.
Additional warnings and safety notes, if applicable, are included in this manual. Warning and safety
texts and / or symbols have been placed on the equipment if necessary.
Liability
SafetyTracer BV reserves the right to change data and / or specications of any device or software
mentioned in this publication without prior notication. Despite all the care that is devoted to the
correctness of this publication, SafetyTracer BV is not liable for damage caused by incorrect use or
contempt of this publication.
alarm button
microphone
input for micro USB cable for
charging
speaker
LED ring
button for cancellation of alarm
notch for the attachment of
necklace
www.safetytracer.eu
3
Important safety instructions:
• Read all safety instructions and manuals carefully before proceeding to use.
• Save all safety instructions and manuals for future reference.
• All warnings on the equipment and in the manuals must be followed ecause of personal
safety.
• Never clean the Mopas BT with liquid detergents or cleaning agents from an aerosol
• dispenser, but use a damp cloth to clean.
• Do not connect any equipment other than the equipment recommended by SafetyTracer.
Deviating from the recommendations may lead to malfunctioning of equipment and systems.
• Do not place the equipment without extra protection in humid environments or outdoors if it
is not explicitly stated that the device has been designed for this purpose.
• Do not expose the equipment to extreme temperatures or humidity.
• Do not expose the equipment to strong magnetic and electromagnetic elds.
• Do not place the equipment on an unstable or vibrating surface.
• Do not place heavy objects on the equipment.
• Avoid strong shocks during transport.
• The equipment may only be supplied with a power supply in accordance with the equipment
specication.
• By opening or removing housing, live parts can be touched.
• Do not attempt to maintain or repair the equipment independently. Maintenance and repair
work must be carried out by suitably trained and qualied personnel.
3. Use
Before the Mopas BT can be used, please follow the steps below.
Charging
Before the rst use, the Mopas BT must be fully charged.
There are two ways to charge the Mopas BT:
Charging with micro USB cable
Insert the micro USB plug of the adapter at
the bottom into the Mopas BT. Then plug the
adapter into the socket.
Charging with home beacon

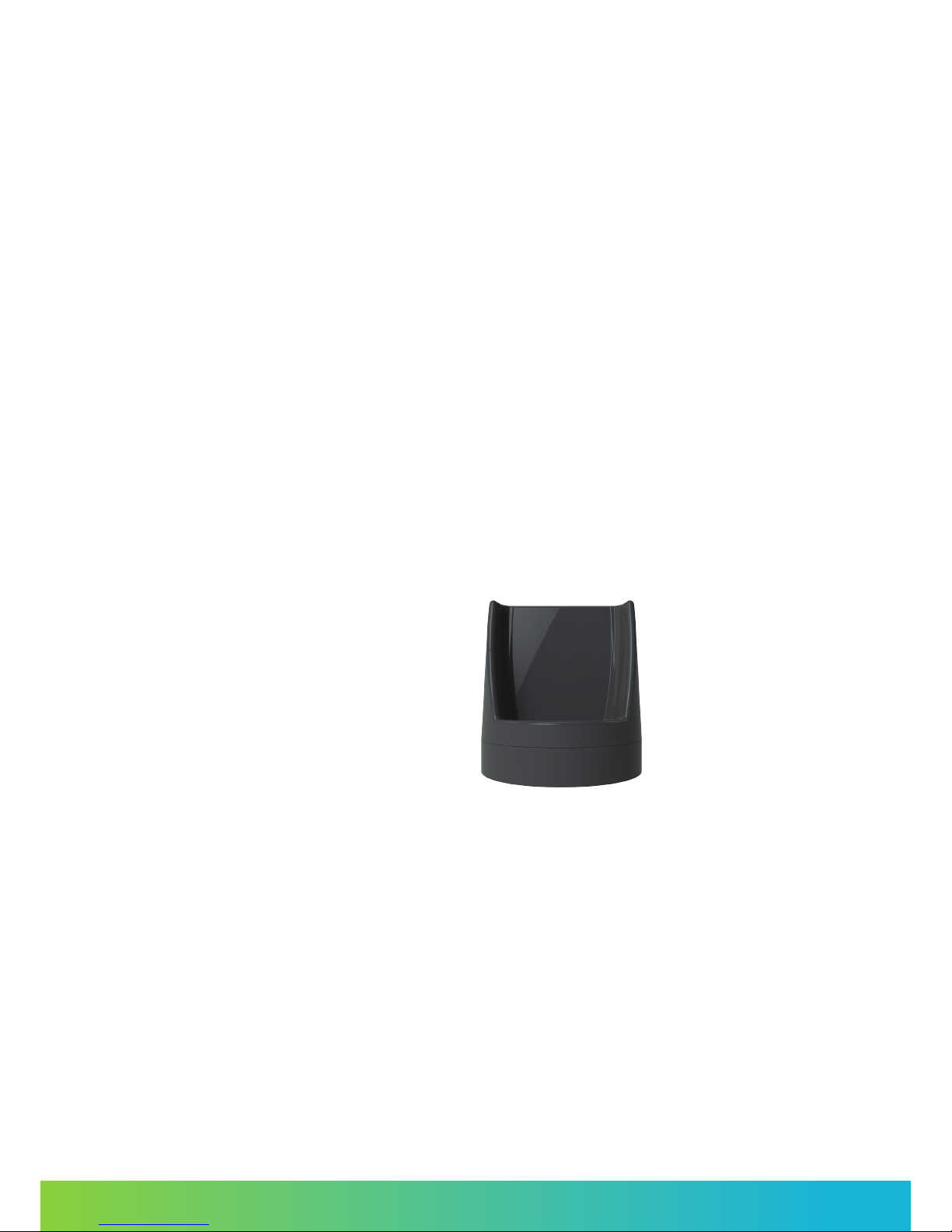

Place the Mopas BT upright on the charger
(Figure 3.1).
Battery status
The LED ring will light blue when the battery is almost empty. The Mopas BT will last for about two
more hours after the LED ring lights up blue. Within these two hours the Mopas BT needs to be
charged. The Mopas BT can be charged as described above. After about two hours, the Mopas BT
is fully charged and ready for use. If the Mopas BT has become too hot, you must reset the device
by charging it.
Figure 3.1
www.safetytracer.eu
4
4. Alarm
You make an alarm by pressing the alarm button. The alarm button must be pressed for two
seconds to activate the alarm. To conrm that you have made an alarm, the LED ring will ash red.
During the red ashing you have the time to cancel an alarm with the cancellation button. If you do
not cancel the alarm you have made, the LED ring will light red, indicating that the alarm has been
sent. If the alarm is accepted and dealt with by a esponder, the LED ring goes out and the Mopas
BT goes back to rest.
As long as an alarm is not accepted and handled by a rescuer, the Mopas BT remains in alarm. No
new alarm can be made in this alarm phase.
The alarm is sent from the Mopas BT to the SafetyTracer Cloud Monitoring System, which then
forwards it to the responder(s). The reposnder can then set up a speak / listen connection with the
Mopas BT. A conversation can then be held as with a normal telephone. If the esponder calls the
Mopas BT, a call is immediately established.
A call between the responder and you is only possible if you have pressed the alarm button. In all
other cases no telephone contact can be made with the Mopas BT.
Turn o alarm
Is there a false alarm? For example, because the alarm button was accidentally pressed? Then
cancel the alarm during the time the LED ring ashes red with the cancellation button
5. Status overview of the LED ring
The LED ring of the Mopas BT shows the status of the alarm transmitter. It consists of LED signal-
ing in 3 colors: green, red and blue. Below is a description of the most common combinations.
Let op!
Als het alarm is afge-
handeld, dan dient u de
Mopas BT opnieuw op te
laden
LED Beschrijving Betekenis
Flashes green Status Mopas BT The green LED ashes every 30 seconds to indicate that the Mopas BT is operating
correctly.
Flashes red Pre-alarm The alarm button is pressed, user still has the time to cancel the alarm in the event of
a false alarm.
Constant red Alarm Alarm is nal and is sent to the responders.
Constant blue Battery status Indicates that the battery needs to be charged.
www.safetytracer.eu
5
6. Connecting additional equipment
The gure below (Figure 6.1) shows which additional equipment may be connected. This
equipment is available through the certied resellers of SafetyTracer systems. The procedure for
connecting this equipment is described in a separate manual.
User interface Normal
GPS (LED green, every 30 sec)
Data communication (LED green, every 300 sec)
With alarm
Data communication (LED red)
Battery low
Data communication (LED blue)
USB interface USB 2.0 compatible
USB voltage min. 4.45, nom. 5,0, max. 5,25 VDC
USB power min. 200, nom. 500, max. 900 mA
GSM/GPRS 1-4 band, quad band preferred
Reporting interval to server 10-3600 s via GPRS
A-GPS location accuracy 5-15 m
Figure 6.1
7. Technical information
www.safetytracer.eu
6
8. Functions & technical specications home beacon
The main function of the Mopas home beacon with charging function is to charge the Mopas BT
that is placed in the charger. The Mopas home beacon with charging function is only suitable for
the Mopas BT.
User interface Charging
Red LED
Charging done
Green LED
Mechanical Dimensions: 75 x 75 x 78.2 mm
Approval According to CE guidelines
Manufacturer AME in Eindhoven, the Netherlands
Battery Voltage 3,7 VDC
Lithium-ion
Charging Micro USB cable
Home beacon with charging function
Charging time 2-4 hours when charging with at least 0.5 A
Mechanical Weight: 70 grams
Dimensions: 91.5 x 53.5 x 21.5 mm
Operating temperature 0 to 35 ºC
Neck cord Plastic snap closure with breaking point at 2.5 kg pulling force
Approval According to CE guidelines
Manufacturer AME in Eindhoven, the Netherlands
