USER MANUAL
Wearable Health Monitoring System
(MODEL: S-PATCH3-Cardio)
Caution: Federal law restricts this device to sale by or on the order of a physician.
Document No: SDS-UM-01 (Rev. 0)
Samsung SDS Co., Ltd.
125, Olympic-ro 35-gil, Songpa-gu, Seoul, Republic of Korea

[2]
Revision History
Revision
Number
Issue Date
Contents of revision
Rev.0.0
2017.07.12
Established by Manufacturer’s User Manual Policy

[3]
Contents
1. Product Introduction ....................................................................................................................................5
1.1 Introducing S-PATCH3-CARDIO.........................................................................................................5
1.2 Indication for Use ......................................................................................................................................5
2. Cautions .............................................................................................................................................................5
2.1 General .........................................................................................................................................................5
2.2 Safety............................................................................................................................................................5
2.3 Contra-Indication.......................................................................................................................................6
2.4 Usage and Storage Conditions................................................................................................................7
2.4.1 Conditions for Usage ........................................................................................................................7
2.4.2 Conditions for Storage......................................................................................................................7
2.4.3 Cleaning Condition ...........................................................................................................................7
3. Components and Installation of S-PATCH3-CARDIO............................................................................8
3.1 Main Device Components........................................................................................................................8
3.2Accessory Components ............................................................................................................................9
3.3 How to Install S-PATCH3-CARDIO................................................................................................. 10
3.3.1 Installing S-PATCH....................................................................................................................... 10
3.4 Precautions ............................................................................................................................................... 11
4. Using and Operating S-PATCH3-CARDIO............................................................................................. 12
4.1 How to Use S-PATCH3-CARDIO ..................................................................................................... 12
4.2 Specifications........................................................................................................................................... 17
4.2.1 S-PATCH3-CARDIO Specifications......................................................................................... 17
4.3 Error Message.......................................................................................................................................... 18
4.4 Maintenance............................................................................................................................................. 18
4.5 Specification of External Device connection.................................................................................... 18
5. Heart Rate Algorithm .................................................................................................................................... 19
5.1 HR calculation per beat.................................................................................................................... 19
5.2 Average HR calculation of a section .......................................................................................... 19

[4]
6. Labels and Packaging.................................................................................................................................... 20
6.1 Labels......................................................................................................................................................... 20
6.1.1 Label for Packaging ....................................................................................................................... 20
6.1.2 Label for module............................................................................................................................. 20
6.2 Packaging.................................................................................................................................................. 21
6.2.1 Package List..................................................................................................................................... 21
6.2.2 Package Units.................................................................................................................................. 21
6. Information on EMC....................................................................................................................................... 22
6.1 Guidance and Manufacturer’s Declaration – Electromagnetic Emissions................................. 22
6.2 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity.................................. 22
6.3 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity.................................. 23
6.4 Recommended separation distances between portable and mobile RF communications
equipment and the EUT..................................................................................................................................... 24
6.5 Immunity and Compliance Level........................................................................................................ 25
6.6 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity.................................. 26
7. FCC Compliance Statement......................................................................................................................... 27
8. Expected Service Life time and Warranty................................................................................................ 27
8.1 Expected Service Life Time ................................................................................................................. 27
8.2 Product Warranty.................................................................................................................................... 27
9. Company Introduction................................................................................................................................... 28
9.1 Company Name and Address............................................................................................................... 28

[5]
1. Product Introduction
1.1 Introducing S-PATCH3-CARDIO
This product is intended to measure, transfer and record electrocardiogram signal. The viewer on
mobile device may display ECG wave form, Heart Rate, Respiration Rate, Heart Rate Variability and
other information. The product consists of S-PATCH3-CARDIO body signal sensing module, ECG
electrodes and mobile app viewer to monitor the signals.
•Product Name–Wearable health Monitoring System
•Model Name–S-PATCH3-CARDIO
•Manufacturer–SAMSUNG SDS Co., Ltd.
1.2 Indication for Use
This product is intended to measure, transfer and record electrocardiogram signal. The viewer on
mobile device may display ECG wave form, Heart Rate and other information. The product consists
of S-PATCH3-CARDIO body signal sensing module, mobile application and web portal of
electrocardiogram analysis for physician.
The S-PATCH3-CARDIO signal sensing module transmits data through wireless communication to
mobile device.
The S-PATCH3-CARDIO wearable health monitoring system monitors and displays:
-Heart Rate
-ECG signal
-The connection between S-PATCH3-CARDIO and mobile device is using Bluetooth
communication.
2. Cautions
2.1 General
1) DO NOT store in extremely hot, cold, humid, or wet conditions.
2) Since this product is a medical device, instructions are required to properly dispose
of it. Contact the deputy or manufacturer for such instructions. Improper disposing of
this device can lead to legal consequences.
3) Contact the manufacturer if the product functions abnormally, problematically, or not
at all. Any attempt to repair without the manufacturer’s guide is not recommended.
4) Reuse of the electrodes is prohibited in any circumstances due to the infection.
5) Use of electrodes sticker may cause a skin irritation or reaction.
6) DO NOT expose to strong electromagnetic fields.
7) Too much body hair may cause an unsuccessful recording.
8) DO NOT use to diagnose heart related conditions.
9) No warranty for any data or information that is collected erroneously by the device,
or misuse or malfunction as a result of abuse, accidents, alteration, misuse, neglect,
or failure to maintain the products as instructed.
10) If there is a change in the performance of a medical device, contact the manufacturer
for action.
2.2 Safety
1) Before use, the doctor must explain cautions to the patient.
2) Operate the product in the correct order as described in this manual.
3) Use this device under doctor’s prescription.
4) Beware of the polarity of the Coin battery when exchange and insert the battery.

[6]
5) DO NOT use during magnetic resonance imaging (MRI) or external defibrillation
procedures.
6) DO NOT drop or bump with excessive force.
7) DO keep components out of reach of children.
8) DO NOT swallow the device or wind the cable around the neck.
9) Conductive parts of electrodes and associated connectors for type CF applied parts,
should not contact other conductive parts including earth;
2.3 Contra-Indication
1) Patients with artificial cardiac pacemaker, cardioverter defibrillator, or other implantable
electric devices.
2) Pregnant or breast-feeding mothers
3) A current sign or medical history of skin cancer, rash, skin disorder, keloid, and/or any
injury.

[7]
2.4 Usage and Storage Conditions
2.4.1 Conditions for Usage
1) Temperature: 5℃- 40℃(41℉ to 104℉)
2) Relative humidity: 10%-95%(non-condensing)
3) Atmospheric pressure: 700hPa-1060hPa
2.4.2 Conditions for Storage
1) Temperature: −25℃- 70℃ (-13°F to 158°F)
2) Relative humidity: 10%-95%( non-condensing)
3) Atmospheric pressure: 700hPa-1060hPa
4) Keep the device in the case when it doesn't use.
2.4.3 Cleaning Condition
1) Clean the device with soft, dry cloth
2) Equipment failure may occur due to dust and debris during long-term use of the
equipment.

[8]
3. Components and Installation of S-PATCH3-CARDIO
3.1 Main Device Components
<S-PATCH3-CARDIO>
Labe
l
Name
Description
1
Main Body1
Coin battery inset module
2
Main Body2
Main PCB module
3
Connect Cable
Cable between two main bodies
4
Power Button
Power On/Off button
5
LED
LED Lamp to indicate the states
6
Electrode connect
hole
Holes for ECG electrodes connecting
S-PATCH3-CARDIO
6
6
5
4
2
1
3
S-PATCH3-CARDIO

[9]
3.2 Accessory Components
<Electrode>
<Battery>
Label
Name
Description
1
Electrode
Multi-purpose monitoring electrodes with sticky gel
feature (high performance adhesive and foam backing)
Note: Use the FDA registered Electrode.
2
Battery
Power supply for S-PATCH3-CARDIO. DC 3V Coin
Battery.
The Applied Parts are main device and electrode

[10]
3.3 How to Install S-PATCH3-CARDIO
3.3.1 Installing S-PATCH
1) Download the S-PATCH App from Google Play Store (Android KitKat or later). The
device must support Bluetooth Low Energy.
2) Install the downloaded file on user’s mobile device.

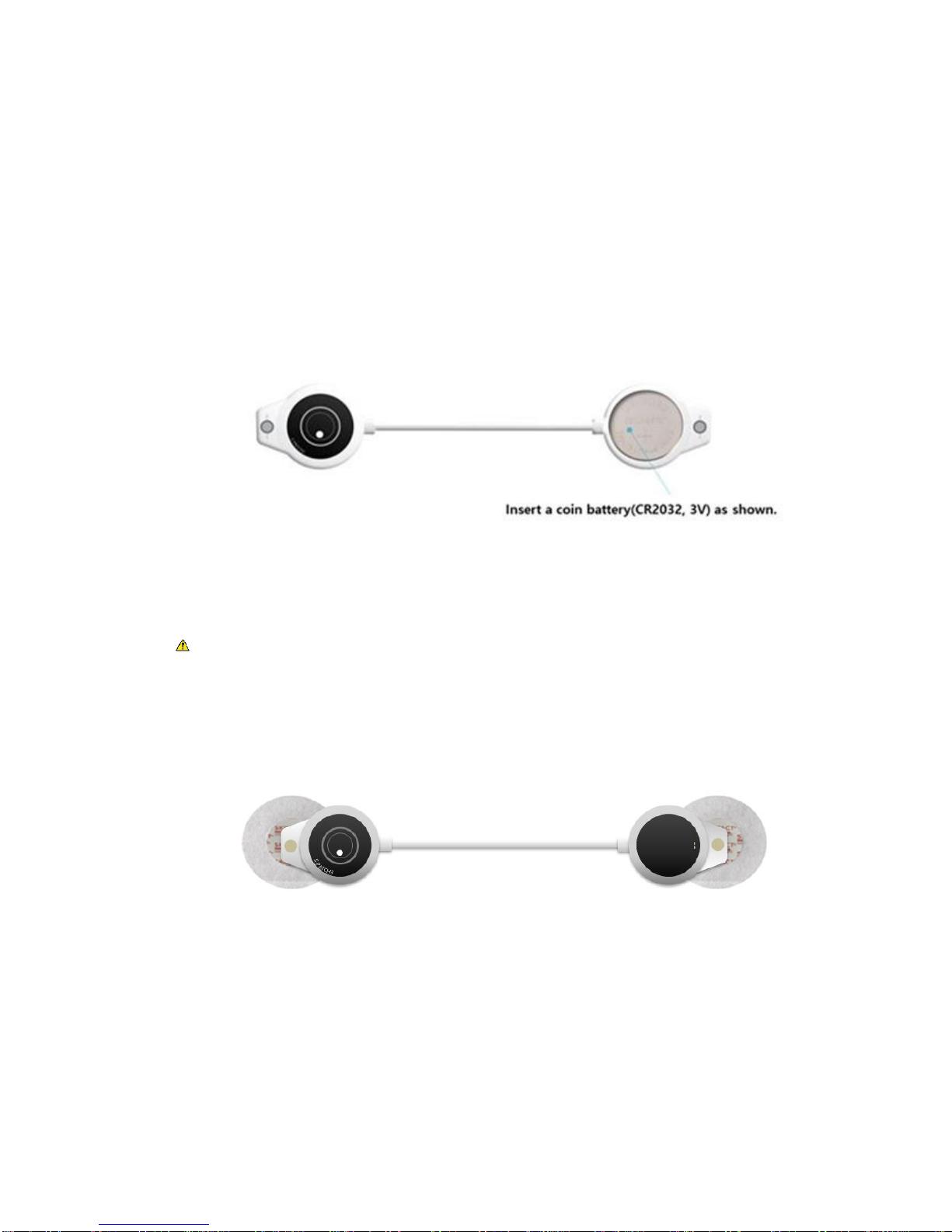

3) Insert battery to main body 1 of S-PATCH3-CARDIO.
First, release the screw on main body1 using screw driver.
Second, open the upper case of main body1 and insert the battery.
Lastly, close the case and lock the screw.
Caution ;
Do not replace the battery at extreme environment condition (Extremely high
temperature, high pressure, high humidity and Etc...)
Please contact to the manufacturer, if you need more information
to replace the battery.
4) Connect Electrodes to electrode connect hole in each side of S-PATCH3-CARDIO.
S-PATCH3-CARDIO

[11]
3.4 Precautions
1) The electrodes and coin battery are disposable. Please observe local laws for disposal of
electrodes and coin battery.
2) To remove the battery if the S-PATCH3-CARDIO is not likely to be used for some time.
3) Please ensure user’s hands are clean and dry when handle the S-PATCH3-CARDIO
4) The body hair possibly causes contact problem which results a fault detection of
physiological data.
5) After using the device, wipe dust and other foreign substances using a dry cloth.
6) This product must not be disposed of with your other household waste. Instead, it is
your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure that it is recycled
in a manner that protects human health and the environment. For more information
about where you can drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or the shop where you
purchased the product.

[12]
4. Using and Operating S-PATCH3-CARDIO
4.1 How to Use S-PATCH3-CARDIO
1) After connect the electrodes with S-PATCH3-CARDIO, peel the plastic on the backside
of the electrodes.

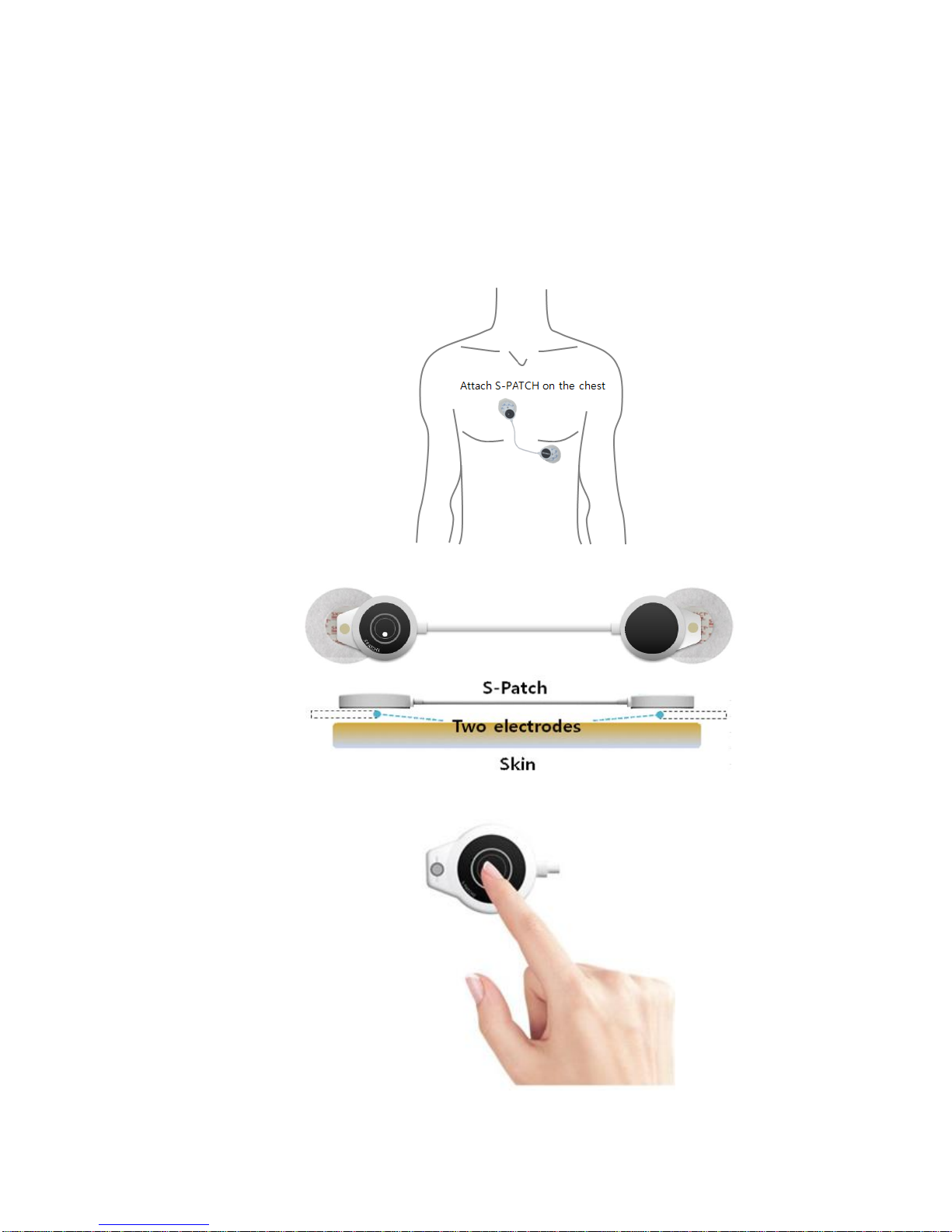

2) Attach the S-PATCH3-CARDIO on recommended position as drawn.
3) Push the power button longer than 3 seconds.

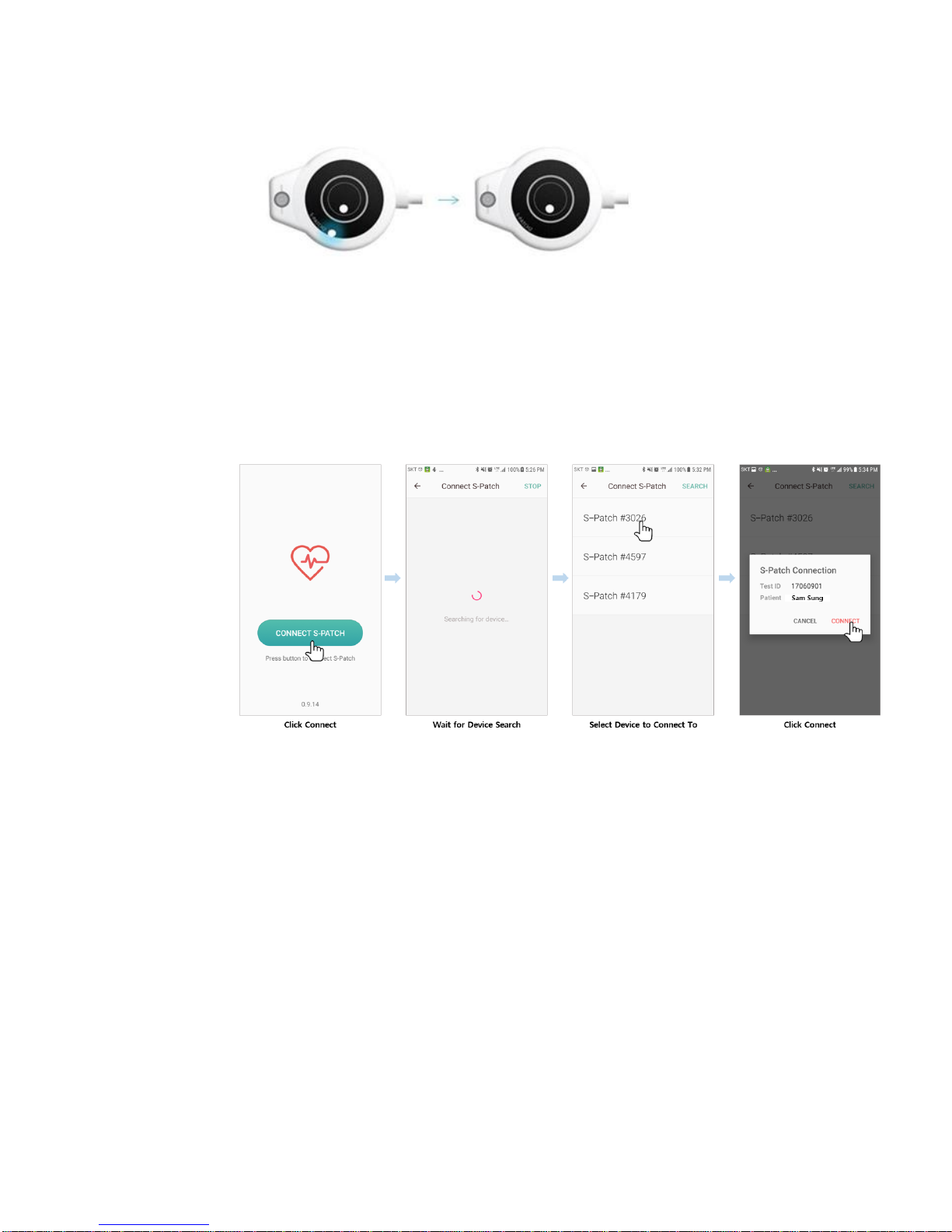

4) Confirm that the LED is ON and OFF 3 times.
S-PATCH3-CARDIO

[13]
< ON > < OFF >
5) Put the Bluetooth mode to “ON”mode of user’s mobile device.
6) Please execute S-PATCH App
6-1) Open the App to see following sequence of screens:
6-2) Press “Connect S-Patch” button on lower center of screen.
6-3) Wait while the app searches for device.
6-4) Select device to connect.
6-5) Press “Connect” after confirming test sequence(test ID) and patient name (patient
ID).

[14]
6-6) User’s ECG graph can be viewed from screen.
Clicking on the live ECG graph will pull up vertical screen for full screen view of ECG.
6-7) Press “Add Symptom” button to record any symptoms instantly. This button will
save a “not specified” symptom on diary tab to which user can add details at a later time.
After button is pressed “Symptom has been saved” message appears momentarily at
bottom of screen.

[15]

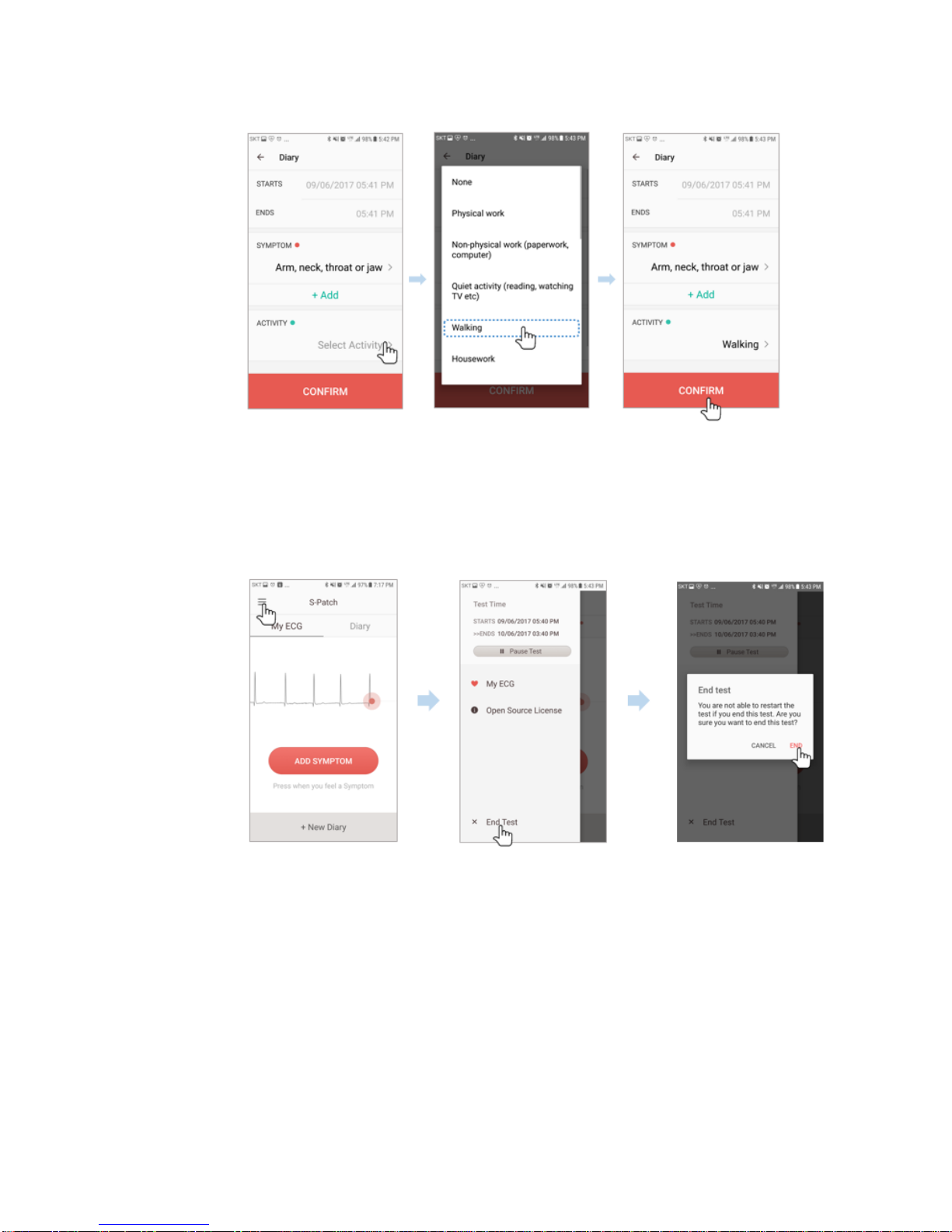

6-8) Press “+ New Diary” to create a new diary entry.
6-9) Enter start date and time of symptom.
6-10) Enter end date and time of symptom.
6-11) Press “Select Symptom” and select a symptom from list.

[16]
6-12) Press “Select Activity” and select an activity from list.
6-13) Press “Confirm” to save the new diary entry.
6-14) When the duration of test is over, test will automatically upload to cloud, but in
case user desires to end the test early press the menu button on upper left of screen.
6-15) Press “End Test” on the bottom of menu options.
6-16) An “End test” message will appear and user can press “End” to end the test.
6-17) When manually ending the test, the test data also requires manual sending. After
the test is ended, screen will change to send data screen.

[17]
6-18) Press “Send Data” button on lower center of screen (requires internet connection).
6-19) Wait for app to finish transmitting data.
6-20) Click “Reset Application” to prepare the app for next S-Patch test.
4.2 Specifications
4.2.1 S-PATCH3-CARDIO Specifications
Classification
Name
Description
Performance
Type
CF-Type
Channel
Single channel
Circuitry
Communication with
Mobile device
Bluetooth
DC Offset Tolerance
+/- 300mV
ADC Resolution
12 bits
ADC Sampling Rate
1000 Samples/Second
Input Impedance
>100 MΩ
Power
Requirements
Power Supply
3 Vd.c. (Lithium coin battery)
Battery Life
120 Hr.
Software
F/W version
V1.00
CPU
S1SBP6A (Cortex-M4F microprocessor)
BLE
Dialog DA14583(ARM Cortex-M0)
App(Android)
Kitkat(API19) or later
Physical
Characteristics
Weight (Exc. Battery)
8g
Dimension(Main Body1,2)
29*5.5(mm), 29*4.4(mm) [Diameter*
Height]
Dimension(Connect Cable)
110 ±10 (mm)

[18]
4.3 Error Message
Error
Message
Situation
Solution
The server
encountered
an error
When an error has occurred at server and the
mobile request cannot be executed
Contact service desk and
enquire.
No data to
send
When no data has been recorded because there
is an error with time of gateway device and the
test ends as soon as it has been started
Reinstall App
Failed to
connect to
service
When mobile device cannot access server due
to network error
Re-try after moving to
area with LTE or Wifi
connection
4.4 Maintenance
For cleaning, gently wipe with a soft dry cloth after using the S-PATCH 3. Please attempt to keep S-
PATCH3-CARDIO dust free. S-PATCH is waterproof. But it should be kept dry. This device does not
have serviceable components.
Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water.
4.5 Specification of External Device connection
The S-Patch3 is connected to the Android Application. The data indicating the status of the device is
transmitted to the application from the device.
A. The required specification of the interface and IT -Network that combines PEMS
1) Main Device / Mobile App interface
Data format: Bluetooth
Mobile Application: Application on based Android
Device status information
Device information (Bringing information when connecting to BLE)
Battery information (Receiving information periodically)
Data to Device –Data Channel
Transmits the data to the device
B. Technical specification about network connection of PEMS including security features.
1) Mobile Application is designed to not-affect by an external virus infiltration. But if infected with
virus, Operating System may be a loss of storage data. Therefore, in the case of virus infection it
should be operated by an antivirus program.
2) Specification of Network connection
Communication protocol: the protocol between the main unit and the mobile app is a BLE
central (Mobile) –peripheral (main unit) communications and they communication with security
requirements defined in the BLE Protocol Stack.
C. Responsibility Organization
–connection of the PEMS to an it-network that includes other equipment could result in
previously unidentified risks to patients, operators or third parties;
–the responsible organization should identify, analyze, evaluate and control these risks;
–subsequent changes to the it-network could introduce new risks and require additional
analysis; and
–changes to the it-network include:
• changes in the it-network configuration;
• connection of additional items to the it-network;
•disconnecting items from the it-network;
• update of equipment connected to the it-network; and
• upgrade of equipment connected to the it-network.

[19]
5. Heart Rate Algorithm

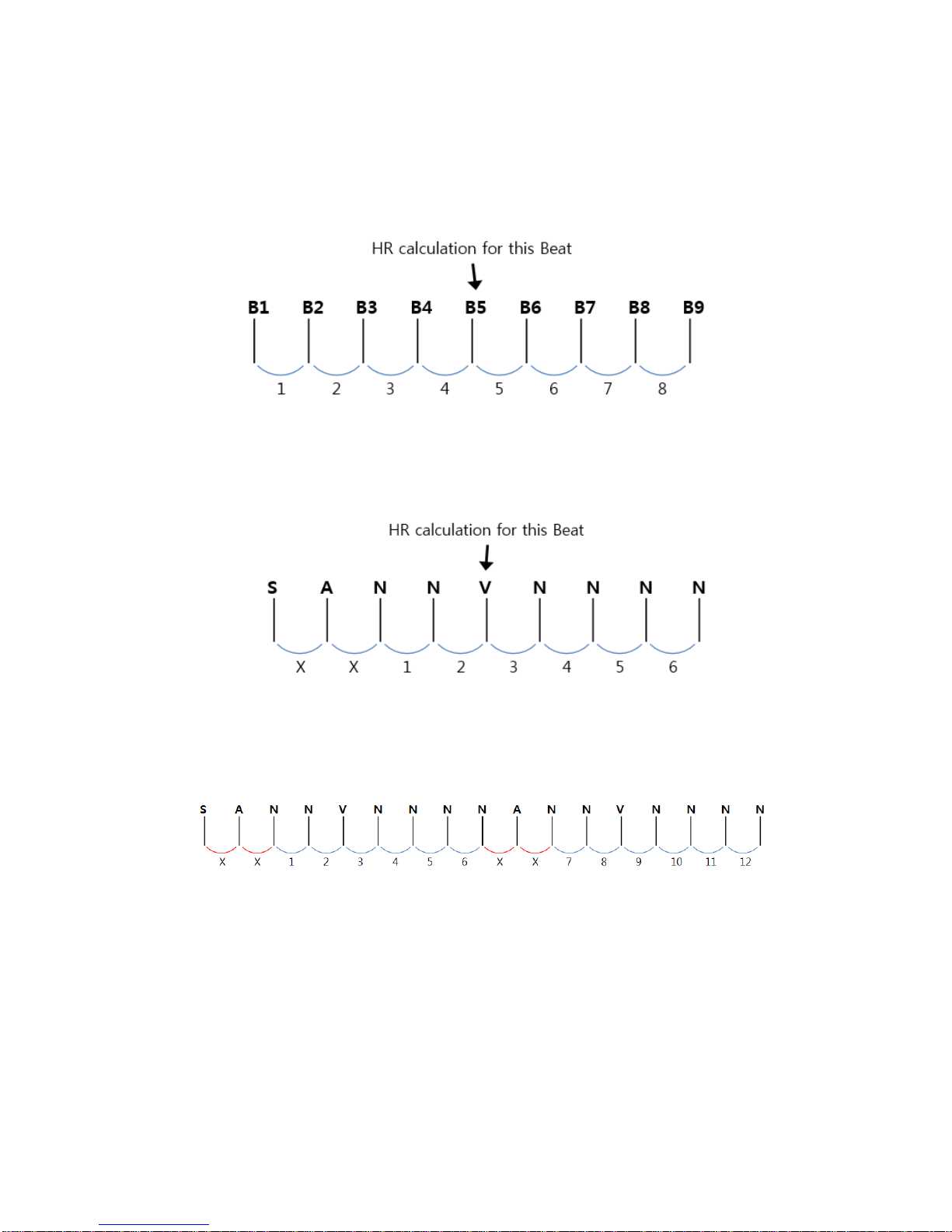

5.1 HR calculation per beat
When calculating HR of each beat, 9 beats including previous 4 beats and following 4 beats are
required.
Number of effective sections / (( time of B9 –time of B1 ) / 60 )
Definition of “section” is the interval between consecutive beats such as B1 and B2, and in case 1 of the 2 beats
is A( Artifact ) , exclude it from effective section. If there are less than 5 effective sections, no calculation.
As the above picture, if beats S A N N V N N N N are within a section of 5 seconds and the excluded section is
1 second, the V beat in the center will have HR value of 6 / ((5-1) / 60) = 91 bpm.
5.2 Average HR calculation of a section
Average HR of a section is calculated with the beats included in the section.
If the above data is within a 20 second frame, the average HR is calculated as follows:
Number of effective sections / (( Total length of effective sections ) / 60 )
At this time, “section” refers to the interval between consecutive beats such as B1 and B2, and in case 1 of the 2
consecutive beats is A ( Artifact ) , exclude it from effective section before calculation.
Therefore, there are 12 effective sections, and if the total length of invalid sections is 2 seconds , the average is
calculated as follows: 12 / ((20-2) / 60) = 40 bpm

[20]
6. Labels and Packaging
6.1 Labels
6.1.1 Label for Packaging
6.1.2 Label for module
Front- side 2 Labels
Rear-side 2 Labels
