Samsung CE935GR User manual

MICROWAVE OVEN
CE935GR
SERVICE
Manual
MICROWAVE OVEN CONTENTS
1. Precaution
2. Specifications
3. Operating Instructions
4. Disassembly and Reassembly
5. Alignment and Adjustments
6. Troubleshooting
7. Exploded Views and Parts List
8. Schematic Diagrams
BWT
GRILL
12
3
4
5
6
7
8
9
10
20
30
40
60
0
50
450 630300
900W
135
CE935GR

Samsung Electronics
(a) Do not operate or allow the oven to be operated
with the door open.
(b) Make the following safety checks on all ovens
to be serviced before activating the magnetron
or other microwave source, and make repairs as
necessary:
(1) Interlock operation,
(2) proper door closing,
(3) seal and sealing surfaces (arcing, wear, and
other damage),
(4) damage to or loosening of hinges and latches,
(5) evidence of dropping or abuse.
(c) Before turning on microwave power for any
service test or inspection within the microwave
generating compartments, check the magnetron,
wave guide or transmission line, and cavity for
proper alignment, integrity, and connections.
(d) Any defective or misadjusted components in
the interlock, monitor, door seal, and
microwave generation and transmission
systems shall be repaired, replaced, or adjusted
by procedures described in this manual before
the oven is released to the owner.
(e) A Microwave leakage check to verify
compliance with the Federal performance
standard should be performed on each oven
prior to release to the owner.
PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Precaution
1-1 Safety precautions ( )
Samsung Electronics 1-1
1. All repairs should be done in accordance
with the procedures described in this
manual. This product complies with
Federal Performance Standard 21 CFR
Subchapter J (DHHS).
2. Pacemaker wearers must consult a physician
before attempting to service an MWO.
8. Notify the Central Service Center if the
microwave leakage exceeds 5 mw/cm2
4. Check all grounds.
5. Do not power the MWO from a "2-prong"
AC cord. Be sure that all of the built-in
protective devices are replaced. Restore any
missing protective shields.
6. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control
knobs and compartment covers.
7. Make sure that there are no cabinet openings
through which people--particularly
children--might insert objects and contact
dangerous voltages. Examples: Lamp hole,
ventilation slots.
8. In the event of suspected microwave energy
leakage in excess of 5mW/§†, please notify
J.V.SAMSUNG SERVICE LTD.
MARSHAL ZHUKOU.,1.OFFICE 201
123308,MOSCOW,RUSSIA
9. Service technicians should remove their
watches while repairing an MWO.
10. To avoid any possible radiation hazard,
replace parts in accordance with the wiring
diagram. Also, use only the exact
replacements for the following parts:
Primary and secondary interlock switches,
interlock monitor switch.
11. If the fuse is blown by the Interlock Monitor
Switch: Replace all of the following at the
same time: Primary and secondary switches,
as well as the Interlock Monitor Switch. The
correct adjustment of these switches is
described elsewhere in this manual. Make
sure that the fuse has the correct rating for
the particular model being repaired.
12. Design Alteration Warning:
Use exact replacement parts only, i.e.,
only those that are specified in the
drawings and parts lists of this manual.
This is especially important for the
Interlock switches, described above.
Never alter or add to the mechanical or
electrical design of the MWO. Any design
changes or additions will void the
manufacturer's warranty.10.Always unplug
the unit's AC power cord from the AC
power source before attempting to
remove or reinstall any component or
assembly.
13. Never defeat any of the B+ voltage
interlocks. Do not apply AC power to the
unit (or any of its assemblies) unless all
solid-state heat sinks are correctly installed.
14. Some semiconductor ("solid state") devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs). Examples include
integrated circuits and field-effect
transistors.
Immediately before handling any
semiconductor components or assemblies,
drain the electrostatic charge from your
body by touching a known earth ground.
15. Always connect a test instrument's ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument's ground lead last.
Follow these special safety precautions. Although the microwave oven is completely safe during ordinary
use, repair work can be extremely hazardous due to possible exposure to microwave radiation, as well as
potentially lethal high voltages and currents.

16. When checking the continuity of the witches
or transformer, always make sure that the
power is OFF, and one of the lead wires is
disconnected.
17. Components that are critical for safety are
indicated in the circuit diagram by
shading, or .
18. Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications. A
replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
1. High Voltage Warning
Do not attempt to measure any of the high
voltages--this includes the filament voltage
of the magnetron. High voltage is present
during any cook cycle.
Before touching any components or wiring,
always unplug the oven and discharge the
high voltage capacitor (See Figure 1-1)
2. The high-voltage capacitor remains charged
about 30 seconds after disconnection. Short
the negative terminal of the high-voltage
capacitor to the oven chassis. (Use a
screwdriver.)
3. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
1-2
Pretaution
Samsung Electronics
1-2 Special Servicing Precautions (Continued)
1-3 Special High Voltage Precautions

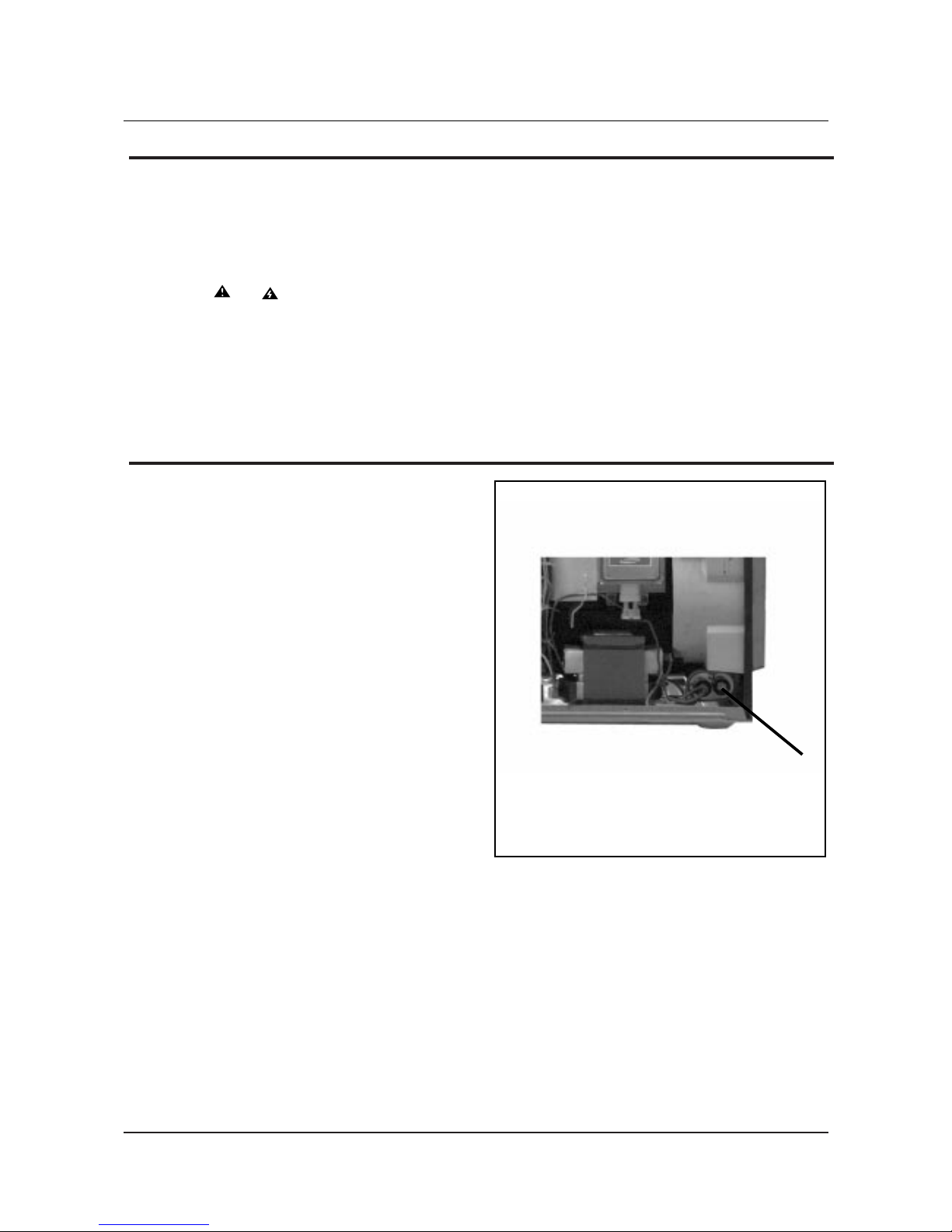

Fig. 1-1. Discharging the High Voltage Capacitor

2. Specifications
2-1 Table of Specifications
Samsung Electronics 2-1
MODEL CE935GR
ITEM
TIMER 60 MINUTES
POWER SOURCE 230V/50HZ, AC
POWER CONSUMPTION MICROWAVE : 1,500W,GRILL : 1,300W
OUTPUT POWER FROM135W TO 900W (6 LEVEL POWER INCLUDING DEFROST)
(IEC-705 TEST PROCEDURE)
OPERATING FREQUENCY 2,450MHz
MAGNETRON OM75PH(31)
COOLING METHOD COOLING FAN MOTOR
OUTSIDE DIMENSIONS 517(W) x 297(H) x 382(D)
NET WEIGHT 20Kg.
SHIPPING WEIGHT 23Kg

12
3
4
5
6
7
8
9
10
20
30
40
60
0
50
450 630300
900W
135
CE935GR
3. Operating Instructions
3-1 Control Panel
Samsung Electronics 3-1

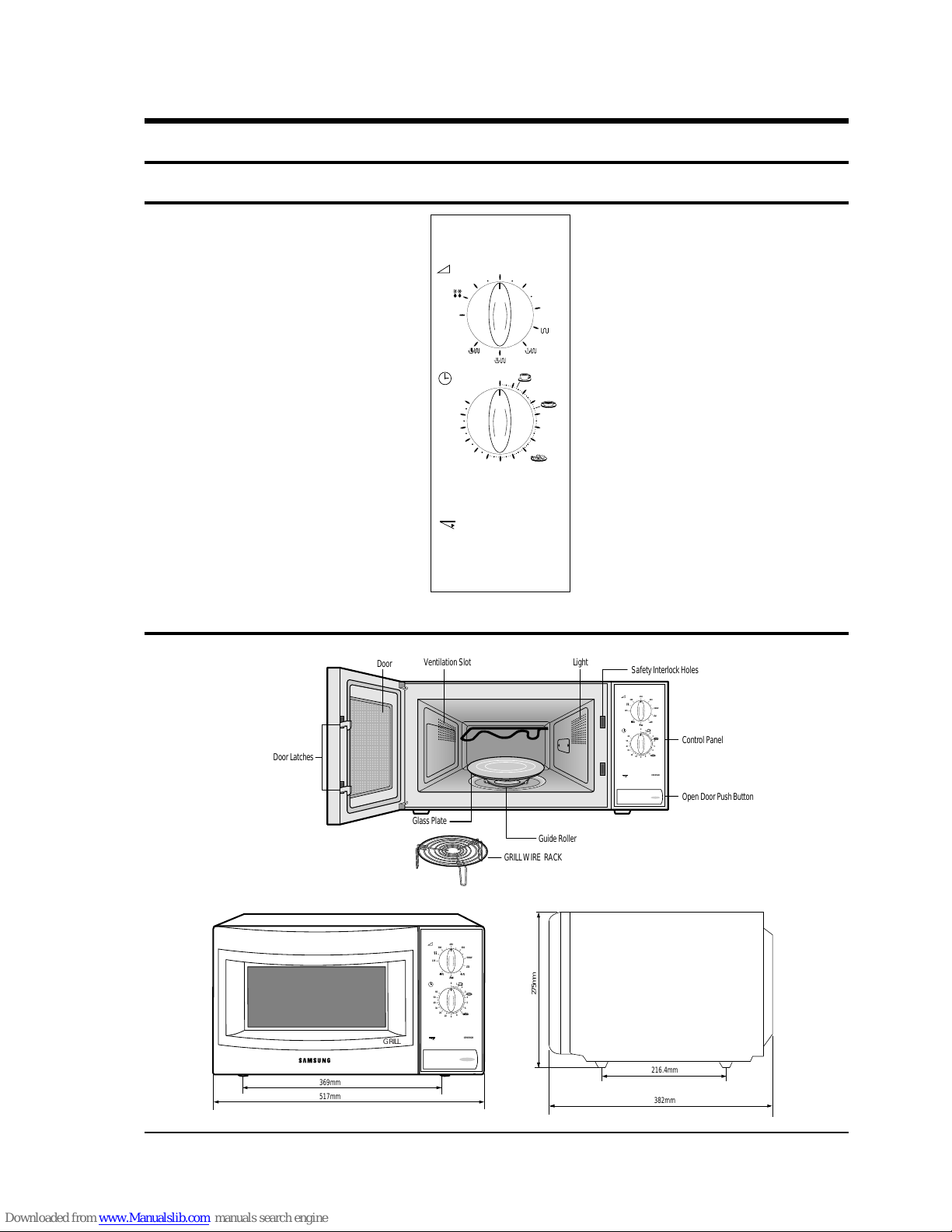

3-2 Features & External Views
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,
Door VentilationSlot Light SafetyInterlockHoles
ControlPanel
OpenDoorPushButton
GuideRoller
GRILLWIRE RACK
GlassPlate
DoorLatches
12
3
4
5
6
7
8
9
10
20
30
40
60
0
50
450 630300
900W
135
CE935GR
517mm
369mm
275mm
216.4mm
382mm
GRILL
12
3
4
5
6
7
8
9
10
20
30
40
60
0
50
450 630300
900W
135
CE935GR

4. Disassembly and Reassembly
4-1 Replacement of Magnetron, Motor Assembly and Lamp
Samsung Electronics 4-1
Remove the magnetron including the shield case,
permanent magnet, choke coils and 500pF
capacitors (all of which are contained in one
assembly).
1. Disconnect all lead wires from the magnetron
and lamp.
2. Remove the bracket mounting.
3. Remove the air cover.
4. Remove screws securing the magnetron to the
wave guide.
5. Take out the magnetron very carefully.
6. Remove screws from the back panel.
7.Remove the assy noise filter.
8. Take out the fan motor.
9. Remove the oven lamp by pulling out from hole
of air cover carefully.
10. NOTE1: When removing the magnetron, make
sure that its antenna does not hit any
adjacent parts, or it may be damaged.
11. NOTE2: When replacing the magnetron, be
sure to remount the magnetron gasket
in the correct position and make sure
the gasket is in good condition.
1. Discharge the high voltage capacitor.
2. Disconnect all the leads.
3. Remove the mounting bolts.
4. Reconnect the leads correctly and firmly.
4-2 Replacement of High Voltage Transformer
Lamp
Cover Air
Magnetron H. V. Trans
H. V. Capacitor
Screw
Thermo S/W
Fan Motor
H. V. Trans
Bolts

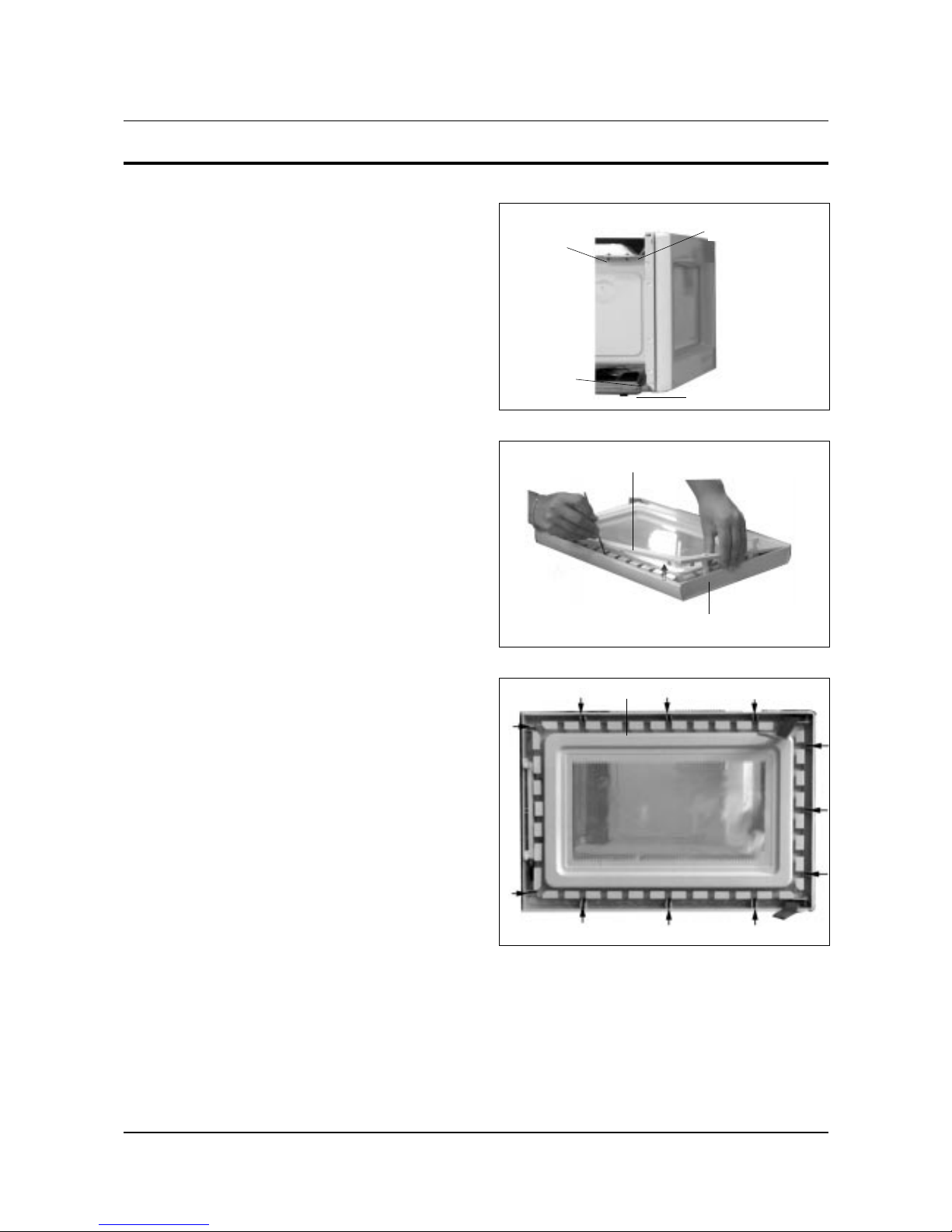

4-3 Replacement of Door Assembly
4-3-1 Removal of Door Assembly
4-2 Samsung Electronics
Remove screws securing the upper hinge and
lower hinge. Then remove the door assembly.
Insert flat screwdriver into the gap between Door
"A" and Door "C" to remove Door "C". Be careful
when handling Door "C" because it is fragile.
Following the procedure as shown in the figure,
insert and bend a thin metal plate between Door
"E" and Door "A" until you hear the 'tick' sound.
1. Insertion depth of the thin metal plate should be
0.5mm or less.
4-3-2 Removal of Door "C"
4-3-3 Removal of Door "E"
Disassembly and Reassembly
Upper Hinge
Lower Hinge Screw
Screw
Door "C"
Door "A"
Door "E"

4-3-4 Removal of Key Door & Spring
Samsung Electronics 4-3
1. Detach spring from Door "E" and key door.
2. After replacement of the defective component
parts of the door, reassemble it and follow the
instructions below for proper installation and
adjustment so as to prevent an excessive
microwave leakage.
3. When mounting the door to the oven, be sure to
adjust the door parallel to the bottom line of the
oven face plate by moving the upper hinge and
lower hinge in the direction necessary for
proper alignment.
4. Adjust so that the door has no play between the
inner door surface and oven front surface. If the
door assembly is not mounted properly,
microwave energy may leak from the space
between the door and oven.
5. Do the microwave leakage test.
1. Disconnect the oven from the power source.
2. Remove the 10A fuse in the Noise filter.
3. When replacing the 10A fuse, be sure to use an
exact replacement part. If new 10A fuse blows
out again after replacement, check the primary
interlock switch, Secondary switch and interlock
monitor switch.
4. When the above three switches operate properly,
check if any other part such as the control circuit
board, blower motor or high voltage
transformer is defective.
1. Take out the glass tray and guide roller from the
cavity.
2.
Turn the oven upside down to replace the drive motor.
3. Remove a screw securing the drive motor cover.
4. Disconnect all the lead wires from the drive motor.
5. Remove screws securing the drive motor to the
cavity.
6. Remove the drive motor and coupler.
7. When replacing the drive motor, be sure to
remount it in the correct position with the
coupler.
8. Connect all the leads to the drive motor.
9. Screw the drive motor cover to the base plate
with a screw driver.
4-4 Replacement of Fuse
4-5 Replacement of Drive Motor
Key Door Spring
Door "E"
Disassembly and Reassembly
Screw
Drive Motor Cover Base Plate
Thermo
Switch
Drive Motor

4-6 Replacement of Control Box Assembly
4-6-1 Removal of Control Box Assembly
4-4 Samsung Electronics
1. Disconnect the connectors from the control box
assembly.
2. Remove screws securing the control box
assembly.
3.Remove the knobs of the control box Ass'y.
4. Remove the screw securing the timer.
Disassembly and Reassembly
Control Box
Screw

Samsung Electronics
5. Alignment and Adjustments
5-1 High Voltage Transformer
5-2 Magnetron
5-1

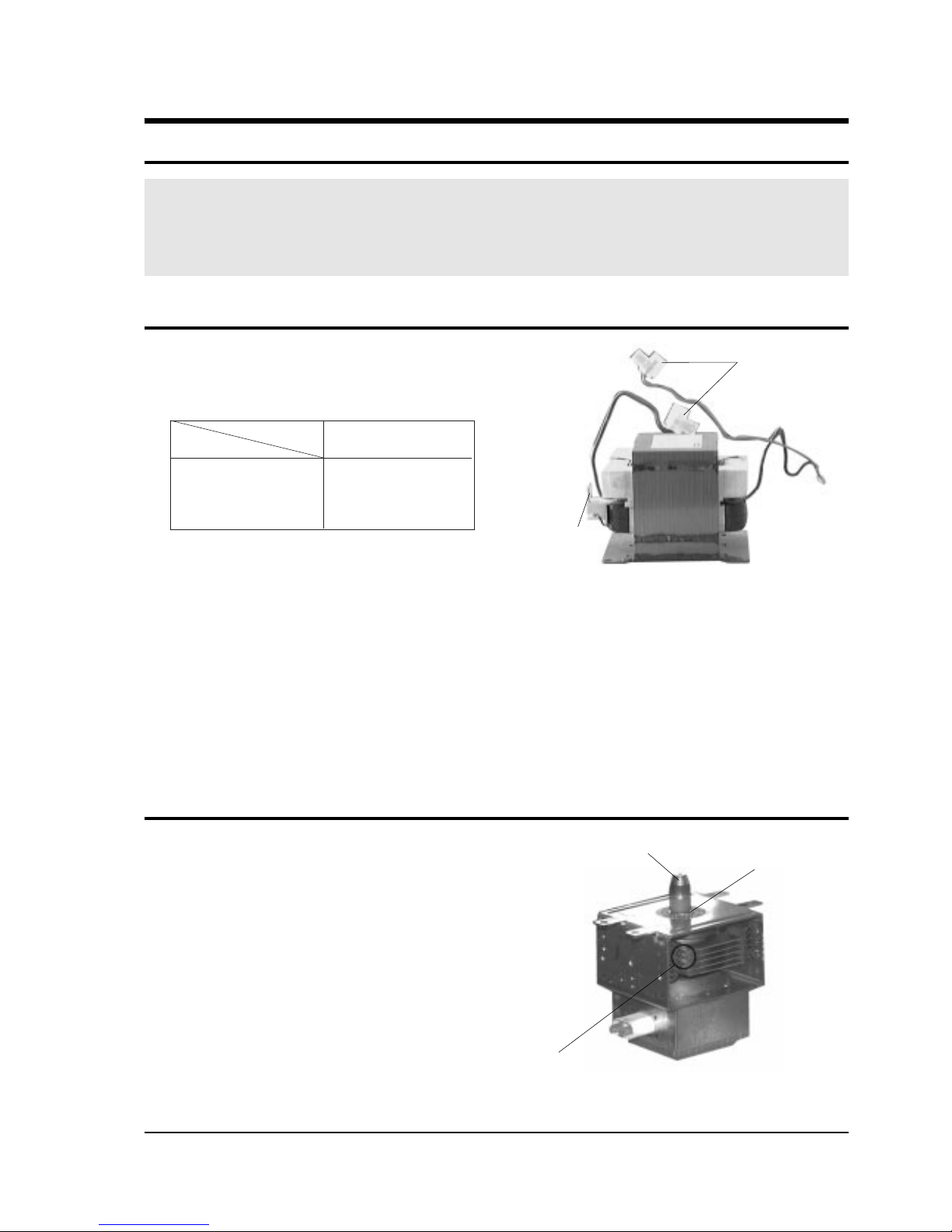

1. Remove connectors from the transformer terminals
and check continuity.
2. Normal resistance readings are as follows:
(Room temperature = 20ûC)
1. Continuity checks can indicate only an open
filament or a shorted magnetron. To diagnose an
open filament or shorted magnetron :
2. Isolate the magnetron from the circuit by
disconnecting its leads.
3. A continuity check across the magnetron filament
terminals should indicate one ohm or less.
4. A continuity check between each filament terminal
and magnetron case should read open.
PRECAUTION
1. High voltage is present at the high voltage terminals during any cook cycle.
2. It is neither necessary nor advisable to attempt measurement of the high voltage.
3. Before touching any oven components or wiring, always unplug the oven from its power source and discharge the high voltage
capacitor.
Filament Terminals
Primary
Terminals
MODEL SHV-945EG1
Secondary 103.0Ω ¡10%
Filament Shows Continuity
Primary 1.6Ω ¡10%
Cooling Fins
Gasket Plate
Magnetron Antenna

Samsung Electronics
5-3 High Voltage Capacitor
5-4 High Voltage Diode
5-5 Adjustment of Primary Switch, Secondary Switch and Monitor Switch
5-2
1. Check continuity of the capacitor with the meter set at the highest resistance scale.
2. Once the capacitor is charged, a normal capacitor shows continuity for a short time, and then indicates 9MΩ.
3. A shorted capacitor will show continuous continuity.
4. An open capacitor will show constant 9MΩ.
5. Resistance between each terminal and chassis should read infinite.
1. Isolate the diode from the circuit by disconnecting its leads.
2. With the ohm-meter set at the highest resistance scale, measure across the diode terminals. Reverse the
meter leads and read the resistance. A meter with 6V, 9V or higher voltage batteries should be used to
check the front-to back resistance of the diode (otherwise an infinite resistance may be read in both
directions). The resistance of a normal diode will be infinite in one direction and several hundred KΩin
the other direction.
1. When mounting Primary switch and Interlock
Monitor switch to Latch Body, consult the
figure.
2. No specific adjustment during installation of
Primary switch and Monitor switch to the latch
body is necessary.
3. When mounting the Latch Body to the oven
assembly, adjust the Latch Body by moving it so
that the oven door will not have any play in it.
Check for play in the door by pulling the door
assembly. Make sure that the latch keys move
smoothly after adjustment is completed.
Completely tighten the screws holding the Latch
Body to the oven assembly.
4. Reconnect to Monitor switch and check the
continuity of the monitor circuit and all latch
switches again by following the components test
procedures.
5. Confirm that the gap between the switch
housing and the switch actuator is no more than
0.5mm when door is closed.
Precaution
For continued protection against radiation hazard, replace parts in accordance with the wiring diagram and be sure to use the
correct part number for the following switches: Primary and secondary switche, and the interlock monitor switch (replace all
together). Then follow the adjustment procedures below. After repair and adjustment, be sure to check the continuity of all
interlock switches and the interlock monitor switch.
Alignment and Adjustments
Door Open Door Closed
Primary switch ∞0
Monitor switch (COM-NC) 0 ∞
Secondary switch ∞0
Primary Interlock Switch
Lever Switch
Body Latch Secondary Switch
Interlock Monitor
Switch

Samsung Electronics 5-3
7. Normal temperature rise for this model is 9ûC to 11ûC at 'HIGH'.
NOTE 1: Variations or errors in the test procedure will cause a variance in the temperature rise.
Additional power test should be made if temperature rise is marginal.
NOTE 2: Output power in watts is computed by multiplying the temperature rise (step 5) by a factor of 90
times the of centigrade temperature.
4.187 x 1000 x ∆T+0.88xMcx(T2-T0)
Output Power = 46.5
46.5: Heating Time (sec)
4.187 : Coefficient for Water
1000 : Water (cc)
∆T : Temperature Rise (T2-T1)
Mc : Cylindrical borosilicate glass weight
To : Room temperature.
5-6 Output Power of Magnetron
Alignment and Adjustments
CAUTION
MICROWAVE RADIATION
PERSONNEL SHOULD NOT ALLOW EXPOSURE TO MICROWAVE RADIATION FROM MICROWAVE GENERATOR OR OTHER PARTS
CONDUCTING MICROWAVE ENERGY.
5-7 Leakage Measuring Procedure
The output power of the magnetron can be measured by performing a water temperature rise test.
Equipment needed :
* Two 1-liter cylindrical borosilicate glass vessel (Outside diameter 190 mm)
* One glass thermometer with mercury column
NOTE: Check line voltage under load. Low voltage will lower the magnetron output. Make all temperature
and time tests with accurate equipment.
1. Fill the one liter glass vessel with water.
2. Stir water in glass vessel with thermometer, and record glass vessel's temperature ("T1", 10±1ûC).
3. After moving the water into another glass vessel, place it in the center of the cooking tray. Set the oven to high
power and operate for 48seconds exactly. (2 seconds included as a holding time of magnetron oscillation:)
4. When heating is finished, stir the water again with the thermometer and measure the temperature ("T2").
5. Subtract T1 from T2. This will give you the water temperature rise. (∆T)
6. The output power is obtained by the following formula;
5-9-1 Record keeping and notification after measurement
1) After adjustment and repair of a radiarion preventing device, make a repair record for the measured
values, and keep the data.
2) If the radiation leakage is more than 5 mW/§† after determining that all parts are in good condition,
functioning properly and the identical parts are replaced as listed in this manual notify that fact to ;
J.V.SAMSUNG SERVICE LTD.
MARSHAL ZHUKOU.,1.OFFICE 201
123308,MOSCOW,RUSSIA
5-9-2 At least once a year have the microwave energy survey meter checked for accuracy by its
manufacturer.

Samsung Electronics5-4
Alignment and Adjustments
The microwave heat distribution can be checked indirectly by measuring the water temperature rise at
certain positions in the oven:
1. Prepare five beakers made of 'Pyrex', having 100 milliliters capacity each.
2. Measure exactly 100milliliters of water load with a measuring cylinder, and pour into each beaker.
3. Measure the temperature of each water load. (Readings shall be taken to the first place of decimals.)
4. Put each beaker in place on the cooking tray as illustrated in figure below. Start heating.
5. After heating for 2 minutes, measure the water temperature in each beaker.
6. Microwave heat distribution rate can be calculated as follows:
Minimum
Temperature Rise
Heat Distribution = X 100(%)
Maximum
Temperature Rise
The result should exceed 65%.
5-8 Microwave Heat Distribution - Heat Evenness
D
D
D/4
D/4
D/4
D/4
Cooking Tray
Beaker

Parts Cause Diagnosis Remedy
Fuse blows Defective primary Check continuity of the primary switch terminals with Replace the primary
out when interlock switch wire removed using a multimeter. If there is continuity interlock switch
door is between switch terminals when door is opened,
opened. the switch is defective.
Defective interlock Check continuity of the monitor switch terminals Replace the interlock
monitor switch with wire removed by using a multimeter. monitor switch
If there is continuity between switch terminals
when the door is closed, the switch is defective.
Fuse is Layer short of the The fuse will not blow right away, but if it blows in a Replace H. V. Transformer
open. secondary coil of few seconds, then there is a layer short.
H. V. Transformer If the fuse blows with H. V. Trans secondary open, the
transformer may be faulty.
Oven lamp 1) Poor contact of Check continuity of power supply cord. Also check Adjust or replace the
does not power cord whether the power cord is securely wired. power supply cord.
light. 2) Defective lamp The fan motor rotates, but lamp does not light. Replace the lamp.
3) Defective timer Check the terminals of timer for continuity, Replace the timer.
contacts turning the timer knob ON and OFF repeatedly.
Fan does 1) Defective If 220~240V is found at motor terminals, the motor Replace the motor.
not operate. fan motor. should be replaced.
2) Defective con- The oven lamp does not light and fan motor Replace the timer.
tacts of timer does not operate.
NOTE: Interlock monitor switch must be replaced when the fuse is blown out.
WARNING FOR HIGH VOLTAGE
4000 VOLTS EXIST AT THE HIGH VOLTAGE AREA. DO NOT OPERATE THE OVEN WITH CABINET PARTS REMOVED. DO NOT REMOVE
THE CABINET PARTS IF THE POWER SUPPLY CORD IS PLUGGED IN THE WALL OUTLET. UNPLUG THE POWER CORD BEFORE
SERVICING.
6-1 Electrical Malfunction
6. Troubleshooting
Samsung Electronics 6-1

Parts Cause Diagnosis Remedy
1) Too small If a small amount of food is heated for a long time, To increase the oven
a load period of microwave may turn off during operation. load, add a glass of
Microwave water into the oven.
turns off
during cook- 2) Defective Check to see if the magnetron thermal cutout switch is Replace thermal cutout
ing cycle. magnetron activated at a temperature higher than 150˚C. switch.
thermal
cutout S/W
Electric Incomplete Make sure that qrounding of the power supply cord has Rewire.
shock is grounding been done properly.
felt.
Door does 1) Broken door Remove the cabinet for inspection. Replace door hinges.
not operate hinges Check the door hinge.
properly 2) Missing or Check if the screws are secured well to the door hinge. Fasten or tighten.
loose screw
1) Defective If the timer does not operate with 230V applied to the Replace timer.
Timer does timer motor terminals, the timer motor amy be faulty.
not operate. 2) Defective The lamp does not light. Replace timer
contacts
of timer S/W
Cooking tray Defective Check to see if 21V exists at the motor terminals. Replace drive motor.
does not rotate drive motor If so, motor will be defective.
Magnetron 1) Blocking of Check if the air inlet or outlet ventilation is blocked Keep a distance of
thermal the ventilatior by the wall or other objects. 100mm from the
cutout wall or the objects.
switch
OFF 2) Defective If the fan motor does not operate with 230V applied Replace fan motor.
fan motor to the terminal, the motor may be faulty.
3) Too small a If a small amount of food is heated repeatedly over To increase the oven
load or no a long period of time, microwave turns off during load, place a glass of
load operation. water into the oven.
6-2 Samsung Electronics
6-1 Electrical Malfunction (Continved)
Troubleshooting

Parts Cause Diagnosis Remedy
1) Open cathode Check the terminals with a multimeter to see Replace magnetron.
of magnetron if the heater circuit is open.
2) Defective Check the H. V. Diode for continuity in the reverse and Replace H. V. Diode.
- H. V. Diode normal directions using megger. If there is continuity
in the reverse direction, the H. V. Diode may be faulty.
(In this event H. V. Capacitor will be hot)
3) Shorted Connect megger leads to quick-connect terminal & Replace magnetron.
magnetron body of the magnetron if there is continuity, the
magnetron may be faulty. (In this case the main
fuse will be blown)
Food is 4) Defective If there is a crack in the magnetron antenna (dome), Replace magnetron.
not heated. magnetron the magnetron is defective.
5) Poor contact Check if the screws are secured well to the door hinge. Replace or adjust.
of primay and pressing it ON and OFF repeatedly.
interlock switch
6) Open coil of Check the continuity of primary coil and secondary Replace the
H. V. Trans- coil. If there is no continuity, H. V. Transformer is H. V. Transformer.
former defective.
7) Shorted H. V. Check the continuity of capacitor. Replace the
capacitor If the capacitor shorts, the fuse blows H. V. Capacitor.
6-2 Unsatisfactory Cooking
Symptom Related Parts Check Points Remedy
Microwave H.V.Transformer 1) Check if the primary and secondary coil is open or shorted. Replace.
cooking does * Resistance of primary coil: Approx. 1.60§
not work. Resistance of secondary coil: Approx. 103.0§
2) Check if the MGT Heater Voltage is approx. 3.3V AC.
Caution : High voltage !
H.V.Capacitor Check continuity of capacitor between two Replace.
terminals with H.V.wire lead removed.
The resistance should be approx. 10MΩ, it's failure.
H.V.Diode 1) If there is no continuity in forward, direction the H.V.Diode is open. Replace.
2) If there is continuity in reverse direction, it's shorted.
Fan motor Fan motor Check if the motor coil is open. Replace.
does not rotate.
6-3 Part Check List
Samsung Electronics 6-3
Troubleshooting

Samsung Electronics
7. Exploded Views and Parts List

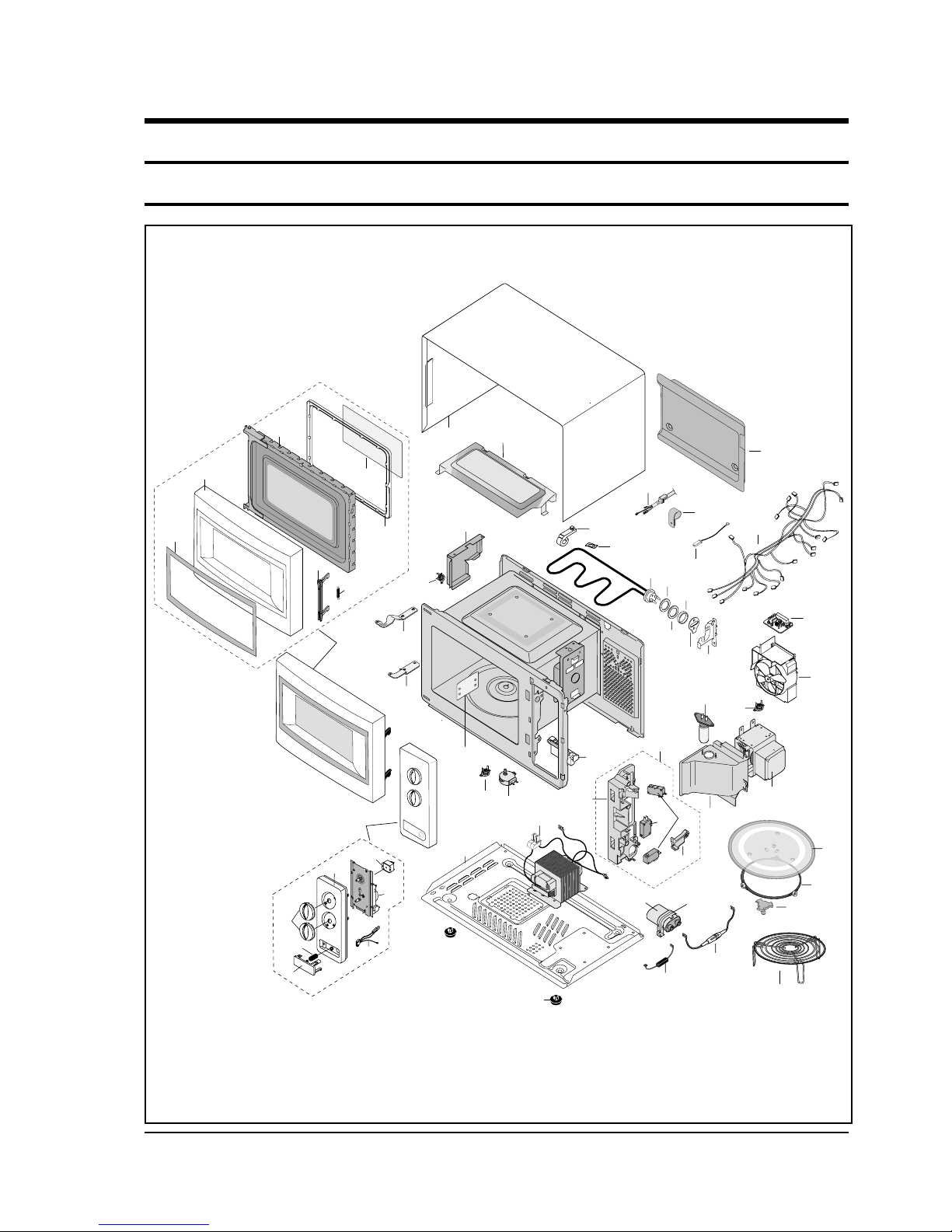

7-1 Exploded Views
7-1
M1 M2
M21
M22
M23
M24
D1
D2
D3
D5
D6
M25
M26
M42
M15 M14
M16
M30
M18
M31
M32
M33
M34
M19
C2
C3
C1
C4 C6
C5
C7
M20
M3
M41
M4
M5M6
M7
M8
M9 M10
M36
M12
M13
M35
M11
M29
M43
B1
B2
B4
B3
M27
D4
D7
M28
M17
M40
M39
M38
M37

7-2 Main Parts List
7-2 Samsung Electronics
Exploded Views and Parts List
Ref. No. Parts No. Description/Specification Q'ty Remarks Old Parts No.
M 1 DE70-30001A PANEL-OUTER;SECC T0.6 360 1128 EPOXY-COA 1
M 2 DE61-50017A BRACKET-UPPER;SECC1 T0.6 340 216 1
M 3 DE61-30006A SUPPORTER-HEATER;ALUMINA 5G 2ND-W/P 1
M 4 DE61-70060A SPRING-PLATE;SK-5 T0.5 1 76674-232-810
M 5 DE47-70031G HEATER-GRILL;D6.6 230V1280W M9G45 SJH 1
M 6 DE63-20017A GASKET-HEATER;BRASS T1.5 OD30.5 ID22.5 1 73404-0014-00
M 7 DE60-40009B WASHER-TEFLON;SLOT ID22.2 OD28 T1.2 TEFL 1 70534-0004-02
M 8 DE61-50021A BRACKET-FLANGE;SECC1 T0.8 32 32 1
M 9 DE61-50027B BRACKET-HEATER;SECC T1.0 W51 L55 CE945GF 1
M 10 DE61-50347A BRACKET-EARTH;BSS2-A T1.0 W35 L43 MBGF45 1 7.014-0299-00
M 11 4713-001004 LAMP-INCANDESCENT;230V,-,40W,ORG,-,-,25x 1
M 12 DE31-10156A MOTOR-FAN;SMF-945EA 230/50 2400 M97G45 1
M 13 DE91-40095A ASSY NOISE FILTER;SN-E10D(N) 250V 10A “2 1
M 14 DE61-50106A BRACKET-HVC;SECC T0.8 W31 L125.8 1 73013-0194-00
M 15 2501-001019 C-OIL;HCH212110C 1.10UF,2100V 35X54X90,2 1
M 16 DE59-40001A DIODE-H.V;HVR-1X-32B-12 1 72169-219-108
M 17 DE91-70061A ASSY-H.V.FUSE;THV060T-0800-H 5KV/0.8A WH 1 79163-0252-00
M 18 DE47-20161A THERMOSTAT;PW2N(120/110)187Z23. 250V/7.5 1
M 19 DE61-40017A FOOT;PP(A353) BLK MW5630T 2 73004-0007-00
M 20 DE80-10001A BASE-PLATE;SGCC T0.8 345 565 1
M 21 DE31-10154A MOTOR-DRIVE;M2HJ49ZR02,ST-16 21V 5/6 1
M 22 DE71-60354A COVER-CEILING;MICA-SHEET 0.5 70 122 CE 1
M 23 ASSY CONTROL-BOX;230V50HZ CE935GR RUSSIA 1
M 24 ASSY DOOR;BUTTON WHT CE945GR(SBTW) RUSSI 1
M 25 DE61-80003A HINGE-LOWER;SCP1 T2.3 26 77 ZPC3 WHT CHR 1
M 26 DE61-80002A HINGE-UPPER;SCP1 T2.3 26 77 ZPC3 WHT CHR 1
M 27 DE39-20058E ASSY POWER CORD;KKP4819D/B232 230V/16A L 1
M 28 DE47-20008A THERMOSTAT;CS-7S(100/60)187Y 250V7.5A 10 1
M 29 DE71-60016A COVER-AIR;PP 2 WHT M945/MB45 1
M 30 DE26-10100A TRANS-H.V;SHV-945EG1 230V 50HZ 2310V DPC 1
M 31 DE74-20015B TRAY-COOKING;GLASS T6.0 PI318 1050G MW56 1 73602-0007-01
M 32 DE92-90189D ASSY-GUIDE ROLLER;D19 STD 1 79362-0281-06
M 33 DE67-60075A COUPLER;PPS 7G BRN M97G45 1
M 34 DE74-70003A RACK-WIRE;MSWR3 3 290 125 SNC2 CE945G 1
M 35 DE03-30035A MAGNETRON;OM75PH((31)ESS 1 77059-0034-00
M 36 DE47-20009A THERMOSTAT;CS-7SA(160/60)187Y 250V7.5A 1 1
M 37 DE39-40569A ASSY WIRE HARNESS-A;230V50HZ CE935G/CE73 1
M 38 DE39-40409A ASSY WIRE HARNESS-E;230V50HZ M9G45 CTW 1 79204-0381-00
M 39 DE71-60015A COVER-BACK;SECC1 T0.5 353 526 CE945G 1
M 40 DE65-20014A CABLE CLAMP;DA-6N NY-66 1 76449-0003-00
M 41 DE72-60005A GUIDE-AIR;SECC1-P T0.5 210 225 1
M 42 DE66-90013A LEVER-DOOR;POM(F20-01) NTR MW5630T 1 71533-0015-00
M 43 DE93-20001A ASSY BODY LATCH;2ND-W1 M97G45/M9745 1
: Option Parts : Warning :Electrostatically Sensitive Devices

Samsung Electronics 7-3
7-3 Door Parts List
Ref. No. Parts No. Description/Specification Q'ty Remarks Old Parts No.
D 1 DE64-40011A DOOR-A;RESIN-ABS(HR-0370U) T2.5 M945(IDE 1
D 2 DE64-40006A DOOR-KEY;POM(TC3005) T2.0 12GR BLK CE9 1
D 3 DE61-70032A SPRING-KEY;ES HSWR PI0.6 D5.4 L25 MW8640 1 72724-0038-00
D 4 DE67-20003D SCREEN-DOOR;PC T1.5 L317.5 W401.5 WHT(GR 1
D 5 DE92-50127A ASSY DOOR-E;COAT BLACK M97G45 1
D 6 DE64-40012A DOOR-C;RESIN-PP(TB53) T2.0 CE945GF BLA 1
D 7 DE01-00002A FILM-DOOR;PET T0.15 275 175 NTR CE945GF 1
7-4 Control Parts List
Ref. No. Parts No. Description/Specification Q'ty Remarks Old Parts No.
C 1 DE66-20006A BUTTON-PUSH;RESIN-ABS(HR-0370U) P/WHT M9 1
C 2 DE61-70076A SPRING-BUTTON;HSWR PI0.6 1 76674-239-310
C 3 DE64-10123A KNOB;ABS PURE-WHT M97G35 2
C 4 DE72-70008C CONTROL-PANEL;ABS(HR0370U) T2.5 CE935GR 1
C 5 DE45-10076A TIMER-ASSY;TMFK60MTB1 220V/240V 310-GRIL 1
C 6 3501-000309 RELAY-POWER;CHP11-A240S-250V15A 240V,375 1 A3068-0052
C 7 DE39-40333B ASSY WIRE HARNESS-B;230V50HZ CE735G/CE93 1
7-5 Body Latch Parts List
Ref. No. Parts No. Description/Specification Q'ty Remarks Old Parts No.
B 1 DE66-40001A LATCH-BODY;POM(F20-02) 40GR NTR 1
B 2 3405-000178 SWITCH-MICRO;VP-533A-OF-PS(T85) 250V,15A 2 73579-203-207
B 3 3405-000175 SWITCH-MICRO;VP-531A-OF(T85) 250V,15A,20 1 73579-203-278
B 4 DE66-90001A LEVER-SWITCH;P.O.M(F20-02) 2 6 NTR 2ND-W 1
Exploded Views and Parts List
