2_ safety information
safety information
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
A. Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is important not
to defeat or tamper with the safety interlocks.
B. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surface.
C. Do not operate the oven if it is damaged. It is particularly important that the oven
door close properly and that there is no damage to the:
1. Door (bent),
2. hinges and latches, (broken or loosened),
3. door seals and sealing surface.
D. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
safety information
Congratulations on your new Samsung microwave oven. This manual contains
important information on the installation, use and care of your appliance. Please
take time to read this manual to take full advantage of your microwave oven’s many
benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY
INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your microwave oven.
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 2 2010-02-20  3:55:29

safety information _3
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in
severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in
minor personal injury or property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock,
or personal injury when using your microwave
oven, follow these basic safety precautions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent
electric shock.
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
IMPORTANT SAFETY INSTRUCTIONS
When using any electrical appliance, basic safety precautions should be followed,
including the following:
WARNING
To reduce risk of burns, electric shock, fire, personal injury or exposure to
excessive microwave energy:
1. Read all safety instructions before using the appliance.
2. Use this appliance only for its intended uses as described in this manual.
3. Read and follow the specific “Precautions to Avoid Exposure to Excessive
Microwave Energy” on this page.
4. This appliance must be grounded. Connect only to properly grounded outlets.
See Important “Grounding Instructions” on page 5 of this manual.
5. Install or locate this appliance only in accordance with the provided installation
instructions.
6. Some products such as whole eggs and sealed containers for example, closed
glass jars are able to explode and should not be heated in this oven.
WARNING
SMH9207_XAC-03686B_EN-01.indd 3 2010-02-20  3:55:31

4_ safety information
7. Use this appliance only for its intended use as described in the manual. Do
not use corrosive chemicals or vapors in this appliance. This type of oven is
specifically designed to heat, cook, or dry food. It is not designed for industrial or
laboratory use.
8. As with any appliance, close supervision is necessary when used by children.
9. Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
10. Never try to repair the oven on your own. This appliance should be repaired or
serviced only by qualified service personnel. Contact the nearest authorized
service facility for examination, repair, or adjustment.
11. Do not cover or block any openings on the appliance.
12. Do not tamper with or make any adjustments or repairs to the door.
13. Do not store this appliance outdoors. Do not use this product near water for
example, near a kitchen sink, in a wet basement, near a swimming pool, or similar
locations.
14. Do not immerse cord or plug in water.
15. Keep cord away from heated surfaces. (including the back of the oven).
16. Do not let cord hang over edge of table or counter.
17. When cleaning surfaces of door and oven that comes together on closing the
door, use only mild, nonabrasive soaps, or detergents applied with a sponge or
soft cloth. Unplug the plug before cleaning.
18. To reduce the risk of fire in the oven cavity.
a. Do not overcook food. Carefully attend appliance when paper, plastic, or
other combustible materials are placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing bag in
oven.
c. If materials inside the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, or shut off power at the fuse or circuit breaker
panel. If the door is opened, the fire may spread.
d. Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils, or food in the cavity when not in use.
19. Liquids, such as water, milk, coffee, or tea are able to be overheated beyond the
boiling point without appearing to be boiling. Visible bubbling or boiling when
the container is removed from the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED
INTO THE LIQUID. To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through heating it.
c. Do not use straight-sided containers with narrow necks.
d. After heating, allow the container to stand in the microwave oven for a short
time before removing the container.
e. Use extreme care when inserting a spoon or other utensil into the container.
20. Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate
on hood of filter.
21. When flaming foods under the hood, turn the fan on.
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 4 2010-02-20  3:55:31

safety information _5
22. Use care when cleaning the vent-hood filter. Corrosive cleaning agent, such as
lye-based oven cleaner, may damage the filter.
CAUTION
1. Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate
on hood of filter.
2. When flaming foods under the hood, turn the fan on.
3. Use care when cleaning the vent-hood filter. Corrosive cleaning agent, such as
lye-based oven cleaner, may damage the filter.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electrical current.
This appliance is equipped with a cord that includes a grounding wire and a grounding
plug. The plug must be plugged into an outlet that is properly installed and grounded.
WARNING
Improper use of the grounding plug can result in a risk of electric shock.
- Plug into a grounded 3 prong outlet. Do not remove the third (grounding) prong.
Do not use an adaptor or otherwise defeat the grounding plug.
- Consult a qualified electrician or service person if you do not understand the
grounding instructions or if you are not sure if the appliance is properly grounded.
- We do not recommend using an extension cord with this appliance. If the power-
supply cord is too short, have a qualified electrician or serviceman install an outlet
near the appliance. However, if it is necessary to use an extension cord, read and
follow the “Use of Extension Cords” section below.
Use of Extension Cords
A short power-supply cord is provided to reduce the risk of becoming entangled in or
tripping over a longer cord. Longer cord sets or extension cords are available and may
be used if care is exercised in their use. If a long cord or extension cord is used:
1. The marked electrical rating of the cord set or extension cord should be at least
as great as the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire cord and it must be plugged
into a 3-slot outlet.
3. The longer cord should be arranged so that it will not drape over the counter top
or tabletop where it can be pulled on by children or tripped over accidentally. If
you use an extension cord, the interior light may flicker and the blower may vary
when the microwave oven is on. Cooking times may be longer, too.
WARNING
CAUTION
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 5 2010-02-20  3:55:31

6_ safety information
SEVERE WARNING SIGNS FOR
INSTALLATION
The installation of this appliance must be performed by a qualified
technician or service company.
- Failing to do so may result in electric shock, fire, an explosion, problems
with the product, or injury.
Unpack oven, remove all packaging material and examine the oven for
any damages such as dents on the interior or exterior of the oven, broken
door latches, cracks in the door, or a door that is not lined up correctly.
If there is any damage, do not operate the oven and notify your dealer
immediately.
Remove all foreign substances such as dust or water from the power plug
terminals and contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in electric shock or fire.
Plug the power cord into a properly grounded outlet of standard. Your
oven should be the only connected on this circuit.
- Sharing a wall socket with other appliances using a power strip or
extending the power cord may result in electric shock or fire.
- Do not use an electric transformer. It may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as
those of the product specifications. Failing to do so may result in electric
shock or fire.
Keep all packaging materials out of the reach of children. Children may
use them for play.
This appliance must be properly grounded. Read and follow the specific
“Grounding Instructions” found in the beginning of this Section.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone
line.
- This may result in electric shock, fire, an explosion, or problems with the
product
- Never plug the power cord into a socket that is not grounded correctly
and make sure that it is in accordance with local and national codes.
Do not cut or remove the third (ground) prong from the power cord under
any circumstances.
Connect the oven to a 20A circuit. When connecting the oven to a 15A
circuit, make sure that circuit breaker is operable.
Do not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops).
- This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged
power plug, damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not operate any other heating or cooking appliance beneath this
appliance.
Do not mount unit over or near any portion of a heating or cooking
appliance.
Do not mount over a sink.
Do not pull or excessively bend the power cord.
WARNING
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 6 2010-02-20  3:55:31

safety information _7
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on
the power cord, insert the power cord between objects, or push the power
cord into the space behind the appliance.
- This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failing to do so may result in electric shock or fire.
When the power plug or power cord is damaged, contact your nearest
service center.
CAUTION SIGNS FOR INSTALLATION
This appliance should be positioned in such a way that it is accessible to
the power plug.
- Failing to do so may result in electric shock or fire due to electric
leakage.
Unplug the power plug when the appliance is not being used for long
periods of time or during a thunder/lightning storm.
- Failing to do so may result in electric shock or fire.
SEVERE WARNING SIGNS FOR USING
If the appliance is flooded please contact your nearest service center :
Failing to do so may result in electric shock or fire.
Read and follow the specific “Precautions to Avoid Possible Exposure to
Excessive Microwave Energy”, found in the beginning of this Section.
If the appliance generates a strange noise, a burning smell or smoke,
unplug the power plug immediately and contact your nearest service
center.
- Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power plug. Do not touch the appliance
or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Take care that the door or any of the other parts do not come into contact
with the body while cooking or just after cooking.
- Failing to do so may result in burns.
In the event of a grease fire on the surface units below the oven, smother a
flaming pan on the surface unit by covering the pan completely with a lid, a
cookie sheet or a flat tray.
Never leave surface units beneath your oven unattended at high heat
settings. Boilovers cause smoking and greasy spillovers that may ignite
and spread if the vent fan is operating.To minimize automatic fan operation,
use adequate sized cookware and use high heat on surface units only
when necessary.
If materials inside oven should ignite, keep the oven door closed, turn the
CAUTION
WARNING
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 7 2010-02-20  3:55:32

8_ safety information
oven off and disconnect the power cord, or shut off power at the fuse or
circuit breaker panel. If the door is opened, the fire may spread.
Always observe Safety Precautions when using your oven. Never try to
repair the oven on your own - there is dangerous voltage inside. If the oven
needs to be repaired, contact an authorized service center near you.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Since a high voltage current enters the product chassis, it may result in
electric shock or fire.
- You may be exposed to electromagnetic waves.
- When repairing the appliance is required, contact your nearest service
center.
If any foreign substance such as water has entered the appliance, unplug
the power plug and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while an
operation is in progress.
- Plugging the power plug into the wall socket again may cause a spark
and result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as
packaging materials can be dangerous to children.
- If a child places a bag over its head, it may result in suffocation.
Do not let children or any person with reduced physical, sensory or mental
capabilities use this appliance unsupervised.
Make sure that the appliance is out of the reach of children.
- Failing to do so may result in electric shock, burns or injury.
Do not touch the inside of the appliance immediately after cooking,
because the inside of the appliance is hot after being heated for a long
time or heating a small amount of food.
- Failing to do so may result in burns.
Do not use aluminum foil, metal objects (such as containers, forks, etc.) or
containers with golden or silver rims.
- This may result in sparks or fire.
Do not use or place inflammable sprays or objects near the oven.
- This may result in fire or an explosion.
Do not insert fingers, foreign substances or metal objects such as pins
or needles into the inlet, outlet, water supply cartridge input and output
parts, and holes. If foreign substances are inserted into any of these holes,
unplug the power plug from the wall socket and contact your product
provider or nearest service center.
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 8 2010-02-20  3:55:32

safety information _9
- Failing to do so may result in electric shock or injury.
Do not tamper with or make any adjustments or repairs to the door. Under
no circumstances should you remove the outer cabinet.
Do not store or use oven outdoors.
CAUTION SIGNS FOR USING
When the surface is cracked, turn the power switch of the appliance off.
- Failing to do so may result in electric shock.
Dishes and containers can become hot. Handle with care.
Hot foods and steam can cause burns. Carefully remove container
coverings, directing steam away from hands and face.
Remove lids from baby food before heating. After heating baby food, stir
well to distribute the heat evenly. Always test temperature by tasting before
feeding the baby. The glass jar or surface of the food may appear to be
cooler than the interior, which can be so hot as to burn the infant’s mouth.
Make sure all cookware used in the oven is suitable for microwaving.
Use microwavable cookware in strict compliance with such manufacturers
recommendations.
Do not stand on top of the appliance or place objects (such as laundry,
oven cover, lighted candles, lighted cigarettes, dishes, chemicals, metal
objects, etc.) on the appliance.
- Items, such as a cloth, may be caught in the door.
- This may result in electric shock, fire, problems with the product, or
injury.
Do not operate the appliance with wet hands.
- This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
- As well as being harmful to humans, it may also result in electric shock,
fire or problems with the product.
Do not place the appliance over a fragile object such as a sink or glass
object.
- This may result in damage to the sink or glass object.
Do not put your face or body close to the appliance while cooking or when
opening the door just after cooking.
- Take care that children do not come too close to the appliance.
- Failing to do so may result in children burning themselves.
Do not place food or heavy objects over the door when opening the door.
- The food or object may fall and this may result in burns or injury.
CAUTION
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 9 2010-02-20  3:55:32

10_ safety information
WARNING
Do not abruptly cool the door, the inside of the appliance, or the dish by
pouring water over it during or just after cooking.
- This may result in damage to the appliance. The steam or water spray
may result in burns or injury.
Do not try to preheat oven or operate while empty.
Do not cook without the glass tray in place on the oven floor. Food will not
cookproperly without the tray.
Do not defrost frozen beverages in narrow-necked bottles. The containers
can break.
Do not scratch the glass of the oven door with a sharp object.
- This may result in the glass being damaged or broken.
Do not store anything directly on top of the appliance when it is in
operation.
Do not use sealed containers. Remove seals and lids before use. Sealed
containers can explode due to buildup of pressure even after oven has
been turned off.
SEVERE WARNING SIGNS FOR
CLEANING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock or
fire.
Before cleaning or performing maintenance, unplug the appliance from
the wall socket and remove food waste from the door and cooking
compartment.
- Failing to do so may result in electric shock or fire.
Take care not to hurt yourself when cleaning the appliance (external/
internal)
- You may hurt yourself on the sharp edges of the appliance.
Do not clean the appliance with a steam cleaner.
- This may result in corrosion.
Keep the inside of the oven clean. Food particles or spattered oils stuck to
the oven walls or floor can cause paint damage and reduce the efficiency
of the oven.
SAVE THESE INSTRUCTIONS
SMH9207_XAC-03686B_EN-01.indd 10 2010-02-20  3:55:32

contents _11
contents
SETTING UP YOUR NEW MICROWAVE
OVEN
13
13 Checking The Parts
14 Setting Up Your Microwave Oven
17 Turning On The Power For The First Time
17 Setting The Time
17 Child Lock
18 My Settings
USING YOUR MICROWAVE OVEN
19
19 Using the Kitchen Timer button
19 Using The Add 30 Sec. Button
19 Using The More/Less Button
19 Using The Hi/Mid/Lo/Off Vent Button
20 Using The Vent Delay Off Button
20 Using The Light Hi/Lo/Off Button
20 Using The Light Timer Button
21 Using The Turntable On/Off Button
21 Using The Metal Shelf
22 Using The Sensor Cooking Button
COOKWARE GUIDE
31
31 Microwave-Safe Utensils
COOKING GUIDE
33
33 General Microwave Tips
34 Cooking Meat
35 Cooking Poultry
35 Cooking Seafood
36 Cooking Eggs
36 Cooking Vegetables
37 Recipes
SMH9207_XAC-03686B_EN-01.indd 11 2010-02-20  3:55:32

12_ contents
CLEANING AND MAINTAINING YOUR
MICROWAVE OVEN
39
39 Cleaning The Exterior
39 Cleaning The Interior
39 Cleaning The Turntable And Roller Rings
40 Storing And Repairing Your Microwave Oven
40 Replacing The Cooktop/Night Bulb
40 Replacing The Oven Bulb
41 Cleaning The Grease Filter
42 Replacing The Charcoal Filter
APPENDIX
43
43 Specifications
TROUBLESHOOTING
44
44 Check These Points If Your Microwave Oven
WARRANTY
45
SMH9207_XAC-03686B_EN-01.indd 12 2010-02-20  3:55:32

setting up your new microwave oven _13
01 SETTING UP YOUR MICROWAVE OVEN
setting up your new
microwave oven
Be sure to follow these instructions closely so that your new microwave oven works properly.
CHECKING THE PARTS
Carefully unpack your microwave oven, and make sure you’ve received all parts shown below. If your
microwave oven was damaged during shipping, or if you do not have the parts, contact Samsung
Customer Service (Refer to the “WARRANTY AND SERVICE INFORMATION” on page 45).

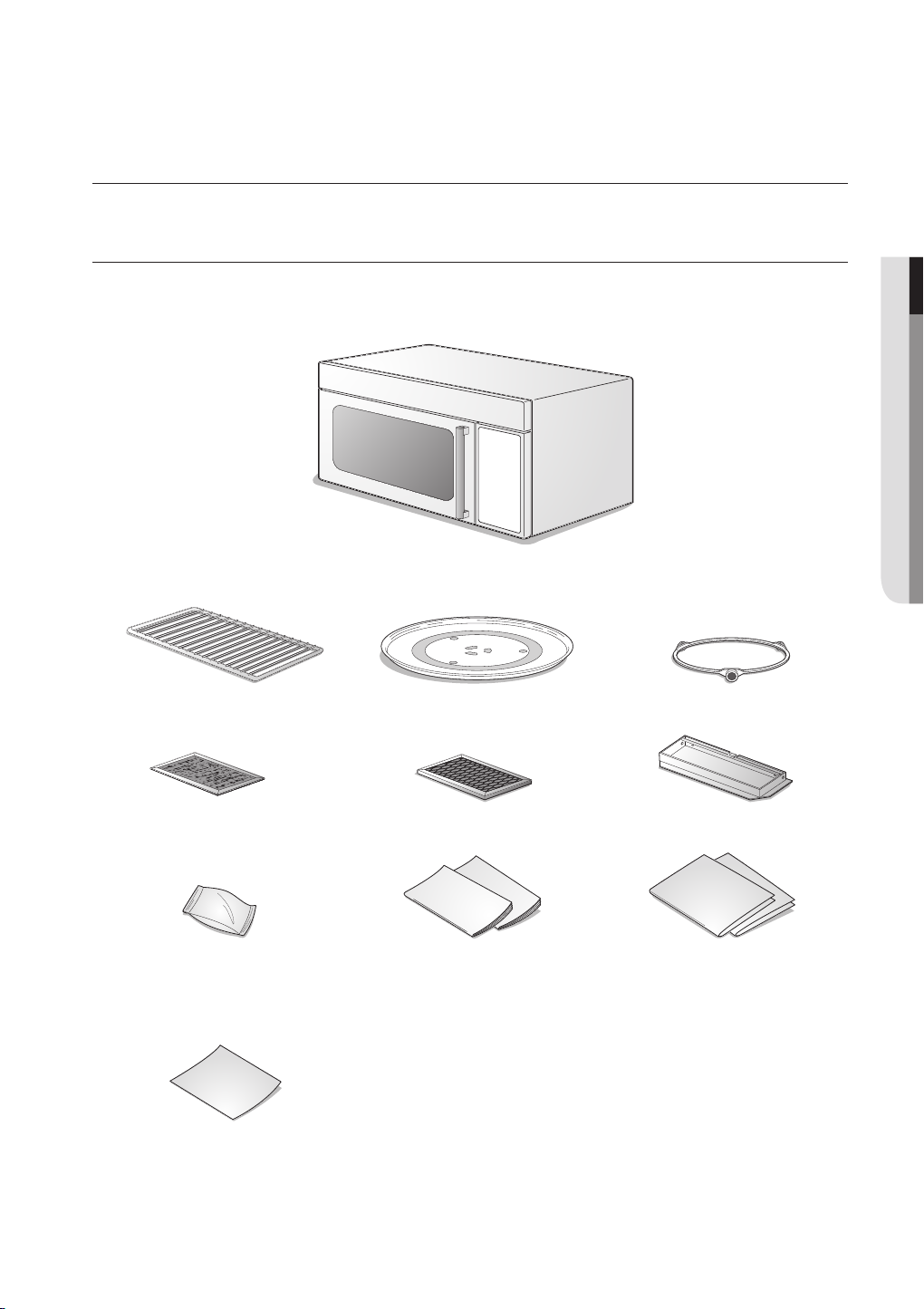

Microwave oven (SMH9207)
Shelf Glass Tray Roller Guide Ring
Grease Filters (2ea) Charcoal filter Exhaust adaptor
Hardware kit
(Screws & Brackets)
Manuals
(User & Installation)
Templates
(Top & Wall)
Registration Card
SMH9207_XAC-03686B_EN-01.indd 13 2010-02-20  3:55:34

14_ setting up your new microwave oven
SETTING UP YOUR MICROWAVE OVEN

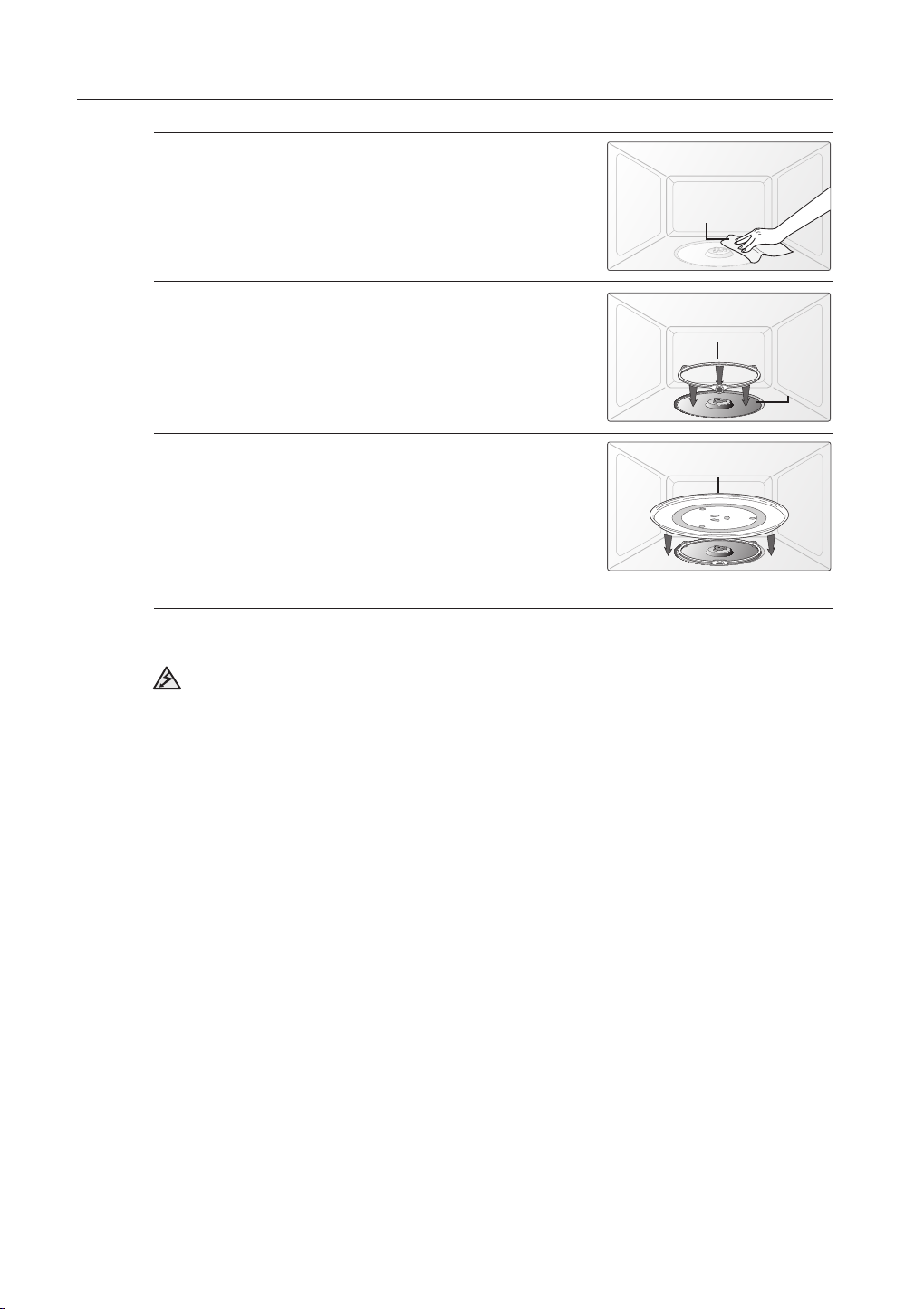

1. Open the door by pulling the handle on the right side of the door.
2. Wipe the inside of the oven with a “damp cloth”.
3. Install the “pre-assembled roller ring” into the “indentation” at
the center of the microwave oven.
4. Place the “glass tray” securely in the center of the “pre-
assembled roller ring”.
Installing the metal shelf
When you need to use the Metal Shelf, place it on the plastic hooks inside your oven and make
sure it is positioned properly to avoid arcing and damaging your oven.
Make sure the shelf is positioned properly inside the microwave to prevent damage to the
oven from arcing.
CAUTION
damp cloth
pre-assembled roller ring
indentation
glass tray
SMH9207_XAC-03686B_EN-01.indd 14 2010-02-20  3:55:35

setting up your new microwave oven _15
01 SETTING UP YOUR MICROWAVE OVEN
setting up your new
microwave oven
14
1
2345 6 7
910 11 12 13 16 15 21 22 24
17 18 19 20 23
8
Timer Hi/Lo/Off
Delay Off
Light
Vent
Hi/Mid/Lo/Off
25 26
27 28
DISPLAY The display includes clock and indicators to tell you the time of day, cooking time
settings and cooking functions selected.
POPCORN
Press this button when popping popcorn in your microwave oven. The oven’s sensor
will tell the oven how long to cook depending on the amount of humidity it detects from
the popcorn.
COOK
Press this button to cook a beverage, frozen dinner, frozen breakfast, chicken breast.
The oven’s sensor will tell the oven how long to cook depending on the amount of
humidity coming from the food.
REHEAT
Press this button to reheat a dinner plate, casserole, and pasta. The oven’s sensor will
tell the oven how long to cook depending on the amount of humidity coming from the
food.
KIDS MEALS Press this button to cook chicken nuggets, hot dogs, French fries and frozen
sandwiches.
SNACKS Press this button to cook nachos, chicken wings, potato skins and cheese sticks.
SOFTEN/MELT Press this button to cook melt chocolate, soften cream cheese and melt butter.
VEGETABLES
Press this button to cook fresh or frozen vegetables. The oven’s sensor will tell the
oven how long to cook depending on the amount of humidity it detects from the
vegetables.
BAKED POTATO Press this button to cook potatoes. The oven’s sensor will tell the oven how long to
cook depending on the amount of humidity it detects from the potato.
PIZZA SLICE Press this button to reheat pizza. The oven’s sensor will tell the oven how long to cook
depending on the amount of humidity it detects.
1POUND DEFROST Press this button to defrost 1 pound of frozen food.
AUTO DEFROST Press this button to defrost food by weight.
CUSTOM
PROGRAM Press this button to recall one cooking instruction previously programmed into memory.
LESS(1) Press this button to subtract the cooking time.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
SMH9207_XAC-03686B_EN-01.indd 15 2010-02-20  3:55:35

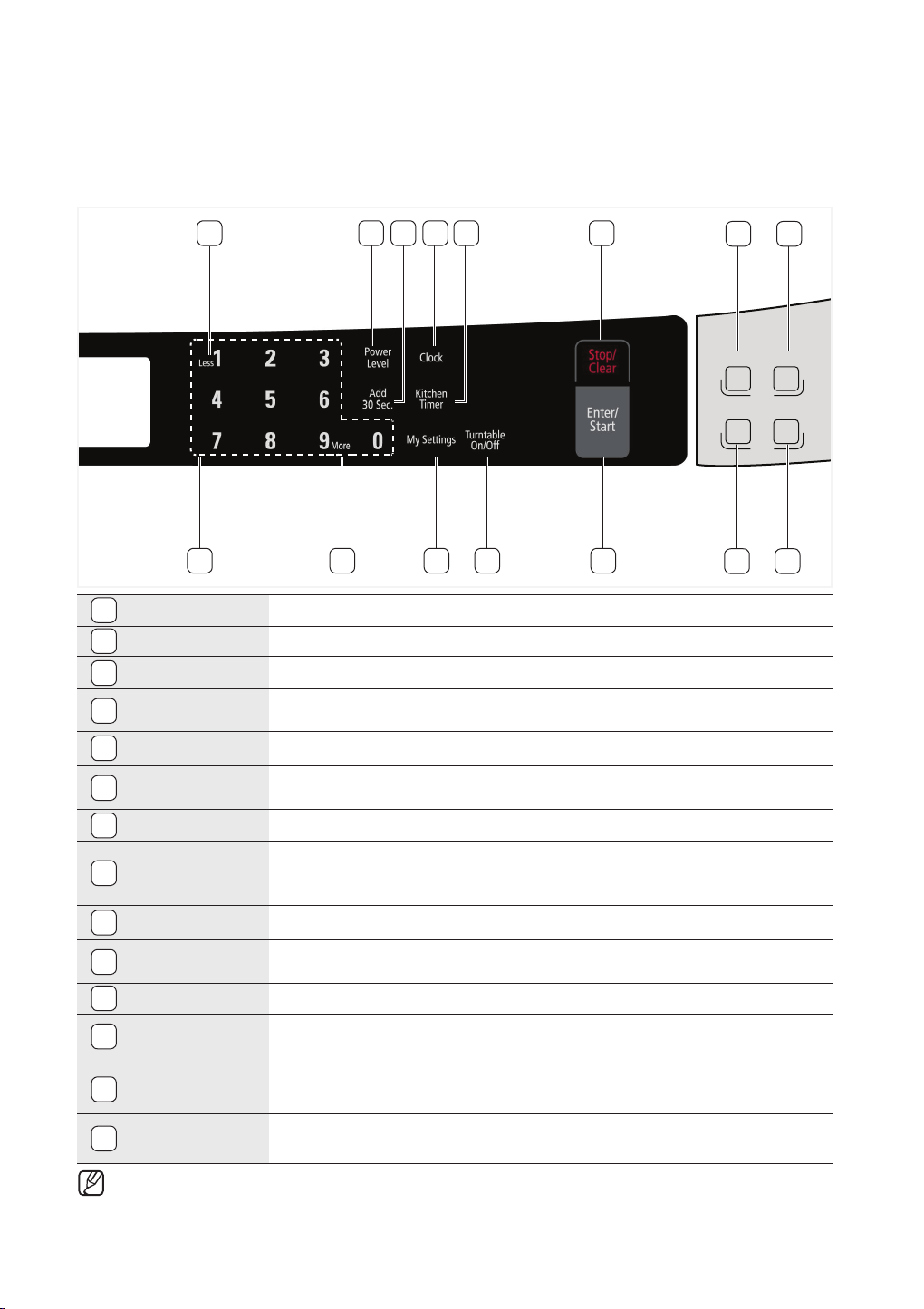

16_ setting up your new microwave oven
14
1
2345 6 7
910 11 12 13 16 15 21 22 24
17 18 19 20 23
8
Timer Hi/Lo/Off
Delay Off
Light
Vent
Hi/Mid/Lo/Off
25 26
27 28
MORE(9) Press this button to add more cooking time.
NUMBER Press number buttons to enter cooking time, power level, quantity or weight.
POWER LEVEL Press this button to select a cooking power level.
ADD 30 SEC. Press this button on to set and start cooking quickly at 100% power level. You can also
use this button while cooking is in progress to add 30 seconds to the cooking time.
CLOCK Press this button to enter the time of day.
KITCHEN TIMER Press this button to set the kitchen timer.
MY SETTINGS Press this button to change the oven’s default settings.
TURNTABLE
ON/OFF
Press this button to turn off the turntable. OFF will appear in the display.
• TurntableOn/Offisnotavailableinsensorcookanddefrostmodes.
• IfyouwanttoturnOn,Pressthisbuttonagain.
STOP/CLEAR Press this button to stop the oven or to clear all entries.
ENTER/START Press this button to start a function. If you open the door after the oven begins to cook,
close the door and press the Enter/Start button again.
LIGHT TIMER Press this button to set the light timer.
LIGHT HI/LO/
OFF
Press this button to turn on the cooktop light.
• Ifyoupressthebutton,lightwillbechanged(Hi»Lo»Off).
VENT DELAY
OFF Press this button when setting the ventilation time (1, 3, 5, 10, 30 minutes).
VENT HI/MID/
LO/OFF Press this button to turn the fan on/off.
Refer to “Using your microwave oven” on the next page for detailed information on the buttons
described in the table above.
22
23
24
25
26
27
28
21
16
17
15
18
19
20
SMH9207_XAC-03686B_EN-01.indd 16 2010-02-20  3:55:36

setting up your new microwave oven _17
01 SETTING UP YOUR MICROWAVE OVEN
setting up your new
microwave oven
TURNING ON THE POWER FOR THE FIRST TIME
The first time you plug the power cord into an outlet, the display turns on after four seconds with: PLEASE
TOUCH CLOCK AND SET TIME OF DAY.
This will also occur after a power interruption.
SETTING THE TIME ( )
Your microwave oven is equipped with a built-in clock. Set the clock when first installing your microwave
oven and after a power failure. The time is displayed whenever the microwave oven is not being used.
1. Press the Clock button.
2. The display will show ENTER TIME OF DAY.
3. Use the Number buttons to enter the current time. You need to press at least three numbers
to set the clock. For example, if the current time is 5:00, press 5, 0, 0. The display will show:
500.
4. Press the Enter / Start button again.
5. The display will show AM TOUCH1 PM TOUCH2.
6. Use the Number buttons to select AM / PM.
7. Press the Enter / Start button again.
8. A colon appears indicating that the time is set.
To check the time while cooking, press the Clock button.
CHILD LOCK ( )
The Child Lock function allows you to lock the buttons so that the microwave oven cannot be operated
accidentally. The oven can be locked anytime. This function can prevent to wrong operating by children.
Activating
1. Press the Enter / Start button for 3 seconds.
2. The display will show CHILD LOCK ON.
When buttons do not respond, please check if the Child Lock function is on.
Deactivating
1. Press the Enter / Start button for 3 seconds.
2. The display will show CHILD LOCK OFF.
Do not let children or infirm persons use this microwave oven unsupervised.
- Failing to do so may result in electric shock, burns or injury.
WARNING
24
19
SMH9207_XAC-03686B_EN-01.indd 17 2010-02-20  3:55:36

18_ setting up your new microwave oven
MY SETTINGS ( )
Your new microwave oven can be customized to suit your personal preferences. Simply press the My
SETTINGS button to configure the following options. The options are summarized in the following table:
No. Function Description
1Weight mode selected 1 Lbs.
2 Kg
2Sound on/off control 1 Sound ON
2 Sound OFF
3Clock display control 1 12HR
2 24HR
4Display 1 Slow speed 2 Normal speed
3 Fast speed
5Remind end signal 1 ON
2 OFF
6Demo mode 1 ON
2 OFF
7Daylight Saving time 1 ON
2 OFF
21
SMH9207_XAC-03686B_EN-01.indd 18 2010-02-20  3:55:36

using your microwave oven _19
02 USING YOUR MICROWAVE OVEN
using your microwave oven
Cooking has never been easier than with your new Samsung microwave oven.
The following section describes everything you need to know about using your microwave oven.
USING THE KITCHEN TIMER BUTTON ( )
This microwave allows you to use your microwave oven as a timer. Use the Kitchen Timer for timing up to
99 minutes, 99 seconds.
1. Press the Kitchen Timer button.
2. Use the Number buttons to set the length of time you want the timer to run.
3. Press Enter / Start button.
4. The display counts down and beeps when the time has elapsed.
5. To cancel timer setting: Press Stop/Clear button once.
USING THE ADD 30 SEC. BUTTON ( )
This simplified control saves you time, letting you quickly start cooking at 100% power without the need to
press the Start button.
1. Press the Add 30 sec. button for each 30 seconds you wish the food to be cooked for. For
example, press it twice to cook it for one minute. The time is displayed and the oven starts
automatically.
2. Add 30 sec. to a cooking program already in progress by pressing the Add 30 sec. button
for every additional 30 seconds you wish to add.
USING THE MORE/LESS BUTTON ( , )
The More (9)/Less (1) button allow you to adjust the pre-set cooking times. They only work for the “Sensor
Reheat”, “Sensor Cooking(except Beverage)”, “Add 30 sec.”, “Custom Cook”, “Kitchen Timer”, “Soften/
Melt”, “Kids Meals”, “Snack Bar” and “Time Cook” modes. Use the More (9)/Less (1) button only after
you have already begun cooking with one of these modes.
1. Use the More (9) button to add time to an automatic cooking procedure.
2. Use the Less (1) button to decrease the time of an automatic cooking procedure.
Each time you press the More (9) button while cooking manually, the current cooking time
increases by 10 seconds. Press the Less (1) button to decrease it by 10 seconds.
USING THE HI/MID/LO/OFF VENT BUTTON ( )
The vent removes steam and other vapors from the cooking surface. You can manually select the vent
setting. 1. Press the Vent Hi/Mid/Lo/Off button once for high fan speed.
2. Press the Vent Hi/Mid/Lo/Off button twice for medium fan speed.
3. Press the Vent Hi/Mid/Lo/Off button three times for low fan speed.
4. Press the Vent Hi/Mid/Lo/Off button four times to turn the fan off.
If the temperature becomes too hot around the microwave oven, the fan in the vent
hood will automatically turn on at the low speed setting to cool the oven. The fan will
automatically turn off when the oven has cooled down sufficiently. This is an automated
process and cannot be turned off. The fan may stay on for 30 minutes or more after the
cooktop and microwave controls are turned off. The Vent Fan will only operate in low speed
mode while the microwave is working.
20
18
14 15
28
SMH9207_XAC-03686B_EN-01.indd 19 2010-02-20  3:55:36

20_ using your microwave oven
USING THE VENT DELAY OFF BUTTON ( )
The button will be used to stop vent moter after passing constant time.
1. Press the Delay Off button once to turn the fan off after 1 minute.
2. Press the Delay Off button twice to turn the fan off after 3 minutes.
3. Press the Delay Off button three times to turn the fan off after 5 minutes.
4. Press the Delay Off button four times to turn the fan off after 10 minutes.
5. Press the Delay Off button five times to turn the fan off after 30 minutes.
USING THE LIGHT HI/LO/OFF BUTTON ( )
The Light button allows you to select a light setting for your microwave.
1. Press the Light Hi/Lo/Off button once for high light.
2. Press the Light Hi/Lo/Off button twice for low light.
3. Press the Light Hi/Lo/Off button three times to turn the light off completely.
USING THE LIGHT TIMER BUTTON ( )
The microwave can be set so the light turns on and off automatically at a preset time. The light comes on at
the same time every day until reset.
1. Press the Light Timer button.
2. Use the Number buttons to set the light on time.
3. Press the Enter / Start button.
4. Use the Number buttons to select AM or PM.
5. Press the Enter / Start button.
6. Use the Number buttons to set the off time.
7. Press the Enter / Start button.
8. Use the Number buttons to select AM or PM.
9. Press the Enter / Start button.
10. Press the Light Timer button and “0” button to cancel the light timer.
27
26
25
SMH9207_XAC-03686B_EN-01.indd 20 2010-02-20  3:55:36
