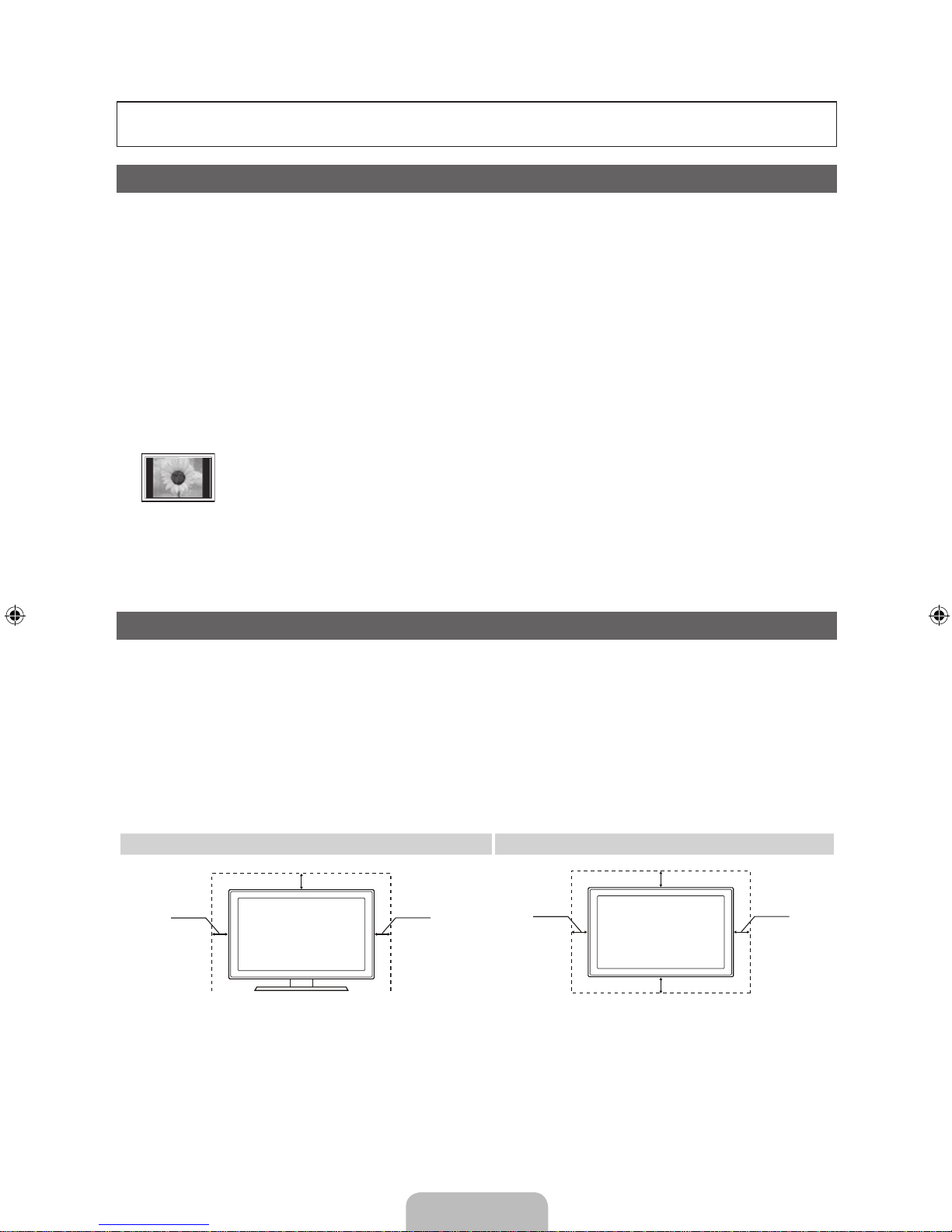

English - 2
For more information on how to use e-Manual
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance. Product design and specifications may be changed without notice.
User Instructions
• Screen Image retention
Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image
retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the
screen when displaying a still image.
• Heat on the top of the Plasma TV
The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the
product.
This is normal and does not indicate any defect or operation failure of the product.
However, children should be prevented from touching the upper part of the product.
• The product is making a “cracking” noise.
A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or
humidity. This is normal and not a defect of the unit.
• Cell Defects
The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce.
However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
• Avoid operating the TV at temperatures below 41°F (5°C)
• A still image displayed too long may cause permanent damage to the PDP Panel.
Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of
the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to
the screen.
Damages caused by the above effect are not covered by the Warranty.
• After-images on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.
• Warranty
Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of
the product.
✎ When using a stand or wall-mount, use parts provided by Samsung Electronics only.
x
If you use parts provided by another manufacturer, it may result in a problem with the product or an injury
due to the product falling.
✎ The appearance may differ depending on the product.
✎ Be careful when you contact the TV because some parts can be somewhat hot.
Installation with a stand. Installation with a wall-mount.
10 cm10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
[PD6900-XY]BN68-03423A-01Eng.indb 2 2011-02-25 오후 8:38:48

English - 3
Accessories
✎ Please make sure the following items are included with your TV. If any items are missing, contact your
dealer.
✎ The items’ colours and shapes may vary depending on the models.
✎ Check that there is no accessory hidden behind packing materials when you open the box.
[
CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET
•Remote Control & Batteries (AAA x 2) •Cleaning-Cloth
•Owner’s Instructions •Warranty Card (Not available in some locations) / Safety Guide
AV/Component Adapter Ferrite Core (2EA) Ferrite Core (1EA)

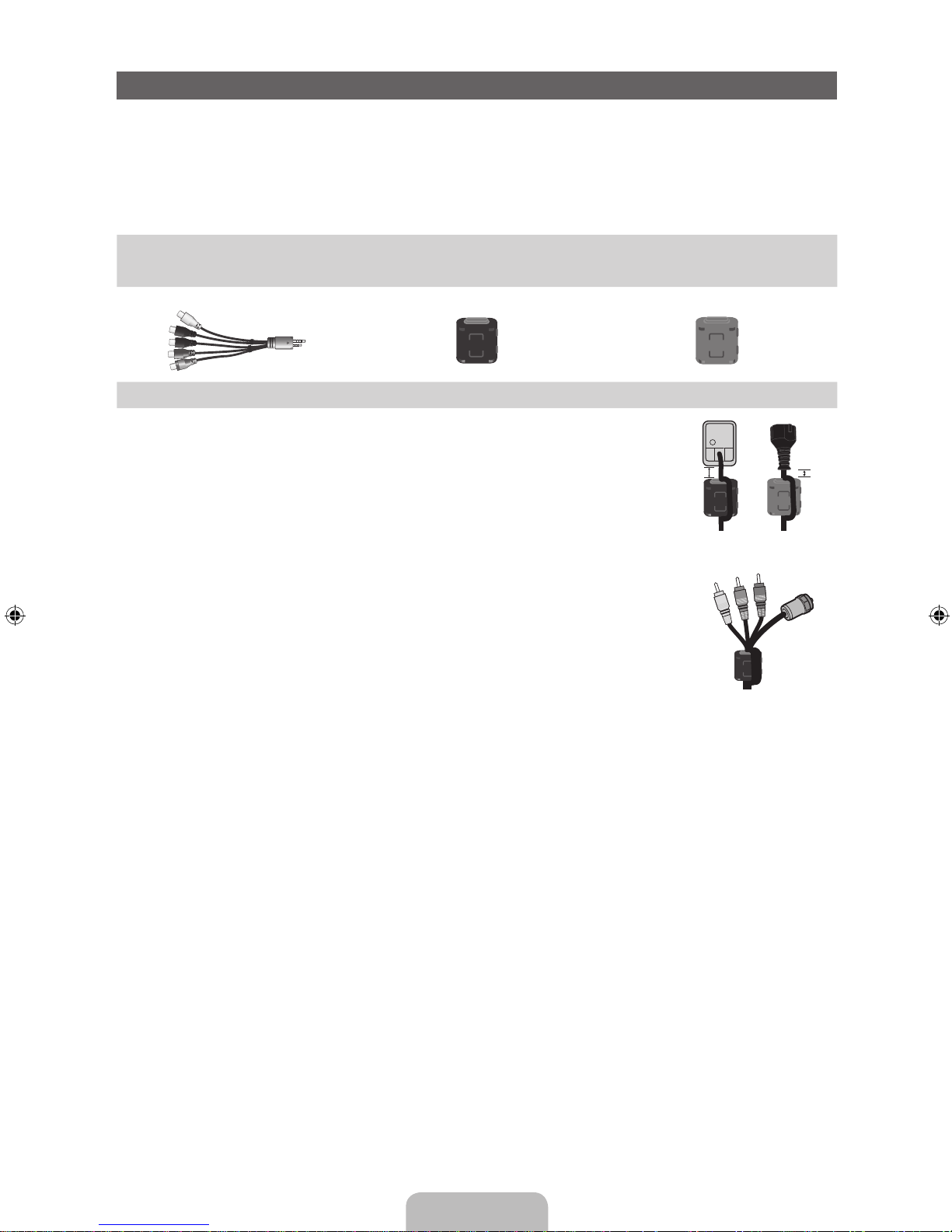

✎ Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference.
When connecting a cable, open the ferrite core and clip it around the cable near the plug as
shown in the figure.
x
A Maximum distance between the ferrite core and the end of the cord inserted in the TV:
6~8 inches
x
B Maximum distance between the ferrite core and the other end of the cord inserted in the
AC outlet: 3/4 inch
B
A
Power Cord
✎ Ferrite Core : The ferrite cores are used to shield the cables from interference. When
connecting a cable, open the ferrite core and clip it around the cable near the plug as shown
in the figure.
Antenna Cable/
Component Cable
(sold separately)
[PD6900-XY]BN68-03423A-01Eng.indb 3 2011-02-25 오후 8:38:48

English - 4

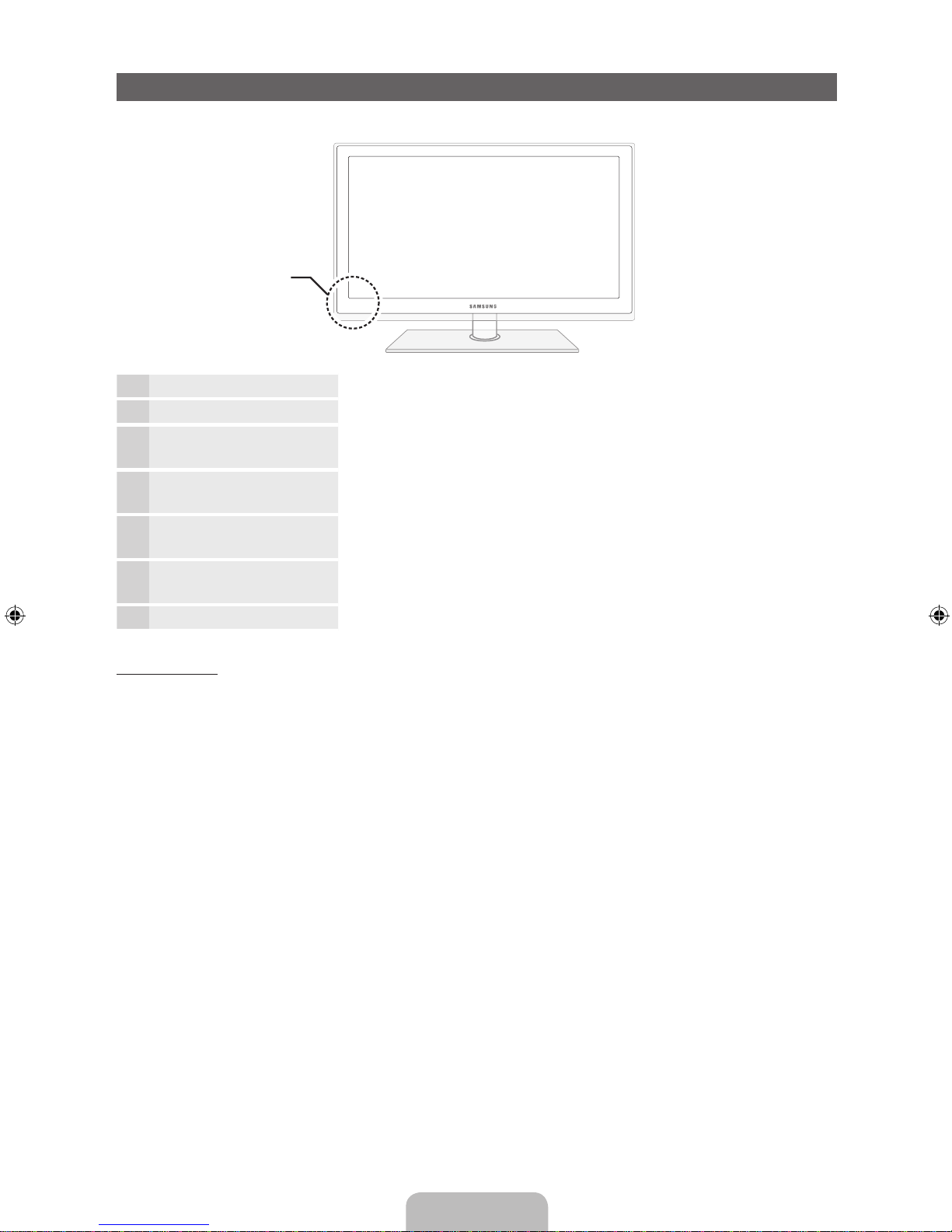

Viewing the Control Panel
✎ The product color and shape may vary depending on the model.
Remote control sensor Aim the remote control towards this spot on the TV.
Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
SOURCE
E
Toggles between all the available input sources. In the on-screen menu, use
this button as you would use the ENTER E button on the remote control.
MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s
features.
y Adjusts the volume. In the OSD, use the y buttons as you would use
the ◄ and ► buttons on the remote control.
z Changes the channels. In the OSD, use the z buttons as you
would use the ▼ and ▲ buttons on the remote control.
P (Power) Turns the TV on or off.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example).
A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug
the power cord.
Control Panel
[PD6900-XY]BN68-03423A-01Eng.indb 4 2011-02-25 오후 8:38:48

English - 5
Viewing the Remote Control
✎ This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons.
Installing batteries (Battery size: AAA)
CH LIST
MUTE
POWER
SOURCE
PRE-CH
MENU
TOOLS
RETURN
E-MANUAL P.SIZE
AD/SUBT.
EXIT
INFO
TTX/MIX
A B C D
SOCIAL
TV
SEARCH
SMART
HUB
GUIDE
ON/OFF
Turns the TV on and off.
Displays and selects the available video
sources.
Turns the remote control light on or off.
When on, the buttons become illuminated
for a moment when pressed. (Using the
remote control with this button set to On
will reduce the battery usage time.)
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays channel lists on the screen.
Displays the EPG (Electronic Programme
Guide).
Displays information on the TV screen.
u / d / l / r : Move the cursor on-screen menu
item.
ENTER E : Selects the menu and
changes the corresponding item value.
Exits the menu.
Have direct access to channels.
Adjusts the volume.
Alternately select Teletext ON, Double,
Mix or OFF.
Opens the OSD.
Quickly select frequently used functions.
Link to various application services.
Returns to the previous menu.
These buttons are for the Channel and
SMART HUB menu
Use these buttons in SMART HUB and
Anynet+(HDMI-CEC) modes.
SOCIAL TV: Connect to SMART HUB
home.
SEARCH: Support to recommendation
search word and search function.
W: Sets the video, which provided with
3D signal.
E-MANUAL: Displays the e-Manual.
P.SIZE: Selects the Picture Size.
AD/SUBT.: Turns the audio description on
and off (not available in some locations). /
Displays digital subtitles.
[PD6900-XY]BN68-03423A-01Eng.indb 5 2011-02-25 오후 8:38:49

English - 6
✎ For best cable connection to this product, be sure to use cables with a maximum thickness as below:
•Maximum thickness - 0.55 inches (14mm)

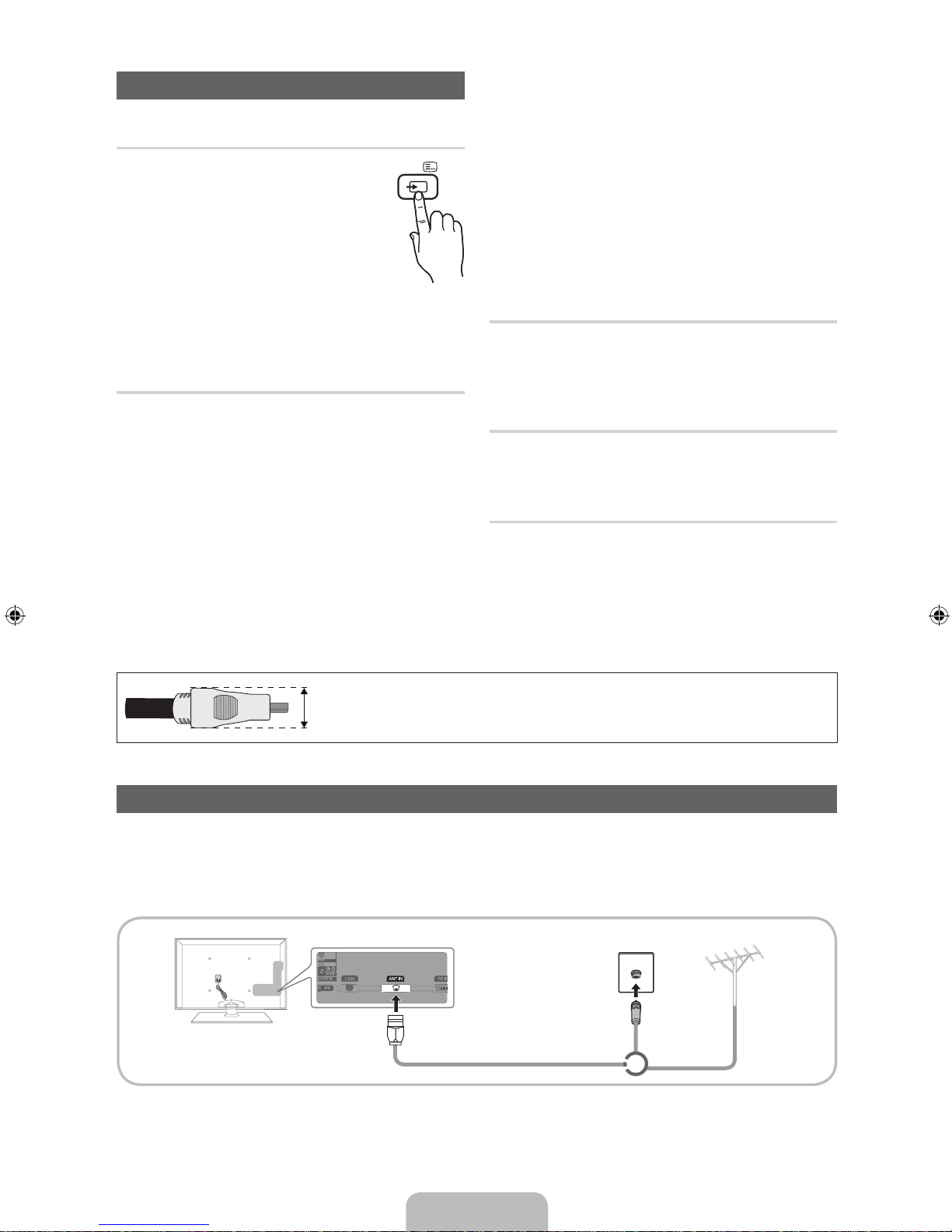

Connecting to an Antenna
When the TV is initially powered on, basic settings proceed automatically.
✎ The PDP device may interfere with an amateur radio or AM radio.
✎ When using two-way radio mobile and portable units or amateur radio or AM radio near by your TV, this
may cause the TV to malfunction.
Changing the Input Source
Source
Use to select TV or an external input
sources such as a DVD / Blu-ray player /
cable box / STB satellite receiver.
■TV / PC / AV / Component /
HDMI1/DVI / HDMI2 / HDMI3 /
HDMI4 / USB / AllShare
✎ In the Source, connected inputs will
be highlighted.
✎ PC always stay activated.
Edit Name
In the Source, press the TOOLS button, and then you
can set an external input sources name you want.
■VCR / DVD / Cable STB / Satellite STB /
PVR STB / AV Receiver / Game / Camcorder /
PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray
/ HD DVD / DMA: Name the device connected
to the input jacks to make your input source
selection easier.
✎ When connecting a PC to the HDMI IN 1 (DVI)
port with HDMI cable, you should set the TV to
PC mode under Edit Name.
✎ When connecting a PC to the HDMI IN 1 (DVI)
port with HDMI to DVI cable, you should set the
TV to DVI PC mode under Edit Name.
✎ When connecting an AV devices to the
HDMI IN 1 (DVI) port with HDMI to DVI cable, you
should set the TV to DVI Devices mode under
Edit Name.
Edit Favourites
In the Source, press the TOOLS button to select
Edit Favourites. You can set an external input source
to Favourites.
Information
You can see detailed information about the selected
external device.
Refresh
In the Source, If the external devices is not displayed,
press the TOOLS button to select Refresh. Searching
for connected devices.
SOURCE
VHF/UHF Antenna
Cable
or
[PD6900-XY]BN68-03423A-01Eng.indb 6 2011-02-25 오후 8:38:49

English - 7
Plug & Play (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings.
Press the POWER P button. Plug & Play is available only when the Source is set to TV.
✎ Before turning on the TV, make sure the antenna cable is connected (p. 6).
1Selecting a language Press the ▲ or ▼ button, then press the ENTER
E button.
Select the desired OSD (On Screen Display) language.
(Not available in some locations)
2Wired/Wireless
Network Connection
Set up your network connection. Press the ENTER
E button
to start. If you want to setting to it later, select Skip. For more
information, refer to “Wired/Wireless Network Connection” in the
e-Manual.
3Software upgrade When network connection settings are complete, Software
Upgrade is available. Select Next to upgrade TV software. Your
TV will automatically upgrade, if your TV need a software upgrade.
If you want to upgrade later, select the Skip. For more information,
refer to “Software Upgrade” (Preference Features → Support
Menu) in the e-Manual.
✎ This may take some time, depending on network status.
4Selecting Store
Demo or Home Use
Press the ◄ or ► button, then press the ENTER
E button.
Select the Home Use mode. Store Demo mode is for retail environments.
To return the unit’s settings from Store Demo to Home Use (standard): Press the
volume button on the TV. When you see the volume OSD, press and hold MENU
for 5 sec.
Store Demo is only for shop display. If you select it, several functions are not able
to use. Please select Home Use when you watch at home.
5Selecting an country Press the ▲ or ▼ button, then press the ENTER
E button.
Select the appropriate country.
6Selecting an area Press the ▲ or ▼ button, then press the ENTER
E button.
Select the appropriate area. (Not available in some locations)
7Setting the
Clock Mode
Set the Clock Mode automatically or manually.
Auto: Allows you to select a time zone.
✎ Press the ▲ or ▼ button to highlight the time zone for your local area. Press
the ENTER E button. (Australia only).
Manual: Allows you to manually set the current date and time.
8Selecting a channel Select the channel source to memorise among Digital & Analogue / Digital /
Analogue. When done, select Next. Scans for a channel automatically and stores
in the TV.
9
Enjoy your TV. If you want to watch a broadcast program, select Close. If you want to enjoy the
Smart Hub, select the Smart Hub. The Smart Hub will start. For more detailed
information, refer to “Smart Hub” in the e-Manual.
If You Want to Reset This Feature...
Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.”
If you want to change the PIN number, use the Change PIN function.
You should do Plug & Play (MENU → System) again at home although you did in shop.
✎ If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode,
which resets the PIN to “0-0-0-0”: MUTE → 8 → 2 → 4 → POWER (on).
P
POWER
[PD6900-XY]BN68-03423A-01Eng.indb 7 2011-02-25 오후 8:38:50

English - 8
Connecting to an AV devices
¦¦

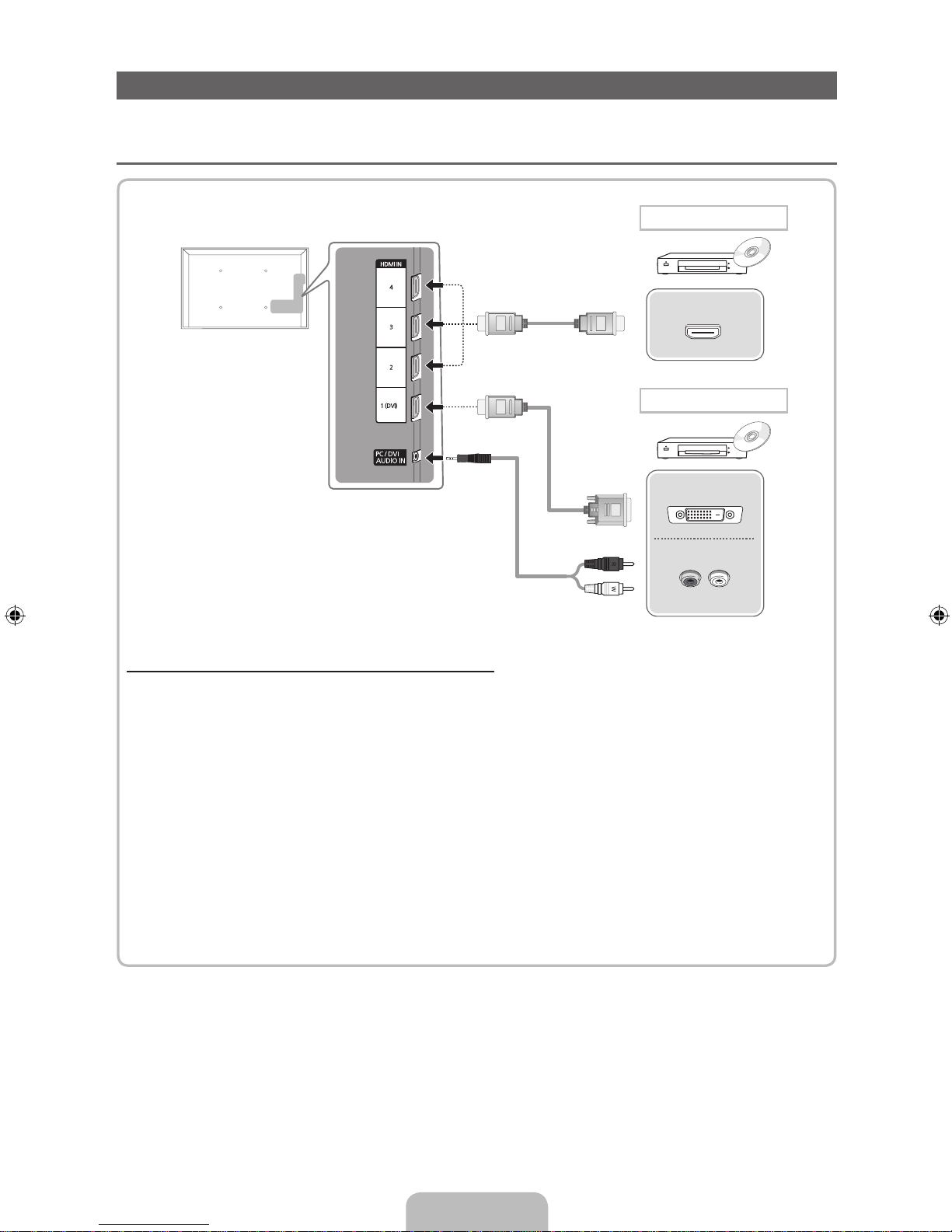

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite
receiver, VCR
Using an HDMI or an HDMI to DVI cable (up to 1080p)
✎ HDMI IN 1 (DVI), 2, 3, 4 / PC/DVI AUDIO IN
x
For better picture and audio quality, connect to a digital device using an HDMI cable.
x
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and
audio cables.
x
The picture may not display normally (if at all) or the audio may not work if an external device that
uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
x
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection
error may occur.
x
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support
the ethernet function via HDMI.
HDMI OUT
DVI OUT
AUDIO OUT
R-AUDIO-L
HDMI connection
HDMI to DVI connection
[PD6900-XY]BN68-03423A-01Eng.indb 8 2011-02-25 오후 8:38:50

English - 9
Using a Component (up to 1080p) or an Audio/Video (480i only)
✎ When connecting to AV IN, the colour of the AV IN [VIDEO] jack (green) will not match the video cable
(yellow).
✎ To obtain the best picture quality, the Component connection is recommended over the A/V
connection.
AUDIO OUT
R-AUDIO-L
VIDEO OUT
AUDIO OUT
R-AUDIO-L
PRPBY
COMPONENT OUT
R
RB G
W
RB
GRW
R
W
R W Y
Y
Component connection
AV connection
[PD6900-XY]BN68-03423A-01Eng.indb 9 2011-02-25 오후 8:38:50

English - 10
Connecting to a PC and Audio device

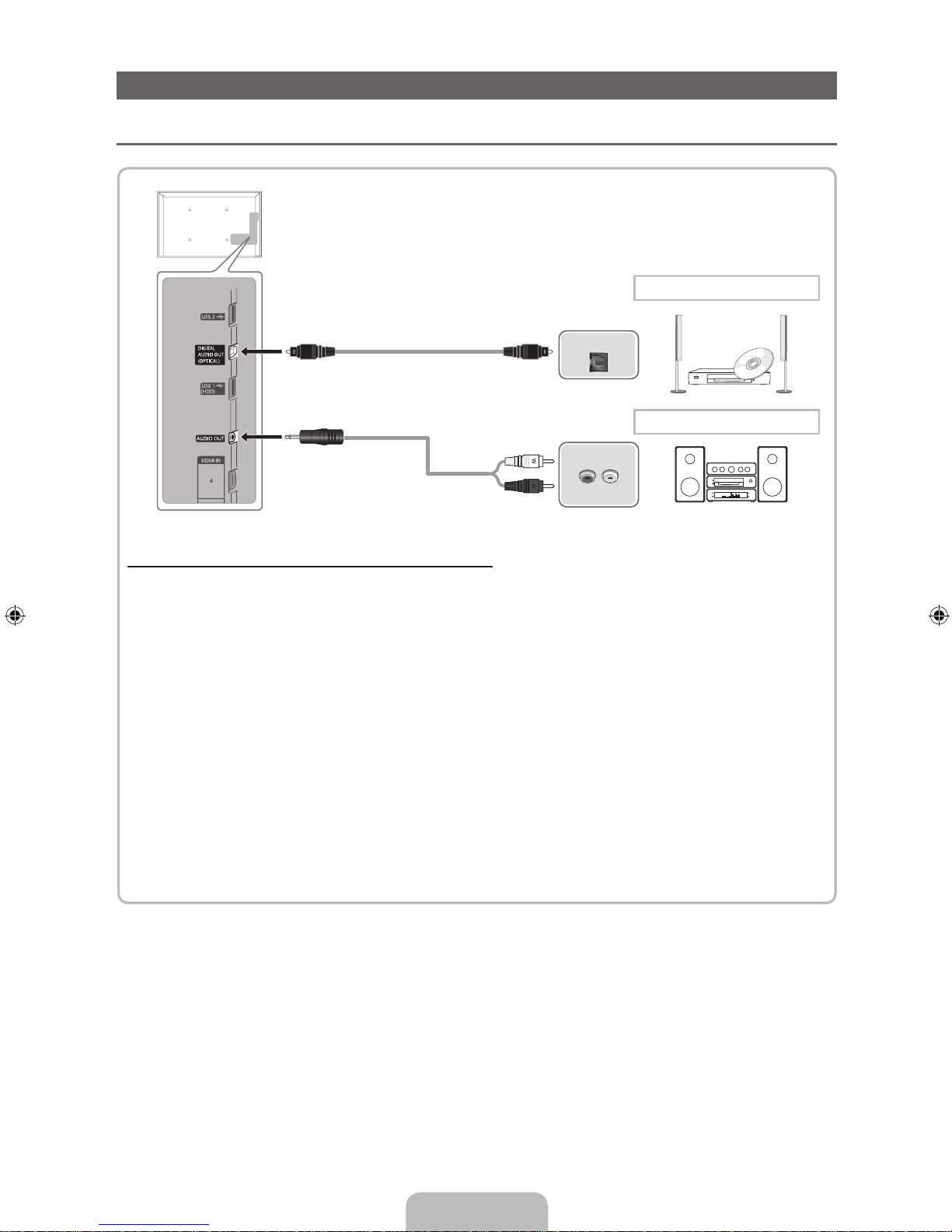

¦Available devices: digital audio system, amplifier, DVD home theatre
Using an Optical (Digital) or an Audio Out Connection
✎ DIGITAL AUDIO OUT (OPTICAL)
x
When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the
volume of both the TV and the system.
x
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
x
When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack.
When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver.
When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-
Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the
home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your
DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.
✎ AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD home theatre.
x
When connecting, use the appropriate connector.
x
When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and
adjust the volume level with the amplifier’s volume control.
OPTICAL
AUDIO IN
R-AUDIO-L
DVD home theater connection
Audio connection
[PD6900-XY]BN68-03423A-01Eng.indb 10 2011-02-25 오후 8:38:51

English - 11

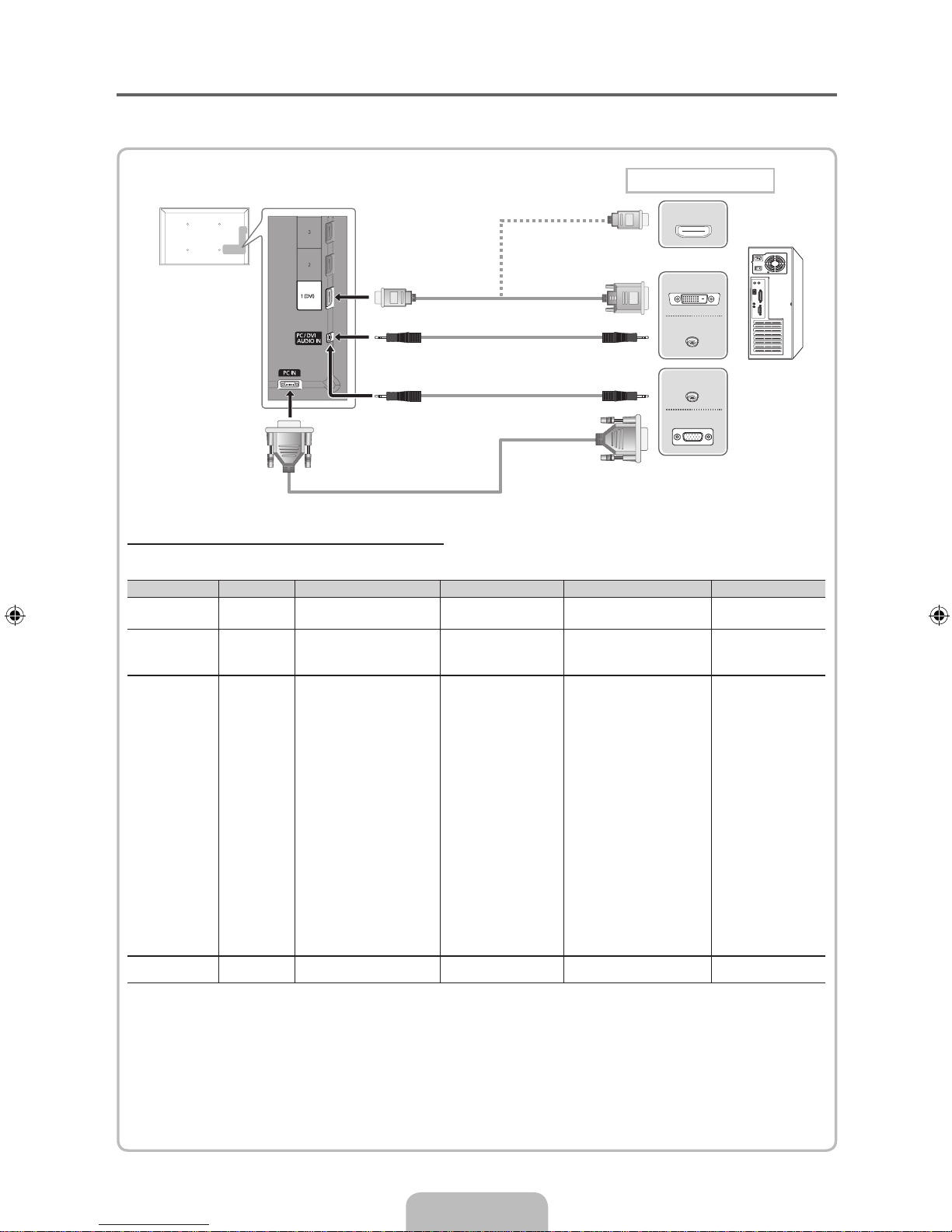

¦Using an HDMI to DVI cable or a D-sub cable
✎ Connecting through the HDMI cable may not be supported depending on the PC.
Display Modes (D-Sub and HDMI to DVI Input)
Optimal resolution is 1920 X 1080 @ 60 Hz.
Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)
IBM 640 x 350
720 x 400
31.469
31.469
70.086
70.087
25.175
28.322
+/-
-/+
MAC
640 x 480
832 x 624
1152 x 870
35.000
49.726
68.681
66.667
74.551
75.062
30.240
57.284
100.000
-/-
-/-
-/-
VESA DMT
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1280 x 800
1280 x 800
1280 x 960
1360 x 768
1440 x 900
1440 x 900
1680 x 1050
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
67.500
63.981
79.976
49.702
62.795
60.000
47.712
55.935
70.635
65.290
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
75.000
60.020
75.025
59.810
74.934
60.000
60.015
59.887
74.984
59.954
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
108.000
135.000
83.500
106.500
108.000
85.500
106.500
136.750
146.250
-/-
-/-
-/-
+/+
+/+
+/+
-/-
-/-
+/+
+/+
+/+
+/+
-/+
-/+
+/+
+/+
-/+
-/+
-/+
VESA DMT /
DTV CEA 1920 x 1080p 67.500 60.000 148.500 +/+
✎ NOTE
x
For HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack.
x
The interlace mode is not supported.
x
The set might operate abnormally if a non-standard video format is selected.
x
Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
DVI OUT
AUDIO OUT
AUDIO OUT
PC OUT
HDMI OUT
PC connection
[PD6900-XY]BN68-03423A-01Eng.indb 11 2011-02-25 오후 8:38:51

English - 12

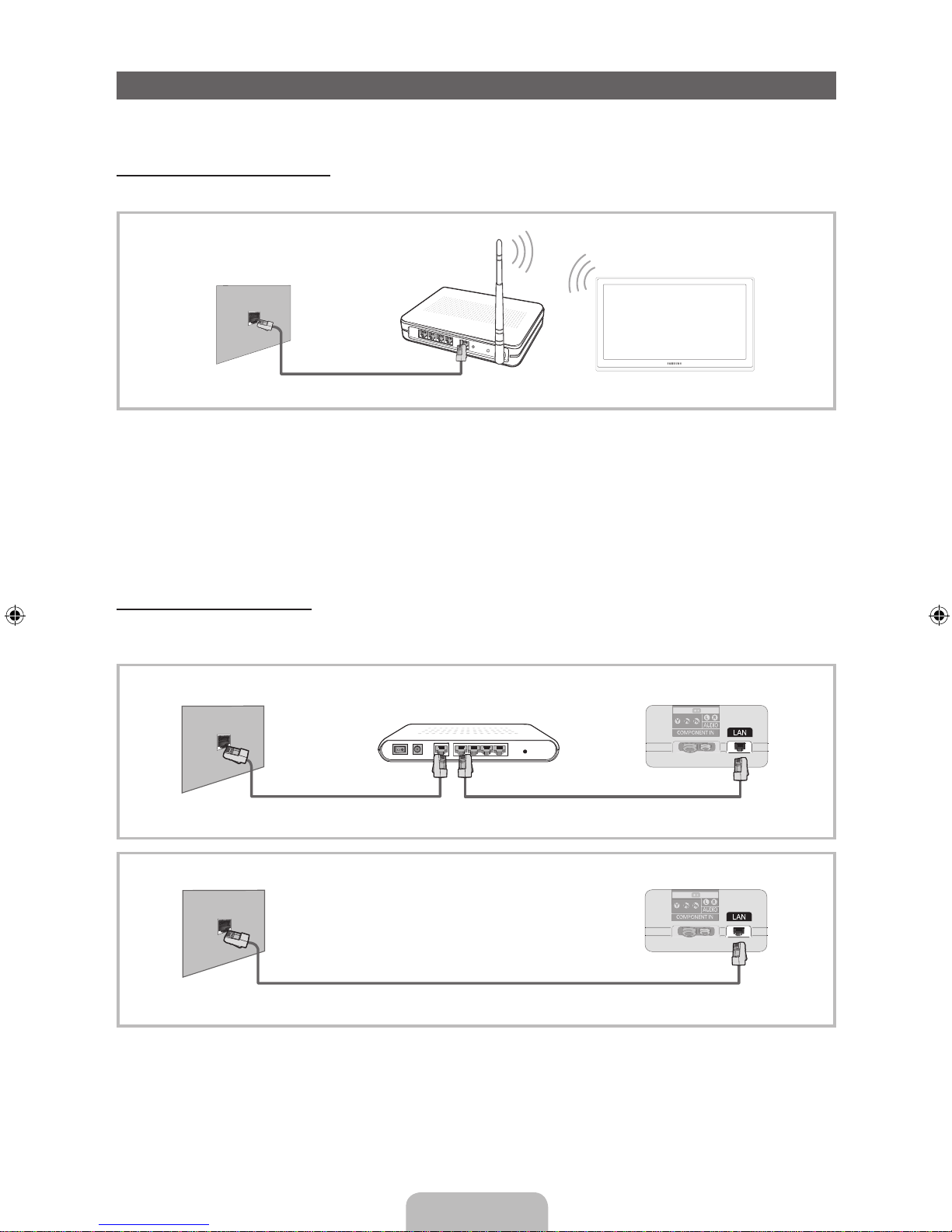

Network Connection
You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or
wireless connection.
Network Connection - Wireless
You can connect your TV to your LAN through a standard wireless router or modem.
This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE
802.11n. When you play the video over a IEEE 802.11b/g connection, the video may not play smoothly.
Most wireless network systems incorporate a security system that requires devices that access the network
through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code
called an access key.
If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or
TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with
new Wi-Fi certification specifications.
Network Connection - Wired
There are two main ways to connect your TV to your network using cable, depending on your network setup.
They are illustrated below:
✎ It is not supported when the network speed is under 10 Mbps.
The Modem Port on the Wall TV Rear Panel
LAN CableModem Cable
External Modem
(ADSL / VDSL / Cable TV)
The LAN Port on the Wall TV Rear Panel
LAN Cable
The LAN Port on
the Wall
LAN Cable
Wireless IP sharer
(router having DHCP server) TV
[PD6900-XY]BN68-03423A-01Eng.indb 12 2011-02-25 오후 8:38:52

English - 13
How to view the e-Manual
Screen Display
Using the Help
Display the e-Manual Guide & the Product Guide by pressing Help.
<e-Manual Guide>
The e-Manual guide appears as above.
<Product Guide>
The product guide appears as above.
How to toggle between the e-Manual and the corresponding menu(s).
✎ This function is not enabled in some menus.
You can read the introduction and instructions about the TV features stored
in your TV.
O MENU m → Support → e-Manual → ENTER E
✎ If you want to return to e-Manual, press E-MANUAL button on remote.
✎ You can’t use the Try Now function, if the menu is not activated.
Basic Features
Changing the Preset Picture Mode
Adjusting Picture Settings
Changing the Picture Size
Changing the Picture Options
Setting up the TV with Your PC
IndexHelp
TV Screen: Displays the current input
source screen.
Help: Displays the e-Manual
Guide or Product Guide. Press
ENTER
E button.
Change the category. Press
l or r
button to select category you want.
Displays the sub-menu list. Press
ENTER
E button to select sub-menu
you want.
Index: Displays index screen.
X: Exit the e-Manual.
E-MANUAL
Try Now
Help Try Now Home Zoom Index
Basic Features > Changing the Preset Picture Mode (5/10)
Changing the Preset Picture Mode
■
Picture Mode t
Select your preferred picture type.
NIn PC mode, you can only select Entertain and Standard..
• Dynamic: Suitable for a bright room.
• Standard: Suitable for a normal environment.
• Natural
for LED TV
/ Relax
for PDP TV
: Suitable for reducing eye strain.
• Movie: Suitable for watching movies in a dark room.
• Entertain: Suitable for watching movies and games.
Picture Mode Standard
Tint (G/R) G 50 R 50
Colour 50
Sharpness 50
Brightness 45
Contrast 100
Cell Light 14
Return

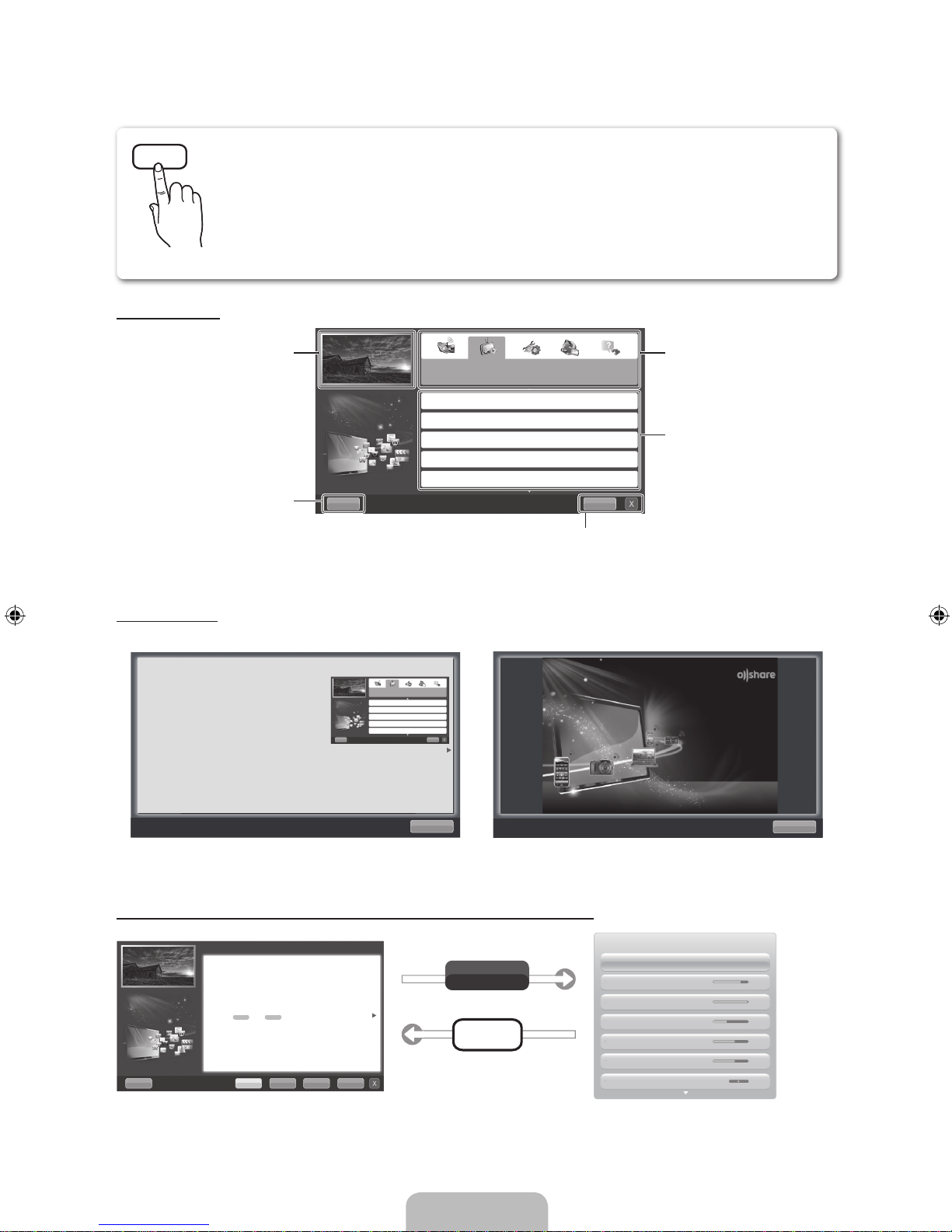

Sync media from multiple devices with AllShare
AllShare™ syncs your digital devices so you can
enjoy music, movies and photos from your PC,
camera and mobile devices, on your larger TV
screen. Connects you to multiple PCs, as well.
Return
How to view the e-Manual
You can read the introduction and instructions about
the TV features stored in your TV.
OMENU
m → Support → e-Manual → ENTER E
Basic Features
Changing the Preset Picture Mode
Adjusting Picture Settings
Changing the Picture Size
Changing the Picture Options
Setting up the TV with Your PC
Index
Help
E-MANUAL
[PD6900-XY]BN68-03423A-01Eng.indb 13 2011-02-25 오후 8:38:58

English - 14
Method 1 Method 2
1. Select Try Now, if you want to execute the
corresponding menu(s).
2. To return to the e-Manual screen, press the
E-MANUAL button.
1. Press the ENTER
E button when selecting
Contents Area. The “Are you sure?” is displayed.
Select Yes and then press the ENTER E button.
The OSD window will be displayed.
2. To return to the e-Manual screen, press the
E-MANUAL button.
Viewing the Contents
Using the Zoom mode
When you view the e-Manual instruction, select the
Zoom to magnify the screen. You can scroll through
the magnified screen by using the
u or d buttons.
✎ To return to the previous screen, press the RETURN
button.
How to search a keyword by using index page
✎ This function may not be supported depending on the language.
1. If you want to search a keyword, press the
u / d / l /
r
button to select Index.
2. Press the
l or
r
button to select a character order you want, and then press the ENTER E button.
3. Press the
u or d button to select a keyword you want to see, and then press the ENTER E button.
4. You can view the corresponding e-Manual instruction screen.
✎ To close the Index screen, press the Return button.
Return
Changing the Preset Picture Mode
OMENU m → Picture → Picture Mode → ENTER E
■
Picture Mode t
Select your preferred picture type.
NIn PC mode, you can only select Entertain and Standard.
• Dynamic: Suitable for a bright room.
• Standard: Suitable for a normal environment.
• Natural
for LED TV
/ Relax
for PDP TV
: Suitable for reducing eye strain.
• Movie: Suitable for watching movies in a dark room.
• Entertain: Suitable for watching movies and games.
Basic Features > Changing the Preset Picture Mode (5/10)
Help Try Now Home Zoom Index
Try Now: Displays the corresponding menu(s).
Home: Moves to the e-Manual home screen.
Zoom: Magnifies a screen.
Index: Displays index screen.
Contents Area: You can view the corresponding
contents, if you selected a sub-menu. To move
previous or next page, press the l or r button.
Changing the Preset Picture Mode
OMENU m → Picture → Picture Mode → ENTER E
■
Picture Mode t
Select your preferred picture type.
NIn PC mode, you can only select Entertain and Standard.
• Dynamic: Suitable for a bright room.
• Standard: Suitable for a normal environment.
• Natural
for LED TV
/ Relax
for PDP TV
: Suitable for reducing eye strain.
• Movie: Suitable for watching movies in a dark room.
• Entertain: Suitable for watching movies and games.
[PD6900-XY]BN68-03423A-01Eng.indb 14 2011-02-25 오후 8:38:59

English - 15
Troubleshooting
If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please
visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this
manual.
Issues Solutions and Explanations
The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.
• Make sure the wall outlet is working.
• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns
on, refer to “Remote control does not work” below.
There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external
devices).
• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections
to the TV input. For example, if an external device’s output is HDMI, it should be connected to an
HDMI input on the TV.
• Make sure your connected devices are powered on.
• Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control.
The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.
• Clean the sensor’s transmission window on the remote.
• Try pointing the remote directly at the TV from 5~6 feet away.
The cable/set top box remote control
doesn’t turn the TV on or off, or adjust the
volume.
• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for
the SAMSUNG TV code.
✎ You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com →
Support → Downloads) by USB.
✎ Some of above pictures and functions are available at specific models only.
Licence
List of Features
Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be
viewed without a cable box / STB (Set-Top-Box) satellite receiver.
3D
This exciting new feature enables you to view 3D content.
SMART HUB
The Gateway to all content integrated in one place.
•It’s all integrated to guide you to easier and diverse entertainment choices.
•Control your entertainment life with easy and simple user friendly UI.
•Access to diverse Apps that are adding up every day.
•Customize your TV, by App grouping & sorting to your taste.
AllShare™
AllShare™ connects your TV and compatible Samsung mobile phones/devices through a network.
Anynet+(HDMI-CEC)
Allows you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote.
[PD6900-XY]BN68-03423A-01Eng.indb 15 2011-02-25 오후 8:39:00

English - 16
Installing the Wall Mount
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a
technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any
damage to the product or injury to yourself or others if you elect to install the TV on your own.
Wall Mount Kit Specifications (VESA)
✎ The wall mount kit is not supplied, but sold separately.
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials,
please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal
injury.
✎ NOTE
x
Standard dimensions for wall mount kits are shown in the table below.
x
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly
are provided.
x
Do not use screws that do not comply with the VESA standard screw specifications.
x
Do not use screws that are longer than the standard dimension or do not comply with the VESA standard
screw specifications. Screws that are too long may cause damage to the inside of the TV set.
x
For wall mounts that do not comply with the VESA standard screw specifications, the length of the
screws may differ depending on the wall mount specifications.
x
Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading
to personal injury. Samsung is not liable for these kinds of accidents.
x
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall
mount is used or the consumer fails to follow the product installation instructions.
x
Our 59” model do not comply with VESA Specifications. Therefore, you should use our dedicated wall
mount kit for this model.
x
Do not mount the TV at more than a 15 degree tilt.
x
Always use two people to mount the TV to a wall.
Product Family inches VESA Spec. (A * B) Standard Screw Quantity
PDP - TV
51 400 X 400
M8 4
59~64 600 X 400
✎ Unscrew the hole around before installing Wall-Mount on the wall.
Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due
to electric shock.
[PD6900-XY]BN68-03423A-01Eng.indb 16 2011-02-25 오후 8:39:00

English - 17

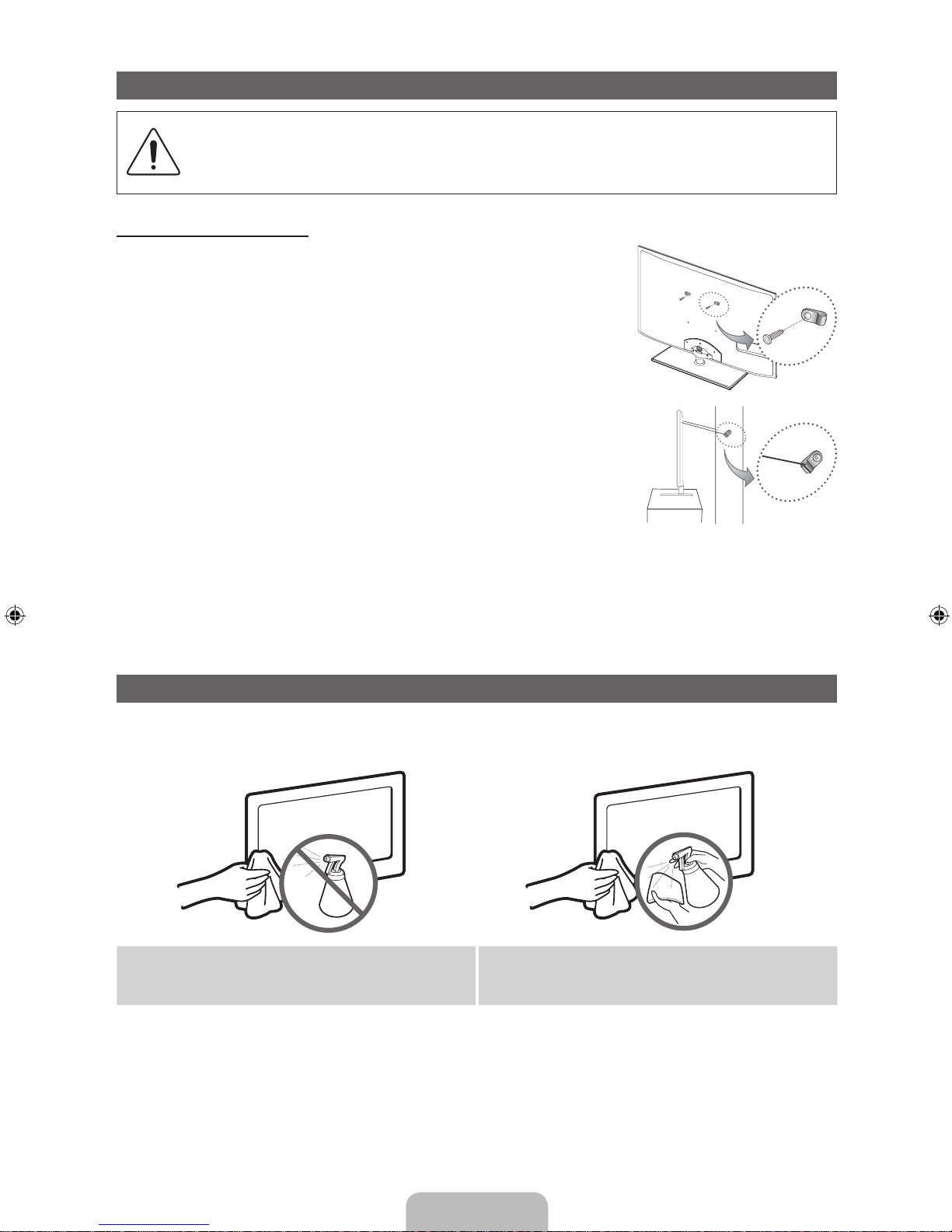

Securing the TV to the wall
Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure
that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over,
resulting in serious injuries or death. Follow all safety precautions provided in the included Safety
Flyer. For added stability and safety, install the anti-fall device as follows.
To Avoid the TV from Falling
1. Put the screws into the clamps and firmly fasten them onto the wall.
Confirm that the screws have been firmly installed onto the wall.
✎ You may need additional material such as an anchor depending on the
type of wall.
✎ Since the necessary clamps, screws, and string are not supplied,
please purchase these additionally.
2. Remove the screws from the back centre of the TV, put the screws into the
clamps, and then fasten the screws onto the TV again.
✎ Screws may not be supplied with the product. In this case, please
purchase the screws of the following specifications.
3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall
with a strong cable and then tie the string tightly.
✎ NOTE
x
Install the TV near to the wall so that it does not fall backwards.
x
It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the
clamps fixed on the TV.
x
Untie the string before moving the TV.
4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If
you have any doubt about the security of your connections, contact a professional installer.
Storage and Maintenance
✎ If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please
clean it to watch TV.
Do not spray water or a cleaning agent directly onto
the product. Any liquid that goes into the product may
cause a failure, fire, or electric shock.
Clean the product with a soft cloth dapped in a small
amount of water.
Wall
[PD6900-XY]BN68-03423A-01Eng.indb 17 2011-02-25 오후 8:39:00

English - 18
Specifications
Display Resolution 1920 x 1080
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
10°C to 40°C (50°F to 104°F)
10% to 80%, non-condensing
-20°C to 45°C (-4°F to 113°F)
5% to 95%, non-condensing
Stand Swivel (Left / Right) -20˚ ~ 20˚
Model Name PS51D6900 PS59D6900
Screen Size 51 inches 59 inches
Sound
(Output) 10 W X 2 15 W X 2
Dimensions (WxDxH)
Body
With stand 1195.9 x 38.0 x 719.4 mm
1195.9 x 305.0 x 783.1 mm
1378.4 x 38.0 x 827.3 mm
1378.4 x 335.0 x 886.3 mm
Weight
Without Stand
With Stand 22.4 kg
27.1 kg
30.6 kg
36.3 kg
✎ Design and specifications are subject to change without prior notice.
✎ For information about power supply, and more about power consumption, refer to the label attached to the
product.
[PD6900-XY]BN68-03423A-01Eng.indb 18 2011-02-25 오후 8:39:01
