Samsung HW-D550 User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete seNice,
please register your product at
www.samsung.com/register

features
Active Speaker System
This unit features an Active Speaker System that provides high sound quality in a single slim unit.
This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with
conventional surround sound systems.
Multi-function Remote Control
The supplied remote control can be used to control the TV connected to this unit.
The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button.
Special Sound mode
You can select from 7 different sound modes (MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, PASS (Original
Sound)) depending on the type 8f content you want to enjoy.
Compatibility with various audio Technologies
This unit employs decoders compatible with Dolby Digital and DTS (Digital Theater Systems).
- Dolby Digital
This is the standard audio signal format used on DVDs and other purely digital media.
This surround technology delivers high-quality digital audio of up to 5.1 discrete channels to produce a
directional and more realistic effect.
- DTS (Digital Theater Systems)
DTS provides a discrete 5.1 CH digital audio signal for both music and movie content and uses less
compression than Dolby Digital for richer sound.
Wireless Subwoofer
Samsung's wireless module does away with cables running between the main unit and the subwoofer.
Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.
3D Depth Sound
The 3D sound feature adds depth and spaciousness to your listening experience.
HDMI
HDMI transmits video and audio signals simultaneously, and provides a clearer picture.
And the unit supply ARC function so you can listen TV sound with Crystal Surround Air Track by using only HDMI
Cable. (This function is only available if an ARC-compliant TV is connected.)
2

WHAT'S INCLUDED
Check for the supplied accessories below,
I
HOMI Cable (A to C type)
(AH39~01135A)
UserManual
(AH68-02334A)
y'.. . ..•...•.• ., ...•
. .' RemoteCpntrot
I Batteries (AAA size)
(AH59~02330Al 4301-000116)
Audio Cable
(AH39~01077A)
Bracket-WaltMount .
(AH61-02952A)
(For Subwoofer power cable 1 EA)
Toroidal FeniteCore
(3301~000144)
• The accessories may look slightly different than those pictured above.
3

SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER·SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
A
The lighting flash and Arrowhead within
Triangle Is a waming sign alerting you of
dangerous voltage Inside the product
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The explanation point within the triangle is a
warning sign alerting you of important
instructions accompanying the product.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent
electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against hamnful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radiofTV technician for help.
Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for
future reference.
1) Read these instructions.
2) Keep these Instructions.
3) Heed all wamings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement olthe obsolete outlet.
4
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachment/accessories (I
specified by the manufacturer.
12) Use only with the cart, stand, tripod, •
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip·over.
13) Unplug this apparatus during lightning stomns or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.

PRECAUTIONS I
'", 3.9InC~····
~ •• I27Inch
3.9 inch
... ~
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product. Install your
product horizontally,
on asuitable base (furniture), with enough space around it for ventilation (3-4 inches). Make sure the ventilation slots
are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use.
In order to disconnect the unit completely from the power supply, remove the main plug from the wall ouilet, especially when left unused
for along period of time.
During thunderstorms, disconnect the AC main plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
Protect the product from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
Disconnect the power cable from the AC supply if the unit malfunctions.
Your product is not intended for industrial use. Use of this product is for
personal use only.
Condensation may occur if your product has been stored in cold tem-
peratures. If transporting the unit during the winter, wait approximately 2
hours until the unit has reached room temperature before using.
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
5

cooteo~ts",,----- _
6
FEATURES
SAFETY INFORMATION
GETTING STARTED
DESCRIPTIONS
REMOTE CONTROL
CONNECTIONS
FUNCTIONS
TROUBLESHOOTING
APPENDIX
2Features
3What's included
4Safety warnings
5Precautions
7Before reading the user's manual
8Front panel
9Rear panel
10 Tour of the remote control
11 Installing the wall mount

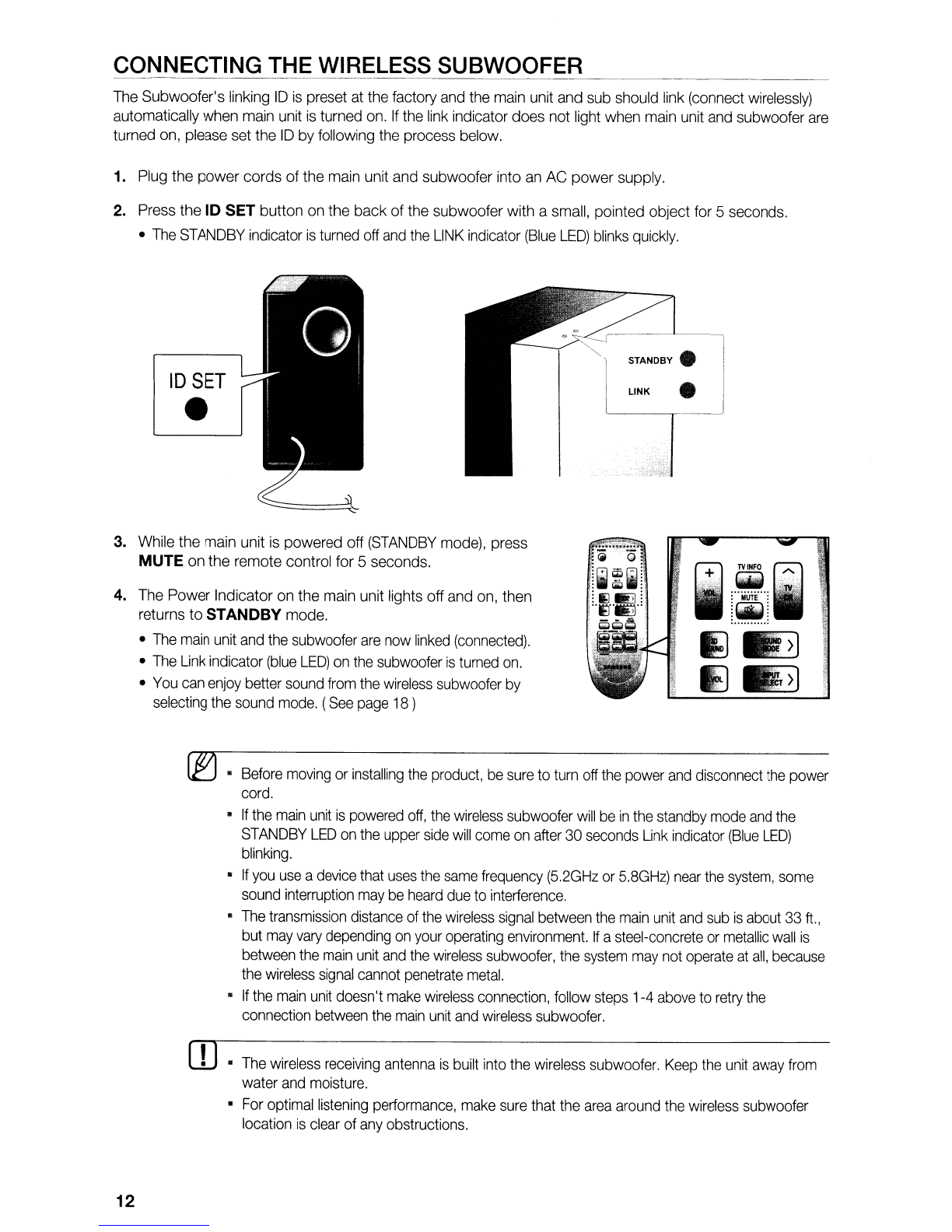

12 Connecting the wireless subwoofer
13 Attaching the toroidal ferrite core to the power
cord of the subwoofer
13 Installing toroidal ferrite to subwoofer
14 Use iPod/iPhone with awireless dock cradle
for iPod/iPhone (Sold Separately (HT-WDC10))
14 How to link the wireless transmitter with the
main unit
15 Connecting the Crystal Surround Air Track
17 Basic functions
17 Advanced functions
20 Software upgrade
21 Troubleshooting
22 Specifications

QettioQ startedL- _
BEFORE READING THE USER'S MANUAL
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
I
OJ
Caution
Note
This involves a case where a function does not operate or settings may be
canceled.
This involves tips or instructions on the page that help each function operate.
About the use of this user's manual
1) Be sure to be familiar with Safety Instructions before using this product. ( See page 4)
2) If a problem occurs, check the Troubleshooting. (See page 21 )
Copyright
©2011 Samsung Electronics Co.,Ud.
All rights reserved; no part or whole of this user's manual may be reproduced or copied without the prior
written permission of Samsung Electronics CO.,Ud.
7

FRONT PANEL
~. .
80 • 0',.' " (j S
snMSUNG
WDISPLAY
~ INPUTMODE
~ SOUNDMODE
[!J VOLUME +/-
[§J POWER BUnON
Displays the current mode.
Selects the HDMI, Optical, Audio or W.iPod input.
Selects the sound mode.
(MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, PASS
(Original Sound))
Controls the volume level.
Turns the Crystal Surround Air Track on and off.
•When you turn on the power of this unit, there will be a 4
to 5second delay before it
reproduces sound.
8

REAR PANEL
---..----(ID
-+-----1[ID
USB PORT
(FOR SIW UPDATES You can update this unit's software through the USB port.
ONLY)
•
o
m
(J)
(')
JJ
~
5
z
AUDIO IN JACK
DIGITAL AUDIO IN
1,2
HDMIOUTJACK
HDMI IN 1,2 JACKS
POWER SUPPLY
CABLE
Connect to the analog output of an extemal device.
Connect to the digital (optical) output of an extemal device.
Outputs digital video and audio signals simultaneously using an HOMI
cable.
Receives digital video and audio signafs simultaneously using an
HOMI cable.
Plug the power supply cable into the AC wall outlet.
OJ
• When disconnecting the power cable from the wall outlet, hold the plug.
Do not pull the cable.
•
Do not connect this unit or other components to the main power until all connections
between components are complete.
9

remote coo1rDJ~ _
TOUR OF THE REMOTE CONTROL
POWER BUTTON
Turns the Crystal Surround Air
Track on and off.
TV INFO
Use this to display the 1V
channel information.
VOLUME
Adjusts the volume level of the
unit.
MUTE
Mutes the sound from the
unit. Press again to restore
the sound to the previous
volume" level.
3D SOUND
This feature adds depth and
spaciousness to the sound.
SMART VOLUME
Regulates and stabilizes the
volume level against adrastic
volume change.
DIMMER,DRC
You can control the brightness
of the
Display.
You can use this function to
enjoy Dolby
Digital sound when
watching movies
at low volume
at night (Standard,
MAX, MIN).
TV POWER BUTTON
Turns your Samsung TV on
and off.
TV CHANNEL
Switches between the available
1V channels.
SOUND MODE
Selects the sound mode.
(MUSIC, NEWS, DRAMA,
CINEMA, SPORTS, GAME,
PASS (Original Sound))
INPUT SELECT
Selects the HDMI, the Digital
(Optical), the Audio or the W.
iPod input.
AUTO POWER
Synchronizes the Air Track via Optical
connection via the Optical jack so it
turns on automatically when you turn
on your TV.
Anynet+
Anynet + is a function that enables you
to control other Samsung Devices with
your Samsung TV's remote control.
AUDIO
This button allows you to
choose to listen to audio from
the Air track or your 1V.
SIW LEVEL, AV SYNC
Adjusts the Subwoofer level.
Used to help sync video to
audio when connected to a
digital1V.
•The remote control can operate TVs made by SAMSUNG only.
•Depending
on the TV you are using, you may not be able to operate your TV with this
remote control.
In this case, operate the TV using the TV's remote control.
Installing batteries in the Remote Control
1. Lift the cover at the back of
the remote control upward
as
shown.
2. Install two AAA size batteries.
Make sure to match the
"+" and "_" ends
of the batteries with the diagram inside the
compartment.
3. Replace the cover.
Assuming
typicallY usage,
the batteries
last for about
one
year.
Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a
horizontal angle of up to 30° from the remote control sensor.
10

connections
INSTALLING THE WALL MOUNT
You can use the wall mount bracket to mount this unit on a wall.
Installation Precautions
•Do not install on aplace other than avertical wall.
•For the installation, avoid alocation with high temperature
or humidity, or wall that cannot sustain the
weight of the set.
•Check the strength of the wall. If the strength of the wall
is insufficient for the product installation, make
sure
to reinforce the wall before the installation.
•Check the material
of the wall. If the wall is made of plaster board, marble, or iron board, purchase and
use the appropriate fixing screws.
•Cables connecting
to external devices need to be connected to the set before installing.
•Be sure
to turn off and unplug the unit before installation. Otherwise, it may cause electric shock.
I
•
(")
0'
z
z
~
o
~
1. Place the wall mount bracket on awall surface and then
secure
it with two screws (not supplied).
2. Then, fit the unit into the corresponding slots of the wall
mount bracket. For secure installation, make sure the
mounting studs slide firmly down into the bottom of the
slots.
3. This is the completion of the suggested wall mount
installation.
2
I
I "., ..
... ~~_ ._~ ~_ ... _~_~ __ ~~ ... 4
•2inches (5 cm) or more
•Do not hang onto the installed unit and avoid any impact to the unit.
•Secure the unit firmly to the wall so that it does not
fall off. If the unit falls off, it may result in
an injury or damage to the product.
•When the unit
is installed on awall, please make sure that achild does not pull any of
connecting cables, as
it may cause it to fall.
•For the optimal performance in awall mount installation, keep the speaker system at least
2inches (5 cm) distant from the lV.
11

CONNECTING THE WIRELESS SUBWOOFER
The Subwoofer's linking 10 is preset at the factory and the main unit and sub should link (connect wirelessly)
automatically when main unit is turned on. If the link indicator does not light when main unit and subwoofer are
turned on, please set the 10 by following the process below.
1.
Plug the power cords of the main unit and subwoofer into an AC power supply.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5seconds.
•
The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
10 SET
•
3. While the main unit is powered off (STANDBY mode), press
MUTE
on the remote control for 5seconds.
4. The Power Indicator on the main unit lights off and on, then
returns to STANDBY mode.
•
The main unit and the subwoofer are now linked (connected).
• The Unk indicator (blue LED) on the subwoofer is turned on.
• You can enjoy better sound from the wireless subwoofer by
selecting the sound mode. ( See page 18 )
• Before moving or installing the product. be sure to turn off the power and disconnect the power
cord.
• If the main unit is powered off, the wireless subwoofer will be in the standby mode and the
STANDBY LED on the upper side will come on after 30 seconds Unk indicator (Blue LED)
blinking.
• If you use a device that uses the same frequency (5.2GHz or 5.8GHz) near the system, some
sound interruption may be heard due to interference.
• The transmission distance of the wireless signal between the main unit and sub is about 33 ft.,
but may vary depending on your operating environment. If a steel-concrete or metallic wall is
between the main unit and the wireless subwoofer, the system may not operate at all, because
the wireless signal cannot penetrate metal.
• If the main unit doesn't make wireless connection, follow steps 1-4 above to retry the
connection between the main unit and wireless subwoofer.
! · The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from
water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer
location is clear of any obstructions.
12

ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER CORD OF
THE SUBWOOFER
If you attach a Toroidal ferrite core to the power cord of the Subwoofer, it
will help to prevent RF interference from radio signals.
1. Pull the fixing tab of the Toroidal ferrite core to open it.
2. Make three loops in the power cable of the subwoofer.
3. Attach the Toroidal ferrite core to the Subwoofer power cord as the figure
shows and press it until it clicks.
INSTALLING TOROIDAL FERRITE TO SUBWOOFER
I
•
o
o
z
z
m
g
o
z
CJJ
~
?=i'
"" 0
J""-.
0
'-
-
--
Lift up to release the lock and open the core.
~e§b:
-61==
Close the lock back.
Make two rounds on the coil with the power cable.
(Start winding at 5-1 Oem away from the switch).
13

USE iPod/iPhone WITH AWIRELESS DOCK CRADLE FOR iPod/iPhone
(Sold Separately (HT-WDC1
0))
You can enjoy finer quality of music through the speaker by sending iPodliPhone's audio signal using a
Wireless Transmitter.
To link the main unit with wireless transmitter, you have to make ID setting when both main unit and wireless
transmitter
are turned on.
Tum on the main unit and connect the iPodliPhone to the Wireless transmitter.
Then press INPUT SELECT button on the remote control to select "W iPod" mode.
The INPUT SELECT mode of the main unit will switches as follows.
Repeatedly press DIGI.1 • DIGI.2 • ANALOG. W iPod • HOMI.1 • HOMI.2 ( See page 19 )
The Sound bar will not be turned off if iPod/iPhone is not connected to the Wireless Transmitter.
For more information on HT-WDC10, refer to the HT-WDC1 O's user manual.
HOW TO LINK THE WIRELESS TRANSMITIER WITH THE MAIN UNIT
Set an 10 of the Subwoofer before setting a Transmitter ID. ( See page 12 )
1. Turn off your Home Theater (HW-D550, HW-D551).
2. Press the hold "3D SOUND" button on the remote control for 5 seconds.
The standby light on the HW-0550, HW-D551 will blink once.
3. Connect the iPod/iPhone to the Wireless transmitter.
4. Turn on the iPod/iPhone. Press the "10 SET" button on the back
of the Wireless transmitter
for 5seconds. The link light on the
wireless transmitter
will blink fast.
5. Turn on your Home Theater(make sure the wireless transmitter's Link
LED in ON). To listen to music from your iPod/iPhone over the Home '- ...J
Theater, select the iPod mode as the Home Theater's source.
• You can control the speaker volume of iPod/iPhone with a
volume
wheel or avolume bar.
• When iPod/iPhone is stopped or in apower saving mode. a
Wireless transmitter
is turned to the Sleep Mode.
When iPod/iPhone is turned to the Deep Sleep Mode, the
Wireless transmitter is off.
! · If you use the main unit nearby a wireless device such as a laptop computer, an AP, or Wifi.
any unstable operation error can happen.
• Do not pairing the subwoofer and iPod/iPhone at the same time. If you pairing at the same
time, iPod/iPhone and subwoofer may not connect to the Sound bar.
iPod/iPhone MODELS THAT CAN BE USED WITH THIS PRODUCT
iPod touch
(1 st, 2nd, 3rd, and 4th iPod classic iPod with video
generation)
iPod nano
(1st, 2nd, 3rd, 4th, 5th, iPhone 4iPhone 3GS
and 6th generation)
iPhone3G iPhone
• "Made for iPod," and "Made for iPhone" mean that an electronic Made for
accessory has been designed to connect specifically to iPod or [@] iPod C! iPhone
iPhone, respectively, and has been certified by the developer to meet
Apple performance standards. Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that the use of this accessory with
iPod or iPhone may affect wireless performance.
• iPhone. iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in
the U.S. and other countries.
• The volume control may not be operated normally except at the referred models. If there is any error
happened at the models above. please update the software of iPod/iPhone at the lastest version.
14

CONNECTING THE CRYSTAL SURROUND AIR TRACK
HOMI is astandard digital interface for connection to such devices as a TV, projector, OVO player, Blu-ray
player, set top box and more.
HOMI removes any loss of signal from analog conversion, enabling you to enjoy video and audio sound quality
as it was originally created in the digital source.
•
o
o
z
Z
m
o
""""
(5
z
en
TV
HOMI Cable ~B lillj
Atype. ~ ~=J.9
(large SIde) Digital Devices
~
~~
~c~pe
(Small Side)
-l
HDMIOUT ~
(ARC) HDMI Cable ~
~--f-+- ~ ~ ]JJ>------- HDMI IN
c~~ A~~
(Small Side) (large Side)
HDMIIN1,2
HDMI OUT (ARC)
• The ARC function will be activated in the 0lGI.1 mode.
• Connect an HOMI cable from the HOMI OUT jack on the back of the product to the HOMIIN jack on your TV.
• This product supports the ARC (Audio Return Channel) functions via an HOMI cable. Note that the ARC function is
supported by the HOMI OUT (ARC) port only.
• The ARC function allows digital audio to output via the HOMI OUT (ARC) port. It can be enabled only when the Air
Track is connected to a TV that supports the ARC function.
• Anynet+ must be turned on .
.AND,
HDMIIN 1,2
Connect an HOMI cable from the HOMIIN jack on the back of the product to the HOMI OUT jack on your digital
devices.
• The small side of the HOMI cable is connected with the Air Track.
• The provided accessory HOMI cable is for connecting SAT and TV. In case of connecting
devices having distance longer than the provided cable, purchase an A-to-C (Mini) type cable.
• When buying HOMI cable for connecting source devices, choose A-to-C (Mini) type cable
of enough length for the connection.
15

CONNECTING THE CRYSTAL SURROUND AIR TRACK
This section explains two ways (digital and analog) of connecting the unit to the 1V.
This unit is equipped with two optical digital jacks and one audio analog jack for connecting a 1V.
::~.'~~
:.~ ..... ~: .. j ++---+-t-
AUDIO IN
Audio Cable
or
TV
AUDIO
OUT
____ BD/OVD playerl
Set-top box!
Game console
or
Optical Cable
AUDIO IN
Connect AUDIO IN on the main unit to the AUDIO OUT of the 1V or Source Device.
Be sure to match connector colors.
or,
DIGITAL AUDIO IN (OPTICAL) 1,2
Connect the Digital Input on the main unit to the OPTICAL OUT of the lV or Source Device.
• Do not connect the power cord of this product or your 1V to the wall outlet until all
connections between components are complete.
• Before moving or installing this product, be sure to turn off the power and disconnect the
power cord.
• If you select IANALOG' without connecting the Audio Cable
l
the set is turned off automatically
after 20 minutes.
• If a1V or any device connected to Air Track with the optical cable is off and there is no
digital input, the Air Track is turned off after 20 minutes. (If there has been no input signal
for over 20 minutes from DIGITAL AUDIO IN 1 or 2, the Air Track will be turned off.)
• When Air Track isn1t linked with HT-WDC10 model in the W.iPod mode, Air Track will turn
off after 20 minutes.
16

BASIC FUNCTIONS
Turning the power on/off
1. Touch POWER ( <.9 ) on the front panel.
or,
Press POWER on the remote control to turn on the power.
2. Touch POWER ( <!,) ) on the front panel.
or,
Press POWER on the remote control again to turn off the power.
Adjusting the volume
Touch VOLUME +/- on the front panel.
or,
Press VOLUME +/- on the remote control to increase or decrease the
volume level.
• The numeric value of the volume level appears in the front panel display.
• The volume level increases or decreases when you press VOLUME +/-.
•
If you want to enjoy the sound only from the Crystal Surround Air Track,
you must turn off the TV's speakers in the Audio Setup menu of your
TV. Refer to the owner's manual supplied with your TV.
•
"T1
C
Z
(')
-l
o
Z
CJ)
ADVANCED FUNCTIONS
Muting the sound
----------------
This is useful when answering a doorbell or telephone call.
1. Press MUTE ( I:tS:: ) on the remote control to mute the sound.
2. Press MUTE on the remote control again (or press VOLUME +/-) to
restore the sound.
Using the 3D Depth Sound function
The 3D sound feature adds depth and spaciousness to the sound by using
3D SOUND button.
Press 3D SOUND on the remote control.
• Each time the button is pressed, the selection changes as follows:
3D SOUND ON - 3D SOUND OFF
• When you turn on the 3D Depth Sound, the Sound Mode will
automatically change to PASS.
17

,~~_~;~~:i?~'f,i:~~_ii;:
'"~.'·;:Y·;':":G:"'·
.;,1:. ~I>G-.
::-~ _... ~
llUTf
..
II] 1:I1I!i.Ii
Using the sound mode
You can select from 7 different sound modes (MUSIC, NEWS, DRAMA,
CINEMA, SPORTS, GAME, PASS (Original Sound)) depending on the type of
sources you want to enjoy.
Press SOUND MODE on the remote control <,> or touch SOUND MODE (tIJ)
on the front panel repeatedly to select the sound mode you want.
• Select PASS mode if you want to enjoy the original sound.
• It is recommended that you select a Sound Mode based on the
source material and your personal taste.
• When you choose the Sound Mode (except PASS), the 3D
Depth Sound will automatically be turned OFF.
Using the TV functions
1. Press TV POWER on the remote control of this unit.
2. Press TV INFO on the remote control to display the lV channel information.
3. Press TV CH on the remote control to select the lV channel.
• The remote control can operate lVs made by SAMSUNG only.
Using the AUTO POWER LINK function
The Crystal Surround Air Track is automatically tumed on when you tum the
power on of a lV or any device connected to the Air Track with the optical cable.
Press AUTO POWER on the remote control of this unit.
• Auto power link function tums on and off each time you press AUTO
POWER.
AUTO POWER LINK
ON
OFF
Display
POWER LINK ON
POWER LINK OFF
18
• If a lV or any device connected to Air Track with the optical
cable is off and there is no digital input, the Air Track is turned
off after 20 minutes.
• Only if Anynet+ function is 'off', the unit will work.
Using the SIW LEVEL function
You can control the base volume with sm Level button on the Remote
control.
1. Press the SIW LEVEL button on the Remote control.
2. "SW 00" is appeared on the Display.
3. Press "+" on the LEVEL key if you want to increase the subwoofer
volume. You can set it from SW+01 to SW+06.
4. Press "-" on the LEVEL key if you want to decrease the subwoofer
volume. You can set it from SW-01 to SW-06.

·~
Using the AV SYNC function
----------------
Video may look slower than the audio if it is connected with digital1V.
If this occurs, adjust the audio delay time to match the video.
Press AV SYNC +/-. button on the remote control of this unit.
• You can use + ,- button to set the audio delay time between 0 ms and
300 ms.
Using the DRC function
-------
This feature balances the range between the loudest and quietest sounds.
You can use this function to enjoy Dolby Digital sound when watching
movies at low volume at night.
Press DRC on the remote control of this unit.
• Each time the button is pressed, the selection changes as follows:
DRC MIN. DRC STANDARD. DRC MAX
Using the DIMMER function
This feature control the brightness of the Display.
Press DIMMER on the remote control of this unit.
• Each time the button is pressed, the selection changes as follows:
DIMMER ON • DIMMER OFF
Using the S.VOLUME function
This will regulate and stabilize the volume level against a drastic volume
change in case of a channel change or scene transition.
Press S.VOL on the remote control of this unit.
• Each time the button is pressed, the selection changes as follows:
SMART VOLUME ON • SMART VOLUME OFF
Using the input mode
You can select either HDMI, Optical Digital, Audio input or W.iPod input.
Press INPUT SELECT on the remote control <,> or touch INPUT SELECT
(liD on the front panel repeatedly to select the HDMI, Optical Digital, Audio
input or W.iPod input.
Input mode Display
DIGI.1
Optical Digital input
DIGI.2
Audio input ANALOG
iPod mode W.iPod
HDMI.1
HDMI input
HDMI.2
• Although it appears on the input mode display, iPod connection is not
possible with this model. It is only available with model HT-WDC10
(sold separately)
19
I
•
"T1
C
Z
~
5
z
C/)

Using the Anynet+(HDMI-CEC) function
Anynet + is a function that enables you to control other Samsung Devices with
your Samsung TV's remote control.
Anynet+ function turns on and off each time you press Anynet+.
1. Connect the product to a Samsung TV with the HDMI cable.
(See page 15)
2. Set the Anynet+ function on your TV. (See the TV instruction manual
for more information.)
•
The Anynet+ function supports some buttons of the remote control.
(TV POWER, TV INFO, TV CH)
s Depending on your TV, certain HDMI output resolutions may not
work.
s Please refer to the user's manual of your TV. Please check the
~~£: logo (If your TV has an ~~£: logo, then it supports
Anynet+ function.)
AUDIO button
This button enables you to select between listening to audio from your TV
or audio from the Air Track when connected via HOM!.
Press AUDIO on the remote control of this unit.
AUDIO MODE
MODE Scroll Display Display
HDMIIN
TV
HDMI AUDIO TV
SNDTV
AVR
HDMI AUDIO AVR HDMI
ARC
TV SOUND TV
SMUTE
AVR SOUNDAVR
TV ARC
SOFTWARE UPGRADE
Samsung may offer upgrades for the Crystal Surround
Air Track's system's firmware in the future.
Please visit Samsung.com or contact the Samsung call center
to receive information about downloading upgrades and
using a USB drive.
Upgrades will be possible by connecting a USB drive to the
USB port located on your Air Track.
• Insert a USB drive containing the firmware upgrade into the USB port on the back of the main unit.
• Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The
main unit will turn off automatically after completing the firmware upgrade.
When software is upgraded, settings you have made will return to their default (factory) settings. We recommend
you write down your settings so that you can easily reset them after the upgrade.
s If the firnware fails to upgrade, we recommend formatting the USB data in FAT16 and trying again.
• For upgrading purposes, do not format USB data in NTFS because it is not a supported file system.
s Depending on the manufacturer, the USB may not be supported.
20
